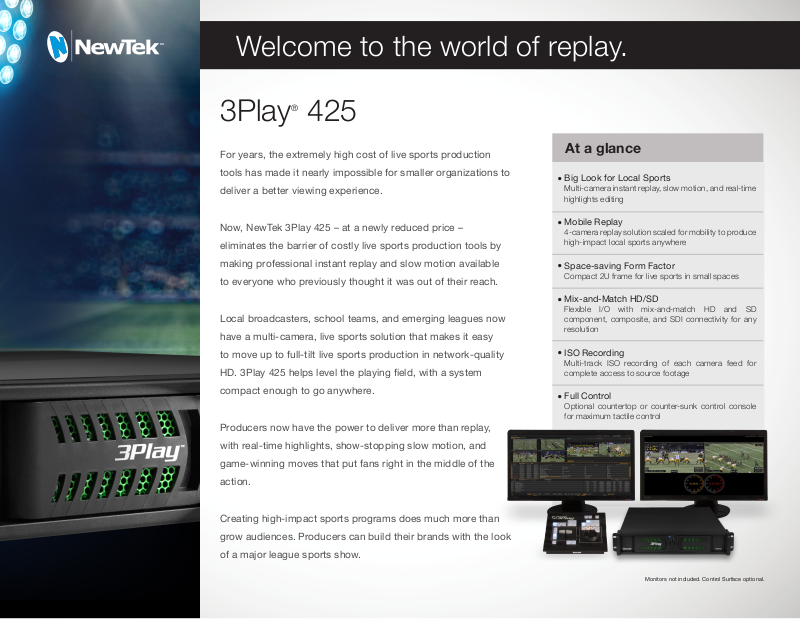

NewTek 3Play 425 Datasheet
•••
•
Welcome to the world of replay.
•
3Play® 425
For years, the extremely high cost of live sports production
tools has made it nearly impossible for smaller organizations to
deliver a better viewing experience.
Now, NewTek 3Play 425 – at a newly reduced price –
eliminates the barrier of costly live sports production tools by
making professional instant replay and slow motion available
to everyone who previously thought it was out of their reach.
Local broadcasters, school teams, and emerging leagues now
have a multi-camera, live sports solution that makes it easy
to move up to full-tilt live sports production in network-quality
HD. 3Play 425 helps level the playing eld, with a system
compact enough to go anywhere.
Producers now have the power to deliver more than replay,
At a glance
Big Look for Local Sports
•
Multi-camera instant replay, slow motion, and real-time
highlights editing
Mobile Replay
4-camera replay solution scaled for mobility to produce
high-impact local sports anywhere
Space-saving Form Factor
Compact 2U frame for live sports in small spaces
Mix-and-Match HD/SD
Flexible I/O with mix-and-match HD and SD
component, composite, and SDI connectivity for any
resolution
ISO Recording
Multi-track ISO recording of each camera feed for
complete access to source footage
Full Control
Optional countertop or counter-sunk control console
for maximum tactile control
with real-time highlights, show-stopping slow motion, and
game-winning moves that put fans right in the middle of the
action.
Creating high-impact sports programs does much more than
grow audiences. Producers can build their brands with the look
of a major league sports show.
Monitors not included. Control Surface optional.
Video Input
Video Output
Output Modes
Recording
Recording Format
Recording Capacity
Playback
Monitoring
Multi-Viewer
Audio Inputs
Audio Outputs
Supported Session
Formats
425 Tech Specs
®
Processing
A/V Standards
3Play
Time Code
Genlock
Controller
System Physical
NX-001854-0001, Rev. 05
© 2017 NewTek, Inc. All rights reserved. TriCaster, 3Play, TalkShow and LightWave 3D are registered trademarks of NewTek, Inc.
NDI, MediaDS, LightWave, ProTek, and Broadcast Minds are trademarks and/or service marks of NewTek, Inc.
Up to 4 simultaneous live video sources, in any combination of supported
connection types, resolutions, and frame rates
- Direct input of cameras and video devices in any combination of HD-SDI,
HD Component, SD-SDI, SD Component, Y/C (BNC), or Composite connections
- Per-input format conguration, scaler, and frame synchronizer enabling
intermixing of formats
2 fully independent playout channels, individually congurable for output via SDI
or Analog (congurable for Component or Y/C + Composite)
- HDMI output that follows the actively-controlled playout channel
- Ethernet connection for A/V output over a local network to TriCaster
A;B; A+B
Simultaneous recording of up to 4 live video sources
Native recording up to 1080p resolution in MPEG-2 all I-frame format
Accommodates ~40 hours 1080i via internal drive and 1TB removable media
drive (included)
- Trayless SATA III removable drive bay with hot-swap support for extended
storage and backup
- Simultaneous recording of 2 channels per drive
0% to 100% variable-speed playback
Resizable, full eld rate preview monitors for all live sources and playout channels
Supported with 2nd display, including playback data
4 SDI Embedded
3 x 2 Balanced 1/4”
1 x 2 Balanced XLR
2 SDI Embedded
1 x 2 Balanced XLR
1 x 2 Balanced 1/4”
- NTSC model: 1080/30p, 1080/24p, 1080/60i, 720/60p, 720/30p, 720/24p,
480/60i
- Multi-Standard model: NTSC 1080/30p, 1080/24p, 1080/60i, 720/60p, 720/30p,
720/24p, 480/60i; NTSC-J 1080/30p, 1080/24p, 1080/60i, 720/60p, 720/30p,
720/24p, 480/60i; PAL 1080/25p, 1080/24p, 1080/50i, 720/50p, 720/25p,
720/24p, 576/25i
Video: 4:4:4:4, 32-bit Floating Point
Audio: 4 channels, 96kHz, 32-bit Floating Point
HD-SDI video conforms to SMPTE 292M
SD video conforms to SMPTE 259M and ITU-R BT.656
Analog audio levels conform to SMPTE RP-155
External LTC source or internal system clock
Locks to HD or SD analog signals
Supports either tri-level or bi-level sync sources
Optional 3Play hardware control surface
- Surface ~ 10.0 W x 0.5 H x 11.6 D in (25.4 x 1.3 x 29.5 cm)
- Base ~ 9.0 W x 10.7 D in (22.9 x 27.2 cm)
- Base Height ~ 0.5-2.0 in (1.3-5.1 cm)
- 5.9 lbs (2.7 kg)
2U Rack Mount, with 430W power supply and multi-tiered hardware and software
fail-safe
- 19.0 x 3.5 x 21.5 in (48.3 x 8.9 x 54.6 cm)
- 26 lbs (11.8 kg)
®
3Play 425 User Interface
3Play 425 Multiview in Outputs display mode
Subject to change without notice.
For complete technical specications, please visit the 3Play 425 product page at www.newtek.com
Multi-standard pricing and availability may vary. Please contact your local reseller for details.
