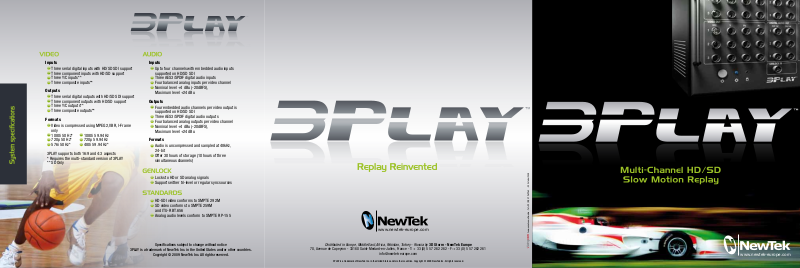

Newtek 3PLAY BROCHURE

Com muni cati on m ultim édia - T él. +33 (0)5 57 262 264

Inputs

Three serial digital inputs with HD/SD SDI support Three component inputs with HD/SD support Three Y/C inputs** Three composite inputs**

Outputs

Three serial digital outputs with HD/SD SDI support Three component outputs with HD/SD support Three Y/C outputs** Three composite outputs**

Formats

Video is compressed using MPEG2, VBR, I-Frame only 1080i 50 Hz* 720p 50 Hz* 576i 50 Hz*

1080i 59.94 Hz 720p 59.94 Hz 480i 59.94 Hz*

3PLAY supports both 16:9 and 4:3 aspects

* Requires the multi-standard version of 3PLAY ** SD Only

Inputs

Up to four channels with embedded audio inputs supported on HD/SD SDI Three AES3/SPDIF digital audio inputs Four balanced analog inputs per video channel Nominal level +4 dBu (-20dBFS), Maximum level +24 dBu

Outputs

Four embedded audio channels per video output is supported on HD/SD SDI Three AES3/SPDIF digital audio outputs Four balanced analog outputs per video channel Nominal level +4 dBu (-20dBFS), Maximum level +24 dBu

Formats

Audio is uncompressed and sampled at 48kHz, 24-bit Offer 30 hours of storage (10 hours of three simultaneous channels)

 Locks to HD or SD analog signals

Supports either tri-level or regular sync sources



HD-SDI video conforms to SMPTE 292M SD video conforms to SMPTE 259M and ITU-R BT.656 Analog audio levels conform to SMPTE RP-155

- V3 October 2009

www.newtek-europe.com

Specifications subject to change without notice

3PLAY is a trademark of NewTek Inc. in the United States and/or other countries.

70, Avenue de Capeyron - 33160 Saint-Medard-en-Jalles, France - T: + 33 (0) 5 57 262 262 - F:+ 33 (0) 5 57 262 261

Distributed in Europe, Middle East, Africa, Pakistan, Turkey - Russia by 3D Storm - NewTek Europe

info@newtek-europe.com

Com muni cati on m ultim édia - T él. +33 (0)5 57 262 264

www.newtek-europe.com

High deﬁnition, slow motion replay is no longer out of reach

with NewTek

. Now, sports broadcasters, teams,

leagues, schools and organizations have an affordable option

for multi-channel, HD/SD replay. The small size and portability of

3PLAY enhance production at any venue. The ability to connect

to any switcher provides the ultimate ﬂexibility for all production

environment. 3PLAY is the perfect replay solution for live production.

Capture all the action with synchronized, continuous recording and VGA display of up to

three video streams.

Deliver interpolated slow motion replays as soon as recording begins, without

interrupting capture.

Organize replays in separate lists using color coding to easily distinguish teams, players,

game periods, event types, highlights and more.

Play back key elements at variable speeds from multiple camera angles to give the

viewer a comprehensive look at the action.

Quickly export highlight reels of selected video segments including an edit decision list

for rapid tunraround.

gives sports broadcasters, leagues,

teams and schools an affordable option to deliver replay

slow motion for broadcast, webcast, arena scoreboard

displays and more.

NewTek / Phil Cassel

Replay pristine HD footage in 1080i or 720p with the ﬂexibility to run SD mode

with component, Y/C and composite in 16:9 or 4:3.

Supports PAL and NTSC with the multi-standard version.

Choose from two output modes. 1-Output mode allows the 3PLAY operator to

send a switched replay from multiple camera angles to the switcher. 3-Output mode allows the operator to control the playback speed and the switcher is fed all three outputs, allowing the director to choose the camera angle.

ISO recording provides the ability to edit the event in post for maximum

ﬂexibility and functionality.

Replace three HD decks or racks of additional drive bays at a fraction of the

cost.

SETTINGS, choose between 720p, 1080i or SD 16:9 or 4:3 and the 1-output or 3-output mode. 1-Output mode allows the 3PLAY operator to send a switched replay from multiple camera angles to the switcher. 3-Output mode allows the operator to control the playback speed while the switcher is fed all three outputs allowing the director to choose the camera angle.

RECORDING, start a synchronised and continuous recording of up to 3 live action sources and edit the event in post later for maximum ﬂexibility and functionality.

PREVIEW MONITORS, see your 3 Live action sources with on screen monitors and

get ready to pick up the best moments of the event.

ON-AIR MONITOR, see either the live action or the instant replay slow motion

sequence that is being broadcasted.

REPLAY LIST, organize replays in separate lists using color coding and tabs to

easily distinguish teams, players, game periods, event types, highlights and more.

CAMERAS, choose the best camera angle for the playback. Duplicate any item in

the list and tick the 3 different cameras to replay the 3 angles successively.

EXPORT, quickly export highlight reels of selected video segments in high quality

up to MPEG-2 Iframe 90Mbps VBR including an edit decision list.

INSTANT REPLAY SLOW MOTION PREVIEW MONITORS, play back key elements at variable speeds from multiple camera angles to give the viewer a comprehensive look at all the action.
