NEW HOLLAND T4OOOF/N/V
T4O3O T4O4O T4O5O
Offered in three widths to suit a range of specialist applications, the T4000F/N/V tractor
series match high power to weight ratios to best in class manoeuvrability. Key features
include power outputs of 78, 87 and 97 hp, a wide transmission offering, cab or ROPS
and a choice of front axles.
POWERFUL AND COMPACT
Powered by all-new four-cylinder engines, the T4000F/N/V tractor series offers
unrivalled performance in a compact package.
SPECIALIST VERSATILITY
Few specialist tractors can match the all-round versatility of a T4000F/N/V tractor.
Available with tight turning SuperSteer, with automatic 4WD, these tractors can be
used in a wide range of applications.
PRODUCTIVE COMFORT
Available with an advanced, fully sealed Blue Cab, T4000F/N/V tractors match
unrivalled comfort in the most unforgiving environments with brilliant all-round
visibility.
ENGINEERED TO REDUCE COSTS
Long engine service intervals and low fuel consumption reduce the whole life
operating costs of all T4000F/N/V models.
STYLISH NEW T4000F/N/V. GREAT LOOKS,
23
BRILLIANT PERFORMANCE
T4OOOV*
Turning radius (m) 3.4
Rear Tyres * 280/85R28 ** 320/85R24 *** 340/85R28
All 4
cylinder
models
2.093 mm
All 4
cylinder
models
2.348 mm
All 4
cylinder
models
2.348 mm
Turning radius (m) 2.9 Turning radius (m) 2.9
T4OOON** T4OOOF***
1061 mm
1229 mm
2173 mm
2148 mm
2173 mm
1398 mm
COMPACT FOUR-CYLINDER POWER
With torque as high as 398 Nm and torque reserves
of up to 46%, T4000F/N/V tractors bring massive
performance to a compact tractor package.
Developed by Fiat Powertrain Technologies, the Tier III
power units are smooth running, fuel efficient and
quiet. Proven in existing T5000 and T6000 tractors,
these engines have long service intervals to minimise
operating costs.
CLEAN, FOUR-CYLINDER
INTERCOOLED EFFICIENCY
ENGINE45
MORE POWER AND TORQUE. SAME
FUEL CONSUMPTION
All T4000F/N/V models develop more
power and greater torque at a lower engine
speed when compared to the previous
TN-A speciality series. This increase in
output is achieved without an increase in
fuel consumption, this remaining at an
optimum 219 g/kWh for the range topping
T4050F/N/V.
INTERCOOLED EFFICENCY
By cooling the engine intake air, the intercooler
fitted to the T4000F/N/V power units boosts
combustion efficiency. This is of particular benefit
in high ambient temperatures, overall fuel use and
power development remaining consistent,
regardless of conditions.
ENGINEERED FOR 100% BIODIESEL
All T4000F/N/V are designed to operate on
biodiesel fuels without costly modifications.
Talk to your New Holland dealer for full details.
0
150
300
450
600
+ 100%
TN-A T4050
EASIER TO LOOK AFTER
From the outset, New Holland has designed all
T4000 models for ease of maintenance. A fast
access fuel flap allows speedy refuelling
without raising the one-piece engine hood.
Engine service intervals are as high as 600
hours on the T4050F/N/V.
(Nm)(g/kWh)
(rpm)
(rpm)
(rpm)
20
30
40
0
10
50
60
70
80
250
300
350
400
210
220
230
240
450
500
1000 1100 1200 1300 14001500 1600 1700 1800 1900 20002100 2200 2300
1000 1100 1200 1300 14001500 1600 1700 1800 1900 20002100 2200 2300
1000 1100 1200 1300 14001500 1600 1700 1800 1900 20002100 2200 2300
(kW)
Power
Torque
Fuel consumption
T4050 TN95FA
+35% TORQUE BACK-UP
(hours)
TRANSMISSION67
POWER CLUTCH
Dual command transmissions are
available with a Power Clutch option.
This allows the operator to use a push
button on the main shift lever to operate
the clutch. This makes changes on the
move fast, smooth and comfortable.
DUAL COMMAND™ OFFERS SO MUCH MORE
The 32x16 Dual Command™ transmission with power
shuttle offers the same number of ratios as Split
Command, but allows a high low push button ratio 'split'
to be made under full load and without using the clutch.
A 44x16 Dual Command transmission is available to meet
specialist requirements.
A WIDE CHOICE OF EFFICIENT TRANSMISSIONS
Thanks to the modular build of T4000F/N/V
tractors, the transmissions can be easily
matched to end user needs. Advanced
features include power shuttle, power clutch
and creep speed options.
8
7
6
5
4
3
2
1
TRANSMISSION CHOICE
Dual Command™ (optional
creeper / 30 kph / 40 kph)
Dual Command™
(30 kph / 40 kph)
Powershuttle
(30 kph / 40 kph)
Power Clutch button
Hi-button
Lo-button
Power Clutch button
+ Gear change
Low dual power
High dual power
forwardreverse
kph
0551010 1515 2020 2525 3030 3535 4040
40,123
33,436
27,083
22,569
18,424
15,353
12,359
10,3
13,897
11,581
9,381
7,817
6,381
5,318
4,281
3,567
11,352
9,46
7,663
6,386
5,213
4,344
3,497
2,914
2,701
2,251
1,823
1,519
1,24
1,034
0,832
0,693
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
38,869
26,237
17,848
11,973
13,463
9,087
6,182
4,147
10,997
7,423
5,05
3,388
2,617
1,766
1,201
0,806
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
BL
BH
C
A
16x16
32x16
44x16
POWER SHUTTLE SPEED DIRECTION CHANGE
If a fast shuttle between forward and reverse is a priority,
consider the 16x16 Power Shuttle transmission. The
operator can simply use the electro-hydraulic shuttle lever
to change direction. From neutral, the shuttle lever can be
used to smoothly feed power to the transmission without
using the clutch.
CREEP SPEED OPTION
Creep speeds as low as 160 metres/hour are
available, enabling the tractor to carry out a
wide range of precision operations. These
transmissions are so flexible that this same low
speed can be matched to a ratio offering a 40
kph transport speed.
DESIGNED AROUND THE OPERATOR
Operator comfort is a key New Holland priority.
All controls are ergonomically designed and grouped
according to function. Noise and vibration levels are
tightly controlled, with light steering and class leading
visibility over the stylish engine hood all contributing to
reduced operator fatigue.
LOW CAB ROOF AND FOLDING ROPS
The Blue Cab models have a newly developed low
profile to reduce the overall height of the tractor.
ROPS models have a forward folding frame to clear
over-hanging crops or access low buildings.
SMALL IN SIZE, BIG IN COMFORT
OPERATOR ENVIRONMENT89
ALL THE INFORMATION YOU NEED
The new instrument display fitted to all
T4000F/N/V tractors is easy to read and
understand. The new display lists valuable
information including forward speed, PTO
speed, low fuel and the next service
interval.
HIGH COMFORT SEAT
Fitted with a deep cushion seat
pan and wide backrest, the seat
in T4000F/V/N tractors adjusts to
suit all sizes of operator. A choice
of mechanical or deluxe air
suspension seats are available.
BLUE CAB FOR HARSH ENVIRONMENTS
The sealed Blue Cab has thermostatically controlled air
conditioning developed to suit harsh environments. Antipollen plus recirculation filters remove dust and pollutants.
The ventilation system draws in 20% more air than the
standard cab. A range of carbon filters can be specified.
BRIGHT LIGHTS FOR DARK NIGHTS
Two work lights are incorporated within the
main headlight cluster. Cab models have
two worklights built into the front and rear
roof panel. ROPS tractors have a single
rear mounted fender light.
SPECIALIST TRACTORS FOR SPECIALIST NEEDS
The modular build of T4000F/N/V tractors enables New Holland to offer a broad range of specifications that exactly matches
your specialised need. The standard hydraulic flow of all models is 48.6 Lpm. Need more flow? Specify the Megaflow pump,
and output can be increased to 63.8 Lpm.*
T4000F/N/V. Factory built to your specification.
* Standard for the Australian market.
PTO AND HYDRAULICS10 11
DIRECT OUTPUT, NO LOSS OF POWER
Engaged via a servo assisted control, the rear pto on
T4000F/N/V tractors has a direct driveline to minimise
power loss. Maximum engine power is directed to the
PTO for optimum efficiency and performance. A
choice of Ground Speed/540/540E/1000 PTO speeds
are available.
HYDRAULIC LINKAGE SETTINGS
Hydraulic stabilisers can be specified to allow the
attachment to be offset to either side of the tractor.
The stabilisers can be set in a fixed or float position by
the push of a button. A levelling ram can also be
specified for the right lower link arm. Both systems
have a dedicated hydraulic supply.
DIRECT PTO POWER OUTPUT
REMOTES TO POWER SPECIALIST
ATTACHMENTS
Modern attachments can require three or more
remote valves. With T4000, this is not a
problem.
Up to three remotes, plus two push button
controlled flow dividers, allow up to five outlets
to be specified. Up to two mid-mount remotes
can also be fitted for use with front mounted
implements.
Oil flow rate can be adjusted as required by
using a simple control valve.
VERSATILE LINKAGE
WITH HIGH CAPACITY
For maximum versatility, the rear linkage is
adjustable to match Cat I or Cat II implements.
All T4000 F/V/N models offer high lift
capacities of up to 2600 kg on the T4000F
models. Quick-attach couplings are standard
with remote linkage controls to speed the
fitting and removal of attachments.
ADVANCED ELECTRONIC DRAFT CONTROL
FOR OPTIMUM PERFORMANCE
Electronic draft control, EDC, is available. Easy to operate and of
proven dependability, EDC on certain models can be linked to the axle
differentials. When the rear linkage is lowered, the differentials are
locked. As the linkage is raised, the differentials are unlocked.
MECHANICAL HYDRAULICS WITH LIFT-O-MATIC
The mechanical hydraulic system features proven Flexion Bar™ lower
link draft sensing. This offers excellent weight transfer performance
and easily adjusted sensitivity. Lift-O-Matic is standard and enables an
implement to be raised and lowered to its previous setting using a
single control. Also, a mechanical lift height control limiter ensures
accurate implement lift height setting which eliminates the risk of
damaging PTO shafts.
UNIQUE NEW HOLLAND FEATURES FOR
PRODUCTIVITY AND SAFETY
SuperSteer™ front axles with Auto 4WD management and dedicated front hitch are unique to New Holland. Offering an
effective steering angle of 76°, tractor with a SuperSteer™ front axle can offer a turn radius as low as 2.9 m for truly
outstanding agility. The way in which the axle moves as the steering lock is increased helps to reduce front wheel scrub.
SAVE TIME AND MONEY IMPROVED STABILITY
SUPERSTEER OFFERS SO MUCH MORE
With SuperSteer you get so much more than just a tight, clean turn. Front mounted equipment turns into work sooner and
the increased wheelbase transfers more weight to the front of the tractor. This decreases the need for front ballast when
working with heavy rear mounted implements.
PTO AND HYDRAULICS12 13
Load
+ 200 Kg
Conventional wheelbase
THE RIGHT FRONT AXLE
FOR YOUR NEEDS
All T4000F/N/V tractors are specified with
4WD front axles. The T4000F/N feature the
exclusive SuperSteer as standard. The turn
radius of the T4000F/N/V tractors can be as
low as 2.9 m. The 2WD specification is
available on both ROPS and cab models.

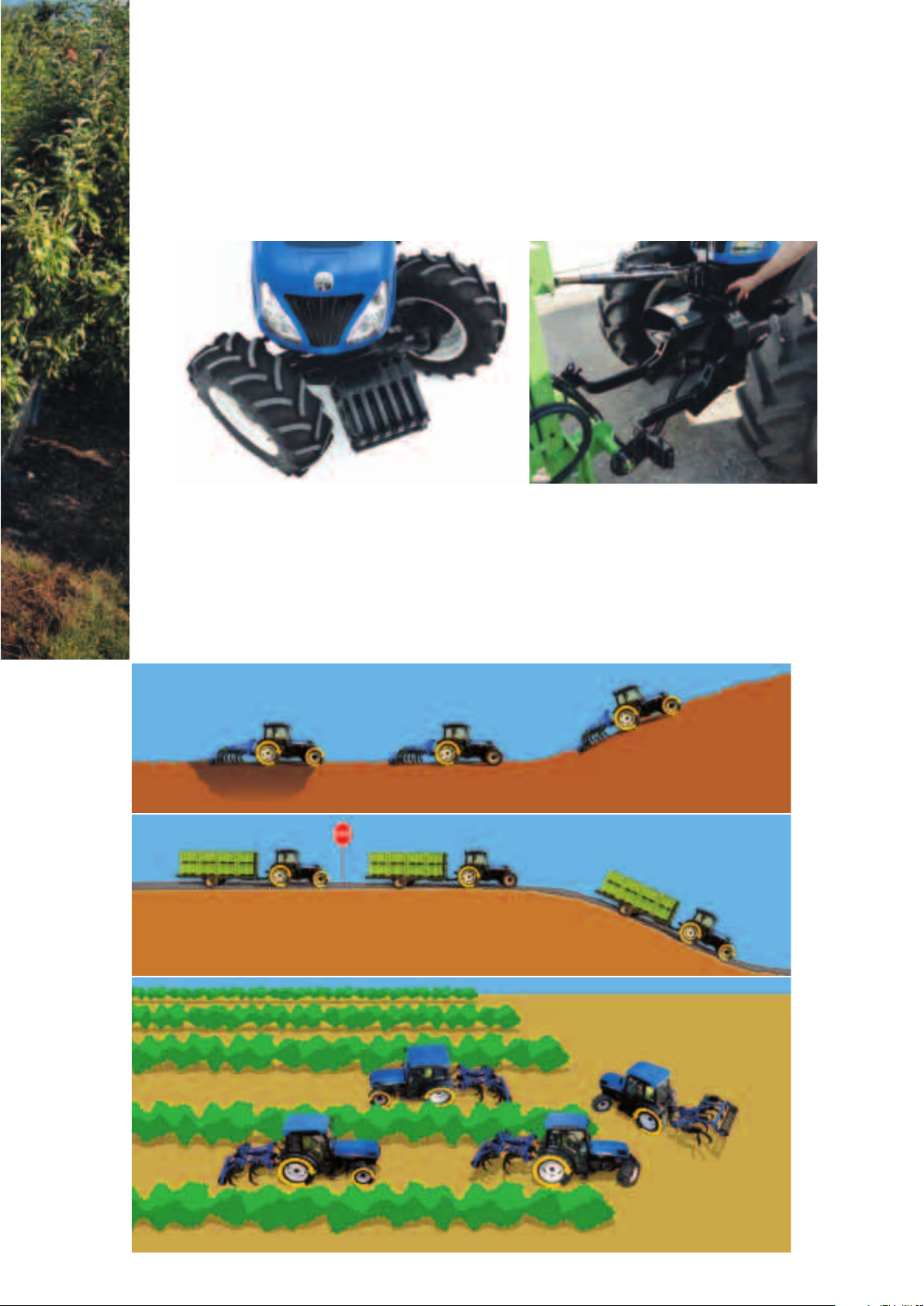

ADVANCED TRACTION MANAGEMENT
The acclaimed and proven New Holland automatic 4WD system is now available on all
T4000F/N/V models. The system engages drive to the front wheels if rear wheel slip
exceeds 5%* and on slopes of 10 deg plus*. For stability and safety, 4WD is also
engaged when both brake pedal are pressed. The front and rear differentials are
engaged and released by a dash mounted switch.
*Only T4000F/N models
VERSATILE SUPERSTEER
FRONT LINKAGE AND PTO
All T4000F models can be specified with an
axle mounted Cat I/II front linkage with quick
attach couplings and 1000 rpm PTO. Fully
integrated into the main hydraulic controls,
the front linkage can be easily and precisely
controlled. Remote exterior switches make
coupling attachments safe, fast and simple.
SPECIFICATIONS14 15
MODELS
T4030V IN IF T4040V IN IF T4050V IN IF
New Holland Engine* F5C F5C NEF
No. of cylinders / Capacity / Valves / Emissions Level 4 / 3200 / 2 / Tier III 4 / 3200 / 2 / Tier III 4 / 4500 / 2 / Tier III
Aspiration Turbocharged Turbocharged Turbocharged
Intercooler
Approved biodiesel Blend B100** B100** B100**
Rated Engine Power ISO TR14396 – ECE R120 [kW/hp(CV)] 57 / 78 65 / 88 71 / 97
Rated Engine Speed (rpm) 2300 2300 2300
Max. Torque ISO TR14396 (Nm) 330@1250rpm 352@1250rpm 398@1300rpm
Torque reserve (%) 39 30 35
Horizontal Exhaust
Vertical exhaust (Cab only) OOO
Internal EGR
Cooling method Liquid Liquid Liquid
Optimum fuel Consumption (g/kWh) 218 219 216
Fuel tank capacity (L) 73 73 73
Service Interval (hrs) 500 500 600
Transmission
Electro hydraulic diff. lock
Mechanical diff. lock – O O – O O – OO
Suspended pedals
Oil immersed braking system
16 x 16 Powershuttle (30kph / 40kph) OOO
Minimum speed (Without Creeper) (km/h) 0,7 0,7 0,7
32 x 16 Dual Command™ (30 kph / 40kph) OOO
Minimum speed (Without Creeper) (km/h) 0,7 0,7 0,7
44 x 16 Dual Command™ [Optional Creeper (30 kph / 40kph)] OOO
Minimum speed (With Creeper) (km/h) 0,17 0,17 0,17
Power Clutch (Dual Command™ transmission only) OOO
Front axle
4WD front axles O – O – O –
SuperSteer™ 4WD front axle – – –
Auto 4WD Standard / SuperSteer – / – / – / – / – / – / – / – / – /
Steering angle 4WD front axle (°) 55 55 – 55 55 – 55 55 –
Steering angle SuperSteer front axle (°) – 71 76 – 71 76 – 71 76
Turn radius 4WD front axle (mm) 3400 3400 – 3400 3400 – 3400 3440 –
Turn radius SuperSteer front axle (mm) – 2960 2900 – 2960 2900 – 3050 2980
Dynamic fenders – OO – OO – OO
Electro hydraulic diff. lock
Independent steering pump (28Lpm or 35.6Lpm Megaflow pump)
Front braking system OOO
Axle oscillation (°) 8 8 8
Hydraulic system
Standard pump flow (Lpm) 48,6 48,6 48,6
Optional MegaFlow™ pump flow (Lpm) 63,8 63,8 63,8
Mechanical draft control (MDC)
Lower link draft sensing
Lift-O-Matic™ system
Electronic draft control (EDC) OOO
Cont. lift capacity through the range (610mm behind the ball bar ends) (kg) 1835 1835 1835
Max. lift capacity at ball ends with arms horizontal (kg) 2600 2600 2600
Rear Linkage category I & II I & II I & II
Rear fender mounted Linkage controls (EDC only) OOO
Width adjustable link ends OOO
Hydraulically adjustable right hand lift rod adjustment and sway restriction OOO
Max. no. remote outlets (Rear/Mid) 6/4 10/4 10/4 6/4 10/4 10/4 6/4 10/4 10/4
Flow control OOO
Two mid-mount remotes with flow control Rear Mid mount Rear Mid mount Rear Mid mount
div. valve div. valve div. valve
SuperSteer™ front lift & PTO (Electronically engaged) – OO – OO – OO
Max. front linkage lift capacity at ball ends (kg) – 1275 1275 – 1275 1275 – 1275 1275
PTO
Servo-assisted engagement
Ground speed OOO
540 / 540E / 1000
F
G
C
B
A
D
E
Operator environment
Rubber isolation blocks
Lateral levers
Suspended platform (with mid mounted foldable ROPS)
Electronic instrumentation
Cab OOO
Air conditioning OOO
Blue Cab
Max. noise level*** (dBA) 79 79 79
Dimensions & Weights****
A Wheelbase 4WD (mm) 2093 – – 2093 – – 2180 – –
A Wheelbase SuperSteer™ 4WD front axle (mm) – 2348 2348 – 2348 2348 – 2435 2435
B Overall length 4WD (mm) 3925 3914 3914 3925 3914 3914 4012 4001 4001
C Minimum overall width (mm) 1061 1229 1398 1061 1229 1398 1061 1229 1398
D Height to top of ROPS (mm) 2249 2274 2274 2249 2274 2274 2335 2360 2274
D Height to top of cab (mm) 2148 2173 2173 2148 2173 2173 2148 2173 2173
E Height at centre rear axle to top of cab (mm) 1648 1648 1648
F Ground clearance min (mm) 270 290 323 270 290 323 270 290 323
G T4000V front wheel track setting 4WD (mm) 879 - 985 879 - 985 879 - 985
G T4000N front wheel track setting 4WD (mm) 1075 - 1251 1075 - 1251 1075 - 1251
G T4000F front wheel track setting 4WD (mm) 1062 - 1492 1062 - 1492 1190 - 1492
G T4000V rear wheel track setting 4WD (mm) 861 - 1261 861 - 1261 861 - 1261
G T4000N rear wheel track setting 4WD (mm) 1003 - 1273 1003 - 1273 1003 - 1273
G T4000F rear wheel track setting 4WD (mm) 1130 - 1530 1130 - 1530 1108 - 1371
T4000V Weights***** 2WD/4WD (kg) 2459 / 2710 2459 / 2710 2531 / 2790
T4000N Weights***** 2WD/4WD (kg) 2546 / 2762 2546 / 2762 2618 / 2852
T4000F Weights***** 2WD/4WD (kg) 2840 / 2910 2840 / 2910 2930 / 3000
Max. permissible weight (kg) 3800 4000 4300 3800 4000 4300 3800 4000 4300
*Developed by Fiat Powertrain Technologies **Conditions apply ***Cab model only ****Rear Tyres T4000 F = 340/85R28, T4000N = 320/85R24, T4000V 280/85R28 *****With driver (85kg) and full fuel tank
Standard O Optional – Not available
MODELS
T4030V IN IF T4040V IN IF T4050V IN IF
AT YOUR OWN DEALER
Visit our web site at: www.newholland.com - tel: +61 2 9673 7777
31-53 Kurrajong Road, St Marys NSW 2760
The data indicated in this folder is approximate. The models described here can be subjected to modifications without any notice by the manufacturer.
The drawings and photos may refer to equipment that is either optional or intended for other countries. Please apply to our Sales Network for any further
information. Published by New Holland Brand Communications. Bts Adv. - Printed in Australia - T4000F/N/V 06/09
Safety begins with a thorough understanding of the
equipment. Always make sure you and your operators
read the Operator’s Manual before using the
equipment. Pay close attention to all safety and
operating decals and never operate machinery
without all shields, protective devices and
structures in place.
YOUR SUCCESS - OUR SPECIALTY
NEW HOLLAND.
A REAL SPECIALIST IN YOUR
AGRICULTURAL BUSINESS.
Loading...
