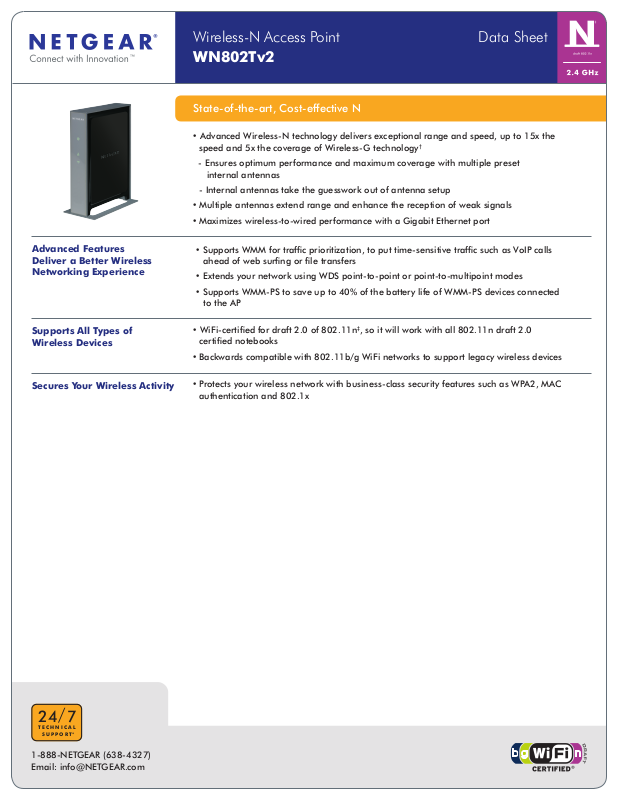

Wireless-N Access Point Data Sheet

WN802Tv2

State-of-the-art, Cost-effective N

- Ensures optimum performance and maximum coverage with multiple preset

Advanced Features
Deliver a Better Wireless
Networking Experience

Supports All Types of
Wireless Devices

Secures Your Wireless Activity

• Advanced Wireless-N technology delivers exceptional range and speed, up to 15x the
speed and 5x the coverage of Wireless-G technology

internal antennas

- Internal antennas take the guesswork out of antenna setup

• Multiple antennas extend range and enhance the reception of weak signals

• Maximizes wireless-to-wired performance with a Gigabit Ethernet port

• Supports WMM for trafc prioritization, to put time-sensitive trafc such as VoIP calls
ahead of web surng or le transfers

• Extends your network using WDS point-to-point or point-to-multipoint modes

• Supports WMM-PS to save up to 40% of the battery life of WMM-PS devices connected
to the AP

• WiFi-certied for draft 2.0 of 802.11n‡, so it will work with all 802.11n draft 2.0
certied notebooks

• Backwards compatible with 802.11b/g WiFi networks to support legacy wireless devices

• Protects your wireless network with business-class security features such as WPA2, MAC
authentication and 802.1x

†

1-888-NETGEAR (638-4327)
Email: [e-mail]

Wireless-N Access Point WN802Tv2

Desktop PCs connect
with RangeMax
Wireless-N Adapters
(WN311B or WN111)

Notebook PC with internal
Wireless-N or RangeMax
Wireless-N adapters
(WN111, WN511B
or WN711)

Connects

to power

Connects to ProSafe

®

Dual WAN Gigabit
SSL VPN Firewall
(FVS336G)

Connects to
Cable/DSL
modem

System Requirements

2.4 GHz 802.11n draft 2.0 –
specication adapter or 2.4 GHz

802.11 b/g wireless adapter
Microsoft –

®

Windows® Vista™, XP, 2000,

98, Me, Mac® OS, UNIX®, or Linux®
Internet Explorer –

®

6.0

We recommend using this product with –
the RangeMax™ Wireless-N Adapters
(WN511B, WN311B, WN111,
WN711, WNDA3100)

Standards•

IEEE 802.11n draft version 2.0, –
IEEE 802.11g, IEEE 802.11b, 2.4 GHz

Wireless Distribution System (WDS) –
(repeater mode)

Wi-Fi Multimedia™ (WMM) to optimize –
audio, video, and voice applications

Wi-Fi Multimedia Power Save –
(WMMPS, a.k.a., Unscheduled
Automatic Power Save Delivery
(u-APSD)) to save battery life on
Wi-Fi phones

Physical Specifications

Dimensions: 177.5 x 130 x 35 mm –
(7 x 5.1 x 1.4 in)

Weight: 0.399 kg (0.88 lb) –

Security•

Wi-Fi Protected Access™ –
(WPA2-PSK, WPA-PSK)

Wired Equivalent Privacy (WEP) 64 bit, –
128 bit and 152 bit encryption for IEEE

802.11b and IEEE802.11g
Wireless access control to identify –

authorized wireless network devices
MAC address authentication –

802.1x RADIUS support with EAP TLS, –
TTLS, PEAP

Warranty•

NETGEAR 3-year Warranty –

Package Contents

Wireless-N Access Point (WN802Tv2) –
12V, 1.0A power adapter, localized to –

country of sale
Ethernet cable –
Stand –
Resource CD –
Installation guide –
Warranty/support information card –

NETGEAR Related Products

Notebooks•

RangeMax™ Wireless-N Notebook –
Adapter (WN511B

RangeMax™ Wireless-N USB 2.0 –
Adapter (WN111)

RangeMax™ Dual Band Wireless-N –
USB Adapter (WNDA3100)

RangeMax™ Wireless-N ExpressCard –
Adapter (WN711)

Desktops •

RangeMax™ Wireless-N PCI Adapter –
(WN311B)

RangeMax™ Wireless-N USB 2.0 –
Adapter (WN111)

Storage •

ReadyNAS Duo (RND2150) –

Ordering Information

North America: WN802T-200NAS –
Italy, Sweden, France and Germany: –

WN802T-200ISS
UK: WN802T-200UKS –
Germany: WN802T-200GRS –
Australia/Pacic: WN802T-200AUS –

®
