Netgear GS516T Reference Manual

PORT

10/100/1000

Mbps

Copper Gigabit Switch

Installation Guide

MODEL

GS 516

Trademarks

NETGEAR®is a registered trademark of NETGEAR, Inc. in the United States and other Countries. All other trademarks and registered trademarks are the property of their perspective owners.

Statement of Conditions

In the interest of improving internal design, operational function, and/or reliability, NETGEAR reserves the right to make changes to the products described in this document without notice.

NETGEAR does not assume any liability that may occur due to the use or application of the product(s) or circuit layout(s) described herein.

Certificate of the Manufacturer/Importer

It is hereby certified that the NETGEAR Model GS516T Copper Gigabit Switch has been suppressed in accordance with the conditions set out in the BMPT-AmtsblVfg 243/1991 and Vfg 46/1992.The operation of some equipment (for example, test transmitters) in accordance with the regulations may, however, be subject to certain restrictions. Please refer to the notes in the operating instructions.

Federal Office for Telecommunications Approvals has been notified of the placing of this equipment on the market and has been granted the right to test the series for compliance with the regulations.

Voluntary Control Council for Interference (VCCI) Statement

This equipment is in the first category (information equipment to be used in commercial and/or industrial areas) and conforms to the standards set by the Voluntary Control Council for Interference by Data Processing Equipment and Electronic Office Machines that are aimed at preventing radio interference in commercial and/or industrial areas.

Consequently, when this equipment is used in a residential area or in an adjacent area thereto, radio interference may be caused to equipment such as radios and TV receivers.

iii

Federal Communications Commission (FCC) Compliance Notice:Radio Frequency Notice

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

• This device may not cause harmful interference.

• This device must accept any interference received, including interference that may cause

undesired operation.

Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

EN 55 022 and EN 55 024 Statements

This is to certify that the Model GS516T Copper Gigabit Switch is shielded against the generation of radio interference in accordance with the application of Council Directive 89/336/EEC, Article 4a. Conformity is declared by the application of EN 55 022 Class A (CISPR 22) and EN 55 024.

Warning: This is a Class A product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take appropriate measures.

Canadian Department of Communications Radio Interference Regulations

This digital apparatus (NETGEAR Model GS516T Copper Gigabit Switch) does not exceed the Class A limits for radio-noise emissions from digital apparatus as set out in the Radio Interference Regulations of the Canadian Department of Communications.

Règlement sur le brouillage radioélectrique du ministère des Communications

Cet appareil numérique (NETGEAR Model GS516T Copper Gigabit Switch) respecte les limites de bruits radioélectriques visant les appareils numériques de classe A prescrites dans le Règlement sur le brouillage radioélectrique du ministère des Communications du Canada.

Customer Support

For assistance with installing and configuring your NETGEAR system or with questions or problems following installation:

• Check the NETGEAR Web page at http://www.NETGEAR.com.

• Call Technical Support at the phone number listed on the Support Information Card that shipped with

your switch.

• Email Technical Support at support@NETGEAR.com.

Defective or damaged merchandise can be returned to your point-of-purchase representative.

Internet/World Wide Web

NETGEAR maintains a World Wide Web home page that you can access at the universal resource locator (URL) http://www.NETGEAR.com.A direct connection to the Internet and a Web browser such as Internet Explorer or Netscape are required.

contents v

CONTENTS

CHAPTER 1

Introduction

Features 1-1 Package Contents 1-2

CHAPTER 2

Physical Description

Front Panel 2-1 RJ-45 2-2 Auto-uplink

2-2 LEDs 2-4 Rear Panel 2-4

CHAPTER 3

Applications

Desktop Switching 3-1 Segment Switching and Bridging from 10 Mbps or 100 Mbps to 1000 Mbps 3-2

CHAPTER 4

Installation

Preparing the Site 4-1 Installing the Switch on a Flat Surface 4-2 Installing the Switch in a Rack 4-2 Connecting Devices to the Switch 4-2 Verifying Installation 4-3

CHAPTER 5

Troubleshooting

contents vi

APPENDIX A

Technical Specifications B-1

APPENDIX B

Connector Pin Assignments

RJ-45 Plug and RJ-45 Connector B-1

APPENDIX C

Cabling Guidelines

Using 1000BASE-T Gigabit Ethernet over Category 5 Cable C-1 Overview C-1 Cabling C-1 Length C-1 Return Loss C-2 Near End Cross Talk (NEXT) C-2 Patch Cables C-3 Conclusions C-3 Fast Ethernet Cable guidelines C-3 Category 5 Cable C-4 Category 5 Cable Specifications C-4 Twisted Pair Cables for 1000BASE-TX C-5 Patch Panel and cables C-6

contents vii

FIGURES

Figure 1-1. Model GS516T Switch Package Contents 1-2

Figure 2-1. Front Panel of the Model GS516T Switch 2-1

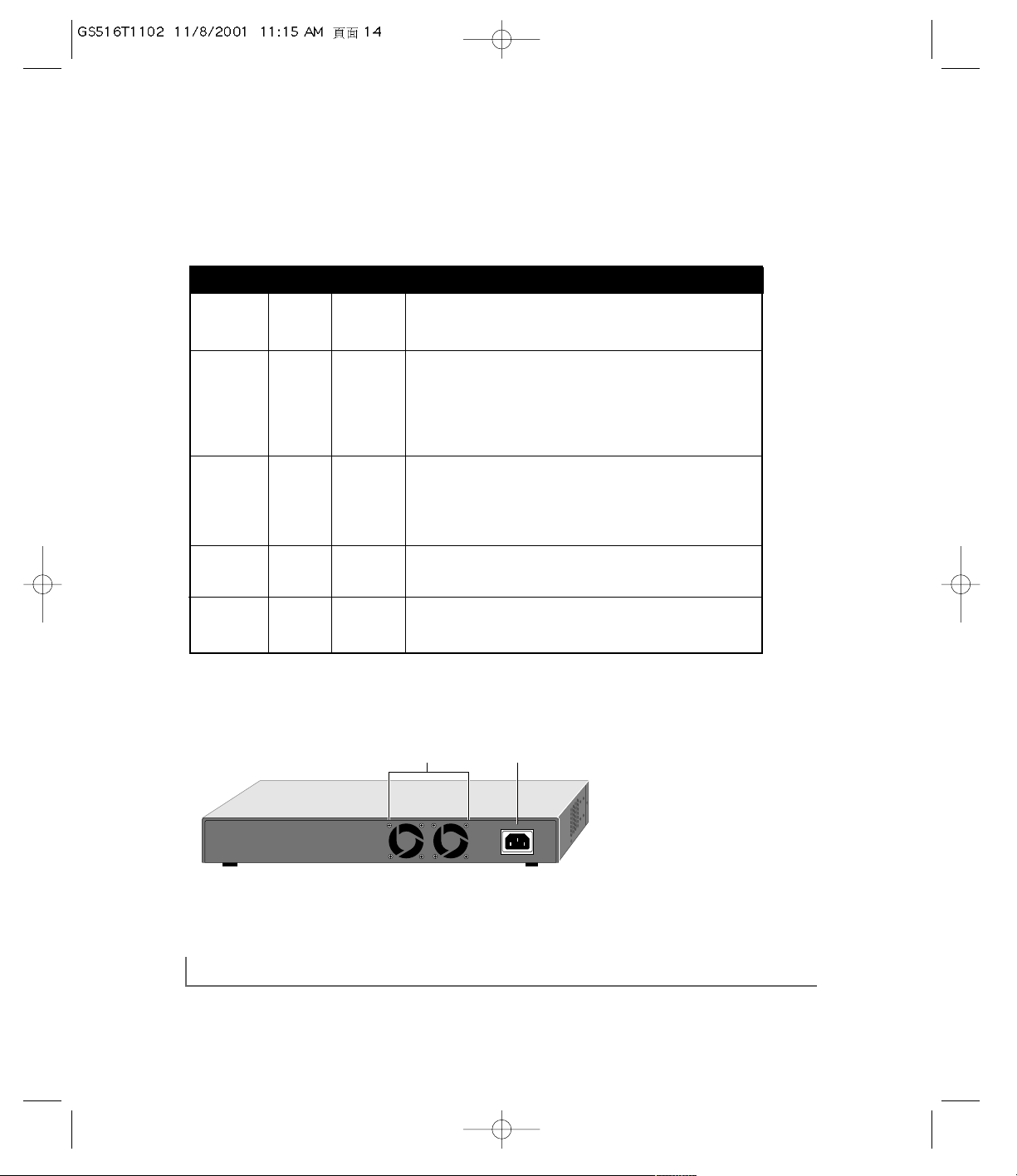

Figure 2-2. Rear Panel of the Model GS516T Switch 2-2

Figure 2-3. Warning! Creating loops disables your network

(Example 1) 2-3

Figure 2-4. Warning! Creating loops disables your network

(Example 2) 2-3

Figure 3-1. Model GS516T Switch Used as a Desktop Switch 3-1

Figure 3-2. Model GS516T Switch Used as a Segment Switch 3-2

Figure 4-1. Attaching Mounting Brackets 4-2

Figure 4-2. Connecting to the Model GS516T Switch 4-3

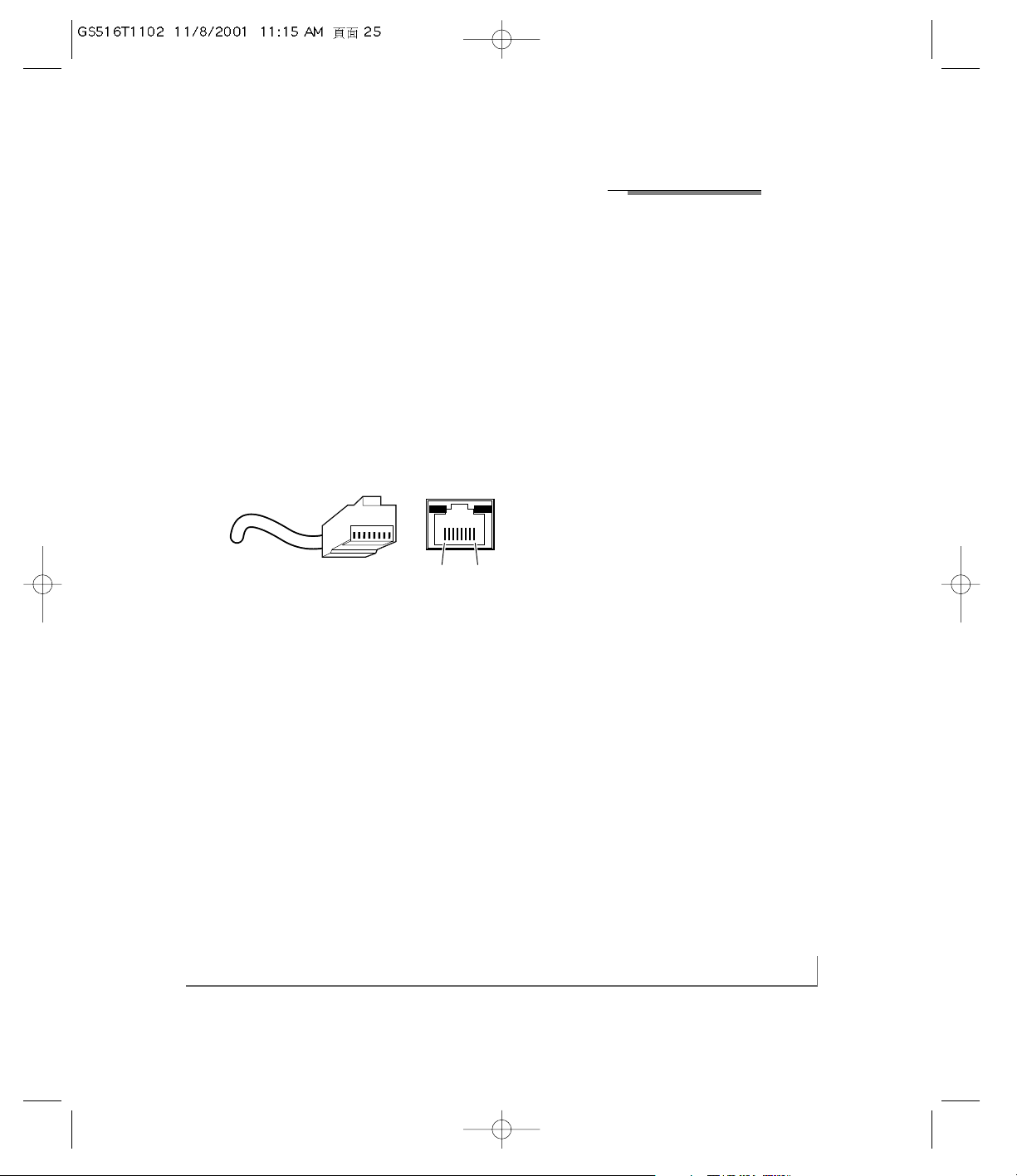

Figure B-1. RJ-45 Plug and RJ-45 Connector

with Built-in LEDs B-1

Figure C-1. Straight-through Twisted Pair Cable C-5

Figure C-2. Crossover Twisted Pair Cable C-5

Figure C-3. Category 5e UTP Patch Cable with

Male RJ-45 Plug at Each End C-6

contents viii

TABLES

Table 2-1. LED Descriptions 2-4

Table 4-1. Operating Environment Requirements 4-1

Table 5-1. Troubleshooting Information 5-1

Table B-1. 10/100/1000 Mbps RJ-45 Plug and RJ-45

Connector Pin Assignments B-2

Table C-1. Electrical Requirements of Category 5 Cable C-4

introduction 1-1

CHAPTER 1: INTRODUCTION

The NETGEAR Model GS516T 16-Port Copper Gigabit Switch provides you with a low-cost, high-performance network solution and is designed to anchor and interconnect 10/100/1000 megabits per second (Mbps) workgroups using copper Gigabit links.

Features

The Model GS516T switch has the following key features:

• 16 full-duplex copper Gigabit ports with standard RJ-45 connectors

• Automatic address learning function to build the packet-forwarding

information table. The table contains up to 8,000 media access control (MAC) addresses (that is, the switch can support networks with as many as 8,000 devices).

• Address aging function to automatically track changes in network configuration

• Protocol independence and compatibility with all common protocols, such as

TCP/IP, Netware, DECNet, Microsoft Networks, and AppleTalk

• Full-duplex mode to double throughput of point-to-point connections by letting indi-

vidual ports transmit and receive concurrently when the other end also supports full-duplex mode

• Wire-speed filtering and forwarding of the traffic

• Store-and-forward intelligent processing to minimize erroneous packets on the net-

work

• Easy Plug and Play installation with no software to configure, which saves time and

minimizes the potential for configuration errors

• Auto Uplink

in all ports to make the right connection

• Auto-negotiation with link partners to speeds of 10, 1000, or 1000Mbps on all

ports

• Flow control traffic management to ensure no packets are dropped if there are

back-ups or bottlenecks in the network

introduction 1-2

Package Contents

Figure 1-1 illustrates the Model GS516T switch package contents.

Figure 1-1. Model GS516T Switch Package Contents

Verify that your package contains the following:

• Model GS516T switch

• Rubber footpads for tabletop installation

• The Installation Guide

• Rack mount kit for 19-inch rack installation

• Warranty & Owner Registration Card

• Support Information Card

• Power cord

Gree=FDX Yellow=COL

Blinking=Adfity on=10MLink

PORT

123

Gree=FDX Yellow=COL

Blinking=Adfity on=10MLink

91011

567

13 14 15

GS516T

physical description 2-1

CHAPTER 2: PHYSICAL DESCRIPTION

This chapter describes the hardware features of the NETGEAR Model GS516T Copper Gigabit Switch.

Front Panel

The front panel of the Model GS516T switch contains the following LEDs that correspond to each network port: FDX/COL (full-duplex/collision), Activity(RX/TX)/10Mbps . Each network port has its own link and speed LEDs (located above each port).

Figure 2-1. Front Panel of the Model GS516T Switch

Gree=FDX Yellow=COL

123

91011

Blinking=Adfity on=10MLink

Gree=FDX Yellow=COL

Blinking=Adfity on=10MLink

567

13 14 15

PORT

GS516T

Link and Speed LEDs
