Netgear CG3000DV2 User Manual

DOCSIS 3.0 N450 Wi-Fi Data Gateway CG3000Dv2 User Manual

August 2013 202-11278-02

350 East Plumeria Drive San Jose, CA 95134 USA

NETGEAR DOCSIS 3.0 N450 Wi-Fi Data Gateway

Support

Thank you for selecting NETGEAR products. After installing your device, locate the serial number on the label of your product and use it to register your product

at https://my.netgear.com. You must register your product before you can use NETGEAR telephone support. NETGEAR recommends registering your product through the NETGEAR website. For product updates and web support, visit http://support.netgear.com.

Phone (US & Canada only): 1-888-NETGEAR. Phone (Other Countries): Check the list of phone numbers at

http://support.netgear.com/general/contact/default.aspx.

Trademarks

NETGEAR, the NETGEAR logo, and Connect with Innovation are trademarks and/or registered trademarks of NETGEAR, Inc. and/or its subsidiaries in the United States and/or other countries. Information is subject to change without notice. © NETGEAR, Inc. All rights reserved.

Revision History

Publication Part Number Version Publish Date Comments

202-11278-02 v1.0 August 2013

Chapter 1 Connecting to the Internet

Chapter 2 Configuring Your Wireless Network

Gateway Front Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Gateway Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Label . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Wireless Performance and Gateway Location . . . . . . . . . . . . . . . . . . . . . . 9

View Basic Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Set Up Your Wireless Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Configure Wireless Settings Manually. . . . . . . . . . . . . . . . . . . . . . . . . . 13

Use Push 'N' Connect (WPS) Wireless Setup. . . . . . . . . . . . . . . . . . . . 15

Set Up Wi-Fi Multimedia . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Change the Password. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Chapter 3 Filtering Content

View Denial of Service (DoS) Attack Logs . . . . . . . . . . . . . . . . . . . . . . . . 22

Limit Internet Site Access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Allow Unrestricted Access. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Disable Gateway Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Chapter 4 Maintaining Your Network

View the Gateway Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

View the Connection Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Back Up and Restore Your Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

View the Event Log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Run the Diagnostic Utilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Ping Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Traceroute Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Chapter 5 Advanced Settings

Advanced Wireless Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

MAC Filtering. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

IP Filtering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Port Blocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Port Forwarding. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Table of Contents | 3

NETGEAR DOCSIS 3.0 N450 Wi-Fi Data Gateway

Port Triggering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41

DMZ Host. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42

LAN IP Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43

Reserve an IP Address for DHCP Use. . . . . . . . . . . . . . . . . . . . . . . . . . . .44

LAN Switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44

Configure Universal Plug and Play (UPnP) . . . . . . . . . . . . . . . . . . . . . . . .45

Set Networking Protocols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46

Enable Network Address Translation. . . . . . . . . . . . . . . . . . . . . . . . . . . . .47

Remove USB Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47

Chapter 6 Troubleshooting

Basic Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49

Connect to the Gateway’s Main Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . .49

Troubleshoot the ISP Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50

Troubleshoot a TCP/IP Network Using a Ping Utility . . . . . . . . . . . . . . . . .50

Test the LAN Path to Your Gateway . . . . . . . . . . . . . . . . . . . . . . . . . . .51

Test the Path from Your Computer to a Remote Device . . . . . . . . . . . .51

Appendix A Supplemental Information

Factory Default Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54

Technical Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55

Appendix B Notification of Compliance

1. Connecting to the Internet

For help installing the gateway, see the DOCSIS 3.0 N450 Wi-Fi Data Gateway CG3000Dv2 User Manual.

This chapter describes how to log in and monitor your gateway and includes these sections:

• Gateway Front Panel

• Gateway Rear Panel

• Label

• Log In to Your Gateway

• View Basic Settings

For information about product features and compatible NETGEAR products, visit the NETGEAR website at

http://www.netgear.com.

NETGEAR DOCSIS 3.0 N450 Wi-Fi Data Gateway

Gateway Front Panel

Power LED Downstream LED

Upstream LED Internet LED

WPS LED

Wireless LED

USB port

LAN Ethernet LEDs

Figure 1. Gateway front view

You can use the LEDs to verify status and connections. The following table lists and describes

each LED and button on the front panel of the gateway.

Table 1. LEDs and buttons

LED Description

• Solid green. Power is supplied to the cable modem.

• Blinking. The modem is performing a power-on self-test.

Power

Downstream

• Red. The unit is performing a self-test, or the thermal cutoff circuit has been triggered.

• Off. The modem is not receiving power.

• Blue. More than one downstream channel is locked.

• Green. One downstream channel is locked.

• Blinking green. The unit is scanning for a downstream channel.

• Off. No downstream channel is locked.

Connecting to the Internet

NETGEAR DOCSIS 3.0 N450 Wi-Fi Data Gateway

LED Description (continued)

• Blue. More than one upstream channel is locked.

• Solid. One upstream channel is locked.

Upstream

Internet

LAN (Ethernet)

Wireless

On/Off

• Blinking green. The unit is ranging on the upstream.

• Off. No downstream channel is locked.

• Solid green. The cable modem is online.

• Slow blink. The cable modem is receiving DHCP information.

• Fast blink. The cable modem is downloading the configuration file.

• Off. The cable modem is offline. Green indicates 1,000 Mbps. Amber indicates 100/10 Mbps.

• Solid. An Ethernet device is connected and powered on.

• Blinking. Data is being transmitted or received on the Ethernet port.

• Off. No Ethernet device is detected on the Ethernet port.

• Solid green. The wireless card is plugged in and enabled.

• Blinking. There is traffic on the wireless card.

• Off. The wireless card is either disabled or not plugged in. To enable or disable the card, press this button for 3 seconds.

WPS

Pressing this button opens a 2-minute window for the gateway to connect with other WPS-enabled devices. For more information, about using the WPS method to implement security, see the Use Push 'N' Connect (WPS) Wireless Setup on page 15.

Connecting to the Internet

NETGEAR DOCSIS 3.0 N450 Wi-Fi Data Gateway

Gateway Rear Panel

Ethernet LAN ports

USB port Reset button

Coaxial cable connector

Power adapter input

Figure 2. Gateway rear panel

The rear panel includes the following connectors, viewed from top to bottom:

• Four Gigabit Ethernet LAN ports.

• USB port.

• Reset. T

To connect a USB hard drive, flash drive, or printer, use this port.

o set the gateway to the original factory settings, press and hold the Reset

To connect local computers, use these ports.

button for over 7 seconds. See Factory Default Settings on page 54.

• Coaxial cable connector.

Attach a coaxial cable to the cable service provider’s

connection.

• Power. Power adapter input.

Connecting to the Internet

NETGEAR DOCSIS 3.0 N450 Wi-Fi Data Gateway

Label

The label on the bottom of the gateway shows the router’s Restore Factory Settings button, WiFi network name (SSID), serial Number, and MAC address.

Serial Number

WiFi Network Name (SSID)

Figure 3. Label on router bottom

See Factory Default Settings on page 54 for information about the Restore Factory Settings button and the factory setting values.

MAC Address

Wireless Performance and Gateway Location

The range of your wireless connection can vary based on the physical placement of the gateway. The latency, data throughput performance, and notebook power consumption of wireless adapters also vary depending on your configuration choices.

For best results, place your gateway according to the following guidelines:

• Near the center of the area in which your computers operate.

• In an elevated location such as a high shelf where the wirelessly connected

computers have line-of-sight access (even if through walls).

• Away from sources of interference, such as computers, microwave ovens, and

2.4

GHz cordless phones.

• Away from large metal surfaces.

• To provide the best side-to-side coverage, put the gateway in a vertical position.

The time it takes to establish a wireless connection can vary depending on both your security settings and the gateway location. WEP connections can take slightly longer to establish. Also, WEP encryption can consume more battery power on a notebook computer.

Connecting to the Internet

NETGEAR DOCSIS 3.0 N450 Wi-Fi Data Gateway

Log In to Your Gateway

Note: To connect to the gateway, use a computer configured for DHCP

(most computers are). For help with configuring DHCP, see the instructions that came with your computer.

If you do not click Logout, when you have logged in, the gateway waits for activity for 5 minutes before it automatically logs you out.

 To log in to the gateway:

1. On the computer that is connected to the gateway with an Ethernet cable, type

http://192.168.0.1 in the address field of your Internet browser.

A login window displays.

2. Log in with the user name admin and the default password, password.

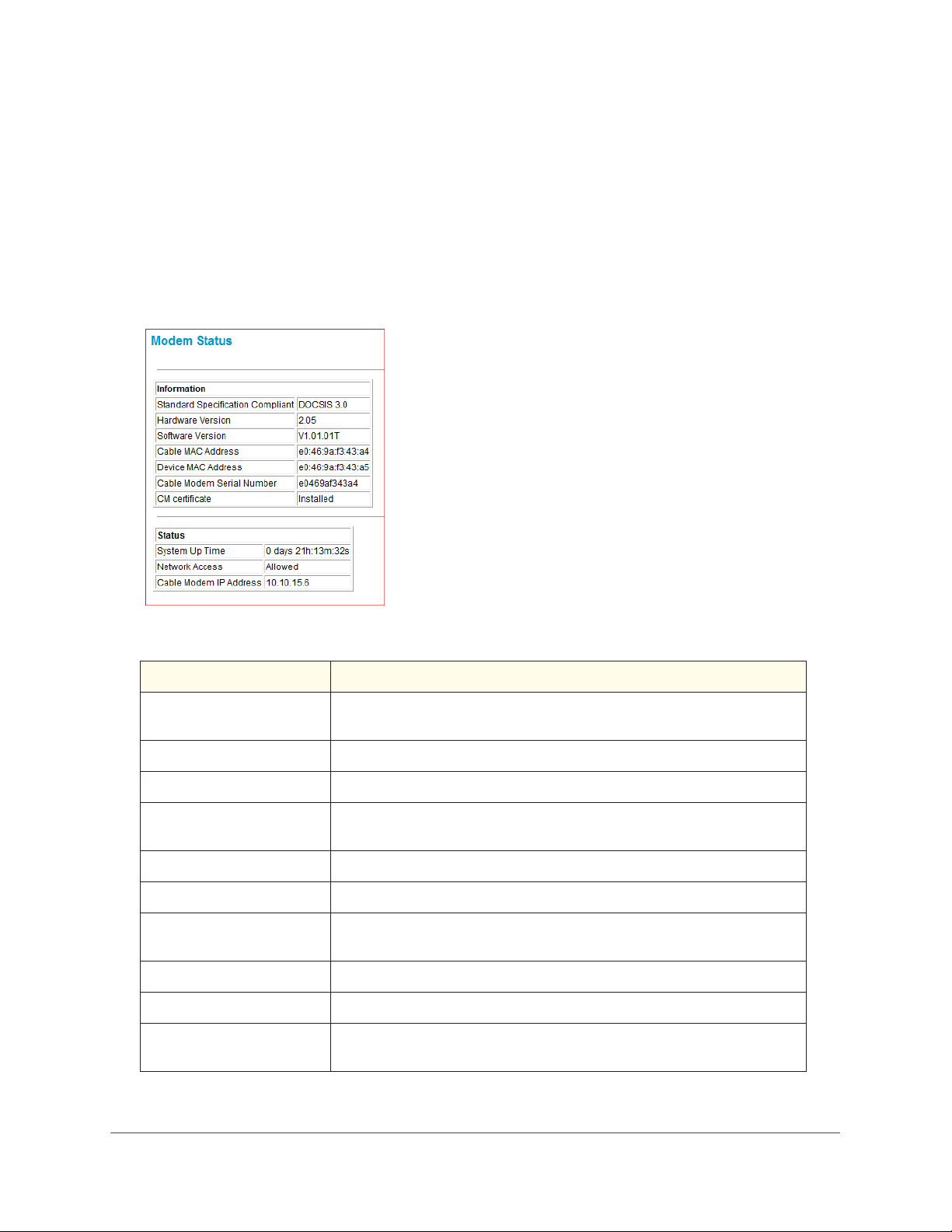

When you connect to the gateway, the Modem Status screen displays.

Connecting to the Internet

NETGEAR DOCSIS 3.0 N450 Wi-Fi Data Gateway

View Basic Settings

The Basic Settings screen displays the Internet settings for the gateway.

 To view or configure basic settings:

1. From the main menu, select Basic Settings.

2. Enter the domain name.

If your Internet service provider requires a domain name, type that name here.

3. Enter the device name.

This name is a user-friendly name representing the gateway in the network computers running Windows V

4. Click Apply .

ista and the Network Explorer on all other Windows computers.

Connecting to the Internet

2. Configuring Y our Wireless Network

This chapter describes how to configure your gateway’s Internet connection and add devices to your network. It includes the following sections:

• Set Up Your Wireless Network

• Set Up Wi-Fi Multimedia

• Change the Password

Note: Before changing wireless settings, connect the gateway and set up

its Internet connection as described in the DOCSIS3.0 N450 Wi-Fi Data Gateway CG3000Dv2 Quick Installation Guide.

NETGEAR DOCSIS 3.0 N450 Wi-Fi Data Gateway

Set Up Your Wireless Network

To set up the wireless network, you can enter wireless settings, or you can use Wi-Fi Protected Setup (WPS). To wirelessly connect to the gateway, a computer or wireless device must be configured with the same wireless settings as the gateway.

Configure Wireless Settings Manually

You can manually configure the wireless settings and security in the Wireless Settings screen.

 To view or configure the wireless settings:

1. If you are located near the gateway, use an Ethernet cable to connect your computer to

the gateway while you are changing the wireless settings.

Note: If you connect wirelessly to the gateway and then change its

wireless network name (SSID) or wireless security, you will be disconnected after you click Apply.

2. Log in to the gateway.

For more information, see Log In to Your Gateway on page 10.

3. In the main menu, under Setup, select W

The following screen displays.

ireless Settings.

Configuring Y our Wireless Network

NETGEAR DOCSIS 3.0 N450 Wi-Fi Data Gateway

4. Specify the Wireless Network settings for your network:

• Name (SSID). The name of the wireless network.

The default wireless network name (SSID) for the gateway appears on the label of the gateway . You can enter a different name here for better wireless security and to make it easier to recognize your network when you want to connect to it wirelessly.

• Region. The location where the gateway operates.

• Channel. The available channels depend on the region. Some countries have laws

specifying which channels should be used. To reduce interference when using more than one access point, NETGEAR recommends using 5-channel spacing between adjacent access points (for example, use Channels 1 and 6, or 6 and 11).

• 802.11 Mode. This value is set to Up to 217 Mbps by default. You can specify the

mode to support faster equipment or legacy equipment.

5. Specify the security options:

• By default the gateway works with WP A and WPA 2 wireless security . You can specify the

network key, which works like a password to access the wireless network.

a. Set up WPA or WPA2 wireless security.

• WP A-PSK. This setting provides the TKIP encryption type and a pre-shared key.

• WP A2-PSK. This setting provides the AES encryption type and a pre-shared key.

Note: Configure your wireless computers with the same WPA2 or WPA

settings as your gateway so that you can connect.

b. Depending on the WPA setting that you select, enter the required information.

For WP A-PSK or WPA2-PSK, enter the pre-shared key , which is a password between 8

and 63 characters. The default WPA password appears on the label of your gateway.

Note: By default, the gateway is set up to work with WPA and WPA2

wireless security, both of which are newer than WEP. Typically, the only reason you might need to set up WEP would be to allow access to older wireless computers or devices that cannot support WPA.

6. Click Apply .

Configuring Y our Wireless Network

NETGEAR DOCSIS 3.0 N450 Wi-Fi Data Gateway

Note: If you plan to use WPS, and you want to keep your wireless settings

the same, go to the Advance Wireless Settings screen and make sure that the Keep Existing Settings check box is selected. See

Advanced Wireless Settings on page 35.

Use Push 'N' Connect (WPS) Wireless Setup

Push 'N' Connect (WPS) can be a quick way to automatically set up your gateway’s wireless network and set up your wireless computer to connect to it at the same time. WPS, also called Wi-Fi Protected Setup, is relatively new technology, so before you decide to use it, check to make sure your wireless computers and devices support WPS. Look for the

symbol on all the computers that connect wirelessly to the gateway.

If you do not see the symbol on all the computers that connect to the wireless network, then you should manually set up your network first (see Configure Wireless Settings

Manually on page 13). After that, you can still use WPS to set up the wireless connection for

the computers that support WPS.

Note: All WPS-capable products should be compatible with the gateway.

For more information about the WPS standard, visit

http://www.wi-fi.org).

Two Push 'N' Connect methods are available, WPS button and PIN (personal identification number).

Add a Client Using the WPS Button

Note: The first time you use WPS, it assigns a random network name

(SSID) and a random password to your wireless network. If you want to keep the network name and password you specified in the Wireless Settings screen, you must select the Keep Existing Settings check box in the Advanced Wireless Settings screen. See

Advanced Wireless Settings on page 35.

Any computer or wireless device that connects wirelessly to the gateway is a client. After a device is added as a client, it can automatically connect to the gateway.

 To add a wireless device to your gateway using the WPS button:

1. Make sure that you know how WPS works on your computer or wireless device.

Configuring Y our Wireless Network

NETGEAR DOCSIS 3.0 N450 Wi-Fi Data Gateway

If it works with WPS, it has a WPS utility and might also have a WPS button that you can press.

2. Log in to the gateway.

For more information, see Log In to Your Gateway on page 10.

3. In the main menu, select Add WPS Client.

The following screen displays.

4. Click Next.

The Add WPS Client screen displays:

5. Either click the WPS button, or press the button on the front of the gateway.

• The WPS LED on the front of the gateway begins to blink.

• The gateway tries to communicate with the wireless computer or device for 2 minutes.

• If the security option in the Wireless Settings screen was set to Disable, it is

automatically changed to WP

A-PSK [TKIP] + WPA2-PSK [AES], including a random

wireless security password.

6. Go to the wireless computer, and run its WPS configuration utility.

7. T

o click the WPS button, follow the utility’s instructions.

Configuring Y our Wireless Network

NETGEAR DOCSIS 3.0 N450 Wi-Fi Data Gateway

When the computer connects to the wireless network, the gateway sends its SSID and WPA-PSK or WPA2-PSK configuration to that computer.

8. On the computer that just joined the wireless network, make sure you can connect to the

Internet. You should see the gateway’s Internet LED blink, showing that the Internet connection is

in use.

Add a Client Using a PIN

Any computer or wireless device that connects wirelessly to the gateway is a client. After a device is added as a client, it can automatically connect to the gateway.

 To add a wireless device to your gateway using a PIN:

1. Make sure that you know how WPS works on your computer or wireless device.

If it works with WPS, it has a WPS utility . To determine the PIN for your wireless computer or device, use this utility

2. Log in to the gateway.

For more information, see Log In to Your Gateway on page 10.

3. In the main menu, select Add WPS Client.

The following screen displays.

4. Click Next.

The Add WPS Client screen displays.

5. Select the PIN radio button.

6. In the Enter Client’

s PIN field, type the PIN that you located in Step 1.

7. Click Next.

Configuring Y our Wireless Network

NETGEAR DOCSIS 3.0 N450 Wi-Fi Data Gateway

• The WPS LED on the front of the gateway begins to blink.

• The gateway tries to communicate with the wireless computer or device for 4 minutes.

• If the security option in the Wireless Settings screen was set to Disable, it is

automatically changed to WP

When the computer connects to the wireless network, the gateway sends its SSID and WPA-PSK or WPA2-PSK configuration to that computer.

8. On the computer that just joined the wireless network, make sure you can connect to the

Internet. You should see the gateway’s Internet LED blink, showing that the Internet connection is

in use.

A-PSK (including a PSK security password).

Set Up Wi-Fi Multimedia

Wi-Fi Multimedia (WMM) provides basic Quality of Service (QoS) features to IEEE 802.11 networks. WMM prioritizes traffic according to four access categories, voice, video, best effort, and background. It does not, however, provide guaranteed throughput. You can use the Wi-Fi Multimedia screen to set up wireless multimedia Quality of Service (QoS).

 To set up Wi-Fi Multimedia:

1. Log in to the gateway.

For more information, see Log In to Your Gateway on page 10.

2. In the main menu, under Setup, select W

The following screen displays.

3. Specify the Wi-Fi Multimedia setting for the network:

• WMM Support. Select On to enable WMM.

• No-Acknowledgement. Select Off if you want to use Acknowledgement (ACK)

messages. Select On if you do not want to use acknowledgement messages. Usually, Off is selected. If wireless communication quality is poor at your location,

select On so that you are notified when a package is lost. High interference levels can cause poor communication.

i-Fi Multimedia.

• Power Save Support. T

connected to the gateway, select On.

4. Click Apply .

o conserve battery power in smaller devices that are

Configuring Y our Wireless Network

+ 41 hidden pages
