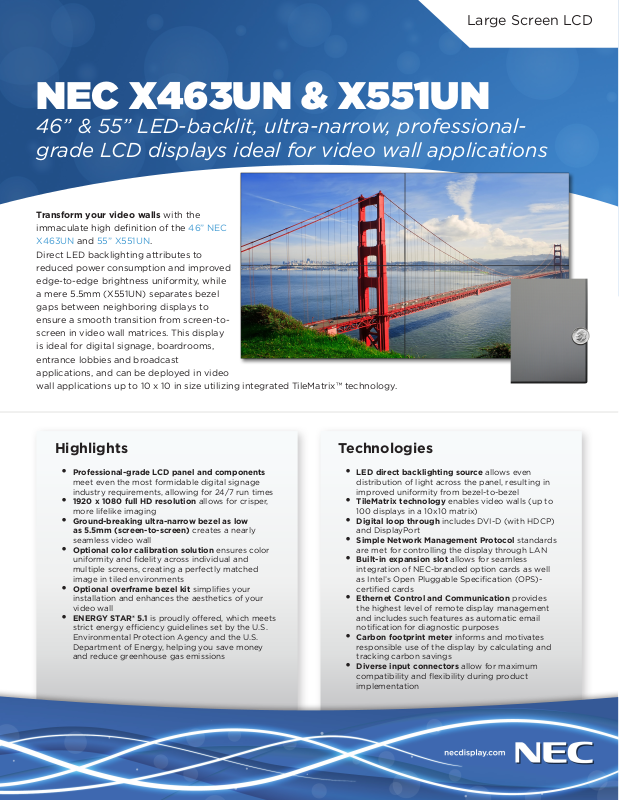

NEC X463UN, X463UN-TMX4P, X551UN Brochure

Large Screen LCD

NEC X463UN & X551UN

46” & 55” LED-backlit, ultra-narrow, professional­grade LCD displays ideal for video wall applications

Transform your video walls with the
immaculate high definition of the 46” NEC

X463UN and 55” X551UN.

Direct LED backlighting attributes to
reduced power consumption and improved
edge-to-edge brightness uniformity, while
a mere 5.5mm (X551UN) separates bezel
gaps between neighboring displays to
ensure a smooth transition from screen-to­screen in video wall matrices. This display
is ideal for digital signage, boardrooms,
entrance lobbies and broadcast
applications, and can be deployed in video
wall applications up to 10 x 10 in size utilizing integrated TileMatrix™ technology.

Highlights

• Professional-grade LCD panel and components

meet even the most formidable digital signage
industry requirements, allowing for 24/7 run times

• 1920 x 1080 full HD resolution allows for crisper,

more lifelike imaging

• Ground-breaking ultra-narrow bezel as low

as 5.5mm (screen-to-screen) creates a nearly

seamless video wall

• Optional color calibration solution ensures color

uniformity and fidelity across individual and
multiple screens, creating a perfectly matched
image in tiled environments

• Optional overframe bezel kit simplifies your

installation and enhances the aesthetics of your
video wall

• ENERGY STAR® 5.1 is proudly offered, which meets

strict energy efficiency guidelines set by the U.S.
Environmental Protection Agency and the U.S.
Department of Energy, helping you save money
and reduce greenhouse gas emissions

Technologies

• LED direct backlighting source allows even

distribution of light across the panel, resulting in
improved uniformity from bezel-to-bezel

• TileMatrix technology enables video walls (up to

100 displays in a 10x10 matrix)

• Digital loop through includes DVI-D (with HDCP)

and DisplayPort

• Simple Network Management Protocol standards

are met for controlling the display through LAN

• Built-in expansion slot allows for seamless

integration of NEC-branded option cards as well
as Intel’s Open Pluggable Specification (OPS)­certified cards

• Ethernet Control and Communication provides

the highest level of remote display management
and includes such features as automatic email
notification for diagnostic purposes

• Carbon footprint meter informs and motivates

responsible use of the display by calculating and
tracking carbon savings

• Diverse input connectors allow for maximum

compatibility and flexibility during product
implementation

Specifications for X463UN and X551UN

MODEL X463UN X551UN

LCD MODULE

Panel Technology SPVA (P-DID)

Viewable Image Size 46” 55”

Native Resolution 1920 x 1080

Brightness (Typical/Max) 500 / 700 cd/m

Contrast Ratio (Typical) 3500:1 4000:1

Viewing Angle 178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10

Response Time (white to black) 8ms

Aspect Ratio 16:9

Active Screen Area (W x H) 40.1 x 22.5 in. / 1018.1 x 572.7mm 47.6 x 26.8 in. / 1209.6 x 680.4mm

Orientation Landscape/Portrait

Displayable Colors More than 16.7 million

CONNECTIVITY

PC/Mac Signal Compatibility Yes

Input Terminals

Digital DisplayPort, HDMI, DVI-D

Analog VGA 15-pin D-sub, 5 BNC (RGBHV, DVD/HD or Video), BNC Composite, S-Video

Audio RCA Audio, Stereo Mini-Jack (2), HDMI Audio

External Control RS-232C, LAN, IR Remote, DDC/CI

Output Terminals

Digital DisplayPort, DVI-D

Analog BNC Composite

Audio Stereo Mini-Jack, External Speaker Jack (2)

External Control RS-232C, IR Remote

POWER CONSUMPTiON

On (Typical) 120W 190W

ECO Mode Standby <0.5W <1W

PHYSICAL SPECIFICATIONS

Bezel Width (L/R, T/B) 0.15 in./0.075 in., 0.15 in./0.075 in. ; 3.8mm/1.9mm, 3.8mm/1.9mm 0.15 in./0.07 in., 0.15 in./0.07 in. ; 3.7mm/1.8mm, 3.7mm/1.8mm

Net Dimensions
(without stand; WxHxD)

Net Weight (without stand) 53.6 lbs. / 24.3 kg 80.3 lbs. / 36.4 kg

VESA Hole Configuration 300 x 300mm (4-hole) 400 x 400mm (4-hole)

ENVIRONMENTAL CONDITIONS

Operating Temperature 41-104°F / 5-40°C

Operating Humidity 20 - 80%

Operating Altitude 13,780 ft. / 4200m

LIMITED WARRANTY 3 years parts and labor, including backlight*

ADDITIONAL FEATURES LED direct backlighting; Ultra-narrow bezel; Advanced thermal capabilities; Advanced cooling system; Sealed panel design; Thin bezel; TileMatrix (10x10); TileComp;

SHIPS WITH Power cord; DVI cable; Batteries; CD-ROM (user manual); IR control cable; Screws; Thumbscrews; Eyebolts; Cable cover

OPTIONAL ACCESSORIES

NEC Display Wall Calibrator Kit (KT-LFD-CC); External Single Board Computer (TNETPC-ION); Stand (ST-4020 for X463UN; ST-5220 for X551UN); OPS with Intel Core i5 (N8000-

Separate group/Monitor ID function; Ethernet Control and Communication; RS-232 Control and Communication; Landscape/portrait capable; Carbon footprint meter;
Plug and Play (DDC/CI, DDC2B); Scheduler (w/ real-time clock); Sharpness/softness adjustment; Screen saver function; Ambient light sensor; 6-axis color adjustment;

Metal rear cabinet; POP; Side-by-Side; Kensington lock; Handles; Variable picture modes; Movie Settings; Input labeling; Backlight adjust; Aspect ratio control; OPS/

8830), OPS with AMD Dual Core Fusion, 160GB Hard Drive, W7E (OPS-PCAF-WH); OPS with AMD Dual Core Fusion, 32GB SSD, W7E (OPS-PCAF-WS); OPS with AMD Dual
Core Fusion, 160GB Hard Drive, No OS (OPS-PCAF-H); OPS with AMD Dual Core Fusion, 32GB SS (OPS-PCAF-S); OPS Adapter (SB-02AM); OPS HD/SDI Card (SB-01HC),

The X463UN and
X551UN support
Intel’s Open Pluggable
Specification (OPS),
the first industry­wide standardization
in option slots,
simplifying installation,
use and maintenance
of digital signage.

40.3 x 22.8 x 4.6 in. / 578.6 x 1024 x 118.1mm 47.8 x 27 x 5 in. / 1215.3 x 686.1 x 128.1mm

Expansion slot; Custom detect options

Overframe Bezel Kit (KT-46UN-OF2 for X463UN; KT-55UN-OF for X551UN)

Input Panel

1. LAN Port

2. IR In/Out

3. RS-232 In/Out

4. DisplayPort In/Out

5. DVI-D In/Out

6. VGA D-Sub In

7. HDMI In

8. 5 BNC In (RGBHV,
DVD/HD or
Composite Video)

9. BNC Composite
Video In/Out

Image Gap Comparison

10. Audio Mini-Jack In/
Out

11. S-Video In

12. RCA Audio In

13. External Speaker Out

6 8 93

101112

2

NEC P462

NEC P552

* Warranty restrictions apply. Contact your representative for details.

NEC X463UN

33mm

5.7mm

NEC X551UN

37mm

5.5mm

1 2

4

Rapid Response and TileMatrix are trademarks
of NEC Display Solutions. All other brand or
product names are trademarks or registered
trademarks of their respective holders. Product
specifications subject to change.

©2013 NEC Display Solutions of America, Inc. All
rights reserved. 25.NEC.80.GL.UN.079 11.26.2013

5 7

NEC’s ultra-narrow-bezel displays allow for a screen-to-screen distance
between two neighboring displays as thin as 5.5mm, close to 450%
improvement compared to its previously revolutionary P Series displays.

13
