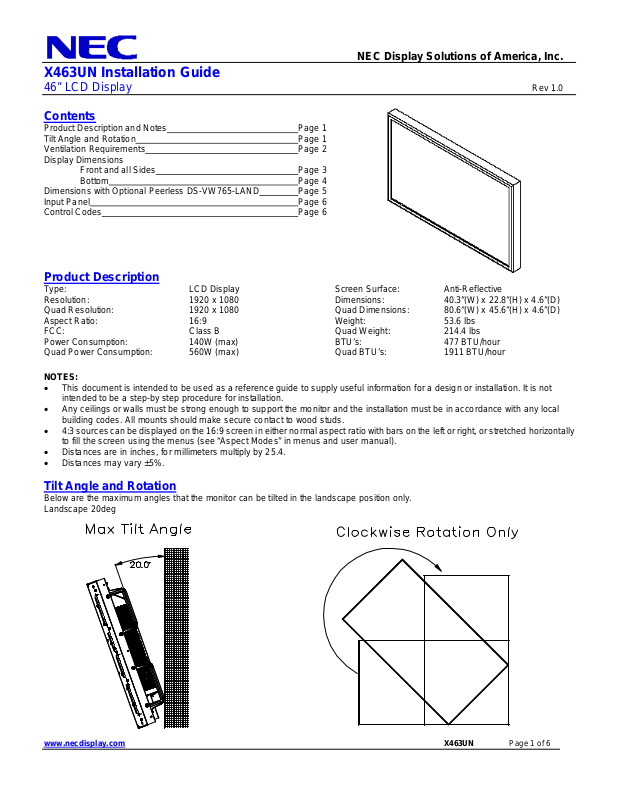

NEC Display Solutions of America, Inc.
X463UN Installation Guide
46” LCD Display Rev 1.0
Contents
Product Description and Notes Page 1
Tilt Angle and Rotation
Ventilation Requirements
Display Dimensions
Front and all Sides Page 3
Bottom
Dimensions with Optional Peerless DS-VW765-LAND
Input Panel
Control Codes
Product Description
Type: LCD Display Screen Surface: Anti-Reflective
Resolution: 1920 x 108 0 Dimensions: 40.3”(W) x 22.8”(H) x 4.6”(D)
Quad Resolution: 1920 x 1080 Quad Dimensions: 80.6”(W) x 45.6”(H) x 4.6”(D)
Aspect Ratio: 16:9 Weight: 53.6 lbs
FCC: Class B Quad Weight: 214.4 lbs
Power Consumption: 140W (max) BTU’s: 477 BTU/hour
Quad Power Consumption: 560W (max) Quad BTU’s: 1911 BTU/hour
NOTES:
This document is intended to be use d as a reference guide to supply useful information for a design or installation. It is not
intended to be a step-by step procedure for installation.
Any ceilings or walls must be strong enough to support the monitor and the installation must be in accordance with any local
building codes. All mounts should make secure contact to wood studs.
4:3 sources can be displayed on the 16:9 screen in either normal aspect ratio with bars on the left or right, or stretched horizontally
to fill the screen using the menus (see “Aspect Modes” in menus and user manual).
Distances are in inches, for millimeters multiply by 25.4.
Distances may vary ±5%.
Tilt Angle and Rotation
Below are the maximum angles that the monitor can be tilted in the landscape position only.
Landscape 20deg
www.necdisplay.com X463UN Page 1 of 6
Page 1
Page 2
Page 4
Page 5
Page 6
Page 6
NEC Display Solutions of America, Inc.
X463UN Installation Guide
46” LCD Display Rev 1.0
Ventilation Requirements (all models)
Dimensions below are minimum required for proper ventilation.
NOTE:
The ventilation space should not be covered or closed off at the front of the opening. If for some reason the opening needs to be
covered, other means of ventilation will need to be incorporated into the design. Contact NEC for design revie w and
recommendations.
www.necdisplay.com X463UN Page 2 of 6
NEC Display Solutions of America, Inc.
X463UN Installation Guide
46” LCD Display Rev 1.0
Display dimensions
Note: This product is not symmetrical.
13.92
www.necdisplay.com X463UN Page 3 of 6
NEC Display Solutions of America, Inc.
X463UN Installation Guide
46” LCD Display Rev 1.0
Display dimensions (cont.)
RATING
LABEL
www.necdisplay.com X463UN Page 4 of 6
NEC Display Solutions of America, Inc.
X463UN Installation Guide
46” LCD Display Rev 1.0
Quad Dimensions with Peerless DS-VW765-LAND
RATING
LABEL
RATING
LABEL
RATING
LABEL
RATING
LABEL
www.necdisplay.com X463UN Page 5 of 6
NEC Display Solutions of America, Inc.
X463UN Installation Guide
46” LCD Display Rev 1.0
Input Panels:
Bottom:
Control Codes:
Function Code Data
POWER ON 01 30 41 30 41 30 43 02 43 32 30 33 44 36 30 30 30 31 03 73 0D
OFF 01 30 41 30 41 30 43 02 43 32 30 33 44 36 30 30 30 34 03 76 0D
INPUT SWITCH VGA (15pin HD) 01 30 41 30 45 30 41 02 30 30 36 30 30 30 30 31 03 73 0D
RGBHV 01 30 41 30 45 30 41 02 30 30 36 30 30 30 30 32 03 70 0D
DVI 01 30 41 30 4 5 30 41 02 30 30 36 30 30 30 30 33 03 71 0D
HDMI
VIDEO (Composite) 01 30 41 30 45 30 41 02 30 30 36 30 30 30 30 35 03 77 0D
DVD/HD 01 30 41 30 45 30 41 02 30 30 36 30 30 30 30 43 03 01 0D
S-Video 01 30 41 30 45 30 41 02 30 30 36 30 30 30 30 37 03 75 0D
DisplayPort 01 30 41 30 45 30 41 02 30 30 36 30 30 30 30 46 03 04 0D
AUDIO MUTE ON 01 30 41 30 45 30 41 02 30 30 38 44 30 30 30 31 03 09 0D
OFF 01 30 41 30 45 30 41 02 30 30 38 44 30 30 30 32 03 0A 0D
PICTURE MODE sRGB 01 30 41 30 45 30 41 02 30 32 31 41 30 30 30 31 03 07 0D
HIBRIGHT 01 30 41 30 45 30 41 02 30 32 31 41 30 30 30 33 03 05 0D
STANDARD 01 30 41 30 45 30 41 02 30 32 31 41 30 30 30 34 03 02 0D
CINEMA 01 30 41 30 45 30 41 02 30 32 31 41 30 30 30 35 03 03 0D
SCREEN MODE: NORMAL 01 30 41 30 45 30 41 02 30 32 37 30 30 30 30 31 03 70 0D
FULL 01 30 41 30 45 30 41 02 30 32 37 30 30 30 30 32 03 73 0D
WIDE 01 30 41 30 45 30 41 02 30 32 37 30 30 30 30 33 03 72 0D
ZOOM 01 30 41 30 45 30 41 02 30 32 37 30 30 30 30 34 03 75 0D
AUTO SETUP EXECUTE 01 30 41 30 45 30 41 02 30 30 31 45 30 30 30 31 03 01 0D
NOTE: Contact your NEC rep for codes not listed.
NOTE: Use a cross/reverse/null modem cable.
Cable Connection:
Communication Protocol: PC Control Connector (D-Sub 9-Pin)
Interface: RS-232C
Communication: Asynchronous
Baud Rate: 9600 bps
Data Length: 8 bits
Parity: None
Stop Bit: 1 bit
Communication Code: Hex
NOTE: If so desired, jumper “Request to send” and “Clear to Send” together on both ends of the cable to simplify cable connection.
These connections are not required. The only connections required are pins 2 (T xD), 3 (RxD) and 5 (GND).
www.necdisplay.com X463UN Page 6 of 6
__________ 01 30 41 30 45 30 41 02 30 30 36 30 30 30 30 34 03 76 0D
