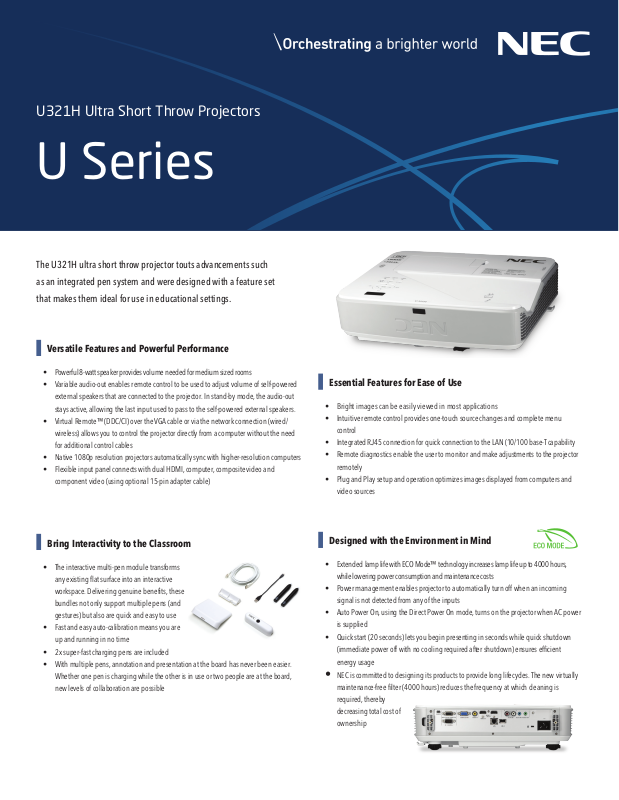

NEC U321Hi-WK, U321Hi-TM, U321H-WK, U321H Product Sheet

U321H Ultra Short Throw Projectors

U Series

U321H Ultra Short Throw Projectors

The U321H ultra short throw projector touts advancements such

as an integrated pen system and were designed with a feature set

that makes them ideal for use in educational settings.

U Series

Versatile Features and Powerful Performance

• Powerful 8-watt speaker provides volume needed for medium sized rooms

• Variable audio-out enables remote control to be used to adjust volume of self-powered
external speakers that are connected to the projector. In stand-by mode, the audio-out
stays active, allowing the last input used to pass to the self-powered external speakers.

• Virtual Remote™ (DDC/CI) over the VGA cable or via the network connection (wired/
wireless) allows you to control the projector directly from a computer without the need
for additional control cables

• Native 1080p resolution projectors automatically sync with higher-resolution computers

• Flexible input panel connects with dual HDMI, computer, composite video and
component video (using optional 15-pin adapter cable)

Essential Features for Ease of Use

• Bright images can be easily viewed in most applications

• Intuitive remote control provides one-touch source changes and complete menu
control

• Integrated RJ45 connection for quick connection to the LAN (10/100 base-T capability

• Remote diagnostics enable the user to monitor and make adjustments to the projector
remotely

• Plug and Play setup and operation optimizes images displayed from computers and
video sources

Bring Interactivity to the Classroom

• The interactive multi-pen module transforms
any existing flat surface into an interactive
workspace. Delivering genuine benefits, these
bundles not only support multiple pens (and
gestures) but also are quick and easy to use

• Fast and easy auto-calibration means you are
up and running in no time

• 2x super-fast charging pens are included

• With multiple pens, annotation and presentation at the board has never been easier.
Whether one pen is charging while the other is in use or two people are at the board,
new levels of collaboration are possible

Designed with the Environment in Mind

• Exten ded lamp life with ECO Mode™ technology increases lamp life up to 4000 hours,
while lowering power consumption and maintenance costs

• Power management enables projector to automatically turn off when an incoming
signal is not detected from any of the inputs

• Auto Power On, using the Direct Power On mode, turns on the projector when AC power
is supplied

• Quick start (20 seconds) lets you begin presenting in seconds while quick shutdown
(immediate power off with no cooling required after shutdown) ensures efficient

energy usage

• NEC is committed to designing its products to provide long lifecycles. The new virtually

maintenance-free filter (4000 hours) reduces the frequency at which cleaning is
required, thereby
decreasing total cost of
ownership

Specifications

15.0"

(382mm)

12.3"

(312mm)

UNIQUE FEATURES

ECO Mode technology extends lamp life, lowers audible noise and

reduces total cost of ownership.

Built-in closed captioning enables decoding and display of text
information from a video

Kensington lock slot enables security cable to be attached to
projector.

10-step image magnification with location control

WARRANTY

Registered owners receive a 3 year parts and labor warranty including
InstaCare next business day exchange. The lamp is covered for one
year or 1,000 hours, whichever comes first.

SHIPS WITH

Remote control, batteries, RGB cable, power cord, user’s manual,
product registration card

Wall mount (NP04WK1)

This mount is available separately or as a bundle
NP-U321H-WK

Ultra short throw creates a 77”
standard or 87” widescreen
diagonal image from a mere 23
inches, eliminating shadows on
the screen along with projected
light in the presenter’s eyes
created by traditional front
projection systems.

4.3"

(108mm)

OPTICAL

Display Technology
Light Output (lumens)
Resolution
Native
Maximum
Contrast Ratio (up to)
Lamp Type
Lamp Life (up to)
Screen Size (diagonal)
Throw Ratio
Projection Distance
Projector Angle
Lens*
Zoom
Focus
F-#, f-#
Keystone Correction

SIGNAL COMPATIBILITY/CONNECTIVITY

Scan Rate
Horizontal
Vertical
Supported Video Standards
SD/HD Video Signal Compatibility
PC Signal Compatibility
Macintosh Compatibility
Input/Output Terminals
RGB1 (analog)
RGB2 (digital)
RGB3 (digital)
Video 1
Audio 1
Audio 2
Audio Out
Monitor Out
Audio
External Control
Sync Compatibility

ELECTRICAL

Power Requirements
Input Current
Power Consumption
Normal Mode / ECO Mode / Standby

MECHANICAL

Installation Orientation
Dimensions (WxDxH)
Net Weight
Fan Noise
Regulations

ENVIRONMENTAL

Operational Temp
Humidity
Storage

OPTIONAL ACCESSORIES

NP34LP
SPKR30-2
NP04Wi
NP04WK1
RMT-PJ36
NP02Pi
NP01TM
SC200
SCP200
ADP-CV1E
PWRCRD-PJPX
RGBCBL-PJPX
NECEW4YR-U
NECEW5YR-U

U321H

0.65” DLP by Texas Instruments w BrilliantColorTM
3200

1080p 1920x1080
1080p 1920 x 1080
10,000
260W AC
3000 hours normal / 4000 hours eco
85 to 100 in. / 2159 to 2540mm

0.25

18.7 to 22.0 in. / 474 to 558mm
57°

1 - 1.4
Manual
F=2.4, f=3.72mm
+/- 5° Vertical

15 - 100 kHz
50 - 120 Hz
NTSC, NTSC4.43, PAL, PAL-M, PAL-N, PAL 60, SECAM
480i, 480p, 576i, 576p, 720p, 1080i, 1080p
VGA, SVGA, XGA, WXGA, WXGA+, SXGA, SXGA+, UXGA
Yes

15-pin, component video using ADP-CV1E adapter
HDMI/HML w/HDCP
HDMI w/HDCP
RCA
1/8 in. stereo
L/R RCA (shared by video sources)
Yes (variable)
Yes
8W speaker
RS-232, IR, Wired LAN, Wireless LAN (optional), USB (+5V 1A)
Separate Sync / Composite Sync / Sync on G

100 – 240V AC, 50/60 Hz

3.5A / 1.5A

323W / 272W / 3W / 0.18W

Table/Front, Table/Rear, Ceiling/Front, Ceiling/Rear

15.0 x 12.3 x 4.3 in. / 382 x 312 x 108mm

10.4 lbs. / 4.7 kg
34 dB normal / 29 dB eco
USA UL(UL60950-1/IEC60825-1/IEC62471) FCC Part 15 Class B,
C-UL(CSA60950-1/IEC60825-1/IEC62471) ICES-003 Class B

41° – 104°F / 5° – 40°C
20-80% non-condensing

-4° – 140°F / -20° – 60°C

Replacement lamp
Amplified 30-watt speaker
Interactive module and pen
Wall mount
Replacement remote control
Stylus Pen
Interactive touch module
Security cable for connection to projector
Lightweight adjustable suspended ceiling plate for use with NEC ceiling mounts
Component video adapter converts component video to D-sub 15-pin
Power cable
RGB cable
Extends term of parts and labor warranty to 4 years including InstaCare
Extends term of parts and labor warranty to 5 years including InstaCare

ORDERING MODEL NUMBERS

NP-U321H-WK
NP-U321Hi-WK
NP-U321Hi-TM
