Projector

PX803UL-WH/PX803UL-BK

User’s Manual

Model No.

NP-PX803UL-WH/NP-PX803UL-BK

Ver. 1 11/15

Apple, Mac, Mac OS, and MacBook are trademarks of Apple Inc. registered in the U.S. and other countries.

Microsoft, Windows, Windows Vista, Internet Explorer, .NET Framework and PowerPoint are either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries.

MicroSaver is a registered trademark of Kensington Computer Products Group, a division of ACCO Brands.

Adobe, Adobe PDF, Adobe Reader, and Acrobat are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries.

Virtual Remote Tool uses WinI2C/DDC library, © Nicomsoft Ltd.

HDMI, the HDMI Logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

DisplayPort and DisplayPort Compliance Logo are trademarks owned by the Video Electronics Standards Association.

HDBaseT™ is a trademark of HDBaseT Alliance.

DLP and BrilliantColor are trademarks of Texas Instruments.

Trademark PJLink is a trademark applied for trademark rights in Japan, the United States of America and other countries and areas.

Wi-Fi®, Wi-Fi Alliance®, and Wi-Fi Protected Access (WPA, WPA2)® are registered trademarks of the Wi-Fi Alliance.

Blu-ray is a trademark of Blu-ray Disc Association

CRESTRON and ROOMVIEW are registered trademarks of Crestron Electronics, Inc.in the United States and other countries.

Ethernet is either a registered trademark or trademark of Fuji Xerox Co., Ltd.

Extron and XTP are registered trademarks of RGB Systems, Inc. in the United States.

Other product and company names mentioned in this user’s manual may be the trademarks or registered trademarks of their respective holders.

TOPPERS Software Licenses

The product includes software licensed under TOPPERS License.

For more information on each software, see “readme.pdf” inside the “about TOPPERS” folder on the supplied CDROM.

NOTES

(1)The contents of this user’s manual may not be reprinted in part or whole without permission.

(2)The contents of this user’s manual are subject to change without notice.

(3)Great care has been taken in the preparation of this user’s manual; however, should you notice any questionable points, errors or omissions, please contact us.

(4)Notwithstanding article (3), NEC will not be responsible for any claims on loss of profit or other matters deemed to result from using the Projector.

Important Information

Safety Cautions

Precautions

Please read this manual carefully before using your NEC projector and keep the manual handy for future reference.

CAUTION

To turn off main power, be sure to remove the plug from power outlet.

The power outlet socket should be installed as near to the equipment as possible, and should be easily accessible.

CAUTION

TO PREVENT SHOCK, DO NOT OPEN THE CABINET.

THERE ARE HIGH-VOLTAGE COMPONENTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol warns the user that uninsulated voltage within the unit may be sufficient to cause electrical shock.Therefore, it is dangerous to make any kind of contact with any part inside of the unit.

This symbol alerts the user that important information concerning the operation and maintenance of this unit has been provided.

The information should be read carefully to avoid problems.

WARNING: TO PREVENT FIRE OR SHOCK, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.

DO NOT USETHIS UNIT’S PLUGWITH AN EXTENSION CORD OR IN AN OUTLET UNLESS ALLTHE PRONGS CAN BE FULLY INSERTED.

DOC Compliance Notice (for Canada only)

This Class A digital apparatus complies with Canadian ICES-003.

Machine Noise Information Regulation - 3. GPSGV,

The highest sound pressure level is less than 70 dB (A) in accordance with EN ISO 7779.

Disposing of your used product

EU-wide legislation as implemented in each Member State requires that used electrical and electronic products carrying the mark (left) must be disposed of separately from normal household waste. This includes projectors and their electrical accessories.When you dispose of such products, please follow the guidance of your local authority and/or ask the shop where you purchased the product.

After collecting the used products, they are reused and recycled in a proper way.This effort will help us reduce the wastes as well as the negative impact to the human health and the environment at the minimum level. The mark on the electrical and electronic products only applies to the current European Union Member States.

For EU: The crossed-out wheeled bin implies that used batteries should not be put to the general household waste! There is a separate collection system for used batteries, to allow proper treatment and recycling in

accordance with legislation.

According the EU directive 2006/66/EC, the battery can’t be disposed improperly. The battery shall be separated to collect by local service.

i

Important Information

WARNING TO CALIFORNIA RESIDENTS:

Handling the cables supplied with this product will expose you to lead, a chemical known to the State of California to cause birth defects or other reproductive harm. WASH HANDS AFTER HANDLING.

RF Interference

WARNING

This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

CAUTION

In order to reduce any interference with radio and television reception use a signal cable with ferrite core attached. Use of signal cables without a ferrite core attached may cause interference with radio and television reception.

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the installation manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

For UK only: In UK, a BS approved power cord with moulded plug has a Black (five Amps) fuse installed for use with this equipment. If a power cord is not supplied with this equipment please contact your supplier.

Important Safeguards

These safety instructions are to ensure the long life of your projector and to prevent fire and shock. Please read them carefully and heed all warnings.

WARNING

When the projector is damaged, cooling fluids may come out of internal part.

Should this happen, immediately turn off the AC supply to the projector and contact your dealer.

DO NOT touch and drink the cooling fluid.When the cooling fluids are swallowed or contacted with your eyes, please consult medical attention immediately. If you touch the cooling fluid with your hand, rinse your hands well under running water.

Installation

Do not place the projector in the following conditions:

-on an unstable cart, stand, or table.

-near water, baths, or damp rooms.

-in direct sunlight, near heaters, or heat radiating appliances.

-in a dusty, smoky or steamy environment.

-on a sheet of paper or cloth, rugs or carpets.

Do not install and store the projector in the below circumstances. Failure to do so may cause of malfunction.

-In powerful magnetic fields

-In corrosive gas environment

-Outdoors

If you wish to have the projector installed on the ceiling:

-Do not attempt to install the projector yourself.

-The projector must be installed by qualified technicians in order to ensure proper operation and reduce the risk of bodily injury.

-In addition, the ceiling must be strong enough to support the projector and the installation must be in accordance with any local building codes.

-Please consult your dealer for more information.

ii

Important Information

WARNING

Do not use any other object than the projector’s lens cover to cover the lens while the projector is on. Doing so can cause the object to get extremely hot, and possibly resulting in a fire or damage due to the heat emitted from the light output.

Do not place any objects, which are easily affected by heat, in front of the projector lens. Doing so could lead to the object melting from the heat that is emitted from the light output.

This projector can be installed any angle within vertical and horizontal 360° range, however, life of optical parts will be shorten in the following installation state:

When the projector is installed on which lens faces downward.

When the intake vent on the projector side faces downward in the portrait installation. (→ page 154)

For portrait installation, install the projector with the intake vent at the bottom.Observe precautions for portrait installation.

*A customized stand is required to be attached to the projector. (→ page 155)

Fire and Shock Precautions

Ensure that there is sufficient ventilation and that vents are unobstructed to prevent the build-up of heat inside your projector. Allow enough space between your projector and a wall. (→ page xi)

Do not try to touch the exhaust vent on the rear side (when seen from the front) as it can become heated while the projector is turned on and immediately after the projector is turned off.Parts of the projector may become temporarily heated if the projector is turned off with the POWER button or if the AC power supply is disconnected during normal projector operation.

Use caution when picking up the projector.

Prevent foreign objects such as paper clips and bits of paper from falling into your projector.Do not attempt to retrieve any objects that might fall into your projector.Do not insert any metal objects such as a wire or screwdriver into your projector. If something should fall into your projector, disconnect it immediately and have the object removed by a qualified service personnel.

Do not place any objects on top of the projector.

Do not touch the power plug during a thunderstorm. Doing so can cause electrical shock or fire.

The projector is designed to operate on a power supply of 100-240V AC 50/60 Hz. Ensure that your power supply fits this requirement before attempting to use your projector.

Do not look into the lens while the projector is on. Serious damage to your eyes could result.

Do not look into the light source using optical instruments (such as magnifying glasses and mirrors).Visual impairment could result.

When turning on the projector, ensure that nobody is facing towards the lens in the path of the light emitted from the laser.

Keep any items (magnifying glass etc.) out of the light path of the projector.The light path being projected from the lens is extensive, therefore any kind of abnormal objects that can redirect light coming out of the lens, can cause an unpredictable outcome such as a fire or injury to the eyes.

Do not place any objects, which are easily affected by heat, in front of a projector exhaust vent.

Doing so could lead to the object melting or getting your hands burned from the heat that is emitted from the exhaust

vent.

iii

Important Information

Handle the power cord carefully. A damaged or frayed power cord can cause electric shock or fire.

-Do not use any power cord other than the one supplied with the projector.

-Do not bend or tug the power cord excessively.

-Do not place the power cord under the projector, or any heavy object.

-Do not cover the power cord with other soft materials such as rugs.

-Do not heat the power cord.

-Do not handle the power plug with wet hands.

Turn off the projector, unplug the power cord and have the projector serviced by a qualified service personnel under the following conditions:

-When the power cord or plug is damaged or frayed.

-If liquid has been spilled into the projector, or if it has been exposed to rain or water.

-If the projector does not operate normally when you follow the instructions described in this user’s manual.

-If the projector has been dropped or the cabinet has been damaged.

-If the projector exhibits a distinct change in performance, indicating a need for service.

Disconnect the power cord and any other cables before carrying the projector.

Turn off the projector and unplug the power cord before cleaning the cabinet.

Turn off the projector and unplug the power cord if the projector is not to be used for an extended period of time.

When using a LAN cable:

For safety, do not connect to the terminal for peripheral device wiring that might have excessive voltage.

Do not use the malfunctioned projector. It may cause of not only electric shock or fire but also serious damage to your eye sight.

Do not let children to operate the projector by themselves. If the projector is operated by children, adults need to attend and keep their eyes on children.

If damage or malfunction of the projector is found, immediately stop to use it and consult your dealer for repair.

Never disassemble, repair, and remodel by end users. If these are performed by end users, it may cause of serious problem on users’ safety.

Consult your dealer for disposing the projector. Never disassemble the projector before disposing it.

CAUTION

Keep hands away from the lens mounting portion while performing a lens shift. Failure to do so could result in fingers being pinched by the moving lens.

Do not use the tilt-foot for purposes other than originally intended. Misuses such as gripping the tilt-foot or hanging on the wall can cause damage to the projector.

Do not send the projector in the soft case by parcel delivery service or cargo shipment.The projector inside the soft case could be damaged.

Select [HIGH] in Fan mode if you continue to use the projector for consecutive days. (From the menu, select [SETUP] → [OPTIONS(1)] → [FAN MODE] → [MODE] → [HIGH].)

Do not unplug the power cord from the wall outlet or projector when the projector is powered on. Doing so can cause damage to the AC IN terminal of the projector and (or) the prong plug of the power cord.

To turn off the AC power supply when the projector is powered on, use the projector’s main power switch, a power strip equipped with a switch, or a breaker.

When moving the projector, make sure you have at least two people. Attempting to move the projector alone could result in back pain or other injuries.

Caution on Handling the Optional Lens

When shipping the projector with the lens, remove the lens before shipping the projector. Always attach the dust cap to the lens whenever it is not mounted on the projector.The lens and the lens shift mechanism may encounter damage caused by improper handling during transportation.

Do not hold the lens part when carrying the projector.

Doing so could cause the focus ring to rotate, resulting in accidental dropping of the projector.

For mounting, replacing, and cleaning the lens, make sure to power off the projector and disconnect the power cord. Failure to do so can result in eye injury, electric shock, or burn injuries.

iv

Important Information

Precautions when installing or replacing the lens unit sold separately (LENS CALIBRATION)

After installing or replacing the lens unit, press either the SHUTTER/CALIBRATION button on the main unit or the INFO/L-CALIB. button while pressing the CTL button on the remote control to carry out [LENS CALIBRATION]. (→ page 18, 118)

By carrying out [LENS CALIBRATION], the adjustment range of the zoom, focus, and shift of the [LENS MEMORY] is calibrated.

Contact your dealer to install and replace the lens unit.

Remote Control Precautions

Handle the remote control carefully.

If the remote control gets wet, wipe it dry immediately.

Avoid excessive heat and humidity.

Do not short, heat, or take apart batteries.

Do not throw batteries into fire.

If you will not be using the remote control for a long time, remove the batteries.

Ensure that you have the batteries’ polarity (+/−) aligned correctly.

Do not use new and old batteries together, or use different types of batteries together.

Dispose of used batteries according to your local regulations.

Light Module

1.A light module containing multiple laser diodes is equipped in the product as the light source.

2.These laser diodes are sealed in the light module. No maintenance or service is required for the performance of the light module.

3.End user is not allowed to replace the light module.

4.Contact qualified distributor for light module replacement and further information.

Laser Safety Caution

This product is classified as Class 1 of IEC60825-1 Third edition 2014-05. This product is classified as Class 3R of IEC60825-1 Second edition 2007-03.

Also complies with FDA performance standards 21 CFR 1040.10 and 1040.11 for laser products except for deviations pursuant to Laser Notice No.50, dated June 24, 2007.

Obey the laws and regulations of your country in relation to the installation and management of the device.

Blue laser diodes: Wave length 450–460 nm.

Pulse width & repetition rate: 0.74 ms, 240 Hz

Output power: 240 W

The laser module is equipped in this product.

Use of controls or adjustments of procedures other than those specified herein may result in hazardous radiation exposure.

CAUTION

Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

CAUTION – CLASS 3R LASER PRODUCT

LASER LIGHT – AVOID DIRECT EYE EXPOSURE

v

Important Information

Applicable lens unit: NP16FL/NP17ZL/NP18ZL/NP19ZL/NP20ZL/NP21ZL/NP31ZL

Horizontal angle H

Lens

Zoom







Tele



Wide



NP16FL



32.9



NP17ZL

15.5



21.7



NP18ZL

12.4



16.1

H

NP19ZL

7.7



12.7





NP20ZL

5.3



7.9

H

NP21ZL

3.4



5.4





NP31ZL

27.8



33.6



Vertical angle V

Lens

Zoom







Tele



Wide



NP16FL



22.0

V

NP17ZL

9.8



14.0





NP18ZL

7.8



10.2

V

NP19ZL

4.8



8.0



NP20ZL

3.3



5.0



NP21ZL

2.1



3.4



NP31ZL

18.2



22.5



Applicable lens unit: NP39ML

Horizontal angle H

Lens



Zoom



Tele



Wide

NP39ML



52.8

Vertical angle V

Lens



Zoom





Tele

Wide







V1



V2

NP39ML

9.68



21.52

V1

V2

H

H

vi

Important Information

The caution label and the explanatory label s of the CLASS 3R LASER PRODUCTS are stuck on the below indicated positions.

Label 1

































































































































































































































































































































































































































































































































































































































































































































































































Label 2































Label 3



































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































Label 1

Label 3

Label 2

vii

Nec PX803UL-WH User Manual

Important Information

Manufacturer's ID Label (For PX803UL-WH)

(For PX803UL-BK)

Position of the Manufacturer's ID Label

viii

Important Information

About Copyright of original projected pictures:

Please note that using this projector for the purpose of commercial gain or the attraction of public attention in a venue such as a coffee shop or hotel and employing compression or expansion of the screen image with the following functions may raise concern about the infringement of copyrights which are protected by copyright law.

[ASPECT RATIO], [KEYSTONE], Magnifying feature and other similar features.

Turkish RoHS information relevant for Turkish market

EEE Yönetmeliğine Uygundur.

This device is not intended for use in the direct field of view at visual display workplaces.To avoid incommoding reflections at visual display workplaces this device must not be placed in the direct field of view.

ix

Important Information

Health precautions to users viewing 3D images

Before viewing, be sure to read health care precautions that may be found in the user’s manual included with your 3D eyeglasses or your 3D compatible content such as Blu-ray Discs, video games, computer’s video files and the like. To avoid any adverse symptoms, heed the following:

Do not use 3D eyeglasses for viewing any material other than 3D images.

Allow a distance of 2 m/7 feet or greater between the screen and a user. Viewing 3D images from too close a distance can strain your eyes.

Avoid viewing 3D images for a prolonged period of time. Take a break of 15 minutes or longer after every hour of viewing.

If you or any member of your family has a history of light-sensitive seizures, consult a doctor before viewing 3D images.

While viewing 3D images, if you get sick such as nausea, dizziness, queasiness, headache, eyestrain, blurry vision, convulsions, and numbness, stop viewing them. If symptoms still persist, consult a doctor.

View 3D images from the front of the screen.Viewing from an angle may cause fatigue or eyestrain.

Power management function

In order to keep power consumption low, the following power management functions (1) and (2) have been set when shipped from the factory. Please display the on-screen menu and change the settings (1) and (2) according to the aim of using the projector.

1.STANDBY MODE (Factory preset: NORMAL)

When [NORMAL] is selected for [STANDBY MODE], the following terminals and functions will not work: HDMI OUT terminal, Ethernet/HDBaseT Port, USB Port, LAN functions, Mail Alert function

(page 134)

2.AUTO POWER OFF (Factory preset: 1 hour)

When [1:00] is selected for [AUTO POWER OFF], you can enable the projector to automatically turn off in 1 hour if there is no signal received by any input or if no operation is performed.

(page 135)

x

Important Information

Clearance for Installing the Projector

Allow ample clearance between the projector and its surroundings as shown below.

The high temperature exhaust coming out of the device may be sucked into the device again.

Avoid installing the projector in a place where air movement from the HVAC is directed at the projector.

Heated air from the HVAC can be taken in by the projector’s intake vent. If this happens, the temperature inside the projector will rise too high causing the over-temperature protector to automatically turn off the projectors power.

• Concerning to the portrait projection, please refer “Portrait projection” on page 154.

Example 1 – If there are walls on both sides of the projector.

30 cm/11.8" or greater

30 cm/11.8" or greater

Intake vent

NOTE:

The drawing shows the proper clearance required for the front, back and top of the projector.

Example 2 – If there is a wall behind the projector.

50 cm/19.7" or greater

Lens

Exhaust vent

NOTE:

The drawing shows the proper clearance required for the right, left, and top of the projector.

xi

Table of Contents



Important Information............................................................................................

i

1. Introduction............................................................................................................

1

What’s in the Box?...........................................................................................................

1

Introduction to the Projector............................................................................................

3

Congratulations on Your Purchase of the Projector...................................................

3

General......................................................................................................................

3

Light source · Brightness...........................................................................................

3

Installation.................................................................................................................

3

Videos........................................................................................................................

4

Network.....................................................................................................................

4

Energy-saving............................................................................................................

4

About this user’s manual...........................................................................................

5

Part Names of the Projector............................................................................................

6

Front/Top....................................................................................................................

6

Rear...........................................................................................................................

7

Controls/Indicator Panel............................................................................................

8

Terminals Features....................................................................................................

9

Part Names of the Remote Control...............................................................................

10

Battery Installation...................................................................................................

11

Remote Control Precautions...................................................................................

11

Operating Range for Wireless Remote Control.......................................................

12

Using the Remote Control in Wired Operation........................................................

12

2. Projecting an Image (Basic Operation)................................................

13

Flow of Projecting an Image..........................................................................................

13

Connecting Your Computer/Connecting the Power Cord..............................................

14

Using the Supplied Power Cords.............................................................................

15

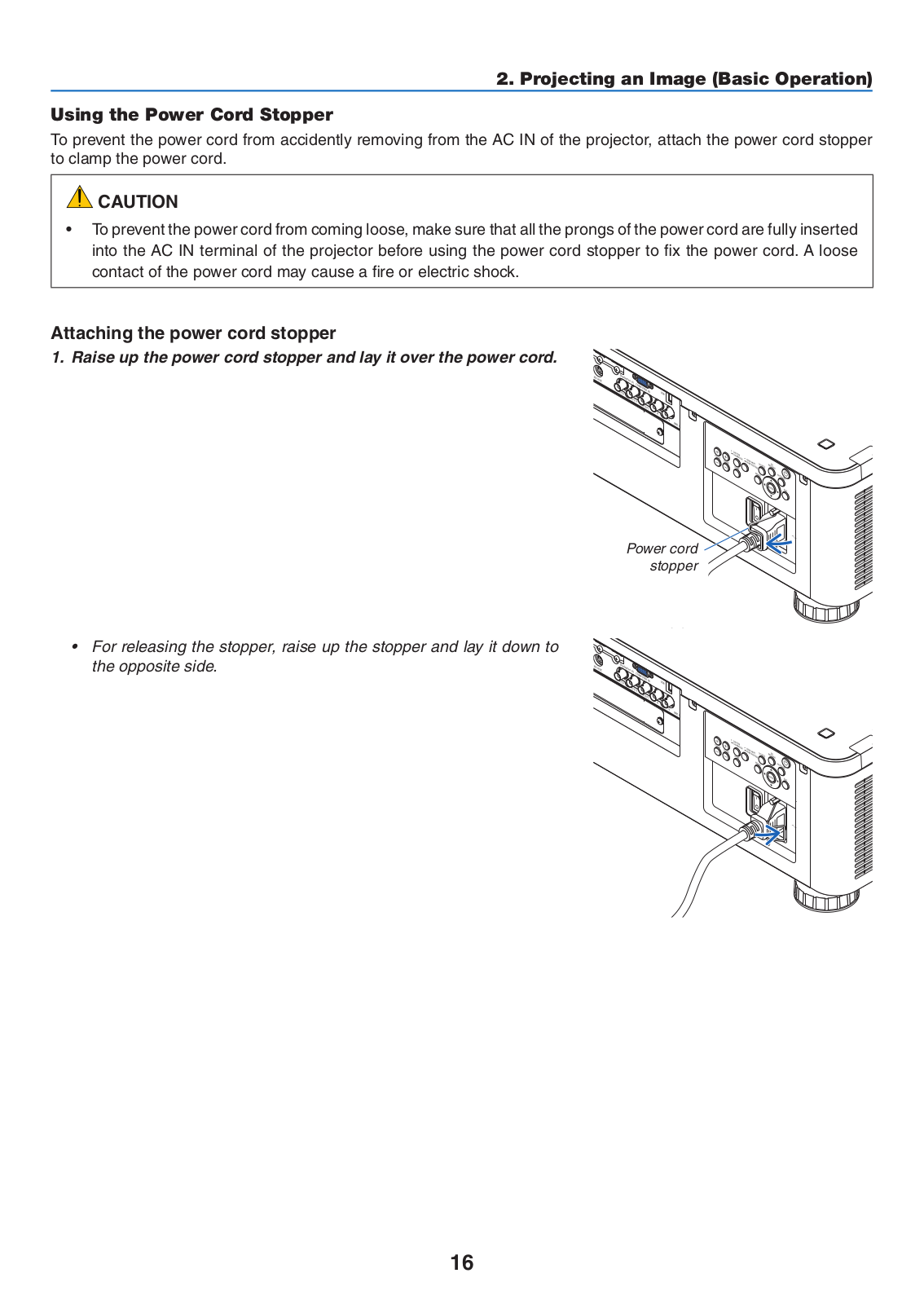

Using the Power Cord Stopper................................................................................

16

Turning on the Projector................................................................................................

17

Performing Lens Calibration ...................................................................................

18

Note on Startup screen (Menu Language Select screen).......................................

19

Selecting a Source........................................................................................................

20

Selecting the computer or video source..................................................................

20

Adjusting the Picture Size and Position.........................................................................

22

Adjusting the vertical position of a projected image (Lens shift)..............................

23

Focus.......................................................................................................................

26

Zoom.......................................................................................................................

31

Adjusting the Tilt Foot..............................................................................................

32

Optimizing Computer Signal Automatically...................................................................

33

Adjusting the Image Using Auto Adjust...................................................................

33

Turning off the Projector................................................................................................

34

After Use.......................................................................................................................

35

3. Convenient Features.......................................................................................

36

Turn off the light of the projector (LENS SHUTTER).....................................................

36

Turning off the Image....................................................................................................

36

Turning Off the On-Screen Menu (On-Screen Mute).....................................................

36

xii

Table of Contents

Freezing a Picture.........................................................................................................

37

Magnifying a Picture......................................................................................................

38

Changing LIGHT MODE/Checking Energy-Saving Effect Using LIGHT MODE



[LIGHT MODE]........................................................................................................

39

Checking Energy-Saving Effect [CARBON METER]...............................................

41

Correcting Horizontal and Vertical Keystone Distortion [CORNERSTONE]..................

42

Preventing the Unauthorized Use of the Projector [SECURITY]...................................

45

Projecting 3D videos.....................................................................................................

48

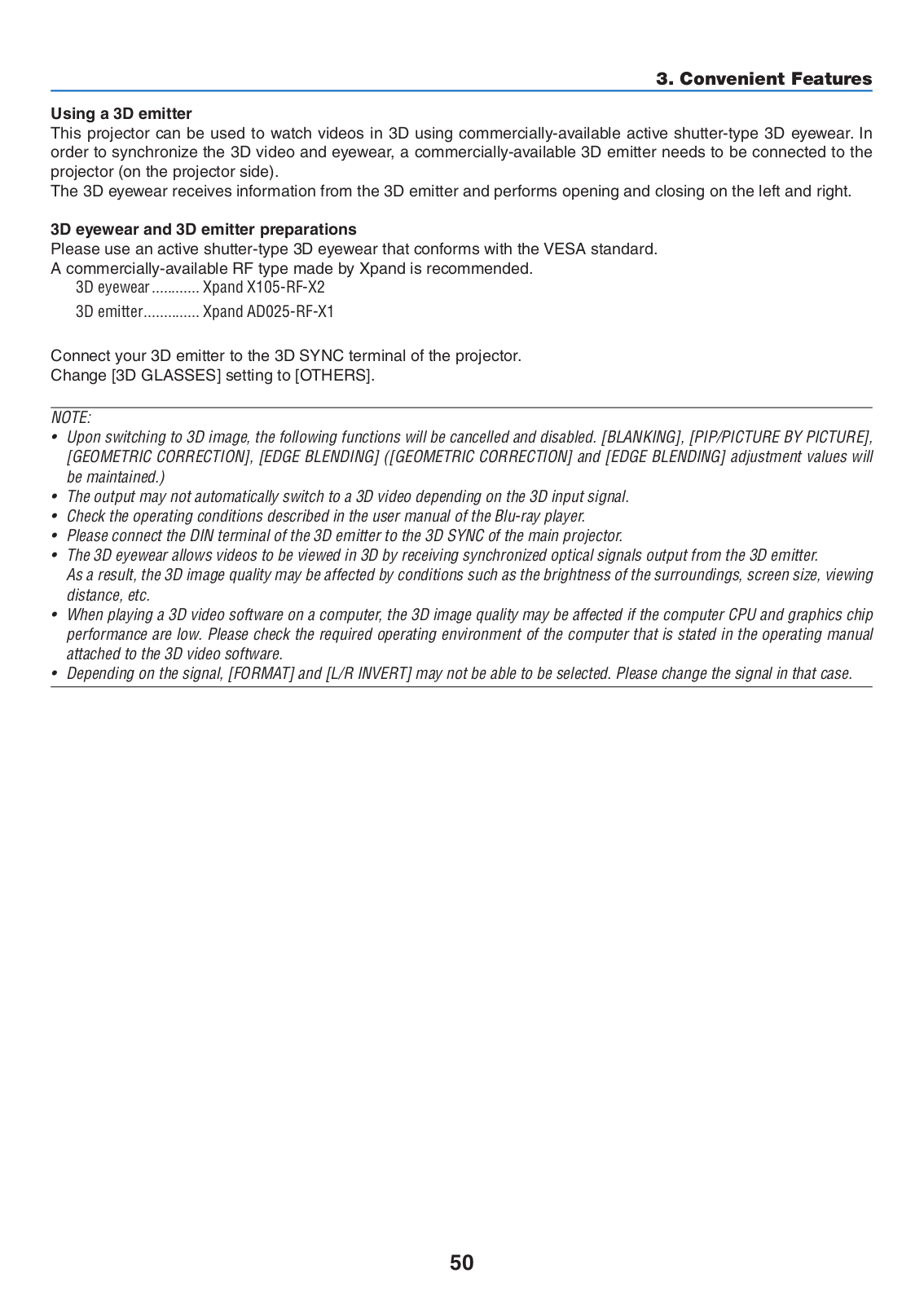

Procedure to watch 3D videos using this projector.................................................

48

When videos cannot be viewed in 3D.....................................................................

51

Controlling the Projector by Using an HTTP Browser...................................................

52

Storing Changes for Lens Shift, Zoom, and Focus [LENS MEMORY]..........................

58

To store your adjusted values in [REF. LENS MEMORY]:.......................................

59

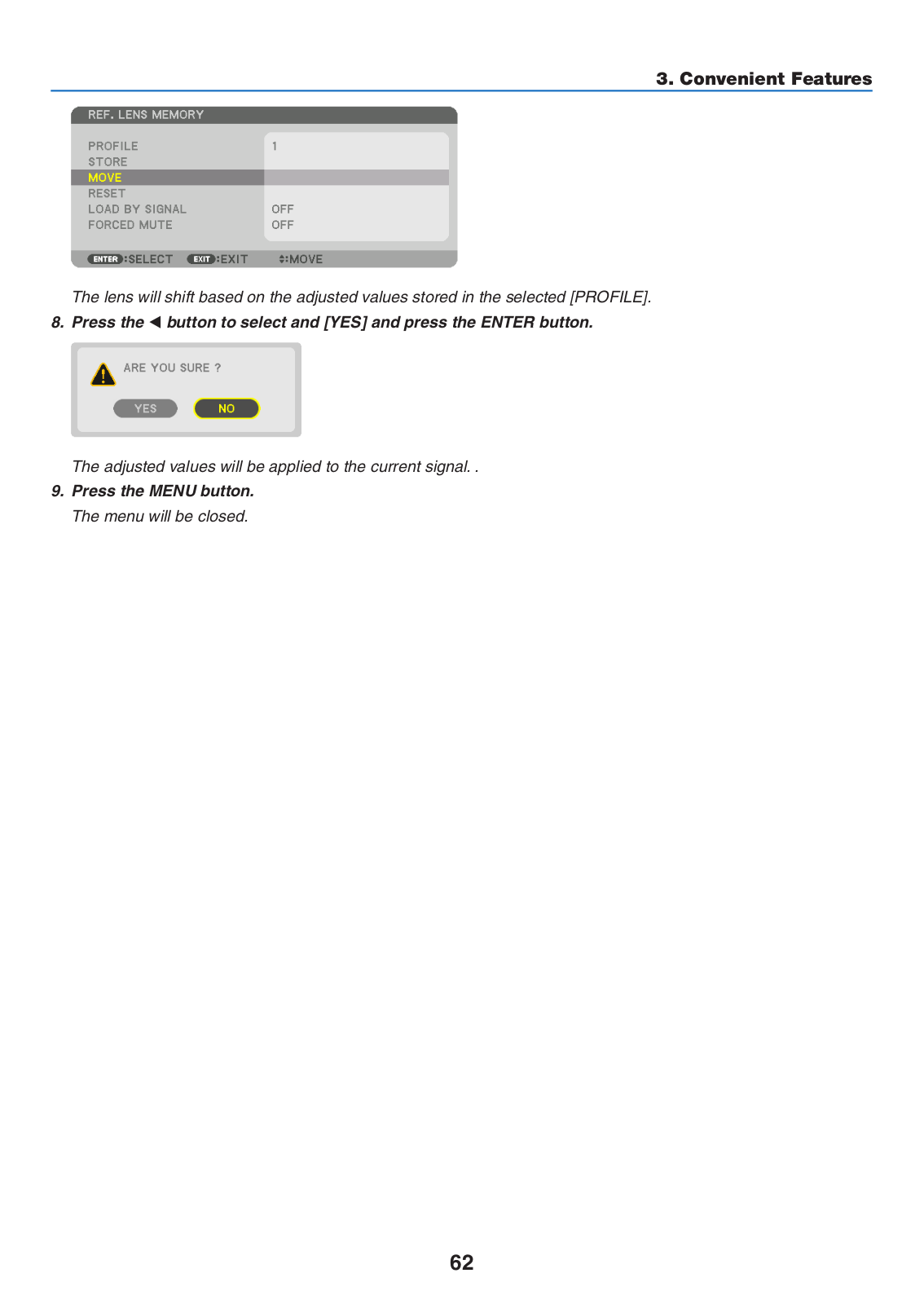

To call up your adjusted values from [REF. LENS MEMORY]:.................................

61

4. Multi-Screen Projection................................................................................

64

Things that can be done using multi-screen projection.................................................

64

Case 1. Using a single projector to project two types of videos [PIP/PICTURE



BY PICTURE]..........................................................................................................

64

Case 2. Using four projectors (resolution: WUXGA) to project videos with a



resolution of 2560 × 1600 pixels [TILING]...............................................................

65

Things to note when installing projectors................................................................

67

Displaying Two Pictures at the Same Time...................................................................

68

Projecting two screens............................................................................................

69

Switching the main display with the sub-display and vice versa..............................

70

Restrictions..............................................................................................................

71

Displaying a Picture Using [EDGE BLENDING]............................................................

72

Setting the overlap of projection screens................................................................

73

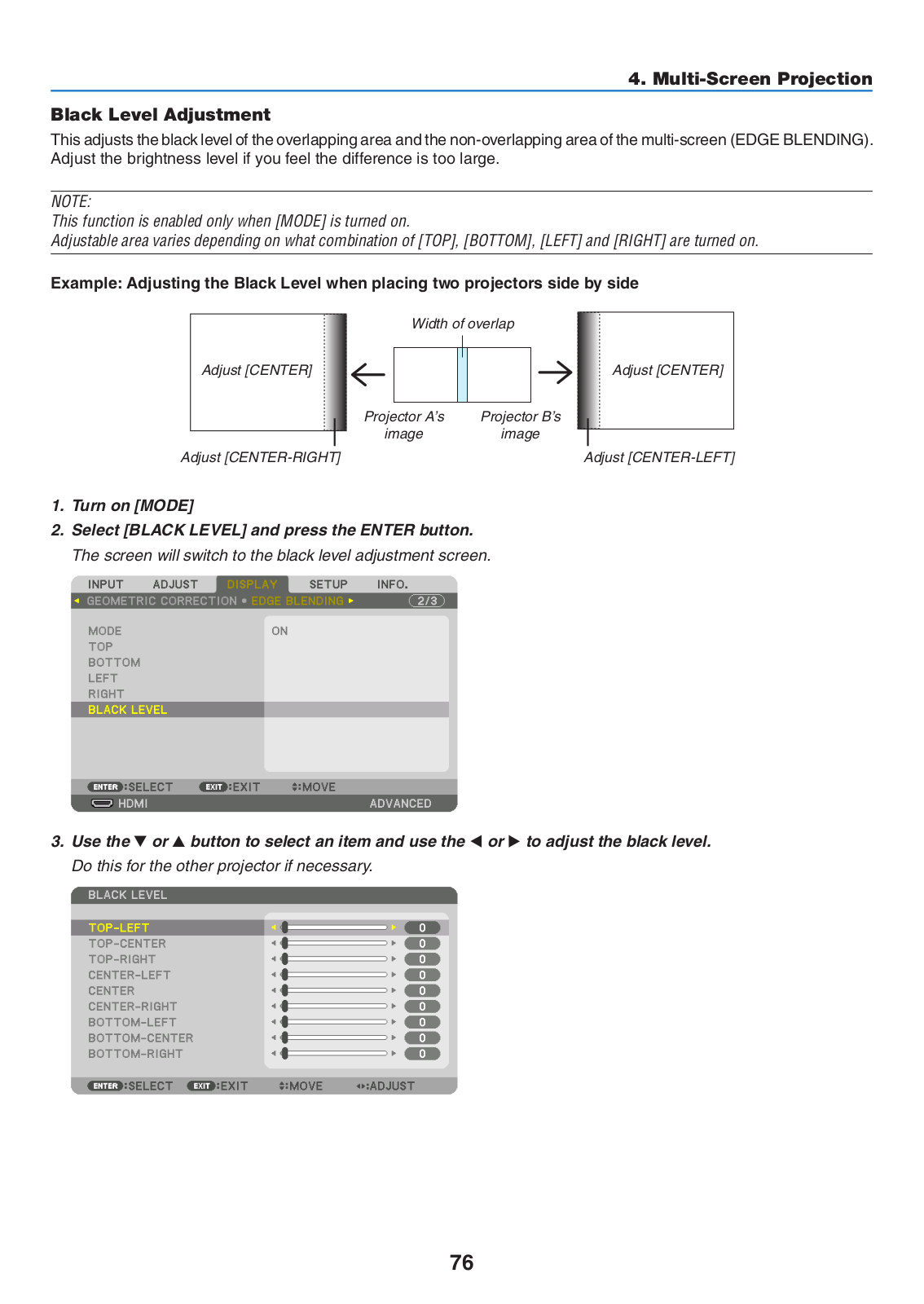

Black Level Adjustment...........................................................................................

76

5. Using On-Screen Menu.................................................................................

78

Using the Menus...........................................................................................................

78

Menu Elements.............................................................................................................

79

List of Menu Items.........................................................................................................

80

Menu Descriptions & Functions [INPUT].......................................................................

86

HDMI.......................................................................................................................

86

DisplayPort..............................................................................................................

86

BNC.........................................................................................................................

86

BNC(CV)..................................................................................................................

86

BNC(Y/C).................................................................................................................

86

COMPUTER............................................................................................................

86

HDBaseT.................................................................................................................

86

SLOT.......................................................................................................................

86

ENTRY LIST............................................................................................................

86

TEST PATTERN......................................................................................................

86

Menu Descriptions & Functions [ADJUST]...................................................................

90

[PICTURE]...............................................................................................................

90

[IMAGE OPTIONS]..................................................................................................

94

[VIDEO]...................................................................................................................

98

xiii

Table of Contents

[3D SETTINGS].....................................................................................................

100

Using the Lens Memory Function [LENS MEMORY]............................................

101

Menu Descriptions & Functions [DISPLAY]................................................................

103

[PIP/PICTURE BY PICTURE]...............................................................................

103

[GEOMETRIC CORRECTION]..............................................................................

105

[EDGE BLENDING]...............................................................................................

109

[MULTI SCREEN]..................................................................................................

110

Menu Descriptions & Functions [SETUP]...................................................................

112

[MENU]..................................................................................................................

112

[INSTALLATION(1)]...............................................................................................

114

[INSTALLATION(2)]...............................................................................................

117

[CONTROL]...........................................................................................................

119

[NETWORK SETTINGS].......................................................................................

127

[SOURCE OPTIONS]............................................................................................

132

[POWER OPTIONS]..............................................................................................

134

Returning to Factory Default [RESET]...................................................................

136

Menu Descriptions & Functions [INFO.]......................................................................

137

[USAGE TIME].......................................................................................................

137

[SOURCE(1)].........................................................................................................

137

[SOURCE(2)].........................................................................................................

138

[SOURCE(3)].........................................................................................................

138

[SOURCE(4)].........................................................................................................

138

[WIRED LAN].........................................................................................................

139

[VERSION(1)]........................................................................................................

139

[OTHERS]..............................................................................................................

139

[HDBaseT].............................................................................................................

140

6. Connecting to Other Equipment............................................................

141

Mounting a lens (sold separately)...............................................................................

141

Mounting the lens..................................................................................................

141

Removing the lens.................................................................................................

142

Making Connections....................................................................................................

143

Analog RGB signal connection..............................................................................

143

Digital RGB signal connection...............................................................................

144

Connecting an External Monitor............................................................................

147

Connecting Your Blu-ray Player or Other AV Equipment.......................................

148

Connecting Component Input................................................................................

149

Connecting HDMI Input.........................................................................................

150

Connecting a document camera............................................................................

151

Connecting to a Wired LAN...................................................................................

152

Connecting to a HDBaseT transmission device (sold commercially)....................

153

Portrait projection (vertical orientation)..................................................................

154

Stacking projectors................................................................................................

156

7. Maintenance......................................................................................................

159

Cleaning the Lens.......................................................................................................

159

Cleaning the Cabinet...................................................................................................

159

8. User Supportware...........................................................................................

160

Operating Environment for Software Included on CD-ROM........................................

160

xiv

Table of Contents

Names and Features of Bundled Software Programs...........................................

160

Download service..................................................................................................

160

Installing Software Program........................................................................................

161

Installation for Windows software..........................................................................

161

Operating the Projector Via the LAN (Virtual Remote Tool)........................................

164

Connect the projector to a LAN.............................................................................

165

Controlling the Projector over a LAN (PC Control Utility Pro 4/Pro 5).........................

167

9. Appendix..............................................................................................................

171

Throw distance and screen size..................................................................................

171

Lens types and throw distance..............................................................................

171

Tables of screen sizes and dimensions.................................................................

173

Lens shifting range................................................................................................

174

Mounting the Optional Board (sold separately)...........................................................

175

Compatible Input Signal List.......................................................................................

177

Specifications..............................................................................................................

180

Power Cord............................................................................................................

183

Cabinet Dimensions....................................................................................................

184

Pin assignments and signal names of main terminals................................................

185

Troubleshooting...........................................................................................................

187

Indicator Messages...............................................................................................

187

Common Problems & Solutions.............................................................................

189

If there is no picture, or the picture is not displayed correctly................................

191

PC Control Codes and Cable Connection...................................................................

192

Troubleshooting Check List.........................................................................................

193

xv

1. Introduction

What’s in the Box?

Make sure your box contains everything listed. If any pieces are missing, contact your dealer. Please save the original box and packing materials if you ever need to ship your projector.

Projector

Dust cap for lens

Remote control

AA alkaline batteries

Lens theft prevention

* The projector is shipped without

(7N901041)

(x2)

screw (79TM1071)

a lens. For the types of lens and





This screw makes it dif-

throw distances, see page 171.





ficult to remove the lens







mounted on the projec-







tor. (page 142)









Power cord × 3







(79TM1021)

(79TQ1001 for AC 120 V)

(79TQ1011 for AC 200 V)

For Europe/Asia/South America

For North America

4 Stacking holders (79TM1101)

When stacking projectors (double stacking), the tilt foot of the upper projector will be placed onto these stacking holders. (page 157)

Important Infomation

NEC Projector CD-ROM



(7N8N6631)

User’s manual (PDF) and the

• Quick Setup Guide (7N8N6641)

utility software

Security Sticker

(7N952341)



(Use this sticker when security





password is set on.)



For North America only

Limited warranty

For customers in Europe:

You will find our current valid Guarantee Policy on our Web Site: www.nec-display-solutions.com

1

1. Introduction

Attaching/Removing the Dust Cap

To remove the dust cap from the projector, push the tongue at the top left outward and pull the knob at the center of the cap.

To attach the dust cap to the projector, locate the catch on the lower end of the dust cap and place it into the opening of the projector with the point of a triangle mark ( ) facing downward ( in the figure below), and then push the upper end of the dust cap against the projector to place the catches into the slot while clutching the handle ( in the figure below).

2

1. Introduction

Introduction to the Projector

This section introduces you to your new projector and describes the features and controls.

Congratulations on Your Purchase of the Projector

This projector is one of the very best projectors available today.The projector enables you to project precise images up to 500 inches across (measured diagonally) from your PC or Mac computer (desktop or notebook), VCR, Blu-ray player, or document camera.

You can use the projector on a tabletop or cart, you can use the projector to project images from behind the screen, and the projector can be permanently mounted on a ceiling*1.The remote control can be used wirelessly.

*1 Do not attempt to mount the projector on a ceiling yourself.

The projector must be installed by qualified technicians in order to ensure proper operation and reduce the risk of bodily injury.

In addition, the ceiling must be strong enough to support the projector and the installation must be in accordance with any local building codes. Please consult your dealer for more information.

General

Single-chip DLP projector with high resolution and high brightness

Realized to project the image in the resolution 1920 × 1200 pixels (WUXGA), the aspect ratio in 16:10, and the brightness in 8000 lumens.

Light source · Brightness

A long-life laser diode is equipped in the light module

The product can be operated at low cost because the laser light source can be used for a long time without requiring replacement or maintenance.

Brightness can be adjusted within a wide range

Unlike with ordinary light sources, the brightness can be adjusted from 20 to 100% in 1% increments.

[CONSTANT BRIGHTNESS] mode

Brightness normally decreases with use, but by selecting [CONSTANT BRIGHTNESS] mode, sensors inside the projector detect and automatically adjust the output, thereby maintaining constant brightness throughout the life of the light module.

However, if brightness output is set at the maximum, brightness will decrease with use.

Installation

Wide range of optional lenses selectable according to the place of installation

This projector supports 8 types of optional lenses, providing a selection of lenses adapted to a variety of places of installation and projection methods.

In addition, the lenses can be mounted and removed in one touch.

Note that no lens is mounted upon shipment from the factory. Please purchase optional lenses separately.

This projector can be installed any angle within vertical and horizontal 360° range, however, life of optical parts will be shorten in the following installation state:

When the projector is installed on which lens faces downward.

When the intake vent on the projector side faces downward in the portrait installation. (See page 154)

Double stackable for high light output projection

By stacking 2 projectors, increased brightness on a large screen is possible.

Power lens control for quick and easy adjustment

By using buttons on the projector or the remote control, zoom, focus, and position (lens shift) can be adjusted.

3

1. Introduction

Videos

Wide range of input/output terminals (HDMI,DisplayPort,BNC,HDBaseT,etc.) and built-in monaural speaker

The projector is equipped with a variety of input/output terminals: HDMI, DisplayPort, BNC (5-core), computer (analog), HDBaseT, etc.

The projector’s HDMI input/output terminals and DisplayPort input terminal support HDCP.

HDBaseT, promoted and advanced by the HDBaseT Alliance, is a consumer electronic (CE) and commercial connectivity technology.

Slot for optional board

This projector has a slot for optional boards (sold separately).

Simultaneous display of 2 images (PIP/PICTURE BY PICTURE)

Two images can be projected simultaneously with a single projector.

There are two types of layouts for the two images: “picture-in-picture” (PIP) in which a sub-picture is displayed on the main picture, and “picture-by-picture” (PICTURE BY PICTURE) in which the main and sub pictures are displayed next to each other.

Multi-screen projection using multiple projectors

This projector is equipped with multiple HDMI input & output terminals that can connect multiple projectors in a daisy chain.By dividing and projecting high resolution image on each projector, high quality image can be realized.

Furthermore, the boundaries of the screens are smoothed using an edge blending function.

Supports HDMI 3D format

This projector can be used to watch videos in 3D using commercially-available active shutter-type 3D eyewear and 3D emitters that support Xpand 3D.

Network

Convenient utility software (User Supportware) provided as standard

The three utility software stored in the enclosed NEC Projector CD-ROM (Virtual Remote Tool, PC Control Utility Pro 4 (for Windows ) and PC Control Utility Pro 5 (for Mac OS )) can be used.

CRESTRON ROOMVIEW compatible

This projector supports CRESTRON ROOMVIEW,allowing multiple devices connected to the network to be managed from a computer or controller.

Energy-saving

Energy-saving design with a standby power consumption of 0.27 watts or under

When the on-screen menu’s standby mode is set to “NORMAL”, the power consumption in the standby mode is 0.27 watts or under.

0.18 watts with power voltage AC100V-130V and 0.27 watts with power voltage AC200V-240V.

“LIGHT MODE” for low power consumption and “Carbon Meter” display

The projector is equipped with an “LIGHT MODE” for reducing power consumption during use. Furthermore, the

power-saving effect when the LIGHT MODE is set is converted into the amount of reductions of CO2 emissions and this is indicated on the confirmation message displayed when the power is turned off and at “Information” on the on-screen menu (CARBON METER).

4

1. Introduction

About this user’s manual

The fastest way to get started is to take your time and do everything right the first time. Take a few minutes now to review the user’s manual.This may save you time later on. At the beginning of each section of the manual you’ll find an overview. If the section doesn’t apply, you can skip it.

5

1. Introduction

Part Names of the Projector

Front/Top

The lens is sold separately.The description below is for when the NP18ZL lens is mounted.

Indicator Panel

(page 8)

Remote Sensor (located on the front and the rear)

(page 12)

Intake vent

Takes in air to cool the unit. (page xi, 154)

Lens Release (LENS) Button

(page 142)

Lens

Lens Cap

(The lens cap is attached to the lens.)

Remote Sensor

(page 12)

Stacking Holder fixing section

(4 locations)

Intake vent

Takes in air to cool the unit.

(page xi, 154)

Tilt Foot

(page 32)

6

1. Introduction

Rear

Controls (page 8)

Exhaust vent

Heated aiir is exhausted

from here.

(page xi, 154)

Built-in Security Slot (

)*

Terminals

(page 9)

AC IN terminal

Connect the supplied power cord’s three-pin plug here, and plug the other end into an active wall outlet. (page 14)

Power Cord Stopper (page 16)

Main power switch

While AC power is being supplied, set the main power switch to ON position (|), then your projector will enter a standby state.

* This security slot supports the MicroSaver ® Security System.

Security Bar

Theft prevention screw

Fixing a theft prevention

hole for the lens unit

device.



The security bar accepts



security wires or chains



up to 0.18 inch/4.6 mm in



diameter.



Handle (located on 4 posi- tions)

For transportation

NOTE:

For moving the projector, make sureyouhaveat least two people. Attempting to move the projector alone could result in back pain or other injuries.

Intake vent

Takes in air to cool the unit. (page xi, 154)

7

1. Introduction

Controls/Indicator Panel

5

4

3

2

13

15

6

8

1

7

1. (POWER) Button

(→ page 17, 34)

2.POWER Indicator

(→ page 17, 18, 34, 186)

3.STATUS Indicator

(→ page 186)

4.LIGHT Indicator

(→ page 39, 187)

5.TEMP. Indicator

(→ page 187)

6.SOURCE Button

(→ page 20)

7.AUTO ADJ. Button

(→ page 33)

8.3D REFORM Button

(→ page 42)

9.MENU Button

(→ page 78)

10.▲▼ Buttons

(→ page 78)

11.ENTER Button

(→ page 78)

12.EXIT Button

(→ page 78)

16 17

14

9

10 11

12

13.SHUTTER/CALIBRATION Button

(→ page 36)

14.LIGHT Button

(→ page 39)

15.LENS SHIFT/HOME POSITION Button

(→ page 23, 58, 174)

16.FOCUS +/− Button

(→ page 26)

17.ZOOM +/− Button

(→ page 31)

8

1. Introduction

Terminals Features

9

8

3

2





1

7









































































































































4















6

5















14

12

11

13

10

1.COMPUTER IN (Mini D-Sub 15 Pin)

(→ page 14, 143, 149, 184)

2.DisplayPort INTerminal (DisplayPort 20 Pin)

(→ page 144, 184)

3.HDMI INTerminal (Type A)

(→ page 144, 146, 150, 184)

4.BNC Input [R/Cr/CV, G/Y/Y, B/Cb/C, H,V]Terminals (BNC × 5)

(→ page 143, 148)

5.BNC (Y/C) InputTerminal (BNC × 2)

(→ page 148)

6.BNC (CV) InputTerminal (BNC × 1)

(→ page 148)

7.USB Port (Type A)

(→ page 185)

(For future expansion.This port allows for power supply.)

8.HDMI OUTTerminal (Type A)

(→ page 147)

9.Ethernet/HDBaseT Port (RJ-45)

(→ page 152, 153, 185)

12.REMOTETerminal (Stereo Mini)

Use this jack for wired remote control of the projector using a commercially available remote cable with 3.5 stereo mini-plug (without resistance).

Connect the projector and the supplied remote control using a commercially available wired remote control cable.

(→ page 12)

NOTE:

When a remote control cable is connected to the REMOTE terminal, infrared remote control operations cannot be performed.

Power cannot be supplied from the REMOTE terminal to the remote control.

When [HDBaseT] is selected in the [REMOTE SENSOR] and the projector is connected to a commercially-available transmission device that supports HDBaseT, remote control operations in infra-red cannot be carried out if transmission of remote control signals has been set up in the transmission device. However, remote control using infrared rays can be carried out when the power supply of the transmission device is switched off.

10.3D SYNCTerminal (Mini DIN 3 Pin)

(→ page 50)

11.PC CONTROL Port (D-Sub 9 Pin)

(→ page 185, 191)

Use this port to connect a PC or control system. This enables you to control the projector using serial communication protocol. If you are writing your own program, typical PC control codes are on page 191.

13.SLOT

(→ page 175)

14.Service terminal

For service only

9

1. Introduction

Part Names of the Remote Control

1

1. Infrared Transmitter



(→ page 12)

4

3

6

7

2.

Remote Jack

5

Connect a commercially available

remote cable here for wired opera-

8tion. (→ page 12)

93. POWER ON Button

(→ page 17)

21.AUTO ADJ. Button

(→ page 33)

22, 23. COMPUTER 1/2 Button

(→ page 20)

24.COMPUTER 3 Button

(This button is not work on this projector.)

25.VIDEO Button

10

11

4.

POWER OFF Button

(→ page 20)

12





(→ page 34)

26. S-VIDEO Button

13

5.

INFO/L-CALIB. Button

(→ page 20)





Display the [SOURCE(1)] screen

27. HDMI Button

14

15



of the on-screen menu.

(→ page 20)



(→ page 18, 137)

28. DisplayPort Button

16

17



6.

VOL./FOCUS +/− Buttons

(→ page 20)

20

18



(→ page 26)

29. VIEWER Button

21



19

7.

D-ZOOM/ZOOM +/− Buttons

(The VIEWER button will not work

23

24



(→ page 38)



on this series of projectors.)

22

26



8.

TEST Button

25

27

30. NETWORK Button

28

30



(→ page 86)

(→ page 20)

29

9.

ECO/L-SHIFT Button

31. SLOT Button

32





(→ page 25, 39)

31



(→ page 175)

33



10. MENU Button

34

36

32. ID SET Button



35



(→ page 78)

(→ page 125)



11. EXIT Button

2

(→ page 78)

12. ENTER Button

(→ page 78)

13. ▲▼ Button

(→ page 78)

14. ON-SCREEN Button

(→ page 36)

15. SHUTTER Button

(→ page 36)

16. AV-MUTE Button

(→ page 36)

17. PICTURE Button

(→ page 90)

18. SOURCE Button

(→ page 20)

19. 3D REFORM Button

(→ page 42)

20. PIP/FREEZE Button

(→ page 37, 69)

33.Numeric (0 to 9/CLEAR) Buttons

(→ page 125)

(The AUX button will not work on this series of projectors.)

34.CTL Button

This button is used in conjunction with other buttons, similar to a CTRL key on a computer.

35.LIGHT Button

This button is used to turn on the backlight for the remote control buttons.

The backlight will turn off if no button operation is made for 10 seconds.

36.HELP Button

(→ page 137)

10

1. Introduction

Battery Installation

1.Press the catch and remove the battery cover.

2.Install new ones (AA). Ensure that you have the batteries’ polarity (+/−) aligned correctly.

3.Slip the cover back over the batteries until it snaps into place.

NOTE: Do not mix different types of batteries or new and old batteries.

2

1

2



1



Remote Control Precautions

Handle the remote control carefully.

If the remote control gets wet, wipe it dry immediately.

Avoid excessive heat and humidity.

Do not short, heat, or take apart batteries.

Do not throw batteries into fire.

If you will not be using the remote control for a long time, remove the batteries.

Ensure that you have the batteries’ polarity (+/−) aligned correctly.

Do not use new and old batteries together, or use different types of batteries together.

Dispose of used batteries according to your local regulations.

11

1. Introduction

Operating Range for Wireless Remote Control

7m/276

inch



7

m/276

inch







15°

30°

30°

15°

30°

30°





Remote sensor on projector cabinet

Remote control

30°

30°

30°

30°

7 m/276 inch

7 m/276 inch

The infrared signal operates by line-of-sight up to a distance of above meters and within a 60-degree angle of the remote sensor on the projector cabinet.

The projector will not respond if there are objects between the remote control and the sensor, or if strong light falls on the sensor. Weak batteries will also prevent the remote control from properly operating the projector.

Using the Remote Control in Wired Operation

Connect one end of the remote cable to the REMOTE terminal and the other end to the remote jack on the remote control.

REMOTE

Remote Jack

NOTE:

When a remote cable is inserted into the REMOTE terminal, the remote control does not work for infrared wireless communication.

Power will not be supplied to the remote control by the projector via the REMOTE jack. Battery is needed when the remote control is used in wired operation.

12

2. Projecting an Image (Basic Operation)

This section describes how to turn on the projector and to project a picture onto the screen.

Flow of Projecting an Image

Step 1

• Connecting your computer / Connecting the power cord (page 14)

Step 2

• Turning on the projector (page 17)

Step 3

• Selecting a source (page 20)

Step 4

Adjusting the picture size and position (page 22)

Correcting keystone distortion [CORNERSTONE] (page 42)

Step 5

Adjusting a picture

- Optimizing a computer signal automatically (page 33)

Step 6

• Making a presentation

Step 7

• Turning off the projector (page 34)

Step 8

• After use (page 35)

13

2. Projecting an Image (Basic Operation)

Connecting Your Computer/Connecting the Power Cord

1.Connect your computer to the projector.

This section will show you a basic connection to a computer. For information about other connections, see “(2) Making Connections” on page 143.

Connect the display output terminal (mini D-sub 15 pin) on the computer to the COMPUTER IN terminal on the projector with a commercially-available computer cable (with ferrite core) and then turn the knobs of the terminals to secure them.

2.Connect the supplied power cord to the projector.

WARNING

MAKE SURE TO TAKE THE GROUND CONNECTION FOR THE DEVICE.

TO PREVENT FIRE OR SHOCK, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.

DO NOT USE THIS UNIT'S PLUG WITH AN EXTENSION CORD OR IN AN OUTLET UNLESS ALL THE PRONGS CAN BE FULLY INSERTED.

Important Information:

When plugging in or unplugging the supplied power cord, make sure that the main power switch is pushed to the off [O] position. Failure to do so may cause damage to the projector.

Do not use a three-phase power supply. Doing so may cause of malfunction.

First connect the supplied power cord’s three-pin plug to the AC IN terminal of the projector, and then connect the other plug of the supplied power cord in the wall outlet.

COMPUTER IN

Computer cable (with ferrite core) (sold commercially)

To wall outlet

Make sure that the prongs are fully inserted into both the AC IN terminal and the wall outlet.

14

2. Projecting an Image (Basic Operation)

CAUTION:

Parts of the projector may become temporarily heated if the projector is turned off with the POWER button or if the AC power supply is disconnected during normal projector operation.

Use caution when picking up the projector.

Using the Supplied Power Cords

Select the power cord suitable for your country or region.

For Europe/Asia/South America

For North America

(120 V)

(200 V)

(→ page 183)

15

2. Projecting an Image (Basic Operation)

Using the Power Cord Stopper

To prevent the power cord from accidently removing from the AC IN of the projector, attach the power cord stopper to clamp the power cord.

CAUTION

To prevent the power cord from coming loose, make sure that all the prongs of the power cord are fully inserted into the AC IN terminal of the projector before using the power cord stopper to fix the power cord. A loose contact of the power cord may cause a fire or electric shock.

Attaching the power cord stopper

1. Raise up the power cord stopper and lay it over the power cord.

Power cord

stopper

• For releasing the stopper, raise up the stopper and lay it down to the opposite side.

16

2. Projecting an Image (Basic Operation)

Turning on the Projector

NOTE:

The projector has two power switches: A main power switch and a POWER button (POWER ON and OFF on the remote control)

Turning on the projector:

1.Press the main power switch to the ON position (I).

The projector will go into standby mode.

2.Press the POWER button .

The projector will become ready to use.

•Turning off the projector:

1.Press the POWER button.

The confirmation message will be displayed.

2.Press the POWER button again.

The projector will go into standby mode.

3.Press the main power switch to the OFF position (O).

The projector will be turned off.

Preparation: Remove the lens cap from the lens unit.

1. Press the main power switch to the ON position ( I ).

The POWER indicator lights up red.*

* This indicates that the STANDBY mode is in [NORMAL] setting.

(page 134, 186)

WARNING

The projector produces a strong light. When turning on the power, make sure no one within projection range is looking at the lens.

NOTE:

The [STANDBY MODE] setting will be disabled and the projector will go into the sleep mode when the network service is utilized or the projector receives HDBaseT signal. In the sleep mode, the fans in the projector rotate for the purpose of interior parts protection.

Please refer to page 134 about the sleep mode.

17

2. Projecting an Image (Basic Operation)

2.Press the (POWER) button on the projector cabinet or the POWER ON button on the remote control.

The POWER indicator goes from a steady red light to a flashing blue light, and the picture is projected on the screen.

TIP:

When the message “PROJECTOR IS LOCKED! ENTER YOUR PASSWORD.” is displayed, it means that the [SECURITY] feature is turned on. (page 45)

After you turn on your projector, ensure that the computer or video source is turned on.

NOTE: The blue screen ([BLUE] background) is displayed when no signal is being input (by factory default menu settings).

Standby

Blinking

Power On

Steady red light

Blinking blue

Steady blue

light

light



(→ page 186)

Performing Lens Calibration

After installation or replacement of the lens, be sure to perform [LENS CALIBRATION] bypressing and holding the SHUTTER/ CALIBRATION button on the projector cabinet for at least two seconds or by holding the CTL button and pressing the INFO/L-CALIB. button on the remote control. Calibration corrects the adjustable zoom, shift, and focus range.If calibration is not performed, you may not be able to get the best focus and zoom even if you adjust the focus and zoom for the lens.

The following lenses need calibration:

NP16FL, NP17ZL, NP18ZL, NP19ZL, NP20ZL, NP21ZL, NP31ZL

18

2. Projecting an Image (Basic Operation)

Note on Startup screen (Menu Language Select screen)

When you first turn on the projector, you will get the Startup menu.This menu gives you the opportunity to select one of the 29 menu languages.

To select a menu language, follow these steps:

1. Use the , , or button to select one of the 29 languages from the menu.

2. Press the ENTER button to execute the selection.

After this has been done, you can proceed to the menu operation.

If you want, you can select the menu language later. (→ [LANGUAGE] on page 82 and 112)

NOTE:

If one of the following things happens, the projector will not turn on.

-If the internal temperature of the projector is too high, the projector detects abnormal high temperature. In this condition the projector will not turn on to protect the internal system. If this happens, wait for the projector’s internal components to cool down.

-If the STATUS indicator lights orange with the power button pressed, it means that the [CONTROL PANEL LOCK] is turned on. Cancel the lock by turning it off. (page 124)

While the POWER indicator is blinking blue in short cycles, the power cannot be turned off by using the power button. (While the POWER indicator is blinking blue in long cycles, the OFF TIMER is functioned and the power can be turned off.)

19

2. Projecting an Image (Basic Operation)

Selecting a Source

Selecting the computer or video source

NOTE: Turn on the computer or video source equipment connected to the projector.

Detecting the Signal Automatically

Press the SOURCE button for 1 second or longer. The projector will search for the available input source and display it.The input source will change as follows:

HDMI → DisplayPort → BNC → BNC(CV) → BNC(Y/C) → COMUPTER

→ HDBaseT → SLOT → …

• Press it briefly to display the [INPUT] screen.

Press the ▼/▲ buttons to match the target input terminal and then press the ENTER button to switch the input.To delete the menu display in the [INPUT] screen, press the MENU or EXIT button.

TIP: If no input signal is present, the input will be skipped.

Using the Remote Control

Press any one of the HDMI, DisplayPort, COMPUTER 2, VIDEO, S- VIDEO, COMPUTER 1, NETWORK, or SLOT buttons.

• COMPUTER 2 button selects the BNC input terminal.

• VIDEO button selects the BNC (CV) input terminal (CompositeVideo).

• S-VIDEO button selects the BNC (Y/C) input terminal (S-Video).

20

2. Projecting an Image (Basic Operation)

Selecting Default Source

You can set a source as the default source so that it will be displayed each time the projector is turned on.

1.Press the MENU button.

The menu will be displayed.

2.Press the button to select [SETUP] and press the button or the ENTER button to select [BASIC].

3.Press the button to select [SOURCE OPTIONS].

4.Press the button four times to select [DEFAULT INPUT SELECT] and press the ENTER button.

The [DEFAULT INPUT SELECT] screen will be displayed.

(page 132)

5.Select a source as the default source, and press the ENTER button.

6.Press the EXIT button three times to close the menu.

7.Restart the projector.

The source you selected in step 5 will be projected.

NOTE: Even when [AUTO] is turned on, the [HDBaseT] will not be automatically selected. To set your network as the default source, select [HDBaseT].

TIP:

When the projector is in Standby mode, applying a computer signal from a computer connected to the COMPUTER IN input will power on the projector and simultaneously project the computer’s image.

([AUTO POWER ON SELECT] page 135)

On the Windows 7 keyboard, a combination of the Windows and P keys allows you to set up external display easily and quickly.

21

2. Projecting an Image (Basic Operation)

Adjusting the Picture Size and Position

Use the lens shift dial, the adjustable tilt foot, the zoom ring and the focus ring to adjust the picture size and position.

In this chapter drawings and cables are omitted for clarity.

Adjusting the projected image’s vertical and horizontal

Adjusting the focus

position

[Focus]

[Lens shift]

(→ page 26)

(→ page 23)



Finely adjusting the size of an image [Zoom]

(→ page 31)

Adjusting the projected image’s height and horizontal tilt [Tilt foot] *¹

(→ page 32)

NOTE*1: Adjust the projected image’s height using the tilt foot when you want to project the image at a position higher than the lens shift adjustment range.

TIP:

Built-in test patterns can be conveniently used for adjusting the picture size and position. (page 86)

A press of the TEST button will display the test pattern. The or button can select one test pattern. To close the test pattern, change the source to another.

22

2. Projecting an Image (Basic Operation)

Adjusting the vertical position of a projected image (Lens shift)

CAUTION

Perform the adjustment from behind or from the side of the projector. Performing adjustment from the front could expose your eyes to strong light which could injure them.

Keep hands away from the lens mounting portion while performing a lens shift. Failure to do so could result in fingers being pinched by the moving lens.

NOTE:

The lens shift function is not available on the projector with either NP16FL or NP39ML lens installed. For using NP16FL, set back the lens to the home position.

For using NP39ML, select [SETUP] [INSTALLATION(2)] [LENS POSITION] [TYPE] on the onscreen menu, the lens will be moved to the appropriate position automatically.

Shifting the lens to the maximum in oblique angle will cause the edges of the image to become dark or will cause dark shadows.

Adjusting with buttons on the cabinet

1.Press the LENS SHIFT/HOME POSITION button.

The [LENS SHIFT] screen will be displayed.

23

2. Projecting an Image (Basic Operation)

2.Press the ▼▲ or button.

Use the ▼▲ buttons to move the projected image.

Returning the lens shift position to the home position

Press and hold the LENS SHIFT/HOME POSITION button for 2 seconds to return the lens shift position to the home position (nearly center position)

24

2. Projecting an Image (Basic Operation)

Adjusting with the remote control

1. Hold the CTL button and press the ECO/L-SHIFT button.

The [LENS SHIFT] screen will be displayed.

2. Press the ▼▲ or button.

Use the ▼▲ buttons to move the projected image.

NOTE:

Lens Calibration

If the power of the projector is wrongly shut down during the motion of lens shift, it may shift the home position of the lens and may cause of malfunction. In this case, perform lens calibration.

Lens calibration procedures

1.Power on the projector.

2.Press the (SHUTTER/CALIBRATION) button on the control panel over 2 seconds or keep pressing the CTL button and press the INFO/L-CALIB. button on the remote control.

Calibration is performed.

TIP:

The diagram below shows the lens shift adjustment range (projection mode: desktop front). To raise the projection position higher than this, adjust by the tilt foot. (page 32)

10%H

20%H

50%V

100%V

30%V





100%H

10%H

20%H

Width of projected image

Height of projected image

Description of symbols: V indicates vertical (height of the projected image), H indicates horizontal (width of the projected image).

25

2. Projecting an Image (Basic Operation)

Focus

Applicable lens unit: NP16FL/NP17ZL/NP18ZL/NP19ZL/NP20ZL/NP21ZL

1.Press the FOCUS +/− button.

• On the remote control, while pressing on the CTL button, press on VOL/FOCUS (+) or (−) button. The focus is adjusted.

TIP:

To obtain the best focus, perform the following (for permanent installation)

Preparation: Warm up the projector for one hour.

1.Use the FOCUS +/− buttons to make sure you obtain the best focus. If you do not, move the projector back and forth.

2.Select the [TEST PATTERN] from the menu and display the test pattern. (page 86)

• You can also use the TEST button on the remote control to display the test pattern.

3.Keep pressing the FOCUS −button until the grid of the text pattern is made invisible.

4.Keep pressing the FOCUS + button until you obtain the best focus.

If you adjust beyond the best focal point, go back to step 3 and repeat the procedures.

26

2. Projecting an Image (Basic Operation)

Applicable lens unit: NP31ZL

1. Focus on the projected image around the optical axis. (Powered focus)

The drawing below shows an example when the projected image is shifted upward. In this case the optical axis is at the bottom edge of the projected image.

Adjusting with buttons on the cabinet

Adjusting with the remote control

Press the FOCUS +/− BUTTON on the control panel

Press the VOL/FOCUS button holding the CTL button

Optical axis

*When the lens is at the center position, the optical axis is at the center of the image.In this case, adjust the focus at the center of the projected image.

27

2. Projecting an Image (Basic Operation)

2.Adjust the focus at the edges of the projected image. (Manual focus)

Turn the edge focus ring clockwise or counterclockwise.

Optical axis

This completes adjusting the projected image’s overall focus.

NOTE:

The NP31ZL supports the Lens Memory function, which allows you to store adjusted value for Lens Shift, Zoom, and Focus.

If you accidentally move the Edge focus ring (drawing shown below) after having stored adjusted values, the adjusted values stored in the Lens Memory will not be correctly applied.

Edge focus ring

After having removed the lens from the projector and mounted it back, call up the adjusted values stored in the Lens Memory and then follow Step 2 in the procedure above to adjust the focus at the edges of the projected image again.

28

2. Projecting an Image (Basic Operation)

TIP: To obtain the best focus, perform the following (for permanent installation)

Preparation: Warm up the projector for one hour.

1.Press the FOCUS +/− buttons to check the adjustable focus range. For checking it by the remote control, press and hold the CTL button and press VOL./FOCUS +/− button. If the projector in use is not within the adjustable focus range, move the projector back and forth.

2.Select the [TEST PATTERN] from the menu and display the test pattern. (page 86)

• For displaying the test pattern by the remote control, press TEST button.

3.Keep pressing the FOCUS − button until the grid of the text pattern becomes invisible.

4.Keep pressing the FOCUS + button until you obtain the best focus.

For obtaining the best focus by the remote control, press the VOL./FOCUS + button while holding to press the CTL button. If you adjust beyond the best focal point, go back to step 3 and repeat the procedures.

5.Turn the edge focus ring clockwise or counterclockwise to adjust the focus at the edges of the projected image.

Applicable lens unit: NP39ML

1.Focus on the projected image around the optical axis. (Powered focus)

The optical axis is at the bottom of the image.

Press either the FOCUS +/− button on the control panel or the VOL/FOCUS +/− button while holding to press the CTL button on the remote control.

Optical axis

29

2. Projecting an Image (Basic Operation)

2.Adjust the focus at the edges of the projected image.

Press either the ZOOM +/− button on the control panel or the D-ZOOM/ZOOM +/− button while holding to press the CTL button on the remote control.

Focus around the optical axis set at step 1 is remained unchanged.

Optical axis

3. Repeat steps 1 and 2 until the optimal focus can be obtained on whole image.

TIP:

To obtain the best focus, perform the following (for permanent installation)

Preparation: Warm up the projector for one hour.

1.Use the FOCUS +/− buttons to make sure you obtain the best focus. If you do not, move the projector back and forth.

2.Select the [TEST PATTERN] from the menu and display the test pattern. (page 86)

• You can also use the TEST button on the remote control to display the test pattern.

3.Keep pressing the FOCUS − button until the grid of the text pattern is made invisible.

4.Keep pressing the FOCUS + button until you obtain the best focus.

If you adjust beyond the best focal point, go back to step 3 and repeat the procedures.

5.Press the ZOOM +/− button for adjusting the edges of the projected image.

Press the D-ZOOM/ZOOM +/− button holding to press the CTL button for adjusting it by the remote control.

Repeat steps 1 to 5 until the optimal focus can be obtained on whole image.

30

2. Projecting an Image (Basic Operation)

Zoom

Applicable lens units: NP17ZL/NP18ZL/NP19ZL/NP20ZL/NP21ZL/NP31ZL

1.Press the ZOOM +/− button.

• On the remote control, while pressing on the CTL button, press the D-ZOOM/ZOOM (+) or (−) button. The zoom is adjusted.

31

2. Projecting an Image (Basic Operation)

Adjusting the Tilt Foot

1.The position to project image may be adjusted by the tilt foot positioned at four corners of the cabinet bottom.

The tilt foot height can be adjusted by its turn. “To adjust the height of the projected image”

The height of the projected image is adjusted by turning either front or rear tilt foot.

“If the projected image is tilted”

If the projected image is tilted, turn either left or right tilt foot to adjust the image so that it is level.

If the projected image is distorted, see “3-7 Correcting Horizontal and Vertical Keystone Distortion [CORNERSTONE]” (page 42) and “[GEOMETRIC CORRECTION]” (page 105).

The tilt foot can be lengthened by a maximum of 48 mm.

The tilt foot can be used to tilt the projector by a maximum of 6°.

NOTE:

Do not lengthen the tilt foot any more than 50 mm/1.9". Doing so will make the tilt feet’s mount section unstable and could cause the tilt feet to come off the projector.

Pay attention to lengthen or shorten two tilt foot at front at the same time. Same for the rear foot, otherwise, the weight of the projector is loaded on one side and it may cause of damage to it.

Do not use the tilt foot for any purpose other than adjusting the projector’s projection angle.

Handling the tilt foot improperly, such as carrying the projector by grasping the tilt foot or hooking it onto a wall using the tilt foot, could damage the projector.

Please check level of the lens unit When the lens unit NP39ML is installed on since the lens unit may sligtly incline in left or right.

Up Down

Tilt foot

(there is one more in the rear)

32

2. Projecting an Image (Basic Operation)

Optimizing Computer Signal Automatically

Adjusting the Image Using Auto Adjust

When an image from HDMI IN, DisplayPort IN, BNC input terminal (analog RGB), COMPUTER IN, or HDBaseT is being projected, and the edge is cut off or the image quality is poor, this button can be used to automatically optimize the projection image on the screen.

Press the AUTO ADJ.button to optimize a computer image automatically.

[Poor picture]

[Adjusted picture]

NOTE:

Some signals may take time to display or may not be displayed correctly.

If the Auto Adjust operation cannot optimize the computer signal, try to adjust [HORIZONTAL], [VERTICAL], [CLOCK], and [PHASE] manually. (page 94, 95)

If you can not obtain an optimized picture, refer page 190.
