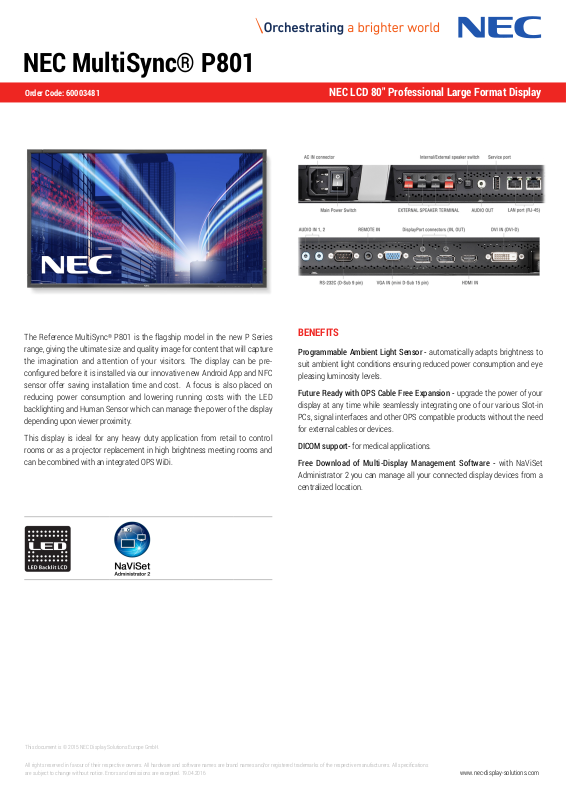

NEC P801 User Manual

NEC MultiSync® P801

Order Code: 60003481

The Reference MultiSync® P801 is the ﬂagship model in the new P Series range, giving the ultimate size and quality image for content that will capture the imagination and attention of your visitors. The display can be preconﬁguredbefore it is installed via our innovative new Android App and NFC sensor offer saving installation time and cost. A focus is also placed on reducing power consumption and lowering running costs with the LED backlighting and Human Sensor which can manage the power of the display depending upon viewer proximity.

This display is ideal for any heavy duty application from retail to control rooms or as a projector replacement in high brightness meeting rooms and can be combined with an integrated OPS WiDi.

NEC LCD 80" Professional Large Format Display

BENEFITS

Programmable Ambient Light Sensor - automatically adapts brightness to suit ambient light conditions ensuring reduced power consumption and eye pleasing luminosity levels.

Future Ready with OPS Cable Free Expansion - upgrade the power of your display at any time while seamlessly integrating one of our various Slot-in PCs, signal interfaces and other OPS compatible products without the need for external cables or devices.

DICOM support- for medical applications.

Free Download of Multi-Display Management Software - with NaViSet

Administrator 2 you can manage all your connected display devices from a centralized location.

All rights reserved in favour of their respective owners. All hardware and software names are brand names and/or registered trademarks of the respective manufacturers. All speciﬁcations are subject to change without notice. Errors and omissions are excepted. 19.04.2016 www.nec-display-solutions.com

NEC MultiSync® P801 - Technical Speciﬁcation

DISPLAY

SYNCHRONISATION RATE

RESOLUTION

CONNECTIVITY

OPS OPTION SLOT

INTERFACE EXTENSION SLOT

SENSORS

ELECTRICAL

ENVIRONMENTAL CONDITIONS

MECHANICAL

ADDITIONAL FEATURES

AVAILABLE OPTIONS

GREEN FEATURES

Panel Technology UV² A with Edge LED backlight

Active Screen Area (W x H) [mm] 1,771.2 x 996.3

Screen Size [inch/cm] 80 / 203

Brightness [cd/m²] 700, 420 Eco (shipment setting)

Contrast Ratio (typ.) 5000:1

Viewing Angle [°] 178 horizontal / 178 vertical (typ. at contrast ratio 10:1)

Response Time (typ.) [ms] 4 (grey-to-grey)

Haze Level [%] 5

Supported Orientation Face Down; Face Up; Landscape; Portrait

Horizontal Frequency [kHz] 31.5 - 91.1 (analog and digital)

Vertical Frequency [Hz] 50 - 85

Native Resolution 1920 x 1080 at 60 Hz

Supported on DisplayPort and HDMI 3840 x 2160 (24/30 Hz); 1920 x 1080; 1600 x 1200; 1360 x 768; 1280 x 1024; 1280 x 768; 1080i; 1080p; 1024 x 768; 800 x 600; 720p

(50/60 Hz); 640 x 480; 576p (50 Hz); 480p (60 Hz)

Supported on HDMI only 4096 x 2160 (24 Hz); 3840 x 2160 (25 Hz); 1360 x 768; 576i (50 Hz); 480i (60 Hz)

Input Video Analogue 1 x D-sub 15 pin

Input Video Digital 1 x DisplayPort (with HDCP); 1 x DVI-D (with HDCP); 1 x HDMI (with HDCP)

Input Audio Analogue 2 x 3,5 mm jack

Input Audio Digital 1 x HDMI; DisplayPort

Input Control LAN 100Mbit; remote control wire (3,5mm jack); RS232

Output Video Digital 1 x DisplayPort out (loop through:DisplayPort, DVI-D, HDMI, Interface Extension Slot, OPS)

Output Audio Analogue 3,5mm jack

Output Control LAN 100Mbit

Remote Control LAN with SNMP; Remote Control IR (internal/external (optional) sensor); RS-232C (9-pin D-sub) Input

Slot Technology Open pluggable speciﬁcation (NEC / Intel OPS standard)

Inrush Current [A] max. 10

Power Consumption [W] max. 61

Voltage / Current [V/A] 16/4

Slot Technology analogue and digital interface extension (NEC standard)

Ambient Light Sensor Integrated, triggered actions programmable

Human Sensor Optional, external, 4-5m range, triggered actions programmable

Temperature Sensor Integrated, 3 sensors, triggered actions programmable

NFC Sensor Integrated, 2cm range, free NEC Android App required

Power Consumption [W] 227 Eco (shipment setting), 320

Power Savings Mode [W] < 0.5 (ECO Standby); < 1

Power Management VESA DPMS

Operating Temperature [°C] +0 to +40

Operating Humidity [%] 20 to 80

Dimensions (W x H x D) [mm] Without stand: 1,836.2 x 1,061.3 x 86.9

Weight [kg] Without stand: 61.5

Bezel Width [mm] 29.7 (left and right); 29.7 (top and bottom)

VESA Mounting [mm] 4 holes; 400 x 400 (FDMI); M8

Ingress Protection IP40 (front); IP20 (back)

Special Characteristics Auto ID assignment; Auto tiling function; Automatic Alarm E-Mails; HTTP Server; Image ﬂip; NaViSet Administrator 2; Point Zoom

Function; Programmable 10-bit LUT with 3 memory banks; Sticky Note Function in OSD; User readable log function

Colour Versions Black Front Bezel, Black Back Cabinet

Safety and Ergonomics C-tick; CE; FCC Class B; PSB; RoHS; TÜV GS; UL/C-UL or CSA; VCCI

Audio Integrated Speakers (10 W + 10 W); Optional Speakers (15 W + 15 W); Optional Speakers (40 W + 40 W)

Shipping Content CD-ROM (User Guides/Manuals); Display; DVI-D cable; Power Cable; Remote Control

Warranty 3 years warranty incl. backlight; additional services available; optional 4. + 5. year warranty extension

Operating Hours 24/7

Accessories Feet (ST-801); Speaker (SP-80 SM); Speaker (SP-RM1); Trolley (PDMHM-L); Wall mount (PDW T XL)

Interface Extension SB3-AB1 analogue: Audio; Component; Composite; S-Video

SB3-AB2 analogue: Audio; RGBHV SB3-DB1 digital: 2 x HDMI

OPS HD-SDI 1.5G,3G; HDBaseT receiver; Intel® Atom, Celeron and Core CPUs; WiDi receiver

Energy Eﬃciency Ambient light sensor; Annual energy consumption: 332 kWh (based on 4 operating hours per day); Carbon savings meter; ECOMode;

Energy eﬃciency class: A; Human Sensor

Ecological Materials Manuals on CD; Optional feet
