NEC D8-30 Configuration Manual

NEC Disk Array Unit

D8-30

Configuration Guide

Revision 4.2

Nov.2.2009

Information of disclosure and limitation of usage

NEC Corporation has all the rights about this material.
You can not use this material for any purposes other than provided
purpose.
In addition, you can not duplicate, modify and disclose this material to
any third party without permission of NEC Corporation.
Meanwhile, we may change the contents of this guide without notice in

the future.

NEC Corporation

Rev

1 2007.10.02 First Edition
2 2008.11.21 D8-20
3 2008.12.25 Correction of words, etc.

3.1 2009.1.5 “Supported RAID” table in 2-(3-3)
4 2009.3.23 D8-30

4.1 2009.5.18

4.2 2009.11.2

Date of

revision

P.18-19 Error correction
(Total capacity of RV and snapshot w/ RDR/DR: In case of 16GB cache
with Physical HDD capacity 270TB or less)
P.28-29 Added 2 to 3 nodes configuration explanation
D8-30 8Gb FC
New basic configuration （HD/DD are sold separately）
New HDD (SAS 600GB/SATA 2TB)
Beyond 2TB Snapshot

Contents of revision

・ HP-UX is the registered trademark of American Hewlett-Packard in the US.
・ UNIX is the registered trademark of The Open Group in the US and other countries.

・ Microsoft and Windows are the registered trademarks or trademark of American Microsoft

Corporation in the US and other countries

・ Solaris is the registered trademark of Sun Microsystems, Inc.
・ Linux is the trademark or registered trademark of Mr. Linus Torvalds in the US and other

countries.

・ IBM and AIX are the trademark of IBM Corporation.
・ The names of other companies, products, service and etc. are trademarks or registered

trademarks of each relevant company.

1

Table of Contents

1. SPECIFICATION

2. PRODUCT SELECTION 5

3. SOFTWARE SPECS 34

Note: D8-30 has only 1 node model. For ease of understanding, we say D8-3010 for 1 node, D8-3020 for
2 nodes, D8-3030 for 3 nodes, and D8-3040 for 4 nodes in this document.

3

2

1. Specification

The following are the specifications of the D8 Disk Array Unit:

Item D8-30 Disk Array Unit

From 1 node to 4 nodes

Chassis configuration

(SAS/SATA disk drive can be mounted in the same disk enclosure together.)
Host interface
Number of host port 8 - 64 ports (w/ optional HD)

Capacity 8 - 128GB *4

Cache memory

Disk drive

Disk drive interface

Number of maximum disk drive 1536 units (w/ optional DD)

RAID level

Minimum configuration*3 Maximum configuration *4

Device
capacity

Dimension
（WxDxH）
(Discluding bezel)

Weight

Power supply

Number of AC line

Max. power
consumption

Inrush current
(peak time)

Temperature and humidity

Supported OS HP-UX, Solaris, AIX, Windows, Linux (For details, refer to Support Matrix.)
Redundancy Main components such as controller, cache, power supply and fan are redundant.

SAS

SATA

*5

Battery backup
time

SAS 147GB(15,000rpm), 300GB(15,000rpm), 450GB(15,000rpm),600GB(15,000rpm)
SATA 750GB(7,200rpm), 1000GB(7,200rpm),2000GB(7,200rpm)

147GB Disk Drive 142GB 195.1TB
300GBDisk Drive 287GB 393.2TB
450GBDisk Drive 440GB 601.1TB
600GBDisk
Drive*6
750GBDisk Drive 737GB 1008.0TB
1000GBDisk Drive 984GB 1344.1TB
2000GBDisk
Drive*7
Controller (5U) 480x600x218 mm
Disk
enclosure(2U)
Controller 60kg or less
Disk enclosure 29kg or less

Controller 1470VA/1420W
Disk enclosure 450VA/430W (380VA/370W when only SATA is installed)
Controller 17Ao-p/AC line
Disk enclosure 17Ao-p/AC line

No limit (the data will be saved in the flash memory when the cache memory

When operating: 5-40 deg C, 10-80 percent When stored: -10-60 deg C, 5-80
percent

The capacity values are calculated based on 1GB=1,000,000,000B and 1TB=1,000,000,000,000B.
*1: It can run in 2Gbps/4Gbps/8Gbps mode. (Change of setting is required.)
When using 4Gb HD, it can run 1Gbps/2Gbps/4Gbps(Max). 800MB/s is NOT available.
*2: Maximum number of HD or optional DD can be installed exclusively per node.
*3: SAS:RAID-1 SATA:RAID-TM
*4: Maximum value is with 4 nodes configuration with RAID-5(8+P).
*5: 30% margin over VA value is required for UPS.
*6:Support 25 Dec 2009
*7:Support 22 Feb 2010

Max. 32 units of disk enclosure can be connected per node.

Max. 12 units of disk drive can be mounted in the disk enclosure.

*1

Fiber channel (FC-AL、Fabric) (Max. transfer speed 800MB/S)

fails.)

SAS(Max. transfer speed 300MB/S)

SATA(Max. transfer speed 300MB/S)

SAS disk drive: RAID-1, 5, 10, 50, 6, 3, 3DP, TM

SATA disk drive: RAID-5,50, 6, TM

574GB 786.4TB

1968GB 2688.2TB

480x540x86.5 mm

AC100～240V Single phase 50/60Hz

Controller Disk enclosure

4 2

*2

*2*3

3

2. Product Selection

Features

The most outstanding feature of the D8 Series is the expandable scalability. It enables small start
and online expansion of the scalability. Not only the scalability within the unit (referred to as node)
such as controller, cache and HDD, the D8 can expand its scalability by adding nodes. By this
scalability, the D8 Series can cover a broad range from low-end area to high-end area.

node

4 nodes

4 nodes

node

node

11node

nodes

22nodes

HD

HD

SW

CHE CHE

DD

e

e

n

d

i

l

a

r

n

g

O

p

U

DD

DAC

HD

HD

SW

CHE CHE

DD DD

DAC

HD

HD

SW

CHE CHE

DD

DD

DAC

HD

HD

SW

CHE CHE

DD DD

DAC

Internal Structure

The minimum configuration of the node consists of 5U Controller (DAC) and 2U Disk Enclosure (DE).
The controller of one node consists of Host Director (HD) to control the host I/F, Cache Module (CHE)
to control the cache memory, Disk Director (DD) to control the disk I/F and Local Switch (LSW) to
connect these cards and nodes at high speed. Additionally, each node of the D8 has 4 power supply

units, flash memories to save the data of cache memory, and batteries.
The minimum configuration of DAC consists of 2 HD’s, 2 CHE’s and 2 DD’s, and each of them can
expand to 4 in each node. (CHE can individually expand to 4 but as for HD and DD, either of them
can selectively expand to 4.)

Each HD has 4 FC ports (8Gbps) so that it can expand to 4 HD’s with 16 FC ports. DD has SAS

(Serial Attached SCSI) of 3Gbps for the I/F between DAC and DE, WideLink of 4 ports in parallel

realizing a 12Gbps broadband connection.

DE can have up to 12 units of SAS HDD and SATA HDD together and can connect up to 16 unit of

DE and 192 units of disk drive to 2 units of DD. When the DD expands to 4 units, up to 32 units of

DE and 384 units of disk drive can be connected.

As for the disk drive, you can mount SAS drive of 147GB (15,000rpm), 300GB (15,000rpm), 450GB

(15,000rpm), and 600GB(15,000rpm) and SATA drive of 750GB (7,200rpm),1,000GB (7,200rpm), and

2,000GB(7,200rpm) together.

As for cache memory, the standard configuration is 8GB and it can expand up to 32GB in one node.

When available, up to 4 nodes can congregate. In this case, it has scalability of up to 64 host ports,

up to 1536 disk drives and up to 128GB of cache memory. If there are multiple nodes in a unit, it can

access disk drives of any node from a host port, and it is also possible to make a certain host port to

access to certain HDD’s by AccessControl.

4

Fibre Channel x8

HD

HD

CHE：

Cache

4GBx2

:2GB

Flash

DAC

CHE

Cache

:2GB

Flash

Inter-node Connection

HD HD

BBU
BBU

P/S

P/S

DE#00

P/S

Switch

SAS/SATA HDD

Switch

DD DD

P/S

LSW

LSW

DD

12Gbps SAS Interface

P/S

DD

P/S

SAS/SATA Disk Enclosure (U p to 12 HD Ds)

U p to 1 6 D isk Enclosures can be connected to the D isk D ire c to rs.
16 m ore D isk Enclosures can be connected to the optional D isk D ire c tors .

Hardware Diagram of D8-3010 Disk Array Unit (1 Node Configuration)

5

The steps to select the product of D8 Disk Array Unit are as follows:

Steps to select the product (New Installation)

1

Select the
# of node

2

Select
the
B ase Prod
uct

3

Se let c th e
# and
ca pac it o f
HD D

4

Sel ec t
the # of
DE

5

Select
the
cache

memory

Steps to select the product (Expansion)

Se lec t th e

2Add it io n of serv er

or FC Controller

Addition of
cache memory

Addition of HD

Addition of

容量の 増設

ca pac ity

Ad di tio n
of n ode

2

Select the
BaseProduct

(upgrade)

Ba seP rodu ct
(u pgr ade)

Se le ct the

5

ca ch e m emor y

Select the

2

BaseProduct
(upgrade)

3

Sel etc the #
and ca paci t of

HDD

8

S ele ct
t he

E xte nded
n ode

4

Select the
# o f DE

3 54

S ele tc
the # and

c apa cit
o f H DD

6

Se le ct
th e HD

Select
the # of
DE

6

Select
the HD

7

Select
the DD

H DD: H ard Disk Driv e
D E: Di sk E nclos ure
H D: Ho st D irect or

D D: Di sk D irect or
L SW: L ocal Swit ch

Se le ct th e

5

ca ch e
me mo ry

S ele ct
t he

c ach e
m emo ry

6

S ele ct
t he HD

7

S ele ct
t he DD

7

Select
the DD

6

(1) Models of Disk Array Unit

Though D8 Series can have flexible configurations, the initial models are D8-3010 with 1 node and
expanding up to 4 nodes by adding D8-3010, according to the number of basic node. *1

D8-3010 includes Local Switch(LSW) (A/B/C), 8GB cache memory, Please note that Host Director(HD),

Disk Director(HD) and Disk Enclosure(DE) are NOT included. You need to arrange these products
according to configuration.

Product code Product name Attachments Remarks

Basic chassis : 1
Disk enclosure :0
Host Director (4ports) : 0
Cache memory (4GBx2) :
8GB
Disk Director (4ports) : 0
Power supply unit:

8Gb Host Director :2

NF5183-SB401E

NF5021-SE60E

NF5183-SF02E

NF5183-SD01E

D8-3010

Disk Array Unit

SAS/SATA

Disk

Enclosure(DE)

8Gb Host

Director(HD)

Disk Director

(DD)

・ Bezel[DAC] (with key) :1
・ Rack Mount Kit :1
・ Users guide/FW program

/setup guide（CD） :1

・ Attached Parts List

・ Bezel[DE] (with key) :1
・ SAS cable (1m) :2
・ Rack Mount Kit :1

Disk Director :2

Note: When connecting a server with redundant path, or cluster servers,
the paths are recommended to be connected to the same node of the storage.

AC 100-240V

7

A

(2) Selection of BaseProduct

The D8 Disk Array Unit requires the program product“BaseProduct” per Disk Array Unit separately
in addition to H/W products. It includes storage control software and NEC Storage Manager,
comprehensively monitoring and managing the Disk Array Unit of D Series.

BaseProduct with necessary grade according to the number of node of D8 Disk Array Unit, number of

connected server/connection FC controller (number of HBA port) is required.

Besides, in case you “adding nodes” or “adding Host Director,” and even if you do not add these

options, in case you add the number of connected server/connection FC controller (number of HBA port),
check the grade of the existing BaseProduct and purchase an upgrade product if necessary.

D8-3010/3020/3030/3040
Product Name No. of maximum server

ttached products

connections

BaseProduct Lite 2 passes x 2 servers

(<=4 HBA port
connections)

BaseProduct Standard 2 passes x 8 servers

(<=16 HBA port
connections)

StorageManager
AccessControl(4
connections*1)
StorageManager
AccessControl(16

connections*1)

ReallocationControl

BaseProduct Enterprise 2 passes x 9 or more

servers
(No limitation of server
connections)

StorageManager
AccessControl(No limited
connection)
ReallocationControl
PerformanceMonitor

*1 This figure is number of HBA connection port which is attached on server.

- As for the D Series, AccessControl is not an optional product but it is included in the BaseProduct.
(cf. AccessControl is an optional product for the S Series.)

-As for the D Series, the number of connections is defined as the number of server and the number of

HBA connections.
(cf. For the S Series, the number of connections was defined as only the number of HBA ports.)

“Lite” includes AccessControl for 2 or less servers (4 or less HBA ports).
“Standard” includes AccessControl for 8 or less servers (16 or less HBA ports).
“Enterprise” includes AccessControl for 9 or more servers.

e.g.
“<=2 servers (<=4 HBA port connections)”license means the following.

- 1 server with 4 paths: Allowed.

- 2 servers with 2 paths each: Allowed.

- 3 servers with 1 path each: NOT allowed. (It exceeds “2 servers”.)

- 2 servers with 3 paths each: NOT allowed. (It exceeds “4 HBA port connections”.)

8

(3) Selection of Quantity/Capacity of Disk Drive

The logical disk capacity you can configure varies depending on the type (I/F, capacity) of disk drive

and the level of RAID.

Besides, necessary logical disk capacity varies depending on the functions you use (e.g.

Snapshot/Replication function).

To determine the necessary number of disk drive, it is necessary to determine the type (I/F,
capacity, rotation number) of disk drive and the level of RAID according to the usage of data and
calculate the necessary logical disk capacity by referring to the following information.

Beside, you are required to mount at least 3 or more disk drives per node, regardless of the type
(SAS/SATA) of disk drive.

Meanwhile, for support RAID type, refer to “Support RAID” mentioned below.

DE#00

#00 #01 #02 #03

#04 #05 #06 #07

#08 #09 #0A #0B

* Make sure to mount disk drives into slots

#00, #01 and #02.

(Notes)

Snapshot

Snapshot reserved area is necessary for creating snapshot to a master volume.

Replication

In case of using replication function, using Storage System Information Retention Function* to

create the Storage System Volume is strongly recommended.

3

The capacity of storage system volume is 8.9GB (1GB=1000

Byte)/8.3 GB (1GB=10243 Byte).

By turning the power off according to the normal procedure, Storage System Data (difference

map etc.) will be backed up into the Storage System Volume. Without the Storage System
Volume, it retains the storage system information in cache memory within a battery backup
time but the lifetime of battery will shorten. In case not to use the Storage System Volume 24
hours power distribution is recommended.

*Storage System Information Retention Function is the function to back up storage system

data such as difference map of Master Volume (MV) and Replication Volume (RV) to a disk
drive.

(3-1) Selection of Capacity/Quantity of SAS/SATA Disk Drive

Select necessary number of SAS disk drive.

Physical
capacity

*1 *2

Product code Product name Product outline

NF5021-SM624E SAS Disk Drive (15krpm/147GB) 147GB
NF5021-SM625E SAS Disk Drive (15krpm/300GB) 300GB
NF5021-SM627E SAS Disk Drive (15krpm/450GB) 450GB
NF5023-SM728E SAS Disk Drive (15krpm/600GB) 600GB

15,000rpm
15,000rpm
15,000rpm
15,000rpm

Average

seek time

(R/W)

3.5ms/4.0ms 142.9 133.1

3.5ms/4.0ms 288.0 268.2

3.5ms/4.0ms 440.2 410.0

3.5ms/4.0ms 576.0 536.4

*1: Calculated figures based on 1GB=1,000,000,000B

3

*2: Calculated figures based on 1GB=1,073,741,824B(1,024

B)

(GB)

9

Select necessary number of SATA disk drive.

Average

Product code Product name Product outline

seek time

(R/W)

NF5021-SM805E

SATA Disk Drive
(7200rpm/750GB)

750GB 7,200rpm 8.5ms/9.5ms 738.3 687.6

SATA Disk Drive

NF5021-SM806E

1000GB 7,200rpm 8.5ms/9.5ms 984.4 916.8

(7200rpm/1000GB)

NF5023-SM808E

SATA Disk Drive
(7200rpm/2000GB)

2000GB 7,200rpm 8.5ms/9.5ms 1968.95 1833.73

*1: Calculated figures based on 1GB=1,000,000,000B

*2: Calculated figures based on 1GB=1,073,741,824B(1,024

(3-2) Disk Drive Capacity in the pool.

Logical disk capacity is slightly less when it is use in the Dynamic Pool than in Basic Pool.
See the following chart.

 Logical capacity of the HDD in the pool.

HDD
Type

SAS
147GB

SAS
300GB

SAS
450GB
SAS
600GB
SATA
750GB
SATA
1000GB
SATA
2000GB

Basic Pool

*1 *2 *1 *2 *1 *1 *2 *2 *2 *2

142.9GB 133.1GB 142.1GB 132.3GB 142.6GB 132.8GB 142.5GB 132.7GB 142.8GB 133.0GB

288.0GB 268.2GB 287.0GB 267.3GB 287.5GB 267.8GB 287.4GB 267.7GB 287.7GB 268.0GB

440.2GB 410.0GB 439.6GB 409.5GB 440.2GB 410.0GB 439.6GB 409.5GB 440.2GB 410.0GB

576.0GB 536.4GB 574.9GB 535.5GB 575.4GB 535.9GB 574.9GB 535.5GB 575.5GB 536.0GB

738.3GB 687.6GB 737.6GB 687.0GB 738.1GB 687.5GB 737.6GB 687.0GB - -

984.5GB 916.9GB 983.6GB 916.1GB 983.8GB 916.2GB 984.0GB 916.5GB - -

1968.9GB 1833.7GB 1968.1GB 1833.0GB 1968.6GB 1833.4GB 1968.1GB 1833.0GB - -

RAID-6(4+PQ) RAID-6(8+PQ) RAID-TM RAID-1

Dynamic Pool

*1: Calculated figures based on 1GB=1,000,000,000B

*2: Calculated figures based on 1GB=1,073,741,824B(1,024

Physical capacity

(GB)

*1 *2

3

B)

3

B)

10

(3-3) Supported RAID

The RAID levels D8-3010 supports are as follows:
However, SATA disk drive supports only RAID-5,50, 6 and TM

Besides, RAID can configure only in the same Disk Director (basic Disk Director: 16DE, 192HDD,
Expansion Disk Director: 16DE, 192HDD) of a node.

Pool RAID type Number of physical disk Logical disk capacity

Basic
pool

RAID-1(1+1) 2 drives (1+1) Physical disk capacity x1/2
RAID-3 4+P 5 drives Physical disk capacity x4/5

8+P 9 drives Physical disk capacity x8/9

RAID-3DP 4+PQ 6 drives Physical disk capacity x2/3

8+PQ 10 drives Physical disk capacity x4/5

RAID-5 2+P 3,4 drives Physical disk capacity x2/3

4+P 5,6,7,8 drives Physical disk capacity x4/5
8+P 9,10,11,12 drives Physical disk capacity x8/9

Dynamic
pool

RAID-10

(1+1)x2～8

RAID-50 (4+P)x2 10 drives

(4+P)x4 20 drives

RAID-6

*1

4+PQ 6 or more drives Physical disk capacity x2/3

8+PQ 10 or more drives Physical disk capacity x4/5
RAID-TM*1 3 or more drives Physical disk capacity x1/3
RAID-1

*1*2

2 or more drives Physical disk capacity x1/2

4,6,8,10,12,14,16 drives

Physical disk capacity x1/2

Physical disk capacity x4/5

*1: Can dynamically change LUN capacity by dynamic pool function.
*2: Only SAS disk can be used for Dynamic pool with RAID-1.
*3: Capacity efficiency is constant, regardless of the number of configured drive. Even in

case of adding a disk drive, the capacity efficiency does not change.
The theoretical capacities of dynamic pool are slightly smaller than the above figures.

*3

*3

*3

*3

11

(3-4) Hot Spare Disk

- Hot spare disk is recommended to enhance the availability of a unit.

- There is no upper limit for the number of hot spare disks.

- Hot spare disk operates only in the same Disk Director (basic Disk Director: 16DE,192HDD,

Expansion Disk Director: 16DE, 192HDD) in a node.

- The default setting of hot spare operation does not allow the data to be written back. When the hot
spare disk is used and the failed disk is replaced, the replacement disk is defined as a new hot
spare disk.

In case you set the hot spare operation so that the data is to be written back, the data in the hot
spare disk will be transferred to the replacement disk, and after the completion of the “write
back”, the hot spare disk will be used for the backup again. The operation of hot spare disk can be
set from the NEC Storage Manager.

- Hot spare disk can be used for the disk drives with the same interface.

- Hot spare disk is recommended to be the same capacity and the same rotation speed as the disks
in the pools. If different types of disks are used in different pools, there should also be different
types of hot spare disks accordingly.

- If there are multiple types of hot spare disks, the same type of disk as the disk in the defected
pool*1 is selectively used for backup.

- When the type of disk that used in the defected pool is not left as a hot spare disk, the hot spare
disks are used in the following order of priority.

1. The hot spare disk with the same type of interface, same capacity, same or more

rotation speed as the disk in the defected pool.

2. The hot spare disk with the same type of interface, same or more capacity as the disk in

the defected pool.

- As the recommended number of the hot spare disk is different between SAS and SATA Disk
Drives, refer to the tables in a) and b) below:

a) SAS Disk Drive

<Recommended number of Hot Spare Disk for SAS Disk Drive>

Conditions Recommended number of Hot Spare

Disk

In case the capacity/rotation speed of disk

1per 24 HDD’s
drive is 1 type
In case of the capacity/rotation speed of disk
drive is n types

n types per 24 HDD’s

b) SATA Disk Drive

<Recommended number of Hot Spare Disk for SATA Disk Drive>

Conditions Recommended number of Hot Spare

Disk

In case the capacity/rotation speed of disk

1 per 12 HDD’s
drive is 1 type
In case of the capacity/rotation speed of disk

n types per 12 HDD’s

drive is n types

12

(3-5) Mixed Use of Disk Drive

- This disk array unit can have SAS/SATA disk drives together, and disk drives with different
capacity/rotation speed together, in the basic chassis and in the same SAS/SATA disk enclosure.

- It is strongly recommended to use the same type of disks in a pool.

(4) Selection of Quantity of SAS/SATA Disk Enclosure

- 1 unit of disk enclosure can mount max. 12 units of SAS or SATA disk drive together.

- In a basic configuration, 1 unit of disk enclosure per node is included as standard.

This disk enclosure should be “DE#00” (see the following diagram “DE Connection”).

- For DE#00, at least 3 or more disk drives are required.

The mounting position of the disk is as

follows:

DE#00

#00 #01 #02 #03

#04 #05 #06 #07
#08 #09 #0A #0B

*make sure to mount disk drives into slots

#00, #01 and #02.

- For a Disk Director with standard configuration, you can connect max.16 units (including a disk

enclosure included as standard) of disk enclosure.

- In case you mount an expansion Disk Director, you can connect additionally max.16 units of disk
enclosure to it. In this case, you can connect totally max. 32 units of disk enclosure per node.

- The disk enclosure includes 1m SAS cable as standard. For the case in which the distance between
two units are too long for the 1m SAS cable, 5ｍ SAS cable is also available.

13

DE Connection

DAC

Standard Disk Director

ＤＤ ＤＤ

DE#00

DE#01 DE#05DE#09

DE#02 DE#06DE#0A

DE#03 DE#07DE#0B

DE#04DE#08

PD Group #0

PD G roup #0: HD D s under the S tandard D D .

PD G roup #1: HD D s under the O ptional D D .

Allocation within the Rack (Cable Connection)

Standard Disk Director

Standard Disk Director

The DE should be installed in the following order.
00, 04, 08, 0c, 01, 05, 09, 0D, …

Rack #1

Rack #1

DE#0F

DE#0F
DE#0B

DE#0B
DE#07

DE#07
DE#03

DE#03
DE#0E

DE#0E
DE#0A

DE#0A
DE#06

DE#06

DE#02

DE#02
DE#0D

DE#0D
DE#09

DE#09
DE#05

DE#05
DE#01

DE#01
DE#0C

DE#0C
DE#08

DE#08
DE#04

DE#04
DE#00

DE#00

DAC

DAC

Optional Disk director

Optional Disk director

DE#0C

DE#0D

DE#0E

DE#0F

Optional Disk Director

ＤＤ

DE#10 DE#14

DE#11 DE#15DE#19

DE#12 DE#16DE#1A

DE#13 DE#17DE#1B

PD group #0

PD group #0

DE#18

PD Group #1

-RAID can be made within the PD group.

-Hot Spar e Disk c an save the HDD in
the same PD group .

Rack #2

Rack #2

DE#1F

DE#1F

DE#1B

DE#1B
DE#17

DE#17
DE#13

DE#13
DE#1E

DE#1E
DE#1A

DE#1A
DE#16

DE#16
DE#12

DE#12
DE#1D

DE#1D

DE#19

DE#19
DE#15

DE#15
DE#11

DE#11
DE#1C

DE#1C
DE#18

DE#18
DE#14

DE#14
DE#10

DE#10

ＤＤ

PD group #1

PD group #1

：SAS Cable(1m)

：SAS Cable(1m)
：SAS Cable(5m)

：SAS Cable(5m)

DE#1C

DE#1D

DE#1E

DE#1F

14

Allocation within the Rack (Location)

1 node (1DAC+32DE）

1 node (1DAC+32DE）

1 node (1DAC+32DE）

1 node (1DAC+32DE）

36U Rack Recom m ended Location

36U Rack Recom m ended Location

36U Rack Recom m ended Location

36U Rack Recom m ended Location

40

40

DE: 15units

35

35

30

30

25

25

20

20

15

15

10

10

5

5

0

0

DE: 15units

DAC: 1units

DAC: 1units

V acant (1U )

V acant (1U )

DE(2U)#0B

DE(2U)#0B
DE(2U)#07

DE(2U)#07
DE(2U)#03

DE(2U)#03
DE(2U)#0E

DE(2U)#0E
DE(2U)#0A

DE(2U)#0A
DE(2U)#06

DE(2U)#06
DE(2U)#02

DE(2U)#02
DE(2U)#0D

DE(2U)#0D
DE(2U)#09

DE(2U)#09
DE(2U)#05

DE(2U)#05
DE(2U)#01

DE(2U)#01
DE(2U)#0C

DE(2U)#0C
DE(2U)#08

DE(2U)#08
DE(2U)#04

DE(2U)#04
DE(2U)#00

DE(2U)#00

DAC(5U)

DAC(5U)

DE: 17units

DE: 17units

Vacant (2U )

Vacant (2U )

DE(2U)#1F

DE(2U)#1F

DE(2U)#1B

DE(2U)#1B

DE(2U)#17

DE(2U)#17
DE(2U)#13

DE(2U)#13

DE(2U)#1E

DE(2U)#1E
DE(2U)#1A

DE(2U)#1A

DE(2U)#16

DE(2U)#16
DE(2U)#12

DE(2U)#12

DE(2U)#1D

DE(2U)#1D

DE(2U)#19

DE(2U)#19

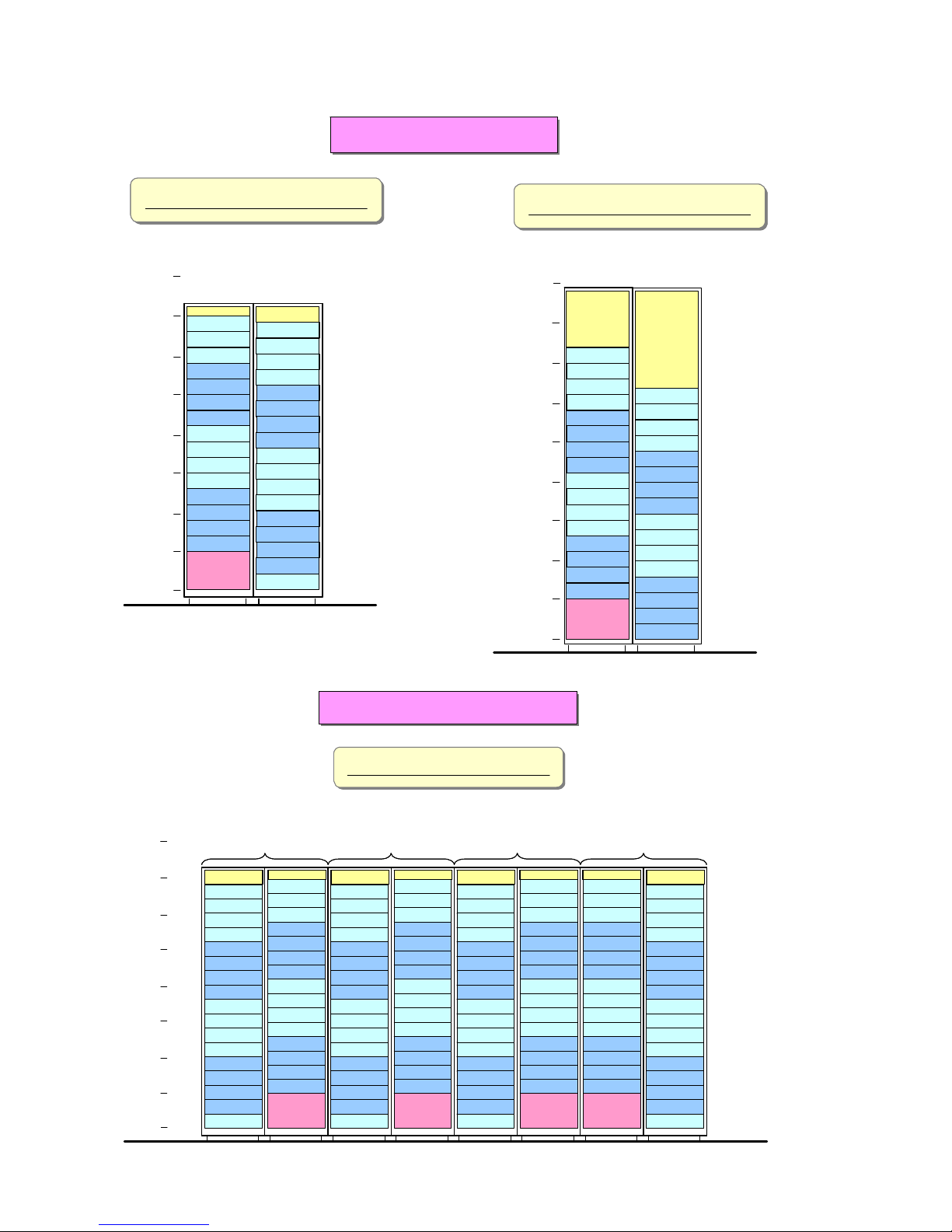

DE(2U)#15

DE(2U)#15
DE(2U)#11

DE(2U)#11

DE(2U)#1C

DE(2U)#1C

DE(2U)#18

DE(2U)#18
DE(2U)#14

DE(2U)#14
DE(2U)#10

DE(2U)#10

DE(2U)#0F

DE(2U)#0F

4 nodes (1DAC+32DEx4set)

4 nodes (1DAC+32DEx4set)

4 nodes (1DAC+32DEx4set)

4 nodes (1DAC+32DEx4set)

44U Rack Recom m ended Location

44U Rack Recom m ended Location

44U Rack Recom m ended Location

44U Rack Recom m ended Location

DE: 16units

DE: 16units
DAC: 1units

DAC: 1units

45

45

40

40

35

35

30

30

25

25

20

20

15

15

10

10

5

5

0

0

Vacant (7U)

Vacant (7U)

DE(2U)#0F

DE(2U)#0F
DE(2U)#0B

DE(2U)#0B
DE(2U)#07

DE(2U)#07
DE(2U)#03

DE(2U)#03
DE(2U)#0E

DE(2U)#0E
DE(2U)#0A

DE(2U)#0A
DE(2U)#06

DE(2U)#06
DE(2U)#02

DE(2U)#02
DE(2U)#0D

DE(2U)#0D
DE(2U)#09

DE(2U)#09
DE(2U)#05

DE(2U)#05
DE(2U)#01

DE(2U)#01
DE(2U)#0C

DE(2U)#0C
DE(2U)#08

DE(2U)#08
DE(2U)#04

DE(2U)#04
DE(2U)#00

DE(2U)#00

DAC(5U)

DAC(5U)

DE: 16units

DE: 16units

V acant (12U )

V acant (12U )

DE(2U)#1F

DE(2U)#1F
DE(2U)#1B

DE(2U)#1B
DE(2U)#17

DE(2U)#17
DE(2U)#13

DE(2U)#13
DE(2U)#1E

DE(2U)#1E
DE(2U)#1A

DE(2U)#1A
DE(2U)#16

DE(2U)#16
DE(2U)#12

DE(2U)#12
DE(2U)#1D

DE(2U)#1D
DE(2U)#19

DE(2U)#19
DE(2U)#15

DE(2U)#15
DE(2U)#11

DE(2U)#11
DE(2U)#1C

DE(2U)#1C
DE(2U)#18

DE(2U)#18
DE(2U)#14

DE(2U)#14
DE(2U)#10

DE(2U)#10

Vacant(2U

40

40

35

35

30

30

25

25

20

20

15

15

10

10

5

5

0

0

NODE #0 NODE #1 NODE #2 NODE #3

NODE #0 NODE #1 NODE #2 NODE #3

空き(1U)

空き(1U)

空き(2 U )

空き(2 U )

Vacant(2U

DE(2U)#1F

DE(2U)#1F
DE(2U)#1B

DE(2U)#1B
DE(2U)#17

DE(2U)#17
DE(2U)#13

DE(2U)#13
DE(2U)#1E

DE(2U)#1E
DE(2U)#1A

DE(2U)#1A
DE(2U)#16

DE(2U)#16
DE(2U)#12

DE(2U)#12
D E(2U )#1D

D E(2U )#1D
DE(2U)#19

DE(2U)#19
DE(2U)#15

DE(2U)#15
DE(2U)#11

DE(2U)#11

DE(2U)#1C

DE(2U)#1C

DE(2U)#18

DE(2U)#18
DE(2U)#14

DE(2U)#14
DE(2U)#10

DE(2U)#10
DE(2U)#0F

DE(2U)#0F

Vacant(1U

DE(2U)#0B

DE(2U)#0B
DE(2U)#07

DE(2U)#07
DE(2U)#03

DE(2U)#03
DE(2U)#0E

DE(2U)#0E
DE(2U)#0A

DE(2U)#0A
DE(2U)#06

DE(2U)#06
DE(2U)#02

DE(2U)#02
DE(2U)#0D

DE(2U)#0D
DE(2U)#09

DE(2U)#09
DE(2U)#05

DE(2U)#05
DE(2U)#01

DE(2U)#01
DE(2U)#0C

DE(2U)#0C
DE(2U)#08

DE(2U)#08
DE(2U)#04

DE(2U)#04
DE(2U)#00

DE(2U)#00

DAC(5U)#0

DAC(5U)#0

36U Rack Recom m ended Location

36U Rack Recom m ended Location

36U Rack Recom m ended Location

36U Rack Recom m ended Location

空き(2 U )

空き(2 U )

空き(2 U )

Vacant(2U

DE(2U)#1F

DE(2U)#1F

DE(2U)#1F
DE(2U)#1B

DE(2U)#1B

DE(2U)#1B
DE(2U)#17

DE(2U)#17

DE(2U)#17
DE(2U)#13

DE(2U)#13

DE(2U)#13
DE(2U)#1E

DE(2U)#1E

DE(2U)#1E
DE(2U)#1A

DE(2U)#1A

DE(2U)#1A
DE(2U)#16

DE(2U)#16

DE(2U)#16
DE(2U)#12

DE(2U)#12

DE(2U)#12
DE(2U)#1D

DE(2U)#1D

DE(2U)#1D
DE(2U)#19

DE(2U)#19

DE(2U)#19
DE(2U)#15

DE(2U)#15

DE(2U)#15
DE(2U)#11

DE(2U)#11

DE(2U)#11
DE(2U)#1C

DE(2U)#1C

DE(2U)#1C
DE(2U)#18

DE(2U)#18

DE(2U)#18
DE(2U)#14

DE(2U)#14

DE(2U)#14
DE(2U)#10

DE(2U)#10

DE(2U)#10
DE(2U)#0F

DE(2U)#0F

DE(2U)#0F

空き(1 U )

空き(1 U )

空き(1 U )

Vacant(1U

DE(2U)#0B

DE(2U)#0B

DE(2U)#0B
DE(2U)#07

DE(2U)#07

DE(2U)#07
DE(2U)#03

DE(2U)#03

DE(2U)#03
DE(2U)#0E

DE(2U)#0E

DE(2U)#0E
DE(2U)#0A

DE(2U)#0A

DE(2U)#0A
DE(2U)#06

DE(2U)#06

DE(2U)#06
DE(2U)#02

DE(2U)#02

DE(2U)#02
DE(2U)#0D

DE(2U)#0D

DE(2U)#0D
DE(2U)#09

DE(2U)#09

DE(2U)#09
DE(2U)#05

DE(2U)#05

DE(2U)#05
DE(2U)#01

DE(2U)#01

DE(2U)#01
DE(2U)#0C

DE(2U)#0C

DE(2U)#0C
DE(2U)#08

DE(2U)#08

DE(2U)#08
DE(2U)#04

DE(2U)#04

DE(2U)#04
DE(2U)#00

DE(2U)#00

DE(2U)#00

DAC(5U)#1

DAC(5U)#1

DAC(5U)#1

空き(2 U )

空き(2 U )

空き(2 U )

Vacant(2U

DE(2U)#1F

DE(2U)#1F

DE(2U)#1F
DE(2U)#1B

DE(2U)#1B

DE(2U)#1B
DE(2U)#17

DE(2U)#17

DE(2U)#17
DE(2U)#13

DE(2U)#13

DE(2U)#13
DE(2U)#1E

DE(2U)#1E

DE(2U)#1E
DE(2U)#1A

DE(2U)#1A

DE(2U)#1A
DE(2U)#16

DE(2U)#16

DE(2U)#16
DE(2U)#12

DE(2U)#12

DE(2U)#12
DE(2U)#1D

DE(2U)#1D

DE(2U)#1D
DE(2U)#19

DE(2U)#19

DE(2U)#19
DE(2U)#15

DE(2U)#15

DE(2U)#15
DE(2U)#11

DE(2U)#11

DE(2U)#11
DE(2U)#1C

DE(2U)#1C

DE(2U)#1C
DE(2U)#18

DE(2U)#18

DE(2U)#18
DE(2U)#14

DE(2U)#14

DE(2U)#14
DE(2U)#10

DE(2U)#10

DE(2U)#10
DE(2U)#0F

DE(2U)#0F

DE(2U)#0F

空き(1 U )

空き(1 U )

空き(1 U )

Vacant(1U Vacant(1U

DE(2U)#0B

DE(2U)#0B

DE(2U)#0B

DE(2U)#07

DE(2U)#07

DE(2U)#07
DE(2U)#03

DE(2U)#03

DE(2U)#03
DE(2U)#0E

DE(2U)#0E

DE(2U)#0E

DE(2U)#0A

DE(2U)#0A

DE(2U)#0A

DE(2U)#06

DE(2U)#06

DE(2U)#06
DE(2U)#02

DE(2U)#02

DE(2U)#02

DE(2U)#0D

DE(2U)#0D

DE(2U)#0D

DE(2U)#09

DE(2U)#09

DE(2U)#09
DE(2U)#05

DE(2U)#05

DE(2U)#05
DE(2U)#01

DE(2U)#01

DE(2U)#01

DE(2U)#0C

DE(2U)#0C

DE(2U)#0C

DE(2U)#08

DE(2U)#08

DE(2U)#08
DE(2U)#04

DE(2U)#04

DE(2U)#04
DE(2U)#00

DE(2U)#00

DE(2U)#00

DAC(5U)#2

DAC(5U)#2

DAC(5U)#2

空き(1 U )

空き(1 U )

空き(1 U )

DE(2U)#0B

DE(2U)#0B

DE(2U)#0B

DE(2U)#07

DE(2U)#07

DE(2U)#07
DE(2U)#03

DE(2U)#03

DE(2U)#03

DE(2U)#0E

DE(2U)#0E

DE(2U)#0E
DE(2U)#0A

DE(2U)#0A

DE(2U)#0A

DE(2U)#06

DE(2U)#06

DE(2U)#06
DE(2U)#02

DE(2U)#02

DE(2U)#02

DE(2U)#0D

DE(2U)#0D

DE(2U)#0D

DE(2U)#09

DE(2U)#09

DE(2U)#09
DE(2U)#05

DE(2U)#05

DE(2U)#05
DE(2U)#01

DE(2U)#01

DE(2U)#01

DE(2U)#0C

DE(2U)#0C

DE(2U)#0C

DE(2U)#08

DE(2U)#08

DE(2U)#08
DE(2U)#04

DE(2U)#04

DE(2U)#04
DE(2U)#00

DE(2U)#00

DE(2U)#00

DAC(5U)#3

DAC(5U)#3

DAC(5U)#3

空き(2 U )

空き(2 U )

空き(2 U )

Vacant(2U

DE(2U)#1F

DE(2U)#1F

DE(2U)#1F

DE(2U)#1B

DE(2U)#1B

DE(2U)#1B

DE(2U)#17

DE(2U)#17

DE(2U)#17
DE(2U)#13

DE(2U)#13

DE(2U)#13
DE(2U)#1E

DE(2U)#1E

DE(2U)#1E

DE(2U)#1A

DE(2U)#1A

DE(2U)#1A

DE(2U)#16

DE(2U)#16

DE(2U)#16
DE(2U)#12

DE(2U)#12

DE(2U)#12

DE(2U)#1D

DE(2U)#1D

DE(2U)#1D

DE(2U)#19

DE(2U)#19

DE(2U)#19
DE(2U)#15

DE(2U)#15

DE(2U)#15
DE(2U)#11

DE(2U)#11

DE(2U)#11

DE(2U)#1C

DE(2U)#1C

DE(2U)#1C

DE(2U)#18

DE(2U)#18

DE(2U)#18
DE(2U)#14

DE(2U)#14

DE(2U)#14
DE(2U)#10

DE(2U)#10

DE(2U)#10
DE(2U)#0F

DE(2U)#0F

DE(2U)#0F

Note: 3,4 nodes will be supported in later

15

45

45

NODE #0 NODE #1 NODE #2 NODE #3

NODE #0 NODE #1 NODE #2 NODE #3

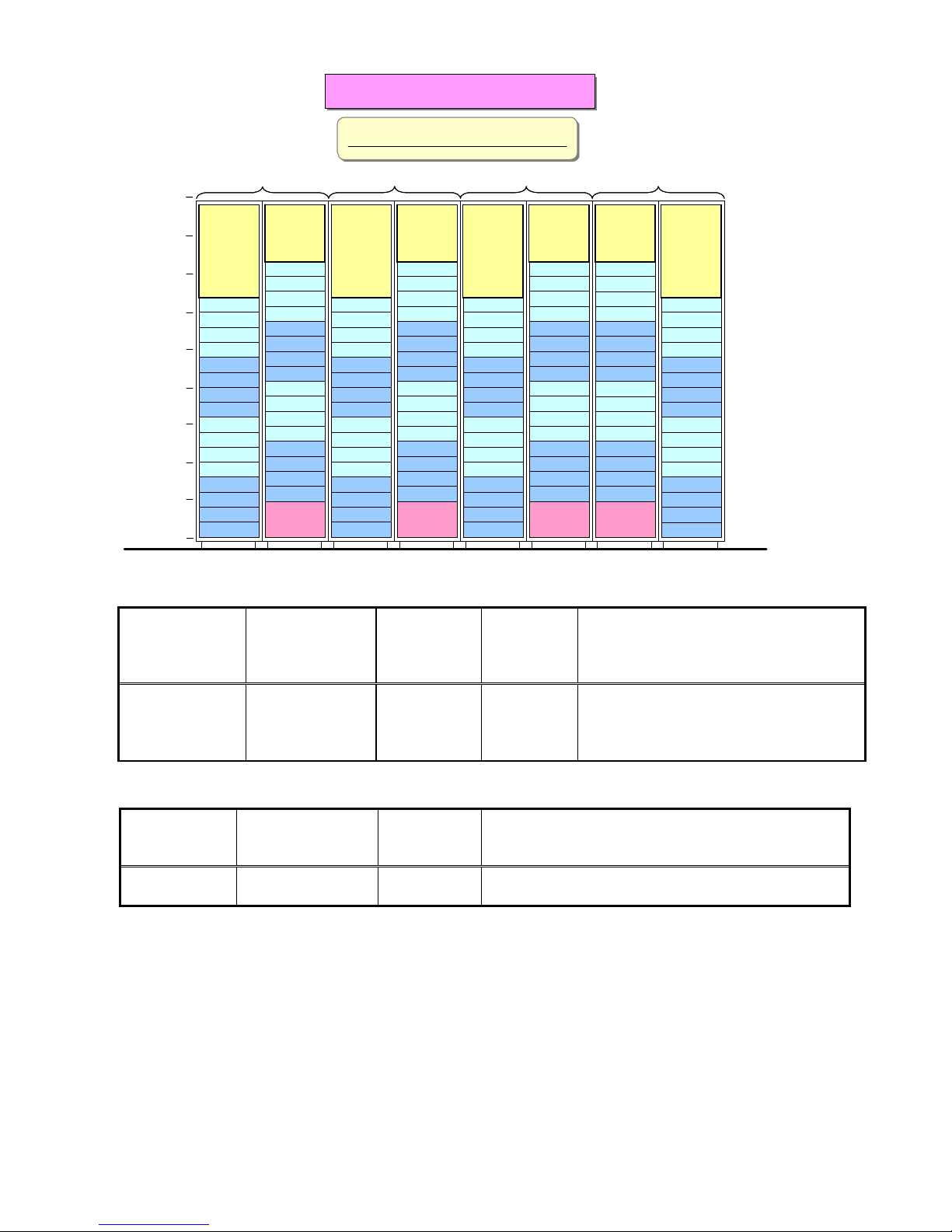

4 nodes (1DAC+32DEx4set)

4 nodes (1DAC+32DEx4set)

4 nodes (1DAC+32DEx4set)

4 nodes (1DAC+32DEx4set)

44U Rack Recom m ended Loacation

44U Rack Recom m ended Loacation

44U Rack Recom m ended Loacation

44U Rack Recom m ended Loacation

Vacant(12U Vacant(7U) Vacant(12U Vacant(7U) Vacant(12U Vacant(7U ) Vacant(7U) Vacant(12U

40

40

空き(12U)

35

35

30

30

25

25

20

20

15

15

10

10

5

5

0

0

空き(12U)

D E (2U )#1F

D E (2U )#1F

DE(2U)#1B

DE(2U)#1B

DE(2U)#17

DE(2U)#17
DE(2U)#13

DE(2U)#13
DE(2U)#1E

DE(2U)#1E

DE(2U)#1A

DE(2U)#1A

DE(2U)#16

DE(2U)#16
DE(2U)#12

DE(2U)#12

DE(2U)#1D

DE(2U)#1D

DE(2U)#19

DE(2U)#19
DE(2U)#15

DE(2U)#15
DE(2U)#11

DE(2U)#11

DE(2U)#1C

DE(2U)#1C

DE(2U)#18

DE(2U)#18
DE(2U)#14

DE(2U)#14
DE(2U)#10

DE(2U)#10

空き(7 U )

空き(7 U )

DE(2U)#0F

DE(2U)#0F
DE(2U)#0B

DE(2U)#0B
DE(2U)#07

DE(2U)#07
DE(2U)#03

DE(2U)#03
DE(2U)#0E

DE(2U)#0E
DE(2U)#0A

DE(2U)#0A
DE(2U)#06

DE(2U)#06
DE(2U)#02

DE(2U)#02
DE(2U)#0D

DE(2U)#0D
DE(2U)#09

DE(2U)#09
DE(2U)#05

DE(2U)#05
DE(2U)#01

DE(2U)#01
DE(2U)#0C

DE(2U)#0C
DE(2U)#08

DE(2U)#08
DE(2U)#04

DE(2U)#04
DE(2U)#00

DE(2U)#00

DAC(5U)#0

DAC(5U)#0

空き(12U)

空き(12U)

DE(2U)#1F

DE(2U)#1F
DE(2U)#1B

DE(2U)#1B

DE(2U)#17

DE(2U)#17
DE(2U)#13

DE(2U)#13

DE(2U)#1E

DE(2U)#1E
DE(2U)#1A

DE(2U)#1A

DE(2U)#16

DE(2U)#16
DE(2U)#12

DE(2U)#12

DE(2U)#1D

DE(2U)#1D

DE(2U)#19

DE(2U)#19
DE(2U)#15

DE(2U)#15
DE(2U)#11

DE(2U)#11

DE(2U)#1C

DE(2U)#1C

DE(2U)#18

DE(2U)#18
DE(2U)#14

DE(2U)#14
DE(2U)#10

DE(2U)#10

空き(7 U )

空き(7 U )

D E(2U )#0F

D E(2U )#0F
DE(2U)#0B

DE(2U)#0B
DE(2U)#07

DE(2U)#07
DE(2U)#03

DE(2U)#03
DE(2U)#0E

DE(2U)#0E
DE(2U)#0A

DE(2U)#0A
DE(2U)#06

DE(2U)#06
DE(2U)#02

DE(2U)#02
D E (2U )#0D

D E (2U )#0D
DE(2U)#09

DE(2U)#09
DE(2U)#05

DE(2U)#05
DE(2U)#01

DE(2U)#01

DE(2U)#0C

DE(2U)#0C

DE(2U)#08

DE(2U)#08
DE(2U)#04

DE(2U)#04
DE(2U)#00

DE(2U)#00

DAC(5U)#1

DAC(5U)#1

Number of

Product model

number

Product name

maximum
mountable

disk drive

NF5181-SE60E

SAS/SATA Disk

Enclosure

12

Product

model

number

Product name

Cable

length

NF9120-SJ64 SAS Cable(5m) 5m

空き(1 2 U )

空き(1 2 U )

空き(1 2 U )

DE(2U)#1F

DE(2U)#1F

DE(2U)#1F
DE(2U)#1B

DE(2U)#1B

DE(2U)#1B
DE(2U)#17

DE(2U)#17

DE(2U)#17
DE(2U)#13

DE(2U)#13

DE(2U)#13
DE(2U)#1E

DE(2U)#1E

DE(2U)#1E
DE(2U)#1A

DE(2U)#1A

DE(2U)#1A
DE(2U)#16

DE(2U)#16

DE(2U)#16
DE(2U)#12

DE(2U)#12

DE(2U)#12
DE(2U)#1D

DE(2U)#1D

DE(2U)#1D
DE(2U)#19

DE(2U)#19

DE(2U)#19
DE(2U)#15

DE(2U)#15

DE(2U)#15
DE(2U)#11

DE(2U)#11

DE(2U)#11
DE(2U)#1C

DE(2U)#1C

DE(2U)#1C
DE(2U)#18

DE(2U)#18

DE(2U)#18
DE(2U)#14

DE(2U)#14

DE(2U)#14
DE(2U)#10

DE(2U)#10

DE(2U)#10

空き(7 U )

空き(7 U )

空き(7 U )

D E (2U )#0F

D E (2U )#0F

D E (2U )#0F
DE(2U)#0B

DE(2U)#0B

DE(2U)#0B
DE(2U)#07

DE(2U)#07

DE(2U)#07
DE(2U)#03

DE(2U)#03

DE(2U)#03
DE(2U)#0E

DE(2U)#0E

DE(2U)#0E
DE(2U)#0A

DE(2U)#0A

DE(2U)#0A
DE(2U)#06

DE(2U)#06

DE(2U)#06
DE(2U)#02

DE(2U)#02

DE(2U)#02
DE(2U)#0D

DE(2U)#0D

DE(2U)#0D
DE(2U)#09

DE(2U)#09

DE(2U)#09
DE(2U)#05

DE(2U)#05

DE(2U)#05
DE(2U)#01

DE(2U)#01

DE(2U)#01
DE(2U)#0C

DE(2U)#0C

DE(2U)#0C
DE(2U)#08

DE(2U)#08

DE(2U)#08
DE(2U)#04

DE(2U)#04

DE(2U)#04
DE(2U)#00

DE(2U)#00

DE(2U)#00

DAC(5U)#2

DAC(5U)#2

DAC(5U)#2

空き(7 U )

空き(7 U )

DE(2U)#0F

DE(2U)#0F

DE(2U)#0B

DE(2U)#0B

DE(2U)#07

DE(2U)#07

DE(2U)#03

DE(2U)#03

DE(2U)#0E

DE(2U)#0E

DE(2U)#0A

DE(2U)#0A

DE(2U)#06

DE(2U)#06

DE(2U)#02

DE(2U)#02
D E(2U )#0D

D E(2U )#0D
DE(2U)#09

DE(2U)#09
DE(2U)#05

DE(2U)#05
DE(2U)#01

DE(2U)#01
DE(2U)#0C

DE(2U)#0C
DE(2U)#08

DE(2U)#08
DE(2U)#04

DE(2U)#04
DE(2U)#00

DE(2U)#00

DAC(5U)#3

DAC(5U)#3

空き(12U)

空き(12U)

DE(2U)#1F

DE(2U)#1F
DE(2U)#1B

DE(2U)#1B
DE(2U)#17

DE(2U)#17
DE(2U)#13

DE(2U)#13
DE(2U)#1E

DE(2U)#1E
DE(2U)#1A

DE(2U)#1A
DE(2U)#16

DE(2U)#16
DE(2U)#12

DE(2U)#12
DE(2U)#1D

DE(2U)#1D
DE(2U)#19

DE(2U)#19
DE(2U)#15

DE(2U)#15
DE(2U)#11

DE(2U)#11
DE(2U)#1C

DE(2U)#1C
DE(2U)#18

DE(2U)#18
DE(2U)#14

DE(2U)#14
DE(2U)#10

DE(2U)#10

Remarks Appended goods

Power
supply unit:

AC 100～

240V

・ SAS cable (1m) x2
・ Bezel(with key) x1
・ Rack Mount Kit x1

Remarks

SAS cable dedicated to connection between
DAC-DE/DE-DE X2, (for 1 Disk enclosure)

16

(5) Selection of Cache Memory

Minimum capacity of cache memory per node is 8GB and the performance of disk array unit
improves by adding the cache memory. You can expand the cache memory from 8GB to 16GB and 32GB.
8GB cache memory consists of 2 cache memory modules, and 8GB or more cache memory consists of 4
cache memory modules.
In case the cache memory module is configured with 2 modules, it operates as a duplicated cache, and
in the event of the failure of cache memory module, Write Cache operation changes to Write through
like conventional mid-sized machine, and Write performance significantly deteriorates. However, in
case of the cache memory modules are configure by 4 modules, they operate as two pairs of duplicated
cache and in the event of the failure of cache memory module, as redundancy is
kept by the other pair, Write Cache operation can continue. Therefore, you can minimize the
performance deterioration.this unit.
By adding cache, due to the effect of cache hit, you can improve Read/Write performance of the unit.
According to the performance cache hit you expect, you need to add the cache memory but in general,
mount the cache in proportion to the disk capacity you mount into the unit. The followings are
our recommendable figures to mount cache for disk capacity:

Meanwhile, the cache memory works as the disk cache of the disk drives of the mounted node.

In addition, in case of multiple nodes, you can expand the capacity individually.

Target of cache capacity per node

Logical disk

capacity

(GB)

- 4,000 8GB
4,001 - 8,000 16GB
8,001 - 32GB

Product model

number

NF5183-SC21E

NF5183-SC22E

Product name Product outline

Extended cache module
(CHE) (8GB)

Extended cache module
(CHE) (16GB Æ 32GB)

Cache capacity

(GB)

# Logical disk capacity is user’s capacity of Disk

Array Unit.

(Example: capacity equivalent to “D” configured by

RAID-5(4D+P) )

Beside, the left column is the minimum requirement,

mere target and we recommend to mount as much as
possible.

For NF5183-SB401E

Extended node chassis (NF5183-SB03E)
Cache memory 8GB: (4GB/module)x2
+ Battery backup unit x2 (for 2 modules)
For NF5183-SB401E

Extended node chassis (NF5183-SB03E)

Additional cache memory from 16GB to 32GB

17

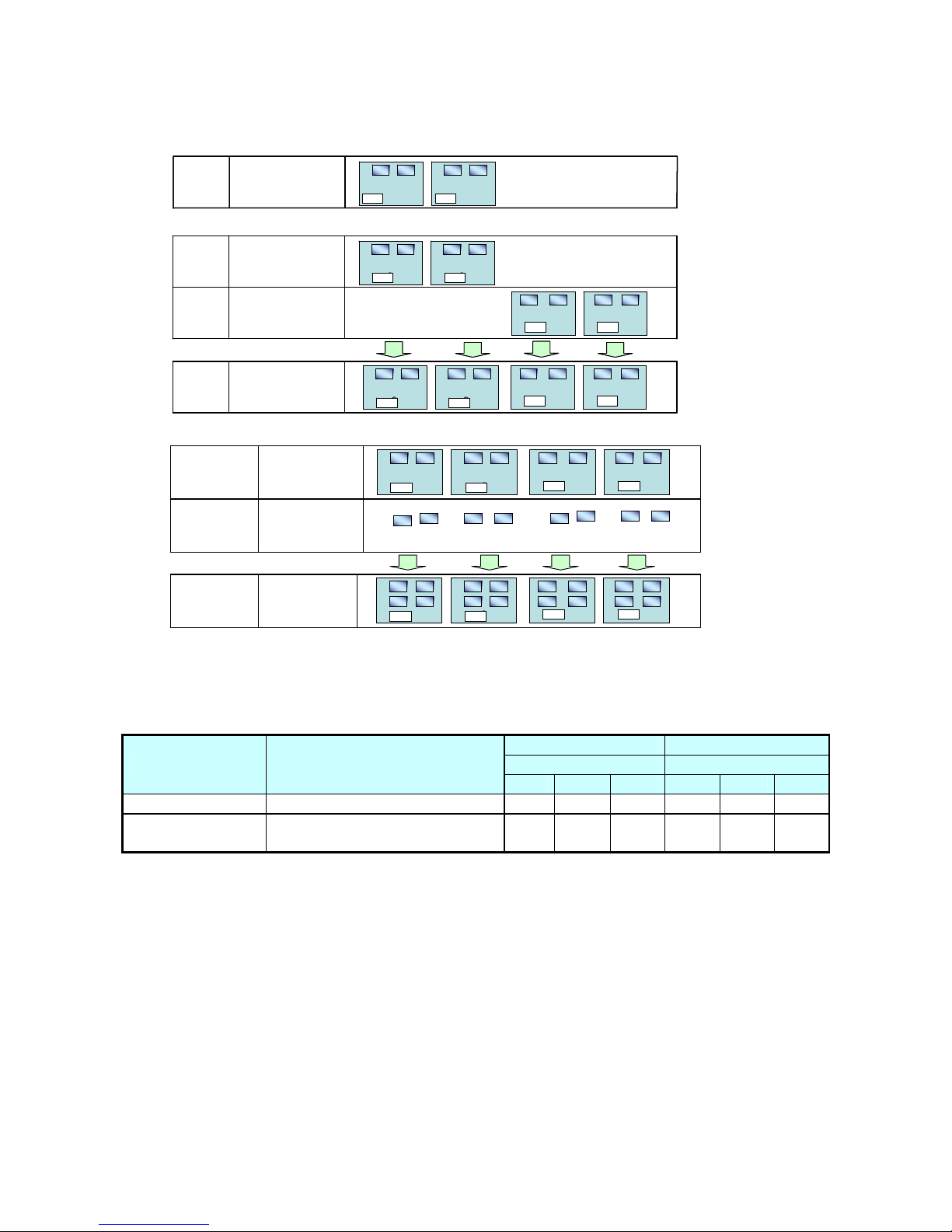

(Cache memory expansion scheme)

①Standard(8 G B )

Standard

Standard

Cache Module

Cache Module
(CHE)(8GB)

(CHE)(8GB)

Note : Extended node chassis (NF5183-SB03E) does not include Cache me mory.

You need to order NF-5183-SC21E as a standard cache module.

2GB 2GB 2GB 2GB

2GB 2GB 2GB 2GB

CHE00 CHE01

CHE00 CHE01

BBU BBU

BBU BBU

②Standard(8GB)⇒Extended(16GB)

Cache Module

Standard

Standard

NF5183-

NF5183­SC21E

SC21E

Cache Module
(CHE)(8GB)

(CHE)(8GB)

Cache Module

Cache Module
(CHE)(8GB)

(CHE)(8GB)

2GB 2GB 2GB 2GB

2GB 2GB 2GB 2GB

CHE00 CHE01

CHE00 CHE01

BBU BBU

BBU BBU

2GB 2GB 2GB 2GB

2GB 2GB 2GB 2GB

CHE02 CHE03

CHE02 CHE03

BBU BBU

BBU BBU

CHE

③Extended(16GB)⇒Extended(32GB)

CHE
16GB

16GB

CHE(4GB)×4

CHE(4GB)×4

CHE00 CHE01

CHE00 CHE01

BBU BBU

BBU BBU

Standard+
NF5183-SC21E

NF5183-SC22E

Cache Module
(CHE)(4GB)×4

Extended Cache
Module

(16GB→32GB)

CHE00 CHE01

BBU BBU

2GB 2GB 2GB

2GB

2GB 2GB 2GB 2GB2GB 2GB 2GB 2GB

2GB 2GB 2GB 2GB2GB 2GB 2GB 2GB

CHE02 CHE03

CHE02 CHE03

BBU BBU

BBU BBU

2GB 2GB 2GB 2GB2GB 2GB 2GB 2GB

CHE02 CHE03

BBU BBU

2GB 2GB 2GB

2GB

CHE(8GB)×4CHE 32GB

2GB 2GB 2GB 2GB

CHE00 CHE01

BBU BBU

2GB 2GB 2GB 2GB
2GB 2GB 2GB 2GB2GB 2GB 2GB 2GB

CHE02 CHE03BBU BBU

（Cache module selection matrix）

NF5183-SB401E NF5183-SB03E

Product Number Product Name

Cache capacity Cache capacity

8GB 16GB 32GB 8GB 16GB 32GB
NF5183-SC21E Cache module(CHE) (8GB) 0 1 1 1 2 2
NF5183-SC22E Extended cache module(CHE)

00 10 0 1

(16GB→32GB)

Extended node chassis (NF-5183-SB03E) does not include cache module. If you use extended node
chassis for node expansion, you need to arrange at least one Cache module(CHE)(8 GB) .

18

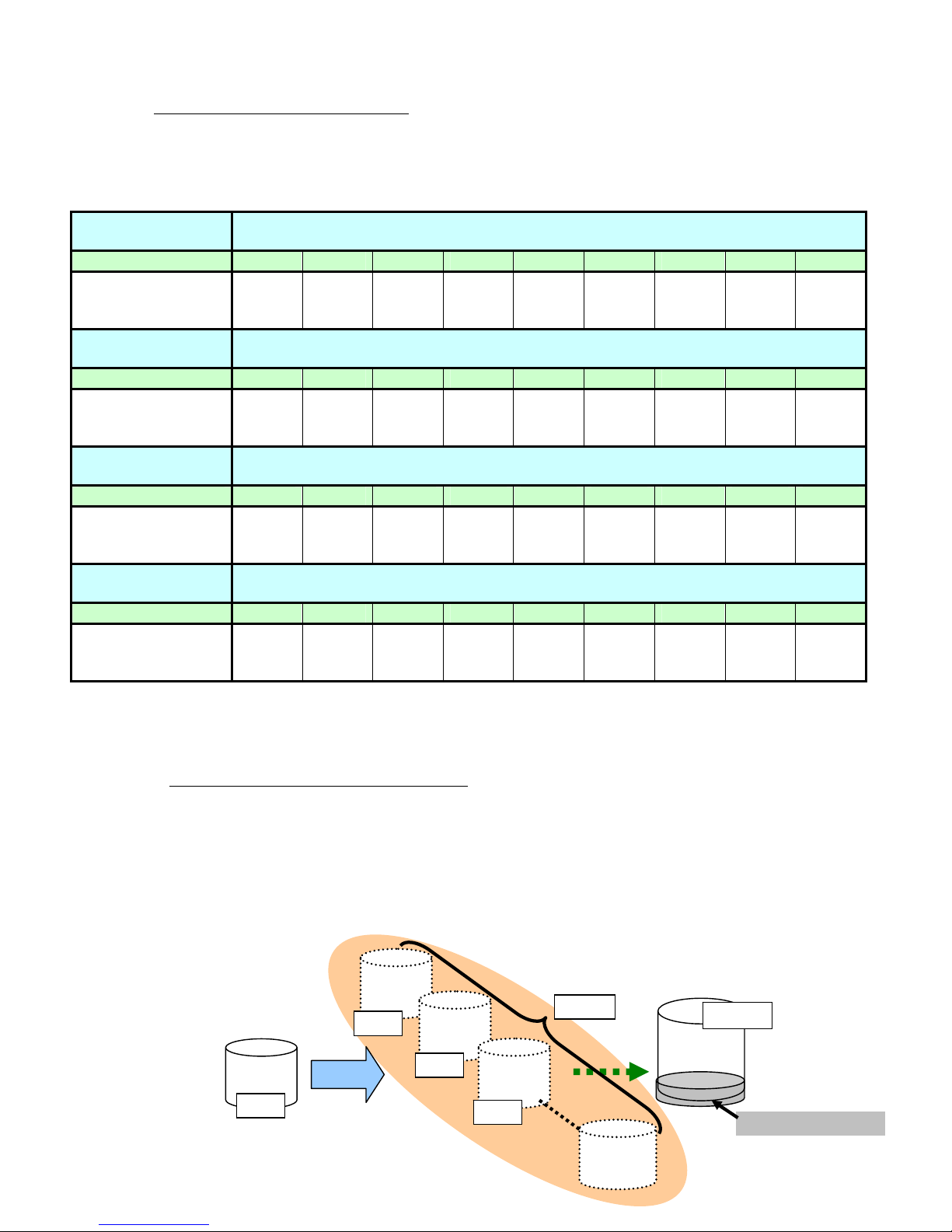

(Notes on using Data Replication Function)

In case you use data replication function (without snapshot) with D8 Series, select the minimum

size of cache memory from the following table according to the total HDD capacity and the total
replication volume (RV):

Total HDD
Physical capacity

Other than RAID-6 configuration: up to maximum capacity, in RAID-6 configuration:

up to 270,000GB
Cache capacity *1 4GB 8GB -16GB -24GB -32GB -40GB -48GB -56GB -128GB
RV total capacity

40TB 40TB 80TB 120TB 160TB 200TB 240TB 280TB 500TB
(When not using
RDR/DR)
RV total capacity

- 20TB 60TB 80TB 120TB 180TB 220TB 260TB 500TB
(When using
RDR/DR )

Total HDD

In RAID-6 configuration: 270,001-530,000GB

Physical capacity
Cache capacity *1 4GB 8GB -16GB -24GB -32GB -40GB -48GB -56GB -128GB
RV total capacity

35TB 35TB 75TB 115TB 155TB 195TB 235TB 275TB 500TB
(When not using
RDR/DR)
RV total capacity

- 15TB 55TB 95TB 135TB 175TB 215TB 255TB 500GB
(When using
RDR/DR )

Total HDD

In RAID-6 configuration: 530,001-790,000GB

Physical capacity
Cache capacity *1 4GB 8GB -16GB -24GB -32GB -40GB -48GB -56GB -128GB
RV total capacity

30TB 30TB 70TB 110TB 150TB 190TB 230T0B 270TB 500TB
(When using
RDR/DR)
RV total capacity

- 10TB 50TB 90TB 130TB 170TB 210TB 250TB 500TB
(When using
RDR/DR )

Total HDD

In RAID-6 configuration: 790,001GB-maximum capacity

Physical capacity
Cache capacity *1 4GB 8GB -16GB -24GB -32GB -40GB -48GB -56GB -128GB
RV total capacity

25TB 25TB 65TB 105TB 145TB 185TB 225TB 265TB 500TB
(When not using
RDR/DR)
RV total capacity

- 5TB 45TB 85TB 125TB 165TB 205TB 245TB 500TB
(When using
RDR/DR )

Note) The above “RV total capacity (when using RDR/DR)” is the capacity in case the buffer area of
semi-synchronous sequence is 256MB

*1 128GB is with 4 nodes configuration.

19

(Notes on using Snapshot Function)

In case you use Snapshot function (without replication) with the D8 Series, select the minimum
size of cache memory from the following table according to the total HDD capacity and the total
volume related to usable Snapshot function:

Total HDD Physical
capacity

Other than RAID-6 configuration: up to Max. capacity, in RAID-6 configuration: up to

270,000GB
Cache capacity *1 4GB 8GB -16GB -24GB -32GB -40GB -48GB -56GB -128GB
Tota l vo lu me

128TB 128TB 256TB 384TB 512TB 640TB 768TB 896TB 1024TB
related to Snapshot
function

Total HDD Physical

In RAID-6 configuration: 270,001-530,000GB

capacity
Cache capacity *1 4GB 8GB -16GB -24GB -32GB -40GB -48GB -56GB -128GB
Tota l vo lu me

112TB 112TB 240TB 368TB 496TB 624TB 752TB 880TB 1024TB
related to Snapshot
function

Total HDD Physical

In RAID-6 configuration: 530,001-790,000GB

capacity
Cache capacity *1 4GB 8GB -16GB -24GB -32GB -40GB -48GB -56GB -128GB
Tota l vo lu me

96TB 96TB 224TB 352TB 480TB 608TB 736T0B 864TB 1024TB
related to Snapshot
function

Total HDD Physical

In RAID-6 configuration: 790,001GB-Max. capacity

capacity
Cache capacity *1 4GB 8GB -16GB -24GB -32GB -40GB -48GB -56GB -128GB
Tota l vo lu me

80TB 80TB 208TB 336TB 464TB 592TB 720TB 848TB 1024TB
related to Snapshot
function

Note) The above “RV total capacity (when using RDR/DR)” is the capacity in case the buffer area of
semi-synchronous sequence is 256MB
*1 128GB is with 4 nodes configuration.

Total volume related to Snapshot function
＝Master volume capacity＋Snapshot volume capacity＋Snapshot reserved area capacity

example)
creating 8 generation Snapshot volume for master volume of 2TB, and assuming the reserved
area capacity per generation to be 20%,

Reserved area capacity＝2TB x 20% x 8 = 3.2TB
Total volume related to Snapshot function＝2TB + 16TB + 3.2TB = 21.2TB

Master

2TB

Snapshot

2TB

#1

Snapshot

#2

2TB

2TB

Snapshot

#2

16TB

Difference
data

Snapshot

2TB

#8

3.2TB

Snapshot
Reserved

area

Difference update

20

e

e

e

e

e

e

e

e

e

e

e

e

e

e

e

e

e

e

e

e

e

e

e

e

e

(Notes on using Data Replication Function and Snapshot Function at the same time)

In case you use both data replication and Snapshot with the D8 Series, the minimum size of cache
memory from the following table according to the total HDD capacity, the total capacity of the
replication volume (RV) and the total volume related to Snapshot function.

 Total HDD Physical capacity: up to Max. capacity (other than RAID-6), up to 270,000GB

(RAID-6)

C ache Function

～4GB Total capacity of RV(w/o RDR/DR) 0 5 10 15 20 25 30 35 40

Total ca pacity of S nap shot re late d volum
Total capacity of RV(w/ RDR/DR)
Total ca pacity of S nap shot re late d volum es

～8GB Total capacity of RV(w/o RDR/DR) 0 5 10 15 20 25 30 35 40

Total ca pacity of S nap shot re late d volum
Total capacity of RV(w/ RDR/DR) 0 5 10 15 20
Total ca pacity of S nap shot re late d volum

～16GB Total capacity of RV(w/o RDR/DR) 0 5101520253035404550556065707580

Total ca pacity of S nap shot re late d volum
Total capacity of RV(w/ RD R/D R) 0 5 10 15 20 25 30 35 40 45 50 55 60
Total ca pacity of S nap shot re late d volum

～24GB Total capacity of RV(w/o RDR/DR) 0 5101520 253035404550556065 707580859095 100 105 110 115 120

Total ca pacity of S nap shot re late d volum
Total capacity of RV(w/ RD R/D R) 0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80
Total ca pacity of S nap shot re late d volum

～32GB Total capacity of RV(w/o RDR/DR) 0 5101520 253035404550556065 707580859095 100 105 110 115 120 125 130 135 140 145 150 155 160

Total ca pacity of S nap shot re late d volum
Total capacity of RV(w/ RD R/D R) 0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95100105110115120
Total ca pacity of S nap shot re late d volum

～40GB Total capacity of RV(w/o RDR/DR) 0 5101520 253035404550556065 707580859095 100 105 110 115 120 125 130 135 140 145 150 155 160

Total ca pacity of S nap shot re late d volum
Total capacity of RV(w/o R D R/D R ) 165 170 17 5 180 18 5 190 195 200
Total ca pacity of S nap shot re late d volum
Total capacity of RV(w/ RD R/D R) 0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 105 110 115 120 125 130 135 140 145 150 155 160
Total ca pacity of S nap shot re late d volum
Total capacity of RV(w/ RDR/DR) 165 170 175 180
Total ca pacity of S nap shot re late d volum

～48GB Total capacity of RV(w/o RDR/DR) 0 5101520 253035404550556065 707580859095 100 105 110 115 120 125 130 135 140 145 150 155 160

Total ca pacity of S nap shot re late d volum
Total capacity of RV(w/o R D R/D R ) 165 170 17 5 180 18 5 190 195 200 205 210 215 220 225 230 235 240
Total ca pacity of S nap shot re late d volum
Total capacity of RV(w/ RD R/D R) 0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 105 110 115 120 125 130 135 140 145 150 155 160
Total ca pacity of S nap shot re late d volum
Total capacity of RV(w/ R D R/D R ) 165 170 175 180 185 190 195 200 205 210 215 220
Total ca pacity of S nap shot re late d volum

～56GB Total capacity of RV(w/o RDR/DR) 0 5101520 253035404550556065 707580859095 100 105 110 115 120 125 130 135 140 145 150 155 160

Total ca pacity of S nap shot re late d volum
Total capacity of RV(w/o R D R/D R ) 165 170 17 5 180 18 5 190 195 200 205 210 215 220 225 230 235 240 245 250 255 260 265 270 275 280
Total ca pacity of S nap shot re late d volum
Total capacity of RV(w/ RD R/D R) 0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 105 110 115 120 125 130 135 140 145 150 155 160
Total ca pacity of S nap shot re late d volum
Total capacity of RV(w/ R D R/D R ) 165 170 175 180 185 190 195 200 205 210 215 220 225 230 235 240 245 250 255 260
Total ca pacity of S nap shot re late d volum

～128GB Total capacity of RV (w/o R DR /D R) 0 5 10 15 20 25 30 every 5TB 285 290 295 300 305 310315320325330335

Total ca pacity of S nap shot re late d volum
Total capacity of RV(w/o R D R/D R ) 340 345 35 0 355 36 0 365 370 375 380 385 390 395 400 405 410 415 420 425 430 435 440 445 450 455 460 465 470 475 480 485 490 495 500
Total ca pacity of S nap shot re late d volum
Total capacity of RV(w/ RD R/D R) 0 5 10 15 20 25 30 every 5TB 285 290 295 300 305 310 315 320 325 330 335
Total ca pacity of S nap shot re late d volum
Total capacity of RV(w/ R D R/D R ) 340 345 350 355 360 365 370 375 380 385 390 395 400 405 410 415 420 425 430 435 440 445 450 455 460 465 470 475 480 485 490 495 500
Total ca pacity of S nap shot re late d volum

Usable capacity (T B )

128 112 96 80 64 48 32 16 0

128 112 96 80 64 48 32 16 0

64 48 32 16 0

256 240 224 208 192 176 160 144 128 112 96 80 64 48 32 16 0

192 176 160 144 128 112 96 80 64 48 32 16 0

384 368 352 336 320 304 288 272 256 240 224 208 192 176 160 144 128 112 96 80 64 48 3216 0

256 240 224 208 192 176 160 144 128 112 96 80 64 48 32 16 0

512 496 480 464 448 432 416 400 384 368 352 336 320 304 288 272 256 240 224 208 192 17616014412811296806448 32 16 0

384 368 352 336 320 304 288 272 256 240 224 208 192 176 160 144 128 112 96 80 64 48 3216 0

640 624 608 592 576 560 544 528 512 496 480 464 448 432 416 400 384 368 352 336 320 304 288 272 256 240 224 208 192 176 160 144 128

112 968064483216 0

576 560 544 528 512 496 480 464 448 432 416 400 384 368 352 336 320 304 288 272 256 240 224 208 192 176 160 144 128 112 96 80 64

48 32 16 0

768 752 736 720 704 688 672 656 640 624 608 592 576 560 544 528 512 496 480 464 448 432 416 400 384 368 352 336 320 304 288 272 256

240 224 208 192 176 160 144 128 112 96 80 64 48 32 16 0

704 688 672 656 640 624 608 592 576 560 544 528 512 496 480 464 448 432 416 400 384 368 352 336 320 304 288 272 256 240 224 208 192

176 160 144 128 112 96 80 64 48 32 16 0

896 880 864 848 832 816 800 784 768 752 736 720 704 688 672 656 640 624 608 592 576 560 544 528 512 496 480 464 448 432 416 400 384

368 352 336 320 304 288 272 256 240 224 208 192 176 160 144 128 112 96 80 64 48 32 16 0

832 816 800 784 768 752 736 720 704 688 672 656 640 624 608 592 576 560 544 528 512 496 480 464 448 432 416 400 384 368 352 336 320

304 288 272 256 240 224 208 192 176 160 144 128 112 96 80 64 48 32 16 0

1024 1024 1024 1024 1024 1024 1024 1024 1024 1024 1024 1024 1024 1024 1024 1024 1008 992 976

960 944 928 912 896 880 864 848 832 816 800 784 768 752 736 720 704 688 672 656 640 624 608 592 576 560 544 528 512 496 480 464 448

1024 1024 1024 1024 1024 1024 1024 1024 1024 1024 1024 1024 1008 992 976 960 944928912

896 880 864 848 832 816 800 784 768 752 736 720 704 688 672 656 640 624 608 592 576 560 544 528 512 496 480 464 448 432 416 400 384

Note) The above “RV total capacity (when using RDR/DR)” is the capacity in case the buffer area of
semi-synchronous sequence is 256MB.
*1 128GB is with 4 nodes configuration.

21

e

e

e

e

e

e

e

e

e

e

e

e

e

e

e

e

e

e

e

e

e

e

e

e

e

 Total HDD Physical capacity: up to 270,001GB – 530,000GB (RAID-6)

C ache Function

～4GB Total capacity of RV(w/o RDR/DR) 0 5 10 15 20 25 30 35

Total ca pacity of S nap shot re late d volum
Total capacity of RV(w/ RDR/DR)
Total ca pacity of S nap shot re late d volum es

～8GB Total capacity of RV(w/o RDR/DR) 0 5 10 15 20 25 30 35

Total ca pacity of S nap shot re late d volum
Total capacity of RV(w/ RDR/DR) 0 5 10 15
Total ca pacity of S nap shot re late d volum

～16GB Total capacity of RV(w/o RDR/DR) 0 51015202530354045505560657075

Total ca pacity of S nap shot re late d volum
Total capacity of RV(w/ RD R/D R) 0 5 10 15 20 25 30 35 40 45 50 55
Total ca pacity of S nap shot re late d volum

～24GB Total capacity of RV(w/o RDR/DR) 0 5101520253035404550556065707580859095 100 105 110 115

Total ca pacity of S nap shot re late d volum
Total capacity of RV(w/ RD R/D R) 0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95
Total ca pacity of S nap shot re late d volum

～32GB Total capacity of RV(w/o RDR/DR) 0 5101520253035404550556065707580859095 100 105 110 115 120 125 130 135 140 145 150 155

Total ca pacity of S nap shot re late d volum
Total capacity of RV(w/ RD R/D R) 0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 105 110 115 120 125 130 135
Total ca pacity of S nap shot re late d volum

～40GB Total capacity of RV(w/o RDR/DR) 0 5101520253035404550556065707580859095 100 105 110 115 120 125 130 135 140 145 150 155 160

Total ca pacity of S nap shot re late d volum
Total capacity of RV(w/o RDR/DR) 165 170 175 180 185 190 195
Total ca pacity of S nap shot re late d volum
Total capacity of RV(w/ RD R/D R) 0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 105 110 115 120 125 130 135 140 145 150 155 160
Total ca pacity of S nap shot re late d volum
Total capacity of RV(w/ RDR/DR) 165 170 175
Total ca pacity of S nap shot re late d volum

～48GB Total capacity of RV(w/o RDR/DR) 0 5101520253035404550556065707580859095 100 105 110 115 120 125 130 135 140 145 150 155 160

Total ca pacity of S nap shot re late d volum
Total capacity of RV(w/o R D R/D R ) 165 170 17 5 180 18 5 190 195 200 205 210 215 220 225 230 235
Total ca pacity of S nap shot re late d volum
Total capacity of RV(w/ RD R/D R) 0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 105 110 115 120 125 130 135 140 145 150 155 160
Total ca pacity of S nap shot re late d volum
Total capacity of RV(w/ R D R/D R ) 165 170 175 180 185 190 195 200 205 210 215
Total ca pacity of S nap shot re late d volum

～56GB Total capacity of RV(w/o RDR/DR) 0 5101520253035404550556065707580859095 100 105 110 115 120 125 130 135 140 145 150 155 160

Total ca pacity of S nap shot re late d volum
Total capacity of RV(w/o R D R/D R ) 165 170 17 5 180 18 5 190 195 200 205 210 215 220 225 230 235 240 245 250 255 260 265 270 275
Total ca pacity of S nap shot re late d volum
Total capacity of RV(w/ RD R/D R) 0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 105 110 115 120 125 130 135 140 145 150 155 160
Total ca pacity of S nap shot re late d volum
Total capacity of RV(w/ R D R/D R ) 165 170 175 180 185 190 195 200 205 210 215 220 225 230 235 240 245 250 255
Total ca pacity of S nap shot re late d volum

～128GB Total capacity of RV(w/o RDR/DR) 0 5 10 15 20 25 30 every 5TB 285 290 295 300 305 310315320325330335

Total ca pacity of S nap shot re late d volum
Total capacity of RV(w/o R D R/D R ) 340 345 35 0 355 36 0 365 370 375 380 385 390 395 400 405 410 415 420 425 430 435 440 445 450 455 460 465 470 475 480 485 490 495 500
Total ca pacity of S nap shot re late d volum
Total capacity of RV(w/ RD R/D R) 0 5 10 15 20 25 30 every 5TB 285 290 295 300 305 310 315 320 325 330 335
Total ca pacity of S nap shot re late d volum
Total capacity of RV(w/ R D R/D R ) 340 345 350 355 360 365 370 375 380 385 390 395 400 405 410 415 420 425 430 435 440 445 450 455 460 465 470 475 480 485 490 495 500
Total ca pacity of S nap shot re late d volum

Usable capacity (T B )

112 968064483216 0

112 968064483216 0

48 32 16 0

240 224 208 192 176 160 144 128 112 96 80 64 48 32 16 0

176 160 144 128 112 96 80 64 48 32 16 0

368 352 336 320 304 288 272 256 240 224 208 192 176 160 144 128 112 96 80 64 48 32 16 0

304 288 272 256 240 224 208 192 176 160 144 128 112 96 80 64 48 32 16 0

496 480 464 448 432 416 400 384 368 352 336 320 304 288 272 256 240 224 208 192 176 160 144 128 112 96 80 64 48 32 16 0

432 416 400 384 368 352 336 320 304 288 272 256 240 224 208 192 176 160 144 128 112 9 6 80 64 4 8 32 16 0

624 608 592 576 560 544 528 512 496 480 464 448 432 416 400 384 368 352 336 320 304 288 272 256 240 224 208 192 176 160 144 128 112

96 80 64 48 32 16 0

560 544 528 512 496 480 464 448 432 416 400 384 368 352 336 320 304 288 272 256 240 224 208 192 176 160 144 128 112 96 80 64 48

32 16 0

752 736 720 704 688 672 656 640 624 608 592 576 560 544 528 512 496 480 464 448 432 416 400 384 368 352 336 320 304 288 272 256 240

224 208 192 176 160 144 128 112 96 80 64 48 32 16 0

688 672 656 640 624 608 592 576 560 544 528 512 496 480 464 448 432 416 400 384 368 352 336 320 304 288 272 256 240 224 208 192 176

160 144 128 112 96 80 64 48 32 16 0

880 864 848 832 816 800 784 768 752 736 720 704 688 672 656 640 624 608 592 576 560 544 528 512 496 480 464 448 432 416 400 384 368

352 336 320 304 288 272 256 240 224 208 192 176 160 144 128 112 96 80 64 48 32 16 0

816 800 784 768 752 736 720 704 688 672 656 640 624 608 592 576 560 544 528 512 496 480 464 448 432 416 400 384 368 352 336 320 304

288 272 256 240 224 208 192 176 160 144 128 112 96 80 64 48 32 16 0

1024 1024 1024 1024 1024 1024 1024 1024 1024 1024 1024 1024 1024 1024 1024 1008992976960

944 928 912 896 880 864 848 832 816 800 784 768 752 736 720 704 688 672 656 640 624 608 592 576 560 544 528 512 496 480 464 448 432

1024 1024 1024 1024 1024 1024 1024 1024 1024 1024 1024 1008 992 976 960 944 928 912 896

880 864 848 832 816 800 784 768 752 736 720 704 688 672 656 640 624 608 592 576 560 544 528 512 496 480 464 448 432 416 400 384 368

Note) The above “RV total capacity (when using RDR/DR)” is the capacity in case the buffer area of
semi-synchronous sequence is 256MB.
*1 128GB is with 4 nodes configuration.

22

e

e

e

e

e

e

e

e

e

e

e

e

e

e

e

e

e

e

e

e

e

e

e

e

e

 Total HDD Physical capacity: up to 530,001GB – 790,000GB (RAID-6)

C ache Function

～4GB Total capacity of RV(w/o RDR/DR) 0 5 10 15 20 25 30

Total ca pacity of S nap shot re late d volum
Total capacity of RV(w/ RDR/DR)
Total ca pacity of S nap shot re late d volum es

～8GB Total capacity of RV(w/o RDR/DR) 0 5 10 15 20 25 30

Total ca pacity of S nap shot re late d volum
Total capacity of RV(w/ RDR/DR) 0 5 10
Total ca pacity of S nap shot re late d volum

～16GB Total capacity of RV(w/o RDR/DR) 0 5 10 15 20 25 30 35 40 45 50 55 60 65 70

Total ca pacity of S nap shot re late d volum
Total capacity of RV(w/ RD R/D R) 0 5 10 15 20 25 30 35 40 45 50
Total ca pacity of S nap shot re late d volum

～24GB Total capacity of RV(w/o RDR/DR) 0 5101520253035404550556065707580859095 100 105 110

Total ca pacity of S nap shot re late d volum
Total capacity of RV(w/ RD R/D R) 0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90
Total ca pacity of S nap shot re late d volum

～32GB Total capacity of RV(w/o RDR/DR) 0 5101520253035404550556065707580859095 100 105 110 115 120 125 130 135 140 145 150

Total ca pacity of S nap shot re late d volum
Total capacity of RV(w/ RD R/D R) 0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 105 110 115 120 125 130
Total ca pacity of S nap shot re late d volum

～40GB Total capacity of RV(w/o RDR/DR) 0 5101520253035404550556065707580859095 100 105 110 115 120 125 130 135 140 145 150 155 160

Total ca pacity of S nap shot re late d volum
Total capacity of RV(w/o RDR/DR) 165 170 175 180 185 190
Total ca pacity of S nap shot re late d volum
Total capacity of RV(w/ RD R/D R) 0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 105 110 115 120 125 130 135 140 145 150 155 160
Total ca pacity of S nap shot re late d volum
Total capacity of RV(w/ RDR/DR) 165 170
Total ca pacity of S nap shot re late d volum

～48GB Total capacity of RV(w/o RDR/DR) 0 5101520253035404550556065707580859095 100 105 110 115 120 125 130 135 140 145 150 155 160

Total ca pacity of S nap shot re late d volum
Total capacity of RV(w/o R D R/D R ) 165 170 17 5 180 18 5 190 195 200 205 210 215 220 225 230
Total ca pacity of S nap shot re late d volum
Total capacity of RV(w/ RD R/D R) 0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 105 110 115 120 125 130 135 140 145 150 155 160
Total ca pacity of S nap shot re late d volum
Total capacity of RV(w/ RDR/DR) 165 170 175 180 185 190 195 200 205 210
Total ca pacity of S nap shot re late d volum

～56GB Total capacity of RV(w/o RDR/DR) 0 5101520253035404550556065707580859095 100 105 110 115 120 125 130 135 140 145 150 155 160

Total ca pacity of S nap shot re late d volum
Total capacity of RV(w/o R D R/D R ) 165 170 17 5 180 18 5 190 195 200 205 210 215 220 225 230 235 240 245 250 255 260 265 270
Total ca pacity of S nap shot re late d volum
Total capacity of RV(w/ RD R/D R) 0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 105 110 115 120 125 130 135 140 145 150 155 160
Total ca pacity of S nap shot re late d volum
Total capacity of RV(w/ R D R/D R ) 165 170 175 180 185 190 195 200 205 210 215 220 225 230 235 240 245 250
Total ca pacity of S nap shot re late d volum

～128GB Total capacity of RV(w/o RDR/DR) 0 5 10 15 20 25 30 every 5TB 285 290 295 300 305 310315320325330335

Total ca pacity of S nap shot re late d volum
Total capacity of RV(w/o R D R/D R ) 340 345 35 0 355 36 0 365 370 375 380 385 390 395 400 405 410 415 420 425 430 435 440 445 450 455 460 465 470 475 480 485 490 495 500
Total ca pacity of S nap shot re late d volum
Total capacity of RV(w/ RD R/D R) 0 5 10 15 20 25 30 every 5TB 285 290 295 300 305 310 315 320 325 330 335
Total ca pacity of S nap shot re late d volum
Total capacity of RV(w/ R D R/D R ) 340 345 350 355 360 365 370 375 380 385 390 395 400 405 410 415 420 425 430 435 440 445 450 455 460 465 470 475 480 485 490 495 500
Total ca pacity of S nap shot re late d volum

Usable capacity (T B )

96 80 64 48 32 16 0

96 80 64 48 32 16 0

32 16 0

224 208 192 176 160 144 128 112 96 80 64 48 32 16 0

160 144 128 112 96 80 64 48 32 16 0

352 336 320 304 288 272 256 240 224 208 192 176 160 144 128 112 96 80 64 48 32 16 0

288 272 256 240 224 208 192 176 160 144 128 112 96 80 64 48 32 16 0

480 464 448 432 416 400 384 368 352 336 320 304 288 272 256 240 224 208 192 176 160 144128112 968064483216 0

416 400 384 368 352 336 320 304 288 272 256 240 224 208 192 176 160 144 128 112 96 8064483216 0

608 592 576 560 544 528 512 496 480 464 448 432 416 400 384 368 352 336 320 304 288 272 256 240 224 208 192 176 160 144 128 112 96

80 64 48 32 16 0

544 528 512 496 480 464 448 432 416 400 384 368 352 336 320 304 288 272 256 240 224 208 192 176 160 144 128 112 96 80 64 48 32

16 0

736 720 704 688 672 656 640 624 608 592 576 560 544 528 512 496 480 464 448 432 416 400 384 368 352 336 320 304 288 272 256 240 224

208 192 176 160 144 128 112 96 80 64 48 32 16 0

672 656 640 624 608 592 576 560 544 528 512 496 480 464 448 432 416 400 384 368 352 336 320 304 288 272 256 240 224 208 192 176 160

144 128 112 96 80 64 48 32 16 0

864 848 832 816 800 784 768 752 736 720 704 688 672 656 640 624 608 592 576 560 544 528 512 496 480 464 448 432 416 400 384 368 352

336 320 304 288 272 256 240 224 208 192 176 160 144 128 112 96 80 64 48 32 16 0

800 784 768 752 736 720 704 688 672 656 640 624 608 592 576 560 544 528 512 496 480 464 448 432 416 400 384 368 352 336 320 304 288

272 256 240 224 208 192 176 160 144 128 112 96 80 64 48 32 16 0

1024 1024 1024 1024 1024 1024 1024 1024 1024 1024 1024 1024 1024 1024 1008 992 976 960 944

928 912 896 880 864 848 832 816 800 784 768 752 736 720 704 688 672 656 640 624 608 592 576 560 544 528 512 496 480 464 448 432 416

1024 1024 1024 1024 1024 1024 1024 1024 1024 1024 1008 992 976 960 944 928 912 896 88 0

864 848 832 816 800 784 768 752 736 720 704 688 672 656 640 624 608 592 576 560 544 528 512 496 480 464 448 432 416 400 384 368 352

Note) The above “RV total capacity (when using RDR/DR)” is the capacity in case the buffer area of
semi-synchronous sequence is 256MB.
*1 128GB is with 4 nodes configuration.

23

◆ Total HDD Physical capacity: up to 790,001GB –(RAID-6)

e

e

e

e

e

e

e

e

e

e

e

e

e

e

e

e

e

e

e

e

e

e

e

e

e

C ache Function

～4G B T otal capacity of RV (w /o R DR /D R) 0 5 10 15 20 25

Total ca pacity of S nap shot re late d volum
Total capacity of RV(w/ RDR/DR)
Total ca pacity of S nap shot re late d volum es

～8G B T otal capacity of RV (w /o R DR /D R) 0 5 10 15 20 25

Total ca pacity of S nap shot re late d volum
Total capacity of RV(w/ RDR/DR) 0 5
Total ca pacity of S nap shot re late d volum

～16GB T otal capacity of RV(w/o R DR /D R) 0 5 10 15 20 25 30 35 40 45 50 55 60 65

Total ca pacity of S nap shot re late d volum
Total capacity of RV(w/ RD R/D R) 0 5 10 15 20 25 30 35 40 45
Total ca pacity of S nap shot re late d volum

～24GB T otal capacity of RV(w/o R DR /D R) 0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 105

Total ca pacity of S nap shot re late d volum
Total capacity of RV(w/ RD R/D R) 0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85
Total ca pacity of S nap shot re late d volum

～32GB T otal capacity of RV(w/o R DR /D R) 0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 105 110 115 120 125 130 135 140 145

Total ca pacity of S nap shot re late d volum
Total capacity of RV(w/ RD R/D R) 0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 105 110 115 120 125
Total ca pacity of S nap shot re late d volum

～40GB T otal capacity of RV(w/o R DR /D R) 0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 105 110 115 120 125 130 135 140 145 150 155 160

Total ca pacity of S nap shot re late d volum
Total capacity of RV(w/o RD R/D R) 165 170 175 180 185
Total ca pacity of S nap shot re late d volum
Total capacity of RV(w/ RD R/D R) 0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 105 110 115 12 0 12 5 13 0 13 5 14 0 14 5 1 50 1 55 16 0
Total ca pacity of S nap shot re late d volum
Total capacity of RV(w/ RDR/DR) 165
Total ca pacity of S nap shot re late d volum

～48GB T otal capacity of RV(w/o R DR /D R) 0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 105 110 115 120 125 130 135 140 145 150 155 160

Total ca pacity of S nap shot re late d volum
Total capacity of RV(w/o RD R/D R) 165 170 175 180 185 190 195 200 205 210 215 220 225
Total ca pacity of S nap shot re late d volum
Total capacity of RV(w/ RD R/D R) 0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 105 110 115 12 0 12 5 13 0 13 5 14 0 14 5 1 50 1 55 16 0
Total ca pacity of S nap shot re late d volum
Total capacity of RV(w/ RD R/D R) 165 170 175 180 185 190 195 200 205
Total ca pacity of S nap shot re late d volum

～56GB T otal capacity of RV(w/o R DR /D R) 0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 105 110 115 120 125 130 135 140 145 150 155 160

Total ca pacity of S nap shot re late d volum
Total capacity of RV(w/o RD R/D R) 165 170 175 180 185 190 195 200 205 210 215 220 225 230 235 240 245 250 255 260 265
Total ca pacity of S nap shot re late d volum
Total capacity of RV(w/ RD R/D R) 0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 105 110 115 12 0 12 5 13 0 13 5 14 0 14 5 1 50 1 55 16 0
Total ca pacity of S nap shot re late d volum
Total capacity of RV(w/ RD R/D R) 165 170 175 180 185 190 195 200 205 210 215 220 22 5 23 0 2 35 2 40 2 45
Total ca pacity of S nap shot re late d volum

～128GB Total capacity of RV (w/o RD R/D R) 0 5 10 15 20 25 30 every 5TB 285 290 295 300 305 3 10 315 320 325 330 33 5

Total ca pacity of S nap shot re late d volum
Total capacity of RV(w/o RD R/D R) 340 345 350 355 360 365 370 375 380 385 390 395 400 405 410 415 420 425 430 435 440 445 450 455 460 465 470 475 480 485 490 495 500
Total ca pacity of S nap shot re late d volum
Total capacity of RV(w/ RD R/D R) 0 5 10 15 20 25 30 every 5TB 280 285 290 295 300 305 310 315 320 325 330 335
Total ca pacity of S nap shot re late d volum
Total capacity of RV(w/ RD R/D R) 340 345 350 355 360 365 370 375 380 385 390 395 400 405 410 415 420 425 430 435 440 445 450 455 460 465 470 475 480 485 490 495 500
Total ca pacity of S nap shot re late d volum

U sable capacity(T B )

80 64 48 32 16 0

80 64 48 32 16 0

16 0

208 192 176 160 144 128 112 96 80 64 48 32 16 0

144 128 112 96 80 64 48 32 16 0

336 320 304 288 272 256 240 224 208 192 176 160 144 128 112 96 80 64 48 32 16 0

272 256 240 224 208 192 176 160 144 128 112 96 80 64 48 32 16 0

464 448 432 416 400 384 368 352 336 320 304 288 272 256 240 224 208 192 176 160 144 128 112 96 80 64 48 32 16 0

400 384 368 352 336 320 304 288 272 256 240 224 208 192 176 160 144 128 112 96 80 64 48 32 16 0

592 576 560 544 528 512 496 480 464 448 432 416 400 384 368 352 336 320 304 288 272 25 6 2 40 2 24 20 8 19 2 17 6 16 0 14 4 12 8 1 12 96 8 0

64 48 32 16 0

528 512 496 480 464 448 432 416 400 384 368 352 336 320 304 288 272 256 240 224 208 192 176 160 144 128 112 96 80 64 48 32 16

0

720 704 688 672 656 640 624 608 592 576 560 544 528 512 496 480 464 448 432 416 400 38 4 3 68 3 52 33 6 32 0 30 4 28 8 27 2 25 6 2 40 2 24 2 0 8

192 176 160 144 128 112 96 80 64 48 32 16 0

656 640 624 608 592 576 560 544 528 512 496 480 464 448 432 416 400 384 368 352 336 32 0 3 04 2 88 27 2 25 6 24 0 22 4 20 8 19 2 1 76 1 60 1 4 4

128 112 96 80 64 48 32 16 0

848 832 816 800 784 768 752 736 720 704 688 672 656 640 624 608 592 576 560 544 528 51 2 4 96 4 80 46 4 44 8 43 2 41 6 40 0 38 4 3 68 3 52 3 3 6

320 304 288 272 256 240 224 208 192 176 160 144 128 112 96 80 64 48 32 16 0

784 768 752 736 720 704 688 672 656 640 624 608 592 576 560 544 528 512 496 480 464 44 8 4 32 4 16 40 0 38 4 36 8 35 2 33 6 32 0 3 04 2 88 2 7 2

256 240 224 208 192 176 160 144 128 112 96 80 64 48 32 16 0

1024 1024 1024 1024 1024 1024 1024 1024 1024 1024 1024 1024 1024 1008 992 976 960 9 44 9 28

912 896 880 864 848 832 816 800 784 768 752 736 720 704 688 672 656 640 624 608 592 57 6 5 60 5 44 52 8 51 2 49 6 48 0 46 4 44 8 4 32 4 16 4 0 0

1024 1024 1024 1024 1024 1024 1024 1024 1024 1024 1008 992 976 960 944 928 912 896 880 86 4

848 832 816 800 784 768 752 736 720 704 688 672 656 640 624 608 592 576 560 544 528 51 2 4 96 4 80 46 4 44 8 43 2 41 6 40 0 38 4 3 68 3 52 3 3 6

Note) The above “RV total capacity (when using RDR/DR)” is the capacity in case the buffer area of
semi-synchronous sequence is 256MB.
*1 128GB is with 4 nodes configuration.

24

(6) Selection of Host Director

D8-3010 does NOT include Host Director(HD). You must select at least 1 set of HD(NF5183-SF01E or
NF5183-SF02E) .
1 HD set has 2 HDs and 8 ports (4 ports/1HD). HD can be installed up to 2 sets (max. 4 HDs and 16
ports) in 1 node.
Meanwhile, Host Director (HD) and Disk Director (DD) are exclusively expandable in a node. When
you select maximum number of Disk Director (DD), you can not select maximum number of Host
Director (HD).

Product code Product name

Number of
added FC port

Notes

NF5183-SF02E Host Director (HD) 8 ports

NF5183-SF01E Host Director (HD) 8 ports

(7) Selection of Disk Director

D8-3010 does NOT include Disk Director(DD). You must select at least 1 set of DD (NF5183-SD01E) .
1 DD set has 2 DDs and 16 Disk Enclosure(DE) with 192 HDD can be connected in 1 node. When
connecting 17 units or more of disk enclosure in a node, or mount 193 units or more of disk drive, or
improve I/O performance in an actual disk access due to disk distribution, select 1 more set of Disk
Director (DD). By this expansion, 16 more Disk Enclosures (totally 32 units) can be connected to the
node, making totally 384 units of HDD mountable per node. Disk Director is expandable up to 4 units
(1 option) in a node.

Meanwhile, Disk Director (DD) and Host Director (HD) are exclusively expandable in a node. When

you select maximum number of Host Director (HD), you can not select maximum number of Disk
Director (DD).

Product code Product name

Number of
expandable
DE

Host Director x2
(8G

FC 4 ports/Host Director )

Host Director x2

FC 4 ports/Host Director )

(4G

Number of
expandable
HDD

Notes

NF5183-SD01E Disk Director (DD) 16 units

(DE interface)

Minumum selection Maximum selection

Disk Interface (SAS port) 4 8

192HDD

Disk Director x2

25

(8) Addition of Node

1. Upgrade by adding nodes
By adding a new D8-3010 configuration with using extended node chasis to the existing D8-3010, it
can be upgraded to 2 nodes configuration
In this case, one set of cable between nodes (7m) [NF9120-SJ65] , Cache memory, Host Director, and
Disk Director are required.
Likewise, by adding a new D8-3010 configuration with using extended node chassis and 2 sets of the
cable [NF9120-SJ65] to the existing 2 nodes configration, it can be upgraded to 3 nodes configuration
without interrupting operation.
By adding a new D8-3010 configuration with using extended node chassis to the existing 3 nodes
configuration unit, it can be upgraded to 4 nodes configuration, without interrupting operation.

In case of units in multiple nodes, you can access to disk drives of any node of from a host
port. AccessControl can associate host ports and disk drives.

Note: The number of node is the same as the number of the DAC chassis.

Inter-node Cable (7m)

HD

HD

CHE:4GBx2

Flash

CHE

HD HD

CHE:4GBx2

Flash

CHE

DD

HD HD

DD

DD

CHE:4GBx2

Flash

DD

LSW

Basic Node D8-3010

CHE

Extended LSW

LSW

Additional Node
Extended chassis with
D8-3010 configuration

DD

HD HD

DD

LSW

DD

CHE:4GBx2

Flash

DD

Additional Node
Extended chassis with
D8-3010 configuration

CHE

Additional Node
Extended chassis with
D8-3010 configuration

26

Example 1: Expand 1 node configuration to 2 nodes

D8-3010 (1 node configuration)

NF5183-SB401E x1

Upgrade to 2 nodes configuration equivalent to D8-3020

Addition: NF5183-SB03E x1 + NF9120-SJ65 x1 +

HD/DD/DE/Cache

2 nodes configuration

NF9120-SJ65

NF5183-SB03E
+HD/DD/DE/Cache
(D8-3010 configuration x1)

Example 2: Expand 2 nodes configuration to 3 nodes

2 nodes configuration

Upgrade to 3 nodes configuration

Addition: NF5183-SB03E×1＋NF9120-SJ65×2＋HD/DD/DE/Cache

NF9120-SJ65

NF9120-SJ65

NF5183-SB03E
+HD/DD/DE/Cache
(D8-3010 configuration x1)

27

Example 3: Expand 2 node configuration to 4 nodes

2 nodes configuration

Upgrade to 4 nodes configuration

Addition:NF5183-SB03E×2＋NF9120-SJ65×5＋HD/DD/DE/Cache

NF9120-SJ65

NF9120-SJ65

4 nodes configuration

NF5183-SB03E
+HD/DD/DE/Cache
(D8-3010 configuration x2)

(Summary of minimum required products of nodes addition)
Please order following products and quantities when adding nodes

Product Number Product name

NF5183-SB03E

1

NF9120-SJ65

2

NF5183-SF02E(8Gb FC)

3

NF5183-SF01E(4Gb FC)
NF5183-SD01E

4

NF5021-SE60E

5

NF5183-SC21E

6

Quantity

1 Node ->
2 nodes

2 nodes ->
3 nodes

2 nodes ->
4 nodes

3 nodes ->
4 nodes

Extended Node Chassis 1 1 2 1

Inter-node Cable (7m) 1 2 5 3

Host Director （HD）

1 1 2 1

Disk Director (DD) 1 1 2 1

SAS/SATA Disk Enclosure(DE) 1 1 2 1

Cache module(CHE)(8GB) 1 1 2 1

28

2. Addition of Host Post by adding Node

You can expand host port by adding node (node without Disk Director) to the unit. Extended node
chassis [NF5183-SB03E], cable between nodes (7m) [NF9120-SJ65] and Host Director (HD) [NF5183－
SF02E (8Gb) or NF5183－SF01E(4Gb)] are required.

Inter-node Cable (7m)

Host Director (HD) [NF5183-SF02E or NF5183-SF01E]

CHE:4GBx

DD

LSW

CHE

HD

HD

LSW

Extended Node Chassis

[NF5183-SB03E]

HD

HD

DD

Basic Node D8-3010

As already explained, the number of host port of one node can be expanded from 8 ports to 16 ports by
adding a Host Director (HD) [NF5183-SF02E or NF5183-SF01E].
By adding one node, the number of host port is up to 32 ports (4 Host Directors).

29

3. Addition of Disk Drive by adding Node

A

A

C

You can add disk drives by adding node (node without host port) to the unit. Extended node chassis

[NF5183-SB03E], cable between nodes (7m) [NF9120-SJ65], standard cache module (CHE)
[NF5183-SC21E] and Disk Director (DD) [NF5183-SD01E] are required.

Inter-node Cable (7m)

Extended Node Chassis [NF5183-SB03E]

Cache Module (CHE) [NF5183-SC21E]

HD HD

CHE

LSW

DD

DD

Basic Node D8-3010 (Ex.)

CHE:4GBx2 CHE:4GBx2

DD DD

SAS/SATA Disk Enclosure [NF5181-SE60E]

DD

Disk Director (DD) [NF5183-SD01E]

HE

LSW

DD

As already explained, the number of connectable disk enclosure per node can be expanded from 16 units
to 32 units, and the number of connectable disk drive per node from 192 units to 384 units by adding a
Disk Director (DD) [NF5183-SD01E].
By adding one node, the number of connectable disk enclosure is up to 64, and the number of connectable
disk drive is up to 768.

Option for adding nodes

Product code Product name

NF5183-SB03E

NF9120-SJ65

Expansion
node chassis

Inter-node
cable (7m)

- Power cable [for

- Bezel [DAC](with key) : 1

- Rack Mount Kit :
1

- User’s guide : 1

ppended goods Product outline

C100V] (3m) : 4

Chassis for expansion node
with LSW A/B/C (excluding
HD, CHE, DD.)
Power supply unit: AC 100

- 240V

For D8 inter-node
connection
SAS cable 7m X4

30

（9）Selection of extended LSW port

D8-30 8GFC(NF5183-SB401E/NF5183-SB03E) includes LSW A/B/C. You do not need to add LSW. Simply add

nodes(also add HD/DD/DE/Cache) and inter-node cable.

CHE：

4GBx2

Flash

LSW

CHE：

4GBx2

Flash

LSW

DAC

CHE：

4GBx2

Flash

DD

Additional N o d e

Expansion chassis
with D 8-3010 configu ration

HD HD

DD

DAC

CHE：

4GBx2

Flash

LSW

DD

Additional N o d e

Expansion chassis
with D 8-3010 configu ration

HD HD

DD

HD

BBU

BBU

DE

HD HD

BBU

BBU

DE

CHE：

HD

4GBx2

Flash

DD DD

CHE：

4GBx2

Flash

DD DD

DAC

CHE：

4GBx2

Flash

HD HD

LSW

DD

Basic node D8-3010
(example)

DD

DAC

CHE：

4GBx2

Flash

LSW

LSW

DD

Additional N o d e

Expansion chassis
with D 8-3010 configu ration

HD HD

DD

HD HD

DD DD

DE

Inter node connection cable(7m) [N F9120- SJ65]

HD HD

DD DD

DE

Product code Product name Appended goods Product Outline

NF9120-SJ65

Inter-node
Cable (7m)

For D8 inter node connection
SAS cable 7m x4

BBU

BBU

BBU

BBU

31

(10) Selection of D3-10/D8-10/D8-20→D8-30 upgrade kit

D8-10/20 are upgradable to D8-30(4GFC) with upgrade kit, but not upgradable to D8-30(8GFC).
D3-10 is upgradable to D8-30(8GFC)
Please refer following chat for upgrading to D8-30

■ Upgrade matrix

APAC NECAM/NECC Bull

D3-10->D8-30 4G*1 Yes Yes Yes

D3-10->D8-30 8G *1 Yes Yes Yes

D8-10->D8-30 4G Yes N/A N/A

D8-10->D8-30 8G*1

D8-20->D8-30 4G Yes Yes N/ A

D 8-2 0->D8-30 8G* 1 No *2 No*2 N/A

D8-25->D8-30 4G N/A N/A Yes

D8-25->D8-30 8G*1 N/A N/A No

D4-30->D8-30 4G*1 TBD T BD TBD

D4-30->D8-30 8G*1 TBD TBD TBD

can migrate only FC setting and user data.

*1：iSCSI model(D3-10i/D4-30i) is not upgradable. FC/iSCSI mixed configuration

*2：Use the existing D8-x0→D8-30 4G upgrade kit (work as 4Gb).

■ Upgradekit (D3-10/D8-10/D8-20->D8-30) selection matrix

D3-10 -> D8-30（8G） Upgrade kit Qty
Product code Product name Product code Product name

NF5131-CR40SE D3-10 NF5183-SG02E

D8-10 -> D8-30(4G) Upgrade kit Qty
Product code Product name Product code Product name

NF5181-SR401E D8-1010

NF5181-SR402E D8-1020

NF5181-SF01E Host Director (HD)

NF5181-SD01E Disk Director (DD)

NF5181-SC01E Cache module(CHE) (4GB) NF5183-SGC01E Upgrade kit(Extended CHE)

NF5181-SC02E

NF5181-SC03E

NF5181-SC04E

Extended cache module(CHE)
(4GB→8GB)
Extended cache module(CHE)
(4GB→16GB)
Extended cache module(CHE)
(4GB→32GB)

NF5181-SB02E Extended Node Chassis

No* 2 N/A N/A

Upgrade kit
(D3-10→D8-30 (8G）)

NF5183-SGA01E Upgrade kit(basic model)

(D8-10→D8-30)

NF5183-SGA01E Upgrade kit(basic model)

(D8-10→D8-30)

NF5183-SGF01E Upgrade kit(Extended HD)

(D8-10/2x→D8-30)

NF5183-SGD01E Upgrade kit(Extended DD)

(D8-10→D8-30)

(D8-10/2x→D8-30)

NF5183-SGL01E Upgrade kit(Extended Node

Chassis)
(D8-10/20→D8-30)

1

1

2

1

1

1

1

32

D8-20 -> D8-30(4G) Upgrade Kit Qty
Product code Product name Product code Product name

NF5182-SR401E D8-2010

NF5182-SR402E D8-2020

NF5182-SF01E Host Director (HD)

NF5182-SD01E Disk Director (DD) NF5183-SGD02E

NF5183-SGA02E Upgrade kit(basic model)

(D8-20→D8-30)

NF5183-SGA02E E Upgrade kit(basic model)

(D8-20→D8-30)

NF5183-SGF01E Upgrade kit(Extended HD)

(D8-10/2x→D8-30)
Upgrade kit(Extended DD)
(D8-2x→D8-30)

NF5182-SC01E Cache module(CHE) (4GB) NF5183-SGC01E Upgrade kit(Extended CHE)

NF5182-SC02E

NF5182-SC03E

NF5182-SC04E

Extended cache module(CHE)
(4GB→8GB)
Extended cache module(CHE)
(4GB→16GB)
Extended cache module(CHE)
(4GB→32GB)

(D8-10/2x→D8-30)

Upgrade kit(Extended Node

NF5182-SB02E Extended Node Chassis NF5183-SGL01E

Chassis)
(D8-10/20→D8-30)

■Upgrade kit (D3-10/D8-10/D8-20→D8-30（4G）) Detail

Product code Product name Appended goods Product Outline

Structure:Host Port
FC /Rack mount type/
HDD less/
AC100/200V

NF5183-SG01E

Upgrade kit
(D3-10→D8-30)

SAS cable (1m):2
Mount Kit:1(for D8 DAC)
Front mask :1（5U Black）
Attached parts list
Users guide/FW program/ setup
guide（CD）:1

SAS/SATA Disk 12HDD
installation
available
Main contents:
Main cabinetx1/
HD(4ports)x2/Cachemo
dule(2GB)x2/DD(4port
s)x2/
Adapter card
(SAS 2ports)x2
PU for HD x2
PU for DD x2
Cache modulex2
Local switch

(LSW-A/B)x2

NF5183-SGA01E Upgrade kit(basic model)

(D8-10→D8-30)

Attached parts list：1
Users guide/FW program/ setup
guide（CD）:1

DD(w/o PU)x2

NF5183-SGD01E Upgrade kit(Extended DD)

(D8-10→D8-30)

NF5183-SGL01
E

Upgrade kit(Extended Node
Chassis)
(D8-10/20→D8-30)

Attached parts list：1

Attached parts list：1
Users guide/FW program/ setup
guide（CD）:1

PU for DDx2
DD(w/o PU)x2

Local
switch(LSW-A/B)x2

1

2

1

1

1

1

33

NF5183-SGA02E Upgrade kit(basic model)

(D8-20→D8-30)

NF5183-SGF01E Upgrade kit(Extended HD)

(D8-10/2x→D8-30)

NF5183-SGC01E Upgrade kit(Extended CHE)

(D8-10/2x→D8-30)

NF5183-SGD02E Upgrade kit(Extended DD)

(D8-2x→D8-30)

PU for HD x2
Attached parts list：1
Users guide/FW program/ setup
guide（CD）:1

PU for DD x2

Cache module x2

Local switch

(LSW-A/B)x2

Attached parts list：1 PU for HD x2

Attached parts list：1 Cache module x2

Attached parts list：1 PU for DD x2

34

Example 1
Current structure → Required Upgrade kit
NF5182-SR402E x 1 → NF5183-SGA02E x2
NF5182-SC04E x 2 → NF5182-SGC01 x2
NF5182-SE60E x 16
NF5182-SM625E x192

Example 2
Current structure → Required Upgrade kit
NF5182-SR401E x 1 → NF5183-SGA02E x1
NF5182-SB02E x 1 → NF5183-SGL01E x1
NF5182-SF01E x 1 → NF5183-SGF01E x1
NF5182-SD01E x 1 → NF5183-SGD02E x1
NF5182-SC01E x 1 → NF5183-SGC01E x1
NF5182-SC04E x 2 → NF5183-SGC01E x2
NF5182-SE60E x 16
NF5182-SM625E x192

(11) ＬＡＮ

2 ports per node are mounted in the Disk Array Controller as standard, and support the followings.

- Supports 10BASE-T/100BASE-T (Auto negotiating half/full/auto).

- SNMP protocol compliant.

- Can be used for NEC Storage Manager connection.

To use the LAN interface for the NEC Storage Manager connection, one or two IP addresses and LAN
cables are required.

(12) Connection Cable

Fibre channel cables are required for the connection with the servers.

35

3. Software specs

Item Value Comments
Max LUNs with Access Control 512
Max LUN per node 1024 4096 for 4 nodes (1024 x 4 nodes)
Max LUN per pool 1024
Max Dynamic Pools per node

Max LUN size 256TB
Max LUN size for snapshots Under 2TB

Max LUNs that can be snapshotted 1024 per

Max snapshot per LUN 16
Max LUN size for DDR 10TB
Max LUN per host server
(Windows)
Max LUN per host server (Linux) 256
Max LUN per host server (VMware) 256
Max paths per array 1024
Max paths per PathManager 32
Max LD set per array 1024
Max LUN per LD set 512
Min capacity of LD 1GB Note: 0.2GB, in case of Control

192

node

254

192 pools per node（384PD/RAID-1）
768 pools for 4nodes (192 x 4nodes)

（ Beyond 2TB (OS limit value) :
support by End of March 2010）
4096 for 4 nodes (1024 x 4 nodes)

(Win, Linux）

Volu me (CV)

36
