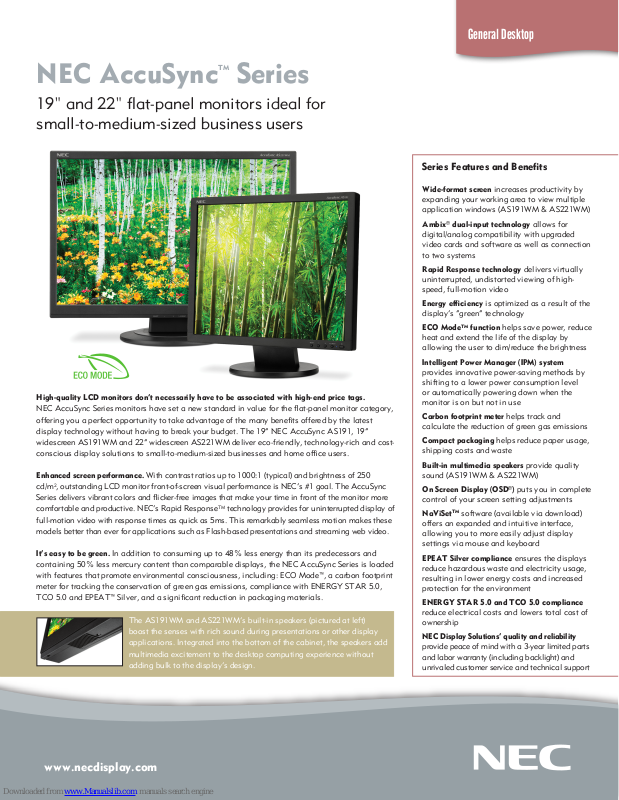

TM
NEC AccuSync
Series
19" and 22" flat-panel monitors ideal for
small-to-medium-sized business users
High-quality LCD monitors don’t necessarily have to be associated with high-end price tags.
NEC AccuSync Series monitors have set a new standard in value for the flat-panel monitor category,
offering you a perfect opportunity to take advantage of the many benefits offered by the latest
display technology without having to break your budget. The 19” NEC AccuSync AS191, 19”
widescreen AS191WM and 22” widescreen AS221WM deliver eco-friendly, technology-rich and costconscious display solutions to small-to-medium-sized businesses and home office users.
Enhanced screen performance. With contrast ratios up to 1000:1 (typical) and brightness of 250
cd/m2, outstanding LCD monitor front-of-screen visual performance is NEC’s #1 goal. The AccuSync
Series delivers vibrant colors and flicker-free images that make your time in front of the monitor more
comfortable and productive. NEC’s Rapid ResponseTM technology provides for uninterrupted display of
full-motion video with response times as quick as 5ms. This remarkably seamless motion makes these
models better than ever for applications such as Flash-based presentations and streaming web video.
It’s easy to be green. In addition to consuming up to 48% less energy than its predecessors and
containing 50% less mercury content than comparable displays, the NEC AccuSync Series is loaded
with features that promote environmental consciousness, including: ECO Mode™, a carbon footprint
meter for tracking the conservation of green gas emissions, compliance with ENERGY STAR 5.0,
TCO 5.0 and EPEAT™ Silver, and a significant reduction in packaging materials.
The AS191WM and AS221WM’s built-in speakers (pictured at left)
boost the senses with rich sound during presentations or other display
applications. Integrated into the bottom of the cabinet, the speakers add
multimedia excitement to the desktop computing experience without
adding bulk to the display’s design.
General Desktop
Series Features and Benefits
Wide-format screen increases productivity by
expanding your working area to view multiple
application windows (AS191WM & AS221WM)
Ambix® dual-input technology allows for
digital/analog compatibility with upgraded
video cards and software as well as connection
to two systems
Rapid Response technology delivers virtually
uninterrupted, undistorted viewing of highspeed, full-motion video
Energy efficiency is optimized as a result of the
display’s “green” technology
ECO ModeTM function helps save power, reduce
heat and extend the life of the display by
allowing the user to dim/reduce the brightness
Intelligent Power Manager (IPM) system
provides innovative power-saving methods by
shifting to a lower power consumption level
or automatically powering down when the
monitor is on but not in use
Carbon footprint meter helps track and
calculate the reduction of green gas emissions
Compact packaging helps reduce paper usage,
shipping costs and waste
Built-in multimedia speakers provide quality
sound (AS191WM & AS221WM)
On Screen Display (OSD®) puts you in complete
control of your screen setting adjustments
NaViSetTM software (available via download)
offers an expanded and intuitive interface,
allowing you to more easily adjust display
settings via mouse and keyboard
EPEAT Silver compliance ensures the displays
reduce hazardous waste and electricity usage,
resulting in lower energy costs and increased
protection for the environment
ENERGY STAR 5.0 and TCO 5.0 compliance
reduce electrical costs and lowers total cost of
ownership
NEC Display Solutions’ quality and reliability
provide peace of mind with a 3-year limited parts
and labor warranty (including backlight) and
unrivaled customer service and technical support
www.necdisplay.com
Model
Display
Viewable Image Size
Pixel Pitch
Pixels Per Inch
Brightness (typical)
Contrast Ratio (typical)
Viewing Angle (typical)
Response Time (typical)
Display Colors
Synchronization Range
Horizontal
Vertical
Inputs
Resolutions Supported
Native Resolution
Additional Features
Regulatories and Compliance
Touch-Capable
Voltage Rating
Power Consumption (typical)
On
ECO Mode 1/2
Power Savings Mode
Dimensions (W x H x D)
Net (with stand)
Net (without stand)
Weight
Net (with stand)
Net (without stand)
VESA Hole Configuration
Specifications
Environmental Conditions
Operating Temperature
Operating Humidity
Operating Altitude
Storage Temperature
Storage Humidity
Storage Altitude
Limited Warranty
Technical Support
AccuSync AS191
19”
0.294mm
86 @ native resolution
2
250 cd/m
900:1
85°/85°/85°/85° (CR>5)
5ms
More than16.7million
31.5-81.1 KHz
56 - 76 Hz
VGA, DVI-D
720 x 400 @ 70 Hz
640 x 480 @ 60-75 Hz
800 x 600 @ 56-75 Hz
832 x 624 @ 75 Hz
1024 x 768 @ 60-75 Hz
1152 x 864 @ 75 Hz
1152 x 870 @ 75 Hz
1280 x 960 @ 60-75 Hz
1280 x 1024 @ 60-75 Hz
1280 x 1024
Tilt, one-touch ECO Mode key, carbon
footprint meter, cable management, sRGB,
digital smoothing, 5-preset AccuColor control,
No Touch Auto Adjust, DDC/CI, NaViSet software, Plug and Play (VESA DDC 1/2B), VESA
DPMS power management, VESA mount, OSD
user control
UL /C-UL or CSA, PCT (Gost), C-tick, FCC
Class B/Canadian DOC, MPR II / MPR III,
PSB, NOM, Windows Vista, TUV GS, TUV
Ergonomie, CE, GEEA/Energy label, SASO,
ISO 9241-307, Pb free, RoHS, EPEAT Silver,
ENERGY STAR 5.0 and TCO 5.0 compliant,
Windows 7
No
AC100-120V / AC 220-240V
24W
20W / 15W
0.40W
16.2 x 15.9 x 8.1 in. / 412.5 x 403.1 x 205.1mm
16.2 x 13.4 x 2.7 in. / 412.5 x 341.2 x 69mm
9.7 lbs. / 4.4 kg
8.8 lbs. / 4 kg
100 x100mm
5-35°C / 41-95°F
20-80%
2000m / 6562 ft.
-10-60°C / 14-140°F
10-85%
12,192m / 40,000ft
3 year parts and labor, including backlight
M - F (7am - 7pm CST)
AccuSync AS191WM
19” widescreen
0.284mm
90 @ native resolution
2
250 cd/m
1000:1
88°/88°/88°/88° (CR>5)
5ms
More than 16.7million
31.5-81.1 KHz
56 - 75 Hz
VGA, DVI-D
720 x 350 @ 70 Hz
720 x 400 @ 70 Hz
640 x 480 @ 60-75 Hz
800 x 600 @ 56-75 Hz
800 x 600 @ 56-75 Hz
1024 x 768 @ 60-75 Hz
1024 x 768 @ 75 Hz
1152 x 864 @ 75 Hz
1152 x 870 @ 75 Hz
1280 x 720 @ 60 Hz
1280 x 768 @ 60 Hz
1280 x 960 @ 60 Hz
1280 x 960 @ 75 Hz
1280 x 1024 @ 60-75 Hz
1360 x 768 @ 60 Hz
1440 x 900 @ 60-75 Hz
1440 x 900
Tilt, 2-step ECO Mode (ECO Mode 1&2),
carbon footprint meter, cable management,
DVI-D with HDCP, sRGB, digital smoothing,
5-preset AccuColor control, No Touch Auto
Adjust, DDC/CI, NaViSet software, Plug and
Play (VESA DDC 1/2B), VESA DPMS power
management, VESA mount, OSD user control
UL /C-UL or CSA, PCT (Gost), C-tick, SB-50
(California), FCC Class B/Canadian DOC,
MPR II / MPR III, PSB, NOM, Windows Vista,
TUV GS, TUV Ergonomie, CE, GEEA/Energy
label, SASO, ISO 9241-307, Pb free, RoHS,
EPEAT Silver, ENERGY STAR 5.0 and TCO
5.0 compliant, Windows 7
Yes
AC100-120V / AC 220-240V
21W
18W / 15W
0.4W
17.3 x 13.7 x 8.3 in. / 439.4 x 347.1 x 209.8mm
17.3 x 11.8 x 2.5 in. / 439.4 x 299.8 x 64.6mm
9.7 lbs. / 4.4 kg
9 lbs. / 4.1 kg
100 x100mm
5-35°C / 41-95°F
20-80%
2000m / 6562 ft.
-10-60°C / 14-140°F
10-85%
12,192m / 40,000 ft.
3 year parts and labor, including backlight
M - F (7am - 7pm CST)
AccuSync AS221WM
22” widescreen
0.282mm
90 @ native resolution
2
250 cd/m
1000:1
88°/88°/88°/88° (CR>5)
5ms
More than16.7million
31.5-82.3 KHz
56 - 75 Hz
VGA, DVI-D
720 x 350 @ 70 Hz
720 x 400 @ 70 Hz
640 x 480 @ 60-75 Hz
640 x 480 @ 66 Hz
800 x 600 @ 56-75 Hz
800 x 600 @ 56-75 Hz
1024 x 768 @ 60-75 Hz
1024 x 768 @ 75 Hz
1152 x 864 @ 75 Hz
1152 x 870 @ 75 Hz
1280 x 720 @ 60 Hz
1280 x 768 @ 60-75 Hz
1280 x 960 @ 60 Hz
1280 x 960 @ 75 Hz
1280 x 1024 @ 60-75 Hz
1360 x 768 @ 60 Hz
1440 x 900 @ 60-75 Hz
1400 x 1050 @ 60-75 Hz
1680 x 1050 @ 60Hz
1680 x 1050
Tilt, 2-step ECO Mode (ECO Mode 1&2),
carbon footprint meter, cable management,
DVI-D with HDCP, sRGB, digital smoothing,
5-preset AccuColor control, No Touch Auto
Adjust, DDC/CI, NaViSet software, Plug and
Play (VESA DDC 1/2B), VESA DPMS power
management, VESA mount, OSC user control
UL /C-UL or CSA, PCT (Gost), C-tick, SB-50
(California), FCC Class B/Canadian DOC,
MPR II / MPR III, PSB, NOM, Windows Vista,
TUV GS, TUV Ergonomie, CE, GEEA/Energy
label, SASO, ISO 9241-307, Pb free, RoHS,
EPEAT Silver, ENERGY STAR 5.0 and TCO
5.0 compliant, Windows 7
Yes
AC100-120V / AC 220-240V
24W
21W / 17W
0.42W
19.9 x 15.4 x 8.7 in. / 505.2 x 390.9 x 221.8mm
19.9 x 13.5 x 2.6 in. / 505.2 x 342.9 x 65.2mm
11 lbs. / 5 kg
10.4 lbs. / 4.7 kg
100 x100mm
5-35°C / 41-95°F
20-80%
2000m / 6562 ft.
-10-60°C / 14-140°F
10-85%
12,192m / 40,000 ft.
3 year parts and labor, including backlight
M - F (7am - 7pm CST)
OSD is a registered trademark, and AccuSync, ECO
Mode, NaViSet, No Touch Auto Adjust and Rapid
Response are trademarks of NEC Display Solutions.
All other brand or product names are trademarks or
registered trademarks of their respective holders.
Product specifications subject to change. 11/09 ver. 2.
2009 NEC Display Solutions of America, Inc.
©
All rights reserved.
NEC Display Solutions
500 Park Boulevard, Suite 1100
Itasca, IL 60143
866-NEC-MORE
