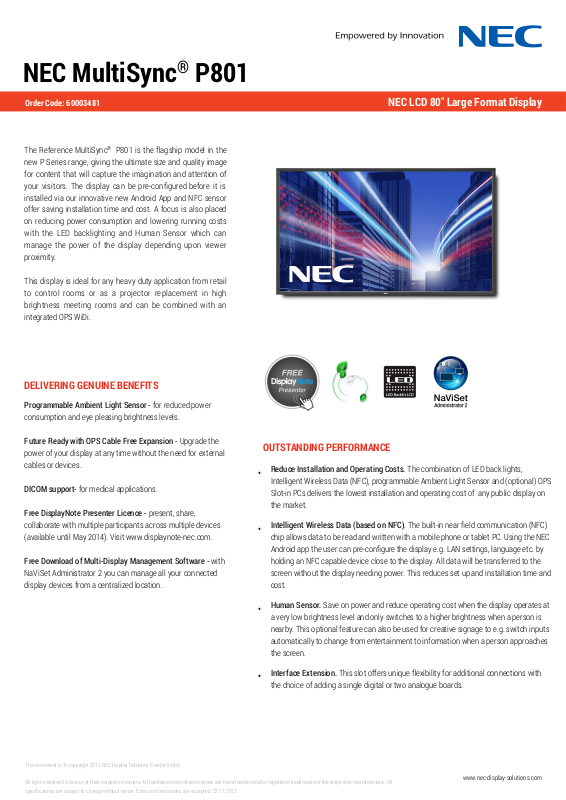

NEC MultiSync® P801
Order Code: 60003481
The Reference MultiSync® P801 is the flagship model in the
new P Series range, giving the ultimate size and quality image
for content that will capture the imagination and attention of
your visitors. The display can be pre-configuredbefore it is
installed via our innovative new Android App and NFC sensor
offer saving installation time and cost. A focus is also placed
on reducing power consumption and lowering running costs
with the LED backlighting and Human Sensor which can
manage the power of the display depending upon viewer
proximity.
This display is ideal for any heavy duty application from retail
to control rooms or as a projector replacement in high
brightness meeting rooms and can be combined with an
integrated OPS WiDi.
NEC LCD 80" Large Format Display
DELIVERING GENUINE BENEFITS
Programmable Ambient Light Sensor - for reduced power
consumption and eye pleasing brightness levels.
Future Ready with OPS Cable Free Expansion - Upgrade the
power of your display at any time without the need for external
cables or devices.
DICOM support- for medical applications.
Free DisplayNote Presenter Licence - present, share,
collaborate with multiple participants across multiple devices
(available until May 2014). Visit www.displaynote-nec.com.
Free Download of Multi-Display Management Software - with
NaViSet Administrator 2 you can manage all your connected
display devices from a centralized location.
OUTSTANDING PERFORMANCE
Reduce Installation and Operating Costs. The combination of LED back lights,
•
Intelligent Wireless Data (NFC), programmable Ambient Light Sensor and (optional) OPS
Slot-in PCs delivers the lowest installation and operating cost of any public display on
the market.
Intelligent Wireless Data (based on NFC). The built-in near field communication (NFC)
•
chip allows data to be read and written with a mobile phone or tablet PC. Using the NEC
Android app the user can pre-configure the display e.g. LAN settings, language etc. by
holding an NFC capable device close to the display. All data will be transferred to the
screen without the display needing power. This reduces set up and installation time and
cost.
Human Sensor. Save on power and reduce operating cost whenthe display operates at
•
a very low brightness level andonly switchesto a higher brightness when a person is
nearby. This optional feature can also be used for creative signage to e.g. switch inputs
automatically to change from entertainment to information when a person approaches
the screen.
Interface Extension. This slot offers unique flexibility for additional connections with
•
the choice of adding a single digital or two analogue boards.
This document is © copyright 2013 NEC Display Solutions Europe GmbH.
All rights reserved in favour of their respective owners. All hardware and software names are brand names and/or registered trademarks of the respective manufacturers. All
specifications are subject to change without notice. Errors and omissions are excepted. 22.11.2013
www.nec-display-solutions.com
NEC MultiSync® P801
Technical Specification NEC MultiSync® P801
DISPLAY
Panel Technology
UV2 A with Edge LED backlight
Active Screen Area (W x H) [mm]
1,771.2 x 996.3
Screen Size [inch/cm]
80 / 203.2
Brightness (shipping) [cd/m2]
500, (700 max)
Contrast Ratio (typ.)
5000:1
Viewing Angle [°]
178 horizontal / 178 vertical (typ. at contrast ratio 10:1)
Response Time (typ.) [ms]
4 (grey-to-grey)
SYNCHRONISATION RATE
Horizontal Frequency [kHz]
31.5 - 91.1 (analog and digital)
Vertical Frequency [Hz]
50 - 85
RESOLUTION
Native Resolution
1920 x 1080 at 60 Hz
Supported on DisplayPort and HDMI
1024 x 768; 1080i; 1080p; 1280 x 1024; 1280 x 768; 1360 x 768; 1600 x 1200;
1920 x 1080; 3840 x 2160 (24/30 Hz); 480p (60 Hz); 576p (50 Hz); 640 x 480;
720p (50/60 Hz); 800 x 600
Supported on HDMI only
1360 x 768; 3840 x 2160 (25 Hz); 4096 x 2160 (24 Hz); 480i (60 Hz); 576i (50 Hz)
CONNECTIVITY
Input Video Analogue
1 x D-sub 15 pin
Input Video Digital
1 x DVI-D (with HDCP); 1 x HDMI (with HDCP); 1 x DisplayPort (with HDCP)
Input Audio Analogue
2 x 3,5 mm jack
Input Audio Digital
DisplayPort; 1 x HDMI
Input Control
LAN 100Mbit; remote control wire (3,5mm jack); RS232
Output Video Digital
1 x DisplayPort; 1 x DVI-D; 1 x HDMI; 1 x Interface Extension Slot; 1 x OPS; 1 x
through DisplayPort out
Output Audio Analogue
3,5mm jack
Output Control
LAN 100Mbit
Remote Control
RS-232C (9-pin D-sub) Input; LAN with SNMP; Remote Control IR (internal/
external (optional) sensor)
INTERFACE EXTENSION SLOT
Slot Technology
analogue and digital interface extension (NEC standard)
OPS OPTION SLOT
Slot Technology
Open pluggable specification (NEC / Intel OPS standard)
Inrush Current [A]
max. 10
Power Consumption [W]
max. 61
Voltage / Current [V/A]
16/4
SENSORS
Ambient Light Sensor
Integrated, triggered actions programmable
Human Sensor
Optional, external, 4-5m range, triggered actions programmable
Temperature Sensor
Integrated, 3 sensors, triggered actions programmable
NFC Sensor
Integrated, 2cm range, free NEC Android App required
ELECTRICAL
Power Consumption on Mode [W]
235 shipping; 430 (max.)
Power Savings Mode [W]
< 0.5 (ECO Standby); < 1
Power Management
VESA DPMS
ENVIRONMENTAL CONDITIONS
Operating Temperature [°C]
+0 to +40
Operating Humidity [%]
20 to 80
MECHANICAL
Dimensions (W x H x D) [mm]
Without stand: 1,836.2 x 1,061.3 x 86.9
Weight [kg]
Without stand: 61.5
Bezel Width [mm]
29.7
VESA Mounting [mm]
400 x 400 (FDMI); 4 holes; M8
AVAILABLE OPTIONS
Accessories
Trolley (PDMHM-L); Feet (ST-801); Speaker (SP-80 SM); Speaker (SP-RM1); Wall
mount (PDW T XL L+P)
Interface Extension
SB3-AB1 analogue: Audio; Component; Composite; S-Video
SB3-AB2 analogue: Audio; RGBHV
SB3-DB1 digital: 1 x DisplayPort out; 1 x HDMI; 2 x DisplayPort
OPS
HD-SDI 1.5G,3G; HDBaseT receiver; Intel® Atom, Celeron and Core CPUs; WiDi
receiver
ADDITIONAL FEATURES
Safety and Ergonomics
C-tick; CE; FCC Class B; PSB; TÜV GS; UL/C-UL or CSA; VCCI; RoHS
Audio
Integrated Speakers (10 W + 10 W); Optional Speakers (15 W + 15 W)
Shipping Content
Display; DVI-D cable; Power Cable; Remote Control; CD-ROM (User Guides/
Manuals)
Warranty
3 years warranty incl. backlight
1. Power
2. Main Switch
3. Speaker connectors
4. Internal / External speaker switch
5. Audio out
6. USB port for service (firmware upgrades)
7. LAN daisy chain with SNMP (LAN switch and LAN / RS232 /
remote loop through)
8. 2x Audio in
9. RS232 in
10. Remote in for external human / ambient sensor
11. VGA + Component input
12. DP 1.2 loop through
13. HDMI 1.4a
14. DVI-D
SPECIAL CHARACTERISTICS
Auto ID assignment, Auto tiling function, FREE DisplayNote
Presenter, HTTP Server, Image flip, NaViSet Administrator 2, Point
Zoom Function, Programmable 10-bit LUT with 3 memory banks,
Sticky Note Function in OSD, User readable log function
Energy Efficiency Human Sensor; Ambient light sensor;
Ecological Materials Optional feet; Manuals on CD
Carbon savings meter; ECOMode
