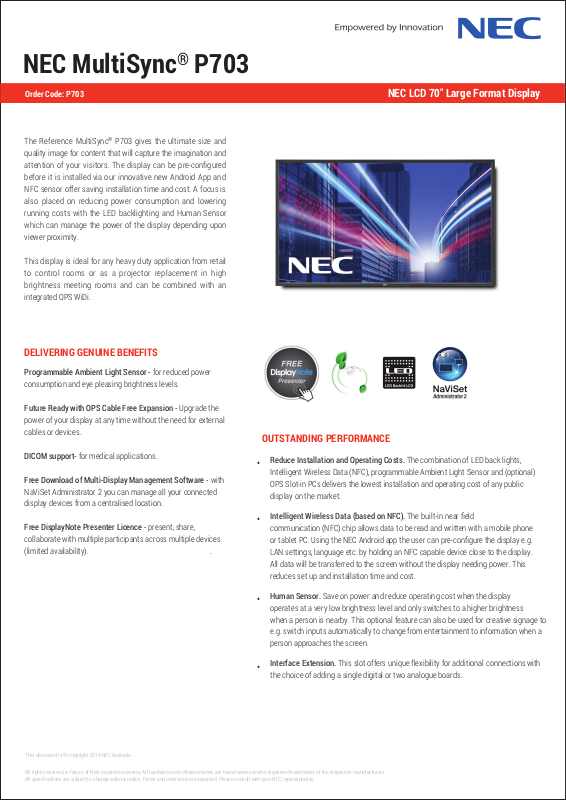

NEC MultiSync® P703

Order Code: P703

The Reference MultiSync® P703 gives the ultimate size and
quality image for content that will capture the imagination and
attention of your visitors. The display can be pre-configured
before it is installedvia our innovative new Android App and
NFC sensor offer saving installation time and cost.A focus is
also placed on reducing power consumption and lowering
running costs with the LED backlighting and Human Sensor
which can manage the power of the display depending upon
viewer proximity.

This display is ideal for any heavy duty application from retail
to control rooms or as a projector replacement in high
brightness meeting rooms and can be combined with an
integrated OPS WiDi.

DELIVERING GENUINE BENEFITS

NEC LCD 70" Large Format Display

Programmable Ambient Light Sensor - for reduced power
consumption and eye pleasing brightness levels.

Future Ready with OPS Cable Free Expansion - Upgrade the
power of your display at any time without the need for external
cables or devices.

DICOM support- for medical applications.

Free Download of Multi-Display Management Software - with

NaViSet Administrator 2 you can manage all your connected
display devices from a centralised location.

Free DisplayNote Presenter Licence - present, share,
collaborate with multiple participants across multiple devices
(limited availability).

.

OUTSTANDING PERFORMANCE

Reduce Installation and Operating Costs. The combination of LED back lights,

•

Intelligent Wireless Data (NFC), programmable Ambient Light Sensor and (optional)
OPS Slot-in PCs delivers the lowest installation and operating cost of any public
display on the market.

Intelligent Wireless Data (based on NFC). The built-in near field

•

communication (NFC) chip allows data to be read and written with a mobile phone
or tablet PC. Using the NEC Android app the user can pre-configure the display e.g.
LAN settings, language etc. by holding an NFC capable device close to the display.
All data will be transferred to the screen without the display needing power. This
reduces set up and installation time and cost.

Human Sensor. Save on power and reduce operating cost when the display

•

operates at a very low brightness level and only switches to a higher brightness
when a person is nearby. This optionalfeature can also be used for creative signage to
e.g. switch inputs automatically to change from entertainment to information when a
person approaches the screen.

Interface Extension. This slot offers unique flexibility for additional connections with

•

the choice of adding a single digital or two analogue boards.

This document is © copyright 2014 NEC Australia

All rights reserved in favour of their respective owners. All hardware and software names are brand names and/or registered trademarks of the respective manufacturers.
All specifications are subject to change without notice. Errors and omissions are expected. Please consult with your NEC representative.

NEC MultiSync® P703

1. Power

2. Main Switch

3. Speaker connectors

4. Internal / External speaker switch

5. Audio out

6. USB port for service (firmware upgrades)

7. LAN daisy chain with SNMP (LAN switch and LAN / RS232 /
remote loop through)

8. 2x Audio in

9. RS232 in

10. Remote in for external human / ambient sensor

11. VGA + Component input

12. DP 1.2 loop through

13. HDMI 1.4a

14. DVI-D

SPECIAL CHARACTERISTICS

Auto ID assignment, Auto tiling function, Automatic Alarm E-Mails,
FREE DisplayNote Presenter, HTTP Server, Image flip, NaViSet
Administrator 2, Point Zoom Function, Programmable 10-bit LUT
with 3 memory banks, Sticky Note Function in OSD, User readable
log function

Energy Efficiency Human Sensor; Ambient light sensor;

Carbon savings meter; ECOMode

Ecological Materials Optional feet; Manuals on CD

Technical Specification NEC MultiSync® P703

DISPLAY

Panel Technology
Active Screen Area (W x H) [mm]

Screen Size [inch/cm]
Brightness (shipping) [cd/m2]

Contrast Ratio (typ.)
Viewing Angle [°]
Response Time (typ.) [ms]

SYNCHRONISATION RATE

Horizontal Frequency [kHz]
Vertical Frequency [Hz]

RESOLUTION

Native Resolution
Supported on DisplayPort and HDMI

Supported on HDMI only

CONNECTIVITY

Input Video Analogue
Input Video Digital
Input Audio Analogue
Input Audio Digital
Input Control
Output Video Digital

Output Audio Analogue
Output Control
Remote Control

INTERFACE EXTENSION SLOT

Slot Technology

OPS OPTION SLOT

Slot Technology
Inrush Current [A]
Power Consumption [W]
Voltage / Current [V/A]

SENSORS

Ambient Light Sensor
Human Sensor
Temperature Sensor
NFC Sensor

ELECTRICAL

Power Consumption on Mode [W]
Power Savings Mode [W]
Power Management

ENVIRONMENTAL CONDITIONS

Operating Temperature [°C]
Operating Humidity [%]

MECHANICAL

Dimensions (W x H x D) [mm]
Weight [kg]
Bezel Width [mm]
VESA Mounting [mm]

AVAILABLE OPTIONS

Accessories

Interface Extension

OPS

ADDITIONAL FEATURES

Safety and Ergonomics
Audio
Shipping Content

Warranty

UV2 A with Edge LED backlight
1,538.88 x 865.62
70 / 177.7
500, (700 max)

5000:1
178 horizontal / 178 vertical (typ. at contrast ratio 10:1)
8 (grey-to-grey)

31.5 - 91.1 (analog and digital)
50 - 85

1920 x 1080 at 60 Hz
1024 x 768; 1080i; 1080p; 1280 x 1024; 1280 x 768; 1360 x 768; 1600 x 1200;

1920 x 1080; 3840 x 2160 (24/30 Hz); 480p (60 Hz); 576p (50 Hz); 640 x 480;
720p (50/60 Hz); 800 x 600

1360 x 768; 3840 x 2160 (25 Hz); 4096 x 2160 (24 Hz); 480i (60 Hz); 576i (50 Hz)

1 x D-sub 15 pin
1 x DVI-D (with HDCP); 1 x HDMI (with HDCP); 1 x DisplayPort (with HDCP)
2 x 3,5 mm jack
DisplayPort; 1 x HDMI
LAN 100Mbit; remote control wire (3,5mm jack); RS232
1 x DisplayPort; 1 x DVI-D; 1 x HDMI; 1 x Interface Extension Slot; 1 x OPS; 1 x

through DisplayPort out
3,5mm jack
LAN 100Mbit
RS-232C (9-pin D-sub) Input; LAN with SNMP; Remote Control IR (internal/

external (optional) sensor)

analogue and digital interface extension (NEC standard)

Open pluggable specification (NEC / Intel OPS standard)
max. 10
max. 61
16/0

Integrated, triggered actions programmable
Optional, external, 4-5m range, triggered actions programmable
Integrated, 3 sensors, triggered actions programmable
Integrated, 2cm range, free NEC Android App required

150 shipping; 320 (max.)
< 0.5 (ECO Standby); < 1
VESA DPMS

+0 to +40
20 to 80

Without stand: 1,587 x 919.6 x 86.9
Without stand: 47
23
400 x 400 (FDMI); 4 holes; M8

Feet (ST-701); Speaker (SP-TF1, SP-RM1); Wall mounts (LSMU, LTMU, LTAPU)

SB3-AB1 analogue: Audio; Component; Composite; S-Video
SB3-AB2 analogue: Audio; RGBHV
SB3-DB1 digital: 1 x DisplayPort out; 1 x HDMI; 2 x DisplayPort

HD-SDI 1.5G; HD-SDI 1.5G,3G; HDBaseT receiver; Intel® Atom, Celeron and Core
CPUs; WiDi receiver

C-tick; CE; FCC Class B; PSB; TÜV GS; UL/C-UL or CSA; VCCI; RoHS
Integrated Speakers (10 W + 10 W); Optional Speakers (15 W + 15 W)
Display; DVI-D cable; Power Cable; Remote Control; CD-ROM (User Guides/

Manuals)
3 year conditional warranty incl. backlight

__________________________________________________________________________________________________________

For more information, visit www.nec.com.au, email [e-mail] or call 131 632

Document Name:
Document Revision:
Document Date:

NEC P703 Datasheet
Version 1
March 2014
