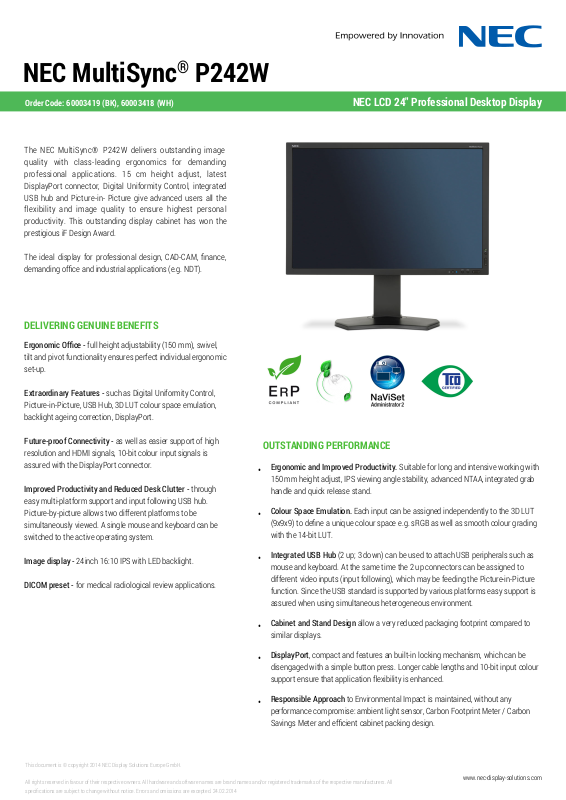

NEC MultiSync® P242W

Order Code: 60003419 (BK), 60003418 (WH)

The NEC MultiSync® P242W delivers outstanding image
quality with class-leading ergonomics for demanding
professional applications. 15 cm height adjust, latest
DisplayPort connector, Digital Uniformity Control, integrated
USB hub and Picture-in- Picture give advanced users all the
flexibility and image quality to ensure highest personal
productivity. This outstanding display cabinet has won the
prestigious iF Design Award.

The ideal display for professional design, CAD-CAM, finance,
demanding office and industrial applications (e.g. NDT).

DELIVERING GENUINE BENEFITS

Ergonomic Office - full height adjustability (150 mm), swivel,
tilt and pivot functionality ensures perfect individual ergonomic
set-up.

NEC LCD 24" Professional Desktop Display

Extraordinary Features - such as Digital Uniformity Control,
Picture-in-Picture, USB Hub, 3D LUT colour space emulation,
backlight ageing correction, DisplayPort.

Future-proof Connectivity - as well as easier support of high
resolution and HDMI signals, 10-bit colour input signals is
assured with the DisplayPort connector.

Improved Productivity and Reduced Desk Clutter - through
easy multi-platform support and input following USB hub.
Picture-by-picture allows two different platforms to be
simultaneously viewed. A single mouse and keyboard can be
switched to the active operating system.

Image display - 24inch 16:10 IPS with LED backlight.

DICOM preset - for medical radiological review applications.

OUTSTANDING PERFORMANCE

Ergonomic and Improved Productivity. Suitable for long and intensive working with

•

150 mm height adjust, IPS viewing angle stability, advanced NTAA, integrated grab
handle and quick release stand.

Colour Space Emulation. Each input can be assigned independently to the 3D LUT

•

(9x9x9) to define a unique colour space e.g. sRGB as well as smooth colour grading
with the 14-bit LUT.

Integrated USB Hub (2 up; 3 down) can be used to attach USB peripherals such as

•

mouse and keyboard. At the same time the 2 up connectors can be assigned to
different video inputs (input following), which may be feeding the Picture-in-Picture
function. Since the USB standard is supported by various platforms easy support is
assured when using simultaneous heterogeneous environment.

Cabinet and Stand Design allow a very reduced packaging footprint compared to

•

similar displays.

DisplayPort, compact and features an built-in locking mechanism, which can be

•

disengaged with a simple button press. Longer cable lengths and 10-bit input colour
support ensure that application flexibility is enhanced.

Responsible Approach to Environmental Impact is maintained, without any

•

performance compromise: ambient light sensor, Carbon Footprint Meter / Carbon
Savings Meter and efficient cabinet packing design.

This document is © copyright 2014 NEC Display Solutions Europe GmbH.

All rights reserved in favour of their respective owners. All hardware and software names are brand names and/or registered trademarks of the respective manufacturers. All
specifications are subject to change without notice. Errors and omissions are excepted. 24.02.2014

www.nec-display-solutions.com

NEC MultiSync® P242W

Technical Specification NEC MultiSync® P242W

DISPLAY

Panel Technology

IPS TFT with W-LED backlight

Screen Size [inch/cm]

24.1 / 61.1

Colour Gamuts (Size comparision, typ.)

75% AdobeRGB, 75.2% NTSC

Pixel Pitch [mm]

0.270

Brightness (typ.) [cd/m2]

350

Contrast Ratio (typ.)

1000:1

Viewing Angle [°]

178 horizontal / 178 vertical (typ. at contrast ratio 10:1)

Response Time (typ.) [ms]

8 (grey-to-grey); 16 (8 white / black; 8 black / white)

Colours [Mio.]

16.77

SYNCHRONISATION RATE

Horizontal Frequency [kHz]

31.5 - 93.8 and 118.4 (analog); 31.5 - 91.1 and 118.4 (digital)

Vertical Frequency [Hz]

50 - 85

RESOLUTION

Optimum Resolution

1920 x 1200 at 60 Hz

Supported

1920 x 1080p; 1600 x 1200; 1280 x 1024; 1280 x 960; 1280 x 720p; 1200 x 1920;
1152 x 870; 1152 x 864; 1024 x 768; 832 x 624; 800 x 600; 720 x 576p; 720 x
480p; 720 x 400; 640 x 480; 640 x 480p

CONNECTIVITY

Digital

1 x DVI-D; 1 x HDMI; 1 x DisplayPort

Analog

1 x D-sub 15 pin

ELECTRICAL

Power Consumption on Mode [W]

22 (typ.); 17 (Eco Mode); 30 (max.)

Power Savings Mode [W]

1

Power Supply

100-240 V; 0.83 A/0.47 A; integrated power supply

ENVIRONMENTAL CONDITIONS

Operating Temperature [°C]

+5 to +35

Operating Humidity [%]

30 to 80

ERGONOMICS

Height adjustable stand [mm]

110; 150 (Landscape mode); Pivot 90°

Screen Tilt / Swivel [°]

-5 to 30; -45 to 45

MECHANICAL

Bezel Width [mm]

18.2; 18.2 (left and right); 18.2 (top and bottom)

Dimensions (W x H x D) [mm]

556.8 x 378 - 528 x 227.6 (Landscape mode); Without stand: 556.8 x 362.4 x 85

Weight [kg]

10.2; Without stand: 7.4

VESA Mounting [mm]

100 x 100 (4 points); 200 x 100 (5 points)

ADDITIONAL FEATURES

Colour Versions

Silver Front Bezel; White Back Cabinet; Black Front Bezel, Black Back Cabinet

Cable Management

yes

Kensington security slot

yes

Plug and Play

VESA DDC/CI; EDID Standard; VESA DDC2B

Adjust Functions

Advanced NTAA (Advanced Non-Touch-Auto-Adjustment); Advanced User Menu;
Auto Adjust; Black Level; Brightness; Colour Temperature Control; Contrast;
Expansion Mode; Fine Adjust (analog); Hotkeys; Intelligent Power Management;
Language Select; Monitor Information; OmniColor™: sRGB and 6-axis-colour­control; On-Screen-Display (OSD) lock-out; Sharpness

Shipping Content

Monitor; Power Cable; Signal Cable DisplayPort; CD-ROM; Sales Office List; User
Manual
Signal Cable: VGA - VGA; DVI-D - DVI-D

Safety and Ergonomics

CE; ErP; TCO 6.0; TÜV Ergonomics; TÜV GS; C-tick; FCC Class B; PCT/Gost; UL/C­UL or CSA; CCC; ISO 9241-307 (pixel failure class I); MPR II/ MPR III; PCBC/B­mark; PSB; RoHS

Warranty

3 years warranty incl. backlight

SPECIAL CHARACTERISTICS

14 Bit Look Up Table for 14 Bit smooth Gamma curves, Advanced
NTAA, AmbiBright, Auto Black Level, Auto Brightness, Auto
Contrast, Backlight Ageing Correction, CableComp with Sync
Continuity Detection, ColorComp, DDC/CI compatible, DICOM
preset, Direct Brightness and Contrast, EcoModes, LED Backlight
Technology, NaViSet Administrator 2, OmniColor™: sRGB and 6­Axis-Colour-Control, Overdrive, Quick release Stand and Handle,
Rapid Response Technology, RapidMotion, Self Diagnostics,
TileComp, TileMatrix, TORO™ Design, Viewing Angle Stability

Energy
Efficiency

Ecological
Materials

Ecological
Standards

Ambient light sensor; Auto brightness; Carbon
Footprint Meter / Carbon Savings Meter;
ECOMode; Intelligent Power Management;
Reduced consumption

100% recyclable packaging; Arsenic-free
panel module; Black model built from recycled
plastics

ErP compliant; ISO 14001; RoHS compliant;
WEEE
