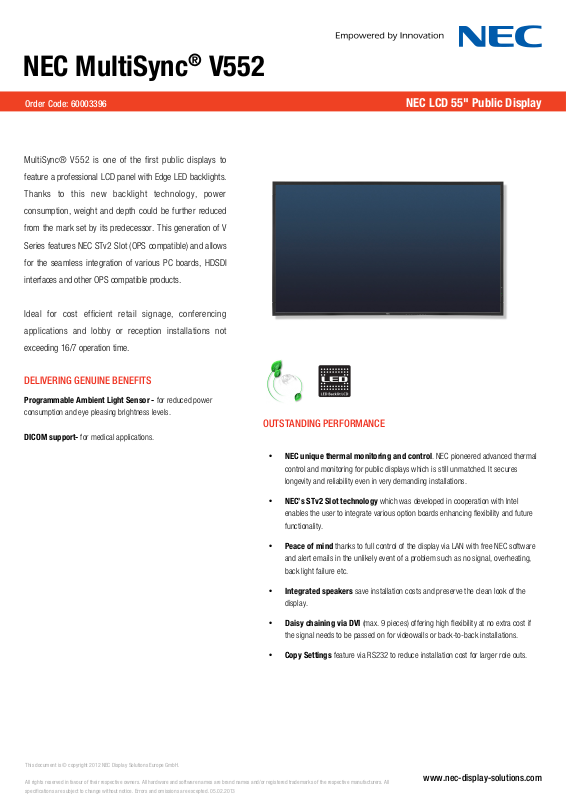

NEC MultiSync® V552

Order Code: 60003396

MultiSync® V552 is one of the ﬁrst public displays to feature a professional LCD panel with Edge LED backlights. Thanks to this new backlight technology, power consumption, weight and depth could be further reduced from the mark set by its predecessor. This generation of V Series features NEC STv2 Slot (OPS compatible) and allows for the seamless integration of various PC boards, HDSDI interfaces and other OPS compatible products.

Ideal for cost efﬁcient retail signage, conferencing applications and lobby or reception installations not exceeding 16/7 operation time.

NEC LCD 55" Public Display

DELIVERING GENUINE BENEFITS

Programmable Ambient Light Sensor - for reduced power consumption and eye pleasing brightness levels.

DICOM support- for medical applications.

OUTSTANDING PERFORMANCE

NEC unique thermal monitoring and control. NEC pioneered advanced thermal

•

control and monitoring for public displays which is still unmatched. It secures longevity and reliability even in very demanding installations.

NEC’s STv2 Slot technology which was developed in cooperation with Intel

•

enables the user to integrate various option boards enhancing ﬂexibility and future functionality.

Peace of mind thanks to full control of the display via LAN with free NEC software

•

and alert emails in the unlikely event of a problem such as no signal, overheating, back light failure etc.

Integrated speakers save installation costs and preserve the clean look of the

•

display.

Daisy chaining via DVI (max. 9 pieces) offering high ﬂexibility at no extra cost if

•

the signal needs to be passed on for videowalls or back-to-back installations. Copy Settings feature via RS232 to reduce installation cost for larger role outs.•

All rights reserved in favour of their respective owners. All hardware and software names are brand names and/or registered trademarks of the respective manufacturers. All speciﬁcations are subject to change without notice. Errors and omissions are excepted. 05.02.2013

www.nec-display-solutions.com

NEC MultiSync® V552

Technical Speciﬁcation NEC MultiSync® V552

DISPLAY

Panel Technology AMVA3 with Edge LED backlights Active Screen Area (W x H) [mm] 1,209.6 x 680.4 Screen Size [inch/cm] 54.5 / 138.8 Aspect Ratio 16:9

Brightness (shipping) [cd/m2]

320, (450 max)

Contrast Ratio (typ.) 4000:1 Viewing Angle [°] 178 horizontal / 178 vertical (typ. at contrast ratio 10:1) Response Time (typ.) [ms] 8 (grey-to-grey) Panel Refresh Rate [Hz] 60

SYNCHRONISATION RATE

Horizontal Frequency [kHz] 31.5 - 91.1 (analog and digital) Vertical Frequency [Hz] 25.2 - 85

RESOLUTION

Native Resolution 1920 x 1080 at 60 Hz Supported on digital and analogue inputs

(PC)

1024 x 768; 1140 x 900; 1280 x 1024; 1280 x 720; 1280 x 768; 1280 x 800; 1280 x 960; 1366 x 786; 1400 x 1050; 1600 x 1200; 1680 x 1050; 1920 x 1080; 640 x 480; 720 x 400; 720 x 480; 720 x 576; 800 x 600

Supported on digital inputs (Video) 1280 x 720p (50)16:9; 1920 x 1080i (59.94/60)16:9; 1920 x 1080p (23.97/24)

16:9; 1920 x 1080p (25)16:9; 1920 x 1080p (29.97/30)16:9; 1920 x 1080p (50) 16:9; 1920 x 1080p (59.94/60)16:9; 720 x 480p (59.94/60)16:9; 720 x 576p (50) 16:9

CONNECTIVITY

Input Video Analogue 1 x D-sub 15 pin; Composite (BNC); RGBHV for PC and Component/Composite (BNC) Input Video Digital 1 x DVI-D (with HDCP); 1 x HDMI 1.3; 1 x DisplayPort Input Audio Analogue 1 x 3,5 mm jack Input Audio Digital Display Port; 1x HDMI Input Control LAN 100Mbit; remote control wire (3,5mm jack); RS232 Output Video Digital DVI-D Output Audio Analogue 3,5mm jack Output Control RS232 Remote Control LAN with SNMP; RS-232C (9-pin D-sub) Input and Output; Remote Control IR

(internal/external (optional) sensor)

OPTION SLOT

Slot Technology STv2 (compatible with Intel / NEC OPS standard) Inrush Current [A] max. 10 Power Consumption [W] max. 61 Voltage / Current [V/A] 16/4

ELECTRICAL

Power Consumption on Mode [W] 185 shipping; 280 (max.) Power Savings Mode [W] < 0.5 (ECO Standby); < 1 Power Management VESA DPMS

ENVIRONMENTAL CONDITIONS

Operating Temperature [°C] +0 to +40 Operating Humidity [%] 20 to 80 Storage Humidity [%] 10 to 90 Storage Temperature [°C] -20 to +60

MECHANICAL

Dimensions (W x H x D) [mm] With stand: 1,249.7 x 720.5 x 63.5 Weight [kg] With stand: 26.5 Bezel Width [mm] 18.3 (left and right); 18.3 (top and bottom) VESA Mounting [mm] 300 x 300 (FDMI); 4 holes; M6

AVAILABLE OPTIONS

Option Slot HDSDI 1.5 and 3G; Intel Atom, Celeron and Core CPUs Accessories Feet (ST-4020); Speaker (SP-RM1); Wall mount (PDW 32-70 L+P); Wall mount (PDW

S 32-55 L and P)

ADDITIONAL FEATURES

Colour Versions Black Front Bezel, Black Back Cabinet Safety and Ergonomics CE; TÜV GS; C-tick; FCC Class B; UL/C-UL or CSA; PSB; VCCI; RoHS Plug and Play VESA DDC2Bi Audio Integrated Speakers (10 W + 10 W); Optional Speakers (15 W + 15 W) Shipping Content Display; DVI-D cable; Power Cable; Free LAN control software (download); Remote

Control

Warranty 3 years warranty incl. backlight

1. RGB/HV IN [R, G, B, H, V] (BNC)

2. DISPLAYPORT connector

3. HDMI connector

4. DVI connector (DVI-D)

5. VGA IN (mini D-Sub 15 pin)

6. VIDEO1 IN connector (BNC)

7. LAN port (RJ-45)

8. RS-232C (D-Sub 9 pin)

9. REMOTE IN (Black)

10. AUDIO OUT (Blue)

11. AUDIO IN 1 (Blue)

12. EXTERNAL SPEAKER TERMINAL

13. Internal/External speaker switch

SPECIAL CHARACTERISTICS

Advanced fan control, Copy display settings through RS232, DICOM support, Hardware colour calibration possible, Input name adjustment, Matrix memory, OSD rotation for portrait mode, Scheduler, Screen saver functions, TileMatrix (10 x 10), User input priority deﬁnition, Various picture in picture options

Energy Efﬁciency Ambient light sensor; Carbon savings meter;

Ecological Materials Optional feet; Manuals on CD

ECOMode
