www.ncomputing.co.kr
www.ncomputing.com
Xtenda PCI Card
The CD for the Installation
of the Program
User’s Guide(Optional) or
Quick Installation Guide(Optional)
A Bracket for PCI Card
Low Profile Bracket
(Optional)
Xtenda Multi Box
Installation of Xtend a Bus En um erator
※
The peripheral devices are optional.
Back
Page
After finishing installing the Xtenda hardware, see the back of this guide in order to install the Xtenda software.
©NComputing Co., Ltd. All rights reserved.
NComputingis registered trademarks of NComputing Corporation.
Microsoft and Windows are registered trademarks of Microsoft Corporation.
Intel and Pentium are registered trademarks of Intel Corporation.
Information in this quick installation guide is subject to change
without notice.

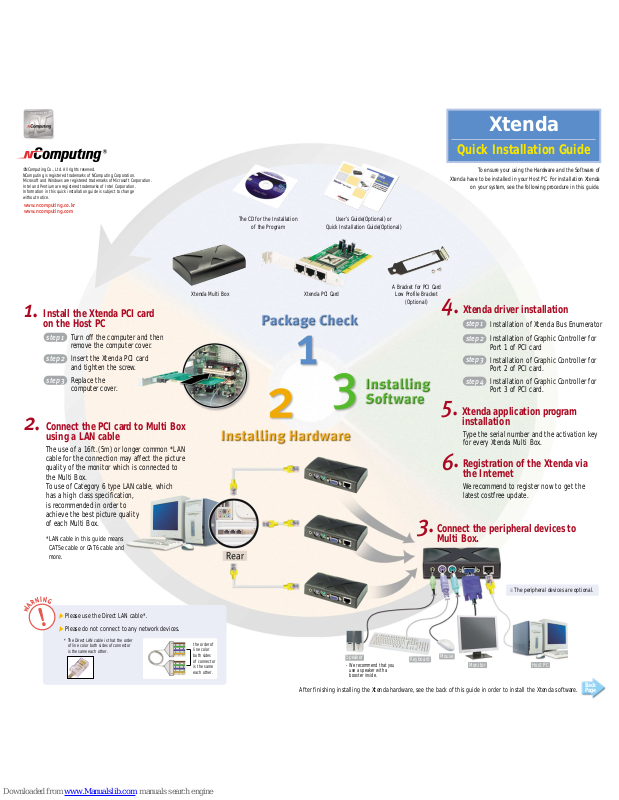

Xtenda
Quick Installation Guide
To ensure your using the Hardware and the Software of
Xtenda have to be installed in your Host PC. For installation Xtenda
on your system, see the following procedure in this guide.
4
.
Xtenda driver installation
6
.
Registration of the Xtenda via
the Internet
We recommen d to r egister n ow to g et the
latest costfree update.
5
.
Xtenda application program
installation
3.
Connect the peripheral devices to
Multi Box.
Type the serial n umber an d th e activati on key
for every Xtenda Multi Bo x.
2.
Connect the PCI card to Multi Box
using a LAN cable
The use of a 16ft.(5m) or longer comm on *LAN
cable for the connection m ay affect th e pi cture
quality of the monitor whi ch is conn ected to
the Multi Box.
To use of Categ ory 6 type LAN cable, which
has a high class specification,
is recommended in or d er to
achieve the best picture qu ality
of each Multi Box.
*LAN cable in this guide means
CAT5e cable or CAT6 cable and
more.
step 1
Installation of Graphi c Con tr oller f or
Port 1 of PCI card
step 2
Installation of Graphi c Con tr oller f or
Port 2 of PCI card .
step 3
Installation of Graphi c Con tr oller f or
Port 3 of PCI card .
step 4
Turn off the computer an d th en
remove the computer cover.
1.
Install the Xtenda PCI card
on the Host PC
step 1
Insert the Xtenda PCI car d
and tighten the scr ew.
step 2
Replace the
computer cover.
step 3
▶
Please do not connect to any network devices.
▶
Please use the Direct LAN cable*.
* The Direct LAN cable is that the order
of line color both sides of connector
is the same each other.
the order of
line color
both sides
of connector
is the same
each other.
Speaker
- We recommend that you
use a speaker with a
booster inside.
Keyboard
Mouse
Monitor Host PC
Please make sure that the host computer and the Multi Box are connected corr ectly
before installing the drivers .
Xtenda Remote Management Console Installation
The peripheral device must be connected to the PCI card and the Multi Box in order to use the
Xtenda product before installing the driver and application program. And both hardware and
software must be installed to achieve the normal operation of the Xtenda product.
Each port of PCI card have to be installed separately. Therefore you have to installed the Xtenda
Graphic Controller in order to use all ports of PCI card.
When the computer start, “Hardwar e Update
Wizard” window is appeared .
1
After installing the PCI card drivers please
execute the Install.e x e file whi ch is located in
the CD-ROM drive.
1
Please click on the “Install Program” button.
2
The screen is prompted after turn off and on
the monitor of Host PC automatically for a
short time. Cli ck th e <Finish>button to
complete the graphic controller d river.
3
Insert the “Software In stallati on CD” in to th e CD-ROM drive an d th en install
the PCI card driver.
2
Completing the Xtenda Bus Enumerator .
3
Installation of a Xtenda PCI card driver
Installation of Xtenda Remote Management console
Installation of a Xtenda Graphic Controller
After installing Xtenda Bus Enum erator,
Prompted with the “Found New Har dware
Wizard” screen.
1
Install Xtenda Graphi c Conrtoller.
2
Operating Systems supported by the Xtenda PCI card are as follows
Please input the password, which is desi gn ed
to prevent the unauth orized access to the
NCX-2000-XP remote manag em en t con sole
program.
3
The Operating Environment of the Computer.
Windows® 2000 Professional/ Windows® XP Home Edition / Windows® XP Professional/ Windows® XP Media Center Edition
(Changes may be made to the list of supported Operating Systems without prior notice.)
Screen Resolutions Supported
Resolution 1024 x 768 / 16 bit colors / Refresh rate 60 Hz
Resolution 800 x 600 / 16 bit colors / Refresh rate 75Hz
Recommended Specification for Using the Xtenda PCI card and the Multi Box
*HT : Intel® Hyper-Threading Technology
1 Xtenda PCI card 2 Xtenda PCI cards
- CPU : Intel Pentium4
2.4 ~ 3.8GHz with HT*
- Main Memory : 1.0Gbytes
or more
- CPU : Intel Pentium4
1.3 ~ 2.4GHz with HT*
- Main Memory : 512Mbytes
or more
For the registration o f th e Xten d a pr od u cts
please input the serial number, the
activation key written on the back of the
Multi Box and other inf orm ati on.
4
A message window, which asks the user f or th eir
intention to restart th e system, appears when
the correct installation of the application
program is completed. After select the “Yes, I
want to restart my computer now.” Please click
on the <Restart> button.
5
The contents may vary depending on the specification of the products and may change
without advance notice.
Part No. 160-0116 Rev.A
