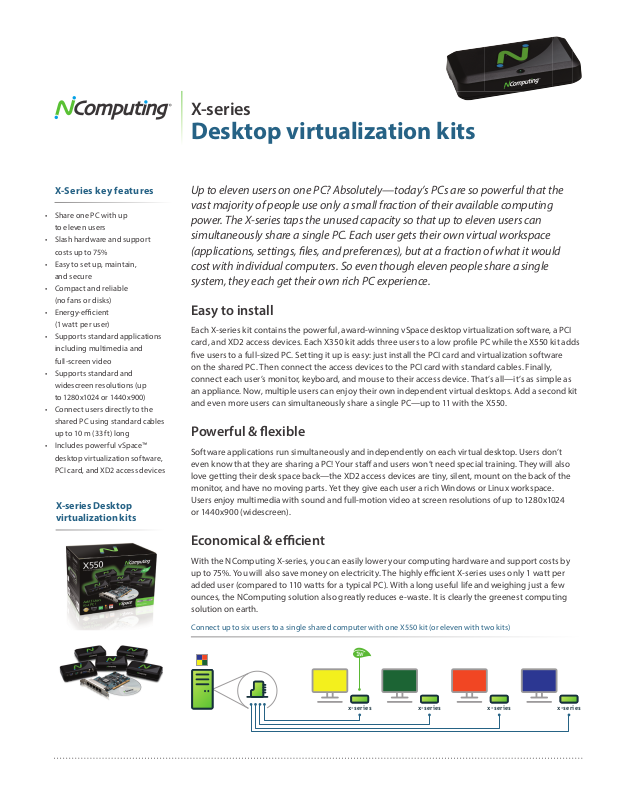

NComputing X350, X550 Datasheet

X-series

Desktop virtualization kits

X-Series key features

• Share one PC with up

to eleven users

• Slash hardware and support

costs up to 75%

• Easy to set up, maintain,

and secure

• Compact and reliable

(no fans or disks)

• Energy-ecient

(1 watt per user)

• Supports standard applications

including multimedia and

full-screen video

• Supports standard and

widescreen resolutions (up

to 1280x1024 or 1440x900)

• Connect users directly to the

shared PC using standard cables

up to 10 m (33 ft) long

• Includes powerful vSpace™

desktop virtualization software,

PCI card, and XD2 access devices

X-series Desktop virtualization kits

Up to eleven users on one PC? Absolutely—today’s PCs are so powerful that the vast majority of people use only a small fraction of their available computing power. The X-series taps the unused capacity so that up to eleven users can simultaneously share a single PC. Each user gets their own virtual workspace (applications, settings, les, and preferences), but at a fraction of what it would cost with individual computers. So even though eleven people share a single system, they each get their own rich PC experience.

Easy to install

Each X-series kit contains the powerful, award-winning vSpace desktop virtualization software, a PCI card, and XD2 access devices. Each X350 kit adds three users to a low prole PC while the X550 kit adds ve users to a full-sized PC. Setting it up is easy: just install the PCI card and virtualization software on the shared PC. Then connect the access devices to the PCI card with standard cables. Finally, connect each user’s monitor, keyboard, and mouse to their access device. That’s all—it’s as simple as an appliance. Now, multiple users can enjoy their own independent virtual desktops. Add a second kit and even more users can simultaneously share a single PC—up to 11 with the X550.

Powerful & exible

Software applications run simultaneously and independently on each virtual desktop. Users don’t even know that they are sharing a PC! Your sta and users won’t need special training. They will also love getting their desk space back—the XD2 access devices are tiny, silent, mount on the back of the monitor, and have no moving parts. Yet they give each user a rich Windows or Linux workspace. Users enjoy multimedia with sound and full-motion video at screen resolutions of up to 1280x1024 or 1440x900 (widescreen).

Economical & ecient

With the NComputing X-series, you can easily lower your computing hardware and support costs by up to 75%. You will also save money on electricity. The highly ecient X-series uses only 1 watt per added user (compared to 110 watts for a typical PC). With a long useful life and weighing just a few ounces, the NComputing solution also greatly reduces e-waste. It is clearly the greenest computing solution on earth.

Connect up to six users to a single shared computer with one X550 kit (or eleven with two kits)

x-ser ie s x-ser ie s x-ser ie s x-ser ie s

SIZE

XD2 access device: Width: 119 mm, Depth: 82 mm, Height: 27 mm

X350: half-height PCI card ts in small -form-factor or full-sized PCs

X550: full-height PCI card requires full-sized PCs

MONITOR MOUNTING

XD2 access devices have built-in mounting holes to attach to the rear of a monitor with VESA-compliant mounting holes. Two screws per XD2 access device are included.

POWER SUPPLY

No external power adapters are required

Power to the access devices is provided by the PCI card through the Cat 5e or Cat 6 cable

POWER REQUIREMENT

Each XD2 access device requires approximately 1 watt of power

MONITOR POWERSAVE MODE

Supports power-saving mode with Energy Star-compliant monitors

LED IN DICATOR ON XD2

Green LED located on front of access device indicates power/connection established

VIDEO RESOLUTION

1440x90 0, 1360x768, 1280x1024, 1280x800, 1280x720, 1024x768, and 800x600, 16-bit color, 60 Hz refresh rate

CONNECTION TO SHARED PC

Standard Category 5e UTP (unshielded twisted pair) cable up to 5 meters / 16 feet Standard Category 6 STP (shielded twisted pair) cable up to 10 meters / 33 feet

AUDIO

Stereo output via speaker port

DATA S ECUR ITY

No local data storage on device. USB ports on shared PC can be assigned to dierent users (Note: local user access to USB ports requires separate USB extension cables not included).

CERTIFICATIONS

FCC Class B, CE, MIC, RoHS

OPER ATING TEMPERATU RE AND HUMIDITY RANGE

0 to 40 degrees Celsius 10 to 85% relative humidity (non-condensing)

SUPPPORTED OPER ATING SYSTE MS*

Microsof t Windows and Linux: refer to the support section at ncomputing.com/mslicensing

PC CONFIGURATION

See Recommended Product Selection Guide at ncomputing.com/support

SUPPORTED SOFTWARE**

Most PC applications, including browsers, e-mail, oce suites, media players, educational software and more. Supports multimedia and full-motion video, but is not recommended for intensive 3D soft ware.

KIT CONTENTS

X350

X550

One X350 kit includes three XD2 access devices, one half-height PCI card (with both full-height and low-prole brackets), vSpace sof tware installation CD with user’s guide, Quick Install Guide, and 6 mounting screws for monitor mounting.

One X550 kit includes ve XD2 access devices, one full-height PCI card, vSpace software installation CD with user’s guide, Quick Install Guide, and 10 mounting screws for monitor mounting.

NOTE:

peripherals are NOT included and must be purchased separately.

MAXIMUM NUMBER OF US ERS PER PC***

Each X350 kit adds three users to a shared PC. A maximum of two kits can be used with one PC to get a total of seven users (three for each kit plus one on the PC).

Each X550 kit adds ve users to a shared PC. A maximum of two kits can be used with one PC to get a total of eleven users (ve for each kit plus one on the PC).

1 2 3 4 5

X-series connections

X-series Desktop virtualization kits

HARDWARE

1. Speaker

2. PS/2 keyboard

3. PS/2 mouse

4. Video output

5. RJ-45 PCI card connection port

Please refer to the Microsoft operating system

licensing requirements and technical details at www.ncomputing.com/mslicensing. Specic Linux support information is available at ncomputing.com/kb

Application software, client access and

operating system licenses for the shared PC and access devices may be required by the respective software vendor and must be purchased separately.

The number of users a PC will support

***

depends on the host system capabilities as well as the applications used and performance expectations for those applications. It is recommended that new customers test their application(s) to establish an appropriate user-to-host ratio.

Linux® is t he registered tr ademark of Linus Torvalds in t he U.S. and other co untries. Windows i s a registered tra demark of Microso ft Corporatio n in the United States and other countries. Additional software licenses m ay be required by the s oftware licensor s. Please check yo ur software us er license ag reements to ensu re your continued complian ce with such agreem ents.

VSPACE DESKTOP VIRTUALIZATION SOFTWARE

for the latest suppor ted versions.

Shared PC, PS/2 keyboard, PS/2 mouse, speakers, Cat 5e/6 cables, and other

1900 S. Nor folk Street, Sui te 245 | San Mateo, CA 944 03 |  1.650.40 9.5959 |  info@ncomputing.com |  www.ncomputing.com

respective owners. Preliminary beta speci cations subject to change without notice. Performance may vary, depending on the con guration of the shared computer.
