T1 Traffic Module
User Manual
N20 | N40i | N60i
en
English
The software contains proprietary information of Navman; it is provided under a licence agreement containing restrictions on use and disclosure and is also protected by copyright law. Reverse engineering of the software is prohibited.
No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written permission of Navman.
Back-On-Track, Drive-Away, NavPix, Smart and Turn-by-Turn are either registered trademarks or trademarks of Brunswick New Technologies Asia Pte Limited and are used under licence by Navman New Zealand. All rights reserved.
Microsoft Windows 2000 SP3 and XP SP2, Microsoft Internet Explorer and ActiveSync are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. All rights reserved.
Adobe and Adobe Reader are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries. All rights reserved.
Location Identifiers © 2005 International Air Transport Association. All other trademarks and registrations are the property of their respective owners. Published in New Zealand.
Disclaimer
Due to continued product development this information may change without notice. Navman does not warrant that this document is error-free.
The screenshots and other presentations shown in this manual may differ from the actual screens and presentations generated by the actual product. All such differences are minor and the actual product will deliver the described functionality as presented in this User Manual in all material respects.
Safety Camera POIs
Navman products are designed to be used as an aid to safer driving. You can receive messages to alert you to locations of safety cameras, which will enable you to monitor your speed through these areas.
Navman does not warrant that all types and locations of safety camera data are available, as cameras may be removed, relocated or new cameras installed.
Navman does not condone speeding or any other failure to comp ly with your local traffic laws. It is your responsibility to drive within the posted speed limit at all times and to drive in a careful manner.
Navman accepts NO liability whatsoever for you receiving any speeding fines or points on your license through using this device. Navman does not guarantee the accuracy of the data contained within this database either expressed or implied.
In the event you receive a fine or any other penalty for speeding or contravention of any traffic law, or are involved in an accident, Navman is not responsible for any damages of any type.
In some countries the data information regarding safety or speed cameras may conflict with local law and/or regulations. It is your responsibility to make sure that your use of the data is in compliance with local laws and/or regulations. Usage is at your own risk.
Compliance
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
The software is based in part on the work of the Independent JPEG Group.
T1 Traffic Module | Important safety information
Important safety information
PLEASE READ CAREFULLY BEFORE INSTALLING PRODUCT IN VEHICLE
This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible
Removing original equipment, adding accessories or modifying your vehicle cou ld affect the vehicle’s saf ety or make it illegal to operate in some jurisdictions.
Follow all product instructions and all instructions in your vehicle owner’s manual regarding accessories or modifications. Consult your country’s and/or state’s laws regarding operation of a vehicle with any accessories or modifications.
injury or death.
WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.
CAUTION used without the safety alert symbol indicates a potentially hazardous situation which, if not avoided, may result in property damage.
It is your sole responsibility to place, secure and use the Navman in a manner that will not cause accidents, personal injury or property damage. Always observe safe driving practices.
Mount the Navman in a position that is secure and does not obstruct the driver's view. Attach the T1 antenna in a position that is secure and does not obstruct the driver’s view. Do not mount the Navman or attach the T1 antenna in a way that may interfere with the safe operation of the vehicle, the deployment of
air bags or other safety equipment. Do not operate the Navman while driving. Before you use the Navman for the first time, familiarize yourself with your device and it's operation. Do not attempt to attach the Navman or attach or adjust the antenna while driving. On main roads, the distance to an exit calculated by the Navman may be further than the distance shown on road signs. Road signs
show the distance to the start of an exit while your Navman shows the distance to the next intersection, i.e., the end of the exit ramp or road. To prepare to exit a road, always follow distance information on road signs.
3
T1 Traffic Module | Important safety information
Do not handle the Navman while it is hot. Let the product cool, out of direct sunlight.
Do not expose the Navman to direct sunlight in an unattended vehicle for prolonged periods. Overheating may damage the unit.
To discourage theft, do not leave the Navman, mounting bracket or any cables in plain view in an unattended vehicle.
Failure to adhere to these warnings and cautions may lead to death, serious injury or property damage. Navman disclaims all liability for installation or use of the Navman that causes or contributes to death, injury or property damage or that violates any law.
Navman is not responsible for the accuracy of any traffic-related information supplied by other parties and disclaims all liability for any accident, injury or property damage resulting from reliance on such information.
4
T1 Traffic Module | Contents
Contents
Important safety information...................................................................................................................3
Introduction............................................................................................................................................6
Box Contents....................................................................................................................................7
T1 components.................................................................................................................................8
How does my T1 receive traffic information? ....................................................................................9
How will I know when a Traffic Event occurs?.................................................................................10
How do I view the Traffic Overview screen? ...................................................................................11
How do I view the Event List screen?.............................................................................................12
How do I view the Event Details screen?........................................................................................14
How do I know if a detour is recommended? ..................................................................................16
Traffic messages........................................................................................................................17
How do I view my route?......................................................................................................................18
Traffic information...........................................................................................................................18
3D Map screen ...............................................................................................................................19
2D Map screen ...............................................................................................................................21
What else can I do?.............................................................................................................................23
How do I use the Map menu?.........................................................................................................23
How do I check the Traffic system status?......................................................................................25
How do I customize Traffic preferences?........................................................................................26
Traffic and other TMC Events..............................................................................................................27
Support information..............................................................................................................................28
5
T1 Traffic Module | Introduction
Introduction
Thank you for purchasing the Navman T1 traffic module. The T1 can be plugged into your Navman to identify potential traffic delays in your area and help you avoid them. Use this manual to learn how to operate your T1 efficiently and safely, and discover all the different features available to you.
In this section
Box Contents......................................................................................................................7
T1 components...................................................................................................................8
How does my T1 receive traffic information? .....................................................................9
How will I know when a Traffic Event occurs?....................................................................10
How do I view the Traffic Overview screen? ......................................................................11
How do I view the Event List screen?.................................................................................12
How do I view the Event Details screen? ...........................................................................14
How do I know if a detour is recommended? .....................................................................16
6
Box Contents
Item
T1 Traffic module FM antenna
Item
T1 Traffic Module | Introduction
4 FM antenna fixing pads (including two for second vehicle)
USB adaptor
Limited Warranty Agreement
CD containing User Manual
In-Car Installation Guide
7
T1 Traffic Module | Introduction
T1 components
Component Description
Fixing Pads on FM Antenna
FM Antenna Allows your T1 to receive RDS-TMC signals.
FM Antenna Pl ug Transmits the data received from the FM Antenna to the T1.
FM Antenna Socket Socket for connecting to the FM Antenna, so your T1 can receive RDS-
Headphone Socket Socket for connecting headphones or earphones to your Navman.
Power Socket Socket for connecting to the 12V DC Power Adaptor.
The fixing pads that attach to your windscreen are semi-permanent. When attaching the fixing pads to your windscreen, position carefully and press for 5 seconds.
CAUTION Do not bend the FM Antenna when removing from your windscreen.
Allows you to attach your FM Antenna to the fixing pads on your windscreen. For more information refer to the In-Car Installation Guide.
TMC messages.
8
T1 Traffic Module | Introduction
How does my T1 receive traffic information?
When used with the T1, your Navman can receive current traffic information for all main roads and motorways, enabling you to avoid potential delays on your route.
The Traffic Message Channel (TMC) broadcasts real-time traffic and weather information via the FM Radio Data System (RDS). FM radio stations transmit TMC data on a cycle of several minutes, with hundreds of Events able to be broadcast to TMC receivers, such as the T1.

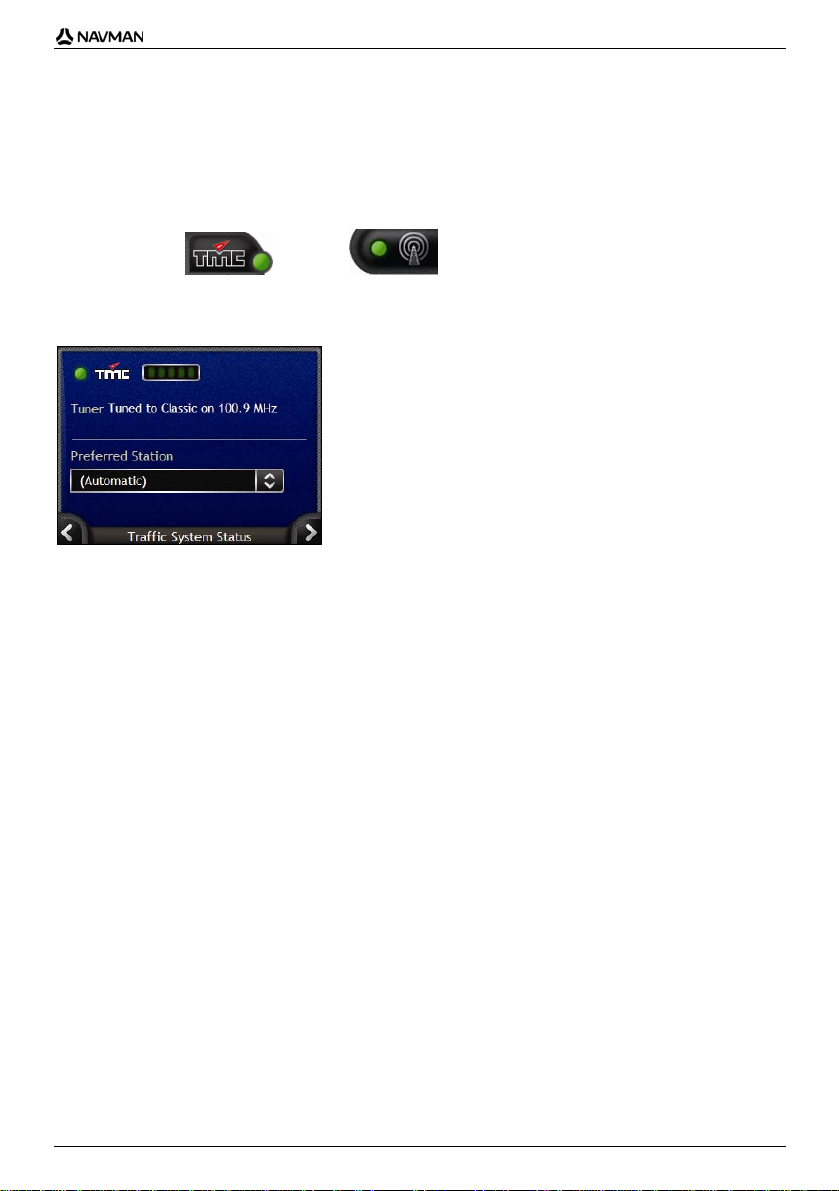

Traffic status
Your current traffic status is indicated by the colour of the TMC icon in the bottom-left corner of the map screens.
The following table describes the three traffic status icons:
Traffic Status Description
The TMC status is grey if traffic is currently inactive due to one of the following
Your traffic status is displayed in more detail on the Traffic System Status screen.
conditions:
The T1 is connecting to the TMC service.  The T1 cannot receive TMC data. This may be due to poor radio coverage in
the local vicinity.
You are in a country that is not supported by the T1. Click to display the Traffic Overview screen.
The TMC status is orange if one of the following conditions apply: You have navigated into a country that is not supported by the T1, but there
are still traffic events listed on the Event List screen.
You have separated your Navman from the T1, or the T1 is not receiving
power but there are still traffic events listed on the Event List screen.
Click to display the Traffic Overview screen. The TMC status is green if the T1 is active and receiving traffic events. Click to display the Traffic Overview screen.
How do I see my Traffic status if the TMC icon isn't displayed?
If the TMC icon is not displayed, follow the instructions in the enclosed In-Car Installation Guide to insert your Navman into the T1.
9
T1 Traffic Module | Introduction
How will I know when a Traffic Event occurs?
Your T1 begins working the moment it is installed. Incoming Events are handled according to your Traffic Preferences. For more information, see "How do I customize Traffic preferences?" on page 26.
When travelling through an area in which you can receive TMC transmissions, your T1 will decode these Events and send them to your Navman. Your Navman will display an icon at the Event location on the 3D and 2D Map screens, and an audible warning is given if an Event is on your route. Where the extent of an Event is a specific distance, the road will be highlighted and arrows will indicate the direction affected.
A message will display at the bottom of the screen used to view your route. This details the road name, the section of road affected and the type of Event that has occurred. The message remains on screen for 8 seconds and is added to the Event List.
10
Loading...
+ 22 hidden pages
