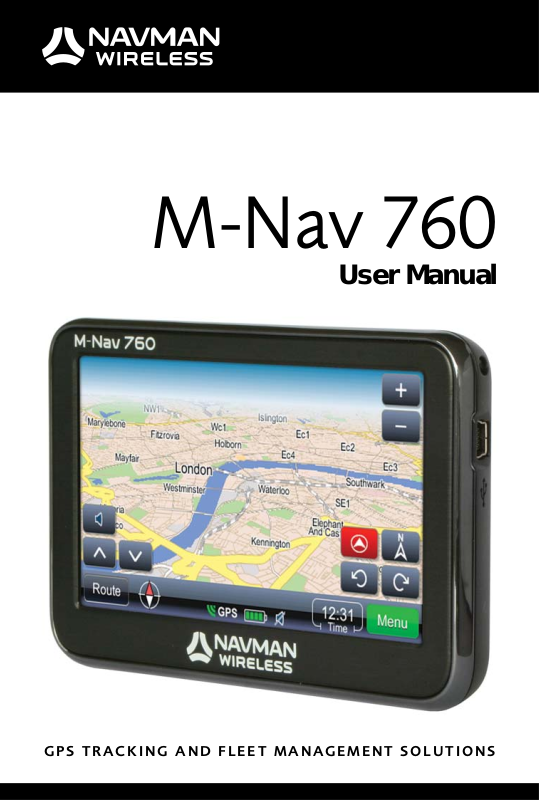

Navman M-NAV 760 User Manual

M-Nav 760

User Manual

GPS TRACKING AND FLEET MANAGEMENT SOLUTIONS

M-Nav 760 | User Manual

Contents

1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

1.1 Important Safety Information 5

1.2 Disclaimer 5

1.3 Glossary of Terms 6

2 The M-Nav 760 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

2.1 Box Contents 7

2.2 M-Nav 760 Parts 8

2.3 M-Nav 760 Speciﬁ cations 9

3 Install the M-Nav 760 in a Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

3.1 Assemble the Docking Cradle 10

3.2 Windscreen Installation 10

3.3 Add the M-Nav 760 to the docking cradle 11

4 Get Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

4.1 Language and Warning screens 12

4.2 Driver Logon & Status 13

4.3 Vehicle Inspection 13

4.4 Check the GPS Status 14

4.5 Check the Qube Tracking Device Status 15

4.6 Driver Logoff 16

4.7 Shut Down 16

5 Messages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

5.1 Types of Message 17

5.2 New Messages 17

5.3 Read a Stored Message 18

5.4 Reply with a Canned Template 19

5.5 Create a New Message / Reply 20

5.6 Delete a Message 21

5.7 Show a Message Location 21

5.8 Go to a Message Location 22

6 Phone. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

6.1 Check Bluetooth status of the M-Nav 760 23

6.2 Switch Bluetooth ON 23

6.3 Pair a Mobile Phone 24

6.4 Change the Active Mobile Phone 26

6.5 Import a Phone Book 27

6.6 Make a Speaker Phone Call from Dial Pad 28

6.7 Make a Speaker Phone Call from Phone Book 29

6.8 Delete a Mobile Phone 30

M-Nav 760 | User Manual

7 Navigation Basics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

7.1 Display & Move the Map 31

7.2 Map Icons 31

7.3 Navigation Icons 32

7.4 Mute or Set the Navigation Volume 33

7.5 Night-Time Navigation 34

7.6 How to Enter Data & Remove Errors 35

8 Find and Go to a Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

8.1 Find a Street Address 36

8.2 Find a Postal Code 37

8.3 Find Other Types of Location 38

8.4 Find a POI 39

8.5 Navigate to a Destination from your Location 40

8.6 Set a Location as Home 41

8.7 Set a Location as a Favourite Place 42

9 Plan a Route . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

9.1 Plan a Route from Any Location 43

9.2 Add a Location as a Via Point 44

9.3 Show / Add Places along the Route 45

9.4 Optimise / Change the Order of the Via Points 46

9.5 Save a Route 46

9.6 Add a Detour to Avoid an Area 47

9.7 Use a Saved Route 47

9.8 Delete a Saved Route 48

9.9 Delete a Route 48

10 Route Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

10.1 Show an Overview of this Route 49

10.2 Demonstrate this Route 49

10.3 Show Total Time & Distance 50

10.4 Show all Manoeuvres on the Route 50

11 Set Your Preferences . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

11.1 Set Route Type & Vehicle Type 51

11.2 Set Truck Attributes 52

11.3 Set Road Types to Avoid 53

11.4 Set Road Types to Exclude 54

11.5 Set Distance Units 55

11.6 Set Date / Time Formats 55

11.7 Set Geographic / Custom Time Zone 56

11.8 Set Language 57

11.9 Set the Choose Language at Startup Option 58

11.10 Restore Factory Default Settings 59

M-Nav 760 | User Manual

1 Introduction

Thank you for purchasing the Navman Wireless M-Nav 760 messaging and navigation device. We hope you enjoy using it. It has been carefully designed so it is easy to install, setup, and use.

You can:

• use the navigation option to search for locations such as a street address, a postal code, or a city centre,

• set a location as the start point, a via point, or the destination,

• have the M-Nav 760 calculate the route then guide you along it with clear visual and verbal instructions,

• check for places and points of interest such as fuel stops, nearby or along your route,

• add stops (via points) to your route,

• use the phone option to pair the M-Nav 760 with a Bluetooth-enabled mobile phone, then make and receive hands-free phone calls using the M-Nav 760 as the speaker,

• use the message option to receive messages from, and send messages to, your ﬂ eet administrator,

• navigate directly to a location speciﬁ ed in a message from your ﬂ eet administrator,

• use the setup option to customise the M-Nav 760 to suit your own preferences.

1.1 Important Safety Information

Do NOT mount the M-Nav 760 where it obstructs the driver’s view or may distract the driver.

DO NOT mount the M-Nav 760 where it may interfere with the safe operation of the vehicle or the deployment of airbags or other safety equipment. Consult the vehicle manual to ensure the mounting location is safe, if necessary.

Do NOT enter navigation data or other information into the M-Nav 760 while you are driving.

Comply with these safety instructions at all times. Failure to comply with these safety instructions may lead to accidents, personal injury including death, property damage or violation of the law.

1.2 Disclaimer

Navman Wireless disclaims all liability for installation and use of this product in a way that contributes to injuries, death, property damage or violation of the law.

The user of this product is solely responsible for observing safe driving practices and for all use of this device. It is the user’s responsibility to operate the M-Nav 760 in accordance with the law.

This M-Nav 760 provides route information for guidance only. Accordingly it is your sole responsibility to consider the height, weight, length or Hazmat classiﬁ cation of your vehicle and to ensure that it is legally and physically able to travel over routes that may include narrow, twisting or steep roads; weak, narrow or low bridges; tunnels or other obstacles on the route determined by this M-Nav 760.

The M-Nav 760 device provides an interface to a Bluetooth-enabled mobile phone. Navman Wireless disclaims all responsibility for any Bluetooth-enabled mobile phone problems that result

M-Nav 760 | User Manual

from faults with the mobile phone including but not limited to lost connections, text messages, and contact details.

This manual represents the M-Nav 760 at the time of printing. Navman Wireless reserves the right to make changes to speciﬁ cations without notice.

1.3 Glossary of Terms

Common terms used in this manual and on the M-Nav 760 include:

GPS The GPS is a network of satellites that orbit the Earth at about 19,300

POI Point of Interest. This is a useful resource along or nearby the route, such

Via Point A speciﬁ c location that you want to visit along the route. A via point can be

Destination The next via point along your route.

Final Destination The ﬁ nal via point along your route. It is always marked with a chequered

Trip The complete list of via points that you specify; including the start

Route When you have deﬁ ned all the via points in your trip, the M-Nav 760 will

kms (12,000 miles) and transmit accurate time and position information worldwide. The GPS receiver in your M-Nav 760 picks up signals from any satellites in view and uses the information to determine your location, accurate to within 5 m (15 ft). Usually, only three signals are needed to provide a latitude and longitude position (GPS ﬁ x) for vehicle navigation systems.

as a fuel location or a post ofﬁ ce. You can add a POI to your route as a via point.

any location that you specify, such as a customer site, or a POI.

ﬂ ag.

location, the ﬁ nal destination, and any via points between.

calculate the best route automatically after it obtains a GPS ﬁ x. Your route shows the path to drive. Only one route can be shown on the map at a time.

M-Nav 760 | User Manual

2 The M-Nav 760

2.1 Box Contents

The M-Nav 760 is supplied with a suction mount designed for installation on a vehicle windscreen. Check that you have ALL of these items before you start the installation. Contact your supplier if anything is missing.

M-Nav 760 device Silicone case

Suction mount

PND cable

Cradle

Alcohol swab

M-Nav 760 | User Manual

2.2 M-Nav 760 Parts

Familiarise yourself with the parts of your M-Nav 760 before starting the installation.

6 7

11 13

M-Nav 760 | User Manual

Component Description

Mini-USB port External connection port. Not used in standard vehicle installations.

Serial connection When the M-Nav 760 is in its cradle, this serial connection

Micro-SD card Contains the maps for the navigation feature.

Microphone Used for Bluetooth voice calls.

Jack point Headset connection point (optional).

LED Power indicator light. This will be ON when external power is

Standby button Press to toggle the M-Nav 760 between operating and standby

Internal GPS antenna Approximate position of the internal GPS antenna that is built

Lower Cradle Clips Used for docking M-Nav 760 in the cradle.

ON/OFF switch Switch the internal battery ON or OFF. Usually switched ON.

Speaker Provides system sounds and navigational voice prompts.

Back Cradle Clips Used for docking M-Nav 760 in the cradle.

Screen Displays menus, maps and messages.

provides external power and data from the Qube tracking device.

applied to the M-Nav 760.

state. When the M-Nav 760 is in standby state and the screen is blank, just press the standby button to re-display the most recent screen. (Note: if the M-Nav 760 internal battery has discharged the splash screen will be displayed instead).

into the M-Nav 760 and is not visible to view.

Also used to reset the M-Nav 760 in the event of an upgrade.

2.3 M-Nav 760 Speciﬁ cations

Display unit

• 117 x 78 x 18 mm, landscape form factor

• 140 g

• Polished texture, suction cup mounting for vehicle

Screen

• 109 mm wide TFT LCD touch screen with high colour

• Resolution 480 x 272 x 16 bits (WQVGA)

Temperature

• Operating range: -10 to +60°C (Storage range: -20 to +70°C)

Humidity

• Operating range: 20~80% (Storage range: 0~90%)

Voltage

• Suitable for 12 and 24 V systems

M-Nav 760 | User Manual

3 Install the M-Nav 760 in a Vehicle

Note: These installation instructions assume that the Qube tracking device is already installed in the vehicle and that the cable and mini-USB have been fed through the dashboard, ready for connection to the M-Nav 760.

When you have assembled the docking cradle, use the suction cup to attach the M-Nav 760 to the vehicle windscreen.

3.1 Assemble the Docking Cradle

You must connect the bracket to the cradle as follows:

1. Identify the two holes in the cradle and the two prongs on the bracket.

2. Slide the holes on the cradle down over the prongs on the bracket, as far as possible.

The docking cradle is assembled. You can change the tilt angle and the viewing angle with the two adjustment knobs.

Two prongs on the bracket

Two holes in the cradle

3.2 Windscreen Installation

Note: Some windscreens contain areas of tinted glass that may interfere with the GPS signal. Do not mount the M-Nav 760 in these areas.

Read the Important Safety Information in Section 1.1.

Decide where to locate the suction mount on the windscreen. Use the alcohol swab to thoroughly clean that area of the windscreen, then dry the area with a soft, lint-free cloth.

Press the suction cup ﬁ rmly against the windscreen for 3 seconds.

Push the lever down to vacuum-seal the suction cup to the windscreen.

Now you are ready to add the M-Nav 760 to the docking cradle. See Section 3.3.

Adjustment knob for viewing angle

Adjustment knob for tilt angle

M-Nav 760 | User Manual

3.3 Add the M-Nav 760 to the docking cradle

IMPORTANT: Check the M-NAV 760 internal battery switch is ON before you add the M-Nav 760 to the docking cradle. You should not need to touch this switch again after it has been switched ON.

Insert the mini-USB (attached to the cable already fed through the dashboard from the Qube tracking device) into the mini-USB port at the back of the docking cradle.

Put the bottom of the M-Nav 760 into the docking cradle, and then push the M-Nav 760 gently back until it snaps into place with an audible click.

IMPORTANT: The M-Nav 760 must be in the docking cradle and connected to the Qube tracking device in order for you to report your driver status, send and receive messages and otherwise communicate with your ﬂ eet administrator through the OnlineAVL2 application.

The start up screen will display automatically. See Section 4.

Use the adjustment knobs on the docking cradle to change the viewing angle and the tilt angle, if necessary, to give a comfortable viewing position.

If you are leaving the vehicle for a while, we recommend that you remove the M-Nav 760 from the docking cradle and store it in a safe place.

Note: The M-Nav 760 will charge only when connected to a Qube in a standard vehicle installation or AC adaptor supply. It will not charge when connected to a standard USB connection through a PC or similar.

M-Nav 760 | User Manual

4 Get Started

4.1 Language and Warning screens

Note: The following sequence of screens will appear the FIRST time that you use your M-Nav 760, OR whenever the internal battery in the M-Nav 760 has gone ﬂ at (this can happen if you have not used your M-Nav 760 for several days). Otherwise, your M-Nav 760 will re-display the last screen that you used.

The loading bar will appear on the screen while the software is loading into your M-Nav 760.

If this ‘Language’ screen appears, just touch the language you want to use, then touch Accept.

Note: You can conﬁ gure your M-Nav to choose this language automatically at start up (see Section 11.9).

Note: The country map is loaded automatically and is independent of the language that you select here.

The ‘Warning’ screen is displayed automatically.

Touch the down-arrow to scroll down and read all of the warning.

If you accept the warnings, touch Accept.

If the ‘Main Menu’ is displayed, your M-Nav 760 is ready to use. The ‘Main Menu’ may have four icons, as shown here, or six icons, depending on the features that have been enabled by your ﬂ eet administrator.

Just touch an icon to select that option.

Note: If a different screen is displayed instead of the ‘Main Menu’, see the next section.

M-Nav 760 | User Manual

4.2 Driver Logon & Status

Note: These screens appear only if your ﬂ eet administrator has setup the Driver Logon and Driver Status functions in the OnlineAVL2 application. If so, you cannot use the M-Nav 760 until you enter these details.

IMPORTANT: The M-Nav 760 must be in the docking cradle and connected to the Qube tracking device in order for you to report your driver status to your ﬂ eet administrator through the OnlineAVL2 application.

If the ‘Driver Logon’ screen is displayed, use the onscreen keypad to enter your Driver Pin (Personal identiﬁ cation number) then touch Logon.

If the ‘Select Driver Logon Status’ screen appears, touch the description that best describes your current status (e.g.

Other Work).

Note: Driving is the default Driver Logon Status. Just touch

this if it is your current status.

4.3 Vehicle Inspection

Note: The ‘’Vehicle Inspection’ option may not be available in your market. Contact your supplier for more information. If these screens appear you cannot use the M-Nav 760 until you enter these details.

If the ‘Vehicle Inspection’ screen appears, you must inspect your vehicle, and then touch Accept.

The ‘Select Vehicle Inspection Result’ screen is displayed.

Touch the appropriate result. The M-Nav 760 automatically creates and sends a text message to your ﬂ eet administrator to advise the result of your vehicle inspection.

M-Nav 760 | User Manual

When the ‘Main Menu’ is displayed your M-Nav 760 is ready to use. Just touch an icon to select that option.

When you have ﬁ nished using the M-Nav 760, remember to Logoff. See Section 4.6.

4.4 Check the GPS Status

Your M-Nav 760 has an internal GPS (Global Positioning System) antenna so that you can always receive a GPS signal, ﬁ nd your current location and use the M-Nav 760 for navigation. For best operation, ensure that your M-Nav 760 is positioned where it has a good view of the sky.

To check the status of the GPS signal at any time, display the ‘Main Menu’. Touch Nav.

The map is displayed. This example shows a default map view (speciﬁ c to your region) which includes the horizon. The GPS signal reception icons are shown in the centre of the menu bar at the bottom of the map. These show whether a GPS signal is being received and, if so, the strength of the GPS signal.

If there is no GPS signal, drive to another location or wait a few minutes for the GPS satellites to change their position

No GPS signal

Weak GPS signal

Medium GPS signal

Strong GPS signal

Note: If the GPS signal is often weak or absent, try re-positioning the M-Nav 760 in your vehicle so that it has a better view of the sky. (GPS signal reception can be affected by the mounting position as well as urban factors such as high-rise buildings.)

M-Nav 760 | User Manual

To see more information about the GPS status, just touch a blank area anywhere in the menu bar at the bottom of the map.

An advanced GPS status screen is displayed with detailed information, similar to this example.

Note: To exit from the Navigation option at any time, touch Menu then Main Menu.

4.5 Check the Qube Tracking Device Status

Your M-Nav 760 is connected to a Qube tracking device that communicates information about your vehicle to the OnlineAVL2 application.

The Qube tracking device also enables you and your ﬂ eet administrator to send and receive messages to each other (see Section 5).

To check the status of the Qube tracking device at any time, display the ‘Main Menu’.

Check the colour of the Qube tracking device icon shown in the top right corner of the screen. The colour of the icon shows the communication status:

Contact has been established with the OnlineAVL2

application. You can send and receive messages.

The Qube tracking device is trying to make contact

with the OnlineAVL2 application.

Contact is not established with the OnlineAVL2

application. You cannot receive messages. If you try to send messages then they will be queued for sending once a connection is established.

M-Nav 760 | User Manual

4.6 Driver Logoff

If you had to enter your Driver PIN and your work status details (as described in Section 4.2) before you could use the M-Nav 760, you must use Logoff when you have ﬁ nished work.

Note: These screens appear only if your ﬂ eet administrator has setup the Driver Logon and Driver Status functions in the OnlineAVL2 application.

To log off, display the ‘Main Menu’.

Touch Logoff.

When the ‘Select Driver Logoff Status’ screen appears, touch the description that best describes your current status (e.g. Rest Break).

You are logged out automatically and the ‘Driver Logon’ screen is displayed.

4.7 Shut Down

One minute after you have turned off the ignition, the ‘Display Turning Off!’ message appears.

The screen turns blank after a 30 second countdown.

Touch the screen if you want to continue using the M-Nav 760 (e.g. to plan a route in advance).

You can continue to use the M-Nav 760 until you see another message warning you that the Qube tracking device is turning off to save power.

M-Nav 760 | User Manual

5 Messages

IMPORTANT: The M-Nav 760 must be in the docking cradle and connected to the Qube tracking device in order for you to send and receive messages and otherwise communicate with your ﬂ eet administrator through the OnlineAVL2 application.

The M-Nav 760 can store a maximum of 500 incoming messages and 250 outgoing messages. If you exceed the limit for incoming messages, the oldest message will be deleted automatically when a new message is received.

5.1 Types of Message

The Message option enables you and your ﬂ eet administrator to communicate with each other. There are two types of message:

• Information messages. A message from your ﬂ eet administrator e.g. ‘supplies ready for pick up from the workshop’; or a message that you send e.g. ‘completed job’.

• Route-to messages. A message from your ﬂ eet administrator with an embedded GPS location you can use for navigation to an address e.g. ‘55 Keele Rd, Keele, Newcastle – customer Anna Thompson, cold water coming out of the hot water tap in the kitchen’. This message contains the address you will be navigated to in the ﬁ rst line of the message.

5.2 New Messages

When a new message arrives, the New Message popup box is displayed on the current screen and a friendly alert sounds. Touch:

• Read to display the new message immediately.

• Cancel to store the message in your Message List to read it later, when it is safe or convenient.

Examples of the two message types are shown below.

This example shows an information message. Touch:

• Back to close the message without sending a reply.

• Reply (see section 5.4).

• Delete (see section 5.6).

M-Nav 760 | User Manual

This example shows a route-to message. Route-to messages have two extra option buttons:

• Go to exit from the Message option and navigate to the new location (see section 5.8)

• Show to exit from the Message option and display the new location on the map (see section 5.7).

Note: If you want to reply to the message, do this ﬁ rst, before you touch Go or Show.

5.3 Read a Stored Message

A stored message can be a new message that you have not yet read, or an old message that you have not deleted.

To read a stored message at any time, display the ‘Main Menu’.

The number of unread stored messages is shown in the top left corner of the screen. In this example there are 3 unread messages.

Touch Messages.

The ‘Received Messages’ screen lists all your stored messages. The most recent message is at top of the list, with the time that it was received by your M-Nav 760.

Touch the up-arrow or down-arrow to move up or down the message list, if necessary.

Touch the stored message that you want to read. It is displayed immediately, along with any previous replies. If you cannot see all of the message, move the scroll bar on the far right hand side of the screen.

New and Unread.

Read.

Read and Replied.

Note: The M-Nav 760 will display a maximum of 30 replies to any stored message.

M-Nav 760 | User Manual

5.4 Reply with a Canned Template

Note: This section assumes that the message you want to reply to is already displayed on the M-Nav 760. Any previous replies to that message are also displayed in sequence (up to a maximum of 30 replies).

Touch Reply.

The ‘Canned Templates’ screen is displayed.

Canned templates are pre-set replies that can save you time. They show common replies such as ‘Yes’ and ‘No’.

If you want to reply to the message using a canned template, touch the canned template that you want to use; e.g. Job

accepted.

Note: If you don’t want to use a canned template, see the

next section.

The reply is displayed on the screen. Touch:

• Send to send the reply immediately. A beep sounds when the reply is sent and the message icon is updated on your Message List.

to return to the ‘Canned Templates’ screen without

• sending the reply.

Note: You can reply to a message more than once. Just touch the message to re-display it and previous replies.

Some canned templates may contain editable text so that you can save time by entering only the relevant details.

For example, if you select the ‘Arrive in __ mins’ canned template, the blue cursor and the line show where you can enter the estimated number of minutes before you arrive at the destination; e.g. 45.

Note: The M-Nav 760 can hold a maximum of 100 canned messages.

M-Nav 760 | User Manual

5.5 Create a New Message / Reply

If you want to create a new message, display the ‘Received Messages’ screen (see Section 5.3) then touch New.

If you want to create your own reply to a message that is already displayed on the M-Nav 760, touch Reply.

Note: You can reply to a message more than once. Just touch the message to display it again, with any previous replies.

The ‘Canned Templates’ screen is displayed.

Touch Free Text.

The free text screen onscreen keyboard is displayed.

Type your message using the onscreen keys.

Touch abc or 123 to toggle between the numeric keyboard and the character keyboard. You can also touch the white up-arrow to toggle between lower and uppercase characters. To create an uppercase character at the beginning of a sentence, press the outline white up-arrow on the far right.

To jump to the start or the end of the message, touch the blue up-arrow or down-arrow by your message.

If you make a mistake, touch the red button to delete the last character (repeat if necessary). Alternatively, just touch the incorrect word or number to move the cursor quickly to that area. Touch the green button to cancel your message completely.

When you have ﬁ nished your message, touch Send to send it immediately.

The message is stored in your Sent Message list. If you want to see this, or check the time it was sent, touch Sent on the ‘Received Messages’ screen (see Section 5.3 ).

+ 44 hidden pages
