Naim SUPERNAIT BROCHURE

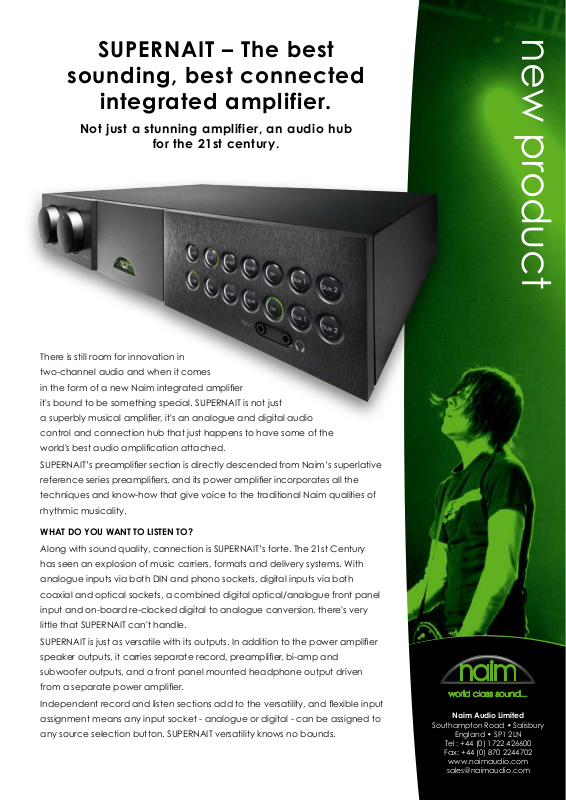

SUPERNAIT – The best

sounding, best connected

integrated amplifier.

Not just a stunning amplifier, an audio hub

for the 21st century.

new product

There is still room for innovation in

two-channel audio and when it comes

in the form of a new Naim integrated amplier

it's bound to be something special. SUPERNAIT is not just

a superbly musical amplier, it's an analogue and digital audio

control and connection hub that just happens to have some of the

world's best audio amplication attached.

SUPERNAIT’s preamplier section is directly descended from Naim’s superlative

reference series preampliers, and its power amplier incorporates all the

techniques and know-how that give voice to the traditional Naim qualities of

rhythmic musicality.

WHAT DO YOU WANT TO LISTEN TO?

Along with sound quality, connection is SUPERNAIT’s forte. The 21st Century

has seen an explosion of music carriers, formats and delivery systems. With

analogue inputs via both DIN and phono sockets, digital inputs via both

coaxial and optical sockets, a combined digital optical/analogue front panel

input and on-board re-clocked digital to analogue conversion, there's very

little that SUPERNAIT can't handle.

SUPERNAIT is just as versatile with its outputs. In addition to the power amplier

speaker outputs, it carries separate record, preamplier, bi-amp and

subwoofer outputs, and a front panel mounted headphone output driven

from a separate power amplier.

Independent record and listen sections add to the versatility, and exible input

assignment means any input socket - analogue or digital - can be assigned to

any source selection button. SUPERNAIT versatility knows no bounds.

Naim Audio Limited

Southampton Road • Salisbury

England • SP1 2LN
Tel : [phone]
Fax: [phone]

www.naimaudio.com

[e-mail]

JUST ADD SPEAKERS

Once everything is connected, just add speakers, turn up the volume and listen. The
versatility of SUPERNAIT doesn't disguise the fact that it is a world-class amplier. The
preamplier section is transparent, detailed and fast - it is a true Naim preamplier.
And the SUPERNAIT power amplier delivers generous, muscular and musical power
into almost any speaker load.

STILL NEED MORE?

An upgrade path has always been a part of the Naim offering. While SUPERNAIT
caters for your connectivity needs, we’ve also covered your future upgrade
requirements. SUPERNAIT is probably the only amplier you’ll ever need; however in
true Naim style, we’ve still anticipated you aspiring to greater things in the future.
And if you do, a power supply, power amplier or even a phono stage is only an
upgrade away.

A LANDMARK AMPLIFIER

A new integrated amplier from Naim doesn’t come along very often. With its
analogue and digital versatility, SUPERNAIT offers the connectivity that 21st century
music lovers demand both today and tomorrow, along with the world-class musical
performance they deserve.

SUPERNAIT – performance, future-proofed

new product

SUPERNAIT specifications

Inputs: 11 (six analogue, ve digital)

Analogue Input Sensitivities: 75mV, 47k

Overload Margins: 40dB (all inputs all audio frequencies)

Digital Inputs: S/PDIF up to 24 bit/96kHz

Preamp Output Level: 0.775V, <50

Tape Output Level: 75mV, 600

Power Output: Continuous 80 Watts per channel into 8

Auxiliary Power Outputs: For Naim phono stage

Quiescent Consumption: 10VA

Dimensions (H x W x D): 87 x 432 x 314mm

Mains Supply: 100-120V or 220-240V, 50/60Hz
