Murata LBUA0ZZKB1 Users Guide

Lenovo(Japan), Ltd., Date: October 29, 2007

Document Number: UY610-03-0041-85

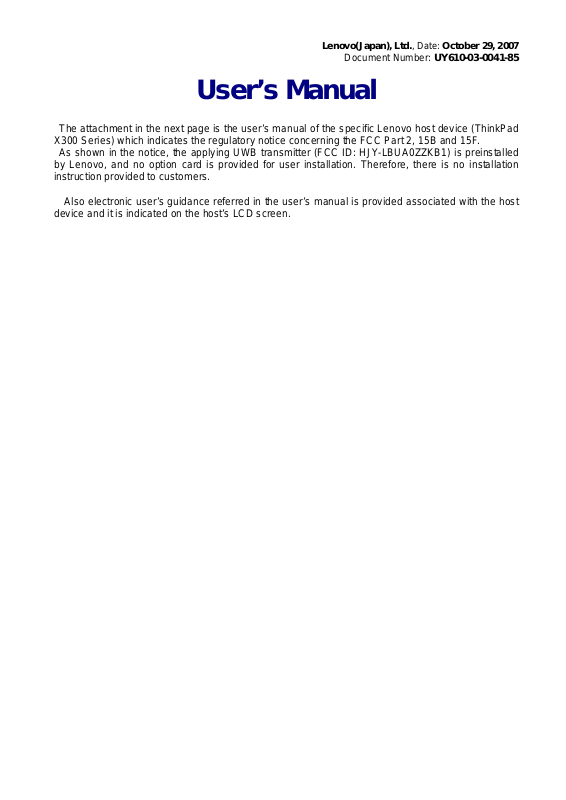

User’s Manual

The attachment in the next page is the user’s manual of the specific Lenovo host device (ThinkPad X300 Series) which indicates the regulatory notice concerning the FCC Part 2, 15B and 15F.

As shown in the notice, the applying UWB transmitter (FCC ID: HJY-LBUA0ZZKB1) is preinstalled by Lenovo, and no option card is provided for user installation. Therefore, there is no installation instruction provided to customers.

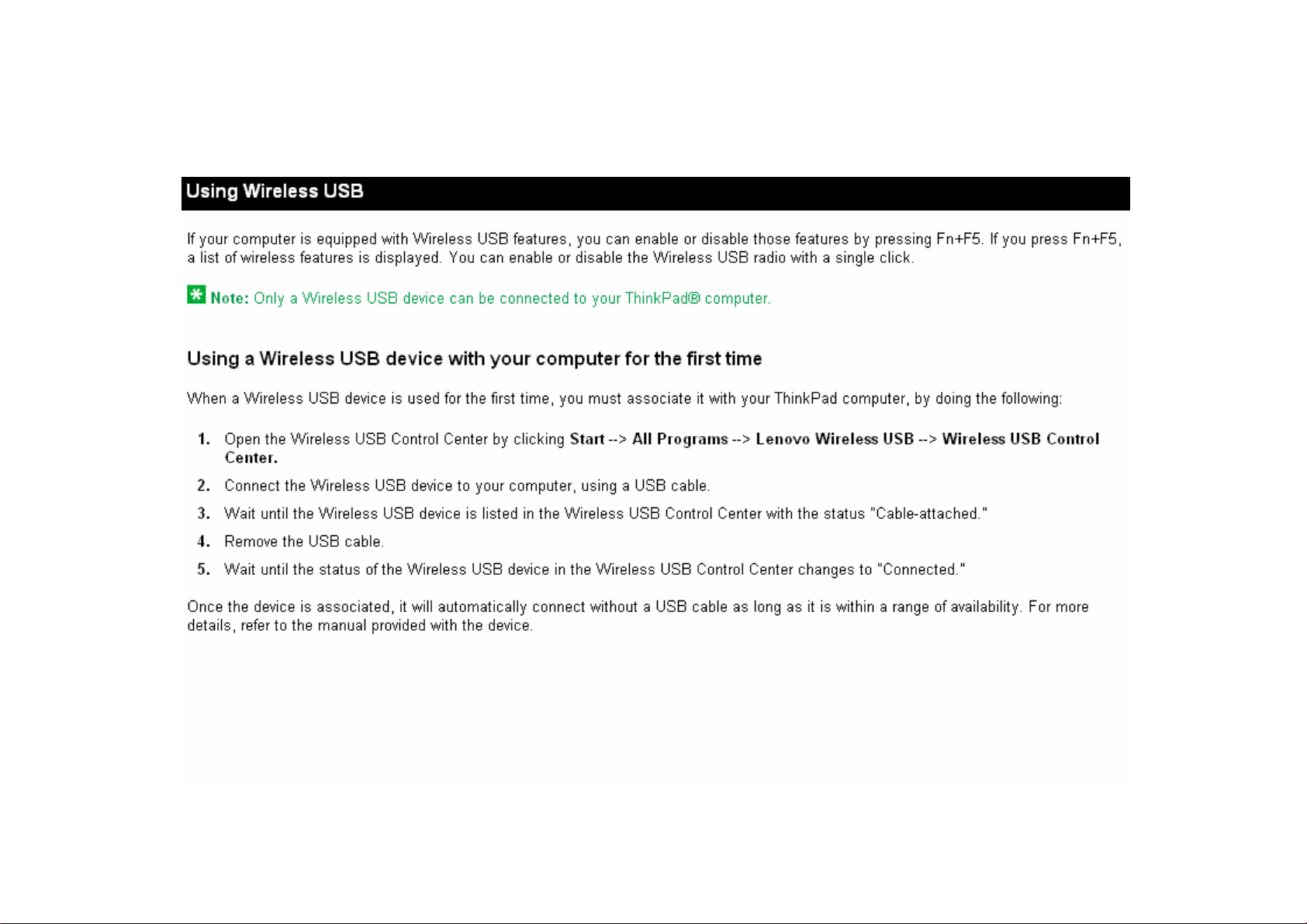

Also electronic user’s guidance referred in the user’s manual is provided associated with the host device and it is indicated on the host’s LCD screen.

ThinkPad® Regulatory Notice

Read first — regulatory information

Please read this document before you use the ThinkPad computer. ThinkPad computer complies with the radio frequency and safety standards of any country or region in which it has been approved for wireless use. You must install and use your computer in strict accordance with the instructions as described hereafter.

If your ThinkPad computer contains a Wireless WAN adapter, be sure to also read ThinkPad Regulatory Notice for Wireless WA N adapter, included with your computer.

Note: You cannot use the Wireless WAN adapter and the Wireless LAN adapter (Models: 4965AG or 4965AGN) simultaneously. If one of the adapters has established the connection to the network, the other will be disconnected automatically. To confirm the status of the network connection, check the power status indicators of your computer. For more information about the power status indicators, see the “Power status indicators” section in Access Help.

Part Number: 42X4211

Veuillez lire ce document avant d’utiliser l’ordinateur ThinkPad. L’ordinateur ThinkPad est conforme aux normes de sécurité et de radiofréquence du pays ou de la région où son utilisation sans fil est agréée. Vous devez installer et utiliser votre ordinateur en respectant scrupuleusement les instructions décrites ci-après.

Si votre ordinateur ThinkPad contient une carte de réseau étendu (WAN) sans fil, veillez à lire également la consigne réglementaire ThinkPad Regulatory Notice for Wireless WAN adapter, fournie avec votre ordinateur.

Remarque: Vous ne pouvez pas utiliser simultanément la carte de réseau étendu sans fil et la carte de réseau local sans fil (Modéles: 4965AG ou 4965AGN). Si l’une de ces cartes a établi la connexion avec le réseau, l’autre carte sera automatiquement déconnectée. Pour confirmer l’état de la connexion réseau, contrôlez les voyants d’état d’alimentation. Pour plus d’informations, reportez-vous à la section “Voyants d’état de l’alimentation” dans l’aide Access.

USA — Federal Communications Commission (FCC)

I. The FCC RF safety requirement

The radiated output power of the Wireless LAN Mini PCI Express Card authorized to use for the your ThinkPad computer is far below the FCC radio frequency exposure limits. Nevertheless, it shall be used in such a manner that the potential for human contact during normal operation is minimized as follows:

Caution: To comply with FCC RF exposure compliance requirements, a separation distance of at least 20 cm (8 inches) must be maintained between the antenna for the integrated Wireless LAN Mini PCI Express Card built into the screen section and all persons. Yo u are not allowed to disable “sleep (standby) mode” for the power management function, if you cannot maintain the sufficient antenna separation (at least 20 cm) in any case the LCD is left opened or closed.

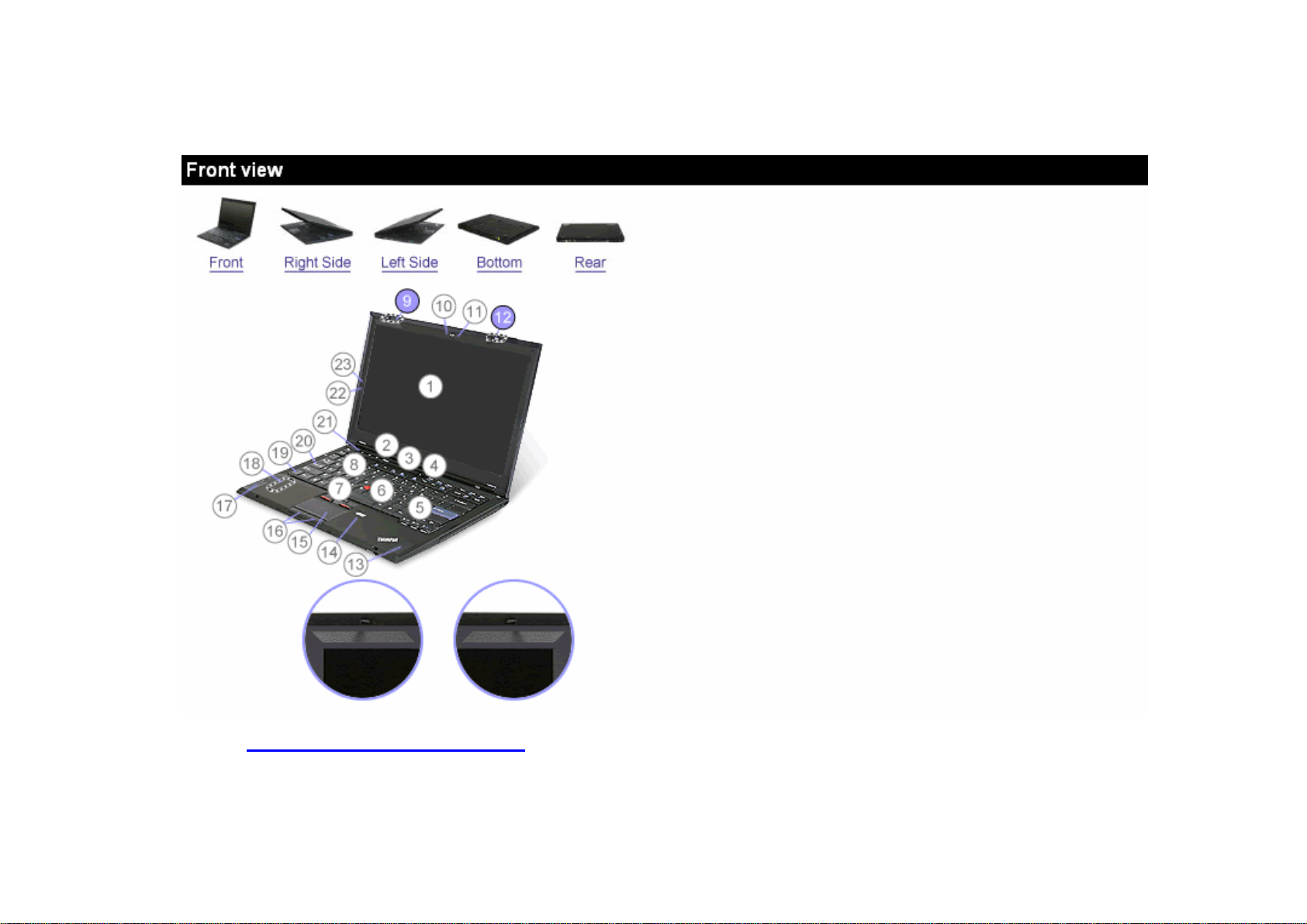

For the location of the antenna, see the ″About your computer″ section in Access Help.

Note: The transmission diversity function is implemented for this product. For WLAN cards (Models: 4965AG and 4965AGN) using Main and Auxiliary antennas for transmission in the IEEE 802.11 a/b/g transmission mode, radio frequency energy is not emitted simultaneously from both Main and Auxiliary antennas. One of the antennas is selected automatically or manually (by users) to have good quality of radiocommunication (transmission diversity function). For the WLAN card (Model: 4965AGN) using MIMO (Multiple In Multiple Out), multiple antennas (Main and Auxiliary) can transmit radio frequency energy simultaneously. Third antenna is also used with the model 4965AGN on some computers, and functions as Receive Only. It does not emit any radio frequency energy.

II. User installable Wireless LAN module

Mini PCI Express Cards:

v FCC ID: PD9LEN4965AG (Model: 4965AG) v FCC ID: PD9LEN4965AGN (Model: 4965AGN)

Wireless LAN Mini PCI Express Cards marketed in the USA and Canada do not support nor function in the extended channels (12ch, 13ch).

i) FCC ID of wireless module: There is no FCC ID for Mini PCI Express Card shown on the enclosure of your ThinkPad computer. Instead you will find an indicator pointing to the location of the FCC ID on the bottom side of your computer. For the location of the FCC ID indicator, see the “Location of the FCC ID and IC Certification number label” section in Access Help. The

FCC ID is affixed on the approved module installed in the Mini PCI Express Card slot. For the location of the slot, see the “PCI Express Mini Card slot for wireless LAN” section in Access Help.

ii) Installation of approved wireless module: If no integrated wireless LAN Mini PCI Express Card has been preinstalled in your ThinkPad computer, you can install one, provided by Lenovo as an option. Plug the wireless card option into the Mini PCI Express Card slot. For the installation procedure, see the ″Installing and replacing the PCI Express Mini Card for wireless LAN connection″ section in Access Help.

Attention: The ThinkPad computers contain an authentication mechanism. If you install an unauthorized wireless LAN Mini PCI Express Card that is not approved for use in your computer, the computer will not start, but only displays an error message and emits beeps.

iii) Radio Frequency interference requirements:

v The devices have been tested and found to comply with the limits for a

Class B digital device pursuant to FCC Part 15 Subpart B. The models 4965AG and 4965AGN underwent the certification process, thus FCC ID PD9LEN4965AG for model 4965AG, and FCC ID PD9LEN4965AGN for model 4965AGN include all compliances of Part 15 Subpart B, C, and E.

v Each device is restricted to indoor use due to its operation in the 5.15 to

5.25 GHz frequency range. FCC requires these products to be used indoors for the frequency range 5.15 to 5.25 GHz to reduce the potential for harmful interference to co-channel Mobile Satellite systems.

v High power radar are allocated as primary users of the 5.25 to 5.35 GHz

and 5.65 to 5.85 GHz bands. These radar stations can cause interference with and/or damage this device.

Preinstalled integrated Bluetooth module

III.

v FCC ID: MCLJ07H081 (Model: J07H081)

FCC ID and installation of the module: If you find the FCC ID

“MCLJ07H081” on the label at the bottom side of your computer, your computer integrates the Bluetooth transmitter module (Model: J07H081). The Bluetooth module is preinstalled by Lenovo, and no option card is provided for user installation. If your card requires replacement, contact the Lenovo Customer Support Center by following the proper steps described in ″Getting help and service″ of the Service and Troubleshooting Guide, shipped with your computer.

ii) The FCC RF safety requirement: The radiated output power of the Bluetooth module is far below the FCC radio frequency exposure limits. Therefore, a 20 cm of separation between the Bluetooth antenna and human body is not required.

For the location of the Bluetooth module “J07H081” and its built-in antenna, see the ″About your computer″ section in Access Help.

iii) Radio Frequency interference requirements: The device has been tested and found to comply with the limits for both a Class B digital device regarding FCC Part 15 Subpart B and an intentional radiator regarding FCC Part 15 Subpart C; then it underwent the certification processes for both rules. Thus the FCC ID MCLJ07H081 of this device includes both certifications of Part 15 Subpart B and C.

IV. Preinstalled integrated Wireless USB module

v FCC ID: HJY-LBUA0ZZKB1 (Model: LBUA0ZZKB1-214)

FCC ID and installation of the module: If you find the FCC ID

“HJY-LBUA0ZZKB1” on the label at the bottom side of your computer, your computer integrates the Wireless USB card (Model: LBUA0ZZKB1-214). The Wireless USB card is preinstalled by Lenovo, and no option card is provided for user installation. If your card requires replacement, contact the Lenovo Customer Support Center by following the proper steps described in ″Getting help and service″ of the Service and Troubleshooting Guide, shipped with your computer.

ii) The FCC RF safety requirement: The standard FCC rule for RF exposure compliance requires a separation distance of at least 20 cm (8 inches) between the integrated Wireless USB antenna and all persons. However the radiated output power of the Wireless USB card authorized to use for your ThinkPad computer is far below the FCC radio frequency exposure limits. Therefore, a 20 cm of separation between the Wireless USB antenna built into the screen section of your computer and human body is not required.

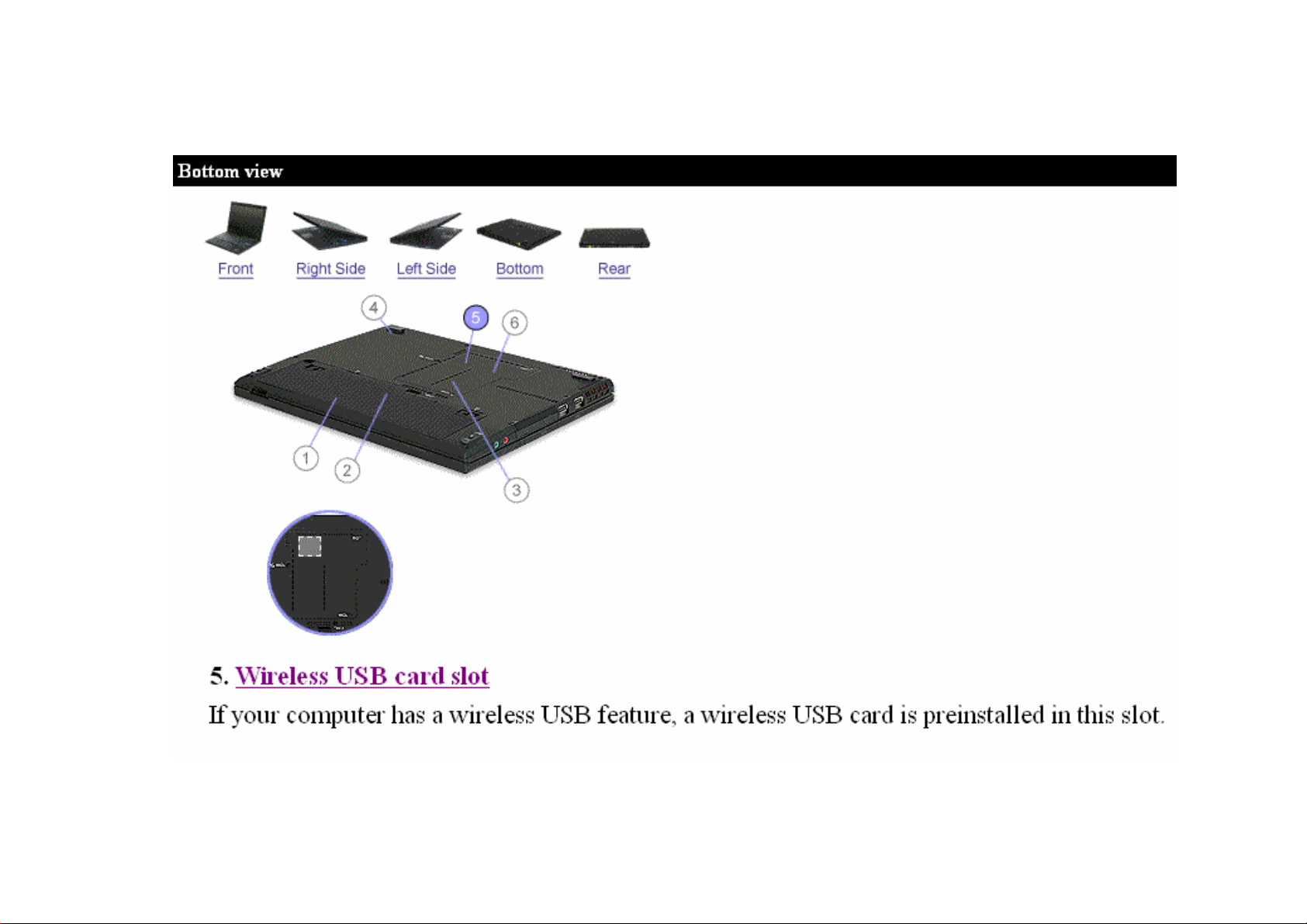

For the location of the antenna, see the ″About your computer″ section in Access Help. For the location of the Wireless USB card “LBUA0ZZKB1-214”, see the ″Wireless USB card slot″ section in Access Help.

iii) Radio Frequency interference requirements: The device has been tested and found to comply with the limits for a Class B digital device regarding FCC Part 15 Subpart B and was subject to DoC. Refer to “Electronic emission notices” on page 9. Also it has been certified as an intentional radiator regarding FCC Part 15 Subpart F under the FCC ID: HJY-LBUA0ZZKB1.

V. Simultaneous use of RF transmitters

Your ThinkPad computer is approved for simultaneous use of the transmitters listed below:

v Wireless LAN adapter (FCC ID: PD9LEN4965AG or PD9LEN4965AGN) v Bluetooth module (FCC ID: MCLJ07H081) v Wireless USB adapter (FCC ID: HJY-LBUA0ZZKB1)
