Page 1

30 November 2018

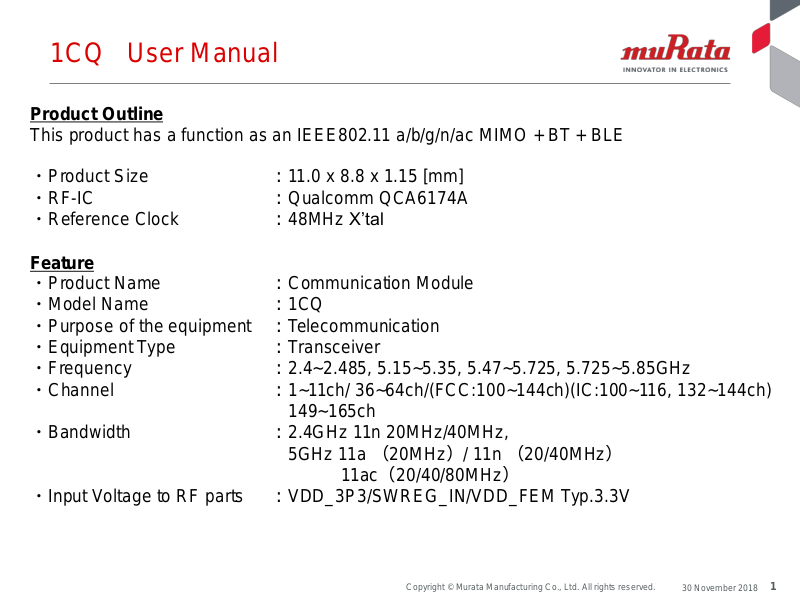

1CQ User Manual

Product Outline

This product has a function as an IEEE802.11 a/b/g/n/ac MIMO + BT + BLE

・Product Size ：11.0 x 8.8 x 1.15 [mm] ・RF-IC ：Qualcomm QCA6174A ・Reference Clock ：48MHz X’tal

Feature

・Product Name ：Communication Module ・Model Name ：1CQ ・Purpose of the equipment ：Telecommunication ・Equipment Type ：Transceiver

・Frequency ：2.4~2.485, 5.15~5.35, 5.47~5.725, 5.725~5.85GHz

・Channel ：1~11ch/ 36~64ch/(FCC:100~144ch)(IC:100~116, 132~144ch)

149~165ch

・Bandwidth ：2.4GHz 11n 20MHz/40MHz,

5GHz 11a （20MHz）/ 11n （20/40MHz）

11ac（20/40/80MHz）

・Input Voltage to RF parts ：VDD_3P3/SWREG_IN/VDD_FEM Typ.3.3V

Page 2

30 November 2018

1CQ User Manual

WLAN

STA

2.4GHz

11b/g/n

HT20

1ch

-11ch

5GHz

11a

HT20

W52/53/56/58

with ch144/142/138

There is Slave DFS test.

DFS(Device without Radar detection capability) No TPC

11n

HT20/40

11ac

VHT20/40/80

BR /EDR / LE

Page 3

Page 4

30 November 2018

Notice

Compliance with FCC requirement 15.407(c)

Data transmission is always initiated by software, which is the passed down through the MAC, through the digital and

analog baseband, and finally to the RF chip. Several special packets are initiated by the MAC. These are the only ways

the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore, the transmitter will be on only while one of the aforementioned packets is being transmitted. In other words, this device automatically discontinue transmission in case of either absence of information to transmit or operational failure.

Frequency Tolerance: ± 20ppm

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1) this device may not cause harmful interference and

2) this device must accept any interference received, including interference that may cause undesired operation of the device.

FCC CAUTION

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s

authority to operate the equipment. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.

Page 5

30 November 2018

Notice

Contains Transmitter Module FCC ID:VPYLB1CQ

Contains FCC ID: VPYLB1CQ

●Please describe the following warning on the final product which contains this module.

※When the product is small, as for these words mentioned above, the posting to a manual is possible.

●Please describe the following warning to the manual.

FCC CAUTION Changes or modifications not expressly approved by the party responsible for compliance could void

the user’s authority to operate the equipment.

This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1) this device may not cause harmful interference and

2) this device must accept any interference received, including interference that may cause undesired

operation of the device.

Page 6

30 November 2018

Notice

Note) Portable equipment : Equipment for which the spaces between human body and antenna are used within 20cm.

Mobile equipment : Equipment used at position in which the spaces between human body and antenna exceeded 20cm.

●When installing it in a portable equipment.

It is necessary to take a SAR test with your set mounting this module. Class II permissive change application is necessary using the SAR report. Please contact Murata.

●When installing it in a mobile equipment. Please describe the following warning to the manual.

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

Compliance with FCC requirement 15.407(c)

Data transmission is always initiated by software, which is the passed down through the MAC, through the digital and

analog baseband, and finally to the RF chip. Several special packets are initiated by the MAC. These are the only ways

the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore, th

transmitter will be on only while one of the aforementioned packets is being transmitted. In other words, this device automatically discontinue transmission in case of either absence of information to transmit or operational failure.

Frequency Tolerance: ± 20ppm
