Page 1
2014/5/29

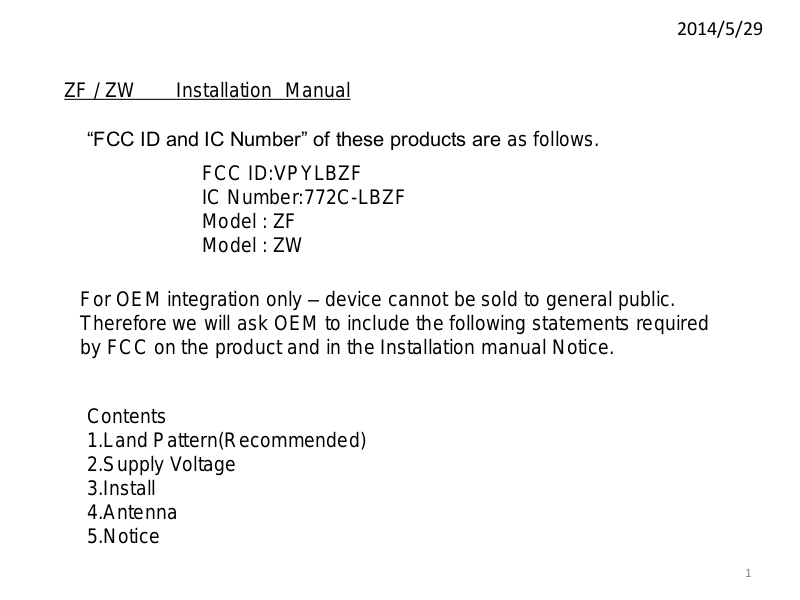

ZF / ZW Installation Manual
“FCC ID and IC Number” of these products are as follows.
FCC ID:VPYLBZF
IC Number:772C-LBZF
Model : ZF
Model : ZW
For OEM integration only – device cannot be sold to general public.
Therefore we will ask OEM to include the following statements required
by FCC on the product and in the Installation manual Notice.
Contents
1.Land Pattern(Recommended)
2.Supply Voltage
3.Install
4.Antenna
5.Notice
1
Page 2
5. Notice
Please describe the following warning on the final product which contains this module.
For FCC
2014/5/29
Contains Transmitter Module FCC ID:VPYLBZF Contains FCC ID:VPYLBZF
This device complies with part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
For IC
Contains Transmitter Module IC: 772C-LBZF
or
or
Contains IC: 772C-LBZF
6
Page 3
For FCC
Please describe the following warning to the manual.
FCC CAUTION
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
This transmitter must not be co-located or operated in conjunction with any other
antenna or transmitter.
When installing it in a mobile equipment
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment and meets the FCC radio frequency (RF) Exposure
Guidelines. This equipment has very low levels of RF energy that it deemed to
comply without maximum permissive exposure evaluation (MPE).
2014/5/29
When installing it in a portable equipment
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment and meets the FCC radio frequency (RF) Exposure
Guidelines. This equipment has very low levels of RF energy that are deemed to
comply without testing of specific absorption ratio (SAR).
Note)
Portable equipment : Equipment for which the spaces between human body and antenna are used within 20cm.
Mobile equipment : Equipment used at position in which the spaces between human body and antenna exceeded 20cm.
7
Page 4
For IC
Please describe the following warning to the manual.
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including
interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux
appareils radio exempts de licence. L'exploitation est autorisée aux deux
conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2)
l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si
le brouillage est susceptible d'en compromettre le fonctionnement.
2014/5/29
8
Page 5
For IC
Please describe the following warning to the manual.
When installing it in a mobile equipment
This equipment complies with IC radiation exposure limits set forth for an
uncontrolled environment and meets RSS-102 of the IC radio frequency (RF)
Exposure rules. This equipment has very low levels of RF energy that it deemed
to comply without maximum permissive exposure evaluation (MPE).
Cet équipement est conforme aux limites d’exposition aux rayonnements
énoncées pour un environnement non contrôlé et respecte les règles d’exposition
aux fréquences radioélectriques (RF) CNR-102 de l’IC. Cet équipement émet une
énergie RF très faible qui est considérée conforme sans évaluation de l’exposition
maximale autorisée.
2014/5/29
9
Page 6
For IC
Please describe the following warning to the manual.
When installing it in a portable equipment
This equipment complies with IC radiation exposure limits set forth for an
uncontrolled environment and meets RSS-102 of the IC radio frequency (RF)
Exposure rules. This equipment should be installed and operated keeping the
radiator at least 20cm or more away from person’s body (※).
Cet équipement est conforme aux limites d’exposition aux rayonnements
énoncées pour un environnement non contrôlé et respecte les règles d’exposition
aux fréquences radioélectriques (RF) CNR-102 de l’IC. Cet équipement doit être
installé et utilisé en gardant une distance de 20 cm ou plus entre le dispositif
rayonnant et le corps [※].
2014/5/29
Note)
Portable equipment : Equipment for which the spaces between human body and antenna are used within 20cm.
Mobile equipment : Equipment used at position in which the spaces between human body and antenna exceeded 20cm.
