Page 1
Preliminary Specification Number :
SHGC300 Multiple Protocol Gateway
Product Data Sheet
（Preliminary）
P.1/16
Model Number: LBAC0ZZ1SU
Feb/27/2018
Confidential
Page 2
Preliminary Specification Number :
P.2/16
Table of contents
1. Product Summary ................................................................................................................ 3
2. Product Specification ........................................................................................................... 3
3. Product Features and Functions ......................................................................................... 4
4. Size of Appearance ............................................................................................................... 5
5. Part Name and Function ..................................................................................................... 7
6. Block Diagram ...................................................................................................................... 8
7. Power Supply ....................................................................................................................... 9
8. Product Label ......................................................................................................................10
9. Rating ..................................................................................................................................11
10. Operating Condition ........................................................................................................11
11. Appearance and Dimension .............................................................................................11
12. Electrical Characteristics ................................................................................................12
Annex A
Certification
For FCC
For ISED
Confidential
Page 3
Preliminary Specification Number :
Product name
LBAC0ZZ1SU
CPU
ARM Coretex-A8 600MHz 32bit RISC processor
ROM
4Gbit NAND
RAM
2Gbit DDR3
WLAN
IEEE 802.11 b/g/n compliant
Specific low power radio
Ethernet
IEEE 802.3 10/100 Base-T
LED indicator
5 LED windows
Button
2 Buttons
System clock
RTC with coin cell battery
Product size
Product weight
250g typ (*3)
Environmental assessment
ROHS directive 2011/65/EU compliant
Safety standard
EN60950 (Plan)
EMC standard
EN301489 (Plan)
FCC Part 15B (Plan)
Wireless RF standard
EN300328 (Plan)
FCC Part 15C (Plan)
UV rating
N/A
IP rating
IP20
Working environment
0 - 60℃, 0 - 90%RH (without condensation)
Storage environment
0 - 60℃, 0 - 90%RH (without condensation)
P.3/16
1. Product Summary
This LBAC0ZZ1SU is the multiple protocol gateway. This product can be enable to receive data from
some sensor units and transfer them to customer’s system by suitable interfaces and protocols.
This LBAC0ZZ1SU is in compliance with NBTC requirements.
2. Product Specification
This specification is applied to LBAC0ZZ1SU gateway solution.
Power supply
USB cable :BJA91003
ARIB STD-T108 compliant
Frequency: 902.5MHz - 927.5MHz
Expected distance: 200m (Best effort: Indoor and No obstruction) (*1)
W:170mm x L:109mm x T:26.5mm typ (*2)
(*1) There is a possibility to see the different value depending on the surrounding
environmental condition, building structure, material and barriers.
Confidential
Page 4
Preliminary Specification Number :
LED
LED Window
Color
1
WLAN ON
Green
2
System enable
Green
3/4
Blink red LED when SubGHz packet is received
Red / Green
5
N/A
Green
6
Blink LED while sensor data is written into SD card
Green
P.4/16
(*2) External antenna and AC adopter are not included
3. Product Features and Functions
LBAC0ZZ1SU product basic feature is shown as below. Supported functions are described in
Section2. Hardware detail specification is defined in Section 3.
3.1 Buttons
There are 2 buttons for LBAC0ZZ1SU.
One button is short and designed for reset purpose and the other button is long and designed for user
configuration.
3.2 LED indicators
There are 5 LEDs for LBAC0ZZ1SU. The LED number is from right side of the product.
All LED light up when power on the product.
3.3 USB
One USB interface is used for data storage and connection to other peripherals.
3.4 micro SD card slot
One micro USB card slot is used for data storage and firmware update.
3.5 Ethernet
Ethernet port is used for Ethernet connection. It complies with IEEE802.3 10/100 Base-T.
Confidential
Page 5
Preliminary Specification Number :

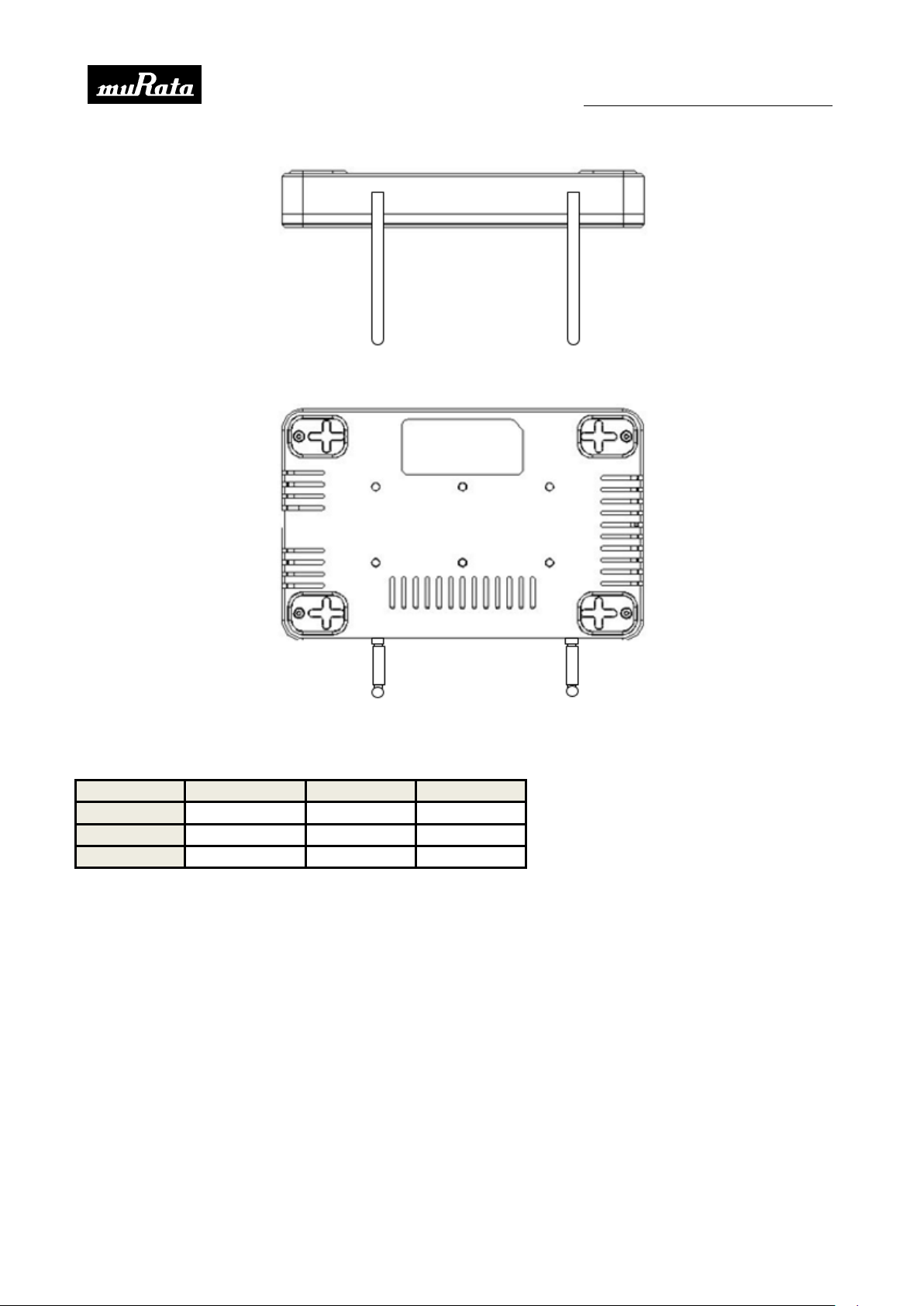

4. Size of Appearance
P.5/16
Confidential
Page 6
Preliminary Specification Number :
Mark
Min.
Typ.
Max.
L
108.8
109.0
109.2
W
169.8
170.0
170.2
T
26.3
26.5
26.7
P.6/16
(Unit: mm)
Confidential
Page 7
Preliminary Specification Number :

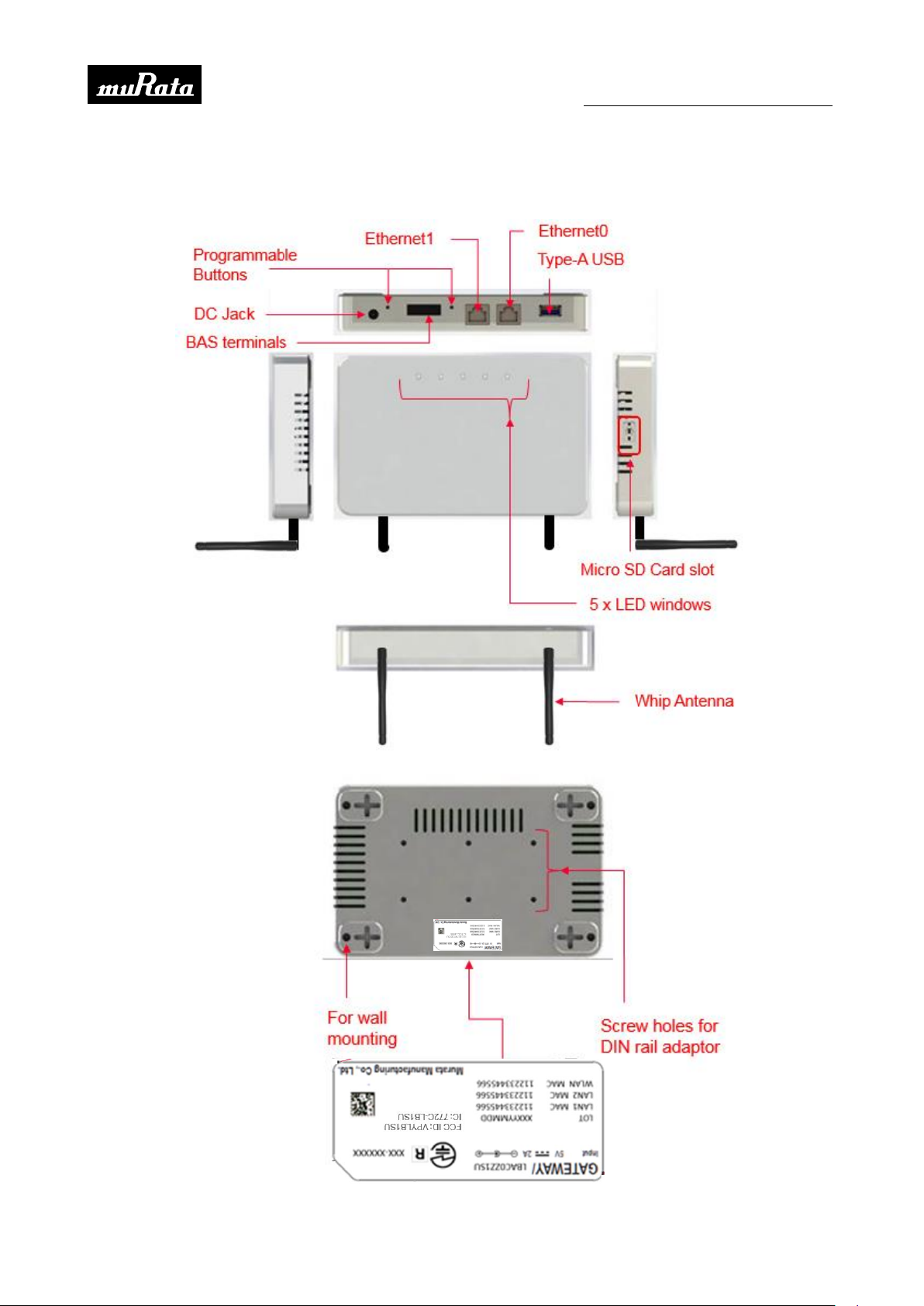

5. Part Name and Function
P.7/16
Confidential
Page 8
Preliminary Specification Number :

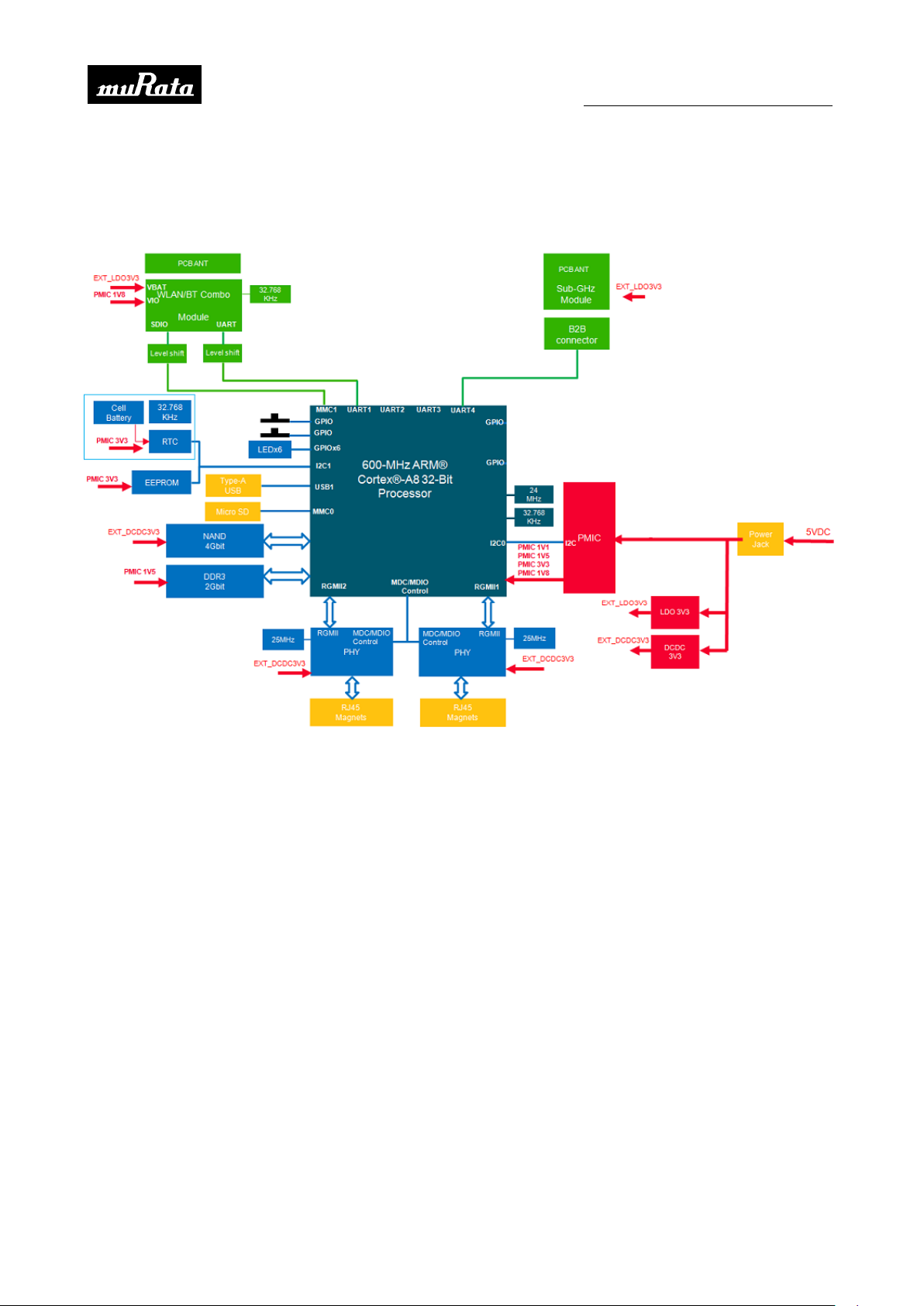

6. Block Diagram
P.8/16
Confidential
Page 9
Preliminary Specification Number :

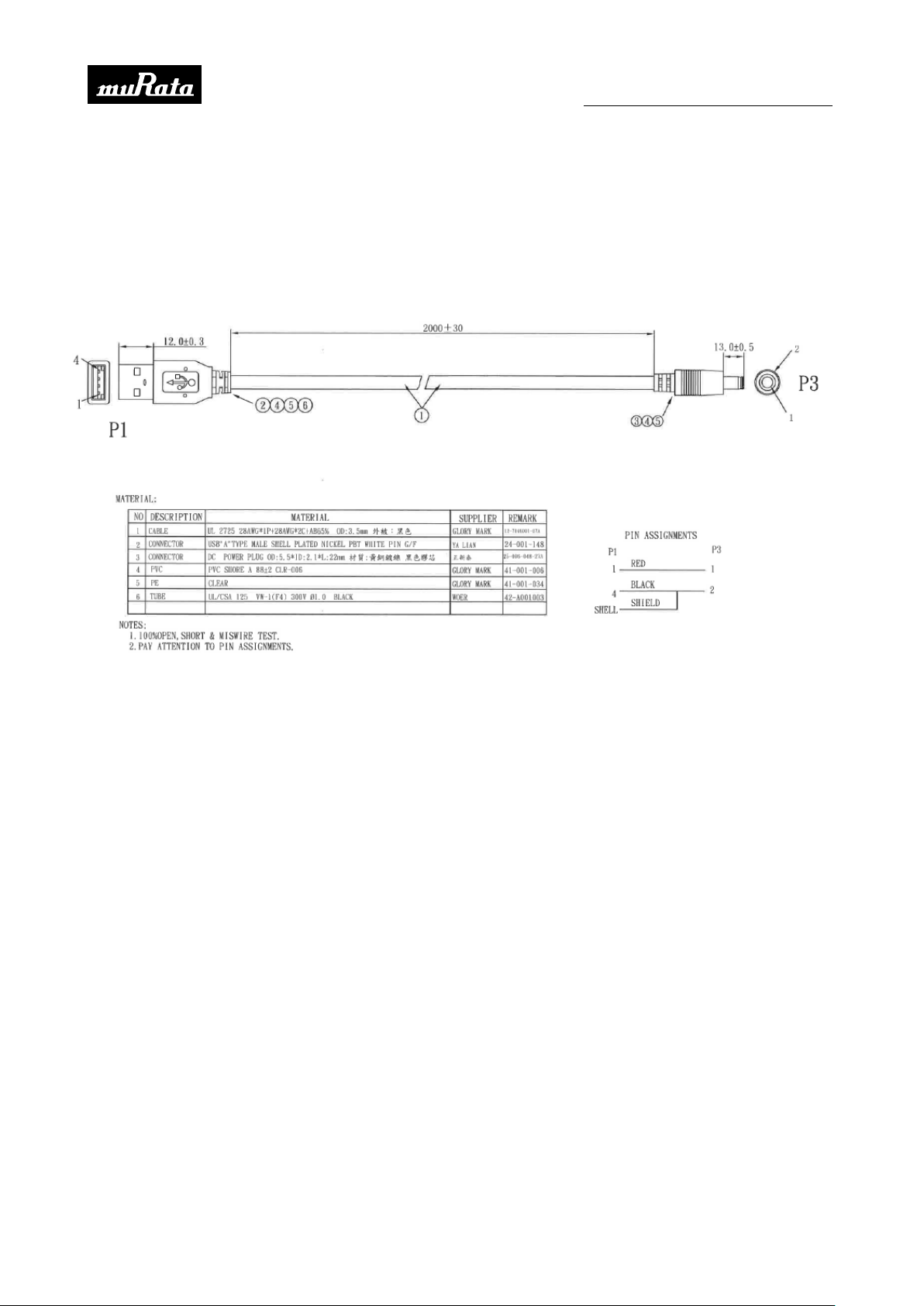

7. Power Supply
The below USB Cable is contained in the gift box.
P.9/16
Confidential
Page 10
Preliminary Specification Number :
No.
Item
Contents to be printed
1
Product name
LBAC0ZZ1SU
2
TELEC certification number
XXX-XXXXXX (TBD)
3
Lot number
LAN1 MAC
LAN2 MAC
WLAN MAC
XXXYYMMDD
12digits individual MAC address
12digits individual MAC address
12digits individual MAC address
4
Certification number for
FCC/IC
Others
FCC ID: VPYLB1SU
IC: 772C-LB1SU
TBD
5
QR code
(For LAN1 MAC)

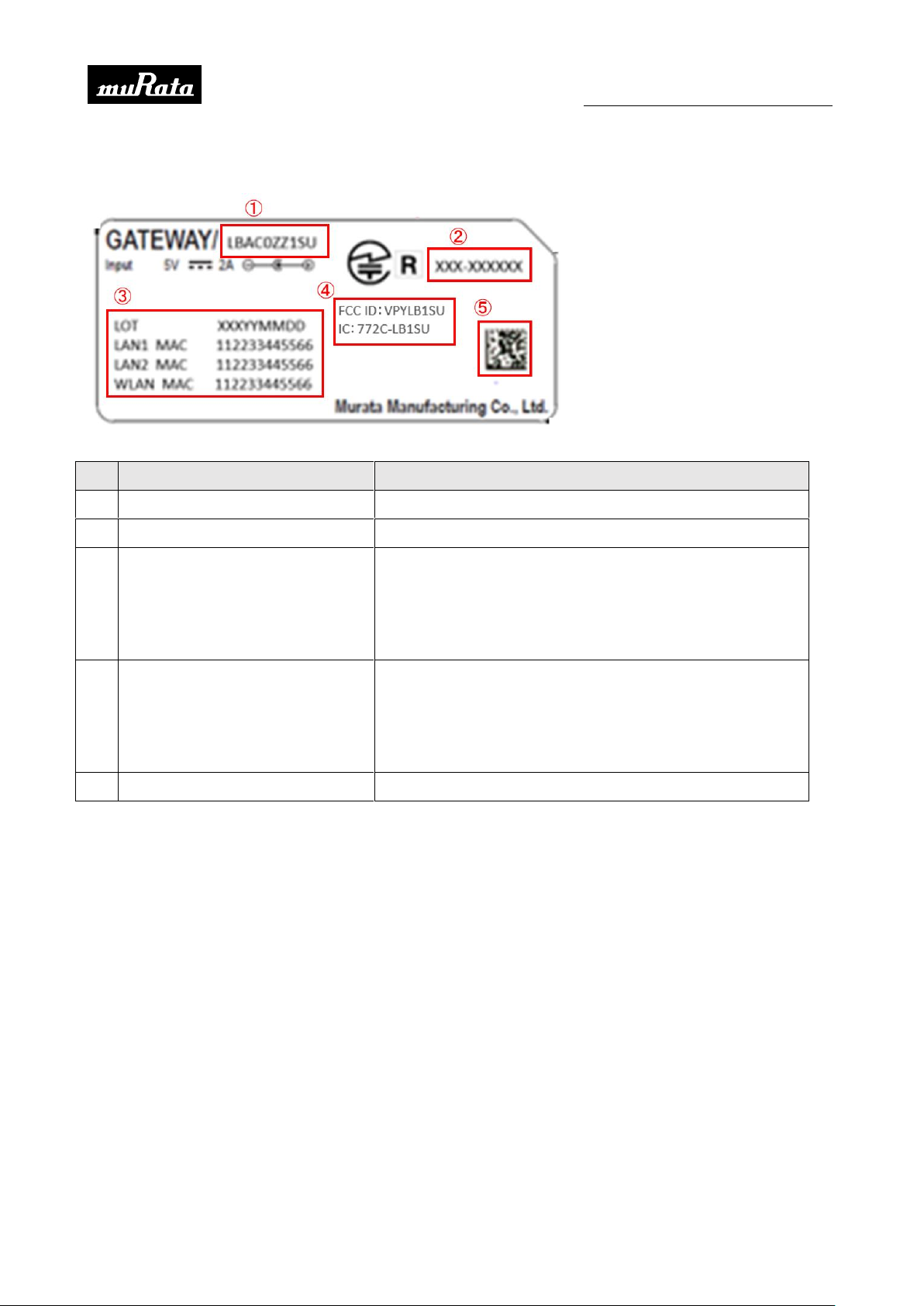

8. Product Label
P.10/16
Confidential
Page 11
Preliminary Specification Number :
Item
Min
Max
Unit
DC input voltage
through DC power jack
-0.3
5.25
V
Input Current
through DC power jack
--
2
A
Storage Temperature
0
60
degC
Storage Relative Humidity
10
90
%RH
Item
Min
Typ
Max
Unit
DC input voltage
through DC power jack
4.75
5
5.25
V
Operating Temperature
0
60
60
degC
Operating Relative Humidity
10
90
90
%RH
Current consumption (*)
0.4
0.85
A
Item
Spec
Appearance
Refer to standard of Product appearance criteria, Package appearance criteria.
Dimension
Satisfy L, W, T size in chapter 4. Size of Dimension
9. Rating
10. Operating Condition
P.11/16
(*) Condition (
- Power supply through DC power jack
- Operating temperature: 25degC
- WLAN: Tx mode
- Murata Sub-G: Non-active
- Ethernet transmission data
with different software the current value may vary
11. Appearance and Dimension
)
Confidential
Page 12
Preliminary Specification Number :
Item
Contents
Specification
IEEE802.11b-2.4GHz
Mode
DSSS/CCK
Channel frequency (spacing)
2412 to 2462MHz (5MHz)
Data rate
1,2,5.5,11Mbps
Tx
Min
Typ
Max
Unit
Power 8
dBm
Spectrum Mask 1st side lobes
-30
dBr
Spectrum Mask 2nd side lobes
-50
dBr
RF carrier suppression
15
dB
Modulation Accuracy
10
35
%
Rx
Min
Typ
Max
Unit
Minimum Input Level (PER≦8%)
-87
-81
dBm
Maximum Input Level (PER≦8%)
-10
dBm
Item
Contents
Specification
IEEE802.11g-2.4GHz
Mode
OFDM
Channel frequency (spacing)
2412 to 2462MHz (5MHz)
Data rate
6,9,12,18,24,36,48,54Mbps
Tx
Min
Typ
Max
Unit
Power
9
dBm
Spectrum Mask at fc +/-11MHz
-20
dBr
Spectrum Mask at fc +/-20MHz
-28
dBr
Spectrum Mask at fc +/-30MHz
-40
dBr
Constellation Error
-25
dB
Rx
Min
Typ
Max
Unit
Minimum Input Level (PER≦10%)
-73
-68
dBm
Maximum Input Level (PER≦10%)
-20
dBm
12. Electrical Characteristics
12.1 RF Characteristics for IEEE802.11b - 2.4GHz
Condition: 25degC, 11Mbps mode unless otherwise specified, measured at antenna feed point
P.12/16
12.2 RF Characteristics for IEEE802.11g - 2.4GHz
Condition: 25degC, 54Mbps mode unless otherwise specified, measured at antenna feed point
Confidential
Page 13
Preliminary Specification Number :
Item
Contents
Specification
IEEE802.11n-2.4GHz
Mode
OFDM
Channel frequency (spacing)
2412 to 2462MHz (5MHz)
Data rate
6.5, 13, 19.5, 26, 39, 52, 58.5, 65Mbps
Tx
Min
Typ
Max
Unit
Power 9
dBm
Spectrum Mask at fc +/-11MHz
-20
dBr
Spectrum Mask at fc +/-20MHz
-28
dBr
Spectrum Mask at fc +/-30MHz
-45
dBr
Constellation Error
-27
dB
Rx
Min
Typ
Max
Unit
Minimum Input Level (PER≦10%)
-71
-66
dBm
Maximum Input Level (PER≦10%)
-20
dBm
Item
Contents
Specification
ARIB STD-T108
Mode
GFSK
Channel frequency (spacing)
902.5 to 927.5MHz (200kHz)
Data rate
100kbps
Tx
Min
Max
Unit
Power (Peak)
-8.0
13.0
dBm e.i.r.p
Frequency Tolerance
20
Ppm
Rx
Min
Max
Unit
Sensitivity (PER≦10%)
-98
dBm
Stand-by Current
9.5
mA
P.13/16
12.3 RF Characteristics for IEEE802.11n - 2.4GHz
Condition: 25degC, 65Mbps (MCS7-HT20MHz) mode unless otherwise specified, measured at
antenna feed point
12.4 RF Characteristics for Murata SubGHz module
Condition: 25degC, measured at antenna feed point
*The setting value differs from country to country.
Confidential
Page 14
Preliminary Specification Number :
P.14/16
Annex A
Certification
For FCC
Model No.: LBAC0ZZ1SU
FCC ID: VPYLB1SU
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
- Name of company that declared conformity: Murata Electronics North America, Inc.
Address: 3079 Premier Parkway, Suite 140, Duluth, GA 30097 USA.
TEL: +1 678 684 2000
FCC CAUTION
Changes or modifications not expressly approved by the party responsible for compliance could void
the user’s authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV technician for help.
Confidential
Page 15
Preliminary Specification Number :
P.15/16
This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment and meets the FCC radio frequency (RF) Exposure Guidelines. This equipment should
be installed and operated keeping the radiator at least 20cm or more away from person’s body.
For ISED
Model No.: LBAC0ZZ1SU
IC: 772C-LB1SU
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science
and Economic
Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions:
1. This device may not cause interference.
2. This device must accept any interference, including interference that may cause undesired
operation of the device.
L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR
d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio
exempts de licence. L’exploitation est autorisée aux deux conditions suivantes :
1. L’appareil ne doit pas produire de brouillage;
2. L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible
d’en compromettre le fonctionnement.
This radio transmitter (772C-LB1SU) has been approved by Innovation, Science and Economic
Development Canada to operate with the antenna types listed below, with the maximum permissible
Confidential
Page 16
Preliminary Specification Number :
Antenna type
Gain
Impedance
Whip antenna
2.0dBi
50 ohm
Type d’antenne
Gain
l'impédance
Antenne fouet
2.0dBi
50 ohm
P.16/16
gain indicated.
Antenna types not included in this list that have a gain greater than the maximum gain indicated
for any type listed are strictly prohibited for use with this device.
Le présent émetteur radio (ISED Certification Number) a été approuvé par Innovation, Sciences et
Développement économique Canada pour fonctionner avec les types d'antenne énumérés ci‑dessous
et ayant un gain admissible maximal. Les types d'antenne non inclus dans cette liste, et dont le gain
est supérieur au gain maximal indiqué pour tout type figurant sur la liste, sont strictement interdits
pour l'exploitation de l'émetteur.
This equipment complies with ISED radiation exposure limits set forth for an uncontrolled
environment and meets RSS-102 of the ISED radio frequency (RF) Exposure rules. This equipment
should be installed and operated keeping the radiator at least 20cm or more away from person’s
body.
Cet équipement est conforme aux limites d’exposition aux rayonnements énoncées pour un
environnement non contrôlé et respecte les règles d’exposition aux fréquences radioélectriques (RF)
CNR-102 de l’ISDE. Cet équipement doit être installé et utilisé en gardant une distance de 20 cm ou
plus entre le radiateur et le corps humain.
Confidential
Loading...
