Murata LB1VY User Manual

1

18 December 2019

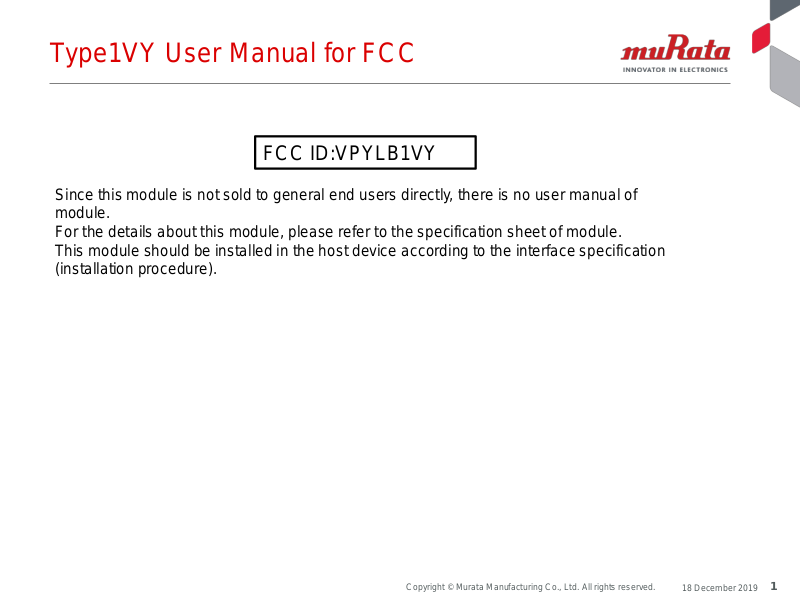

Type1VY User Manual for FCC

Since this module is not sold to general end users directly, there is no user manual of

module. For the details about this module, please refer to the specification sheet of module. This module should be installed in the host device according to the interface specification (installation procedure).

FCC ID:VPYLB1VY

2

18 December 2019

Type1VY User Manual for FCC

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This device complies with below part 15 of FCC Rules.

Part 15 Subpart C

Part 15 Subpart E

The modular transmitter is only FCC authorized for the specific rule parts (i.e., FCC transmitter rules) listed on the grant, and the host product manufacturer is responsible for compliance to any other FCC rules that apply to the host not covered by the modular transmitter grant of certification.

The final host product still requires Part 15 Subpart B compliance testing with the modular transmitter installed.

This module designed for mounting inside of the end product by us professionally. Therefore, it complies with the antenna and transmission system requirements of §15.203.

Since there is no space which indicates FCC ID on this module, FCC ID is indicated in a manual. If the FCC ID is not visible when the module is installed inside another device, then the module is installed must also display a label referring to the enclosed module.

3

18 December 2019

Type1VY User Manual for FCC

Antenna Port Antenna model Name Antenna Type Antenna Gain

Chain0 M-d [2.4GHz] Dual Monopole antenna +0.93 dBi

[5GHz] Dual Monopole antenna +1.04 dBi

Chain1 M-d [2.4GHz] Dual Monopole antenna +0.93 dBi

[5GHz] Dual Monopole antenna +1.04 dBi

M-2 [2.4GHz] Monopole antenna +1.98 dBi

S-2 [2.4GHz] Slot antenna +1.97 dBi S-5 [5GHz] Slot antenna +1.98 dBi

4

18 December 2019

Type1VY User Manual for FCC

This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.

Compliance with FCC requirement 15.407(c) Data transmission is always initiated by software, which is the passed down through the MAC, through the digital and analog baseband, and finally to the RF chip. Several special packets are initiated by the MAC. These are the only ways the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore, the transmitter will be on only while one of the aforementioned packets is being transmitted. In other words, this device automatically discontinue transmission in case of either absence of information to transmit or operational failure.

Frequency Tolerance: ±20 ppm

●The following statements must be described on the user manual of the host device

of this module;

FCC CAUTION Changes or modifications not expressly approved by the party responsible for compliance

could void the user’s authority to operate the equipment.

*If it is difficult to describe this statement on the host product due to the size, please describe in the User's manual.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

or

Contains Transmitter Module FCC ID:VPYLB1VY Contains FCC ID: VPYLB1VY

5

18 December 2019

Type1VY User Manual for FCC

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines. This equipment should be installed and operated keeping the radiator at least 20cm or mor

e

away from person’s body.

●When installing it in a mobile equipment. Please describe the following warning to the manual.

6

18 December 2019

Type1VY User Manual for FCC

Note) Portable equipment : Equipment for which the spaces between human body and antenna are used within 20cm. Mobile equipment : Equipment used at position in which the spaces between human body and antenna exceeded 20cm.

●When installing it in a portable equipment. Please describe the following warning to the manual.

It is necessary to take a SAR test with your set mounting this module (except to use only Bluetooth V4.2(BDR/EDR/LE)). Class II permissive change application is necessary using the SAR report. Please contact Murata.

The available scientific evidence does not show that any health problems are associated with using low power wireless devices. There is no proof, however, that these low power wireless devices are absolutely safe. Low power Wireless devices emit low levels of radio frequency energy (RF) in the microwave range while being used. Whereas high levels of RF can produce health effects (by heating tissue), exposure of low-level RF that does not produce heating effects causes no known adverse health effects. Many studies of low-level RF exposures have not found any biological effects. Some studies have suggested that some biological effects might occur, but such findings have not been confirmed by additional research. Type1VY has been tested and found to comply with FCC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines.
