Murata LB1MW User Manual

1

Copyright © Murata Manufacturing Co., Ltd. All rights reserved.

12 September 2017

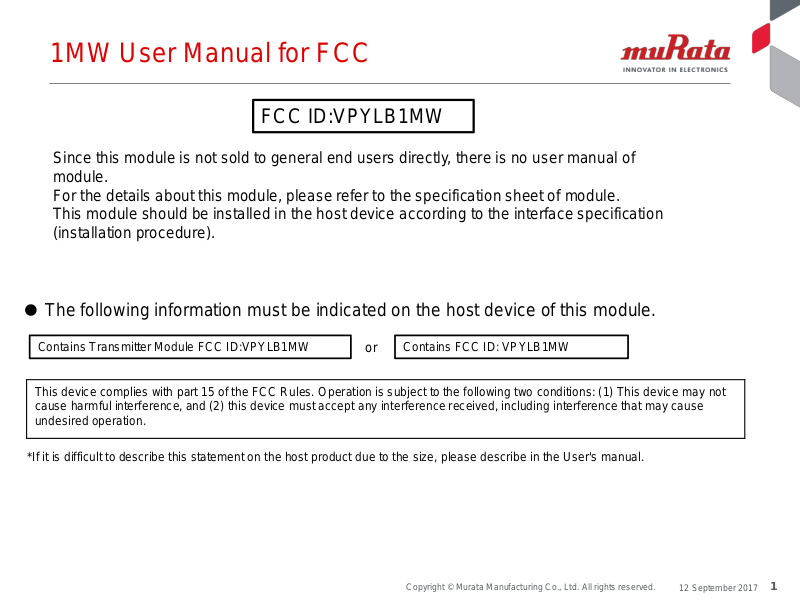

1MW User Manual for FCC

*If it is difficult to describe this statement on the host product due to the size, please describe in the User's manual.

or

Contains Transmitter Module FCC ID:VPYLB1MW Contains FCC ID: VPYLB1MW

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any interference received, including interference that may cause
undesired operation.

Since this module is not sold to general end users directly, there is no user manual of
module.

For the details about this module, please refer to the specification sheet of module.

This module should be installed in the host device according to the interface specification
(installation procedure).

● The following information must be indicated on the host device of this module.

FCC ID:VPYLB1MW

2

Copyright © Murata Manufacturing Co., Ltd. All rights reserved.

12 September 2017

1MW User Manual for FCC

This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.

Compliance with FCC requirement 15.407(c)
Data transmission is always initiated by software, which is the passed down through the MAC, through the digital
and analog baseband, and finally to the RF chip. Several special packets are initiated by the MAC. These are the
only ways the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the
packet. Therefore, the transmitter will be on only while one of the aforementioned packets is being transmitted. In
other words, this device automatically discontinue transmission in case of either absence of information to transmit
or operational failure.

Frequency Tolerance: ±20 ppm

●The following statements must be described on the user manual of the host device

of this module;

FCC CAUTION
Changes or modifications not expressly approved by the party responsible for compliance

could void the user’s authority to operate the equipment.
