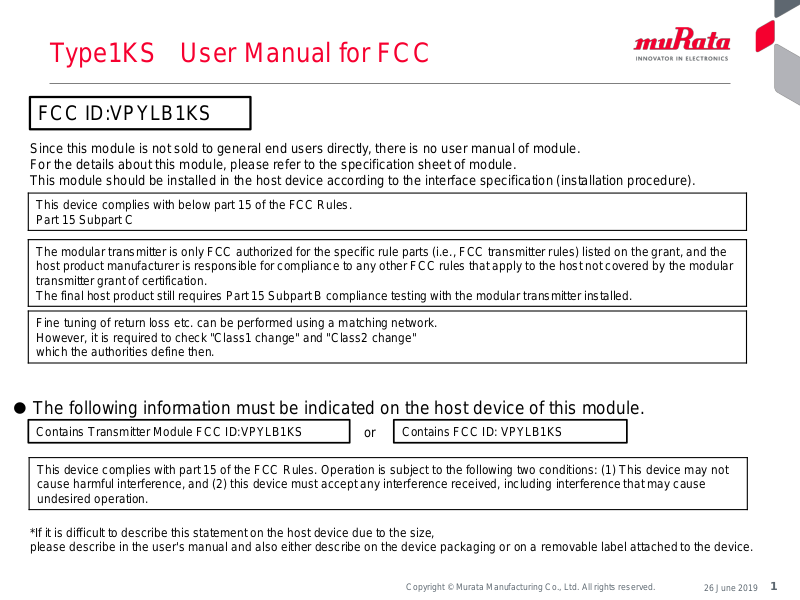

Type1KS User Manual for FCC

or

Contains Transmitter Module FCC ID:VPYLB1KS Contains FCC ID: VPYLB1KS

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any interference received, including interference that may cause
undesired operation.

● The following information must be indicated on the host device of this module.

FCC ID:VPYLB1KS

Since this module is not sold to general end users directly, there is no user manual of module.
For the details about this module, please refer to the specification sheet of module.
This module should be installed in the host device according to the interface specification (installation procedure).

*If it is difficult to describe this statement on the host device due to the size,
please describe in the user's manual and also either describe on the device packaging or on a removable label attached to the device.

This device complies with below part 15 of the FCC Rules.
Part 15 Subpart C

The modular transmitter is only FCC authorized for the specific rule parts (i.e., FCC transmitter rules) listed on the grant, and the
host product manufacturer is responsible for compliance to any other FCC rules that apply to the host not covered by the modular
transmitter grant of certification.
The final host product still requires Part 15 Subpart B compliance testing with the modular transmitter installed.

Fine tuning of return loss etc. can be performed using a matching network.
However, it is required to check "Class1 change" and "Class2 change"
which the authorities define then.

2

Copyright © Murata Manufacturing Co., Ltd. All rights reserved.

26 June 2019

1. Notice

●The following statements must be described on the user manual of
the host device of this module;

FCC CAUTION
Changes or modifications not expressly approved by the party responsible for compliance

could void the user’s authority to operate the equipment.

This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio
frequency (RF) Exposure Guidelines. This equipment should be installed and operated keeping the radiator at least 20cm or mor

e

away from person’s body.

When installing it in a mobile equipment.

When installing it in a portable equipment.

It is necessary to take a SAR test with your set mounting this module.
Class II permissive change application is necessary using the SAR report.
Please contact Murata.

Note)
Portable equipment : Equipment for which the spaces between human body and antenna are used within 20cm.
Mobile equipment : Equipment used at position in which the spaces between human body and antenna exceeded 20cm.
