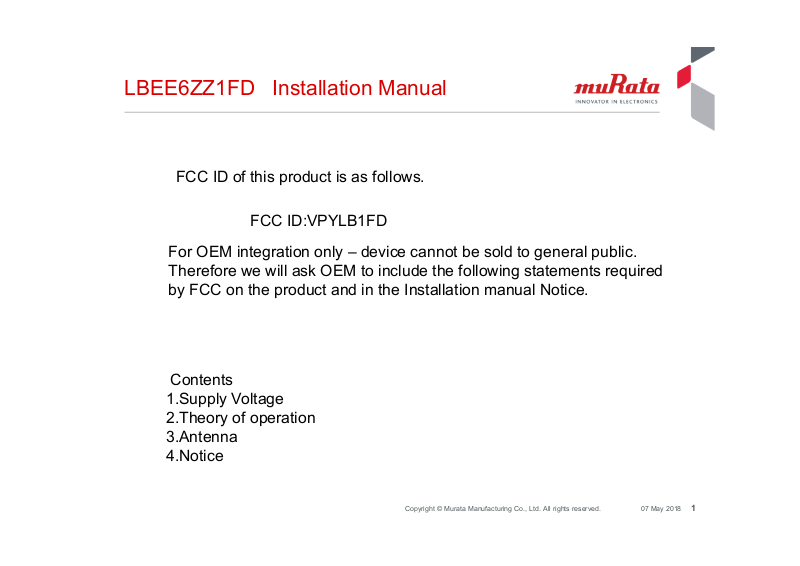

Murata LB1FD User Manual
LBEE6ZZ1FD Installation Manual
FCC ID of this product is as follows.
FCC ID:VPYLB1FD
For OEM integration only – device cannot be sold to general public.
Therefore we will ask OEM to include the following statements required
by FCC on the product and in the Installation manual Notice.
Contents
1.Supply Voltage
2.Theory of operation
3.Antenna
4.Notice
Copyright © Murata Manufacturing Co., Ltd. All rights reserved.
07 May 2018
1
1.Supply Voltage
min. typ. max. unit
Specification Temperature Range -40 +25 +85
VDD 3.2 3.6 4.5 V
Specification Voltage
VIO 1.62 1.8or3.3 3.63
deg.C
V
Copyright © Murata Manufacturing Co., Ltd. All rights reserved.
07 May 2018
2
2. Theory of Operation
Frequency of operation Scan Ad-hoc mode
2.4GHz 11b/g/n (HT20) 2412-2462MHz Active Yes
11a/n (HT20) , 11ac(VHT20) 5180-5240MHz Active Yes
W52
W53
W56
W58
Compliance with FCC requirement 15.407(c)
Data transmission is always initiated by software, which is the passed down through the MAC, through the digital and
analog baseband, and finally to the RF chip. Several special packets are initiated by the MAC. These are the only ways
the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore,
the transmitter will be on only while one of the aforementioned packets is being transmitted. In other words, this device
automatically discontinue transmission in case of either absence of information to transmit or operational failure.
11n (HT40) , 11ac(VHT40) 5190-5230MHz Active Yes
11ac(VHT80) 5210MHz Active Yes
11a/n (HT20) , 11ac(VHT20) 5260-5320MHz Passive No
11n (HT40) , 11ac(VHT40) 5270-5310MHz Passive No
11ac(VHT80) 5290MHz Passive No
11a/n (HT20) , 11ac(VHT20) 5500-5720MHz Passive No
11n (HT40) , 11ac(VHT40) 5510-5710MHz Passive No
11ac(VHT80) 5530-5690MHz Passive No
11a/n (HT20) , 11ac(VHT20) 5745-5825MHz Active Yes
11n (HT40) , 11ac(VHT40) 5755-5795MHz Active Yes
11ac(VHT80) 5775MHz Active Yes
Frequency Tolerance: ± 20ppm
End users can not modify the software because F/W & driver are installed in device.
Copyright © Murata Manufacturing Co., Ltd. All rights reserved.
07 May 2018
3
