Murata LB1ES Users Manual

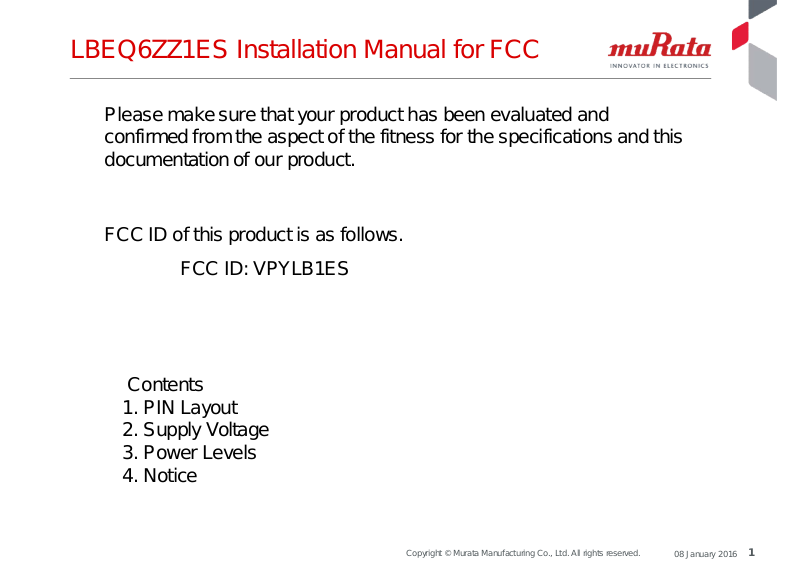

LBEQ6ZZ1ES Installation Manual for FCC
Please make sure that your product has been evaluated and
confirmed from the aspect of the fitness for the specifications and this
documentation of our product.
FCC ID of this product is as follows.
FCC ID: VPYLB1ES
Contents
1. PIN Layout
2. Supply Voltage
3. Power Levels
4. Notice
Copyright © Murata Manufacturing Co., Ltd. All rights reserved.
08 January 2016
1
1. PIN Layout
<Top View>
No. PIN NAME No. PIN NAME No. PIN NAME
1 GND 21 PCM_SYNC 41 NC
M
D123
1ESxxx
123456789ABCDE
Model:LBEQ6ZZ1ES
FCC ID:VPYLB1ES
IC:772C-LB1ES
<Bottom View>
2 GND 22 GND 42 GND
3 GND 23 SD_CLK 43 GPIO2
4 NC 24 SD_CMD 44 GPIO3
5 NC 25 SD_D0 45 GND
6 NC 26 SD_D1 46 GND
7 GPIO0 27 SD_D2 47 GND
8 TCK 28 SD_D3 48 NC
9 TMS 29 GND 49 GND
10 TDI 30 GND 50 GND
11 TDO 31 VBAT 51 GND
12 GPIO1 32 GND 52 GND
13 GND 33 PDn 53 GND
14 NC 34 UART_TX 54 GND
15 GND 35 UART_RX 55 GND
16 VIO 36 UART_CTS 56 GND
17 GND 37 UART_RTS 57 ANT
18 PCM_IN 38 NC 58 GND
19 PCM_OUT 39 GND
20 PCM_CLK 40 NC
Copyright © Murata Manufacturing Co., Ltd. All rights reserved.
08 January 2016
2
2. Supply Voltage
min. typ. max. unit
Operating Temperature -40 25 85 deg.C
Supply Voltage
VBAT 3.0 3.3 3.6 V
Copyright © Murata Manufacturing Co., Ltd. All rights reserved.
08 January 2016
3
