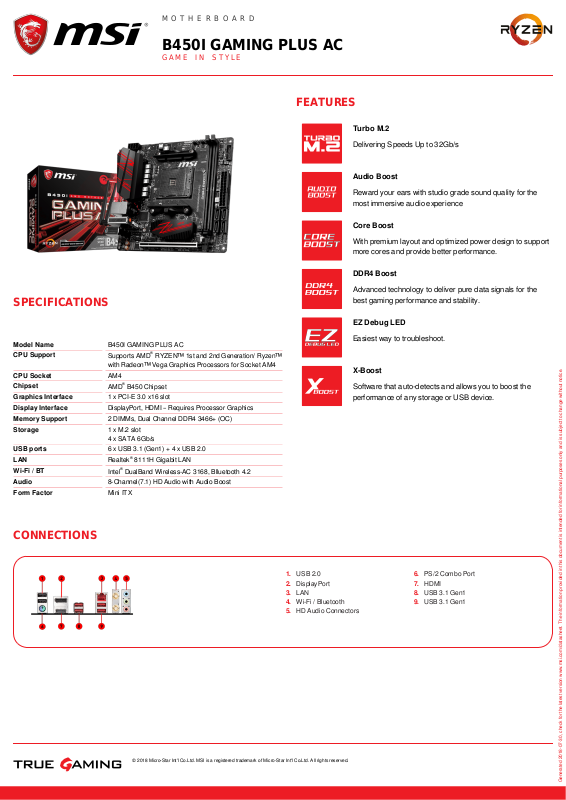

MSI B450I Gaming Plus AC Service Manual

SPECIFICATIONS

MOTHERBOARD

B450I GAMING PLUS AC

GAME IN STYLE

FEATURES

Turbo M.2

Delivering Speeds Up to 32Gb/s

Audio Boost

Reward your ears with studio grade sound quality for the most immersive audio experience

Core Boost

With premium layout and optimized power design to support more cores and provide better performance.

DDR4 Boost

Advanced technology to deliver pure data signals for the best gaming performance and stability.

Model Name B450I GAMING PLUS AC

CPU Support

CPU Socket AM4

Chipset

Graphics Interface 1 x PCI-E 3.0 x16 slot

Display Interface DisplayPort, HDMI – Requires Processor Graphics

Memory Support 2 DIMMs, Dual Channel DDR4 3466+ (OC)

Storage 1 x M.2 slot

USB ports 6 x USB 3.1 (Gen1) + 4 x USB 2.0

LAN

Wi-Fi / BT

Audio 8-Channel(7.1) HD Audio with Audio Boost

Form Factor Mini ITX

Supports AMD® RYZEN™ 1st and 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics Processors for Socket AM4

AMD® B450 Chipset

4 x SATA 6Gb/s

Realtek® 8111H Gigabit LAN

Intel® DualBand Wireless-AC 3168, Blluetooth 4.2

CONNECTIONS

EZ Debug LED

Easiest way to troubleshoot.

X-Boost

Software that auto-detects and allows you to boost the performance of any storage or USB device.

USB 2.01. DisplayPort2. LAN3. Wi-Fi / Bluetooth4. HD Audio Connectors5.

PS/2 Combo Port6. HDMI7. USB 3.1 Gen18. USB 3.1 Gen19.

Generated 2018-07-30, check for the latest version www.msi.com/datasheet. The information provided in this document is intended for informational purposes only and is subject to change without notice.
