Motorola MBP161TIMER, MBP161TIMER-2 User Manual

User’s Guide

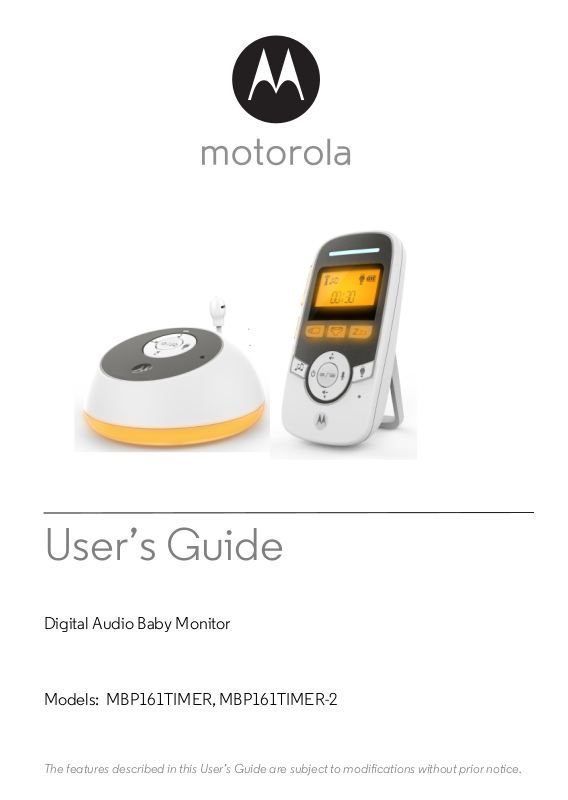

Digital Audio Baby Monitor

Models: MBP161TIMER, MBP161TIMER-2

The features described in this User’s Guide are subject to modifications without prior notice.

Welcome...

to your new Motorola Digital Audio Baby Monitor!

Thank you for purchasing the Digital Audio Baby Monitor. Now you can hear your baby sleeping in another room. The Digital Audio Baby Monitor also comes with a baby care timer that can help you remember important babycare tasks or maintain your baby's feeding, diaper change and napping schedule when he or she is with other caregivers

Please retain your original dated sales receipt for your records. For warranty service of your Motorola product, you will need to provide a copy of your dated sales receipt to confirm warranty status. Registration is not required for warranty coverage.

For product-related questions, please call:

US and Canada 1-888-331-3383

Email: support@motorolamonintors.com

This User's Guide provides you with all the information you need to get the most from your product.

Before you use the digital audio baby monitor, we recommend that you insert and fully charge the battery in the parent unit, so that it continues to work if you disconnect it from the electrical outlet to carry it to another location. Please read the Safety Instructions on page 7 before you install the units.

Got everything?

• 1 x Parent unit with desktop stand

• 1 x Baby unit

• 1 x Rechargeable Ni-MH battery pack for the Parent unit

• 1 x Battery door for Parent unit

• 1 x Power adapter for Parent unit

• 1 x Power adapter for Baby unit

In packs with multi baby units, you will find one or more additional baby units with power adapters.

Overview of the Parent Unit

4 5

1. Sound Level Indicator

2. LCD Displ ay

3. Timer Buttons

4. Control Key Panel

UP / VOLUME + Press to increase speaker volume. While in a menu, press to scroll up. DOWN / VOLUME Press to decrease speaker volume. While in a menu, press to scroll down. POWER ON/OFF Press and hold to power on or off. Press to turn the screen on or off. MENU/SELECT Press to enter the menu. While in a menu, press to choose an option, or save a setting.

TALK Press and hold to talk to the baby unit.

5. Night Light Press to turn nightlight on or off.

6. Microphone

7. Lullaby

Press to start or stop lullaby playback.

8. Power jack

9. Speaker

10. Battery compartment cover

11. Desktop Stand

Parent Unit display icons

Connection status

- Displays when the parent unit is linked to the baby unit.

- Flashes when the link between the baby unit and the parent unit is lost or the parent unit is out of ra nge of the baby unit.

Battery status

scrolls when battery is charging.

- displays when battery is fully charged.

displays when battery is low and needs charging.

- displays when battery is empty and needs charging.

Sound Alert

- Displays when sound alert is ON.

- Flashes when sound alert is triggered.

Vol ume off

- Displays when speaker volume is turned off.

Nightlight

- Displays when nightlight is ON.

Lullaby

- Displays when lullaby is playing.

Overview of the Baby Unit

1. Tem p er at ur e S en so r

2. Speaker

3. Power jack

4. Power/Link indicator

On steadily when the baby unit is powered on and linked to the parent unit. Off when the baby unit is powered off. Flashes when the baby unit is out of range of the parent unit.

5. Control Key Panel UP / VOLUME + Press to increase speaker volume. DOWN / VOLUME Press to decrease speaker volume. POWER/ LULLABY Press and hold to power the baby unit on or off. In idle mode: Press to enter lullaby

menu. In lullaby menu: Press to play or select lullaby. PLAY/STOP Press to start or stop lullaby playback. NIGHT LIGHT Press to turn nightlight on or off.

6. Microphone

Important guidelines for installing your digital audio baby monitor

• To use your baby unit and parent unit together, you must be able to establish a radio link

between them, and the range will be affected by environmental conditions.

• Any large metal object, like a refrigerator, a mirror, a filing cabinet, a metallic door or

reinforced concrete, between the baby unit and parent unit may block the radio signal.

• The signal strength may also be reduced by other solid structures, like walls, or by radio

or electrical equipment, such as TVs, computers, cordless or mobile phones, fluorescent lights or dimmer switches.

• If the signal is poor, try moving the parent unit and/or the baby unit to different positions

in the rooms.

Table of contents

1. Safety Instructions..................................................................................... 7

2. Getting Started........................................................................................10

2.1 Baby unit power supply............................................................................. 10

2.2 Parent unit battery installation and power supply.................................... 11

2.3 Belt clip/stand on parent unit.................................................................... 12

3. Using Your Digital Audio Baby Monitor..................................................13

3.1 Power on or off.......................................................................................... 13

3.2 Speaker volume ........................................................................................ 13

3.3 Nightlight...................................................................................................14

3.4 Timers........................................................................................................ 14

3.5 Lullaby ....................................................................................................... 17

3.6 Select display language for the parent unit.............................................. 17

3.7 Turn sound alert on or off.......................................................................... 17

3.8 Talk to the baby unit.................................................................................. 18

3.9 Reset settings to default............................................................................ 18

4. Disposal of the Device (Environment)....................................................19

5. Cleaning .................................................................................................. 20

6. Troubleshooting......................................................................................21

7. General Information ................................................................................23

8. Technical Specifications ......................................................................... 28

6 Table of contents

1. Safety Instructions

WARNING:

Strangulation Hazard. Children have STRANGLED in cords. Keep this cord out of the reach of children (more than 3ft (1m) away). Never use extension cords with AC Adapters. Only use the AC Adapters provided.

ENGLISH

Safety Instructions 7

BABY MONITOR SET UP & USE:

• Determine a location for the digital audio baby monitor that will provide the best audio reception of your baby in his/her crib.

• Place the Baby Unit on a flat surface, such as a dresser, bureau or shelf, or mount the Unit on a wall securely using the keyhole slots under the stand.

• NEVER place the Baby Unit or cords within the crib.

WARNING

This Digital Audio Baby Monitor is compliant with all relevant standards regarding electromagnetic fields and is, when handled as described in the User's Guide, safe to use. Therefore, always read the instructions in this User's Guide carefully before using the device.

• Adult assembly is required. Keep small parts away from children when assembling.

• This product is not a toy. Do not allow children to play with it.

• This Digital Audio Baby Monitor is not a substitute for responsible adult supervision.

• Keep this user's guide for future reference.

• Keep the cords out of reach of children.

• Do not cover the Digital Audio Baby Monitor with a towel or blanket.

• Test this monitor and all its functions so that you are familiar with it prior to actual use.

• Do not use the Digital Audio Baby Monitor in damp areas or close to water.

• Do not install the Digital Audio Baby Monitor in extreme cold or heat, direct sunlight, or close to a heat source.

• Only use the chargers and power adapters provided. Do not use other chargers or power adapters as this may damage the device and battery pack.

• Only insert a battery pack of the same type.

• Do not touch the plug contacts with sharp or metal objects.

• Connect the power adapters to easily accessible electrical outlets.

8 Safety Instructions

CAUTION

There is a risk of explosion if the battery is replaced by an incorrect type.

Dispose of used batteries according to the instructions.

Use only rechargeable battery pack with rating: 2.4V 450mAh

ENGLISH

Safety Instructions 9

+ 20 hidden pages
