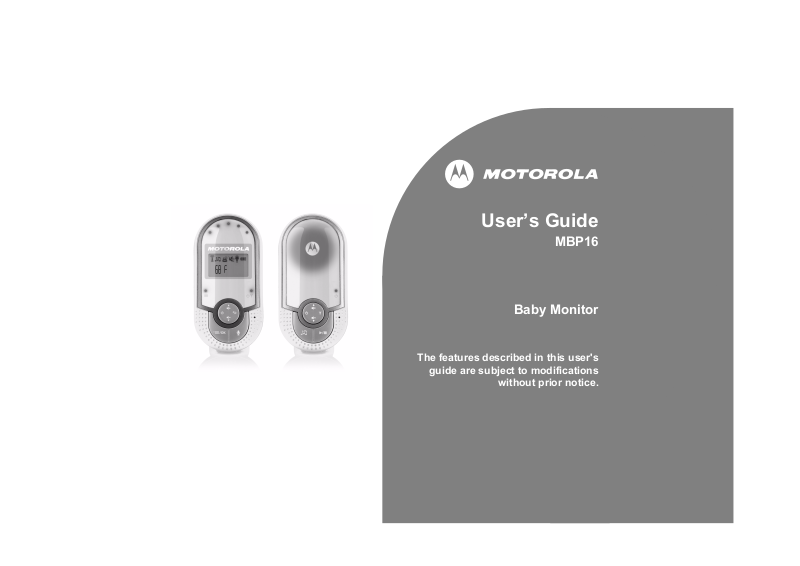

Motorola MBP16 User Guide
User’s Guide
Baby Monitor
The features described in this user's
guide are subject to modifications
without prior notice.
MBP16
Welcome...
to your new Motorola Baby Monitor!
Thank you for purchasing the MBP16. Now you can hear your baby sleeping in the other room.
Please retain your original dated sales receipt for your records. For warranty service of your Motorola product, you
will need to provide a copy of your dated sales receipt to confirm warranty status. Registration is not required for
warranty coverage.
For product-related questions, please call:
US and Canada 1-888-331-3383
On the Web: www.motorola.com
This User's Guide provides you with all the information you need to get the
most from your product.
Before you can use the baby monitor, we recommend you insert and fully
charge the battery in the parent unit, so that it continues to work if you
disconnect it from the power outlet to carry it to another location. Please read
the Safety Instructions on page 8 before you install the units.
Got everything?
• 1 x Parent unit (MBP16PU)
• 1 x Baby unit (MBP16BU)
• 1 x Rechargeable Ni-MH battery pack for the Parent unit
• 1 x Power adapter for the Parent unit
• 1 x Power adapter for the Baby unit
Overview of your Parent unit
10
9
8
1 Sound Level LED
3 GREEN and 2 RED LEDs turn on and off in real
time to indicate the noise level in baby's room.
When audio is being picked up by microphone of
1
2
3
4
5
6
7
baby unit, the LEDs light up to in indicate audio level
with reference to the sensitivity setting. The more
LEDs light up, the stronger the sound is.
If no LED lights up it means the sound level in baby's
room does not exceed the thresholds set through the
parent unit.
The LEDs are also used for indicating the speaker
volume setting on parent unit. The louder you set the
speaker volume, the more LEDs light up.
2 LCD Display
3 Link Indicator
On when the parent unit is powered on and linked to
the baby unit.
Flashes when the parent unit is out of range from
baby unit.
Off when the parent unit is powered off.
4 Up / Volume +
In idle mode: Press to increase the speaker volume.
In menu mode: Press to view the previous menu item.
5 Back
In menu mode: Press to cancel settings and back to
the previous level.
6
Down / Volume -
In idle mode: Press to decrease the speaker volume.
In menu mode: Press to view the next menu item.
7Talk
In idle or menu mode: Press and hold to talk back
with baby unit. Release to quit the talk mode.
8Menu / OK
In idle mode: Press to access the main menu.
In menu mode: Press to access the sub-menu, or
confirm the settings.
9Power
In idle or menu mode: Press and hold to power on/off
the parent unit.
10 Charging Indicator
On steadily when in charging mode.
Flashes when low battery is detected.
NOTE
Off even if connected with power adapter but without
battery pack installed.
Parent Unit Display
Icons Behaviors Description
On when parent unit is linked and in the valid
range of baby unit.
Flashes when no link or out of range.
On when night light is enabled.
Off when night light is disabled.
On when lullaby is playing.
On when the speaker volume is turned off.
Off when the speaker volume is turned on.
On when sound alert is enabled.
Flashes when sound alert is triggered.
Battery empty, needs to be charged.
1/3 battery level.
2/3 battery level.
Full battery level.
Animation in cycle. Battery is in charging.
Menu Structure of Parent Unit
MAIN MENU LANGUAGE SOUND ALERT NIGHTLIGHT RESET
SUB MENU ENGLISH
FRANÇAIS
ESPAÑOL
ON? (if the current setting is off)
or
OFF? (if the current setting is on)
Overview of your Baby unit
8
7
6
ON? (if the current setting is off)
or
OFF? (if the current setting is on)
1 Power Indicator
On when the baby unit is switched on.
Off when the baby unit is switched off.
2 Up / Volume +
Press to increase the speaker volume.
3 Nightlight
Press to turn on/off the nightlight.
4 Down / Volume -
Press to decrease the speaker volume.
Press and hold to reset settings to default.
5 Play / Stop
Press to play the lullaby.
1
2
3
4
5
Press again to stop playing.
6
Lullaby
Press to select the lullaby and start playing the
selected lullaby.
During lullaby playing, press to select and play the
other lullabies.
7Power
Press and hold to power on/off the baby unit.
8 Nightlight Indicator
On when nightlight is turned on.
Off when nightlight is turned off.
CONFIRM?
Important guidelines for installing our Baby Monitor
• To use your baby unit and parent unit together, you must be able to establish a radio link between them, and the range
will be affected by environmental conditions.
• Any large metal object, like a refrigerator, a mirror, a filing cabinet, a metallic doors or reinforced concrete, between
the baby and parent unit may block the radio signal.
• The signal strength may also be reduced by other solid structures, like walls, or by radio or electrical equipment, such
as TV's, computers, cordless or mobile phones, fluorescent lights or dimmer switches.
• If the signal is poor, try moving the parent and/or the baby unit to different positions in the rooms.
