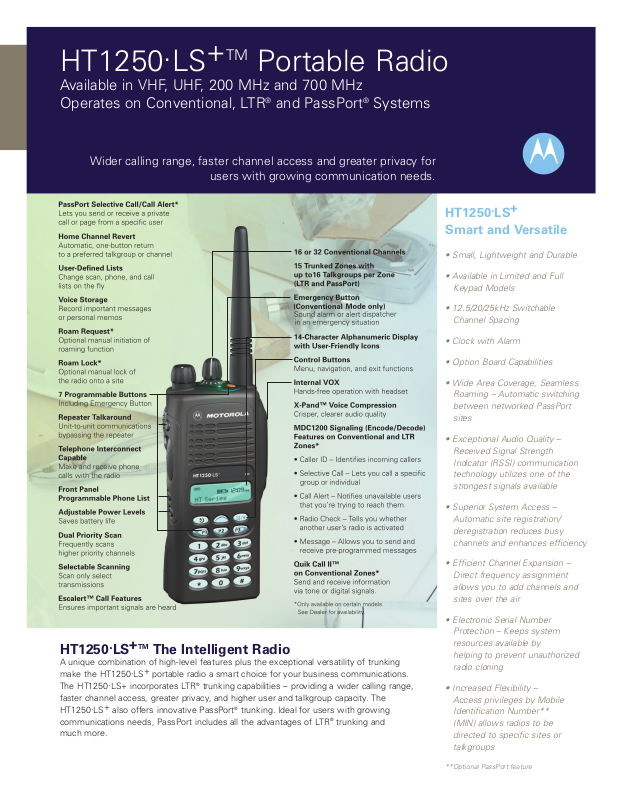

TM
HT1250.LS
+
Portable Radio
Available in VHF, UHF, 200 MHz and 700 MHz
®
Operates on Conventional, LTR
Wider calling range, faster channel access and greater privacy for
users with growing communication needs.
and PassPort®Systems
HT1250.LS
+
Smart and Versatile
• Small, Lightweight and Durable
• Available in Limited and Full
Keypad Models
• 12.5/20/25kHz Switchable
Channel Spacing
• Clock with Alarm
• Option Board Capabilities
• Wide Area Coverage, Seamless
Roaming – Automati
between networked PassPort
sites
• Exceptional Audio Quality –
Received Signal Strength
Indicator (RSSI) communication
technology utilizes one of the
strongest signal
c switching
s available
TM
HT1250.LS
A unique combination of high-level features plus the exceptional versatility of trunking
make the HT1250.LS+portable radio a smart choice for your business communications.
The HT1250.LS+ incorporates LTR
faster channel access, greater privacy, and higher user and talkgroup capacity. The
HT1250.LS+also offers innovative PassPort
communications needs, PassPort includes all the advantages of LTR
much more.
+
The Intelligent Radio
®
trunking capabilities – providing a wider calling range,
®
trunking. Ideal for users with growing
®
trunking and
• Superior System Access –
Automatic site registration/
deregistration reduces busy
channels and enhances efficiency
• Efficient Channel Expansion –
Direct freque
allows you to add channels and
sites over the air
• Electronic Serial Number
Protection – Keeps system
resources available by
helping to prevent unauthorized
radio cloning
• Increased Flex
Access privileges by Mobile
Identification Number**
(MIN) allows radios to be
directed to specific sites or
talkgroups
**Optional PassPort feature
ncy assignment
ibility –
specifications
GENERAL VHF 200MHZ UHF 700MHZ
Channel Capacity
Trunking Zone Capacity: 15 15 15 15
Trunking Talkgroup Capacity: (per zone) 16 16 16 16
Conventional Channel Capacity: 16 or 32* 16 16 or 32* 16
Power Supply: Rechargeable battery 7.5V Rechargeable battery 7.5V Rechargeable battery 7.5V Rechargeable battery 7.5V
Dimensions: With NiMH High Capacity Battery: 5.40 x 2.26 x 1.50 in (137 x 57.5 x 37.5mm)
With IMPRES NiMH/NiMH FM/Li-ion Battery: 5.40 x 2.26 x 1.60 in (137 x 57.5 x 40mm)
Weight: With NiMH High Capacity Battery: 15.0 oz. (420g) 15.0 oz. (420g) 15.0 oz. (420g) 15.0 oz. (420g)
With IMPRES NiMH Battery: 17.5 oz. (488g) 17.5 oz. (488g 17.5 oz. (488g 17.5 oz. (488g
With IMPRES NiMH FM Battery: 17.5 oz. (488g) 17.5 oz. (488g) 17.5 oz. (488g) 17.5 oz. (488g)
With IMPRES Li-ion Battery: 12.8 oz. (358g) 12.8 oz. (358g) 12.8 oz. (358g) 12.8 oz. (358g)
Average Battery Life @ 5/5/90 Duty Cycle*: Low Power High Power Low Power High Power Low Power High Power Low Power High Power
With NiMH High Capacity Battery: 11 hrs 8 hrs 11 hrs 8 hrs 11 hrs 8 hrs 11 hrs 8 hrs
With IMPRES NiMH Battery: 17 hrs 11 hrs 17 hrs 11 hrs 17 hrs 13 hrs 17 hrs 13 hrs
With IMPRES NiMH FM Battery: 16 hrs 10 hrs 16 hrs 10 hrs 16 hrs 13 hrs 16 hrs 13 hrs
With IMPRES Li-ion Battery: 18 hrs 11 hrs 18 hrs 11 hrs 18 hrs 14 hrs 18 hrs 14 hrs
FCC Description: AZ489FT3794 (136-174 MHz)
RECEIVER VHF 200MHZ UHF 700MHZ
Frequencies: 136-174 MHz 217-218, 219-220, 220-222 MHz 403–470, 450–512 MHz 746–747, 762–764 MHz
Hum and Noise: -45dB @12.5kHz, -50dB @25kHz -40dB -45dB @ 12.5kHz, -50dB @ 25kHz -40dB
Sensitivity: (12dB SINAD) EIA .25 µV 0.3 µV (0.25 µV typical) .25 µV 0.35 µV (0.3 µV typical)
Sensitivity: (20dB SINAD) ETS .50 µV .50 µV
Channel Spacing: 12.5/20/25 kHz 12.5 kHz 12.5/20/25 kHz 12.5 kHz
Intermodulation: 70dB 70dB 70dB 70dB
Adjacent Channel Selectivity: (70dB @ 25 kHz) 60dB @12.5 kHz/ 60dB (TIA 603) 60dB @ 12.5 kHz/ 60dB (TIA 603)
Spurious Rejection: 70dB 70dB 70dB 70dB
Rated Audio: 0.5 W 0.5 W 0.5 W 0.5 W
Audio Distortion @ Rated Audio: 3% typical 3% typical 3% typical 3% typical
Audio Response: +1 to -3dB +1 to -3dB +1 to -3dB +1 to -3dB
Conducted Spurious Emission: FCC Part 15 -57dBm < 1 GHz -57dBm < 1 GHz -57dBm < 1 GHz -57dBm < 1 GHz
TRANSMITTER VHF 200MHZ UHF 700MHZ
Frequencies: 136–174 MHz 217-218 MHz (Talkaround) 403-470 MHz 776-777 MHz
Power Output: 1–5 W 1 W or 5 W 1–4 W 1 W or 2.5 W
Frequency Stability: ± 5 ppm @ 25kHz ± 2.5 ppm ± 5 ppm @ 25kHz ± 1.5 ppm
(-30° C to +60°C, +25° Ref.) ± 2.5 ppm @ 12.5kHz ± 2.5 ppm @ 12.5kHz
Modulation Limiting: ± 2.5 @ 12.5kHz ± 2.5kHz ± 2.5 @ 12.5kHz ± 2.5kHz
Conducted and Radiated Emissions: -36dBm < 1GHz, -30dBm >1GHz -16dBm -36dBm < 1GHz, -30dBm > 1GHz -16dBm
Channel Spacing: 12.5/20/25kHz 12.5kHz 12.5/20/25kHz 12.5kHz
FM Hum & Noise: -40dB typical -40dB typical -40dB typical -40dB typical
Adjacent Channel Power: -60dB @ 12.5, - 70dB @ 25kHz -60dB -60dB @ 12.5, - 70dB @ 25kHz -60dB
Audio Response: +1 to -3dB +1 to -3dB +1 to -3dB +1 to -3dB
Audio Distortion: 3% typical 3% typical 3% typical 3% typical
FM Modulation: 11K0F3E (12.5kHz) 11K0F3E 11K0F3E (12.5kHz) 11K0F3E
Adjacent Channel Coupled Power: N/A N/A N/A Complies with 47
ABZ99FT3080 (217-218/219-222 MHz)
AZ489FT4826 (403-470 MHz)
AZ489FT4834 (450-512 MHz)
ABZ99FT5000 (746-747/762-764/776-777/792-794 MHz)
40dB(TIA 603-A) 70dB @ 25 kHz 40dB (TIA 603-A)
-47dBm > 1 GHz -47dBm > 1 GHz -47dBm > 1 GHz -47dBm > 1 GHz
219-220 MHz 450-512 MHz 792-794 MHz
220-221 MHz (Talkaround) 746-747 MHz (Talkaround)
221-222 MHz 762-764 MHz (Talkaround)
± 4.0 @ 20kHz ± 4.0 @ 20kHz
± 5.0 @ 25kHz ± 5.0 @ 25kHz
16K0F3E (25kHz) 16K0F3E (25kHz)
CFR 27.53 (d) (1)
PORTABLE MILITARY STANDARDS 810 C, D, & E
MIL-STD 810C MIL-STD 810D MIL-STD 810E
Low Pressure: 500.1: I 500.2: II 500.3: II
High Temperature: 501.1: I, II 501.2: I, II 501.3: I, II
Low Temperature: 502.1: II 502.2: I, II 502.3: I, II
Temperature Shock: 503.1: I 503.2: I 503.3: I
Solar Radiation: 505.1: I 505.2: I, II 505.3: I
Rain: 506.1: I, II 506.2: I, II 506.3: I, II
Humidity: 507.1: II 507.2: II, III 507.3: II, III
Salt Fog: 509.1: I 509.2: I 509.3: I
Dust: 510.1: I 510.2: I 510.3: I
Vibration: 514.2: VIII, X 514.3: I 514.4: I
Shock: 516.2: I, II, V 516.3: I 516.4: I, IV
FACTORY MUTUAL APPROVALS
The HT Series is Factory Mutual approved and Canadian Standard Association
approved as intrinsically safe for use in Classes I, II, and III, Division 1, Groups C, D, E,
F and G, as well as non-incendive use in Class I, Division 2, Groups A, B, C and D on
models ordered with the Factory Mutual option, and battery.
MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office.
All other product or service names are the property of their respective owners.
© Motorola, Inc. 2006.
MD-EU-HT1250LS+
Method: Proc/Cat Method: Proc/Cat Method: Proc/Cat
Environmental Specifications
Operating Temperature: -30 to +60° C
Storage Temperature: -55 to +85° C
Humidity: 95% RH @ 8 Hr.
ESD: IEC 801-2 KV
Water Intrusion: IPX4
* Only available on certain models. Check with your Motorola Authorized Dealer for availability.
,
