MITSUBISHI ELECTRIC



Service Manual

PROJECTION TELEVISION V19 / V19+ CHASSIS

V19

MODELS

WS-55859 WS-65869

V19+

MODELS

WS-55909 WS-65909 WS-73909

WS-65869

CAUTION:

Before servicing this chassis, it is important that the service person read the "SAFETY PRECAUTIONS" and "PRODUCT SAFETY NOTICE" contained in this manual.

SPECIFICATIONS

 Power Input : AC 120V, 60Hz  Power Usage : 300W

 Frequency : VHF 54 ~ 470MHz

Range UHF 470 ~ 806MHz

 Antenna Input : VHF/UHF 75Ω unbalanced

2 - NTSC 1 - ATV/QAM

 CRT Size : [7 inches]

: [9 inches] WS-73909 only

 High Voltage : 32.0kV (at 0A)

 Speaker : [WS-55859]]

5" round type, full range 2 pcs. (8Ω 10W)

: [WS-65869]

6" round type, full range 2 pcs. (8Ω 10W)

: [WS-55909 / WS-65909 / WS-739090]

5" round type, full range 2 pcs. (8Ω 10W) 2" round type, tweeter 2 pcs. (8Ω 10W)

 Weight : [WS-55859 250 lbs

: [WS-55909] 256 lbs : [WS-65869] 326 lbs : [WS-65909] 348 lbs : [WS-73909] 405 lbs

 Weight and dimensions shown are approximate.  Design specifications are subject to change without notice.

 Cabinet : [Model] (H)x(W)x(D)

Dimensions : [WS-55859] 50.3"x50.6"x27.8"

: [WS-55909] 51.4"x46.9"x28.1" : [WS-65869] 61.9"x59"x28.1" : [WS-65909] 61.5"x58.2"x28.3" : [WS-73909] 65.7"x65.2"x29.8"

 Input Level : VIDEO IN JACK (RCA Type)

1.0Vp-p 75Ω unbalanced : AUDIO IN JACK (RCA Type)

-4.7dBm 43kΩ unbalanced : S-VIDEO IN JACK

(Y/C separate type) Y:1.0 Vp-p C:0.286Vp-p(BURST) 75Ω unbalanced

: COMP / Y, Cr, Cb (RCA Type)

Y: 1.0 Vp-p Cr, Cb: 700mVp-p

: ATV / Y(G), Pr(R), Pb(B), H, V

Y: 1.0Vp-p with sync 75Ω (BNC) Pr, Pb: 700mV 75Ω H, V: 3.0Vp-p 75Ω

: VGA / R,G,B,V,H (15 pin D)

 Output Level : VIDEO OUT JACK (RCA Type)

1.0Vp-p 75Ω unbalanced

: AUDIO OUT JACK (RCA Type)

-4.7dBm 4.7kΩ unbalanced

 Digital Interface

: IEEE-1394 I/O Jacks :AC-3 Digtal Audio Output

MITSUBISHI DIGITAL ELECTRONICS AMERICA, INC.

9351 Jeronimo Road, Irvine, CA 92618-1904

MODELS: WS-55859 / WS-55909 / WS-65869 / WS-65909 / WS-73909

CONTENTS

INTRODUCTION ................................................................................................................................5

PRODUCT SAFETY NOTICE ............................................................................................................. 5

SAFETY PRECAUTIONS ................................................................................................................... 6

DISASSEMBLY

Cabinet Disassembly (Front View) .............................................................................................. 7

WS-55859.............................................................................................................................. 7

WS-65869.............................................................................................................................. 8

WS-55909 / WS-65909 / WS-73909 ...................................................................................... 9

Cabinet Disassembly (Rear View) ............................................................................................. 10

WS-55859 / WS-55909 / WS-65869 / WS-65909 / WS-73909 ............................................. 10

SERVICING THE LENTICULAR SCREEN AND FRESNEL LENS

Lenticular Screen and Fresnel Lens Removal......................................................................... 11

WS-55859............................................................................................................................ 11

WS-55909 / WS-65869 / WS-65909 / WS-73909 ................................................................. 12

Lenticular Screen and Fresnel Lens Installation .................................................................... 13

SERVICING THE DIAMONDSHIELDS

DiamondShield TM Removal & Installation ...................................................................................... 14

SERVICING PCBs

Chassis Removal .......................................................................................................................... 15

PCB Locations .............................................................................................................................. 16

Main Components Location........................................................................................................... 16

DM Module Main Components Location........................................................................................ 17

CRT REPLACEMENT

CRT Removal ................................................................................................................................18

CRT Installation ............................................................................................................................ 19

ELECTRICAL ADJUSTMENTS

Test Equipment ............................................................................................................................. 21

Initial Setup ................................................................................................................................... 22

LED Indicator Diagnostics............................................................................................................. 23

Remote Control Operational Mode ................................................................................................ 23

Circuit Adjustment Mode............................................................................................................... 24

On Screen Display Position Mode ................................................................................................ 25

Convergence Adjustment Mode ..................................................................................................... 25

E2PROM Replacement ................................................................................................................. 27

Adjustment Items List ................................................................................................................... 27

Adjustment Test Points................................................................................................................. 30

Adjustment Procedures ................................................................................................................ 31

Audio Circuit ........................................................................................................................ 31

High Voltage Regulation ....................................................................................................... 32

Main/Sub Y Level ................................................................................................................. 32

Side by Side Sub Picture Tint .............................................................................................. 33

Side by Side Sub Picture Color ............................................................................................ 33

CRT Cutoff ........................................................................................................................... 34

White Balance (NTSC) ......................................................................................................... 34

White Balance (HD) ............................................................................................................. 35

Cb, Cr Offset ........................................................................................................................ 35

Page 3

MODELS: WS-55859 / WS-55909 / WS-65869 / WS-65909 / WS-73909

Black Level .......................................................................................................................... 36

Sub Contrast ....................................................................................................................... 36

Dynamic Focus Preset ........................................................................................................ 37

Lens Focus .......................................................................................................................... 37

Electrostatic Focus & Alignment Magnet Adjustment .......................................................... 38

On Screen Display Character Position ................................................................................. 38

Deflection/Convergence Geometry Presets .......................................................................... 39

Deflection Circuit Geometry Adjustments ............................................................................. 40

Convergence Circuit Geometry Adjustments ........................................................................ 41

Centering and Static Convergence ....................................................................................... 42

Coarse Convergence Adjustments ....................................................................................... 43

Fine Convergence Adjustments ............................................................................................ 44

CHIP PARTS REPLACEMENT ......................................................................................................... 45

REPLACEMENT PARTS

Parts Ordering .............................................................................................................................. 46

Critical and Warranty Parts Designation........................................................................................ 46

Parts Tolerance Codes .................................................................................................................. 46

Quick Reference List .................................................................................................................... 47

Service Parts List.......................................................................................................................... 48

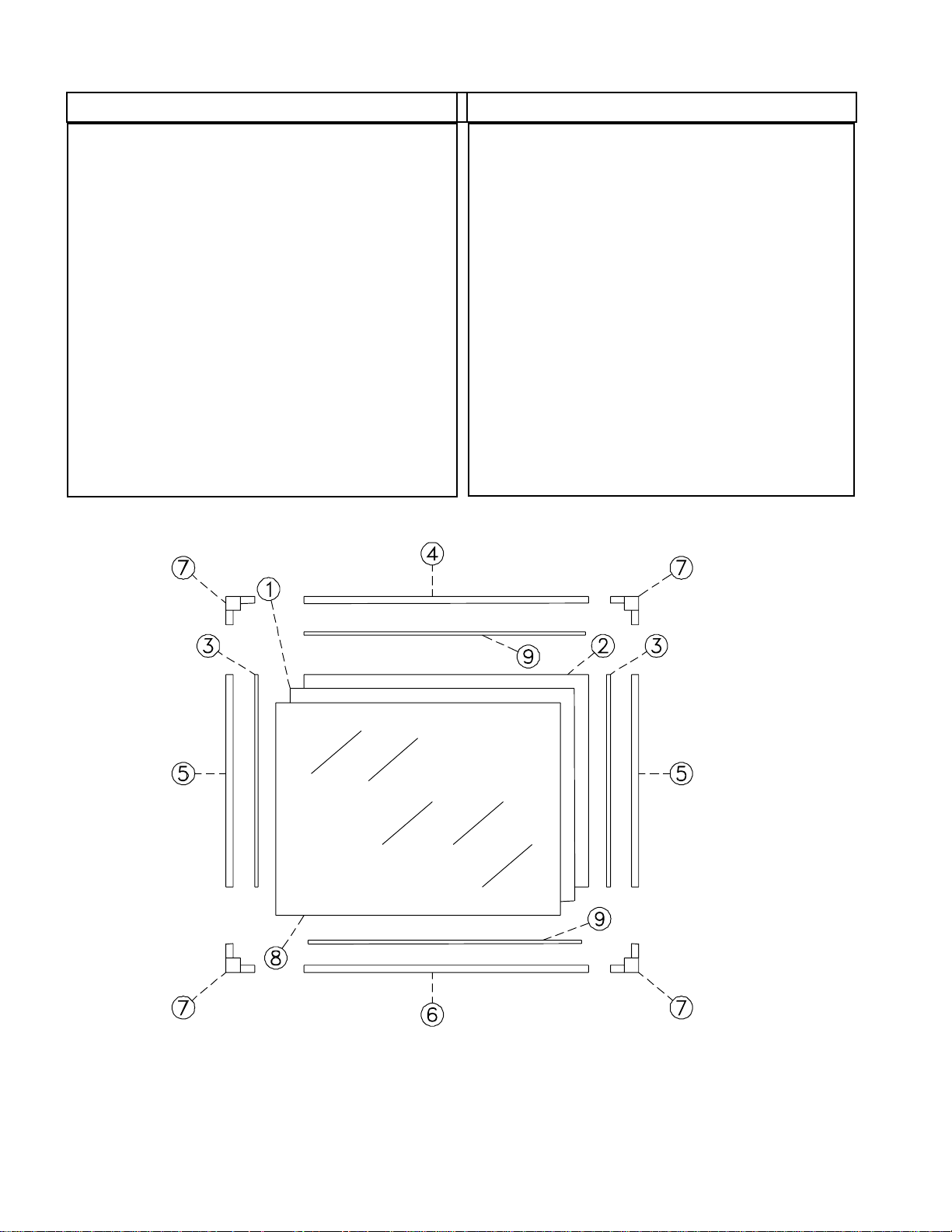

Screen Parts List .......................................................................................................................... 59

CIRCUITRY BLOCK DIAGRAMS

Standby Supplies Regulator .......................................................................................................... 61

Switched Supplies Regulator ........................................................................................................ 62

DM Power Supply ......................................................................................................................... 63

Video / Color A/V Switch Circuit ................................................................................................... 64

Video / Color Signal Path .............................................................................................................. 65

Sync Signal Path .......................................................................................................................... 66

Deflection / HV.............................................................................................................................. 67

X-Ray Protect ............................................................................................................................... 67

Sound Circuit ................................................................................................................................68

Convergence ................................................................................................................................. 69

Control Circuitry ............................................................................................................................ 70

Section 2 .... Schematic Diagrams

SCHEMATIC DIAGRAMS

Overall Block Diagram ................................................................................................................... 1

PCB-MAIN ..................................................................................................................................... 2

PCB-POWER................................................................................................................................. 3

PCB-TERMINAL ............................................................................................................................ 4

PCB-SIGNAL-1 (MICRO)................................................................................................................. 5

PCB-SIGNAL-2 (AV I/O) ..................................................................................................................6

PCB-SIGNAL-3 (VIDEO / CHROMA) ............................................................................................... 7

PCB-3DYC ..................................................................................................................................... 8

PCBs-CONV GEN / JUNGLE ..........................................................................................................9

PCBs - CRT / CONTROL / SVM / DBF / DM POWER .................................................................. 10

PCB-2HDW-1 ............................................................................................................................... 11

PCB-2HDW-2) .............................................................................................................................. 12

PCB-2HDW-3 ............................................................................................................................... 13

PCB LAYOUT DIAGRAMS ............................................................................................................... 14

Page 4

MODELS: WS-55859 / WS-55909 / WS-65869 / WS-65909 / WS-73909

INTRODUCTION

This service manual provides service instructions for PTV Models WS-55859 and WS-65869 which use the V19 chassis, and PTV Models WS-55909, WS-65909 and WS-73909 which use the V19+ chassis. Service personnel should read this manual thoroughly before servicing these chassis.

This service manual includes:

1. Assembly and disassembly instructions for the front and rear cabinet components.

2. Servicing of the Lenticular Screen and Fresnel Lens.

3. Servicing printed circuit boards (PCBs).

4. CRT replacement procedure.

5. Electrical adjustments.

6. Chip parts replacement procedures.

7. Circuit path diagrams.

The parts list section of this service manual includes:

1. Cabinet and screen parts.

2. Electrical parts.

Schematic and block diagrams of the above listed models are included in this service manual for better understanding of the circuitry. PCB drawings are also included for easy location of parts and test points.

PRODUCT SAFETY NOTICE

Many electrical and mechanical parts in television receivers have special safety related characteristics. These characteristics are often not evident from visual inspection nor can the protection afforded by them necessarily be obtained by using replacement components rated for higher voltage, wattage, etc.

Replacement parts which have special safety characteristics are identified in this service manual.

Electrical components having such features are identified by shading on the schematic diagram and by bold

type in the parts list of this service manual. The replacement for any safety part should be identical in value and characteristics.

Page 5

MODELS: WS-55859 / WS-55909 / WS-65869 / WS-65909 / WS-73909

SAFETY PRECAUTIONS

NOTICE: Observe all cautions and safety related notes located inside the receiver cabinet and on the

receiver chassis.

WARNING:

1. Operation of this receiver outside the cabinet or with the cover removed presents a shock hazard from the receiver's power supplies. Work on the receiver should not be attempted by anyone who is not thoroughly familiar with the precautions necessary when working on high voltage equipment.

2. Do not install, remove or handle the picture tubes in any manner unless shatterproof goggles are worn. People not so equipped should be kept away while the picture tube is being handled. Keep the picture tube away from the body while handling.

3. When service is required, observe the original lead dress. Extra precaution should be taken to assure correct lead dress in the high voltage area. Where a short-circuit has occurred, replace those components that indicate evidence of overheating.

X-Radiation warning

The surface of the cathode ray tubes (CRTs) may generate X-Radiation, so take proper precautions when servicing. It is recommended that a lead apron be used for shielding while handling the CRT. Use this method if possible.

When replacing the CRTs, use only the designated replacement part since it is a critical component with regard to X-Radiation. High voltage must be set as prescribed under the section titled Electrical Adjustments.

Leakage current check

Before returning the receiver to the customer, it is recommended that leakage current be measured according to the following methods.

1. Cold Check

With the alternating current (AC) plug removed from the AC source, place a jumper across the two AC plug

prongs. Connect one lead of an ohm meter to the AC plug and touch the other lead to each exposed metal part (i.e. antennas, handle bracket, metal cabinet, screw heads, metal overlay, control shafts, etc.), particularly any exposed metal part that has a return path to the chassis. The resistance of the exposed metal parts having a return path to the chassis should be a minimum of 1Mega Ohm. Any resistance below this value indicates an abnormal condition and requires corrective action.

2. Hot Check ...Use the circuit shown below to perform the hot check test.

1. Keep switch S1 open and connect the receiver to the measuring circuit. Immediately after

connection, and with the switching devices of the receiver in their operating positions, measure the leakage current for both positions of switch S2.

2. Close switch S1, energizing the receiver. Immediately after closing switch S1, and with the

switching devices of the receiver in their operating positions, measure the leakage current for both positions of switch S2. Repeat the current measurements of items 1 and 2 after the receiver has reached thermal stabilization. The leakage current must not exceed 0.5 milliampere (mA).

Page 6

MODELS: WS-55859 / WS-55909 / WS-65869 / WS-65909 / WS-73909

CABINET DISASSEMBLY (FRONT VIEW)

WS-55859

*Refer to the Parts List for Part Numbers

1a. Front Cabinet Disassembly

1. Remove the Speaker Grille by pulling forward.

2. Remove the Board Front by removing 4 screws (a).

3. Remove the 4 screws (b) holding the Screen Assembly.

4. Lift the Screen Assembly up and away from the cabinet.

Page 7

MODELS: WS-55859 / WS-55909 / WS-65869 / WS-65909 / WS-73909

CABINET DISASSEMBLY (FRONT VIEW)

WS-65869

*Refer to the Parts List for Part Numbers

1b. Front Cabinet Disassembly

1. Remove the Speaker Grille by pulling forward.

2. Remove the Board Front by removing screws (b)

3. Remove the Control Panel by removing two screws (a).

4. Remove the four screws (b) holding the Screen Assembly.

5. Lift the Screen Assembly up and away from the cabinet.

Page 8

MODELS: WS-55859 / WS-55909 / WS-65869 / WS-65909 / WS-73909

CABINET DISASSEMBLY (FRONT VIEW)

WS-55909 / WS-65909 / WS-73909

*Refer to the Parts List for Part Numbers

1c. Front Cabinet Disassembly

1. Remove the Speaker Grille by pulling forward.

2. Remove 2 screws (a) to remove the Control Panel.

3. Remove the Board Front by removing 4 screws (b).

4. Remove the 4 screws (c) holding the Screen Assembly.

5. Lift the Screen Assembly up and away from the cabinet.

Page 9

MODELS: WS-55859 / WS-55909 / WS-65869 / WS-65909 / WS-73909

CABINET DISASSEMBLY (REAR VIEW)

WS-55859 / WS-55909 / WS-65869 / WS-65909 / WS-73909

*Refer to the Parts List for Part Numbers

2b. Rear Cabinet Disassembly

1. Remove screws (a) holding the Back Board.

2. Remove the 4 screws (b) holding each Board Shelf.

3. Remove the 4 screws (c) securing the Light Box Assembly.

4. Slide the Light Box out the rear of the Cabinet.

Page 10

MODELS: WS-55859 / WS-55909 / WS-65869 / WS-65909 / WS-73909

SERVICING THE LENTICULAR SCREEN AND FRESNEL LENS

CAUTION: Wear gloves when handling the Lenticular Screen and Fresnel Lens.

This prevents cuts and finger prints. Do not place Fresnel Lens in the sun. This may cause fire and heat related injuries.

WS-55859 1a. Lenticular Screen and Fresnel Lens Removal

1. Remove the screen assembly shown in the Cabinet Disassembly procedure.

2. Remove the screws (a) securing the Screen Holder.

3. Slide the Lenticular Screen and Fresnel Lens from the Screen Frame.

Note: When separating the Lenticular Screen from the Fresnel Lens, use caution

while prying the Screen and Lens apart. Use a slot type screw drive, and remove the pressure sensitive double sided tape.

Page 11

MODELS: WS-55859 / WS-55909 / WS-65869 / WS-65909 / WS-73909

SERVICING THE LENTICULAR SCREEN AND FRESNEL LENS

CAUTION: Wear gloves when handling the Lenticular Screen and Fresnel Lens.

This prevents cuts and finger prints. Do not place Fresnel Lens in the sun. This may cause fire and heat related injuries.

WS-55909 / WS-65869 / WS-65909 / WS-73909 1b. Lenticular Screen and Fresnel Lens Removal

1. Remove the screen assembly shown in the Cabinet Disassembly procedure.

2. Remove the Screen Frame top section by removing 4 screws (a).

3. Carefully grasp the Lenticular Screen and Fresnel Lens combination and pull upward and out of the Screen Frame Assembly.

Note: When separating the Lenticular Screen from the Fresnel Lens, use caution

while prying the Screen and Lens apart. Use a slot type screw drive, and remove the pressure sensitive double sided tape.

Page 12

MODELS: WS-55859 / WS-55909 / WS-65869 / WS-65909 / WS-73909

SERVICING THE LENTICULAR SCREEN AND FRESNEL LENS

2. Lenticular Screen and Fresnel Lens Installation.

Note: Store the Lenticular Screen and Fresnel Lens in a cool dry place. High humidity may

deform the Lenticular Screen and Fresnel Lens.

1. Apply double coated tape (Part # LENS-TAPE) along the top front edge of the Fresnel Lens as shown below. Refer to the Table below for proper tape length.

2. Place the Fresnel Lens on top of the Lenticular Screen and apply pressure at the top edge to bond them together as shown below.

Model

WS-55859 55" 47.8" WS-55909 55" 47.8" WS-65869 65" 56.5" WS-65909 65" 56.5" WS-73909 73" 63.5"

Screen

Size

Page 13

Tape

Length

MODELS: WS-55859 / WS-55909 / WS-65869 / WS-65909 / WS-73909

SERVICING THE DIAMONDSHIELD

1. DiamondShield Removal Procedure

The location of the DiamondShieldTM molding clips varies between models, top and bottom, or sides. Use the appropriate disassembly procedure given below.

Note: Wear gloves when handling the DiamondShield to prevent finger prints.

Top & Bottom Molding Clips

1. Gently insert a small screwdriver between the DiamondShield and one end of the clip to pry the clip loose.

Side Molding Clips

1. Gently insert a small screwdriver between the DiamondShield and one end of the clip to pry the clip loose.

2. Remove both clips by pulling them toward you.

3. Carefully insert a small screwdriver into the gap at the top/center point of the Shield and pull the Shield slightly away from the unit. Place your hands at the points shown and gently bow the Shield toward you and remove from the unit. Then re-install the two clips.

2. DiamondShield Installation Procedure

*(See the Parts List for DiamondShield part numbers)

To install the DiamondShieldTM, reverse the above Removal Procedure.

2. Remove both clips by pulling them toward you.

3. Carefully insert a small screwdriver into the gap at the side/center point of the Shield and pull the Shield slightly away from the unit. Place your hands at the points shown and gently bow the Shield toward you and remove from the unit. Then re-install the two clips.

Page 14

MODELS: WS-55859 / WS-55909 / WS-65869 / WS-65909 / WS-73909

Main Chassis Removal

Chassis and DM Module Removal

The chassis and DM Module can be removed as a single unit.

1. Undo the cable wire ties to the Front Panel, Speakers, CRTs, etc.

2. Remove 3 screws (a) securing the Main Chassis.

3. Unlatch the two chassis locks on the front of the chassis.

4. Slide the Chassis and DM Module out the rear of the unit.

5. Tilt upward to access the bottom of the main chassis.

NOTE: If the chassis cannot be removed with the DM Module, due to insufficient cable length:

1. Perform Step 1 through 3 above.

2. Remove 3 screws (b).

3. Slide the chassis only out the rear of the unit.

Page 15

MODELS: WS-55859 / WS-55909 / WS-65869 / WS-65909 / WS-73909

PCB Locations

Main Components Location

Page 16

MODELS: WS-55859 / WS-55909 / WS-65869 / WS-65909 / WS-73909

DM Module Main Components Location

E2P

MODULE

POWER

SUPPLY

DE-

MODULATOR

ATV

TUNER

FLASH CARD SLOT

COVER

Page 17

MODELS: WS-55859 / WS-55909 / WS-65869 / WS-65909 / WS-73909

CRT REPLACEMENT

1. Removal of the CRT

Caution! High voltage should be completely discharged prior to CRT removal.

Since The CRTs receive high voltage from the HV Block, discharge by shorting the open end of the respective high voltage cable to chassis ground.

Note: Refer to the Cabinet Disassembly Procedures when performing steps 1 through 4.

1. Remove the Speaker Grille, Front Board, and Screen Assy.

2. Remove the Back Board.

3. Remove the Anode Lead Wire from the CR Block.

4. Remove the PCB-CRT.

5. Remove 4 hex-screws "a" retaining the Optical Unit. [Figure 5-1]

6. Remove 4 screws "b" retaining the Lens.

Note: DO NOT loosen the RED screws. Doing so will break the seal between the

C-Element and the # 6 Lens, causing leakage of the CRT Coolant.

7. Remove 4 screws "c" retaining the CRT. [Figure 5-2]

8. Remove the Deflection Yoke from the neck of the CRT. [Figure 5-7]

Figure 5-1

Figure 5-2

Note: The 4 spring-loaded screws shown

in Fig 5-2 and labeled as "DO NOT REMOVE", should not be loosened under any circumstance. Doing so will break the seal between the CRT and the CRT-Spacer, causing leakage of the CRT Coolant.

Page 18

MODELS: WS-55859 / WS-55909 / WS-65869 / WS-65909 / WS-73909

2. Installation of the CRT

Note: The replacement CRT is supplied as an assembly comprised of the CRT and the

Inner Lens with the space between them filled with ethylene glycol. Care should be taken during handling and installation to prevent shock from disrupting the seal or alignment between the CRT and Inner Lens. [Figure 5-3]

Figure 5-3

Note: The CRT fixing screws should not be loosened nor should they be removed. [Figure 5-4]

Figure 5-4

1. Carefully position the replacement CRT and fasten in place using 4 screws "d". [Figure 5-6]

Figure 5-6

Figure 5-5

Page 19

MODELS: WS-55859 / WS-55909 / WS-65869 / WS-65909 / WS-73909

2. Install the Deflection Yoke on the CRT neck. [Figure 5-7]

3. Install the Lens that was removed in steps 8 and 9 of Removal Of The CRT. [ Figures 5-1 and 5-2 ] a) Position the Lens so that the Label faces the direction shown in Figure 5-8. b) Install the mounting screws. [Figure 5-1]

4. Connect the PCB-CRT.

5. Insert the Optical Unit into the Light Box Assembly.

6. Insert the Anode Lead Wire into the Flyback Transformer.

7. Re-clamp the Lead Wire in its original position.

Figure 5-7

Figure 5-8

Adjustment procedures after replacing the CRT(s)

 CRT Cut Off / White Balance Adjustment  Static Convergence Adjustment  Dynamic Convergence Adjustment

Page 20

MODELS: WS-55859 / WS-55909 / WS-65869 / WS-65909 / WS-73909

ELECTRICAL ADJUSTMENTS

Note: Perform only the adjustments required.

Do not attempt an alignment if proper equipment is not available.

Test Equipment

 Oscilloscope (Unless otherwise specified, use 10:1 probes)  Signal Generator (both SD and HD capable)  Frequency Counter  Direct Current Voltmeter  Direct Current Power Supply  Multiplex Audio Signal Generator  Direct Current Ampere Meter

Test Signal

A. Monoscope Signal

Note: If you do not have

a monoscope signal source, connect the unit to a VCR and play a Monoscope *alignment tape. (* Part Number: 859C568060)

B. Color Bar Signal

Use the color bar signal shown below, unless otherwise specified in this manual.

100%

75%

40%

Monoscope Signal

Split-Field Color Bars (100% window)

Page 21

MODELS: WS-55859 / WS-55909 / WS-65869 / WS-65909 / WS-73909

Initial Setup

A. Option Menu Setup

Follow the steps below for the initial set-up:

1. Select the "MENU" display by pressing the "MENU" button once.

2. Press the number buttons "0", "1", "7", "0" in sequence to select the "OPTION MENU" display.

3. Press the "ADJUST" button to select "INITIAL."

4. Press "ENTER."

NOTE: At this time channel 3 is automatically selected.

B. Default Settings

MAIN MENU DEFAULT SETTINGS

SETUP

Edit Setup

Review Volume 30%

Antenna A Antenna B Antenna C DTV Input 1 Input 2 Input 3 Input 4 Input 5 Component 1 Component 2 VGA

Icon Position Transport Menu Language

ANTENNA

Antenna ANT A Lock by Time Off Video Mute On Memorize Channels Air Unlock Time N/A Black Enhancement On Channel Ch-3 Front Button Lock Off Memory Deleted Source Ant A Ch 3

CLOCK

Clock Setting Auto Set Day Everyday POP Position Right Half Time Zone Eastern Set Time 12:00PM Format Stretched Daylight Savings Applies Device Ant-A PIP/POP Format Dble. Window

(✓) Enabled (✓) Enabled (✓) Enabled (✓) Enabled (✓) Enabled (✓) Enabled (✓) Enabled (✓) Enabled (✓) Enabled (✓) Enabled (✓) Enabled (✓) Enabled

As above Movie Rating PG Tint 50%

English V-Chip Start Time 12:00 PM Video Noise Standard

Clock Time N/A Channel Ch-3 Set Day N/A

CAPTIONS

Closed Captions With Mute Bass 50% CC Background Gray Treble 50% Digital Channel Guide On Balance 50%

V-CHIP PARENT LOCK

V-CHIP Off Listen to Stereo TV Rating TV-PG Level Sound Off FV-Fantasy Violence D-Sexual Dialog L-Adult Language S-Sexual Situation V-Violence Program not Rated

V-CHIP LOCK BY TIME

V-Chip Stop Time 12:00 PM Image Type Video

TIMER

Timer Off PIP Position Lower Right

(✓) Enabled (✓) Enabled (✓) Enabled (✓) Enabled (✓) Enabled (✓) Enabled

(MENU-0-1-7-0)

OPTION MENU

Initial Power restore :OFF DTV Port :Auto

AUDIO SETTINGS

Surround Off

TV Speakers On

VIDEO SETTINGS

Contrast 100% Brightness 50% Sharpness 50% Color 50%

Color Temp. High

PIP/POP

A/V RESET DEFAULT SETTINGS (By Input)

A/V Memory Ant A/B Ant DTV Inp-DTV

INPUTS

1/2/3/4/5

Component

1/2

VGA 1394 1/2/3

Contrast Max. Max. Max. Max. Max. Max. Max. Brightness Center Center Center Center Center Center Center Sharpness Center Center Center Center Center N/A Center Color Center Center Center Center Center Center Center Tint Center Center Center Center Center Center Center Color Temp. High High High High High High High Video Noise Standard N/A Standard Standard Standard N/A N/A Image Type Video N/A Video Video Video N/A N/A Bass Center Center Center Center Center Center Center Treble Center Center Center Center Center Center Center Balance Center Center Center Center Center Center Center Surround OFF OFF OFF OFF OFF OFF OFF Listen To Stereo English N/A N/A N/A N/A N/A Level Sound OFF OFF OFF OFF OFF OFF OFF

Page 22

MODELS: WS-55859 / WS-55909 / WS-65869 / WS-65909 / WS-73909

C. A/V Memory

Each of the external inputs has its’ own Audio/Video Memory. A change in an A/V setting at a specific input is

stored in memory for that specific input.

A/V Reset

1. The front panel AV Reset button initializes all A/V Memories.

2. The AV Reset in the user’s menu initializes only the selected input’s A/V Memory.

LED Indicator Diagnostics

The “Power ON LED” provides an indication of the sets operation, and the possible cause of a malfunction.

1. Initial Control Circuitry Check

Immediately after the TV is connected to an AC power source:

LED Indications Conditions Probable Cause

Off After AC is applied Standy Power Supply or TV µPC not running

Fast Blink for 70 sec. After AC is applied Normal - DM µPC is booting up

Fast Blink (doesn't stop) After AC is applied TV µPC is running, but DM failed to boot up

Slow Blink Set is Off Normal - Timer is set for Automatic Turn ON

2. Error Code Operational Check

Pressing the front panel “DEVICE” and “MENU” buttons at the same time, and holding for 5 seconds, activates the Error Code Mode. The LED flashes denoting a two digit Error Code, or indicating no problem has occured since the last Initalization.

Note: The front panel buttons must used, NOT those on the Remote Control.

• The number of flashes indicates the value of the MSD (tens digit) of the Error Code.

• The flashing then pauses for approximately 1/2 second.

• The LED then flashes indicating the value of the LSD (ones digit) of the Error Code.

• The Error Code is repeated a total of 5 times.

Example: If the Error Code is “24”, the LED will flash two times, pause, and then flash four times.

3. Error Codes

The Error Code designations indicating a malfunction, or no malfunction, are listed below:

Error Code Probable Cause

12 Normal Operation - No Error Detected 21 X-Ray Protect 22 Short Protect 23 Loss of Horizontal Deflection 24 Loss of Vertical Deflection

Remote Control Operational Modes

There are two Remote Hand Unit Operational Modes, “Standard” and “NetCommandTM”. The Remote is initially

in in the “Standard” mode. The “NetCommandTM” mode is used when controlling Home Theater devices using

NetCommandTM. To change the Remote Operational Mode:

• Set the Remote to the TV Layer

• Point the Remote away from the TV.

• To change to “Netcommand

” ... Hold the “Power” button and press “9-3-5” in sequence.

• To change to “Standard” ... Hold the “Power” button and press “0-0-0” in sequence.

Page 23

MODELS: WS-55859 / WS-55909 / WS-65869 / WS-65909 / WS-73909

Circuit Adjustment Mode

Most of the adjustments can only be performed using the remote hand unit. Many of the adjustments must be

performed in both the 480i and 1080i modes. Video/Color adjustments must be performed in the 480i and 1080i modes, and data must be preset in the 480P (DVD) and VGA modes.

Note: Set the Remote Operational Mode to NetCommandTM. (Hold the Power button and press 9-3-5 in sequence.) This slows the remotes response and makes adjustments easier. When adjustments are complete, set the Remote to its original Operational Mode.

A. Activating the Circuit Adjustment Mode

The current signal source determines if the activated Adjustment Mode is 480i or 1080i.

1. Select the signal source (480i or 1080i).

2. Press the "MENU" button on a remote hand unit.

3. Press the number buttons "0", "1", "5", "7" in sequence. The screen will change to the Adjustment Mode.

Note: Repeat steps 1 and 2 if the circuit

adjustment mode does not appear on screen.

CHASSIS

MODE

ADJ ITEM

V19

0 1 SCT 42 480i

ABBREV. DATA

SIGNAL

B. Selection of adjustment Functions and

Adjustment Items

To select an adjustment item in the circuit adjustment mode, first select the adjustment function that includes the specific adjustment item to be selected. Then select the adjustment item. Refer to the following pages for the listing of adjustment functions and adjustment items.

1. Press the "AUDIO" button on a remote hand unit to select an adjustment function. Each time the button is pressed, the Function changes in the following sequence:

Previous Models V19 Chassis

VC JNGL

Adjustment Functions

AUD SNTS MNTS

Video/Chroma VC

Jungle JNGL

Main Matrix MNTS

Sub Matrix SNTS

Audio AUD

Adjustment Function Name Changes

2. Press the VIDEO button to select a specific Adjustment Item. The Item number increases each time the VIDEO button is pressed.

C. Changing Data

After selecting an adjustment Item, use the ADJUST UP/DOWN button to change data.

 Press ADJUST DOWN to decrease the data value.  Press ADJUST UP to increase the data value.

D. Saving Adjustment Data

Press ENTER to save adjustment data in memory. The character display turns red for approximately one second in this step.

Note: If the circuit adjustment mode is terminated without pressing ENTER, changes in adjustment data

are not saved.

Page 24

MODELS: WS-55859 / WS-55909 / WS-65869 / WS-65909 / WS-73909

E. Terminating the Circuit Adjustment Mode

Press the MENU button on the remote hand unit twice to terminate the adjustment mode.

Note: The circuit adjustment mode can also be terminated by turning power OFF.

F. Toggle Between Reception Modes

Pressing 3 when in the Adjustment Mode VC Function toggles between 480i, 480p, 1080i and VGA. However data changes are not automatically saved. Press ENTER to save data before pressing 3.

On Screen Display Position Adjust Mode

Activation

1. Select 480i or 1080i source.

2. Press MENU-0-1-8-8

Convergence Adjustment Mode

The Convergence mode is used to perform raster geometry correction, and convergence adjustments. These adjustments must be made in both the SD (NTSC) and HD modes.

Note: Before activating the Convergence mode, turn Video Mute Off. The internal crosshatch pattern will not be displayed with Video Mute On, only a blue background is displayed.

A. Convergence Mode Activation

1. Press MENU-0-1-5-9

2. When the Convergence Mode is activated, this display appears on a Green Crosshatch.

B. Selecting the HD or SD Mode

1. Select the Signal Source before entering the Con-

vergence Mode, either an NTSC or HD source.

2. Enter the Convergence Mode

 If the signal source is NTSC, the SD mode is activated.  If the signal source is HD, the HD mode is activated.

3. Activating the HD mode when no HD signal is available

 Press the DEVICE button.  Use the UP-DOWN-RIGHT-LEFT direction buttons to select the ANT-DTV, then press ENTER.  Press MENU-0-1-5-9-5 in sequence to activate the Coarse Green HD Convergence mode.

C. Convergence Mode Functions

In the Convergence Mode there are three main Functions (Categories).

 Pressing 6 activates CONV MISC  Pressing 5 activates COARSE CONV  Pressing 4 activates FINE CONV

D. CONV MISC (Press 6)

This mode is used to preset data values controlling the Convergence Generator, and to perform the HV Regulation adjustment.

1. Use the VIDEO button to select an item.

2. Use the ADJUST buttons to change data.

NOTE: When Item 1 HVOL is selected the screen goes black except for the data display. This occurs

since a black screen is required when making the HV Regulation adjustment.

Page 25

MODELS: WS-55859 / WS-55909 / WS-65869 / WS-65909 / WS-73909

E. COARSE CONV (Press 5)

There are four Sub Functions in the Coarse mode, COARSE GREEN, COARSE RED, COARSE BLUE and DF.

 COARSE GREEN .... used to make Coarse Raster Geometry Adjustments.

 COARSE RED ... used to make Coarse Red Convergence Adjustments.  COARSE BLUE ... used to make Coarse Blue Convergence Adjustments.  DF ... used to preset data values controlling the Dynamic Beam Focus circuit drive signal.

1. Use AUDIO button to select a Sub Function

2. Use the VIDEO button to select an Adjustment Item.

3. Use the ADJUST buttons to change data.

F. FINE CONV (Press 4)

Sub Functions

This mode is used to perform Fine Raster Correction, and Fine Red and Blue Convergence Adjustments. There are three Sub Adjustment Functions, selected with the AUDIO button:

 FINE GREEN .... a Green Crosshatch is displayed, to make Fine Raster Corrections.

 FINE RED .... a White Crosshatch is displayed, to make Fine Red Convergence Adjustments.

 FINE BLUE .... a White Crosshatch is displayed, to make Fine Blue Convergence Adjustments.

Cursor

In the Fine mode a Cursor is added to the Crosshatch. The ENTER button toggles the Cursor between two modes:

 MOVE (blinking Cursor) .... use the ADJUST buttons to select any of 64 points on the Crosshatch.

 ADJUST (Non blinking Cursor) .... the ADJUST buttons adjust the active color at the current Cursor

position, horizontally or vertically.

Display

The on-screen display changes in the Fine mode, as shown at the right. The display shows the vertical and horizontal data for the current Cursor Position, and the horizontal and vertical coordinates for that position.

V19

CONV FINE GREEN

V13 H-4 SD

G. Saving Data and Exiting the Convergence Mode

Press MENU twice to exit the Convergence mode, data is automatically saved.

Page 26

VERTICAL

DATA

HORIZ.

DATA

MODELS: WS-55859 / WS-55909 / WS-65869 / WS-65909 / WS-73909

E2PROM Replacement

IC7A01 stores some adjustment data. After replacing the IC, set the data to the values given in the following

tables. If good performance is not obtained, perform the Adjustments Procedures given in the Notes column.

List of Adjustment Items.

VC Function (Video Color)

Function Display Adjustment Data Initial Data Notes

NO. Abbrev. Description Range 480i 480p 1080i VGA

1 SCT Picture Gain (H-Temp) 0~63 42 42 42 42 Sub Contrast 2 SBRT Sub Brightness (H-Temp) 0~63 25 25 25 25 Black Level 3 SCOL Sub Color (H-Temp) 0~15 3 5 3 3 Preset 4 STIN Sub Tint 0~15 7 8 15 7 " 5 SCON Sub Contrast (H-Temp) 0~15 3 3 3 3 " 6 RDRH R-Drive (high) 0~63 25 25 25 25 White Balance 7 GDR G-Drive 0~63 35 35 35 35 Preset 8 BDRH B-Drive (high) 0~63 25 25 25 25 White Balance

9 CTRH R-Cutoff (high) 0~63 20 20 20 20 " 10 CTGH G-Cutoff (high) 0~63 55 55 55 55 Preset 11 CTBH B-Cutoff (high) 0~63 20 20 20 20 White Balance 12 RDRL R-Drive (low) 0~63 30 30 30 30 " 13 BDRL B-Drive (low) 0~63 20 20 20 20 " 14 CTRL R-Cutoff (low) 0~63 20 20 20 20 " 15 CTGL G-Cutoff (low) 0~63 55 55 55 55 " 16 CTBL B-Cutoff (low) 0~63 15 15 15 15 " 17 SCTL Picture Gain (L-Temp) 0~63 42 42 42 42 Preset 18 SBRL Sub Brightness (L-Temp) 0~63 25 25 25 25 User 19 SCLL Sub Color (L-Temp) 0~15 2 2 2 2 User 20 SCNL Color Gain (L-Temp) 0~15 2 2 2 2 " 23 COL Color Gain 0~63 31 31 31 31 56 VM VM level 0~3 2 2 2 0 " 60 CRO1 CR Offset 1 0~15 10 7 7 7 Cb Cr Offset 61 CBO1 CB Offset 1 0~15 10 7 7 7 Cb Cr Offset 64 R-YR R-Y gain of R-Y 0~15 7 7 7 7 Preset 65 R-YB R-Y gain of B-Y 0~15 2 2 2 2 " 66 G-YR G-Y gain of R-Y 0~15 8 8 8 8 " 67 G-YB G-Y gain of b-y 0~15 11 11 11 11 " 72 AG-1 White Aging, On/Off 0~1 1 1 1 1 "

IC2V00

JNGL Function (Jungle)

Function Display Adjustment Data 73" Data Notes

Item # Abbrev. Description Range 1080i 480i 1080i 480i 1080i 480i

1 HWID Horizontal Width 0~63 33 33 33 33 36 33 Width 2 HKEY Horizontal Keystone 0~63 31 31 31 31 31 31 Preset 3 EWPTEW-PCC on top 0~63222222222216 " 4 EWCT Corner Pin (top) 0~63 31 28 31 28 31 31 5 EWPBEW-PCC on bottom 0~63273127312721 " 6 EWCB Corner Pin (bottom) 0~63 31 31 31 31 31 27 7 VHGT Vertical Height 0~63 25 27 25 27 32 32 Height 8 VLIN Vertical Linearity 0~15 999999Preset

9 VSCNVertical S-Correction0~15000000 " 10VLNTVertical Lin. (Top) 0~15000000 " 11VLNBVertical Lin. (Bottom)0~15000000 " 14 H-POS Horizontal Position 0~63 30 37 30 37 30 37 "

20 V-POS Vertical Position 0~63 31 31 31 31 31 31 "

Page 27

55" Data 65" Data

IC4A01

MODELS: WS-55859 / WS-55909 / WS-65869 / WS-65909 / WS-73909

MNTS Function (Main Decoder)

Function Displa

Item # Abbrev. Description Ran

1 TNTM Main Tint 0~63 27 29 Preset 2 COLM Main Color 0~63 19 19 " 3 YDRM Main Gain Control 0~31 9 9 Main Y Level 4 VPDM Pr Pedestal Adjustment 0~15 7 7 5 UPDM Pb Pedestal Adjustment 0~15 7 7

SNTS Function (Sub Decoder)

Function Display Adjustment Data Initial Notes

Item # Abbrev. Description Range Data

1 TNTS Sub Tint 0~63 29 Preset 2 COLS Sub Color 0~63 27 " 3 YDRS Sub Gain Control 0~31 12 Sub Y Level 4 VPDS Pr Pedestal Adjustment 0~15 7 " 5 UPDS Pb Pedestal Adjustment 0~15 7 "

AUDIO Function

Function Display Adjustment Data Initial Notes

Item # Abbrev. Description Range Data

1 INP Input Level Alignment 0~15 8 Input Level 2 WDE Wideband Separator Align. 0~31 3 Separation 3 SPC Spectral Separator Align. 0~31 3 "

Adjustment Data Notes

e RFNon RF

Initial Data

IC2H00

IC3A01

IC2E00

OSD Horizontal Centering

Abbrev. Description Data Initial

OSDHD HD OSD Horizontal Position 0~960 122 OSDSD SD OSC Horizontal Position 0~960 120

DYNAMIC FOCUS

Item

Number

Abbrev.

Name

0 DFH Dynamic Focus Horizontal -300 1 DFV Dynamic Focus Vertical -100

Description

(MENU-0-1-8-8)

Range Data

(MENU-0-1-5-9)

Data

SD&HD

CONV MISC

Item Abbrev. Data Notes

Number Name SD HD

1 HVOL HV Adj. 2 VCNT 29 29 Preset 3VSTR0 0 " 4VOFS250 " 5STLN4534" 6 FPHS 288 288 " 7CPHS1515" 8 HOFS 22 22 "

9DPHS0 0 " 10 DOFS 63 63 " 11 TPHS 34 36 " 12 TPVD 27 39 " 13 ODEV 200 125 " 14 HRTC 1 1 " 15 DRTC 1 1 " 16 DAC 1 1 " 17 EPWP 0 0 " 18 SCRL 25 25 " 19 SDEL 600 600 " 20 FDEL 3 3 "

* Do not change "1 HVOL" if it has been previously set.

(MENU-0-1-5-9-6)

160

Page 28

MODELS: WS-55859 / WS-55909 / WS-65869 / WS-65909 / WS-73909

CONV GREEN Items

No. Abbrev. Description

Name SD HD SD HD SD HD SD HD SD HD

1HSTA*Horizontal Position 0000000000 2VSTA*Vertical Position 0000000000 3SKEWSkew (Y axis rotation) 0000000000 4TILTTilt (X axis rotation) 0000000000 5HWIDHorisontal Width 0000000000 6 HLIN Horizontal Linearity 0 0 00000000 7SPCCSide Pin Cushion Correction0000000000 8HKEYHorizontal Keystone 0000000000

9 TBPC Top/Bottom PC Correction -200 -170 -200 -170 -200 -170 -200 -170 -200 -170 10 VKEY Vertical Keystone 15 15 15 15 15 15 15 15 15 15 11VWIDVertical Height 0000000000 12VLINVertical Linearity. 0000000000

*HSTA and VSTA must not exceed ±200

WS-65909 WS-73909WS-65869WS-55859 WS-55909

CONV RED Items

No. Abbrev. Description

Name SD HD SD HD SD HD SD HD SD HD

1HSTAHorizontal Position 50505050505050505050

2VSTAVertical Position 0000000000

3SKEWSkew (Y axis rotation) 0000000000

4TILTTilt (X axix rotation) 0000000000

5 HLIN Horixontal Linearity -150 -150 -150 -150 -150 -150 -150 -150 -200 -150

6 HWID Horizontal Width 10 10 10 10 10 10 10 10 10 10

7 VKEY Vertical Keystone Correction -90 -90 -90 -90 -90 -90 -90 -90 -100 -90

8VWIDVertical Height 0000000000

9VLINVertical Linearity 0000000000 10 TPPC Top/Bottom PC Correction 20 20 20 20 20 20 20 20 20 20 11SDBWHorizontal Side Bow 30303030303030303030

*HSTA and VSTA must not exceed ±200

WS-55859 WS-55909 WS-65869

WS-65909 WS-73909

(MENU-0-1-5-9-5)

CONV BLUE Items

No. Abbrev. Description

Name SD HD SD HD SD HD SD HD SD HD

1 HSTA Horizontal Position -50 -50 -50 -50 -50 -50 -50 -50 -50 -50

2VSTAVertical Position 0000000000

3SKEWSkew (Y axis rotation) 0000000000

4TILTTilt (X axix rotation) 0000000000

5 HLIN Horixontal Linearity 160 150 160 150 160 150 160 150 220 150

6 HWID Horizontal Width -20 -20 -20 -20 -20 -20 -20 -20 -20 -20

7 VKEY Vertical Keystone Correction 70 70 70 70 70 70 70 70 80 70

8VWIDVertical Height 0000000000

9VLINVertical Linearity 0000000000 10 TPPC Top/Bottom PC Correction -20 -20 -20 -20 -20 -20 -20 -20 -20 -20 11 HSBW Horizontal Side Bow -30 -30 -30 -30 -30 -30 -30 -30 -30 -30

*HSTA and VSTA must not exceed ±200

WS-55859 WS-55909

WS-65869

WS-65909 WS-73909

(MENU-0-1-5-9-5)

Page 29

MODELS: WS-55859 / WS-55909 / WS-65869 / WS-65909 / WS-73909

Adjustment Test Point Location

Test Points

DT pin 3 - HV Adjust DT pin 6 - Ground DT pin 7 - 12 Volts DT pin 8 - ACL EA pin 1 - Sub Picture (Y) EA pin 15 - Main Picture (Y) EB pin 5 - POP (Cr) ST pin 12 - Left Audio ST pin 16 - Right Audio TP6(R, G or B) - CRT Cathode

Page 30

[Audio Circuit]

(

)

MODELS: WS-55859 / WS-55909 / WS-65869 / WS-65909 / WS-73909

Purpose:

Check the input signal level to the MCS circuit

1. MCS Input Level

Measuring Instrument

Test Point

Ext. Trigger

Measuring Range

Input Signal

Input Terminal

Oscilloscope

Connector ST pins 16&12

------

50mV/Div

RF Stereo 300 Hz modulation

RF Input

Symptom:

Distorted sound during a stereo broadcast.

1. Supply an RF MCS signal to the Ant A input, 300 Hz at 100% modulation (25 kHz deviation) for right and left channels.

2. Connect the oscilloscope to connector ST pin 16 (Right Audio).

3. Enter the Adjustment Mode and select the Audio Function.

4. Verify that the Audio Function items are set to the data values given the table below.

5. Set the data for Item 1 INP for 1.56 Vp-p ±0.06V.

6. Connect the oscilloscope to connector ST pin 12 (Left Audio).

7. Confirm that the left audio level at pin 12 of the ST connector is 1.56 Vp-p ±0.06V.

Note: Adjustment 2 (Stereo Separation) must be performed after this adjustment)

CIRCUIT ADJUST MODE

Activate .. MENU-0-1-5-7 Function .....AUDIO Item No. ..VIDEO Ad

ust Data ..ADJUST Save Data . ENTER Exit ..MENU

twice

AUDIO Function

Item # Abbrev. Data

1INP8 3WDE3 4 SPC 3

[Audio Circuit]

2. Separation

Measuring Instrument

Test Point

Ext. Trigger

Measuring Range

Input Signal

Input Terminal

------

Oscilloscope

Conector ST pin 16

10mV/Div

RF Stereo

RF Input

Purpose

Symptom:

Check stereo separation

Poor stereo separation

Note: This adjustment must follow Adjustment 1 (Input Level)

1. Supply a RF Stereo Signal (dual tone stereo) to the Ant. A input.  Left Channel = 300 Hz modulation  Right Channel = no modulation

2. Connect the oscilloscope to connector ST pin 16 (Right Audio).

3. Enter the Adjustment Mode and select the Audio Function.

4. Set the data for Item 3 WDE for minimum Right Audio signal.

5. Change the modulation frequency to 3kHz.

6. Adjust the data for Item 4 SPC for minimum Right Audio signal.

CIRCUIT ADJUST MODE

Activate .. MENU-0-1-5-7 Function .....AUDIO Item No. ..VIDEO Ad

ust Data ..ADJUST Save Data . ENTER Exit ..MENU (twice

Page 31

[HV Circuit]

(

)

(

)

MODELS: WS-55859 / WS-55909 / WS-65869 / WS-65909 / WS-73909

Purpose:

To set the CRT Anode voltage.

3. HV Regulation

Measuring Instrument

Test Point

Ext. Trigger

Measuring Range

Input Signal

Input Terminal

DC Voltmeter

DT connector pins 3 & 6

------

-------

Video Signal Monoscope

Video Input

Symptom:

Dark Picture

Note: This adjustment must be rechecked following Adjustment 9 CRT Cutoff.

1. Supply a video monoscope signal.

2. Sent Contrast to maximum, and Brightness to mid position.

3. Connect a DC volt meter between pins 3 and 6 of the DT connector. (Positive lead to pin 3)

4. Activate the Conv-Misc Mode.

5. Select Item 1 HVOL (screen goes black).

6. Adjust Item 1 HVOL for 15.4V ±0.1V on the meter.

7. Save data and exit the Conv-Misc mode.

8. Confirm that the voltage does not change more than 0.15V.

Note: This adjustment must be performed if E2RESET or Convergence E2RESET

are activated.

CONVERGENCE MODE

Activate ..MENU-0-1-5-9 Misc. ."6" Coarse..."5" Fine ..."4"

R,G or B)AUDIO

Color Item No...VIDEO

ust/Move.ADJUST

Ad Cursor To Save & Exit..MENU

le...ENTER

twice

[Video Circuit]

4. Main/Sub Y Level

Measuring Instrument

Test Point

Ext. Trigger

Measuring Range

Input Signal

Input Terminal

Oscilloscope

EA connector pins 15 & 1

------

Color Bars

Video Input

Purpose

Symptom:

To set picture luminance

Excess or insufficient brightness.

1. Supply a color bar signal to a Video Input (not an RF input).

2. Select the color bar signal for both the main and sub pictures.

3. Connect the oscilloscope to connector EA pin 15.

4. Activate the Adjustment Mode

5. Select Item 3 YDRM in the MNTS function.

6. Adjust the data for 0.7 Vp-p max. - 0.67 Vp-p min. at EA pin 15. (If it cannot be adjusted within this range, set to the lower value)

7. Move the oscilloscope to EA pin 1.

8. Select Item 3 YDRS in the Sub Matrix function.

9. Adjust the data to equal the MAIN-Y Gain (+0.01V -0.04V).

CIRCUIT ADJUST MODE

Activate .. MENU-0-1-5-7 Function .....AUDIO Item No. ..VIDEO Ad

ust Data ..ADJUST Save Data . ENTER Exit ..MENU

twice

Page 32

[Video Circuit]

(

)

(

)

MODELS: WS-55859 / WS-55909 / WS-65869 / WS-65909 / WS-73909

Purpose:

To match the sub picture color to that of the main picture.

5. Side by Side Sub Picture Tint

Measuring Instrument

Test Point

Ext. Trigger

Measuring Range

Input Signal

Input Terminal

-----

------

NTSC

Video

Symptom:

Main and sub pictures colors differ.

1. Supply an NTSC signal to an External Video Input.

2. Select the NTSC signal as the source for both the main and sub pictures.

3. Activate Side by Side POP

3. Activate the Adjustment mode.

4. Select Item 1 TNTS in the SNTS Function.

5. Adjust data to match the sub picture color to that of the main picture. (If 1 TNTS range is short, adjust Items 4 VPDS and 5 UPDS)

CIRCUIT ADJUST MODE

Activate .. MENU-0-1-5-7 Function .....AUDIO Item No. ..VIDEO Ad

ust Data ..ADJUST Save Data . ENTER Exit ..MENU

twice

[Video Circuit]

6. Side by Side Sub Color

Measuring Instrument

Test Point

Ext. Trigger

Measuring Range

Input Signal

Input Terminal

Oscilloscope

EB connector pin 5

------

200mV/div 20usec/div

Color Bars

Video Input

Purpose

Symptom:

To set the sub picture color level.

Main and sub pictures color levels differs.

Note: Let the set run for at least one minute before making this adjustment.

1. Supply a color bar signal.

2. Select the color bar signal as the source for both the main and sub picture.

3. Connect an oscilloscope to pin 5 of the EB connector.

4. Activate the Side by Side mode.

5. Activate the Service Mode

6. Select Item 2 COLS in the SNTS function.

7. Adjust data so the amplitude of the Sub signal equals that of the main signal.

CIRCUIT ADJUST MODE

Activate .. MENU-0-1-5-7 Function .....AUDIO Item No. ..VIDEO Ad

ust Data ..ADJUST Save Data . ENTER Exit ..MENU

twice

Page 33

[CRT Circuit]

(

)

(

)

MODELS: WS-55859 / WS-55909 / WS-65869 / WS-65909 / WS-73909

Purpose:

To set the cutoff point for all three CRTs.

7. CRT Cutoff

Measuring Instrument

Test Point

Ext. Trigger

Measuring Range

Input Signal

Input Terminal

Cutoff Preset VC Data

Item Abbr Data

1SCT42 2SBRT25 5SCON3 6 RDRH 25 7GDR35 8 BDRH 25

9 CRTH 20 10 CTGH 55 11 CTBH 20

Oscilloscope

TP6R, TP6G, TP6B

------

50V/Div. 2msec/Div.

None

Video Input

Symptom:

Monochrome has a color tint, or incorrect brightness.

Note: Use the Expand mode (full screen)

1. Select an External Input with no signal.

2. Enter the Adjustment Mode, VC Function.

3. Press 1, automatically blanks the screen and sets COL to 0.

4. Set the data to the values given in the table below.

5. Connect the oscilloscope to TP6R.

6. Adjust the Red Screen VR so the black level is 190V, as shown below, or

198.5V ±1VDC using an DC Voltmeter.

7. Repeat Steps 4 and 5 to set the Blue and Green Screen VRs, using TP6G and TP6B.

Note: White Balance must be performed after this adjustment.

CIRCUIT ADJUST MODE

Activate .. MENU-0-1-5-7 Function .....AUDIO Item No. ..VIDEO Ad

ust Data ..ADJUST Save Data . ENTER Exit ..MENU

twice

[CRT Circuit]

8. White Balance (NTSC)

Measuring Instrument

Test Point

Ext. Trigger

Measuring Range

Input Signal

Input Terminal

Activate .. MENU-0-1-5-7 Function .....AUDIO Item No. ..VIDEO Ad Save Data . ENTER Exit ..MENU

DC Voltmeter

------

NTSC White Raster

RF or Video

CIRCUIT ADJUST MODE

ust Data ..ADJUST

twice

Purpose

Symptom:

To set the CRTs white level in the NTSC mode.

Monochrome has a color tint.

Note: Use the FORMAT button to activate the Expand mode (full screen).

1. Supply a full White Raster Signal

2. Activate the Service Mode, VC function.

3. Set the data for Item 23 COL to 0.

4. Adjust Items 6 RDRH and 8 BDRH for optimum white at the center of the screen.

5. Reduce the input luminance level to 30%.

6. Adjust Items 9 CTRH and 11 CTBH for optimum white.

7. Insert a Milliammeter in series with each CRT Cathode. The maximum allowable current for each CRT is given in the table below.

8. Set the white raster to 100% and adjust Items 12 RDRL and 13 BDRL for optimum white at the center of the screen.

9. Reduce the luminance level to 30%.

10. Adjust Item 14 CTRL and 16 CTBL for optimum white.

11. Set the data for Item 23 COL back to 31.

Maximum CRT Current

CRT

RED 580 uA 900 uA

GREEN 580 uA 900 uA

BLUE 580 uA 900 uA

55"& 65"

CURRENT

73"

CURRENT

Page 34

[CRT Circuit]

)

(

)

MODELS: WS-55859 / WS-55909 / WS-65869 / WS-65909 / WS-73909

Purpose:

To set the CRTs white level in the HD mode.

9. White Balance (HD)

Measuring Instrument

Test Point

Ext. Trigger

Measuring Range

Input Signal

Input Terminal

CIRCUIT ADJUST MODE

Activate .. MENU-0-1-5-7 Function .....AUDIO Item No. ..VIDEO Ad Save Data . ENTER Exit ..MENU (twice

-----

------

-----

HD White Raster

DTV Inputs

ust Data ..ADJUST

Symptom:

Monchrome pictures have a color tint.

1. Supply an HD Full White Raster signal to the DTV Inputs.

2. Select the DTV Inputs (Input button)

3. Activate the Adjustment mode, VC Function.

4. Set Item 23 COL to 0.

5. Adjust Items 6 RDRH and 8 BDRH for optimum white at the center of the screen.

6. Reduce the input signal luminance to 30%.

7. Adjust Items 9 CTRH and 11 CTBH for optimum white.

8. Set the data for Item 23 COL back to 31.

[CRT Circuit]

10. Cb, Cr Offset

Measuring Instrument

Test Point

Ext. Trigger

Measuring Range

Input Signal

Input Terminal

Activate .. MENU-0-1-5-7 Function .....AUDIO Item No. ..VIDEO Ad Save Data . ENTER Exit ..MENU

-----

------

White Raster (HD&NTSC)

Video & DTV Inputs

CIRCUIT ADJUST MODE

ust Data ..ADJUST

twice

Purpose

Symptom:

To set Cb and Cr color signal level.

Incorrect colors.

1. Supply an NTSC White Raster (30% luminance) signal to a Video Input.

2. Activate the Adjust Mode, VC Function

3. Set Item 23 COL data to 63.

4. Adjust Items 60 CRO1 and 61 CBO1 for optimum white.

5. Set Item 23 COL data to 31.

6. Save data and Exit the Service Mode.

Page 35

[Video Circuit]

(

)

11. Black Level

MODELS: WS-55859 / WS-55909 / WS-65869 / WS-65909 / WS-73909

Purpose:

Symptom:

To set the black level of the picture. Excess or insufficient brightness.

Measuring Instrument

Test Point

Ext. Trigger

Measuring Range

Input Signal

Input Terminal

-----

------

Monoscope

Video Input

CIRCUIT ADJUST MODE

Activate .. MENU-0-1-5-7 Function .....AUDIO Item No. ..VIDEO Ad

ust Data ..ADJUST Save Data . ENTER Exit ..MENU

1. Supply a Monoscope signal to a Video Input.

2. Activate the Adjust Mode, VC Function.

3. Adjust Item 2 SBRT so the 0% and 10% black levels on the gradation scale are the same.

4. Press ENTER to save data.

7. Exit the Service Mode.

40% 30% 20% 10%

50% 0% 0% 0%

60% 70% 80% 90%

GRADATION SCALE

twice

[Video Circuit]

12. Sub Contrast

Measuring Instrument

Test Point

Ext. Trigger

Measuring Range

Input Signal

Input Terminal

CIRCUIT ADJUST MODE

Activate .. MENU-0-1-5-7 Function .....AUDIO Item No. ..VIDEO Ad Save Data . ENTER Exit ..MENU (twice

DC ma meter

DT connector pins 7 & 8

------

-----

Grayscale

RF Input

ust Data ..ADJUST

Purpose

Symptom:

To set overall beam current to its optimum level.

Excess or insufficient contrast.

Note: Activate the Expand mode (full screen).

1. Supply a Grayscale signal to a RF Input.

2. Activate the Adjust Mode, VC Function.

3. Select Item 1 SCT, signal level automatically reduces.

4. Connect a 3ma DC meter between DT connector pins 7 and 8. Positive lead to pin 7.

5. Adjust Item 1 SCT for 615µA ±10µA (645µa ±10µa on the WS-73909).

6. Remove the meter.

7. Save data and Exit the Service Mode.

Page 36

[Focus Circuit]

MODELS: WS-55859 / WS-55909 / WS-65869 / WS-65909 / WS-73909

Purpose:

To improve edge focus.

13. Dynamic Focus Preset

Measuring Instrument

Test Point

Ext. Trigger

Measuring Range

Input Signal

Input Terminal

-----

------

-----

Monoscope

Video Input

CONVERGENCE MODE

Activate ..MENU-0-1-5-9 Misc. ."6" Coarse..."5" Fine ..."4" Color (R,G or B)AUDIO Item No...VIDEO Adjust/Move.ADJUST Cursor Toggle...ENTER Save & Exit..MENU (twice)

Symptom:

Poor focus at the edges of the screen.

1. Supply a Monoscope signal to a Video Input

2. Activate the Convergence Mode.

3. Select the DF Function under the Conv. Coarse Mode.

4. Set Items 0 DFH and 1 DFV to the data values given in the DF Table.

5. Press 6 to activate CONV-MISC

6. Set 0 FPHS and 1 DPHS to data values given in the CONV-MISC Table.

5. Exit the Conv. Mode.

(MENU-0-1-5-9-5)

Item Abbr. Data

0 DFH -300 1 DFV -100

CONV MISC

(MENU-0-1-5-9-6)

Item Abbr. Data

9DPHS 0

10 DOFS 63

[Video Circuit]

14. Lens Focus

Measuring Instrument

Test Point

Ext. Trigger

Measuring Range

Input Signal

Input Terminal

------

-----

Monoscope

Video Input

-----

------

Purpose

Symptom:

To set the Lens position for optimum focus.

Poor focus

Note: This adjustment must be done before Electrostatic Focus. Perform this

adjustment for RED, GREEN, and BLUE monochrome pictures.

1. Supply a VIDEO signal (Monoscope).

2. Cover the Red and Blue Lens (producing a green raster).

3. Adjust the Green Lens for best focus at the center of the Monoscope pattern.

Note: Attach a white paper to the screen center. During adjustment, observe the picture on the screen from inside for easier adjustment.

4. Repeat Steps 2 and 3 for the Red and Blue monochrome pictures.

Page 37

MODELS: WS-55859 / WS-55909 / WS-65869 / WS-65909 / WS-73909

[CRT Circuit]

15. Electrostatic Focus & (Alignment Magnet)

Purpose:

Symptom:

To set electrostatic focus to the optimum point. Poor focus.

Measuring Instrument

Test Point

Ext. Trigger

Measuring Range

Input Signal

Input Terminal

-----

------

Monscope & Crosshatch

Video Input

Note: This adjustment must be performed after the Sub Contrast adjustment.

Alignment Magnet Adjustment (WS-55909, WS-65909 and WS-73909 Only)

This adjustment must be performed before Static Focus Adjustment

1. Supply a Crosshatch with Center Dot signal to a Video Input.

2. Select a Green raster using the table below.

3. Roughly adjust Green Focus VR.

4. Rotate Green Focus VR CCW so the center dot is about 10mm diameter.

5. Adjust the Green 4 Pole Magnet for the roundest center dot.

6. Set the Green Focus VR for optimum focus.

7. Repeat the procedure with a Red raster and adjust the Red 4 Pole Magnet.

8. Use silicon to lock the magnets in place.

Static Focus Adjustment (All Models)

1. Supply a Monoscope signal to a Video Input

2. Activate A/V Reset

3. Select Red, Green or Blue rasters using the table below.

3. Set the Red, Green and Blue Focus VRs for optimum focus at the top center of the picture..

Raste r Color Selection

Color Raster Activation Code

Red MENU-0-1-5-9-1

Green MENU-0-1-5-9-2

Blue MENU-0-1-5-9-3

[On Screen Display]

16.Character Position

Measuring Instrument

Test Point

Ext. Trigger

Measuring Range

Input Signal

Input Terminal

-----

------

Video Signal (HD/NTSC)

ANT-A/DTV

Purpose

Symptom:

1. Supply an NTSC signal to Ant-A and select Ant-A as the source.

2. Enter the OSD Position Mode, press MENU-0-1-8-8.

3. Adjust OSDSD to center the OSD horizontally.

4. Press MENU to save data and exit the mode.

5. Supply a HD signal to the DTV inputs and select the DTV Inputs as the source.

6. Enter the OSD Position Mode, press MENU-0-1-8-8.

7. Adjust OSDHD to center the OSD horizontally.

3. Press MENU to save data and exit the mode.

To position the character display horizontally.

Incorrect display position

Page 38

[Conv/Defl]

)

17. Geometry Preset

MODELS: WS-55859 / WS-55909 / WS-65869 / WS-65909 / WS-73909

Purpose:

Symptom:

To preset data controlling raster geometry

Raster distortion.

Measuring Instrument

Test Point

Ext. Trigger

Measuring Range

Input Signal

Input Terminal

CIRCUIT ADJUST MODE

Activate .. MENU-0-1-5-7 Function .....AUDIO Item No. ..VIDEO Ad Save Data . ENTER Exit ..MENU (twice

-----

------

-----

NTSC & HD

Video & DTV Inputs

ust Data ..ADJUST

CONVERGENCE MODE

Note: This procedure is usually only necessary if an E2PROM is replaced in the TV

Control, DM or Convergence circuits.

Procedure

In the Circuit Adjustment and Coarse Convergence Modes pre-set the data to the values given in the Tables below.

DEFL JUNGLE

Item # Abbrev.

(MENU-0-1-5-7)

55"&65" Data 73" Data

NTSC HD NTSC HD 1HWID33333336 2HKEY31313131 3EWPT22221622

5EWPB31272127 7VHGT27253232 8VLIN 9 13 9 9 9VSCN0000

20VPOS31313131

CONV GREEN

Item # Abbrev.

(MENU-0-1-5-9-5)

55" Data 65" Data 73" Data

SD HD SD HD SD HD 0HSTA000000 1VSTA000000 2SKEW000000 3 TILT000000 4HWID000000 5 HLIN000000 6SPCC000000 7HKEY000000 8 TBPC -200 -170 -200 -170 -200 -170 9VKEY000000

10VWID000000 11VLIN000000

CONV BLUE

Item # Abbrev.

(MENU-0-1-5-9)

65" Data 73" Data55" Data

SD HD SD HD SD HD 0 HSTA -50 -50 -50 -50 -50 -50 1VSTA000000 2SKEW000000 3 TILT000000 4 HLIN 160 150 160 150 220 150 5 HWID -20 -20 -20 -20 -20 -20 6 VKEY707070708070 7VWID000000 8 VLIN000000 9 TBPC -20 -20 -20 -20 -20 -20

10 HSBW -30 -30 -30 -30 -30 -30

CONV RED

Item # Abbrev.

0 HSTA505050505050 1VSTA000000 2SKEW000000 3 TILT000000 4 HLIN -150 -150 -150 -150 -200 -150 5 HWID101010101010 6 VKEY -90 -90 -90 -90 -90 -90 7VWID000000 8 VLIN000000 9 TBPC 20 20 20 20 20 20

10 HSBW 30 30 30 30 30 30

(MENU-0-1-5-9-5)

55" Data 65" Data 73" Data

SD HD SD HD SD HD

Page 39

MODELS: WS-55859 / WS-55909 / WS-65869 / WS-65909 / WS-73909

)

[Deflection Circuit] 18: Deflection Geometry

Height & Width Adjustment

Measuring Instrument

Test Point

Ext. Trigger

Measuring Range

Input Signal

Input Terminal

CIRCUIT ADJUST MODE

Activate .. MENU-0-1-5-7 Function .....AUDIO Item No. ..VIDEO Ad

ust Data ..ADJUST Save Data . ENTER Exit ..MENU (twice

-----

------

-----

Monoscope (NTSC & HD)

Video & DTV Inputs

Purpose:

Symptom:

To set the height, width and linearity of the raster. Incorrect height, width and/or linearity.

Preliminary:

DO NOT change the initial values for #8 VLIN in the Defl. Jungle Function.

DO NOT exceed the following VHGT adjustment ranges:

NTSC ... from -4 to +10 HD ... from -10 TO +5

NTSC Mode

1. Supply an NTSC Monoscope signal to a Video Input.

2. Select the Monoscope as the signal source.

3. Activate the Adjustment Mode, JNGL Function.

4. Select and adjust each of the following items.  7 VHGT ... so the vertical marker sum = 4  1 HWD ... so the horizontal marker sum = 7

5. Save data and Exit the Service Mode.

HD Mode

1. Supply an HD Monoscope signal to the DTV HD Inputs.

2. Select the DTV Inputs as the signal source (Input button)

3. Activate the Service Mode, Defl. Jungle Function.

4. Select and adjust each of the following items.  7 VHGT ... so the vertical marker sum = 2  1 HWD ... so the horizontal marker sum = 5

5. Save data and Exit the Service Mode.

Page 40

MODELS: WS-55859 / WS-55909 / WS-65869 / WS-65909 / WS-73909

[Convergence Circuit]

19. Convergence Geometry Adjustment

Purpose:

Symptom:

To set the Convergence circuit geometry adjustments.

Raster distortion at the top, bottom or sides of the picture.

Measuring Instrument

Test Point

Ext. Trigger

Measuring Range

Input Signal

Input Terminal

-----

------

-----

NTSC -- None HD -- HD sync

Video & DTV Inputs

CONVERGENCE MODE

Note: Deflection Circuit Geometry must be performed before this adjustment.

NTSC mode

1. Select a Video Input with no signal.

2. Activate the Convergence Mode, Coarse Green.

3. Adjust the Coarse Green Items shown below for straight crosshatch lines.

4. Select the Fine Green Mode, a Cursor is displayed on the crosshatch.

5. Use the Cursor to adjust for straight crosshatch lines.

6. Exit the Convergence Mode.

HD mode

1. Supply horizontal and vertical HD sync to the DTV Inputs and select the DTV Inputs as the source.

Note: If an HD signal is not available, select Ant-DTV, with no signal, as the source.

2. Enter the Convergence Mode, Coarse Green.

3. Repeat NTSC Steps 3 through 6 in the HD mode.

Page 41

MODELS: WS-55859 / WS-55909 / WS-65869 / WS-65909 / WS-73909

[Convergence Circuit]

20. Centering and Static Convergence

Measuring Instrument

Test Point

Ext. Trigger

Measuring Range

Input Signal

Input Terminal

CONVERGENCE MODE

-----

------

-----

NTSC -- Monoscope HD -- Monoscope

Video & DTV Inputs

Purpose:

Symptom:

To converge red, green and blue at the center of the screen Color edging over the entire picture.

Preliminary

Degauss the shield cover and bracket unit of the CRT assembly and chassis.

DO NOT degauss the CPM Assemblies.

HD mode

1. Supply an HD Monoscope signal to the DTV Inputs.

2. Select the DTV Inputs as the signal source (Input button).

3. Enter the Convergence Coarse mode.

4. Set the data for the HSTA and VSTA items to: GREEN RED BLUE HSTS = 0 HSTA = 50 HSTA = -50 VSTA = 0 V STA = 0 V STA = 0

5. In the Coarse Green mode:  Center the Green Raster using the Green Centering Magnet.  Rotate the Green Deflection Yoke to correct any tilt.

6. In the Coarse Red mode, use the Red Centering Magnet to converge red on the green at the center of screen. Correct any red tilt with the Red Deflection Yoke.

7. In the Coarse Blue mode, repeat Step 6 using the Blue Centering magnet and the Blue Deflection Yoke.

8. Exit the Convergence mode.

SD mode

1. Supply an NTSC Monoscope signal to a Video Input.

2. Select the Monoscope as the signal source (Input button).

3. Enter the Convergence Coarse Green mode.

4. Confirm that the Green Raster is centered.

Page 42

MODELS: WS-55859 / WS-55909 / WS-65869 / WS-65909 / WS-73909

[Convergence Circuit]

21. Coarse Convergence

Purpose:

Symptom:

To converge red and blue on green at the edges of the screen. Color edging at the top, bottom and sides of the screen.

Measuring Instrument

Test Point

Ext. Trigger

Measuring Range

Input Signal

Input Terminal

-----

------

----NTSC -- None

HD -- HD sync

Video & HD Inputs

CONVERGENCE MODE

SD mode

1. Select an External Input with no signal.

2. Activate the Convergence Mode, Coarse Red.

3. Adjust the Items shown below to converge the red on the green.

4. Select Coarse Blue mode.

5. Adjust the Items shown below to converge the blue on the green.

Note: If center convergence shifts, use red and blue Items 0 HSTA and

1 VSTA to correct the shift.

6. Exit the Convergence Mode.

HD mode

1. Supply horizontal and vertical HD sync to the DTV Inputs and select the DTV Inputs as the source.

Note: If an HD signal is not available, select Ant-DTV, with no signal, as the source.

2. Repeat SD Steps 2 through 5 in the HD mode.

3. Exit the Convergence mode.

Page 43

MODELS: WS-55859 / WS-55909 / WS-65869 / WS-65909 / WS-73909

[Convergence Circuit]

22. Fine Convergence

Measuring Instrument

Test Point

Ext. Trigger

Measuring Range

Input Signal

Input Terminal

-----

------

-----

NTSC -- None HD -- HD sync

Video & DTV Inputs

CONVERGENCE MODE

Purpose:

Symptom:

To converge red, green and blue at the edges of the screen Color edging at the edges of the picture.

SD Fine Adjustment

1. Select an External Input, no signal.

2. Activate the Convergence Mode, Fine Red.

3. Use the Cursor to converge red on the green.

4. Select the Fine Blue mode.

5. Use the Cursor to converge blue on the green.

6. Exit the Convergence mode.

HD Fine Adjustment

1. Supply an HD signal (sync only) to the DTV inputs and select DTV with the Audio button.

Note: If an HD signal is not available, select Ant-DTV, with no signal, as the source.

2. Repeat SD Fine Adjustment Steps 2 through 6, in the HD mode.

Page 44

MODELS: WS-55859 / WS-55909 / WS-65869 / WS-65909 / WS-73909

CHIP PARTS REPLACEMENT

Some resistors, shorting jumpers (0 Ohm resistors), ceramic capacitors, transistors and diodes are chip parts. The following precautions should be taken when replacing these parts.

Cautions:

1. Use a fine tipped, well insulated soldering iron (approximately 30 watts), and tweezers.

2. Melt the solder and remove the chip parts carefully so as not to tear the copper foil from the printed circuit board.

3. Discard removed chips; do not reuse them.

4. Do not apply heat for more than 3 (three) seconds to new chip parts.

5. Avoid using a rubbing stroke when soldering.

6. Take care not to scratch, or damage the chip parts when soldering.

7. Supplementary cementing is not required.

Chip Parts Removal (Resistors, Capacitors, etc.)

1. Grasp the part with tweezers. Melt the solder at both sides alternately, and remove one side of the part with a twisting motion.

2. Melt the solder at the other side and remove the part.

Chip Parts Removal (Transistors)

1. Melt the solder of one lead and lift the side of that lead upward.

2. Simultaneously melt the solder of the other two leads and lift the part from the PCB.

Replacement

1. Presolder the contact points on the circuit pattern.

2. Press the part downward with tweezers and apply the soldering iron as shown.

PAGE 45

MODELS: WS-55859 / WS-55909 / WS-65869 / WS-65909 / WS-73909

REPLACEMENT PARTS

Parts Ordering

To expedite delivery of replacement parts orders, specify the following:

1. Model Number/Serial Number

2. Part Number and description

3. Quantity

Note: Unless complete information is supplied, delay in processing of orders will result.

Critical and Warranty Parts Designation

Critical Electrical Components are indicated by Bold Type in the Parts List, and in the schematic

diagrams by shading.

Warranty Return Parts are indicated in the Parts List with an (*).

Parts Tolerance Codes

Refer to the following chart for tolerance characteristics of electrical components.

MARK B C D F G J K

Tolerance % ± 0.1 ± 0.25 ± 0.5 ± 1 ± 2 ± 5 ± 10

MARK M N V X Z P Q

Tolerance %

MARK M N V X Z

Tolerance (pF) ± 0.1 ± 0.25 ± 0.5 ± 1 ± 2

± 20 ± 30 ± 10 + 40 + 80 + 100 + 30

-20 -20 - 0 -10

PAGE 46

MODELS: WS-55859 / WS-55909 / WS-65869 / WS-65909 / WS-73909

QUICK REFERENCE FOR COMMON REPLACEMENT PARTS

CRT ASSEMBLIES

MODEL ASSY-CRT-RED ASSY-CRT-GREEN ASSY-CRT-BLUE WS-55859 251C213040 251C213050 251C213060 WS-55909 251C214010 251C214020 251C214030 WS-65869 251C213070 251C213080 251C213090 WS-65909 251C214040 251C214050 251C214060 WS-73909 251C214070 251C214080 251C214090

REMOTE CONTROL

290P106010 REMOTE CONTROL

HIGH VOLTAGE / DEFLECTION COMPONENTS

Q5A31 261P071010 HORIZ-OUT 2SC5418 RL

Q5A51 261P082010 HV-OUT 2SK2771-O1R T5A51 334P278010 TRANS-FLYBACK

920P016010 HV-BLOCK

129P059050 VR-FOCUS

338P046030 SVM COIL - G&B All 338P051010 SVM COIL - GREEN WS-55909 / WS-65869 / WS-65909 / WS-73909

330P276010 DEFL-YOKE 453B035010 CAP-ANODE-SHORT-RED WS-55859 / WS-55909 / WS-65869 / WS-65909 453B035020 CAP ANODE-LONG-G&B WS-55859 / WS-55909 / WS-65869 / WS-65909 453B035030 CAP-ANODE-SHORT-RED WS-73909 453B035040 CAP ANODE-LONG-G&B WS-73909

MISCELLANEOUS

MODEL MIRROR

WS-55859 767D055040 491P103010 491P104010 WS-55909 767D055040 491P103010 491P104010 WS-65869 767D048090 491P105010 491P106010 WS-65909 767D048090 491P105010 491P106010 WS-73909 767C031010 491P085020 491P086020

LENTICULAR

SCREEN

FRESNEL

LENS

PAGE 47

MODELS: WS-55859 / WS-55909 / WS-65869 / WS-65909 / WS-73909

[#] Model Legend: (1) WS-55859, (2) WS-55909, (3) WS-65869, (4) WS-65909, (5) WS-73909

Ref # Part # Part Name & Description [#]

TUBES

251C213040 ASSY-CRT-RED 1 251C213050 ASSY-CRT-GREEN 1 251C213060 ASSY-CRT-BLUE 1 251C213070 ASSY-CRT-RED 3 251C213080 ASSY-CRT-GREEN 3 251C213090 ASSY-CRT-BLUE 3 251C214010 ASSY-CRT-RED 2 251C214020 ASSY-CRT-GREEN 2 251C214030 ASSY-CRT-BLUE 2 251C214040 ASSY-CRT-RED 4 251C214050 ASSY-CRT-GREEN 4 251C214060 ASSY-CRT-BLUE 4 251C214070 ASSY-CRT-RED 5 251C214080 ASSY-CRT-GREEN 5 251C214090 ASSY-CRT-BLUE 5

INTEGRATED CIRCUITS

IC2A00 270P870010 IC - CXA2151Q IC2A60 272P938010 IC - M52055FP IC2B00 270P870010 IC - CXA2151Q IC2C00 275P496010 IC-C-MOS - UPD64082GF-3BA IC2C01 275P531010 IC-C-MOS - MSM54V16258B-45TS-K IC2D01 272P379020 IC - LM1881MX (NSC) IC2E00 270P658030 IC - CXA2019AQ/T4 IC2F50 272P379020 IC - LM1881MX (NSC) IC2F60 272P379020 IC - LM1881MX (NSC) IC2F70 275P718010 IC-C-MOS - TC74HC4053FT IC2F80 275P718010 IC-C-MOS - TC74HC4053FT IC2H00 270P658030 IC - CXA2019AQ/T4 IC2K00 270P623010 IC - CXA2069Q IC2L00 270P623010 IC - CXA2069Q IC2V00 270P663020 IC - CXA2101AQ IC2V90 275P419010 IC-C-MOS - SN74AHCT1G126DBV IC2Y01 270P526020 IC - MM1111XF IC3A01 270P467010 IC - TDA9855

IC3E01 270P750010 IC - LA4663

IC4A01 270P664010 IC - CXA2102Q IC4A02 270P575030 IC - NJM78M09DLA-TE1 IC4A03 263P384010 IC-C-MOS - TC74HC221AF-EL IC4B01 270P261020 IC - TDA8177

IC5A00 267P143020 KIC - MSPAD101 IC5A01 272P237010 IC - LA6324N IC5A02 266P154010 IC - UPC393C IC5A03 270P704010 IC - LM4040BIZ-10.0

IC5A05 270P816010 IC - NJM431L IC5F00 263P479010 IC-C-MOS - TC74HC123AF

IC6B01 270P667010 IC - TDA6120Q IC6G01 270P667010 IC - TDA6120Q IC6R01 270P667010 IC - TDA6120Q

IC7A00 275P770010 IC-C-MOS, MICROCOMPU - M306V0ME-110FP IC7A01 275P533010 IC-C-MOS - M24C64WM6T IC7A02 270P706010 IC - MAX823 IC7A03 270P873010 IC - SN74CBT1G125DBVR IC7A04 270P873010 IC - SN74CBT1G125DBVR IC7B00 274P901010 IC-C-MOS - TC74HCT7007AF-EL IC7B80 263P154010 IC-C-MOS - SN74HC132DB IC7C30 275P419010 IC-C-MOS - SN74AHCT1G126DBV IC7D00 275P451010 IC-C-MOS - TC74HC4066AFN-ELP

IC7D01 275P560010 IC - ADS931E A2D CONVERTER IC7D02 275P560010 IC - ADS931E A2D CONVERTER IC7D03 275P560010 IC - ADS931E A2D CONVERTER IC7D10 275P535010 IC-C-MOS - TC74AC157FN-ELP IC7D11 275P535010 IC-C-MOS - TC74AC157FN-ELP IC7E00 275P451010 IC-C-MOS - TC74HC4066AFN-ELP IC7E01 275P560010 IC - ADS931E A2D CONVERTER IC7E02 275P560010 IC - ADS931E A2D CONVERTER IC7E03 275P560010 IC - ADS931E A2D CONVERTER IC7E10 275P535010 IC-C-MOS - TC74AC157FN-ELP IC7E11 275P535010 IC-C-MOS - TC74AC157FN-ELP IC7G01 275P247010 IC-C-MOS - MB40C958VPFV IC7G04 275P534010 IC-C-MOS - TC74HCT574AFW-ELP IC7G05 275P534010 IC-C-MOS - TC74HCT574AFW-ELP IC7H00 275P716010 IC-C-MOS - uPD4516161AG5-A10-9NF IC7H01 275P716010 IC-C-MOS - uPD4516161AG5-A10-9NF IC7H02 275P436030 IC-C-MOS - TMC57127PPM IC7H03 275P439030 IC-C-MOS - MSM534031E-*TS-K IC7H04 270P506010 IC - M51957BFP IC7H05 263P384010 IC-C-MOS - TC74HC221AF-EL IC7H06 270P348010 IC - TLC2932IPW IC7H07 275P437020 IC - SLA4028 IC7H08 270P348010 IC - TLC2932IPW IC7H09 274P901010 IC-C-MOS - TC74HCT7007AF-EL IC7H11 275P535010 IC-C-MOS - TC74AC157FN-ELP IC7H12 275P535010 IC-C-MOS - TC74AC157FN-ELP IC7H13 275P535010 IC-C-MOS - TC74AC157FN-ELP IC7H14 275P535010 IC-C-MOS - TC74AC157FN-ELP IC7K21 270P831010 IC-C-MOS - OPA2350PA IC7V01 275P362010 IC-C-MOS - Z86130 IC800 275P595010 IC-C-MOS - CM0022AF IC801 275P615010 IC-C-MOS - AT24C32N-10SI IC802 270P751010 IC - TL084CD IC803 270P751010 IC - TL084CD IC804 270P751010 IC - TL084CD

IC8C01 267P155010 HIC - STK393-110

IC8E01 270P817010 IC - L4931CDT33-TR IC8E02 272P603010 IC - LM78L05ACZ/NJM78L05A IC8E03 275P721010 IC-C-MOS - CD0031AM

IC9A20 267P159010 HIC - STR-G6623 IC9A21 270P816010 IC - NJM431L

IC9A22 267P076030 HIC - SI-3050C

IC9A50 267P140020 HIC - STR-F6628 IC9A51 267P062050 HIC - SE110N

IC9C00 270P472060 IC - NJM7805FA IC9C01 270P210010 IC - NJM7809FA/AN7809F IC9C02 270P210010 IC - NJM7809FA/AN7809F IC9C03 270P575030 IC - NJM78M09DLA-TE1 IC9C20 267P131010 HIC - SI-3033C IC9C40 267P076030 HIC - SI-3050C IC9C50 270P817010 IC - L4931CDT33-TR

TRANSISTORS

TR-CHIP Type (Listed by Generic Number)

Type Part No. Description

PNP 260P817010 2SA1037K-Q PNP 260P817020 2SA1037K-R PNP 260P817030 2SA1037K-S

PAGE 48

MODELS: WS-55859 / WS-55909 / WS-65869 / WS-65909 / WS-73909

[#] Model Legend: (1) WS-55859, (2) WS-55909, (3) WS-65869, (4) WS-65909, (5) WS-73909

Ref # Part # Part Name & Description [#]

Type Part # Description

NPN 260P818010 2SC2412K-Q NPN 260P818030 2SC2412K-S NPN 260P835030 2SC2413K-Q PNP 261P801010 2SA1252-5,6

Conventional Transistors (By Ref #) Ref # Part No. Description

Q4B01 260P559030 TR - 2SC1740S-S Q5A01 260P788010 TR - 2SC4690-O Q5A02 260P561020 TR - 2SA1371-E Q5A03 260P386010 TR - 2SC2230-GR Q5A04 260P559030 TR - 2SC1740S-S Q5A05 260P560040 TR - 2SA933S-S

Q5A06 260P560040 TR - 2SA933S-S

Q5A07 261P123010 TRANSISTOR - UNR4113-S Q5A08 260P325030 TR - 2SC2655-Y Q5A10 260P603010 TR - DTA124ES/UN4112 Q5A31 261P071010 TR - 2SC5418 RL Q5A32 260P587040 TR - 2SC2333-M,L Q5A33 260P559030 TR - 2SC1740S-S Q5A34 260P561020 TR - 2SA1371-E Q5A35 260P386010 TR - 2SC2230-GR Q5A36 260P630010 TR - 2SD2012 Q5A37 260P559030 TR - 2SC1740S-S Q5A38 260P559030 TR - 2SC1740S-S

Q5A51 261P082010 TR - 2SK2771-01R

Q5H05 260P559050 TR - 2SC1740S-E Q5H06 260P560040 TR - 2SA933S-S Q5H08 260P559050 TR - 2SC1740S-E Q5H09 260P559050 TR - 2SC1740S-E Q5H10 260P560040 TR - 2SA933S-S Q5H11 260P573020 TR - 2SB940A-P Q5H12 260P574020 TR - 2SD1264A-P Q5K00 260P664030 TR - 2SC4636 Q5K01 260P664030 TR - 2SC4636 Q5K02 260P559050 TR - 2SC1740S-E Q5K03 260P560040 TR - 2SA933S-S Q6B01 260P560040 TR - 2SA933S-S Q6B02 260P560040 TR - 2SA933S-S Q6G01 260P560040 TR - 2SA933S-S Q6R01 260P560040 TR - 2SA933S-S Q7C31 261P114010 TR - 2SA1585STPR Q7K21 260P559030 TR - 2SC1740S-S

Q9A20 261P101010 TR - PHP21N06T

Q9A21 260P559030 TR - 2SC1740S-S Q9A22 260P559030 TR - 2SC1740S-S Q9A50 260P416030 TR - 2SC2274-F,K-F Q9A51 260P559030 TR - 2SC1740S-S Q9A53 260P559030 TR - 2SC1740S-S Q9A54 260P559030 TR - 2SC1740S-S Q9B00 261P118010 TR - ITF86130SK8T Q9B01 261P118010 TR - ITF86130SK8T Q9B02 261P117010 TR - HUF76112SK8

Diodes

D2J04 264P485060 DIODE - RD7.5FB2 D2J05 264P485060 DIODE - RD7.5FB2

D2J91 264P485060 DIODE - RD7.5FB2 D2M22 264P822010 D-CHIP - HSM2838 D2V44 264P828010 D-CHIP - DAN202U/MA142WK D2W01 264P828010 D-CHIP - DAN202U/MA142WK D2W02 264P828010 D-CHIP - DAN202U/MA142WK D2W04 264P828010 D-CHIP - DAN202U/MA142WK D2W05 264P828010 D-CHIP - DAN202U/MA142WK D2W06 264P828010 D-CHIP - DAN202U/MA142WK D4B01 264D056020 DIODE - S5500D/EM1Z/ERB12-02RK D4B04 264P045040 DIODE - 1S24710M D54K0 264P808010 DIODE-CHIP - DAN202K D5A01 264P045040 DIODE - 1S24710M D5A02 264D056020 DIODE - S5500D/EM1Z/ERB12-02RK D5A12 264P045040 DIODE - 1S24710M D5A13 264P483070 DIODE - RD5.1FB1 D5A14 264P045040 DIODE - 1S24710M D5A31 262P032010 DIODE - FMV-G2GS D5A34 264P483070 DIODE - RD5.1FB1 D5A35 264P045040 DIODE - 1S24710M D5A36 264P045040 DIODE - 1S24710M D5A37 264P521040 DIODE - EU1A D5A51 262P039010 DIODE - BYW96E/20 D5A52 264P899010 DIODE - BYV26E D5A53 264P489010 DIODE - RD16FB1 D5A54 264P724010 DIODE - STF14 D5A55 264P724010 DIODE - STF14 D5A56 264P045040 DIODE - 1S24710M D5A57 264P521040 DIODE - EU1A D5A58 264P045040 DIODE - 1S24710M D5A59 264P045040 DIODE - 1S24710M D5A60 264P489010 DIODE - RD16FB1 D5F00 264P828010 D-CHIP - DAN202U/MA142WK D5F01 264P828010 D-CHIP - DAN202U/MA142WK D5F02 264P828010 D-CHIP - DAN202U/MA142WK D5H01 264P045040 DIODE - 1S24710M D5H02 264P045040 DIODE - 1S24710M D5H03 264P045040 DIODE - 1S24710M D5H04 264P045040 DIODE - 1S24710M D5K01 264P528030 DIODE - RP1H D5K02 264P543010 DIODE - EG01 D5K03 264P543010 DIODE - EG01 D5K10 264P528030 DIODE - RP1H D5K11 264P528030 DIODE - RP1H D6G02 264P501090 DIODE - HZ4CLL D6G03 264P457080 DIODE - RD3.3EB1 D7H01 264P828010 D-CHIP - DAN202U/MA142WK D7K21 268P100010 PHOTO DIODE - SFH235FA D7K22 264P045040 DIODE - 1S24710M D7L20 264P485060 DIODE - RD7.5FB2 D7L21 264P212020 D-LED - LN31GPH D8C01 264P045040 DIODE - 1S24710M D8C02 264P045040 DIODE - 1S24710M D8G00 264P486060 DIODE - RD9.1FB3 D8G01 264P486060 DIODE - RD9.1FB3 D9A01 262P031010 DIODE - D6SB80 D9A20 264P358040 DIODE - RU 4A D9A21 264P899010 DIODE - BYV26E D9A22 264P045040 DIODE - 1S24710M D9A23 264P045040 DIODE - 1S24710M D9A24 264P045040 DIODE - 1S24710M

PAGE 49

MODELS: WS-55859 / WS-55909 / WS-65869 / WS-65909 / WS-73909

[#] Model Legend: (1) WS-55859, (2) WS-55909, (3) WS-65869, (4) WS-65909, (5) WS-73909

Ref # Part # Part Name & Description [#]

D9A25 264P045040 DIODE - 1S24710M D9A26 264P045040 DIODE - 1S24710M D9A27 264P045040 DIODE - 1S24710M D9A28 264P045040 DIODE - 1S24710M D9A29 264P483070 DIODE - RD5.1FB1 D9A31 264P045040 DIODE - 1S24710M D9A32 264P045040 DIODE - 1S24710M D9A33 264P628010 DIODE - FMB-G14L D9A34 264P470080 DIODE - EQA02-32C/RD33EB4 D9A35 264P469090 DIODE - EQA02-28C/RD30EB2 D9A50 264P045040 DIODE - 1S24710M D9A52 264P045040 DIODE - 1S24710M D9A53 264P045040 DIODE - 1S24710M D9A54 264P045040 DIODE - 1S24710M D9A55 264P045040 DIODE - 1S24710M D9A56 264P566010 DIODE - FMP-G12S D9A57 264P899010 DIODE - BYV26E D9A58 264P588010 DIODE - FML-G16S D9A64 264P045040 DIODE - 1S24710M D9A65 264P045040 DIODE - 1S24710M D9A66 264P045040 DIODE - 1S24710M D9B01 264P718010 DIODE - FR155 D9B04 264P458050 DIODE - RD3.9EB1 D9B05 264P484040 DIODE - RD5.6FB3 D9C00 264D056020 DIODE - S5500D/EM1Z/ERB12-02RK

COILS

L1A06 409P923060 EMI-F-CHIP - BLM21B272S L1A07 409P923060 EMI-F-CHIP - BLM21B272S L1A09 325C146030 COIL-CHIP - 10MH-J L1A13 409P923060 EMI-F-CHIP - BLM21B272S L1A50 325C146030 COIL-CHIP - 10MH-J L1A51 321C114010 COIL-RF - 2200MH-J L1B06 409P923060 EMI-F-CHIP - BLM21B272S L1B07 409P923060 EMI-F-CHIP - BLM21B272S L1B09 325C146030 COIL-CHIP - 10MH-J L1B13 409P923060 EMI-F-CHIP - BLM21B272S L1B50 325C146030 COIL-CHIP - 10MH-J L1B51 321C114010 COIL-RF - 2200MH-J L2A00 325C241030 COIL-CHIP - 10MH-K L2A60 325C241030 COIL-CHIP - 10MH-K L2B00 325C241030 COIL-CHIP - 10MH-K L2C01 325C146050 COIL-CHIP - 15MH-J L2C03 409P777080 EMI-F-CHIP - BLM21P221S L2C05 409P777080 EMI-F-CHIP - BLM21P221S L2C06 409P777080 EMI-F-CHIP - BLM21P221S L2D01 325C146030 COIL-CHIP - 10MH-J L2D03 325C146030 COIL-CHIP - 10MH-J L2D08 409P777080 EMI-F-CHIP - BLM21P221S L2D20 325C146030 COIL-CHIP - 10MH-J L2E03 409P777080 EMI-F-CHIP - BLM21P221S L2E25 409P777080 EMI-F-CHIP - BLM21P221S L2F50 409P923060 EMI-F-CHIP - BLM21B272S L2F60 409P777080 EMI-F-CHIP - BLM21P221S L2F70 409P923060 EMI-F-CHIP - BLM21B272S L2F80 409P923060 EMI-F-CHIP - BLM21B272S L2H60 325C146030 COIL-CHIP - 10MH-J L2H61 325C146030 COIL-CHIP - 10MH-J L2J30 409P777050 EMI-F-CHIP - BLM21B201S L2J31 409P777050 EMI-F-CHIP - BLM21B201S

L2J32 409P777050 EMI-F-CHIP - BLM21B201S L2J33 409P777050 EMI-F-CHIP - BLM21B201S L2J34 409P777050 EMI-F-CHIP - BLM21B201S L2J35 409P777050 EMI-F-CHIP - BLM21B201S L2K42 409P777080 EMI-F-CHIP - BLM21P221S L2L42 409P777080 EMI-F-CHIP - BLM21P221S L2M00 409P777080 EMI-F-CHIP - BLM21P221S L2M20 409P777080 EMI-F-CHIP - BLM21P221S L2V06 409P923060 EMI-F-CHIP - BLM21B272S L2V72 409P923060 EMI-F-CHIP - BLM21B272S L2V90 409P923060 EMI-F-CHIP - BLM21B272S L2V95 409P923060 EMI-F-CHIP - BLM21B272S L2W01 409P923060 EMI-F-CHIP - BLM21B272S L2W02 409P923060 EMI-F-CHIP - BLM21B272S L2W03 409P923060 EMI-F-CHIP - BLM21B272S L2W04 409P923060 EMI-F-CHIP - BLM21B272S L2W05 409P923060 EMI-F-CHIP - BLM21B272S L2X30 409P923060 EMI-F-CHIP - BLM21B272S L2Y00 409P923060 EMI-F-CHIP - BLM21B272S L2Y10 409P923060 EMI-F-CHIP - BLM21B272S L2Y30 409P923060 EMI-F-CHIP - BLM21B272S L3A37 409P923060 EMI-F-CHIP - BLM21B272S L4A02 325C461030 COIL-PEAKING - 10MH-K L4A03 409P777080 EMI-F-CHIP - BLM21P221S L4B01 321C130010 COIL-RF - 2MH L4B02 321C130090 COIL-RF - 10MH-K L5A31 411P001010 LEAD-FERRITE L5A33 333P052030 COIL-HORIZ-LIN L5A34 321C130010 COIL-RF - 2MH L5A51 321C141030 COIL-RF - 10MH-K L5A52 321C141030 COIL-RF - 10MH-K L5A53 321C141010 COIL-RF - 6.8MH-M L5A54 411D009020 CORE-FERRITE L5A55 411D009020 CORE-FERRITE L5F00 409P923060 EMI-F-CHIP - BLM21B272S L5H41 325C110090 COIL-PEAKING - 4.7MH-K L6B01 411P012010 BEAD-FERRITE L6B02 411P012010 BEAD-FERRITE L6G01 411P012010 BEAD-FERRITE L6G02 411P012010 BEAD-FERRITE L6R01 411P012010 BEAD-FERRITE L6R02 411P012010 BEAD-FERRITE L6R04 321C141010 COIL-RF - 6.8MH-M L7A30 409P923060 EMI-F-CHIP - BLM21B272S L7A99 409P923060 EMI-F-CHIP - BLM21B272S L7B00 409P923060 EMI-F-CHIP - BLM21B272S L7B76 409P923060 EMI-F-CHIP - BLM21B272S L7B80 409P923060 EMI-F-CHIP - BLM21B272S L7C00 325C146030 COIL-CHIP - 10MH-J L7C10 409P923060 EMI-F-CHIP - BLM21B272S L7C20 409P777050 EMI-F-CHIP - BLM21B201S L7C24 409P777050 EMI-F-CHIP - BLM21B201S L7C25 409P777050 EMI-F-CHIP - BLM21B201S L7D01 325C241030 COIL-CHIP - 10MH-K L7D11 325C242010 COIL-CHIP - 47MH-K L7D12 409P777020 EMI-F-CHIP - BLM21A05 L7D13 325C241030 COIL-CHIP - 10MH-K L7D14 325C241030 COIL-CHIP - 10MH-K L7D15 325C241030 COIL-CHIP - 10MH-K L7E01 325C241030 COIL-CHIP - 10MH-K

PAGE 50

MODELS: WS-55859 / WS-55909 / WS-65869 / WS-65909 / WS-73909

[#] Model Legend: (1) WS-55859, (2) WS-55909, (3) WS-65869, (4) WS-65909, (5) WS-73909

Ref # Part # Part Name & Description [#]

L7E11 325C242010 COIL-CHIP - 47MH-K L7E12 409P777020 EMI-F-CHIP - BLM21A05 L7E13 325C241030 COIL-CHIP - 10MH-K L7E14 325C241030 COIL-CHIP - 10MH-K L7E15 325C241030 COIL-CHIP - 10MH-K L7G00 325C242050 COIL-CHIP - 100MH-K L7G10 325C242050 COIL-CHIP - 100MH-K L7G11 325C241030 COIL-CHIP - 10MH-K L7G12 325C241030 COIL-CHIP - 10MH-K L7H10 325C241030 COIL-CHIP - 10MH-K L7H11 409P777080 EMI-F-CHIP - BLM21P221S L7H12 325C241030 COIL-CHIP - 10MH-K L7H13 325C241030 COIL-CHIP - 10MH-K L7H14 325C241030 COIL-CHIP - 10MH-K L7H15 325C241030 COIL-CHIP - 10MH-K L7H16 325C241030 COIL-CHIP - 10MH-K L7H17 325C241030 COIL-CHIP - 10MH-K L7H19 409P777080 EMI-F-CHIP - BLM21P221S L7H20 325C241030 COIL-CHIP - 10MH-K L7H30 325C241030 COIL-CHIP - 10MH-K L7H31 325C241030 COIL-CHIP - 10MH-K L7H32 409P777080 EMI-F-CHIP - BLM21P221S L7H38 325C241030 COIL-CHIP - 10MH-K L7H40 325C241030 COIL-CHIP - 10MH-K L7H41 409P777080 EMI-F-CHIP - BLM21P221S L7H42 409P777080 EMI-F-CHIP - BLM21P221S L7H50 409P777080 EMI-F-CHIP - BLM21P221S L7H60 325C241030 COIL-CHIP - 10MH-K L7H70 325C241030 COIL-CHIP - 10MH-K L7H80 325C241030 COIL-CHIP - 10MH-K L7K01 325C121030 COIL-PEAKING - 10MH-K L7V01 409P923060 EMI-F-CHIP - BLM21B272S L80 325C140050 COIL-CHIP - 2.2MH-M/K/J L8C01 321C141070 COIL-RF - 22MH-K L8C02 321C141070 COIL-RF - 22MH-K L8D01 409P777080 EMI-F-CHIP - BLM21P221S L8D02 409P777080 EMI-F-CHIP - BLM21P221S L8D03 409P777080 EMI-F-CHIP - BLM21P221S L8D04 409P777080 EMI-F-CHIP - BLM21P221S L8D05 409P777080 EMI-F-CHIP - BLM21P221S L8D06 409P777080 EMI-F-CHIP - BLM21P221S L8D07 409P777080 EMI-F-CHIP - BLM21P221S L8G00 409P777080 EMI-F-CHIP - BLM21P221S L8G01 409P777080 EMI-F-CHIP - BLM21P221S

L9A02 351P223010 LINE FILTER - SLF15N0601

L9A20 411D009020 CORE-FERRITE L9A21 411D009020 CORE-FERRITE L9A22 321C141020 COIL-RF - 8.2MH L9A23 321C141020 COIL-RF - 8.2MH L9A24 321C141070 COIL-RF - 22MH-K L9A50 411D009020 CORE-FERRITE L9A51 411D009020 CORE-FERRITE L9A52 411D009020 CORE-FERRITE L9A53 321C141010 COIL-RF - 6.8MH-M L9A54 411D009020 CORE-FERRITE L9A55 321C142030 COIL-RF - 68MH-K L9A56 411D009020 CORE-FERRITE L9A57 321C141070 COIL-RF - 22MH-K L9A58 321C141070 COIL-RF - 22MH-K L9A59 321C141070 COIL-RF - 22MH-K

L9A60 321C141070 COIL-RF - 22MH-K L9A62 321C141010 COIL-RF - 6.8MH-M L9A63 321C141010 COIL-RF - 6.8MH-M L9A64 321C130090 COIL-RF - 10MH-K L9A65 321C141010 COIL-RF - 6.8MH-M L9A66 321C141070 COIL-RF - 22MH-K L9A67 321C130090 COIL-RF - 10MH-K L9B01 321C140060 COIL-RF - 2.7MH-M 9X9.5 L9B02 321C141070 COIL-RF - 22MH-K L9B03 321C140060 COIL-RF - 2.7MH-M 9X9.5 L9B04 321C140060 COIL-RF - 2.7MH-M 9X9.5

L9D00 351P222010 LINE FILTER - ELF24V050A L9D01 351P222010 LINE FILTER - ELF24V050A

LC2J01 409P876060 EMI-F-CHIP - CNF20R102S/CKD510JB1H102S LC2J02 409P876060 EMI-F-CHIP - CNF20R102S/CKD510JB1H102S LC2J03 409P876060 EMI-F-CHIP - CNF20R102S/CKD510JB1H102S LC2J04 409P876060 EMI-F-CHIP - CNF20R102S/CKD510JB1H102S LC2J05 409P876060 EMI-F-CHIP - CNF20R102S/CKD510JB1H102S LC7D02 409P875090 EMI-F-CHIP - ELKE103FA LC7D05 409P875090 EMI-F-CHIP - ELKE103FA LC7D10 409P876020 EMI-F-CHIP - CNF20C470S/CKD510JB1H470S LC7D11 409P876020 EMI-F-CHIP - CNF20C470S/CKD510JB1H470S LC7D12 409P876020 EMI-F-CHIP - CNF20C470S/CKD510JB1H470S LC7D13 409P876020 EMI-F-CHIP - CNF20C470S/CKD510JB1H470S LC7D14 409P876020 EMI-F-CHIP - CNF20C470S/CKD510JB1H470S LC7E10 409P876020 EMI-F-CHIP - CNF20C470S/CKD510JB1H470S LC7E11 409P876020 EMI-F-CHIP - CNF20C470S/CKD510JB1H470S LC7E12 409P876020 EMI-F-CHIP - CNF20C470S/CKD510JB1H470S LC7E13 409P876020 EMI-F-CHIP - CNF20C470S/CKD510JB1H470S LC7E14 409P876020 EMI-F-CHIP - CNF20C470S/CKD510JB1H470S LC7G01 409P876020 EMI-F-CHIP - CNF20C470S/CKD510JB1H470S LC7G02 409P876020 EMI-F-CHIP - CNF20C470S/CKD510JB1H470S LC7G03 409P876020 EMI-F-CHIP - CNF20C470S/CKD510JB1H470S LC7G04 409P876020 EMI-F-CHIP - CNF20C470S/CKD510JB1H470S LC7G05 409P876020 EMI-F-CHIP - CNF20C470S/CKD510JB1H470S LC7G06 409P876020 EMI-F-CHIP - CNF20C470S/CKD510JB1H470S LC7G07 409P876020 EMI-F-CHIP - CNF20C470S/CKD510JB1H470S LC7G08 409P875090 EMI-F-CHIP - ELKE103FA LC7G09 409P875090 EMI-F-CHIP - ELKE103FA LC7G10 409P876020 EMI-F-CHIP - CNF20C470S/CKD510JB1H470S LC7G11 409P876020 EMI-F-CHIP - CNF20C470S/CKD510JB1H470S LC7G12 409P876020 EMI-F-CHIP - CNF20C470S/CKD510JB1H470S LC7G13 409P876020 EMI-F-CHIP - CNF20C470S/CKD510JB1H470S LC7G14 409P876020 EMI-F-CHIP - CNF20C470S/CKD510JB1H470S LC7G15 409P876020 EMI-F-CHIP - CNF20C470S/CKD510JB1H470S LC7J03 409P876020 EMI-F-CHIP - CNF20C470S/CKD510JB1H470S LC7J04 409P876020 EMI-F-CHIP - CNF20C470S/CKD510JB1H470S LC7J05 409P876020 EMI-F-CHIP - CNF20C470S/CKD510JB1H470S LC7J10 409P876020 EMI-F-CHIP - CNF20C470S/CKD510JB1H470S LC7J13 409P876020 EMI-F-CHIP - CNF20C470S/CKD510JB1H470S LC7J14 409P876020 EMI-F-CHIP - CNF20C470S/CKD510JB1H470S LC7J15 409P876020 EMI-F-CHIP - CNF20C470S/CKD510JB1H470S LF56A1 409P900010 LP-FILTER - 7MHZ SMD LF7D00 409P901010 LP-FILTER - 14MHZ SMD LF7D01 409P901010 LP-FILTER - 14MHZ SMD LF7D02 409P901010 LP-FILTER - 14MHZ SMD LF7E00 409P901010 LP-FILTER - 14MHZ SMD LF7E01 409P901010 LP-FILTER - 14MHZ SMD LF7E02 409P901010 LP-FILTER - 14MHZ SMD LF7G00 409P901010 LP-FILTER - 14MHZ SMD

PAGE 51

MODELS: WS-55859 / WS-55909 / WS-65869 / WS-65909 / WS-73909

[#] Model Legend: (1) WS-55859, (2) WS-55909, (3) WS-65869, (4) WS-65909, (5) WS-73909

Ref # Part # Part Name & Description [#]

LF7G01 409P901010 LP-FILTER - 14MHZ SMD LF7G02 409P901010 LP-FILTER - 14MHZ SMD

TRANSFORMERS

T5A31 349P216010 TRANS-HORIZ T5A32 336P040010 TRANS-HORIZ-DRIVE T5A51 334P278010 TRANS-FLYBACK T9A20 350P766020 TRANS-POWER T9A50 350P765010 TRANS-POWER

VARIABLE RESISTORS

129P059050 VR-FOCUS - MHF116-50W

RV9D00 265P100010 VARISTOR - ERZV10D271/ERZVEAV271

RESISTORS

R-M-CHIP Type Resistors (Listed by Value)

Value Part No. Value Part No.

1/16W 0OHM 103P509050 1/16W 2.2K-F 103P493030 1/10W 10-J 103P400010 1/16W 2.2K-J 103P502090 1/16W 10-J 103P500010 1/16W 2.4K-F 103P493040 1/16W 15-J 103P500030 1/16W 2.7K-J 103P503000 1/10W 22-J 103P400050 1/16W 3K-F 103P493060 1/16W 22-J 103P500050 1/16W 3.3K-F 103P493070 1/16W 33-J 103P500070 1/16W 3.3K-J 103P503010 1/16W 47-J 103P500090 1/16W 3.3M-J 103P506070 1/10W 56-J 103P401000 1/16W 3.9K-F 103P493090 1/16W 56-D 103P844030 1/16W 3.9K-J 103P503020 1/16W 56-J 103P501000 1/16W 4.7K-F 103P494010 1/4W 75-J 103P489090 1/16W 4.7K-J 103P503030 1/16W 100-J 103P501030 1/16W 5.1K-F 103P494020 1/16W 120-J 103P501040 1/16W 5.6K-J 103P503040 1/16W 150-D 103P810050 1/16W 6.2K-D 103P814040 1/16W 150-J 103P501050 1/16W 6.2K-F 103P494040 1/16W 160-F 103P490060 1/16W 6.8K-F 103P494050 1/10W 180-F 103P470070 1/16W 6.8K-J 103P503050 1/16W 180-J 103P501060 1/16W 8.2K-F 103P494070 1/16W 220-J 103P501070 1/16W 8.2K-J 103P503060 1/16W 240-F 103P491000 1/16W 10K-F 103P494090 1/16W 300-F 103P491020 1/16W 10K-J 103P503070 1/10W 330-J 103P401090 1/16W 12K-J 103P503080 1/16W 330-F 103P491030 1/16W 13K-F 103P495020 1/16W 330-J 103P501090 1/16W 15K-J 103P503090 1/16W 360-F 103P491040 1/16W 16K-F 103P495040 1/16W 390-F 103P491050 1/16W 18K-J 103P504000 1/16W 390-J 103P502000 1/16W 22K-F 103P495070 1/16W 470-J 103P502010 1/16W 22K-J 103P504010 1/4W 470-J 103P482010 1/16W 24K-F 103P495080 1/16W 510-F 103P491080 1/16W 27K-F 103P495090 1/16W 560-F 103P491090 1/16W 27K-J 103P504020 1/16W 560-J 103P502020 1/16W 33K-J 103P504030 1/16W 620-F 103P492000 1/16W 39K-J 103P504040 1/16W 680-F 103P492010 1/16W 47K-F 103P496050 1/16W 680-J 103P502030 1/16W 47K-J 103P504050 1/16W 820-J 103P502040 1/16W 56K-J 103P504060 1/16W 1K-J 103P502050 1/16W 68K-J 103P504070 1/16W 1K-F 103P492050 1/16W 75K-J 103P509090 1/16W 1.2K-F 103P492070 1/16W 82K-J 103P504080 1/16W 1.2K-J 103P502060 1/16W 100K-F 103P497030 1/16W 1.3K-F 103P492080 1/16W 100K-J 103P504090

Value Part No. Value Part No.

1/10W 1.5K-F 103P472090 1/16W 120K-J 103P505000 1/10W 1.5K-J 103P402070 1/16W 150K-J 103P505010 1/16W 1.5K-F 103P492090 1/16W 330K-J 103P505050 1/16W 1.5K-J 103P502070 1/16W 560K-J 103P505080 1/16W 1.6K-F 103P493000 1/16W 680K-J 103P505090 1/16W 1.8K-F 103P493010 1/16W 820K-J 103P506000 1/16W 1.8K-J 103P502080 1/16W 1M-J 103P506010 1/16W 2K-F 103P493020

Conventional Resistors (By Ref #) Ref # Part # Description [#]

R2M01 103P711080 R-CARBON - 1/4W 270-J R2M06 103P711080 R-CARBON - 1/4W 270-J R2M10 103P711080 R-CARBON - 1/4W 270-J R3E02 103P712080 R-CARBON - 1/4W 1.8K-J R3E04 103P712080 R-CARBON - 1/4W 1.8K-J R3E05 103P714060 R-CARBON - 1/4W 56K-J R3E06 103P713070 R-CARBON - 1/4W 10K-J R3E15 103P713050 R-CARBON - 1/4W 6.8K-J R3E16 103P713050 R-CARBON - 1/4W 6.8K-J R4B05 103P713090 R-CARBON - 1/4W 15K-J R4B10 103C188050 R-METAL - 2W 2.7-J R4B12 103C188040 R-METAL - 2W 2.2-J R4B17 103P712010 R-CARBON - 1/4W 470-J R4B20 103P711090 R-CARBON - 1/4W 330-J R4B22 103P712090 R-CARBON - 1/4W 2.2K-J 1-4 R4B23 103P711070 R-CARBON - 1/4W 220-J R4B24 103P712050 R-CARBON - 1/4W 1K-J R4B25 103P712050 R-CARBON - 1/4W 1K-J R4B26 103P713000 R-CARBON - 1/4W 2.7K-J R4B27 103P714080 R-CARBON - 1/4W 82K-J R4B28 103P464040 R-METAL - 1/4W 2.4K-F R5290 103C188040 R-METAL - 2W 2.2-J R54E4 103C180020 R-METAL - 2W 12-J R54E5 103C180020 R-METAL - 2W 12-J R5A01 103P712050 R-CARBON - 1/4W 1K-J R5A02 103P712090 R-CARBON - 1/4W 2.2K-J R5A03 103P713010 R-CARBON - 1/4W 3.3K-J R5A04 103P713090 R-CARBON - 1/4W 15K-J R5A05 103P713070 R-CARBON - 1/4W 10K-J R5A06 103P713070 R-CARBON - 1/4W 10K-J R5A07 103P714030 R-CARBON - 1/4W 33K-J R5A08 103C194010 R-METAL - 3W 22K-J R5A09 103P714040 R-CARBON - 1/4W 39K-J R5A10 103P714040 R-CARBON - 1/4W 39K-J R5A11 103P713070 R-CARBON - 1/4W 10K-J R5A12 103P712050 R-CARBON - 1/4W 1K-J R5A15 103P713010 R-CARBON - 1/4W 3.3K-J R5A16 103P713090 R-CARBON - 1/4W 15K-J R5A17 103P712050 R-CARBON - 1/4W 1K-J R5A18 103P711030 R-CARBON - 1/4W 100-J R5A19 103P461070 R-METAL - 1/4W 470-F R5A20 103P714050 R-CARBON - 1/4W 47K-J R5A21 103P713000 R-CARBON - 1/4W 2.7K-J R5A22 103P714010 R-CARBON - 1/4W 22K-J R5A23 103P713030 R-CARBON - 1/4W 4.7K-J R5A24 103P714070 R-CARBON - 1/4W 68K-J R5A25 103P712010 R-CARBON - 1/4W 470-J R5A26 103P712090 R-CARBON - 1/4W 2.2K-J

PAGE 52

MODELS: WS-55859 / WS-55909 / WS-65869 / WS-65909 / WS-73909

[#] Model Legend: (1) WS-55859, (2) WS-55909, (3) WS-65869, (4) WS-65909, (5) WS-73909

Ref # Part # Part Name & Description [#]

R5A29 103P714010 R-CARBON - 1/4W 22K-J R5A30 103C181060 R-METAL - 2W 180-J R5A31 103P711030 R-CARBON - 1/4W 100-J R5A34 103P711010 R-CARBON - 1/4W 68-J R5A36 103C393020 R-METAL-P - 3W 3.9K-J R5A37 103C393010 R-METAL-P - 3W 3.3K-J R5A38 103C397070 R-METAL-P - 3W 0.56-K R5A39 103C170050 R-METAL - 1W 22-J R5A40 103P714090 R-CARBON - 1/4W 100K-J R5A41 103P714040 R-CARBON - 1/4W 39K-J R5A42 103P713030 R-CARBON - 1/4W 4.7K-J R5A43 103P714010 R-CARBON - 1/4W 22K-J R5A45 103C393080 R-METAL-P - 3W 12K-J R5A46 103C391050 R-METAL-P - 3W 150-J R5A47 103P714030 R-CARBON - 1/4W 33K-J R5A49 103P713050 R-CARBON - 1/4W 6.8K-J R5A50 103P712090 R-CARBON - 1/4W 2.2K-J

R5A51 102P107000 R-WIRE - 2W 0.15-K R5A52 103P712010 R-CARBON - 1/4W 470-J R5A53 103P711000 R-CARBON - 1/4W 56-J

R5A54 103C190090 R-METAL - 3W 47-J

R5A55 103P712050 R-CARBON - 1/4W 1K-J R5A56 103P715060 R-CARBON - 1/4W 390K-J

R5A57 103P711030 R-CARBON - 1/4W 100-J

R5A59 103P461030 R-METAL - 1/4W 330-F R5A60 103P463010 R-METAL - 1/4W 1.8K-F R5A61 103P713060 R-CARBON - 1/4W 8.2K-J

R5A62 103P711030 R-CARBON - 1/4W 100-J R5A63 103P713090 R-CARBON - 1/4W 15K-J

R5A64 103P714090 R-CARBON - 1/4W 100K-J R5A65 103P141030 R-CARBON - 1/2W 100-J R5A68 103P463040 R-METAL - 1/4W 2.4K-F 5 R5A68 103P463080 R-METAL - 1/4W 2.4K-F 1-4 R5A69 103P460090 R-METAL - 1/4W 220-F R5A70 103P463040 R-METAL - 1/4W 2.4K-F 5 R5A71 103P713070 R-CARBON - 1/4W 10K-J R5A72 103P461070 R-METAL - 1/4W 470-F R5A73 103P714080 R-CARBON - 1/4W 82K-J R5A74 103P713070 R-CARBON - 1/4W 10K-J R5A75 103P713070 R-CARBON - 1/4W 10K-J R5A76 103P713070 R-CARBON - 1/4W 10K-J R5A78 103P714010 R-CARBON - 1/4W 22K-J

R5A81 103P711030 R-CARBON - 1/4W 100-J

R5A82 103P370090 R-FUSE - 1/4W 47-J R5A83 103P464070 R-METAL - 1/4W 8.2K-F R5A84 103P464070 R-METAL - 1/4W 8.2K-F

R5A85 103P711010 R-CARBON - 1/4W 68-J R5A87 103P711030 R-CARBON - 1/4W 100-J R5A88 103P464000 R-METAL - 1/4W 4.3K-F R5A89 103P463050 R-METAL - 1/4W 2.7K-F R5A90 103P713030 R-CARBON - 1/4W 4.7K-J R5A91 103P714090 R-CARBON - 1/4W 100K-J

R5A92 103P713070 R-CARBON - 1/4W 10K-J

R5A96 103P713070 R-CARBON - 1/4W 10K-J

R5A97 103P711030 R-CARBON - 1/4W 100-J

R5A98 103C197090 R-METAL - 3W 0.82-J 1-4 R5A98 103C198010 R-METAL - 3W 1.2-J 5 R5A99 103P714020 R-CARBON - 1/4W 27K-J R5B01 103P712010 R-CARBON - 1/4W 470-J R5H02 103P750010 R-FUSE - 1/4W 10-J

R5H03 103P715000 R-CARBON - 1/4W 120K-J R5H04 103P712010 R-CARBON - 1/4W 470-J R5H05 103P712060 R-CARBON - 1/4W 1.2K-J R5H06 103P712060 R-CARBON - 1/4W 1.2K-J R5H22 103P712010 R-CARBON - 1/4W 470-J R5H40 103P712020 R-CARBON - 1/4W 560-J R5H41 103P712060 R-CARBON - 1/4W 1.2K-J R5H42 103P711050 R-CARBON - 1/4W 150-J R5H47 103C170090 R-METAL - 1W 47-J R5H48 103P712060 R-CARBON - 1/4W 1.2K-J R5H49 103P714070 R-CARBON - 1/4W 68K-J R5H50 103P714070 R-CARBON - 1/4W 68K-J R5H51 103P712060 R-CARBON - 1/4W 1.2K-J R5H53 103P715000 R-CARBON - 1/4W 120K-J R5H55 103P141000 R-CARBON - 1/2W 56-J R5H56 103P141000 R-CARBON - 1/2W 56-J R5H59 103C181030 R-METAL - 2W 100-J R5H60 103C178080 R-METAL - 1W 4.7-J R5H84 103P713040 R-CARBON - 1/4W 5.6K-J R5K09 103P762020 R-FUSE - 1/2W 560-J R5K10 103P711010 R-CARBON - 1/4W 68-J

R5K12 103P760060 R-FUSE - 1/2W 27-J

R5K19 103P464000 R-METAL - 1/4W 4.3K-F R5K20 103P712060 R-CARBON - 1/4W 1.2K-J R5K21 103P713070 R-CARBON - 1/4W 10K-J R5K25 103P713040 R-CARBON - 1/4W 5.6K-J R5K31 103P711030 R-CARBON - 1/4W 100-J

R5K34 103P760060 R-FUSE - 1/2W 27-J

R5K46 103P712010 R-CARBON - 1/4W 470-J R5K50 103P762050 R-FUSE - 1/2W 1K-J R6B01 103P711030 R-CARBON - 1/4W 100-J R6B02 103P714010 R-CARBON - 1/4W 22K-J R6B03 103P714010 R-CARBON - 1/4W 22K-J R6B06 103P462010 R-METAL - 1/4W 680-F R6B07 103P711030 R-CARBON - 1/4W 100-J R6B09 103P711030 R-CARBON - 1/4W 100-J R6B10 103P711030 R-CARBON - 1/4W 100-J R6B11 103C194010 R-METAL - 3W 22K-J R6B15 103P711030 R-CARBON - 1/4W 100-J R6B18 103P711030 R-CARBON - 1/4W 100-J R6B21 103P712060 R-CARBON - 1/4W 1.2K-J R6B22 103P711030 R-CARBON - 1/4W 100-J R6G01 103P711030 R-CARBON - 1/4W 100-J R6G02 103P714010 R-CARBON - 1/4W 22K-J R6G03 103P714010 R-CARBON - 1/4W 22K-J R6G06 103P462020 R-METAL - 1/4W 750-F R6G07 103P711030 R-CARBON - 1/4W 100-J R6G09 103P711030 R-CARBON - 1/4W 100-J R6G10 103P711030 R-CARBON - 1/4W 100-J R6G11 103C194010 R-METAL - 3W 22K-J R6G21 103P712060 R-CARBON - 1/4W 1.2K-J R6R01 103P711030 R-CARBON - 1/4W 100-J R6R02 103P714010 R-CARBON - 1/4W 22K-J R6R03 103P714010 R-CARBON - 1/4W 22K-J R6R06 103P462040 R-METAL - 1/4W 910-F R6R07 103P711030 R-CARBON - 1/4W 100-J R6R09 103P711030 R-CARBON - 1/4W 100-J R6R10 103P711030 R-CARBON - 1/4W 100-J R6R11 103C194010 R-METAL - 3W 22K-J R6R19 103P464050 R-METAL - 1/4W 6.8K-F

PAGE 53

MODELS: WS-55859 / WS-55909 / WS-65869 / WS-65909 / WS-73909

[#] Model Legend: (1) WS-55859, (2) WS-55909, (3) WS-65869, (4) WS-65909, (5) WS-73909

Ref # Part # Part Name & Description [#]

R6R21 103P712060 R-CARBON - 1/4W 1.2K-J R6R22 103P711030 R-CARBON - 1/4W 100-J R7C34 103C178010 R-METAL - 1W 1.2-J R7K01 103P712050 R-CARBON - 1/4W 1K-J R7K02 103P713010 R-CARBON - 1/4W 3.3K-J R7K21 103P711080 R-CARBON - 1/4W 270-J R7K22 103P715030 R-CARBON - 1/4W 220K-J R7K23 103P713080 R-CARBON - 1/4W 12K-J R7K24 103P713080 R-CARBON - 1/4W 12K-J R7K25 103P713080 R-CARBON - 1/4W 12K-J R7K26 103P715030 R-CARBON - 1/4W 220K-J R7K27 103P713070 R-CARBON - 1/4W 10K-J R7K28 103P711050 R-CARBON - 1/4W 150-J R7K29 103P712060 R-CARBON - 1/4W 1.2K-J R7K30 103P713070 R-CARBON - 1/4W 10K-J R7K31 103P715030 R-CARBON - 1/4W 220K-J R7K32 103P713030 R-CARBON - 1/4W 4.7K-J R7K34 103P713000 R-CARBON - 1/4W 2.7K-J R7K35 103P711030 R-CARBON - 1/4W 100-J R7L26 103P462090 R-METAL - 1/4W 1.5K-F R7L29 103P464030 R-METAL - 1/4W 5.6K-F R7L32 103P466070 R-METAL - 1/4W 56K-F R8C03 103P711090 R-CARBON - 1/4W 330-J R8C07 103C391050 R-METAL-P - 3W 150-J R8C11 103P711090 R-CARBON - 1/4W 330-J R8C15 103C391050 R-METAL-P - 3W 150-J R8C19 103P711090 R-CARBON - 1/4W 330-J R8C23 103C391050 R-METAL-P - 3W 150-J R8C27 103P711090 R-CARBON - 1/4W 330-J R8C31 103C391050 R-METAL-P - 3W 150-J R8C35 103P711090 R-CARBON - 1/4W 330-J R8C39 103C391050 R-METAL-P - 3W 150-J R8C43 103P711090 R-CARBON - 1/4W 330-J R8C47 103C391050 R-METAL-P - 3W 150-J R8C60 103C191090 R-METAL - 3W 330-J R8C61 103C191090 R-METAL - 3W 330-J R8C62 103P713010 R-CARBON - 1/4W 3.3K-J R8C63 103P713010 R-CARBON - 1/4W 3.3K-J R8C64 103P713010 R-CARBON - 1/4W 3.3K-J R8C65 103P713010 R-CARBON - 1/4W 3.3K-J R8C66 103P713010 R-CARBON - 1/4W 3.3K-J R8C67 103P713010 R-CARBON - 1/4W 3.3K-J R9A02 102P338040 R-CEMENT-WIRE - 15W 2.2-K

R9A03 109C010010 R-COMPOSITION - 1/2W 1M-K R9A05 109C010010 R-COMPOSITION - 1/2W 1M-K R9A06 109C010010 R-COMPOSITION - 1/2W 1M-K

R9A10 103P713040 R-CARBON - 1/4W 5.6K-J R9A12 103P713030 R-CARBON - 1/4W 4.7K-J R9A20 103P713010 R-CARBON - 1/4W 3.3K-J R9A21 103C393090 R-METAL-P - 3W 15K-J R9A22 103C183070 R-METAL - 2W 10K-J R9A24 103P713040 R-CARBON - 1/4W 5.6K-J R9A25 103P713010 R-CARBON - 1/4W 3.3K-J R9A26 103P712030 R-CARBON - 1/4W 680-J R9A27 103C187050 R-METAL - 2W 0.39-J R9A28 103P711070 R-CARBON - 1/4W 220-J R9A29 103C187050 R-METAL - 2W 0.39-J R9A30 103P712090 R-CARBON - 1/4W 2.2K-J R9A31 103P712050 R-CARBON - 1/4W 1K-J R9A32 103P713070 R-CARBON - 1/4W 10K-J

R9A33 103P711030 R-CARBON - 1/4W 100-J R9A35 103P715010 R-CARBON - 1/4W 150K-J R9A36 103P714090 R-CARBON - 1/4W 100K-J R9A37 103P712090 R-CARBON - 1/4W 2.2K-J R9A38 103P713030 R-CARBON - 1/4W 4.7K-J R9A39 103P711030 R-CARBON - 1/4W 100-J R9A40 103P712010 R-CARBON - 1/4W 470-J R9A41 103P712050 R-CARBON - 1/4W 1K-J R9A42 103P712050 R-CARBON - 1/4W 1K-J R9A44 103P463050 R-METAL - 1/4W 2.7K-F R9A51 103P715050 R-CARBON - 1/4W 330K-J R9A53 103P712030 R-CARBON - 1/4W 680-J R9A54 102P107000 R-WIRE - 2W 0.15-K R9A55 102P106090 R-WIRE - 2W 0.12-K R9A56 103P713010 R-CARBON - 1/4W 3.3K-J R9A57 103P713010 R-CARBON - 1/4W 3.3K-J R9A60 103P714050 R-CARBON - 1/4W 47K-J R9A61 103P713040 R-CARBON - 1/4W 5.6K-J R9A62 103P713070 R-CARBON - 1/4W 10K-J R9A63 103P713020 R-CARBON - 1/4W 3.9K-J R9A66 103P713070 R-CARBON - 1/4W 10K-J R9A68 103C180050 R-METAL - 2W 22-J R9A69 103C180050 R-METAL - 2W 22-J R9A75 103P714090 R-CARBON - 1/4W 100K-J R9A77 103P714090 R-CARBON - 1/4W 100K-J R9A78 103P711030 R-CARBON - 1/4W 100-J R9A79 103P711030 R-CARBON - 1/4W 100-J R9A84 103P715050 R-CARBON - 1/4W 330K-J R9A85 103P714080 R-CARBON - 1/4W 82K-J R9C00 103C188080 R-METAL - 2W 4.7J R9C01 103C398020 R-METAL-P - 3W 1.5-K R9C20 103C398020 R-METAL-P - 3W 1.5-K R9C21 103C398050 R-METAL-P - 3W 2.7-K

R9D00 109D036020 R-COMPOSITION - 1/2W 4.7M-K

CAPACITORS AND TRIMMERS

C-CER-CHIP Capactiors (By Velue) Value Part # Value Part #

50V 2P-C 154P350040 50V 3300P-K 141P141050 CJ50V 3P-C 154P340040 50V 4700P-K 141P141070 50V 10P-C 154P341010 50V 5600P-J 154P329030 50V 15P-J 154P341050 50V 6800P-K 141P141090 50V 15P-J 154P351060 50V 8200P-K 141P142000 50V 22P-J 154P341090 16V 0.01M-J 172P391030 50V 27P-J 154P352020 50V 0.01M-K 141P142010 50V 33P-J 154P352040 50V 0.01M-Z 141P143080 50V 33P-J 154P342030 50V 0.012M-K 141P142020 50V 39P-J 154P342050 50V 0.015M-K 141P142030 50V 47P-J 154P342070 25V 0.033M-K 141P142070 50V 47P-J 154P352080 25V 0.047M-K 141P142090 50V 56P-J 154P353000 50V 0.047M-Z 141P144010 50V 82P-J 154P343030 16V 0.068M-J 172P392030 50V 100P-J 154P343050 25V 0.068M-K 141P143010 50V 100P-J 154P353060 16V 0.1M-J 172P392050 50V 120P-J 154P343070 16V 0.1M-K 141P143030 50V 150P-J 154P354000 25V 0.1M-Z 141P144020 50V 150P-J 154P343090 50V 0.1M-Z 141P134090 50V 220P-J 154P344030 25V 0.15M-K 141P139050 50V 220P-K 141P140010 16V 0.22M-K 141P139070

PAGE 54

MODELS: WS-55859 / WS-55909 / WS-65869 / WS-65909 / WS-73909

[#] Model Legend: (1) WS-55859, (2) WS-55909, (3) WS-65869, (4) WS-65909, (5) WS-73909

Ref # Part # Part Name & Description [#]

Value Part # Value Part #

50V 270P-J 154P344050 50V 2.2M-M 105C 181P526020 50V 330P-J 154P344070 16V 0.47M-K 141P139090 50V 390P-K 141P140040 16V 0.47M-Z 141P144050 50V 470P-J 154P345010 16V 1M-K 141P134070 50V 470P-J 154P325020 16V 1M-Z 141P144060 50V 470P-K 141P140050 16V 1M-Z 141P135070 25V 560P-J 154P345030 16V 1M-Z 141P144060 50V 560P-K 141P140060 50V 1M-M 105C 181P526010 25V 680P-J 154P345050 16V 10M-M 181P502030 25V 1000P-J 154P345090 16V 22M-M 181P502040 50V 1000P-J 172P390010 6.3V 22M-M 181P500010 50V 1000P-K 141P140090 6.3V 22M-M 105C 181P520010 50V 1000P-Z 141P143050 16V 47M-M 105C 181P522060 50V 1500P-K 141P141010 6.3V 47M-M 181P500030 50V 2200P-K 141P141030 6.3V 47M-M 105C 181P520030 50V 2700P-J 154P337040 6.3V 100M-M 105C 181P520040

Conventional Capacitors (By Ref #) Ref # Part # Description [#]

C1A29 181P352040 C-ELEC - 16V 100M-M C1A30 181P352040 C-ELEC - 16V 100M-M C1A31 181P352040 C-ELEC - 16V 100M-M C1A50 172P262010 C-M-POLY - 50V 0.047M-J C1B29 181P352040 C-ELEC - 16V 100M-M C1B30 181P352040 C-ELEC - 16V 100M-M C1B31 181P352040 C-ELEC - 16V 100M-M C1B50 172P262010 C-M-POLY - 50V 0.047M-J C2A00 181P352030 C-ELEC - 16V 47M-M C2A50 181P352030 C-ELEC - 16V 47M-M C2A51 181P352030 C-ELEC - 16V 47M-M C2A62 181P352040 C-ELEC - 16V 100M-M C2A63 181P352040 C-ELEC - 16V 100M-M C2A64 181P352040 C-ELEC - 16V 100M-M C2A65 181P352040 C-ELEC - 16V 100M-M C2A66 181P352040 C-ELEC - 16V 100M-M C2A67 181P352040 C-ELEC - 16V 100M-M C2B00 181P352030 C-ELEC - 16V 47M-M C2B50 181P352030 C-ELEC - 16V 47M-M C2B51 181P352030 C-ELEC - 16V 47M-M C2D04 181P352040 C-ELEC - 16V 100M-M C2D17 181P352010 C-ELEC - 16V 22M-M C2D19 181P352030 C-ELEC - 16V 47M-M C2E03 181P352030 C-ELEC - 16V 47M-M C2E24 181P352030 C-ELEC - 16V 47M-M C2F30 181P352040 C-ELEC - 16V 100M-M C2F40 181P352040 C-ELEC - 16V 100M-M C2H60 181P352030 C-ELEC - 16V 47M-M C2H63 181P352030 C-ELEC - 16V 47M-M C2K24 181P124040 C-ELEC-NP - 50V 10M-M C2K30 181P124040 C-ELEC-NP - 50V 10M-M C2M20 181P352080 C-ELEC - 16V 1000M-M C2M22 181P352030 C-ELEC - 16V 47M-M C2M23 181P352030 C-ELEC - 16V 47M-M C2V07 181P352050 C-ELEC - 16V 220M-M C2V72 181P352050 C-ELEC - 16V 220M-M C2W04 181P352050 C-ELEC - 16V 220M-M C2W05 181P352030 C-ELEC - 16V 47M-M C2W09 181P352030 C-ELEC - 16V 47M-M C2W14 181P352030 C-ELEC - 16V 47M-M

C2X00 181P352040 C-ELEC - 16V 100M-M C2Y01 181P352030 C-ELEC - 16V 47M-M C2Y11 181P352030 C-ELEC - 16V 47M-M C2Y30 181P352030 C-ELEC - 16V 47M-M C3A11 181P352040 C-ELEC - 16V 100M-M C3A15 181P124020 C-ELEC-NP - 50V 4.7M-M NP C3A27 181P352060 C-ELEC - 16V 330M-M C3A30 181P352040 C-ELEC - 16V 100M-M C3A38 181P124020 C-ELEC-NP - 50V 4.7M-M NP C3E09 172P262050 C-M-POLY - 50V 0.1M-J C3E11 172P262050 C-M-POLY - 50V 0.1M-J C3E12 172P262050 C-M-POLY - 50V 0.1M-J C3E14 172P262050 C-M-POLY - 50V 0.1M-J C4A04 172P262050 C-M-POLY - 50V 0.1M-J C4A05 172P262050 C-M-POLY - 50V 0.1M-J C4A10 181P352030 C-ELEC - 16V 47M-M C4A14 181P352030 C-ELEC - 16V 47M-M C4A34 181P352030 C-ELEC - 16V 47M-M C4A35 172P262090 C-M-POLY - 50V 0.22M-J C4B01 172P262050 C-M-POLY - 50V 0.1M-J C4B02 181P358000 C-ELEC - 35V 1000M-M C4B13 172P262020 C-M-POLY - 50V 0.056M-J

C5A03 142P020050 C-CER - B50V 470P-K

C5A13 181P352040 C-ELEC - 16V 100M-M C5A21 172P262050 C-M-POLY - 50V 0.1M-J C5A31 172P580050 C-M-PLA-PP - 1800V 1500P-J C5A32 172P581030 C-M-PLA-PP - 1800V 3300P-J C5A33 172P581030 C-M-PLA-PP - 1800V 3300P-J C5A34 154P262000 C-CER - R2KV 220P-K C5A35 142P011070 C-CER - B500V 2200P-K C5A39 142P011000 C-CER - B500V 560P-K C5A40 142P011000 C-CER - B500V 560P-K C5A42 181P352030 C-ELEC - 16V 47M-M

C5A51 154P260010 C-CER - R1KV 220P-K C5A52 172P460010 C-M-PLA-PP - 2000V 1000P-J C5A53 172P460030 C-M-PLA-PP - 2000V 1200P-J

C5A54 185D120010 C-ELEC - H160V 330M-M 105C C5A55 172P088060 C-PLAST-PP - 630V 6800P-J

C5A60 172P262050 C-M-POLY - 50V 0.1M-J C5A64 181P352010 C-ELEC - 16V 22M-M C5A70 172P384030 C-M-POLY - 100V 3.3M-K C5A71 172P262060 C-M-POLY - 50V 0.12M-J

C5H01 181P352060 C-ELEC - 16V 330M-M C5H16 172P186030 C-PLAST-PP - 200V 0.01M-K C5H20 181P352040 C-ELEC - 16V 100M-M C5H24 181P192060 C-ELEC - 200V 22M-M C5K03 181P352040 C-ELEC - 16V 100M-M C5K12 181P352040 C-ELEC - 16V 100M-M C5K14 181P352030 C-ELEC - 16V 47M-M C6B02 181P195050 C-ELEC - 350V 1M-M C6B05 181P352030 C-ELEC - 16V 47M-M C6B16 154P260050 C-CER - R1KV 1000P-K 135 C6G02 181P195050 C-ELEC - 350V 1M-M C6G05 181P352030 C-ELEC - 16V 47M-M C6G16 154P260050 C-CER - R1KV 1000P-K 135 C6R02 181P195050 C-ELEC - 350V 1M-M C6R05 181P352030 C-ELEC - 16V 47M-M C7A31 181P352030 C-ELEC - 16V 47M-M C7A99 181P352030 C-ELEC - 16V 47M-M C7B76 181P352030 C-ELEC - 16V 47M-M

PAGE 55

MODELS: WS-55859 / WS-55909 / WS-65869 / WS-65909 / WS-73909

[#] Model Legend: (1) WS-55859, (2) WS-55909, (3) WS-65869, (4) WS-65909, (5) WS-73909

Ref # Part # Part Name & Description [#]

C7C00 181P352040 C-ELEC - 16V 100M-M C7C31 181P352050 C-ELEC - 16V 220M-M C7K01 181P352030 C-ELEC - 16V 47M-M C7K23 181P352030 C-ELEC - 16V 47M-M C7K25 172P262050 C-M-POLY - 50V 0.1M-J C7K26 172P262050 C-M-POLY - 50V 0.1M-J C7L22 172P262050 C-M-POLY - 50V 0.1M-J C8C03 181P184010 C-ELEC - 50V 1000M-M 105C C8C05 181P184010 C-ELEC - 50V 1000M-M 105C C8C43 142P020080 C-CER - B50V 820P-K C8C44 142P020080 C-CER - B50V 820P-K C8C45 142P020080 C-CER - B50V 820P-K C8C46 142P020080 C-CER - B50V 820P-K C8C47 142P020080 C-CER - B50V 820P-K C8C48 142P020080 C-CER - B50V 820P-K C8D16 181P352030 C-ELEC - 16V 47M-M C8D19 181P352030 C-ELEC - 16V 47M-M C8D20 181P352030 C-ELEC - 16V 47M-M C8D21 181P352030 C-ELEC - 16V 47M-M C8D22 181P352030 C-ELEC - 16V 47M-M C8D30 181P352030 C-ELEC - 16V 47M-M C8D31 181P352030 C-ELEC - 16V 47M-M C8D33 181P352030 C-ELEC - 16V 47M-M C8D35 172P262040 C-M-POLY - 50V 0.082M-J C8D36 181P352030 C-ELEC - 16V 47M-M C8D39 181P352030 C-ELEC - 16V 47M-M C8D40 181P352030 C-ELEC - 16V 47M-M C8E01 181P352030 C-ELEC - 16V 47M-M C8E03 181P352030 C-ELEC - 16V 47M-M C8E05 181P352030 C-ELEC - 16V 47M-M C8E07 181P352030 C-ELEC - 16V 47M-M C8E09 181P352030 C-ELEC - 16V 47M-M C8E12 181P352030 C-ELEC - 16V 47M-M C8E14 181P352030 C-ELEC - 16V 47M-M C8E16 181P352030 C-ELEC - 16V 47M-M C8G00 181P352030 C-ELEC - 16V 47M-M C8G01 181P352030 C-ELEC - 16V 47M-M C8G03 181P352020 C-ELEC - 16V 33M-M C8G05 181P352030 C-ELEC - 16V 47M-M C8G06 181P352030 C-ELEC - 16V 47M-M C8G09 181P352030 C-ELEC - 16V 47M-M C8G55 181P352030 C-ELEC - 16V 47M-M

C9A05 189P185070 C-CER - 250VAC 1000P-M C9A06 189P185070 C-CER - 250VAC 1000P-M C9A07 189P153040 C-M-POLY - 250VAC 0.1M-M C9A08 189P185090 C-CER - 250VAC 2200P-M C9A09 189P185090 C-CER - 250VAC 2200P-M C9A10 189P185090 C-CER - 250VAC 2200P-M C9A11 189P185090 C-CER - 250VAC 2200P-M

C9A12 185D122050 C-ELEC - H200V 1000M-M 105C

C9A13 189P152070 C-M-POLY - 250VAC 0.01M-M C9A14 189P152070 C-M-POLY - 250VAC 0.01M-M

C9A15 189P185090 C-CER - 250VAC 2200P-M

C9A20 189P152070 C-M-POLY - 250VAC 0.01M-M

C9A22 154P260050 C-CER - R1KV 1000P-K C9A24 142P020050 C-CER - B50V 470P-K C9A35 181P352040 C-ELEC - 16V 100M-M C9A40 181P352040 C-ELEC - 16V 100M-M C9A42 181P352040 C-ELEC - 16V 100M-M

C9A50 142P020050 C-CER - B50V 470P-K

C9A53 185D122050 C-ELEC - H200V 1000M-M 105C C9A54 154P260080 C-CER - R1KV 3300P-K C9A56 181P186000 C-ELEC - 50V 100M-M 105C C9A58 185D163020 C-ELEC - H50V 4700M-M 105C C9A59 185D122050 C-ELEC - H200V 1000M-M 105C C9A62 181P195080 C-ELEC - 350V 47M-M/Q 2&4 C9A63 185D121020 C-ELEC - H180V 470M-M 105C C9A69 181P358030 C-ELEC - 35V 4700M-M C9A73 181P358030 C-ELEC - 35V 4700M-M C9B01 181P182030 C-ELEC - 16V 1000M-M 105C C9B02 181P182030 C-ELEC - 16V 1000M-M 105C C9B03 181P182030 C-ELEC - 16V 1000M-M 105C C9B13 181P182030 C-ELEC - 16V 1000M-M 105C C9B14 181P182030 C-ELEC - 16V 1000M-M 105C C9B17 181P182030 C-ELEC - 16V 1000M-M 105C C9B18 181P182030 C-ELEC - 16V 1000M-M 105C C9C00 181P350010 C-ELEC - 16V 4700M-M C9C02 181P352030 C-ELEC - 16V 47M-M C9C05 181P352030 C-ELEC - 16V 47M-M C9C10 181P352030 C-ELEC - 16V 47M-M C9C12 181P352030 C-ELEC - 16V 47M-M C9C20 181P352030 C-ELEC - 16V 47M-M C9C24 181P352030 C-ELEC - 16V 47M-M C9C26 181P352030 C-ELEC - 16V 47M-M C9C40 181P352030 C-ELEC - 16V 47M-M C9C42 181P352030 C-ELEC - 16V 47M-M C9C52 181P352030 C-ELEC - 16V 47M-M

C9D00 189P153040 C-M-POLY - 250VAC 0.1M-M C9D01 189P153040 C-M-POLY - 250VAC 0.1M-M

CF2E00 299P128010 CERAMIC-OSC - CSB500F2 CF2H01 299P128010 CERAMIC-OSC - CSB500F2 CF3A01 299P208010 CERAMIC-OSC - C5B503F58

SWITCHES

S7L20 432P089010 SW-KEY-BOARD - PUSH SWITCH S7L21 432P089010 SW-KEY-BOARD - PUSH SWITCH S7L22 432P089010 SW-KEY-BOARD - PUSH SWITCH S7L23 432P089010 SW-KEY-BOARD - PUSH SWITCH S7L24 432P089010 SW-KEY-BOARD - PUSH SWITCH S7L25 432P089010 SW-KEY-BOARD - PUSH SWITCH S7L26 432P089010 SW-KEY-BOARD - PUSH SWITCH S7L27 432P089010 SW-KEY-BOARD - PUSH SWITCH S7L28 432P089010 SW-KEY-BOARD - PUSH SWITCH S7L29 432P089010 SW-KEY-BOARD - PUSH SWITCH

MISCELLANEOUS

242D483020 IR-MOUSE 246C351030 AC-POWER-CORD 299P254010 IR-EMITTER, 4-HEAD - T-IR-0 305P702020 RF-SW - YAA41-0126G

330P276010 DEFL-YOKE

338P046030 SVM COIL - G&B 338P051010 SVM COIL - GREEN 2-5 411D023010 CORE-FERRITE 411D024020 CORE-FERRITE - ZCAT2132-1130 411D033010 CORE-FERRITE 411D044010 CORE-FERRITE

449C141030 SOCKET-CRT 453B035010 CAP-ANODE - SHORT - RED 1-4

PAGE 56

MODELS: WS-55859 / WS-55909 / WS-65869 / WS-65909 / WS-73909

[#] Model Legend: (1) WS-55859, (2) WS-55909, (3) WS-65869, (4) WS-65909, (5) WS-73909

Ref # Part # Part Name & Description [#]

453B035020 CAP-ANODE - LONG - G&B 1-4 453B035030 CAP-ANODE - SHORT - RED 5 453B035040 CAP-ANODE - LONG - G&B 5 453C021030 LEAD-ANODE - FBT-HV

480P053010 SPEAKER 1 480P057010 SPEAKER - LARGE 245 480P058010 SPEAKER - SMALL 245 480P063010 SPEAKER 3 490P174070 LENS - RED 1&3 490P174080 LENS - GREEN 1&3 490P174090 LENS - BLUE 1-4 490P195010 LENS - ALL COLORS 5 490P212010 LEN-BARREL-RED 2&4 490P212020 LEN-BARREL-GREEN 2&4 589C062010 CASTER 597D843010 STIFFENER-MIRROR - 3/4"X3/4" TUBING 3&4 622B009010 TRAY, COOLANT - PS 94V-0 1-4 622C067010 CRT-TRAY 5 622D928010 TREE-LOK-PANEL 245 642C340010 BOARD-MIRROR 3&4 642C352010 CLIP-MIRROR 1&2 669D514070 SCREW-MIRROR BOARD 134 767C031010 MIRROR - 73" 5 767D048090 MIRROR - 65" 3&4 767D055040 MIRROR - 55" 1&2

920P016010 HV-BLOCK - MSC102

955C230001 ASSY-DM AG5K00 224D019040 AIR-GAP - 2.0+-0.5KV S.LEAD AG6B01 224D019090 AIR-GAP - 1.5+-0.5KV S.LEAD AG6G01 224D019090 AIR-GAP - 1.5+-0.5KV S.LEAD AG6R01 224D019090 AIR-GAP - 1.5+-0.5KV S.LEAD F5A00 283P043060 FUSE - LF251 3A

F5A01 283P043060 FUSE - LF251 3A F9A01 283P044020 FUSE - LF251 10A F9A02 283P044020 FUSE - LF251 10A F9A03 283P043090 FUSE - LF251 5A F9A04 283P043090 FUSE - LF251 5A F9A05 283P043090 FUSE - LF251 5A F9A06 283P043090 FUSE - LF251 5A F9D00 283D131040 FUSE - S10A 125A K9A50 287P049080 RELAY-POWER - DG12D1-0(M) PC9A20 268P058020 PHOTO-COUPLER - ON3131-R/ON3161-R PC9A21 268P058020 PHOTO-COUPLER - ON3131-R/ON3161-R PC9A50 268P058020 PHOTO-COUPLER - ON3131-R/ON3161-R PC9A51 268P058020 PHOTO-COUPLER - ON3131-R/ON3161-R

PJ2J00 440C386010 PIN-JACK-BOARD 135 PJ2J00 440C386030 PIN-JACK-BOARD-6P-2S 245 PJ2J01 440C386010 PIN-JACK-BOARD 135 PJ2J01 440C386030 PIN-JACK-BOARD-6P-2S 245 PJ2J02 440C402010 PIN-JACK-BOARD-5P-S 135 PJ2J02 440C402020 PIN-JACK-BOARD-5P-S 245 PJ2J03 440C385010 PIN-JACK-BOARD-6P 135 PJ2J03 440C385030 PIN-JACK-BOARD-6P 245 PJ2J04 440C261070 PIN-JACK-BOARD-2P 135 PJ2J04 440C383040 PIN-JACK-BOARD-2P 245 PJ2J05 440C261050 PIN-JACK-BOARD-2P 135 PJ2J05 440C383020 PIN-JACK-BOARD-2P 245 PJ2J07 440C261070 PIN-JACK-BOARD-2P 135 PJ2J07 440C383040 PIN-JACK-BOARD-2P 245 PJ2J08 440C385020 PIN-JACK-BOARD-6P 135

PJ2J08 440C385040 PIN-JACK-B0ARD-6P 245 PJ2J09 440C261050 PIN-JACK-BOARD-2P 135 PJ2J09 440C383020 PIN-JACK-BOARD-2P 245 PJ2J11 440C231010 JACK-3PIN - FRONT A/V INPUT 1&3 PJ2J11 440C384010 PIN-JACK-BOARD-3P-1S 245 PJ7C01 451C129010 JACK-MINI - AV NET/IR BLAST PJ7C02 451C129010 JACK-MINI - AV NET/IR BLAST

TU1A01 295P500010 TUNER-RF - ENG26515G TU1B01 295P500010 TUNER-RF - ENG26515G

X2A20 285P029030 QUARTZ-CRYST - HC-49 MHZ X2B20 285P029030 QUARTZ-CRYST - HC-49 MHZ X2C31 285P374050 QUARTS-CRYST - 20.000MHZ X2E26 285P374020 QUARTZ-CRYST - 3.579545MHZ X2H26 285P066010 QUARTZ-CRYST - 3.579545MHZ X7A13 285P374040 QUARTZ-CRYST - 10.000MHZ X7H00 285P335040 QUARTZ-CRYST - 60.000MHZ X7H01 285P335050 QUARTZ-CRYST - 80.000MHZ Z5900 283P128050 FUSE-CHIP - AC125V/100V 4A Z5901 283P128050 FUSE-CHIP - AC125V/100V 4A Z7K01 939P617010 UNIT-PREAMP - GP1U283Q

PRINTED CIRCUIT BOARDS

930B866010 ASSY-PWB-MAIN 1-4 930B866011 ASSY-PWB-MAIN 5 930B879001 ASSY-PWB-POWER 930B880001 ASSY-PWB-SIGNAL 1&3 930B880002 ASSY-PWB-SIGNAL 245 935C965001 ASSY-PWB-CRT 935C966001 ASSY-PWB-2HDW 935C967001 ASSY-PWB-TERMINAL 135 935C967002 ASSY-PWB-TERMINAL 245 935C974001 ASSY-PWB-DEMOD-B 935C978001 ASSY-PWB-E2P 935C979002 ASSY-PWB-DEMOD 935C986001 ASSY-PWB-DM POWER 935D521005 ASSY-PWB-DBF 935D581001 ASSY-PWB-PREAMP 935D583001 ASSY-PWB-JUNGLE 935D584001 ASSY-PWB-SVM 935D585001-55 ASSY-PWB-CONV-GENE-55 1&2 935D585001-65 ASSY-PWB-CONV-GENE-65 3&4 935D585001-73 ASSY-PWB-CONV-GENE-73 5 935D586001 ASSY-PWB-3DYC/MD 935D587001 ASSY-PWB-CONTROL 2 935D588001 ASSY-PWB-FRONT 1&3 935D588002 ASSY-PWB-FRONT 245 935D605001 ASSY-PWB-CROSS OVER 245

COSMETIC PARTS

669D514080 SCREW 2&5 702A398020 COVER-CONTROL 3 702A399020 TERMINAL-BOARD 702A400020 DM TERMINAL-BOARD 702A401010 COVER CONTROL 245 702A403010 CONTROL PANEL 1 703B031020 DOOR - FRONT A/V IN COVER 1 761A159040 GRILLE-SP - 55" 1 761A174030 GRILLE-SP-LEFT - 55 2 761A174040 GRILLE -SP-RIGHT - 55 2

PAGE 57

MODELS: WS-55859 / WS-55909 / WS-65869 / WS-65909 / WS-73909

[#] Model Legend: (1) WS-55859, (2) WS-55909, (3) WS-65869, (4) WS-65909, (5) WS-73909

Ref # Part # Part Name & Description [#]

752A001020 UNIT-FRONT-TOP 2 762B358040 UNIT-FRONT 2 761A173030 GRILLE-SPEAKER 3 752A003020 UNIT-FRONT-TOP 4&5 761A175010 GRILLE-SP-LEFT - 65" 4 761A175020 GRILLE-SP-RIGHT - 65" 4 762B358020 UNIT-FRONT 4 761A186010 GRILLE-SP-LEFT - 73" 5 761A186020 GRILLE-SP-RIGHT - 73" 5 762B358030 UNIT-FRONT 5 803B878010 CUSHION 245

Ref # Part # Part Name & Description [#]

ACCESSORIES

290P106010 REMOTE CONTROL I/G V19 NET COMMAND GUIDE - BOOK 852B087010 NET COMMAND CONFIGURATION

FOLD 1235 853B291010 REGISTRATION-CARD I/SEP GUIDE65869

CABINET SEPARATION GUIDE 3

PAGE 58

MODELS: WS-55859 / WS-55909 / WS-65869 / WS-65909 / WS-73909

[#] Model Legend: (1) WS-55859, (2) WS-55909, (3) WS-65869, (4) WS-65909, (5) WS-73909

Ref # Part # Part Name & Description [#] Ref # Part # Part Name & Description [#]

SCREEN ASSEMBLY PARTS (Figure 1)

WS-55859 (Figure 1)

(1) 491P103010 SCREEN-LENTICULAR (2) 491P104010 LENS-FRESNEL (3) 702A403010 CONTROL PANEL (4) 622C060040 CLIP-SCREEN-TOP/BOT (5) 622C063040 HOLDER-SCREEN-BOT (6) 701B400080 FRAME-SCREEN-TOP - 60" (7) 701B417010 FRAME-SCREEN-SIDE - 55" (8) 702A388030 CAP-CORNER-LEFT (9) 702A388040 CAP-CORNER-RIGHT (10) 760D627060 DIAMOND SHIELD

Figure 1: Screen Assembly Parts

WS-55859

PAGE 59

MODELS: WS-55859 / WS-55909 / WS-65869 / WS-65909 / WS-73909

[#] Model Legend: (1) WS-55859, (2) WS-55909, (3) WS-65869, (4) WS-65909, (5) WS-73909

Ref # Part # Part Name & Description [#]

SCREEN ASSEMBLY PARTS (Figure 2)

WS-55909 (Figure 2)

(1) 491P103010 SCREEN-LENTICULAR (2) 491P104010 LENS-FRESNEL (3) 622D746080 CLIP-SCREEN-SIDES (4) 711C029040 FRAME-SCREEN-TOP - 55" (5) 711C029050 FRAME-SCREEN-SIDES - 55" (6) 711C029060 FRAME-SCREEN-BOTTOM - 55" (7) 768C065010 CAP-CORNER (8) 760D635010 DIAMOND SHIELD

WS-65869 (Figure 2)

(1) 491P105010 SCREEN-LENTICULAR (2) 491P106010 LENS-FRESNEL (9) 622C071020 CLIP-SCREEN-TOP/BOT (4) (6) 701B429020 SCREEN-FRAME-TOP/BOT - 65" (5) 701B430020 SCREEN-FRAME SIDES - 65" (7) 702A396010 CAP-CORNER (8) 760D627070 DIAMOND SHIELD

802B816010 SCREEN PAD

WS-65909 (Figure 2)

(1) 491P105010 SCREEN-LENTICULAR (2) 491P106010 LENS-FRESNEL (3) 622D746020 CLIP-SCREEN-SIDES (4) 711C026040 FRAME-SCREEN-TOP - 65" (5) 711C026050 FRAME-SCREEN-SIDES - 65" (6) 711C026060 FRAME-SCREEN-BOTTOM - 65" (7) 768C065010 CAP-CORNER (8) 760D635020 DIAMOND SHIELD

802B816010 SCREEN PAD

WS-73909 (Figure 2)

(1) 491P085020 SCREEN-LENTICULAR (2) 491P086020 LENS-FRESNEL (3) 622D746010 CLIP-SCREEN-SIDES (4) 711C029070 FRAME-SCREEN-TOP - 73" (5) 711C029080 FRAME-SCREEN-SIDES - 73" (6) 711C029090 FRAME-SCREEN-BOTTOM - 73" (7) 768C065010 CAP-CORNER (8) 760D635030 AR DIAMOND SHIELD

Figure 2: Screen Assembly Parts

WS-55909 WS-65869 WS-65909 WS-73909

PAGE 60
