SPLIT-TYPE AIR CONDITIONERS

OPERATING INSTRUCTIONS

MS09TW MS12TN MS15TN MS 17TN

Mr.SlLIIM

I For customers ]

Thank you very much for purchasing this Mitsubishi room air conditioner.

• To use this unit correctly and safely, be sure to read this operating instructions before use. Keep this manual carefully for later reference.

• Be sure to receive a guarantee card from your dealer and check that the purchased data and shop name, etc. are

entered correctly.

• This air conditioner should not be installed by the customer. (Safety and performance functions cannot be assured.)

MITSUBISHI ELECTRIC

.=pthis manual carefully for

and shop name, etc. are

_nscannot be assured.)

CONTENTS

SAFETY PRECAUTIONS .................................................................... 2

NAME OF EACH PART ........................................................................ 4

PREPARATION BEFORE OPERATION ............................................... 6

I FEEL... AUTO OPERATION ............................................................... 7

MANUAL OPERATION (COOL,DRY, FAN) ........................................... 8

AIR FLOW VELOCITY AND DIRECTION ADJUSTMENT ................... 9

TIMER OPERATION (ON/OFF TIMER) ............................................. 10

WHEN THE AIR CONDITIONER IS NOT GOING TO BE

USED FOR A LONG TIME ................................................................ 10

MAINTENANCE ................................................................................. 11

CLEANING THE AIR FILTER/DEODORIZING FILTER (OPTION) .... 11

REPLACEMENT OF THE DEODORIZING FILTER (OPTION)/

AIR CLEANING FILTER (OPTION) ................................................... 12

BEFORE CONTACTING THE SERVICEMAN,

CHECK THE FOLLOWING AGAIN .................................................... 12

WHEN YOU THINK THAT TROUBLE HAS OCCURRED ................... 13

INSTALLATION, RELOCATION AND INSPECTION .......................... 14

• Since rotating parts and parts which could cause an electric shock are used in this product, be sure

to read these "Safety Precautions" before use.

• Since the cautionary items shown here are important for safety, be sure to observe them. Marks and their meanings are as shown below.

Incorrect handling could cause a serious hazard, such as death, serious injury, etc. with a high probability.

Incorrect handling could cause a serious hazard depending on the conditions.

Is used in this manual are as shown below.

Be sure not to do.

Be sure to follow the instruction.

Never insert your finger or stick, etc.

Never step onto the indoor/outdoor unit and do not put anything on them.

Danger of electric shock, be careful.

Be sure to shut off the power.

• After reading this manual, keep it together with the installation manual in a handy place for easy

reference.

(_ ENCLOSURE

FRONT PANEL

AIR OUTLET

ENCLOSURE

• This air conditioner is NOT intended for use by children or infirm persons without supervisions.

• This may cause a fire due to spark, etc,

• Be sure to turn off the breaker absolutely after

switching the indoor unit off with the remote con- troller.

• This could damage your health.

• If the unit continues to be operated in an abnormal

condition, it may cause a fire, trouble, etc. In this case, consult your dealer.

• Since the fan rotates st high speed, this may cause

an injury.

• Young children should be supervised to ensure that

they do not play with the air conditioner.

• If this is done incorrectly, it may cause a fire, an elec- tric shock, or injury from the unit falling, water leak-

ing, etc. Consult your dealer.

• If this is done incorrectly, it may cause a fire, an elec- tric shock, or injury from the unit falling, water leak- ing, etc. Consult your dealer.

• Thismaycauseaninjury.

• Since the fan rotates at high

speed during operation, this may cause an injury.

• Water may enter the unit and de-

grade the insulation. This may cause an electric shock.

• This could injure the pet or plant.

• An oxygen shortage may occur.

_,_ _._:

-" .... J i

• Do not use this air conditioner t(

preserve precision devices, food animals, plants and art objects, This may cause deterioration o

quality, etc.

• This may cause an electric shock.

• This may cause a

tion of the cabinet.

fire or deforma-

• This may cause =mperfect corn

bustion.

• Otherwise, dirt may collect and

this may cause a fire.

• In the cooling mode, if the unit is operated in a room with high hu-

midity (80% RH or more) for a long

time, water condensed in the air conditioner may drop and wet or

damage furniture, etc.

iiii

• This may result in leakage, fire or

an explosion.

• This may cause an injury, etc. if you fall down.

• The unit may fall and this may

cause an injury.

• This may cause an injury, etc. if you fall down.

• Using an old battery together with a new one may result in heat gen-

eration, leakage or an explosion.

• If liquid from the alkaline batter-

ies gets into your eyes, wash them well with clean water and

consult a doctor at once.

• Consult your dealer for installation of the air conditioner. ]

• Do not connect the ground to a gas pipe,

water pipe, lightning rod or the ground of a telephone. If the grounding is incorrect,

it may cause an electric shock.

IBr

• If gas leak and collect around the unit, it may cause

an explosion.

• If the drainage route is incomplete, water may drop

from the unit, This may wet and damage the furni- ture.

MS09TW

(White bellows

I Air cleaning filter

type) (OPTION)

(Gray sponge

I eodorizing filter

type) (OPTION)

_ Vertical vane _-_ / /'

_ Horizontal vane _ -/

_Oparation section )

(When the front panel is opened)

MS09TW

MS12/15117TN

I Front panel I

Remote control

;/ /

receiving section

_ Remotecontroller

Display section

MS0gTW

\77

_(:_. __ Emergency

MS1 2/15/17TN

[o_ l!1Tltl

MU09TW, MU12TN

operation switch

Emergency

switch

(

Or,in

I Oberation _ __7_

Indicator lamp _ -- Receiving section

MS1 2/15117TN

MU15/17TN

[;_ E_ I1'_

_ Signal transmitting section )

_ Operation display section

ON/OFF (operate/stop) button

Temperature buttons )

(This diagram shows an overall view.)

Open the front lid.

Fan speed control button

Operation select button

RESET button

MIN.button

HR.button 1

(Time set button)

button

Vane control button

,AtttJ_ _ [jl_itmj]l'#m

These models are equipped with an auto restart function. If you do not want to use

this function, please consult the service representative because the setting of the

unit needs to be changed.

When the indoor unit is controlled with the remote controller, the operation mode, the set temperature and the fan speed are stored in the memory. If a power failure occurs or the main power is turned off during operation, "Auto restart function" sets automatically to start operating in the same mode as the one set with

i Auto restart function is ...

the remote controller just before the shutoff of the main power (Refer to page 7 for details.)

Turn the breaker on.

Remove the front lid and insert bat-

teries.Then reattach the front lid.

Insert the minus pole of the batteries first. Check if the polarity of the batteries is correct.

Insert the minus

_1 pole of the

batteries first•

Press the RESET button.

• If the RESET button is not pressed, the remote control- ler may not operate correctly.

Press the CLOCK set button.

HR MIN

H Press the _ and -7 button

(TIME SET button) to set the current time.

,,,+++++++

• Each time the [_ button bs pressed, the set time in- creases by 1 hour, and each time the [_ button is

pressed, the set time increases by 1 minute•

Press the CLOCK set button again

and close the front lid.

Handling of the remote controller

• The range that the signal can reach is about 20 feet

when the remote controller is pointed at the front of the indoor unit.

• When a button Is pressed, one or two beeps will be heard from the indoor unit. If no sound is heard,

operate again.

• Use the remote controller carefully. If it is dropped, thrown or it gets wet, the remote controller may not operate.

When installing on a wall, etc.

• install the remote controller installation case in a position where the signal reception sound (beep)

can be heard from the indoor unit when the _': button is pressed. _

How to install/remove the remote controller

Insert the remote controller downward.

Pull it up.

Remote controller

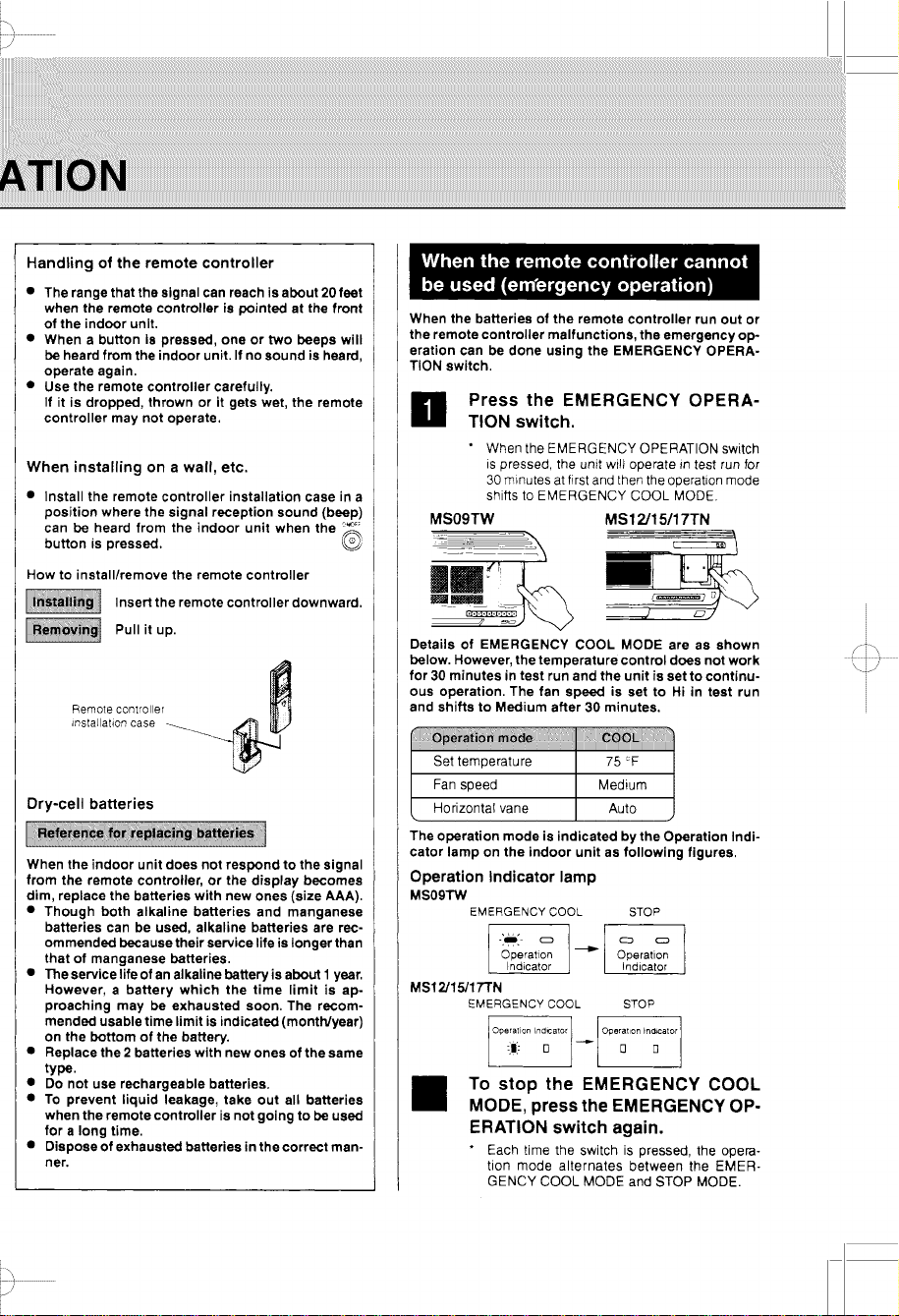

When the batteries of the remote controller run out or the remote controller malfunctions, the emergency olP

eration can be done using the EMERGENCY OPERA- TION switch.

II ! Press the EMERGENCY OPERA-

TION switch.

When the EMERGENCY OPERATION switch is pressed, the unit wilt operate in test run for

30 minutes at first and then the operation mode shifts to EMERGENCY COOL MODE.

MS09TW MS12/15/17TN

Details of EMERGENCY COOL MODE are as shown

below. However, the temperature control does not work for 30 minutes in test run and the unit is set to continu-

ous operation. The fan speed is set to Hi in test run and shifts to Medium after 30 minutes.

instaJlationcase _____._

Dry-cell batteries

When the indoor unit does not respond to the signal from the remote controller, or the display becomes

dim, replace the batteries with new ones (size AAA).

• Though both alkaline batteries and manganese

batteries can be used, alkaline batteries are rec- ommended because their service life is longer than that of manganese batteries.

• The service life of an alkaline battery is about 1year.

However, a battery which the time limit is ap-

proaching may be exhausted soon. The recom-

mended usable time limit is indicated (month/year) on the bottom of the battery.

• Replace the 2 batteries with new ones of the same

type.

• Do not use rechargeable batteries.

• To prevent liquid leakage, take out all batteries

when the remote controller is not going to be used for a long time.

• Dispose of exhausted batteries in the correct man-

ner.

Set temperature 75 °F Fan speed Medium Horizontal vane Auto

The operation mode is indicated by the Operation Indi- cator lamp on the indoor unit as following figures.

Operation Indicator lamp MS09TW

EMERGENCY COOL STOP

-'I".... _ _ _pperati_n

MS12/15/17"rN

EMERGENCY COOL STOP

I To stop the EMERGENCY COOL

MODE, press the EMERGENCY OP-

nd cator

ERATION switch again.

* Each time the switch is pressed, the opera-

tion mode alternates between the EMER- GENCY COOL MODE and STOP MODE.

With the "f;_ (I FEEL...)" auto operation mode, the optimum room condition can be set automati-

cally with a one-touch operation.

•

S ¸

• To start operation:

/ Press the Q button.

When the"_ (I FEEL...)" mode is selected, the air con- ditioner is automatically controlled at the optimum temperature.

• To stop operation:

/ Press the Gbutt°n"

i ¸¸i! !ii iiii!_i¸iii ii

@STOP

If you feel slightly warm:

Press the 0 button to lower the tempera-

ture.

One press lowers the temperature by about 2 °F.

If you feel slightly cool:

Press the 0 button to rame the tempera-

ture.

One press raises the temperature by about 2 °F.

_Rv

cool

When "_ (I FEEL...)" is not selected, press the _ button until it is set.

Each time the button is pressed, the operation mode is

changed in sequence: _ (IFEEL...) _ _:_(COOL) -_ 6 (DRY)

_ (FAN)

F-

Details of operation

According to the rdom temperature when the operation starts, the op- eration mode is automatically set to either COOL or DRY. However, when operation is started again within 2 hours after it is stopped, the

same operation mode before the operation is stopped is selected. The operation mode selected first is not changed even if the room tempera-

ture changes. If the operation mode does not match the room condition, select the appropriate operation mode by pressing the MOr_DEbutton.

Details of auto operation

Room temperature Operation mode Target temperature

when started (initial state)

About 77 °F or higher COOL About 75 °F

About 77 F or lower DRY

_C NOTE

OOL:Whenthe roomtemperatureis 4°Fhigherthanthesettemperature,the settemperaturemay nothechanged

sincethe air conditioneris operatingto reach the target (set)temperature.In this case, pleasewait until the roomtemperaturedropstowithin4 OFofthe set temperatureand then changethe set temperature.

Details of display on the indoor unit

The operationindicatorat the rightside of the indoorunit indicates the operation state. ,_,

MS09TW

_,, _ _on a_or . ,

_pperati_nn _!._ Lighted o_e:!a[. In "B" Lighted

.... 0;]

Indicator _ Notlighted [_ Not lighted

Operation indicator lamp The following indication does not depend onthe shape of lamp.

Indication Operation state

........ This shows that the air conditioner is operating to reach the target About 4 °F or more

-,W,,- -,,Q,- temperature. Please wait until the target temperature is obtained.

,,==_ _ About 4 °F or less

This shows that the room temperature is approaching the

target temperature.

MS12/15/17TN _ J, t

Difference between target

temperature and room temperature

,/-_ \17

-- Description of"AUTO RESTART FUNCTION"

• These units are equipped with an auto restart function. When the main power is turned on, the air conditioner wilt start operation automatically in the same mode as the one set with the remote controller before the shutoff of the main power.

• If the unit was set to off with the remote controller before the shutoff of the main power, it will remain stopped even after the main power is turned on.

• If the unit was in the emergency operation before the shutoff of the main power, it will start operation, when main power comes on, in the same mode as the one set with the remote controller before the emergency operation.

• If the unit is operated in "1FEEL ..." mode before power failure, the operation is not stored in the memory. In "1FEEL ..."

mode, the operation is decided by the initial room temperature at (re)start.

• Since the air conditioner has been shipped from the factory with the COOL mode saved in the memory for auto restart function, it starts cooling operation when the user turns on the main power for the first time after installation.

Press the _ button.

Select the operation mode by pressing the

button.

Each time this button is pressed, the operation mode is changed in sequence: f_ (I FEEL,,.) -_ _ (COOL)

6 (DRY) _ _ (FAN)

To stop operation:

Press the Q button.

After the operation mode is set once, the operation starts in the mode set previously from the next time by simply pressing the _ button.

ON_FF

Oh_3FF

When the set temperature is to be changed:

• Press the _ button to lower the temperature, One press lowers the temperature by about 2 °F.

• Press the _ button to raise the temperature. One press raises the temperature by about 2 °F,

• The temperature control (temperature setting) can-

not be done.

• The room temperature is slightly lowered in this op-

eration mode.

The details of the display on the indoor unit are explained on page 7.

I NOTE

When the ambient temperature is too high, the room tem-

perature may not reach the set temperature since the unit

operates to cool under high load.

,,,%

For effective cooling

0 Close the windows and pull Q Pastea heat shield film (gen- Q Blockthe outdoor unit from di-

down blinds. Sunshine is re- duced and cooling efficiency

increases.

The humidity at which people feel comfortable When air contains too much moisture, people feel uncomfortable. Humidity is re!ated to temperature and

wind.The humidity at which people feel comfortable is 60 % - 75 % RH in summer, 55 % -70 % RH in winter.

erally available) on the window.

Heat entering the room is re-

duced.

rect sunlight. This saves en- ergy.

Description of "AUTO RESTART FUNCTION"

efer to page 7,

AIR FLOW velocity and direction can be selected as required.

To change the AIR FLOW velocity, press

the _-_ button.

Each time the button is pressed, the fan speed is changed in sequence: • (Lo) -_ ,,m (Med) -_ •ill (Hi)

-_ _ (AUTO)

• Use the tall (HI) notch to cool the room more.

• If the opersting sound of the air conditioner disturbs your

sleep, use the • (Lo) notch.

To change the AIR FLOW blowing direc-

tion vertically, press the _ button.

Each time the button is pressed, the angle of the hori-

zontal vane is changed in sequence: - (1) --_ • (2) --_

• (3) _ s (4) _ j (5) _ _ (SWING) _ _ (AUTO)

SWING OPERATION

Use the swing operation for the air flow to reach all corners of the room.

Recommended horizontal vane range

Use the _ (AUTO) position usu- ally. Use position - (1) or ,, (2) in the COOL or DRY mode when adjust- ing to your requirements.

NOTE

In the cooling operation, when the air conditioner is op- erated with setting the horizontal vane to, (4) or i (5) for 1 hour, the AIR FLOW direction is automatically set to

horizontal to prevent condensed water from dropping. Adjust the vertical AIR FLOW direction using the remote

controller. If the horizontal vane is moved manually, it may cause trouble.

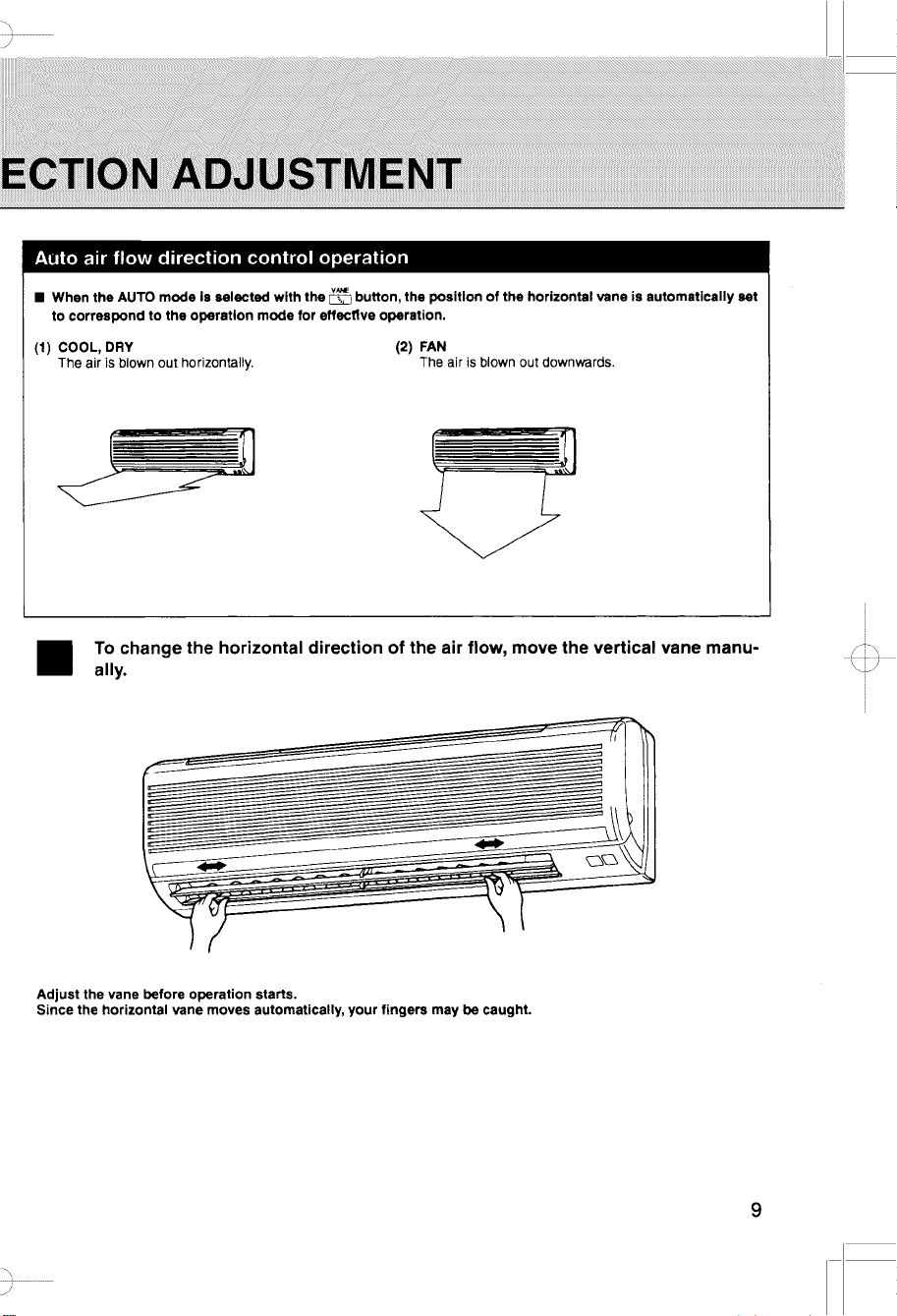

• When the AUTO mode is selected with the _ button, the position of the horizontal vane is automatically set

to correspond to the operation mode for effectlve operation.

(1) COOL, DRY

The air is blown out horizontally.

(2) FAN

The air is blown out downwards.

To change the horizontal direction of the air flow, move the vertical vane manu- ally.

Adjust the vane before operation starts. Since the horizontal vane moves automatically, your fingers may be caught.

\7_ ......

_=1,I]

It Is convenient to set the timer when you go to bed, when !you get home, when you get up, etc.

.....

ii_iiii iiiii

I .i._,_ _

- -- l

WAPIM _uuL

Press the _ button during operation.

Each time the button is pressed, the ON timer mode

alternates between ON and OFF,

Set the time of the timer using the

MIN

and _ buttons.

Each time the _ button is pressed, the set time in-

creases by 1 hour; each time the _--- button is

pressed, the set time increases by 10 minutes,

To release the ON timer:

Press the _ button.

_1_ Press the _ button during operation.

Each time the button is pressed, the OFF timer mode

alternates between ON and OFF.

Set the time of the timer using the

and _ buttons.

Each time the _ button is pressed, the set time in- creases by 1 hour; each time the _ button is pressed, the set time increases by 10 minutes.

To release the OFF timer:

HFL

Press the _ button.

The ON timer and the OFF timer can be used in combination. The timer of the set time that is reached first will operate first,

("_t" mark indicates the order of timer operations.)

• If the current time has not been set, the timer operation can-

not be used.

_t NOTE

the main power Is turned off or a power failure occurs

hlle AUTO START/STOP timer Is active, the timer setting

cancelled. As these models are equipped with the auto

start function, the air conditioner should start operating

the same time that a power has restored.

B Perform the FAN operation for 3 or 4 hours

to dry the inside of the air conditioner.

Turn off the breaker.

/_ CAUTION

urn off the breaker when the air conditioner Is not oing to be used for a long time.

irt may collect and this may cause a fire.

[] Clean the air filter and install it in the in-

door unit.

(Refer to page 11 for cleaning Instructions.)

filter before

Clean the ] installing.

Check that the air inlet and outlet of the

indoor/outdoor units are not blocked.

M Remove the batteries from the remote con-

troller.

prevent liquid leakage, take out all batteries when

I the remote controller is not going to be used for a

/_ CAUTION 1

I long time.

M heckthatthe ground is connected correctly.

/_k CAUTION round the unit.

o notconnectthe ground to a gas pipe, water pipe,

htningrodorthe groundofa telephone.Ifthe ground-

ling is incorrect,itmay cause anelectric s_ock.

Turn off the breaker.

Clean using soft dry cloth.

_,/_,CAUTION

When the unit is to be cleaned, switch off and turn off the breaker.

: Since the fan rotates at high speed during operation,

it may cause an injury,

Do not use gasoline, benzine, polishing powder and

detergent. And do not spray with insecticide. The

unit may be damaged.

Donotopenthefrontpaneluppastthelevelpositioninordertopreventitfrombeingdamaged.

O Remove the air filter.

- Open the front panel then

remove/replace the filter

Remove

Air filter

T-/_ CAUTION

i When the air filter is to be removed, do not touch 11the metal parts of the indoor unit.

This may cause an injury.

I_ Remove dirt from the air filter using a

vacuum cleaner or by washing the filter with water.

• If dirt is conspicuous, wash the filter with a solution of detergent in lukewarm water.

• If hot water (120 _F or more) is used, the filter may be deformed.

_ :::_. _

After washing with water/lukewarm water, dry the air filter well in the shade.

• Do not expose the air filter to direct sunlight or heat from a fire when drying it.

g emove the air filter, and then remove the

deodorizing filter (gray sponge type).

• The deodorizing filter is harmless to people. However, to keep its effectiveness, be sure to hold the frame and not to touch the surface of the filter with your hand.

I _,_,,_1 : II

Deodorizing filter

Soak the filter together with its frame in

lukewarm water for about 15 minutes.

• If the dirt is conspicuous, use a solution of detergent in lukewarm water.

• If hot water (120 °F or more) is used, the filter may be deformed.

• Do not use a scrubbing brush or sponge.This

may damage the surface of the filter.

• Do not use a chlorine detergent.

After washing with water/lukewarm water,

dry the deodorizing filter well in the shade.

• Do not expose the deodorizing filter to direct sunlight or heat from a fire when drying it.

\i_

O Install the deodorizing filter, and then in-

Install the air filter.

stall the air filter.

When the capacity is lowered because of dirt, etc., it is necessary to replace the deodorizing filter/air cleaning filter.

H emove the air filter.

Airfilter

Remove the deodorizing filter (gray sponge

type).

Deodorizingfilter

Install a new deodorizing filter.

Install the air filter and securely close the

front panel.

Deodorizing filter

• Cleaning is necessary about once every 2 weeks.

However, if dirt is conspicuous, clean more often.

• When the color of the filter is not restored even if the filter is washed as the procedure shown on page 11

or when the filter becomes black, replace the filter with a new one.

• Standard interval for filter replacement is about 1 year.

Optional parts

Optional parts are available from your local dealer.

O Remove the air filter.

/ NNN\

Airfi ter J'_ "_

_=_ Remove the air cleaning filter (white bel-

lows type).

Air cleaning filter

1 nstall a new air cleaning filter.

_J_ Install the air filter and securely close the

front panel.

Air cleaning filter

• if the air cleaning filter is clogged, it may lower the

unit's capacity or cause condensation at the air out-

let.

• The air cleaning filter is disposable.The standard us-

able interval is about 4 months. However, if the color of the filter turns to dark brown, replace the filter at

once.

DEODORIZING FILTER

AIR CLEANING FILTER

MS09TW

MAC-1800DF MAC-1300FT

MS12TN, MS15TN, MS17TN

MAC-1600DF MAC-1100FT

[]

g The breaker is turnedon and fuse is not

blown.

The ON-timer is not

set.

_1_ The temperature

setting is correct.

Air filter is not dirty.

• ,- , .

Outlet of the outdoor

unit is not blocked.

The batteries are

exhausted.

The polarity (+,-) of the

batteries is confused.

If the air conditioner had operated before the power failure, as these

models are equipped with the auto restart function, the air conditioner

should start operating again, (Refer to Description of "AUTO RESTART FUNCTION" on page 7.)

g Does the air conditioner

start operating again?

• The remote control signal may

not be received in a room with an electronic ON/OFF type

fluorescent lamp (inverter type fluorescent lamp, etc.) is used.

i.J

• In a weak radio wave area, when the air conditioner is

operated, noise may be generated in radio reception.

• When thunder is heard, stop

operaUon and rum off the breaker. Otherwise, the electrical parts

may be damaged.

The air conditioner cannot be operated

for about 3 minutes

when restarted.

S¸

• This protects the air conditioner according to in-

structions from the microprocessor. Please wait.

Cracking sound is heard.

The room smells strange.

The fan stops during the DRY operation.

The sound of water flowing is heard.

• This sound is generated by the expansion/con-

traction of the front panel, etc. due to change in temperature_

• The air conditioner sucks in an odor adhering to the wall, carpet, furniture, cloth, etc. and blows it

out with the air.

• In DRY operation, the unit operates using the same refrigerant circuit as in COOL operation. DRY operation time has to be reduced in order to lower humidity without much room temperature decreasing. So the compressor sometimes stops, and at the same time the indoor fan stops. This prevents water condensed on the heat exchanger from evaporating again.

• This is the sound of refrigerant flowing inside the air conditioner.

• This is the sound of condensed water flowing in the heat exchanger.

• This is the sound of the heat exchanger defrost- ing.

The air flow direc- tion changes during

operation.

• When the air conditioner is operated in COOL or DRY mode, if the operation continues with air blowing down for 1 hour, the direction of the air

flow is automatically set to horizontal to prevent condensed water from dropping.

Mechanical sound is heard from the in- door unit.

_--.,_r,,L ,,_ _ /

• This is the switching sound in turning on/off the fan or the compressor.

Water leak from the outdoor unit.

The sound as bur- bling is heard.

The room cannot be cooled sufficiently.

The air conditioner starts the operation

only with the main power turned on, though you do not

operate the unit with the remote control-

ler.

• During COOL and DRY operations, pipe or pipe connecting sections are cooled and this causes

water to condense.

• This sound is heard when the outside air is ab- sorbed from the drain hose in turning on the

range hood or the ventilation fan and that makes water flowing in the drain hose spout out.

This sound is also heard when the outside air blows into the drain hose in case the outside wind

is strong.

• When a ventilation fan or a gas cooker is used in a room, the cooling load increases, resulting in an insufficient cooling effect.

• When the outside air temperature is high, the cooling effect may not be sufficient.

• These models are equipped with the auto restart function. When the main power is turned off with-

out stopping the air conditioner with the remote controller and is turned on again, the air condi-

tioner will start operation automatically in the same mode as the one set with the remote con-

troller just before the shutoff of the main power.

Avoid installing the air conditioner in the following places.

• Where flammable gas could leak.

-/_CAUTION

Do not install the unit where flammable gas could leak.

Jf gas leak and collect around the unlt, it may cause an

explosion

• Where there is much machine oil.

• Salty place such as the seaside.

• Where sulfide gas is generated such as a hot

spring.

• Where oil is splashed or is filled with oily smoke.

WaPJ etc

• Provide an exclusive circuit for power supply of

the air conditioner.

• Use the correct power (voltage and frequency)

indicated on the unit to operate the air conditioner and use only fuses or breakers with

specified capacity. Do not use pieces of wire instead of fuses.

-/_WARNING

• The customer should not install this unit. If this is done incorrectly, it may cause a

fire, electric shock, injury by dropping of the unit, water leakage, etc.

• Unit should be installed by licensed

contractor according to local code requirements.

-/_CAUTION

• Ground the unit.

Do not connect the ground to a gas pipe, water pipe, lightning rod or the ground of a telephone.

If a grounding is incorrect, it may cause an

electric shock.

• If the air conditioner is installed in a high

humidity area or near a water source, a Ground Fault Interrupt (GFI) circuit breaker should be installed to protect against shock.

• When the air conditioner is used for several seasons, the capacity may be lowered due to dirt

inside the unit.

• Depending on the use condition, an odor may be generated or dehumidified water may not drain

out smoothly due to dirt, dust, etc.

• It is recommended to apply inspection and

maintenance (charged) by a specialist in addition

to normal maintenance. Consult your dealer.

• Do not put an object around the air outlet of the outdoor unit. It may cause lowering of capacity or

increase operation sound.

• If abnormal sound is heard during operation, consult your dealer.

• When the air conditioner is to be removed or re- installed because of rebuilding, moving, etc.,

special techniques and work are required.

Repair or relocation should not be done by the

customer. If this is done incorrectly, it may cause a fire,

/_WARNING

electric shock, injury by dropping of the unit, water leakage, etc. Consult your dealer.

To dispose of this product, consult your deaJer.

lEt

HVAC Advanced

3400 Lawrenceville Suwanee Road • Suwanee, Georgia 30024

Toll Free: 800-433-4822 • Toll Free Fax: 800-889-9904

www.mrslim.com

Specifications are subject to change without notice.

Products Division

Mitsubishi MS17TN, MS15TN, MS12TN, MS09TW User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
