Mitel 5613 User Manual

MITEL 5613 DECT PHONE

USER MANUAL FOR MIVOICE BUSINESS

NOTICE

The information contained in this document is believed to be accurate in all respects but is not warranted
by Mitel Networks™ Corporation (MITEL

®

). The information is subject to change without notice an d should
not be construed in any way as a commitment by Mitel or any of its affiliates or subsidiaries. Mitel and its
affiliates and subsidiaries assume no responsibility for any errors or omissions in this document. Revisions
of this document or new editions of it may be issued to incorporate such changes.

No part of this document can be reproduced or transmitted in any form or by any means - electronic or
mechanical - for any purpose without written pe rmission from Mitel Networks Corporation.

Trademarks

The trademarks, service marks, logos and graphics (collectively "Trademarks") appearing on Mitel's
Internet sites or in its publications are registered and unregistered trademarks of Mitel Networks
Corporation (MNC) or its subsidiaries (collectively "Mitel") or others. Use of the Trademarks is prohibited
without the express consent from Mitel. Please contact our legal department at [e-mail] for
additional information. For a list of the worldwide Mitel Networks Corporation registered tra demarks, please
refer to the website: http://www.mitel.com/trademarks.

Product names mentioned in this document may be trademarks of their respective companies and are
hereby acknowledged.

®,™ Trademark of Mitel Networks Corporation

© Copyright 2017, Mitel Networks Corporation

Mitel 5613 DECT Phone

User Guide for MiVoice Business

May 2017

All rights reserved

Table of Contents

Chapter 1:
Introduction

Safety Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Abbreviations and Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Functions and Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

The DECT Handset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Chargers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

DC3 Desktop Charger and DP1 Desktop Programmer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

CR3 Charging Rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Icons and Text in the Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Keys and Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Off-hook Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

On-hook, and On/Off Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Navigation Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Sound off Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Key Lock, and Upper/Lower Case Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Soft Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Volume Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Alphanumeric Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Belt Clips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Security Cord . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Carrying case . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Headset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Chapter 2:
Menu Tree

Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

In Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

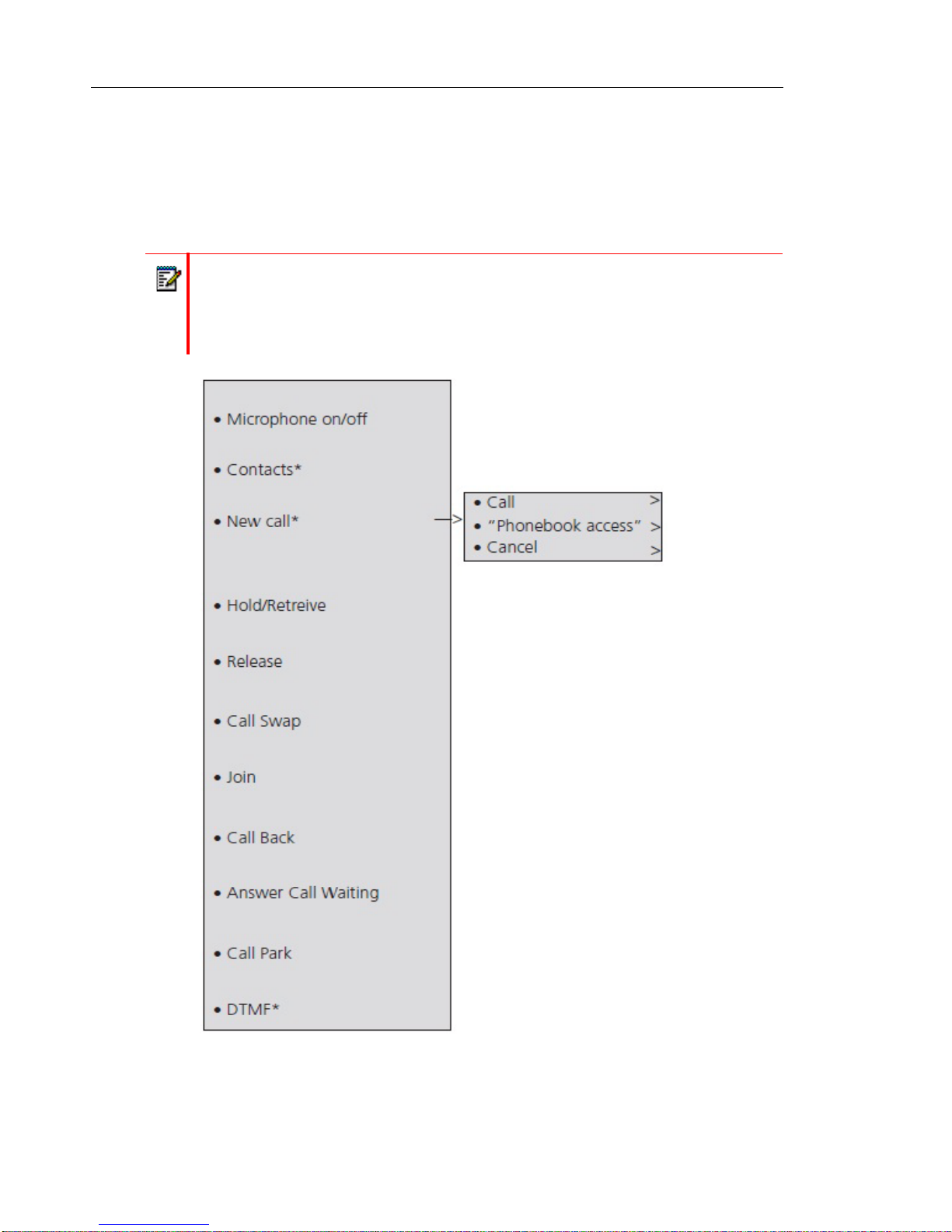

Additional In Call Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Chapter 3:
Basic Operation

Switch the Handset On/Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Turn the Audible Signal On/Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

iii

Table of Contents

Lock and Unlock the Keypad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

In Idle Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

During a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Lock and Unlock the Handset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Mute Handset on Incoming Call or Message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Chapter 4:
Calling

Incoming Call. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Answer a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

End a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Outgoing Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Pre-Dial . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Dial a Number from the Call list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Dial a Number from Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Dial a Name from the Central Phonebook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Dial a Number from the Company Phonebook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

During a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Adjust the Volume during a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Open Contacts during the Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Turn the Microphone on/off during a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Start a New Call during Conversation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Switch between Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

End a Call during Conversation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Transfer a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Transfer to New Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Conference Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Call Back . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Send Call Waiting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Answering Call Waiting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

DTMF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

DECT Info . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Loudspeaking Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Call Diversion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Emergency Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Chapter 5:
Call Handling for MiVoice Business

Hold . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Transfer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Conference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

iv

Table of Contents

Answer Call Waiting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Callback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Call Park . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Chapter 6:
Advanced Features for MiVoice Business

Call Forward . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Call Pickup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Do Not Disturb . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Direct Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Group Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Loudspeaker Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Messaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Mini Messaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Voicemail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Receive a Voicemail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Check the Voicemail Inbox . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Contacts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Menu Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Call List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

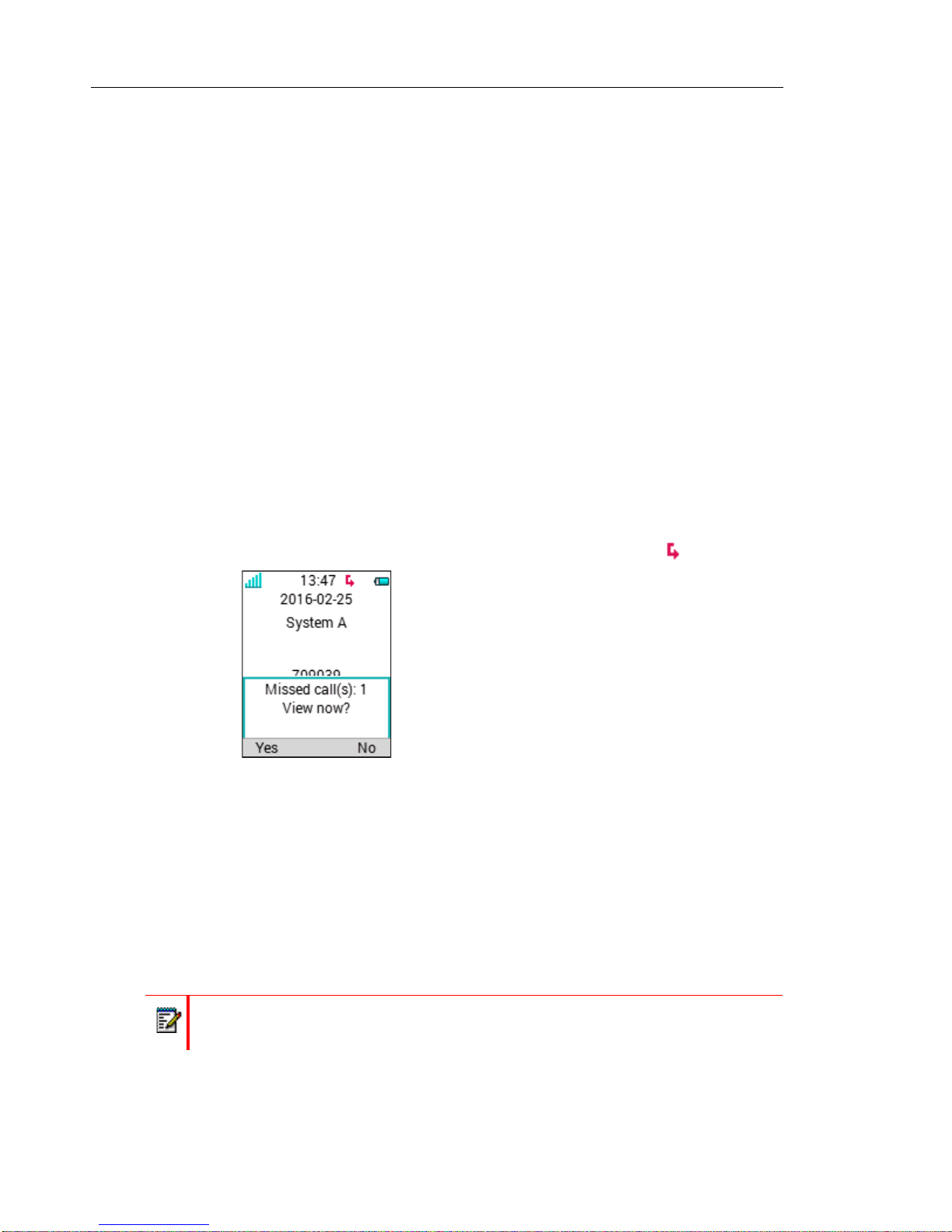

Missed Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Call Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Call Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Call Contact . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Edit Contact . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Delete Contact . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Central Phonebook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Search by Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Sound and Alert Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Select Headset Profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Display Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Time & Date Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Lock settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Answering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Change the Menu Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Change Owner ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

v

Mitel 5613 DECT Phone User Manual for MiVB

In Charger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Advanced Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Admin Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Clear Lists in Charger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

System Handling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Software Upgrade and Additional Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

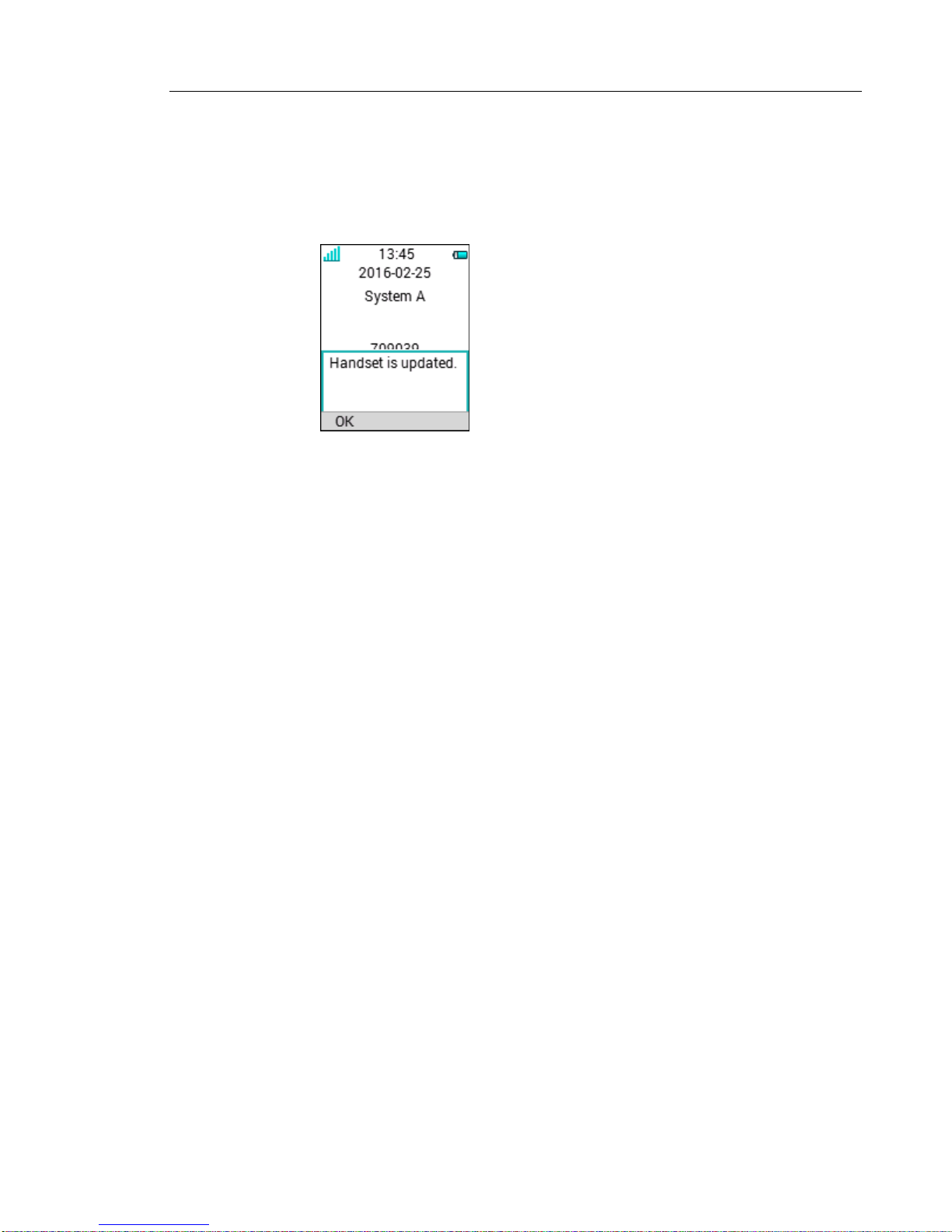

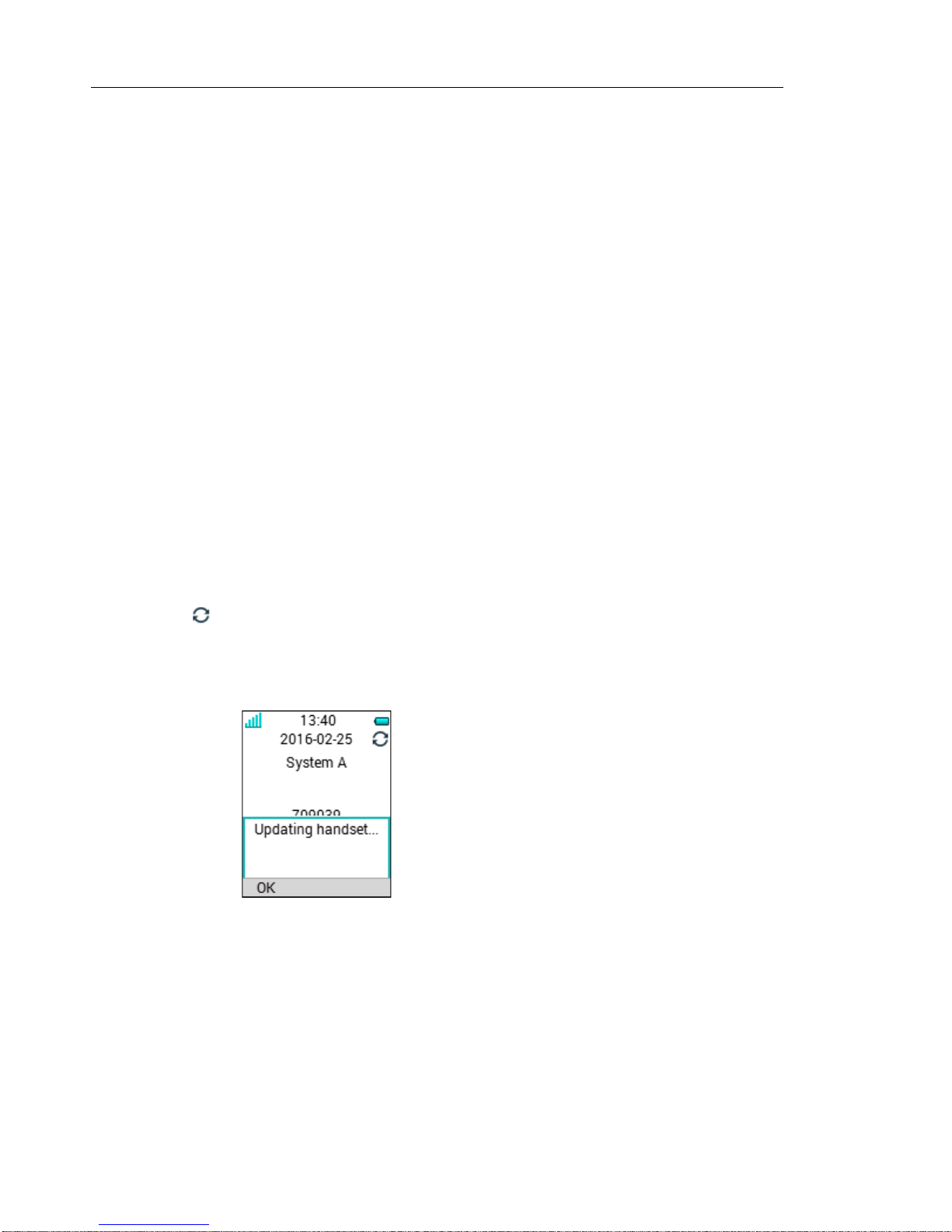

Handset Updates via Charging Rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Chapter 7:
Troubleshooting

Operational Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Error or Warning Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Operation Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Accessibility and Voice Quality . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Chapter 8:
Maintenance

Maintenance of Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Battery Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Charge the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Replace the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Attach the Hinge-type Clip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

Attach the Swivel-type Clip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

Easy Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

Before Starting Easy Replacement Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Easy Replacement Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Energy Efficiency. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

Related Documents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

Appendix A:
Safety Precautions

Safe operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

Regulatory Information (EU and EFTA). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

Exposure to Radio Frequency Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

Regulatory Compliance Statements (USA and Canada only) . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

FCC and IC Compliance Statements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

Exposure to Radio Frequency Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

vi

Table of Contents

Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

Handset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

Battery Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

vii

Mitel 5613 DECT Phone User Manual for MiVB

viii

Chapter 1

INTRODUCTION

Mitel 5613 DECT Phone User Manual for MiVB

2

SAFETY PRECAUTIONS

Read the Safety Precautions in Appendix A Safety Precautions before using the handset.
Save this manual. It includes important Sa fety Precautions and operating instructions. Save all

instructions for future reference.

3

This document describes how to use the features and setti ngs available for the 5613 ha ndset
with MiVoice Business. The handset is designed to be used in an office environment and
provides high quality audio capabilities. Before using the handset, it is recommended to read
chapter Description on page 5 to become familiar with the layout and operation of the handset.

For software download and p arameter set up, re fer to the Inst allation and Ope rational Manual
for the Portable Device Manager (WinPDM), Windows version, and the Configuration Manual
for the Mitel 5613 DECT Handset; see Related Documents on page 74.

ABBREVIATIONS AND GLOSSARY

Device Manager Application for management of handsets, charging racks, etc.
WinPDM: Portable Device Manager:

An application, running on a PC, for managing portable devices, charging
racks, etc.

IPDI International Portable DAM Identity

DAM (DECT Authentication Module)
See IPEI for more information.

IPEI International Portable Equipment Identity:

IPEI/IPDI is needed to enable network subscription of the handset. At
delivery of the handset, IPEI and IPDI are the same and either can be used
for network subscription. If one handset is replaced with another using the
Easy replacement procedure the IPDI will be exchanged and IPEI and IPDI
will no longer be the same. If the IPEI and the IPDI differ, the IPDI shall be
used for network subscription.

FUNCTIONS AND ACCESSORIES

Note: Some functions are system dependent, license dependent and/or require configurations via
WinPDM/Device Manager.

FUNCTIONS

Contacts (250 contacts) x
Central phonebook x
Company phonebook(500 contacts) x
Voice mail access x
Vibrator x
Headset connector x
Microphone on/off during call x
Loudspeaking function x
Mini messaging (12 characters) x
Centralized management x
Downloadable languages x
Easy registration x
Enhanced DECT Security x
Easy replacement of handset x
Dynamic output power x

Mitel 5613 DECT Phone User Manual for MiVB

4

ACCESSORIES

Desktop charger

Desktop programmer

Charging rack

Carrying case

Belt Clip

hinge-type

swivel-type

Security cord

Headset with microphone on boom

Headset with microphone on cable

5

DESCRIPTION

GHI

PQRS TUV WXYZ

JKL

ABC DEF

MNO

Figure 1: Description of the handset.

1 Earpiece speaker
2 Soft keys

The 3 Soft keys is used with GUI, that is, the functions of each Soft key is indicated by
text in the display just above the keys.

3 Off-hook key

To answer a call, to pre-dial a number, and as a short cut to the Call list.

4 Voice mail access*

A quick access to the handset’s Voice mail.

5 Key lock and Upper/Lower case

Combined key lock and Upper/Lower Case.

6Space

To add space between text.
7 Microphone
8 Sound off key

To turn on/off audible signals in idle mode, silencing the ring signal at incoming call,

and to turn the microphone on/off during a call.
9 Tactile indicators

There are two tactile indicators to indicate the centre of the key pad.
10 On-hook and On/Off key

Combined button; to end a call, to return to standby mode, and to switch the handset

on/off by long press.

Mitel 5613 DECT Phone User Manual for MiVB

6

11 Four-way navigation key

Navigation key with Left, Right, Up, and Down.
During a call, the keys Up and Down are used to increase and decrease the speaker

volume, respectively.

12 Display

The color display is a 1.77 inch TFT with backlighting.

13 Headset connector

The headset connector is for connecting a headset. The connector is protected against
dust by using the headset connector cover.

*System dependent feature

THE DECT HANDSET

IMPORTANT: The handset may retain small magnetic objects around the mouthcap or
earcap region.

Case

The plastic cover parts are made of durable PC/ABS material.

Antenna

The antenna is integrated inside the handset.

Loudspeaker

The handset has a separate loudspeaker for the loudspeaking function. It is placed on the back
side of the handset.

Microphone

The microphone is placed on the front bottom side of the handset.

Clip

There are two different belt clip options to the handset; a hinge-type clip (standard) or a
swivel-type clip. See Attach the Hinge-type Clip on page 69, or Attach the Swivel-type Clip on
page 69. Use the clip to attach the handset to a belt or similar. The handset can also be used
without a clip.

Battery

The battery is a rechargeable Li-Lon battery, placed under a battery cover. See Replace the

Battery on page 68.

The battery is fully charged within four hours. See Charge the Battery on page 68.

7

CHARGERS

DC3 DESKTOP CHARGER AND DP1 DESKTOP PROGRAMMER

The DC3 Desktop Charger will only charge the handset, while the DP1 Desktop Programmer
will download new software and synchronize parameters. The handset is fully operational while
placed in the charger.

The DC3 Desktop Charger is delivered with a plug-in power supply and is connected into an
ordinary wall socket.

Note: Only use the charger within the temperature range of +5° C – +40° C.

CR3 CHARGING RACK

Figure 2: DC3 Desktop Charger and DP1 Desktop Programmer

The CR3 Charging Rack is used for charging several handsets, to synchronize parameters,
and for software download.

Refer to the Installation and Operation Manual for the CR3 Charging Rack.

ICONS AND TEXT IN THE DISPLAY

All functions and settings available to the user are shown a s icons and text in the display. The
icons and text in the display indicate functions and settings to which you have access. The
display normally displays date and time, the Owner ID and handset number . The Owner ID can
manually be set by the user.

Figure 3: Example of a display configuration in standby mode.

Mitel 5613 DECT Phone User Manual for MiVB

8

The top row (St atus bar) is used for icons which give the user information about sig nal strength,
missed call, phone lock, key lock, sound off, time and battery status. This row is always visible
in all screens.

The next row (Header bar) displays the current date, headset connection, and system
connection.

The next rows (Active area) are used for information su ch as the name of the system to which
the handset is connected to. A user identity provided from the system and/or an Owner ID can
also be displayed if configured in the Settings menu. This is also the area for dialog window
text, for example “missed calls” or “received messages”.

The bottom row (Soft key bar) is used for Soft keys that are located just benea th the display.
See Soft Keys on page 12.

The (Scroll bar) is placed to the right of the "Active area". It becomes visible when a menu
screen has more than six menus.

9

ICONS

“Signal strength” icon is visible in the upper left corner. The staples shown in
display depends on the signal strength.

“Full battery” icon is displayed in upper right corner.

The "Low battery" icon is displayed when the battery has 10% or less remaining
capacity left. In addition; a warning signal sounds every minute and the dialog
window "Battery low. Charge now." appears.

The "Empty battery" icon is flashing when the battery has 5% or less remaining
capacity left. In addition; a warning signal sounds every second and the dialog
window "Battery empty. Shutting down." appears.

“Sound off” icon is displayed when the Sound off key is pressed, and when the
handset, with the in charger function "Sound off" enabled, is placed in a
charger.

"Microphone off" icon indicates a silenced microphone. It is displayed after a
long press on the Sound off key during a call.

The Volume 0 ("Silent") icon is displayed when the volume has been set to
"Silent".

“Loudspeaking” icon is displayed in the soft key bar during a call. Pressing this
icon will turn on the loudspeaker.

“Loudspeaking off” icon is displayed after the soft key for Loudspeaking icon
has been pressed. Pressing this icon will turn off the loudspeaker.

“Key lock” icon indicates a locked keypad.

"Locked entry" icon indicates that the contact cannot be edited or deleted by the
user.

"Phone lock" icon indicates a locked handset.

“Headset” icon indicates that a corded headset is connected to the handset.

"Outgoing call” icon is added to all outgoing calls in the call list.

“Incoming call” icon is added to all answered calls in the call list.

“Missed call” icon is added to all missed calls in the call list.

“Missed call” icon is added in the status bar. This icon remains until the "Call
list" is opened.

"WinPDM/Device Manager communication" icon is visible when handset is
communicating with WinPDM/Device Manager via Desktop Progra mmer.

Mitel 5613 DECT Phone User Manual for MiVB

10

"Voice mail" icon indicates that new voicemail has been received.

MENU ICONS

The ”Contacts” menu contains all names/numbers in Contacts. In addition, a
company phonebook with up to 500 entries can be downloaded to the phone
via the WinPDM. A central phonebook* can also be accessed from the
"Contact" menu.

The "Calls" menu contains call lists, call time, and call services*. Call services
is configured in the WinPDM.

The “Settings” menu contains personal handset settings such as changing the
ringer volume, selecting language, etc.

* This feature is system dependent.

11

KEYS AND BUTTONS

OFF-HOOK KEY

This key is used for connecting calls. One short press in standby mode opens
the call list.

ON-HOOK, AND ON/OFF KEY

This key is used for disconnecting calls and returning to main screen.
A long press in standby mode will switch the handset on/off.

NAVIGATION KEY

Up

Use this key to step in the menu and when working in text mode.
The picture on the left shows how to press the navigation key to
step left / right and up / down in the menu.

Left

Down

Right

SOUND OFF KEY

A long press on the key in idle mode changes between ring signal on/off. At
incoming call, a short press on the key silences the ring signal. During a call, a
long press on the key changes between microphone on/off.

KEY LOCK, AND UPPER/LOWER CASE KEY

This key is to lock the keypad in combination with the Soft key "Lock". It is also
for switching between upper/lower case and digits.

Mitel 5613 DECT Phone User Manual for MiVB

12

SOFT KEYS

soft keys

ABC DEF

Figure 4: Soft Keys

The three Soft keys are located just beneath the display and the functions of each Sof t key is
indicated by text in the display just above the keys.

The middle Soft key is by default configured to access the Contact list, but can be configured
to access the Central Phonebook or the Contact s menu instea d. The Soft key is configured i n
the handset using WinPDM/Device Manager . For more information, Refer to the Configuration
Manual for the handset, see Related Documents on page 74.

VOLUME BUTTON

Up and down on the Navigation key are used for increasin g/decreasing the earpiece, headset,
and the loudspeaker volume.

ALPHANUMERIC KEYS

. , ? ! - ‘ ” 1

g h i î ï 4

GHI

p q r s 7

PQRS TUV WXYZ

Figure 5: Available characters.

Note: Depending on the selected menu language, other characters can be available.

This means that the character order can differ from the table above.

a b c à â æ ç 2

ABC DEF

JKL

Space + * 0

d e f è é ê ë 3

j k l 5

m n o ñ ô ö œ 6

MNO

w x y z 9

t u v û 8

#

13

In standby mode, and number input mode

• A short press on a key enter the digits “0” - “9” and the characters * and #.

• A long press on the "0" key adds a "+" to the number.

• Enter a pause in number input mode by a long press on the # -key. A pause is indicated
by a "P" in the display.

• A long press on the * - key changes the tone sender on.
Tone sender on is indicated by a "T" in the display.

• The keys "0", "2" - "9" can be used for speed dialing. Press and hold any of the keys to
access a contact beginning with a specific letter . For example, to access a contact beginning
with the letter "A", press and hold the key "2" and then press "Call" to speed dial.

In text input mode

• A short press on a key 0-9, displays the first available character on that specific key. The
marked character is selected after a timeout, or when another key is pressed.

• To change to upper/lower case, press the * -key before entering the character.
The *-key can also be used to display only the digits.

• To add space in the text, make a short press on key 0.

• The first character entered when adding/editing a name in the Contacts menu, will be an
upper level character followed by lower level characters, unless the * - key is pressed before
entering the character. To switch between Abc, ABC, abc, and 123 the *-key is pressed.

• A long press on the #-key displays special characters.

• A long press on the *-key opens a menu to change writing language (Default follows the
menu language setting).

ACCESSORIES

BELT CLIPS

Two belt clip options are available:

• Hinge-type clip (standard)
The clip on the back of the handset is used to fasten the handset to a belt or similar. A
swivel-type clip may also be used.

• Swivel-type clip
The ordinary belt clip can be replaced with a special swivel-type belt clip adapted to firmly
place your handset onto your belt.

SECURITY CORD

The security cord is 800 mm long. The security cord is attached directly to the handset.

Mitel 5613 DECT Phone User Manual for MiVB

14

CARRYING CASE

The carrying case is especially designed for the handset. The ca rrying case comes with a swivel
type belt clip and the handset is fully operational while placed in the car rying case.

HEADSET

A headset is recommended if the handset is frequently used, and/or the user want to have both
hands free. The headset comes in two versions; microphone integrated in the cable and
microphone on a boom.

In order to achieve optimal audio quality with the different headset typ es it is recommended to
select the corresponding headset profile.

The default setting is microphone on a boom, that is, the audio is optimized for using a headset
with microphone on a boom. The headset profile can be changed in the menu by do as follows:

1. Enter the menu by pressing the “Menu” soft key.

2. Select “Settings”.

3. Press “Select”.

4. Select “Headset”.

5. Select the corresponding headset profile from list, that is, "Mic on boom" or "Mic on cable".

6. Press “Select”.

If the preconfigured headset profiles do not match the headset in use, or the audio performance
is bad, an own headset profile can be configured. This is done in the WinPDM . If an own profile
is configured in the WinPDM, it can be selectable from the handset menu.

Chapter 2

MENU TREE

Mitel 5613 DECT Phone User Manual for MiVB

16

CALLS

• Call list —>

• Missed calls —>

• Call time

• Call services

—>

—>

7891 01:30
7827 03:35
7682 05:26
7845 20-Oct-03

7682 05:26
7845 23-Sep-03

Total call time:
03:47:06
Last call:
00:00:07

• Absence*

• Divert calls*

—>

—>

—>

—>

• Call

• More

• Back

• Call

• More

• Back

• Deactivate

• Lunch

• Meeting

• Trip

• Vacation

• Out

• Absence 1

• Absence 2

• Absence 3

• Absence 4

• Internal

• External

• No reply

• When busy

>

—>

>

>
>

>
>

>
>
>
>
>
>

>
>

>
>

—>

•

Time of call
Edit number

•
Save number

•
Delete

•
Delete all

•

>
>

>
>
>

* Visible if defined in the WinPDM

17

CONTACTS

• Call contact

• Add contact

• Edit contact

• Delete contact

• Central phonebook*

* System dependent

——>

——>

——>

——>

——>

• Search

• From contact list

• New

• From Call list >

• Search

• From contact list

• Search

• From contact list

• Search by name

• Search by number

• Last result

——>

>

——>

• Name

• Work number

• Mobile number

• Other number >

• Name

• Work number

• Mobile number

• Other number >

>
>

——>

• Call

• More

• Back

>

——>

>

>
>
>

>
>
>

• View contact

• Add to contacts

>
>

Note: The Call contact s menu can also be a ccessed by pressing the sof t key in
idle mode.

Mitel 5613 DECT Phone User Manual for MiVB

18

SETTINGS

• On

• Off

• Auto phone lock

• Hook-off

• On

• Off

• On in charger

• Change PIN code

• Time format

• Automatic key lock —>

• Phone lock —>

Dansk, Nederlands,
English, etc.

• Sound & Alerts —>

• Ring signals

• Vibrator alert

• *Language —>

• Locks —>

• Time & Date —>

• Answering –>

• Answering behaviour —>

>• Volume

• Key sound

• Date format

• Automatically

• Loudspeaking

• Any key

• Answering key —>

>

—>

• Headset

• Mic on boom

• Mic on cable

—>

• In charger —>

• Switch off

• Sound off

• No action

• System —>

• Subscribe >

• Unsubscribe >

• Rename system >

• Priority >

• Change system >

• System 1

• System 2
|
|

• Automatically

—

—>

—>

• hh:mm (am/pm)

• hh:mm

• dd month yy

• month dd yyyy

• yyyy-mm-dd

• mm/dd/yyyy

• dd/mm/yyyy

• dd-mm-yyyy

• dd.mm.yyyy

—>

• Internal call

• External call

• Callback

—>

• On

• On if silent

• Off

—>

•Click

• Tone

• Silent

• Display –>

• Brightness —>

• Screen saver

—>

• Information

• Black

• Black also in call

• Normal

• Power save

• Font style —>

• Normal

• Bold

• Owner ID

>

19

IN CALL

The In Call menu displays a list of functions that can be accessed during a call. To see the
available functions, press the "More" soft key. Some functions are always provided and other s
may be made available by the administrator via the WinPDM/Device mana ger. T o use a function,
navigate the In Call menu to highlight the required function and then press the "Select" sof t key .

Note: If the handset is configured via WinPDM/Device Manager, a predefined
emergency number can be called while the handset or the keypad is locked. If calling
from a locked handset, only the Microphone on/off function in the In Call menu is
accessible. However, the entir e In call menu is accessible when calling from a handset
with locked keypad.

• Contacts

• Microphone on/off

• New call*

• Switch*

• End call*

• Transfer*

• Transfer to new call*

• Conference*

• Call back*

• Call waiting*

• DTMF

>

>

• Call

—>

• “Phonebook access”

• Cancel

>

>

>

• Call

—>

• “Phonebook access”

• Cancel

>

>

>

>

>

>
>

>

>
>

*) Visible if defined in WinPDM/Device Manager.
**) Visible if the Admin menu is activated.

• DECT info**

• General purpose 1 - 10*

—>

• Link

• System

Mitel 5613 DECT Phone User Manual for MiVB

20

ADDITIONAL IN CALL FUNCTIONS

Besides the default In Call functions, up to 10 extra system specific codes or general purposes
can be defined. Refer to the Configuration Manual for the handset; see Related Documents on
page 74.

Chapter 3

BASIC OPERATION

Mitel 5613 DECT Phone User Manual for MiVB

22

SWITCH THE HANDSET ON/OFF

The handset is switched off:

1. Press and hold On-hook key .

2. When pressing the On-hook key, the handset will vibrate and the display lights up.

3. A dialog window “Switch on?” is displayed. Confirm by pressing “Yes”.

The handset is in idle mode:

1. Press and hold On-hook key .

2. A dialog window “Switch off?” is displayed. Confirm by pressing “Yes”.

TURN THE AUDIBLE SIGNAL ON/OFF

A long press on in idle mode, changes between ring signal on/off.
The icon indicates a silenced handset.

LOCK AND UNLOCK THE KEYPAD

IN IDLE MODE

To prevent accidentally pressing keys and making a call, the keys can be locked.

Lock Keypad

Press and then “Lock”.
Unlock Keypad
Press and then “Yes”.

Note: An incoming call can be answered or ended while the keypad is locked. If
configured in the WinPDM, an emergency call can also be made while the keypad is
locked. Refer to the Configuration Manual for the handset; see Related Documents on
page 74.

DURING A CALL

T o preven t accidentally pressing keys, the keys can be locked dur ing a call. This can be useful
when a headset is used and the handset is attached to a pocket or belt.

Lock keypad

1. Long press .

2. Press “Lock”.

Unlock keypad

1. Press .

23

2. Press “Yes”.

LOCK AND UNLOCK THE HANDSET

The handset can be protected for unauthorized use. If this function is activated, a PIN code
has to be entered for example to switch on the handset, to answer an incoming call etc. The
default phone lock code (0000) can be changed to any 4 - 8 digit personalized code.

Note: If configured in the handset, a p redefined emergency number ca n be called while the handset is
locked. Refer to the Configuration Manual for the handset; see Related Documents on page 74.

1. Press “Menu”.

2. Select “Settings” .

3. Select “Locks”.

4. Select “Phone lock”.

5. Select “Auto phone lock”.

6. Select “On”, “On in charger”, or “Off”.

MUTE HANDSET ON INCOMING CALL OR MESSAGE

The handset can temporarily be muted on an incoming call or message. The call is not hung
up when the handset is muted. If the call is unanswered, it will revert to voicemail if the handset
has been configured for voicemail. To mute an incoming call or message, long press
while the handset sounds.

Mitel 5613 DECT Phone User Manual for MiVB

24

Chapter 4

CALLING

Mitel 5613 DECT Phone User Manual for MiVB

26

INCOMING CALL

A ring signal and/or a vibrating handset, give you notice of a call. Ring signal and vibrator can be
disabled. The calling party’s handset number or name is shown. The name will be shown if the
calling party’s handset number is stored in Contacts or if calling line information is available.
Press the Off-hook key to answer the call. When a headset is connected to the handset, the
answering button on the headset can be used to answer the call.

Other answering methods can also be set in the Settings menu, see Settings on page 18. The
answering methods are; "Automatically" and "Loudspeaking".

When “Automatically” is enabled, all incoming calls will be connected automatically.

ANSWER A CALL

When the signal sounds press to answer the call, or press the soft key to answer the call
in loudspeaking mode. The name/number of the calling party is displayed if calling line
information is available.

END A CALL

Press to end the call. The duration of the call is shown in the display. The total time of
the call can also be retrieved from the Calls menu > Call time.

OUTGOING CALL

PRE-DIAL

1. Enter the number.

2. Press or “Call” to get the line. The number is shown on the display while dialing.

If needed, press “Clear” to erase the num be r. The Navigation key can be used it to step
and add or delete a digit in the middle of a number. T he tone sender in a pre-dialed number
can also be turned on by long pressing .
An international number can be dialed from the handse t by entering a + character followed
by the country code and local number. To enter the + ch aracter, long press the 0 key until
the character is shown in the display.

DIAL A NUMBER FROM THE CALL LIST

1. Press when in idle mode; or press “Menu”, select “Ca lls” an d th en select “Call list”.

2. Select a number.

3. Press or “Call” to dial. The number can be edited before the call is started. Press

“More” and select “Edit number”.

DIAL A NUMBER FROM CONTACTS

1. Press the “Menu” Soft key.

2. Select “Contacts”.

3. Select “Call contact”.

27

4. Select contact from list, or search name/number b y entering characters in the “Search” field.
TIP: When searching for a contact, the input language can be tempo rarily changed by long

pressing . This can be used to access characters in a foreign language temporarily.

5. Press or "Call" to make the call.

Note: The Cont acts can also be acce ssed by pressing the soft key in idle mode.

The middle Soft key is by default configured to access the Contact list, but can be
configured to access the Central Phonebook or the Conta cts menu instead. The Soft
key is configured in the handset using WinPDM/Device Manager . For more informa tion,
refer to the Configuration Manual for the handset; see Related Documents on page 74.

DIAL A NAME FROM THE CENTRAL PHONEBOOK

1. Press the “Menu” Soft key.

2. Select “Contacts”.

3. Select “Central phonebook”.

4. Select “Search by name”.

5. Enter the first name and/or last name, the whole name does not have to be entered.
TIP: When searching for a contact, the input language can be chang ed temporarily by long

pressing . This can be used to access characters in a foreign language temporarily.

6. Press “Search”.

7. Press or the “Call” key to make the call.

DIAL A NUMBER FROM THE COMPANY PHONEBOOK

1. Press the “Menu” Soft key.

2. Select “Contacts”.

3. Select “Call contact”.

4. The local and company phonebook appears in the same list but the company names are

indicated by a “Locked entry” icon in front of the name. Select contact from list, or search
name/number by entering characters in the “Search” field.

5. Press or the “Call” key to make the call.

Note: The Company phonebook can also be accessed by pressing th e soft key in

idle mode.

Mitel 5613 DECT Phone User Manual for MiVB

28

DURING A CALL

Note: Some of these function s are system dependent. The parameters are set up in the
Portable Device Manager (WinPDM/Device Ma nager), refer to the Configuration Manual
for the handset, and the Installation and Operational Manual for the Portable Device
Manager (WinPDM), Windows version (see Related Document s on page 74).

If the handset is configured via WinPDM/Device Manager, a predefined emergency number
can be called while the handset or keypad is locked. When calling from a locked handset, only
the Microphone on/off function can be accessed by pressing the soft key "More". However, the
entire In Call menu is accessible when calling from a handset with locked keypad.

ADJUST THE VOLUME DURING A CALL

On the navigation key , press up and do wn to increase and decrease the volume, resp ectively.
The handset will now store and keep the new volume level.

OPEN CONTACTS DURING THE CALL

1. Press the “More” Soft key during the call.

2. Select “Contacts”.

3. Press “Select”.

4. Select “Call contact” for searching a local or company phonebook contact, or select “Central

phonebook” for searching a central phonebook contact.

5. Press “Select”.

6. Select or search contact.
Note: The selected contact can be called by pressing "Call". When calling the contact,

the first call is put on hold. See also Start a New Call during Conversation.

TURN THE MICROPHONE ON/OFF DURING A CALL

1. Press the “More” Soft key during the call

2. Select “Microphone off”

3. Press “Select”.

The icon indicates a silenced microphone. This means that the other part in an ongoing
call cannot hear you. To turn the microphone back on, do as follows:

1. Press the “More” Soft key during the call.

2. Select “Microphone on”.

3. Press “Select”.

The microphone can be turned on and off by long pressing .

START A NEW CALL DURING CONVERSATION

1. Press the “More” Soft key during the call.

2. Select “New Call”

1

.

1. Visible if defined in the WinPDM.

29

3. Press “Select”.

4. Enter number, or press to access the phonebook.

5. Press .

SWITCH BETWEEN CALLS

Prerequisite, a new call has been started during conversation, see Start a New Call during

Conversation on page 28.

1. Press the “More” Soft key.

2. Select “Switch”

1

.

3. Press “Select”. This will switch between the calls.

END A CALL DURING CONVERSATION

Prerequisite, a new call has been started during conversation, see Start a New Call during

Conversation on page 28.

1. Press the “More” soft key during the call.

2. Select “End Call”

3. Press “Select”. This will end the current call and the previous call is resumed.

1

.

TRANSFER A CALL

Prerequisite, a new call has been started during conversation, see Start a New Call during

Conversation on page 28.

When a caller has two ongoing calls, he/she can transfer the first call to the second call.

1. Press the “More” soft key.

2. Select “Transfer”

1

.

3. Press “Select”. This will connect the first caller with the new caller.

TRANSFER TO NEW CALL

An ongoing call can be transferred to a new number. When the new call is established, the
caller that initiated the transfer will be disconnected.

1. Press the "More" soft key during the call.

2. Select "Transfer to new call"

3. Press "Select".

4. Enter number to the person the ongoing call shall be transferred to, or press to

access the phonebook.

5. Press to transfer the call.

2

.

1. Only visible if defined in WinPDM.

2. Visible if the parameters "New Call" and "Transfer" are defined in WinPDM/Device Manager.

Mitel 5613 DECT Phone User Manual for MiVB

30

CONFERENCE CALL

Prerequisite, a new call has been started during conversation, see Start a New Call during

Conversation on page 28.

By initiating a conference call, an conversation can be made between several participants
simultaneously.

1. Press the "More" soft key.

2. Select "Conference call"

1

.

3. Press "Select".

The person initiating the conference call is the conference leader , and the others are par ticipant
members of the conference call.

CALL BACK

When a call is made to a busy handset, it is possible to automatically call back when the busy
handset is free. When a busy tone sounds, do as follows:

1. Press the "More" soft key during the call.

2. Select "Call back"

3. Press "Select".

1

.

4. Press and wait until the handset alerts.

5. When the handset alerts, press and the call will automatically be started.

SEND CALL WAITING

This feature sends a notification tone to an engaged handset to an nounce to the engaged party
that another caller is trying to reach them. To notify an engaged party:

1. Press the "More" soft key.

1

2. Select "Call waiting"

.

3. Press "Select". The other part will get a "Call waiting" signal.

When the line is free it will automatically call the number again. This is system dependent.

ANSWERING CALL WAITING

Depending on system setup and configuration, this feature might be handled in one of two
different ways:

Method 1

During an ongoing conversation and a short tone for another incoming call appears, do as
follows:

1. Press the soft key "More" during the call.

1. Only visible if defined in WinPDM.

31

2. Select "Answer Call waiting".

3. Press "Select". The new call is now connected, and the first call is on hold.

When the line is free, the call on hold will automatically be dialed again. This is a system
dependent feature.

Method 2

If a second caller calls during a phone call, the handset will beep and display the text "Internal
call" for internal callers and "External call" for external callers. The handset will also show the
name or phone number of the second caller. To answer the second caller:

1. Press the soft key "Accept ".
The text "Switch" briefly appears on screen, and the handset transfers to the second call.
The first call is put on hold.

2. When finished speaking with the first caller, select the "More" soft key.

3. Select "End Call".

The second call is closed and the first call is retrieved.

Note: A second call can be rejected by pressing the "Decline" soft key. The second
caller will hear an engaged tone, and the call will be logged as a missed call in the
handset.

DTMF

Some systems/PBXs require that the handset sends Dual T one Multi Frequen cy (DTMF) when
pressing the keys. DTMF can be enabled as follows:

1. Press the "More" soft key during the call.

2. Select "DTMF".

3. Press "Select". This will enable the use of DTMF signals.

DECT INFO

This option is only visible if the Admin menu is activated. For more information, refer to the
Configuration Manual for the handset; see Related Documents on page 74.

LOUDSPEAKING FUNCTION

How to activate the loudspeaking function is dependent of the choice of answering method. An
incoming call can be connected with loudspeaking function active by pressing left soft key.
During a call, a press on the left soft key activates the loudspeaking function. Press the left sof t
key again to turn it off.

CALL DIVERSION

All calls; internal calls, external calls, calls when busy , or calls at no answer can be diverted to
another handset number. The diversion is made via the Calls menu > Call services > Divert
calls. See Divert Calls.

Mitel 5613 DECT Phone User Manual for MiVB

32

In addition, an absence reason (for example “Lunch”, “Meeting”, “Trip” etc.) can also be set,
The absence reason is set via the Calls menu > Call services > Absence.

EMERGENCY CALLS

If configured in the WinPDM/Device Manager, any one of up to five emergency numbers can
be called. An emergency number can be called even if the handset or keyp ad has been locked.

Chapter 5

CALL HANDLING FOR MIVOICE BUSINESS

Mitel 5613 DECT Phone User Manual for MiVB

34

The In Call menu displays a list of functions that can be accessed during a call. To see the
available functions, press the "More" soft key. Some functions are always provide d and others
may be made available by the administrator via the PDM/Device Manager. To use a function,
navigate the In Call menu to highlight the required function an d then press the "Select" soft key.

Note: If the handset is configured via PDM /De vice Manager, any of the predefined
emergency numbers can be called while the handset or the keypad is locked. When
calling from a locked handset, only the Microphone on/off function in the In Call menu
can be accessed. However, the entire In call menu is accessible when calling from a
handset with locked keypad.

.

* Visible if enabled/defined in PDM/Device Manager.

Figure 1: Accessing Features

35

HOLD

Y ou can also use these features by pressing th e R key on the handset during a call. Th e table
below lists the In-Call Menu features and the associated feature access code method.

IN-CALL MENU UNDER MORE ASSOCIATED FEATURE ACCESS CODE

Contacts
Microphone off
New Call R
Hold/Retrieve R
Release R4
Call Swap R2
Join RR + *80
Call BackI 5
Answer Call Waiting R2
Call Park RR + *7#

1. During a call, press the "More" soft key.

2. Select "Hold/Retrieve" to put the call on hold.

To retrieve the Held Call

1. Press the "More" soft key

2. Select "Hold/Retrieve" to retrieve the call.

TRANSFER

1. During the call, press the "More" soft key.

2. Select "New Call".

3. Dial the number to which you want to transfer the call and then press the "Call" soft key.

4. Do one of the following:

• to make a blind transfer, select "Release " to hang up and connect the other two parties.

• to make a supervised transfer, wait for an answer, announce the transfer, and then

• to terminate the transfer and return to the held call, press "More" and then select "Call

select "Release" to hang up and connect the other two parties.

Swap".

Mitel 5613 DECT Phone User Manual for MiVB

36

CONFERENCE

To conference with another party during an active cal l:

1. During a call, press the "More" soft key.

2. Select "New Call" to put the current call on hold.

3. Dial the number of the third party.

4. Wait for an answer.

5. Press "More" and then select "Join" to conference all the parties together.

ANSWER CALL WAITING

Note: Depending on system setup and configuration, Call Waiting may be handled in
one of two different ways.

Method 1

While on a call, you hear a call waiting beep.

1. Press the "More" soft key.

2. Press "Answer Call Waiting" to answer the incoming call.

Method 2

If a second caller calls during a phone call, the handset will beep and display the text "Internal
call" for internal callers and "External call" for external callers. The handset will also show the
name or phone number of the second caller. To answer the second caller:

1. Press the soft key "Accept".
The text "Switch" briefly appears on screen, and the handset tran sfers to the second call.

The first call is put on hold.

2. When finished speaking with the first caller, select the "More" soft key.

3. Select "End Call".

The second call is closed and the first call is retrieved.

Note: It is possible to reject a second call by pressing the "Decline" soft key . The second
caller will hear a busy tone, and the call will be logged as a missed call in the handset.

37

CALLBACK

Callback lets you request that the system notify you when a busy extension becomes free.

1. When a number/extension is busy, press the "More" soft key.

2. Select "Call Back" to set up the callback.

3. Y our extension will ring when the called extension becomes free and automatically dial the

extension back.

CALL PARK

The Call Park feature allows you to place a call in a special hold state.You, or someone else,
can then retrieve the call from any extension in the system. After parking the call, the system
can automatically connect you to paging equipment so that you can announce the call to the
requested party.

To park an active call:

1. During the call, press the "More" soft key.

2. Select "Call Park".

3. Dial the directory number on which to park the call

4. Inform the called party of the waiting call.

To retrieve a parked call:

1. Press "Call" .

2. Press "Call Services".

3. Select "Call Park - Retrieve" and enter the directory number on which the call is parked.

Mitel 5613 DECT Phone User Manual for MiVB

38

Chapter 6

ADVANCED FEATURES FOR MIVOICE

BUSI

NESS

Mitel 5613 DECT Phone User Guide for MiVB

40

BUSINESS

The following features are available from the "Calls -> Call services" menu:

• Call Forward

• Call Forward Cancel

• Do Not Disturb

• Do Not Disturb Cancel

• Call Pickup

• Call Park Retrieve

• Direct/Group Page

• Loudspeaker Page

To access the Call Services menu:

1. Enter the menu by pressing the "Menu" soft key.

2. Select in the menu.

3. Press "Select".

CALL FORWARD

To set Call Forwarding:

1. Press the "More" soft key.

2. Select "Call Forward".

3. Enter the extension number to which you want to forward your calls.

4. Press "Call".

5. Listen for a confirmation tone and then hang up.

To cancel Call Forwarding:

1. Press the "More" soft key.

2. Select "Call Forward Cancel".

3. When you hear a re-order tone, press to hang up. Forwarding is cancelled.

CALL PICKUP

To answer a call that is ringing at another station in your Pickup Group:

1. Press the "More" soft key.

2. Select "Call Pickup".

41

3. Answer the call.

DO NOT DISTURB

To activate Do Not Disturb:

1. Press the "More" soft key.

2. Select "Do Not Disturb".

3. When you hear a re-order tone, press to hang up.

To deactivate Do Not Disturb:

1. Press the "More" soft key.

2. Select "Do Not Disturb Cancel".

3. When you hear a re-order tone, press to hang up.

IMPORT ANT: Do not s elect an option from the active call menu during any of the Paging
features.The options are not applicable and your call will be terminated if selected.

DIRECT PAGE

Direct Paging allows you to page a party through the party’s handsfree speaker.

1. Press the "More" soft key.

2. Select "Direct/Group Page".

3. Dial the extension number. and announce the page.

GROUP PAGE

Group Paging allows you to page a group of telephones through their built-in speakers.

1. Press the “More” soft key.

2. Press “Direct/Group Page”.

3. Do one of the following:

• To page your prime page group, press #.

• To page a specific page group, dial the page group directory number.

4. 4. Speak to the dialed party after the tone.

LOUDSPEAKER PAGE

1. Press the “More” soft key, and then press “Loudspeaker Page”.

2. Dial the paging zone number, if required.

Mitel 5613 DECT Phone User Guide for MiVB

42

3. Wait for ringback and announce the page.

Note: Ask your Administrator for the paging zone number.

43

MESSAGING

MINI MESSAGING

The handset can receive text messages with a maximum of 12 characters. When a text message
is received, the message alert signal sounds. The message is displayed in a dialog window.

Note: The message alert signal cannot be changed.

If the received message contains more than 12 characters, the remaining characters are
discarded. Only the last received message is displayed. For example, a first message is
received and displayed in the dialog window. Another message is received and will be displayed
instead of the prior message, which will be discarded.

Note: If the phone is locked with a PIN, the user must unlock the phone to access a
received message.

Press “Close” when the message has been read. It is not possible to reply to a message or
create/send a new message. The message(s) are not stored in the phone.

VOICEMAIL

RECEIVE A VOICEMAIL

When a new voicemail is received, the message alert signal sounds, and the voicemail icon is
displayed in the status bar . The new voicemail not ification is also displayed in a dialog window .

CHECK THE VOICEMAIL INBOX

Check voicemail by pressing "Call" from the dialog window . If "Close" is selected, the Voicemail
can be dialed by long pressing the "1" key when in standby mode.

Follow the given instruction in the Voicemail.

Note: In case the following message is shown: "Voice mail number not defined", the
voicemail number needs to be configured to the voicemail button. Contact your system
administrator.

Mitel 5613 DECT Phone User Guide for MiVB

44

CONTACTS

The handset has a Contacts list with 250 entries, where names and numbers freely can be
added, deleted, and edited by the user. The phonebook lists all names in alphabetical order,
where three numbers can be added for each contact, that is, work number , mobile number , and
other number.

For more information on how to add, edit, or delete a contact, see Contacts on p age 48.
In addition, a company phonebook with up to 500 entries can be downloa ded to the phone via

the WinPDM, see Software Upgrade and Additional Features on page 60. The company phonebook
name and numbers cannot be edited or deleted by the user. The phonebook lists all names in
alphabetical order.

The local and company phonebook appears in the same list but the company contacts are
indicated by a “Locked entry” icon in front of the name. The comp any contact includes work
number only . See Dial a Number from the Company Phonebook on page 27 for more information.
The local and company phonebook can also be accessed by pressing the soft key in
idle mode.

A central phonebook
page 27. The user then sends a request to a messaging server with the first characters entered,
and the messaging server will return a list of names and numbers that matches the search.

1

can also be accessed, see Dial a Name from the Central Phonebook on

1. This is system dependent

45

MENU OPERATION

CALLS

1. Enter the menu by pressing the “Menu” soft key.

2. Select in the menu.

3. Press "Select".

CALL LIST

Figure 1: The Main Menu.

The 25 last received, dialled or missed calls are stored in a call list. If a number occurs more
than once the last time stamp, together with the total number of occurrences, is shown.

Note: If supported by the system, the number’s contact name can be displayed in the
call list.

1. Select "Call list", and press up and down on the navigation key to scroll in the list.

2. The "Call list" can also be opened by pressing in idle mode.

Dial number from Call list

1. Select number to call.

2. Press "Call" to dial.

View the Time of a Call

1. Press "More".

2. Select "Time of call". The time and date is displayed.

Edit Number from Call list

1. Press the "More" soft key.

2. Select "Edit number".

Mitel 5613 DECT Phone User Guide for MiVB

46

Save Number

1. Press the "More" soft key.

2. Select "Save number".

Delete Entry from the Call list

1. Press the "More" soft key.

2. Select entry to delete.

3. Select "Delete".

4. Select "Yes" to delete the entry from the list.

Delete all Entries from the Call list

1. Press the "More" soft key.

2. Select "Delete all".

3. Select "Yes" to delete all the entries from the list.

MISSED CALLS

A missed call is by default indicated by a Missed call window1 and the icon .

The user can view the missed call(s) by pressing "Yes". If the user presses "No", the missed
calls can be viewed as follows:

1. Select "Missed calls".

2. To scroll in the list, pr es s up an d down on the na vig ati on key.

3. Press "Call" to call back.

As in "Call list" there is a "More" soft key which can be used to view the time/date of the call,
edit the received number , add to contacts, and delete received numbers. See Call List on page
45 for information about the functionality in the "More" soft key.

Note: If supported by the system, the number’s cont act name can be displayed in the list.

1. The Missed call window can be hidden, refer to the Configuration Manual for the handset.

47

CALL TIME

The total time of the previous call and last call is displayed by selecting "Call time".

CALL SERVICES

Note: These functions are system dependent. In addition to the default Call services
functions, up to 10 additional system specific call services can be defined, with or without
automatic disconnection. The parameters are set up in the WinPDM, refer to the
Configuration Manual for the handset, and the Installation and Operational Manual for
the Portable Device Manager (WinPDM), Windows version; see Related Documents on
page 74.

Absence Handling

The reason for being absent and the return time or date can be specified here.

1. Select "Call services".

2. Select "Absence".

3. Select the applicable absence reason in the list. The number of absence reasons (for

example “Lunch”, “Meeting”, “Trip” etc.) in the list are configured in the WinPDM.

4. Press "Select".

5. Enter time or date.

6. Press "OK"

The handset sends an absence reason code
automatically be disconnected after a few seconds.

1

to the system by establishing a call. The call will

Deactivate the Absence Setting

1. Enter “Call service” in the menu.

2. Select “Deactivate”.

3. Press "Select".

Divert Calls

The user can divert calls to another extension by selecting "Divert calls".

Divert Internal/External Calls

1. Select "Internal" and/or "External".

2. Select "Activate".

3. Enter number (maximum 24 digits) to divert to, or press to access the phonebook.

4. Press "OK".

1. The code is defined when configuring the absence/diversion reason in the WinPDM/Device Manager.

Mitel 5613 DECT Phone User Guide for MiVB

48

The handset sends a diversion reason code to the system by establishing a call. The call will
automatically be disconnected after a few seconds.

Note: The diversion reason code is defined when configuring the absence/diversion
reason in the WinPDM/Device Manager.

To stop diversion, select Internal > Deactivate or select External > Deactivate. In both cases,
confirm by pressing "OK".

Divert Calls if No Reply

1. Select "No reply".

2. Select "Activate" and press the "OK".

3. Enter number (maximum 24 digits) to divert to, or press to access the phonebook.

4. Press "OK".

The handset sends a diversion reason code
automatically be disconnected after a few seconds.

To stop diversion, select No reply > Deactivate, and confirm by pressing "OK".

Divert Calls When Busy

1. Select "When busy".

2. Select "Activate" and press "OK".

3. Enter number (maximum 24 digits) to divert to, or press to access the phonebook.

4. Press "OK".

The handset sends a diversion reason code
automatically be disconnected after a few seconds.

To stop diversion, select When busy > Deactivate, and confirm by pressing "OK".

CONTACTS

1. Enter the menu by pressing the “Menu” soft key.

2. Select in the menu.

1

to the system by establishing a call. The call will

2

to the system by establishing a call. The call will

CALL CONTACT

Note: A Call conta ct can also be accessed by pressing the sof t key in idle mode.

1. Select "Call contact".

2. Select contact from the list, or enter name or number in the search field.

3. Press , or "Call".

1. The diversion reason code is defined when configuring the absence/diversion reason in the WinPDM/Device Manager.

2. The diversion reason code is defined when configuring the absence/diversion reason in the WinPDM/Device Manager.

49

A contact can be edited by selecting "View" > "More". Note that a comp any phonebook contact
cannot be edited. The company contacts are indicated by a “Locked entry” icon in front of
the name.

Add Contact

1. Select "Add contact".

Add New Contact

1. Select "New".

2. Select "Add", and enter the name of the contact, see Alphanumeric Keys on page 12.

3. Press "OK".

4. Select "Work number", "Mobile number", or "Other number".

5. Press "Add".

6. Enter the numbers. The tone "T" or pa use "P" can be added to phone numbers by pressing

the Space key 5 times or 7 times, respectively.

7. Press "OK".

8. Press "Save" and then "Back".

Add from Call List

1. Select "From call list".

2. Select number.

3. Press "Add".

4. Select "Work number", "Mobile number", or "Other number".

5. Press "Select".

6. Press "Add", and enter name for the contact, see Alphanumeric Keys on page 12.

7. Press "OK".

8. Press "Save".

EDIT CONTACT

Note: A company phonebook contact cannot be edited. Company cont acts are indicated
by a “Locked entry” icon in front of the name.

1. Select "Edit contact".

2. Select contact, and press "Edit" twice.

3. Enter new name or number, see Alphanumeric Keys on page 12. A tone "T" or pause "P"

can be added to phone numbers by pressing the S pace key 5 times or 7 times, respectively .

4. Press "OK".

5. Press "Save".

Mitel 5613 DECT Phone User Guide for MiVB

50

DELETE CONTACT

Note: A company phonebook contact cannot be deleted. Comp any contacts are
indicated by a “Locked entry” icon in front of the name.

1. Select "Delete contact".

2. Select contact.

3. Press "Delete".

4. Press "Yes" to confirm.

CENTRAL PHONEBOOK

The central phonebook can be searched by name or number. The last search result can be
displayed.

When the search result is displayed, contact information can be viewed and the numb er added
to the new contact by pressing the "More" soft key . The number can also be dialled by pressing

, or the "Call" soft key.

1. Select "Central phonebook".

Search by Name

1. Select "Search by name".

2. Enter first name or last name or both.

3. Press "Search". The search result will be displayed.

SEARCH BY NUMBER

1. Select "Search by number".

2. Enter the number.

3. Press "Search". The search result is displayed.

View Last Search Result

Select "Last result". Only the last result will be displayed.

SETTINGS

1. Enter the menu by pressing the “Menu” soft key.

2. Select in the menu.

SOUND AND ALERT SETTINGS

Adjust the Ringer Volume

1. Select "Sound & Alerts".

2. Select “Volume”.

51

3. Adjust the volume by pressing up and down on the navigation key.

4. Press "Back" to save the setting.

Select Ring Signals

1. Select "Ring signals".

2. Select "Internal call", "External Call", or "Callback"

1

.

3. Press "Select".

4. Select ring signal. The selected ring signal can be reviewed by pr essing the "Play" soft key .

The ring signal is repeated until the "Stop" soft key is pressed.

5. Press "Select".

Turn the Vibrator on or off

1. Select “Vibrator alert”.

2. Select “On”, “On if silent” (i.e. the vibrator is on when the handset is muted), or “Off”.

3. Press "Select".

4. Press "Back" to save the setting.

Set the Key Sound

This means that every time a key is used, a low sound is heard.

1. Select “Key sound”.

2. Select “Silent, “Click”, or “Tone”.

3. Press "Back".

The key sound can be reviewed by pressing the "Play" soft key.

SELECT HEADSET PROFILE

1. Select "Headset".

2. Select "Mic on boom", "Mic on cable", or "Customized headset profile"

2

3. Press "Select".

DISPLAY SETTINGS

Screen Saver

The screen saver can be set to one of the following settings:

• Information: Displays status and identificat i on information while the handset is idle.

• Black: The screen is black when the handset is idle.

• Black also in call: The screen is also black when the handset is in call.

1. "Callback" is only applicable if defined in the WinPDM/Device Manager. See also Call Back on page 30 for more

information.

2. "Customized headset profile" is only visible if the headset profile has been configured in the WinPDM/Device Manager.

Mitel 5613 DECT Phone User Guide for MiVB

52

To set the screen saver:

1. Select “Display” from the handset menu.

2. Select “Screen saver”. The current setting is displayed under "Screen saver".

3. Select “Information”, “Black”, or “Black also in call”.

4. Press "Select".

5. Press "Back".

Note:

1. When charging the handset in a DP1 Desktop Programmer or CR3 Charging Rack,

information is replaced by the large license indicator shield. When in the desktop
charger it is the same as when out of the charger.

2. When the handset with the screen saver set to "Information" is in a charger, the
Owner ID is displayed even if the handset switched off. This simplifies identification
when many handsets are in a charging rack

Brightness

1. Select “Display” from the handset menu.

2. Select “Brightness”. The current setting is displayed under "Brightness".

3. Select “Normal” or “Power save”.

4. Press "Select".

5. Press "Back".

TIME & DATE SETTINGS

The time and date displayed in the handset cannot be changed by the user . The DECT system
is solely responsible for keeping the time. The handset also synchronises with the DECT system
time when:

• The handset is turned on after having been turned off. The handset requests the current
DECT system date and time.

• The handset remains on for longer than 24 hours. The handset requests the DECT system
time every 24 hours from the time it was last turned on.

The time and date formats displayed in the handset can be changed by the user as described
in the following sections.

Set Time Format

1. Select "Time & Date"

2. Press "Select".

3. Select time format. The actual time format will be displayed. Selectable time formats:

• hh:mm (am/pm) (for example: 1:00pm)

• hh:mm (for example 13:00)

4. Press "Select" to save the setting.

53

Set Date Format

1. Select “Time & Date”.

2. Press "Select".

3. Select “Date format”

4. Press "Select". Selectable date format:

• DD/MM/YYYY, for example: 17/09/2016 (also called Europe)

• MM/DD/YYYY, for example: 9/17/2016 (also called US)

• YYYY-MM-DD, for example: 2016-09-17 (ISO 8601)

• MMM DD YYYY, for example: Sep 17 2016

• DD MMM YY, for exam ple : 17 Sep 16

• DD.MM.YYYY, for example: 17.09.2016

• DD-MM-YYYY, for example: 17-09-2016

5. Press "Select" to save the setting.

LOCK SETTINGS

Activate the Automatic Key lock

1. Select “Locks”.

2. Select "Automatic key lock".

3. Select "On" for activation of automatic key lock.
Note: A call can be answered or ended while the keypad is locked. Any one of five

predefined emergency numbers can also be called while the keypad is locked as long
as this feature has been configured in the WinPDM/Device Manager.

Activate the Phone Lock

The handset can be protected for unauthorized use. If this function is activated, a PIN code
has to be entered for example to switch on the handset, to answer an incoming call etc. The
default phone lock code (0000) can be changed to any 4 - 8 digit personalized code.

Note: If configured in the WinPDM/Device Manager, any one of up to five emergency
numbers can be called while the handset is locked. Refer to the Configuration Man ual
for the handset; see Related Documents on page 74.

1. Select Locks > Phone lock > Auto phone lock.

2. Select “On”, or "On in charger".

3. Enter PIN code

4. Press "OK".

If the PIN code is forgotten it can be removed by your distributor.

Mitel 5613 DECT Phone User Guide for MiVB

54

Deactivate the Phone Lock

1. Select Locks > Phone lock > Auto phone lock.

2. Select “Off”.

3. Enter PIN code

4. Press "OK".

Change PIN Code

1. Select Locks > Phone lock > Change PIN code.

2. Enter the old PIN code.

3. Press "OK".

4. Enter new PIN code twice.

5. Press "Save".

ANSWERING

The default setting for the handset is to use the Off-hook key when answering a call. The
answering behaviour can be configured to answer the call automatically, i.e. without pressing
a key, and/or in loudspeaking mode. The answering behaviour can also be set to any key. If
"Any key" is selected, any keys except the "On-hook" key and the "Sound off" key can be used
to answer a call.

Answering Key

The answering key is by default set to Hook-off.

1. Select "Answering".

2. Select "Answering key".

3. Select "Hook-off" or "Any key".

4. Press "Back" to save the setting.

Answering Behavior

1. Select "Answering".

2. Select "Answer behavior”.

3. Select "Automatically" and/or "Loudspeaking".

4. Press "Change" to change the setting. The check box will be marked.

5. Press "Back" to save the setting. To remove the setting, press "Change". The check box

will be unmarked.

CHANGE THE MENU LANGUAGE

1. Select “*Language”.
Choose between; Brazilian Português (Brazilian Portuguese), Czech, Dansk (Danish),
Deutsch (German), English, Español (Spanish), Français (French), Greek, Hungarian, Ital-

55

iano (Italian), Nederlands (Dutch), Norska (Norwegian), Polish, Russian, Slovakian, Soumi
(Finish), Svenska (Swedish), and Turkish.

2. Press "Back".

Note: An additional language can be downloaded via the WinPDM/Device Manager, see Software

Upgrade and Additional Features on page 60. The languages available for downloa d are Czech, Greek,

Hungarian, Polish, Russian, Slovakian, and Turkish.

CHANGE OWNER ID

The Owner ID is set to identify the handset.

1. Select "Owner ID".

2. Enter identity.

3. Press "Save".

IN CHARGER

Note: Additional In charger actions can be configured in the handset via WinPDM/Device
Manager . Refer to the Configuration Manual for the handset; see Related Documents on
page 74.

Switch off While Charging

When the handset is placed in the charger it can be switched off. When removed from the
charger it will switch on again.

1. Select “In charger”.

2. Select “Switch off”.
Note: When the handset is switched off in the charging rack, the Owner ID of the handset

is still shown. This simplifies the identification of the handset when for example charging
the it together with other handsets.

Mute Handset While Charging

When the handset is placed in the charger it can be muted while it is charging. When it is
removed from the charger, the sound is restored.

1. Select “In charger”.

2. Select “Sound off”.

Deactivate the Charging Mode

1. Select “In charger”.

2. Select “No action”.

Mitel 5613 DECT Phone User Guide for MiVB

56

SYSTEM

Change System

Select “Automatic” or a specific system. If the handset is set to “Automatic” it selects a system
according to the priority list, see Priority on page 58.

Subscribe Handset in IP-DECT System using Easy Registration

A handset can subscribe to an IP-DECT system automatically if the following are fulfilled:

• The IP-DECT system is configured for Easy Registration, refer to the corresponding Instal­lation and Operation manual for the IP-DECT system.

• The handset’s IPEI is registered in the IP-DECT system, refer to the corresponding Instal­lation and Operation manual for the IP-DECT system.

• The handset is not subscribed to any systems.

1. If needed, switch off the handset by pressing .

2. Switch on the handset by pressing .

3. Select language to be used or press "Cancel". If Cancel is pressed, the default language

(English) will be used.

4. The handset starts to search for IP-DECT systems and will subscribe to the system when

it is found.

Note: If no system is found within 2 minutes or if "Cancel" is presse d, the handset returns
to the System menu. Continue with Subscribe Handset in DECT System Manually for more
information.

Notes about Subscribing Handsets and Hot Desking

If the handset is subscribed, but not registered with MiV oice Business or 5000 CP, the handset
will display the following message:
“Please Login”.

• When subscribing the handset to the IP-DECT Base Station, enter the leading 0’s of the
PARK code. Removing the 0’s will prevent subscription.

• After registering the handset with MiVoice Business or the 5000 CP using the System ID,
Extension, and auth password, the “Please Lo gin” message is removed from the handse t.

• If you are unable to subscribe the handset, ask the administrator to remove the handset
IPED from the user in the IP-DECT Base Station, if the IPED was pre-programmed for the
user.

If the handset is configured as a Hot Desk handset, then "Please Login" appears for the user
to enter hot desk information.

Subscribe Handset in DECT System Manually

To subscribe an DECT system manually, the “Park:” (Portable Access Right Key) and “Ac:”
(Authentication code) related to the system are needed. Cont act the system admin istrator fo r

57

more information. If the handset shall subscribe additional system, it must also be added
manually.

Note: The PARK code may not be needed if there is no alien DECT syste m within the
coverage area.

The IPEI code is a unique code which has been assig ned to the handset, see also Admin Menu
on page 59.

1. Select "System".

2. Select "Subscribe".

3. Enter System name (optional). If no system name is entered, the default name will be used.

That is System A, System B etc. depending on which system name that is free.

4. Press "next".

5. Enter P ARK code (max. 31 digit s). The PARK code may not be needed if there is no alien

DECT system within the coverage area.Enter AC code. Press "Next".
An information text "Protection on?" is displayed.

6. Select "Yes" if the new system needs to be protected. A protected subscription cannot be
deleted from the System menu

1

.

7. Press "OK". A searching mode starts.

Unsubscribe System

1. Select "Unsubscribe".

2. Select the system to unsubscribe in the list.

3. Press "Select".

4. Press "Yes" to unsubscribe the system. Otherwise, press "No".

Rename System

The system name in the handset can be renamed:

1. Select "Rename System".

2. Select system to rename.

3. Press "Edit"

4. Enter new name.

5. Select "Save".

1. A protected system cannot be unsubscribed via the System menu. The unsubscribtion must be made via the Admin menu or

the DECT system.

Mitel 5613 DECT Phone User Guide for MiVB

58

Priority

The default order of priority is the order of entered subscriptions. This means that the first
subscribed system has the highest priority . This list can be edited by the user . A system priority
can be modified by moving it up or down in the list.

Note: This is used in combination with system set to be "Automatic", see Change System
on page 56.

1. Select "Priority".

2. Change the priority if needed by selecting "Up" or "Down". The priority will be saved when

"Back" is selected.

59

ADVANCED FUNCTIONS

ADMIN MENU

The handset has a hidden menu for system administrators. Refer to the Configuration Manual
for the handset; see Related Documents on page 74.

The Admin menu contains:

• Software and hardware information and IPEI/IPDI

• DECT link information

• Fault logging

• Enhanced system menu with ability to alter protection

• Frequency band selection

• Factory reset option

For quick access to the Device Information (DI) menu in idle mode, press th e keys cont aining
*#DI# (that is *#34# ). To view the IPEI/IPDI directly, press *#06#. See the table below

INFORMATION CODE

Software version *#34#
Hardware version *#34#
IPEI/IPDI *#34# or *#06#
User ID *#34#

1

CLEAR LISTS IN CHARGER

A parameter to clear call lists stored in the h andset can be set via the WinPDM/Device Manager.
When the parameter is activated and the function has been downlo aded, the list s are deleted
when the handset is placed in a charger. This can be useful when preparing a handset for a
new user. Re fer to the Configuration Manual for the handset; see Related Documents on page 74.

1. This option will be hidden when the frequency band has been set.

Mitel 5613 DECT Phone User Guide for MiVB

60

SYSTEM HANDLING

SOFTWARE UPGRADE AND ADDITIONAL FEATURES

Software and parameters in the handset can be upgr aded by using the WinPDM or the Device
Manager. Refer to the Installation and Operation Manual for the Portable Device Manager
(WinPDM) Windows Vers ion, or the Installation and Operation Manual for the Device Manager;
see Related Documents on page 74.

Examples of additional features that can be downloaded/configured via WinPDM/Device
Manager:

• Company phonebook

• Downloadable languages

• Customizing the Menu Tree

• Licenses

To view the handset’s software version, enter *#34# in idle mode.

HANDSET UPDATES VIA CHARGING RACK

From time to time, users are instructed to leave their handsets in a central charging rack to
allow the handset to be updated with new features and functions. An ongoing upd ate is indicated
by the in the handset header bar and an "Updating handset" message is displayed in the
active area.

1

During the update, a message is displayed to indica te that an update is in prog ress as shown
in figure 2. The "OK" soft key can be selected to close the message.

Figure 2: Handset Update while in Charger

1. The license(s) can also be added via the Admin menu in the handset.

61

If the handset removed from the charger and used, the update is suspended and resumed
when it is returned to the charger.

When the update is complete, a "Handset is updated" message is displayed to indicate that
the handset is available for use, as shown in figure 3. Select the "OK" soft key to close the
message.

Figure 3: Update Completed while in Charger

Mitel 5613 DECT Phone User Guide for MiVB

62

Chapter 7

TROUBLESHOOTING

Mitel 5613 DECT Phone User Manual for MiVB

64

This section contains information on how to solve common ope rational problems, and warnings
you may receive.

Go through the following lists if you encounter any problems. If this checklist does not solve
the problem, contact your system administrator.

If others have similar problems, there may be a system error.

OPERATIONAL PROBLEMS

FAULT PROBABLE CAUSE ACTION OR COMMENT

No display The battery level is low

The screen saver is set to "Black
also in call"

The handset is defective.

No ringing The sound off icon is on, or ringer

volume set to silent, or the handset
is defective.

No change in time & date
setting

Not possible to
subscribe handset using
Easy Registration
feature.

PBX dependent. Changes in the handset appear

1) The handset is subscribed to a
system.

Charge the battery
Change the screen saver setting

as described in Screen Saver on
page 36

Contact system administrator.
Long press the Sound off key, or

increase volume, or contact
system administrator.

after a maximum of 24 hours
after a change in the system or by
turning the handset off and on
again.

1) Unsubscribe the handset and
then subscribe it by following the
instructions in

Subscribe
Handset in IP-DECT System
using Easy Registration

40.

on page

2) The IP-DECT system is not
configured for Easy Registration.

3) There is ambient equipment
disturbing your IP-DECT system.

2) Subscribe the handset
manually, see

Subscribe
Handset in DECT System
Manually

or
configure the system to support

Easy Registration, refe r to the
applicable Installation and
Operation Manual for your
IP-DECT system.

3) Try to subscribe the handset in
other area in your building.

4) If the problem still exists,
restart your handset and
subscribe it.

on page 41,

65

ERROR OR WARNING MESSAGES

DISPLAY SHOWS PROBABLE CAUSE ACTION OR COMMENT

No access The network is in range, but no

access rights.

No System. The handset
beeps once a minute
(during max 30 minutes)
with a low tone followed
by a high tone (if
enabled, the vibrator
also follows the beeps).

SERVICE NEEDED
Parameters corrupt

Note: This display
message is only shown
in English.

SERVICE NEEDED
Invalid IPDI

Note: This display
message is only shown
in English.

Enter PIN code The handset’s lock is activated. Enter the required PIN code. If

Battery low, charge now The battery level is low. Charge or replace the battery.
Phonebook is not

available at the moment.

Voice mail number not
defined

Could not encrypt
connection

The handset is out of coverage or
handset is defective.

The handset is defective. Send the handset for service.

Easy replacement procedure not
followed correctly or failure during
easy replacement procedure.

The phonebook does not respond,
not available at the moment.

There is no Voice mail number
defined in the handset.

The parameter "Encryption
Required" is enabled in the handset
in combination with;

1) Unencrypted base station(s);
and/or,

2) Unsupported base station(s).

Switch handset off and then
switch it on again or contact
system administrator.

Stop the beep with the Sound off
key and go into range.
Note: When re-entering the
coverage area it can take a
couple of minutes before the
handset automatically has
registered into the system.

or
contact system administrator.

Send the handset for service.

PIN code lost enter new via
WinPDM or do a factory reset via
WinPDM.

Try again later or if fault persists
do a factory reset via admin
menu or WinPDM.

Define a Voice mail number via
WinPDM.

1) Disable the "Encryption
Required" parameter in handset;
and/or,

2) Enable the encryption in the
base station(s); and/or,

3) Use supported base station(s).
Ask your supplier.

Mitel 5613 DECT Phone User Manual for MiVB

66

OPERATION NOTICE

ACCESSIBILITY AND VOICE QUALITY

The base network is not always available. If you do not get in contact with your system, contact
your system administrator. For best voice quality, avoid positioning near computer, radio or
similar equipment.

Operating Area

You can only use your handset in the area that is covered by the system. Outside this area
contact with the system is lost. The signal strength icon indicates low and “Searching” is
displayed.

Out of Range

When you leave the system's coverage area a short beep will sound and the text “Searching”
will appear in the display.

The out of range beep will be repeated every minute for 30 minutes. The sound can be turned
off by long pressing .

When re-entering the coverage area it can t

Chapter 8

MAINTENANCE

Mitel 5613 DECT Phone User Manual for MiVB

68

MAINTENANCE OF BATTERIES

1, 4 2 3

BATTERY WARNINGS

The "Low battery" icon is displayed when the battery has 10% or less remaining
capacity left. In addition; a warning signal sounds every minute and the dialog
window "Battery low. Charge now." appears.

The "Empty battery" icon is flashing when the battery has 5% or less remaining
capacity left. In addition; a warning signal sounds every second and the dialog
window "Battery empty. Shutting down." appears.

During a call, only the corresponding battery warning signal will notify the user. The warning
signal cannot be silenced during a call. When not in call, the warning signal can be silenced
by pressing .

CHARGE THE BATTERY

Place the handset in the desktop charger or in the rack charger . An animated battery icon is
shown in the display indicating charging by starting with its cur rent charge and ending with the
full charge. A filled battery icon indicates a fully charged battery.

Note: Only use the prescribed chargers for charging.

REPLACE THE BATTERY

If the standby time for the handset becomes too low, the battery should be replaced by a new
one. Please contact your system administrator or your supplier, for information about new
batteries. Attach the battery as described in the illustration below . The battery is easy to replace.
It is attached inside the battery lid and is connected to the handset in such a way that no
misalignment is possible.

Figure 1: Easy Replaceable Battery.

69

ATTACH THE HINGE-TYPE CLIP

Attach the hinge-type belt clip as described in the illustration below.

Figure 2: Attach the hinge-type clip into position.

ATTACH THE SWIVEL-TYPE CLIP

Attach the swivel-type belt clip as described in the illustration below.

EASY REPLACEMENT

Easy replacement can be used if a handset needs to be replaced due to, for examp le, a broken
display.

Note: Easy replacement is not supported when using DP1 Desktop Programmer.

Note: If the electrical connection is damaged, it is not possible to follow the Easy

Replacement procedure. Depending on fault, it might work to do a replacement via
WinPDM/Device Manager. Refer to the Configuration Manual for the handset; see

Related Documents on page 74.

Figure 3: Attach the swivel-type clip into position.

Mitel 5613 DECT Phone User Manual for MiVB

70

The easy replacement procedure is done via the handset display and the DC4 Advanced
Desktop Charger or the CR3 Charging Rack.

The following settings are replaced during easy replacement:

• DECT registration

• User parameters (including User ID)

• Contacts

• The extension number is assigned to the new handset.

The following settings are not replaced during the easy replacement:

• Call list

BEFORE ST ARTING EASY REPLACEMENT PROCEDURE

1. Check that both the old handset (that is, the handset to be replaced) and the new handset
(that is, the replacement handset) are of the same device type (d43).

2. Check that the software of DC4 Advanced Desktop Charger or CR3 Charging Rack is of
version 1.3.x or greater by using the WinPDM. Refer to the Configuration Manual for the
handset; see Related Documents on page 74.

3. Make sure that the handset batteries are charged before starting the easy replacement
procedure.

4. Switch off the new handset by long pressing .

EASY REPLACEMENT PROCEDURE

During the Easy Replacement procedure, the LED indications on the charger can be used to
follow the replacement procedure. For more details, see also LED Indications during Easy

Replacement on page 72.

IMPORTANT: Never remove a handset from the charger until the instructions in the display tells

you to do so. If there is an error indication, it may be allowed to remove the handset,
see Chapter 7 Troubleshooting on page 63 for further instructions.
After the old handset has been in the charger, the new handset needs to be placed in
the charger regardless if the replacement was successful or not. Failing to do so may
result in malfunction and the new handset will need to be sent for service.

71

Figure 4: Easy Replacement Procedure via the DC4 Advanced Desktop Charger

2

New New Old

New

4, 8 5 67

GHI

PQRS TUV WXYZ

JKL

ABC DEF

MNO

GHI

PQRS TUV WXYZ

JKL

ABC DEF

MNO

GHI

PQRS TUV WXYZ

JKL

ABC DEF

MNO GHI

PQRS TUV WXYZ

JKL

ABC DEF

MNO

1 On the new handset, press and hold

NOTE: Do not release until you are instructed to do so.
2 Put the new handset in the charger.
3 When the text "Start phone replacement?" is displayed, release .

Press "Yes" (left soft key).

The text "Follow the instructions. Each step can take several minutes." appears in the

display. Press "OK" (left soft key).

4, 5 When the text "Please insert old phone in charger" is displayed, replace the new handset

with the old handset. The handset can either be switched on or off.

NOTE: The left charging slot in the CR3 Charging Rack has to be used for both handsets.

The handset will be restarted and after a few seconds, the text "Saving settings. Do not

remove phone from charger" appears. The charger LED changes to slow orange flashing.

It might take several minutes.

IMPORTANT: If the old handset cannot communicate with the charger, put the new

handset in the charger to restore its settings (that is, the handset’s IPDI). If this step

is not performed, the new handset must be sent for service. The old handset’s

settings might be transferred to the new handset by using WinPDM. Refer to the

Configuration Manual for the handset; see

Related Documents on page 74).

6, 7 When the text "Please insert new phone in charger" is displayed, replace the old handset

with the new handset. The text "Restoring settings" is displayed.

IMPORTANT: Do not remove the handset while the text "Restoring settings" is displayed.

Mitel 5613 DECT Phone User Manual for MiVB

72

8 When the text "Phone successfully replaced. Please remove phone to restart." appears

in the display, remove the handset from the charger. The handset is automatically
restarted.

LED Indications during Easy Replacement

The following table shows the LED indications that is used by the charger during the easy
replacement procedure. See also Chapter 7 Troubleshooting on page 63.

LED INDICATION DESCRIPTION

Orange, flashing (1 000 ms on, 1 000 ms
off)

Orange, flashing (100 ms on, 800 ms off) “Change phone” indication during Easy

Red, flashing (100 ms on, 800 ms off) Error indication during Easy Replacement. Put back

Red, flashing (900 ms on, 100 ms off) Error during Easy Replacement. Service needed for

ake a couple of minutes before the handset automatically registers with the system.

File transfer during Easy Replacement.

Replacement.

new portable in charger.

both portables.

73

ENERGY EFFICIENCY

Recommendations on how to save energy:

• Do not charge a battery when the ambient room temperature is above +40° C or below
+5° C (above 104° F or below 41° F). Charging below +5° C will harm the battery and
shorten the lifetime.

• Note that storing Li-Ion batteries at high temperature dramatically reduces its capacity. For
example storage around +60° C reduces capacity with 20% in less than a month,
permanently.

• Set the handset screen saver to the "Black also in call" option. The screen goes black and
the backlight is turned off. In addition, the back light is turned off when the handset is in call.
This helps extend battery life especially when the user is on an extended call. See Screen

Saver on page 36.

• The handset can be configured to switch off when placed in the charger. When removed
from the charger the handset switches on automatically. See Switch off While Charging on
page 40.

• If the charger will not be used for a longer period of time, remove the power adapter to the
charger.

• Do not put the handset in charger if no charging is needed.

Mitel 5613 DECT Phone User Manual for MiVB

74

RELATED DOCUMENTS

Configuration Manual, 5613 DECT Handset
Installation and Operational Manual, Portable Device Manager

(WinPDM), Windows version
Mitel 5613 Configuration Guide
Wireless Messaging Gateway (WSM3) Installation and Operation

Guide

Appendix A

SAFETY PRECAUTIONS

Mitel 5613 DECT Phone User Manual for MiVB

76

Read this chapter before using the handset.

Note: Product Designator for regulatory purposes of the Mitel DECT Handset 5613 is DH6.

SAFE OPERATION

For safe and efficient oper ation of the handset, observe the guidelines given in this manual and
all necessary safety precautions when using the handset. Follow the o perating instructions and
adhere to all warnings and safety precautions located on the product, the Regulatory Information
delivered with the handset, and this User Manual.

Do not disassemble the handset. Disassembling the handset voids the warra nty. The handset
consists of no consumer serviceable components. Service should be performed by an
Authorized Service Center only.

Changes or modifications to the equipment no t exp r ess l y appr ov ed by the party respons ib le
for compliance could void the user's authority to operate the equipment.Frequency Range

The handset is a radio transmitter and receiver. When it is on, it receives and sends out radio
frequency (RF) energy. The handset operates on different frequency ranges depending on
market and employs commonly used modulation techniques:

EU (ETSI): 1880-1900 MHz/250mW
USA/Canada (FCC): 1920 -1930 MHz/100mW

77

REGULATORY INFORMATION (EU AND EFTA)

EXPOSURE TO RADIO FREQUENCY SIGNALS

HANDHELD/BODY

CLOSE TO EAR

DH6-xxxx 0.069 W/kg (10 g) 0.091 W/kg (10 g)

THIS MOBILE DEVICE MEETS GUIDELINES FOR EXPOSURE TO RADIO WAVES. Your
mobile device is a radio transmitter and receiver. It is designed not to exceed the limits for
exposure to radio waves recommended by international guidelines. These guidelines were
developed by the independent scientific organization ICNIRP and include safety margins
designed to assure the protection of all persons, regardless of age and health.

The exposure guidelines for mobile devices employ a unit of measurement known as the
Specific Absorption Rate or SAR. The SAR limit stated in the ICNIRP guidelines is 2.0 W/kg
averaged over 10 grams of tissue. Tests for SAR are conducted using standard operating
positions with the device transmitting at its highest certified power level in all tested frequency
bands. The actual SAR level of an operating device can be below the maximum value because
the device is designed to use only the power required to rea ch the network. That amount
changes depending on a number o f factors such as how close you are to a network base station.
The highest SAR value under the ICNIRP guidelines for us e of the de vice at th e ea r is 0.201
W/kg and at the body is 0.278 W/kg (The measure distance of 1.5 cm). Use of device
accessories and enhancements may result in different SAR values. SAR values may vary
depending on national reporting and testing requirements and the network band.

MOUNTED

Mitel 5613 DECT Phone User Manual for MiVB

78

REGULATORY COMPLIANCE STATEMENTS (USA
AND CANADA ONLY)

FCC ID:
DH6-xxxx:BXZDH6
IC:
DH6-xxxx:3724B-DH6

FCC AND IC COMPLIANCE STATEMENTS

This equipment has been tested and found to comply with the limits for a Class B digital de vice,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipm ent generates, uses and
can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:

• Reorient or relocate the receiving antennas
Increase the separation between the equipment and receiver.

•

• Connect the equipment into an outlet on a circuit different from that to which the receiv

nected.

is con

• Consult the dealer or an experienced radio/TV technician for help.

• Privacy of communications may not be ensured when using this handset.

.

EXPOSURE TO RADIO FREQUENCY SIGNALS

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This device complies with FCC SAR limit of 1.6 W/kg. The maximum SAR value
measured, see below.

HEAD BODY

DH6-xxxx 0.057 W/kg 0.070 W/kg

The handset is designed to be worn with the display towards the body for best radio
performance. SAR testing is made with no separation, to approve the device to be carried close
to the body.

This device must not be co-located or operating in conjunction with any other antenna or
transmitter.

er

Use of non-approved accessories may violate the FCC a nd IC guidelines for RF exposure and
should be avoided.

79

PRECAUTIONS

HANDSET

• Avoid volume levels that may be harmful to your hearing. Exposure to excessive sound
pressure from a handset's earpiece or headset may cause permanent hearing loss.

• Low volume levels might result in missed alerts.

• Only use the handset in temperatures between:

-5 °C and +45 °C (23 °F and 113 °F).

• Avoid exposing the handset to direct sunlight, heat so ur ce s and mo istu re .

• Do not place a cold handset in a charger.

• Avoid sudden temperature changes to prevent condensation in the handset. It is recom­mended to put the handset into an air tight plastic bag until the temperature is adjusted, for
example, when entering or leaving a cold/heated building on a warm/cold day.

• If the handset has been exposed to water or condense, remove the battery immediately,
and let it dry completely before re-inserting the battery.

• Do not expose the handset to open flame.

• Protect your handset from aggressive liquids and vapors.

• Remove the handset from the Charger before clea ning the handset to reduce risk of electric
shock.

• Keep the handset away from strong electromagnetic fields.

• The handset may retain small metal objects around the earpiece region.

• Do not place heavy objects on the handset.

• Do not allow children to play with the product packaging material. This cou ld cause choking
and/or suffocation.

• Do not allow children to play with the handset. It is not a toy.

BATTERY

• Do not immerse the battery into water. This could short-circuit and damage the battery.

• Do not expose the battery to an open flame. This could cause the battery to explode.

• Do not allow the metal contacts on the battery to touch another metal object. This could
short-circuit and damage the battery.

• Do not leave the battery where it could be subjected to extremely high temperatur es, such
as inside a car on a hot day.

• Use the Desktop Charger, the Charging Rack, or the Battery Pack Charger for charging.
Charge the battery for at least one hour the first time you use the battery.

• Do not charge the battery when the ambient room temperature is above 40 °C or below
5 °C (above 104 °F or below 41 °F).

• Do not attempt to take the battery apart.

Mitel 5613 DECT Phone User Manual for MiVB

80

• Do not remove the battery, unless it needs to be replaced.

• Power off the handset before removing the battery.

BATTERY DISPOSAL

Defective batteries must be returned to a collection point for chemical waste disposal.

© Copyright 2017, Mitel Networks Corporation. All Rights Reserved. The Mitel word and logo are trademarks of Mitel Networks
Corporation. Any reference to third party trademarks are for reference only and Mitel makes no representation of ownership of these marks.

mitel.com
