Mitel 2000 Installation Manual

Mobility Router 2000 Series

Hardware Installation Guide

October 25, 2017

Legal Notices

Trademarks

© Copyright 2017, Mitel Networks Corporation. All Rights Reserved. The Mitel word and logo are trademarks of Mitel Networks Corporation.
Any reference to third-party trademarks is for reference only and Mitel makes no representation of ownership of these marks.

Patents

Mobility Router 2000 is covered by patents as listed at http://www.shoretel.com/about/patents.html.

Version Information

Mobility Router 2000 Series Hardware Installation Guide
Date: September 2017

Company Information

Mitel Networks Corporation
350 Legget Dr.
Kanata, Ontario K2K 2W7
Canada
+1.844.937.6483

2 Mobility Router 2000 Series Hardware Installation Guide Mobility

1

Mobility Router 2000 Installation

1.1 Overview

This Hardware Installation Guide provides the instructions for installing and initially configuring the Mobility Router

2000.

Tip

Visit https://docs.shoretel.com/global and click the MR2000/MR4000 link in the Servers column to view
related Mobility Router documentation.

This document is intended for network administrators who install and manage network equipment, and contains
the following sections:

 “Specifications” on page 2

Mobility Router 2000 Installation

Overview

1

 “Unpacking a Mobility Router” on page 4

 “Installation Requirements and Recommendations” on page 5

 “Installing the Mobility Router” on page 6

 “Connecting to the Network” on page 7

 “Connecting to the Console Port” on page 8

 “Connecting Power” on page 9

 “Using the Initial Configuration Wizard” on page 10

Mobility Router 2000 Series Hardware Installation Guide 1

1

Mobility Router 2000

Mobility Router 2000 Installation

Specifications

1.2 Specifications

The Mobility Router is one rack unit (RU) high and installed in a standard 19-inch (48.26-cm) rack.

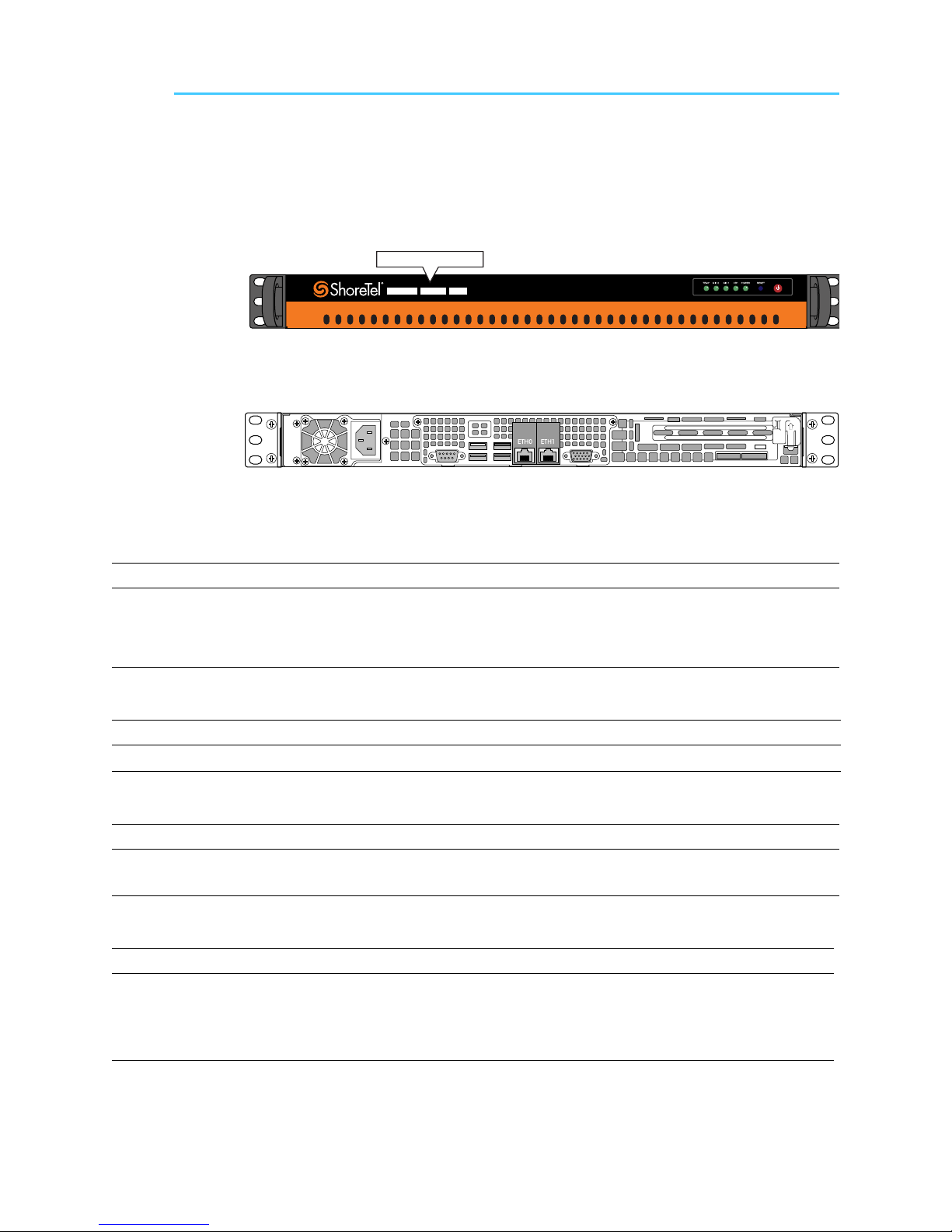

Figure 1-1. Front View of RoamAnywhere Mobility Router 2000 Series

Figure 1-2. Rear View of RoamAnywhere Mobility Router 2000 Series

Table 1-1 Mobility Router Connection Specifications

Model Port Connection

MobilityRouter 2000 Series Ethernet

Console

Table 1-2 Mobility Router Power Specifications

Model Power Supply

MobilityRouter 2000 Series 100-240 VAC (auto-range), 200 W, 3A, 50-60 Hz

Table 1-3 Mobility Router Physical Specifications

Model Dimensions (WxHxD) Weight

MobilityRouter 2000 Series 16.8 x 1.7 x 14 inches

(427 x 43 x 356 mm)

Table 1-4 Mobility Router Operating Environment

Model Temperature Humidity

MobilityRouter 2000Series Operating: 10 to 35 C

(50 to 95 F)
Non-operating: -40 to 70 C
(-40 to 158 F)

1 ea. ETH0
1 ea. ETH1

Serial

17.7 lb (7.7 kg)

Operating: 8% to 90%
(non-condensing)
Non-operating: 5 to 95%
(non-condensing)

2 Mobility Router 2000 Series Hardware Installation Guide

Mobility Router 2000 Installation

Specifications

Table 1-5 Status LEDs

LED Appearance Meaning

Power On continuously Indicates that power is supplied to power supply unit.
Hard drive activity Blinking yellow Indicates hard drive activity.
LAN activity (eth1) Blinking Indicates network activity on the eth1 port.
LAN activity (eth0) Blinking Indicates network activity on the eth0 port.
Overheating/fan failure Blinking Indicates fan failure.

On continuously Indicates that the Mobility Router is overheated.

Regulatory compliance:

 Electromagnetic Emissions: FCC Class A, EN 55022 Class A, EN 61000-3-2/-3-3, CISPR 22 Class A
 Electromagnetic Immunity: EN 55024/CISPR 24, (EN 61000-4-2, EN 61000-4-3, EN 61000-4-4,

EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11)

 Safety: CSA/EN/IEC/UL 60950-1 Compliant, UL or CSA Listed (USA and Canada), CE Marking (Europe)

1

Mobility Router 2000 Series Hardware Installation Guide 3

1

Mobility Router 2000 Installation

Unpacking a Mobility Router

1.3 Unpacking a Mobility Router

The carton for a Mobility Router contains the following:

 One Mobility Router with rack mount ears
 End-user license agreement (EULA)
 One power cord
 One serial cable for serial console connec tion
 One straight-through Ethernet cable
 A copy of this document

Before starting the installation:

1 Open the carton and remove the contents.
2 If any contents are missing or damaged, contact Techni ca l Support at +1.408.331.3300 or

http://support.shoretel.com.

3 Keep the packing materials and save the carton.

4 Mobility Router 2000 Series Hardware Installation Guide

Mobility Router 2000 Installation

Installation Requirements and Recommendations

1.4 Installation Requirements and
Recommendations

Before installing a Mobility Router, follow these requirements and recommendations.

1.4.1 Installation Location Guidelines

The Mobility Router should be installed in an environment sufficient for normal operation of network appliances
(50-95°F). Make sure that the area allows for enough ventilation after the Mobility Router is installed. The
appliance should be installed in an area that does not exceed the following humidity range: 8-90%
non-condensing.

1.4.2 Rack Requirements

The Mobility Router must be installed in a standard 19-inch rack. Make sure that th e Mobility Router is installed in
the rack so that the Mobility Router is level in the rack and is fastened by screws on both sides. Refer to “Installing

the Mobility Router” on page 6 for installation instructions

1

1.4.3 Required Equipment for Installation

The following equipment is required for rack installation (and depends on the type of rack):

 Mounting screws to rack mount the Mobility Router (not provided)
 Screwdriver (not provided)

1.4.4 Uninterruptible Power Supply

We recommend installing the Mobility Router in an existing Uninterruptible Power Supply (UPS) infrastructure.

Mobility Router 2000 Series Hardware Installation Guide 5

1

tbd screws being inserted (wi t h arrows) into ears

Mobility Router 2000 Installation

Installing the Mobility Router

1.5 Installing the Mobility Router

Required Tools:

 4 each “cage” type mounting nuts (not included)
 4 each Pan Head screws, typically 10-32 thread size (not included)

To connect the Mobility Router to the rack:

1 Snap the mounting nuts into the rack at the desired mounting point.

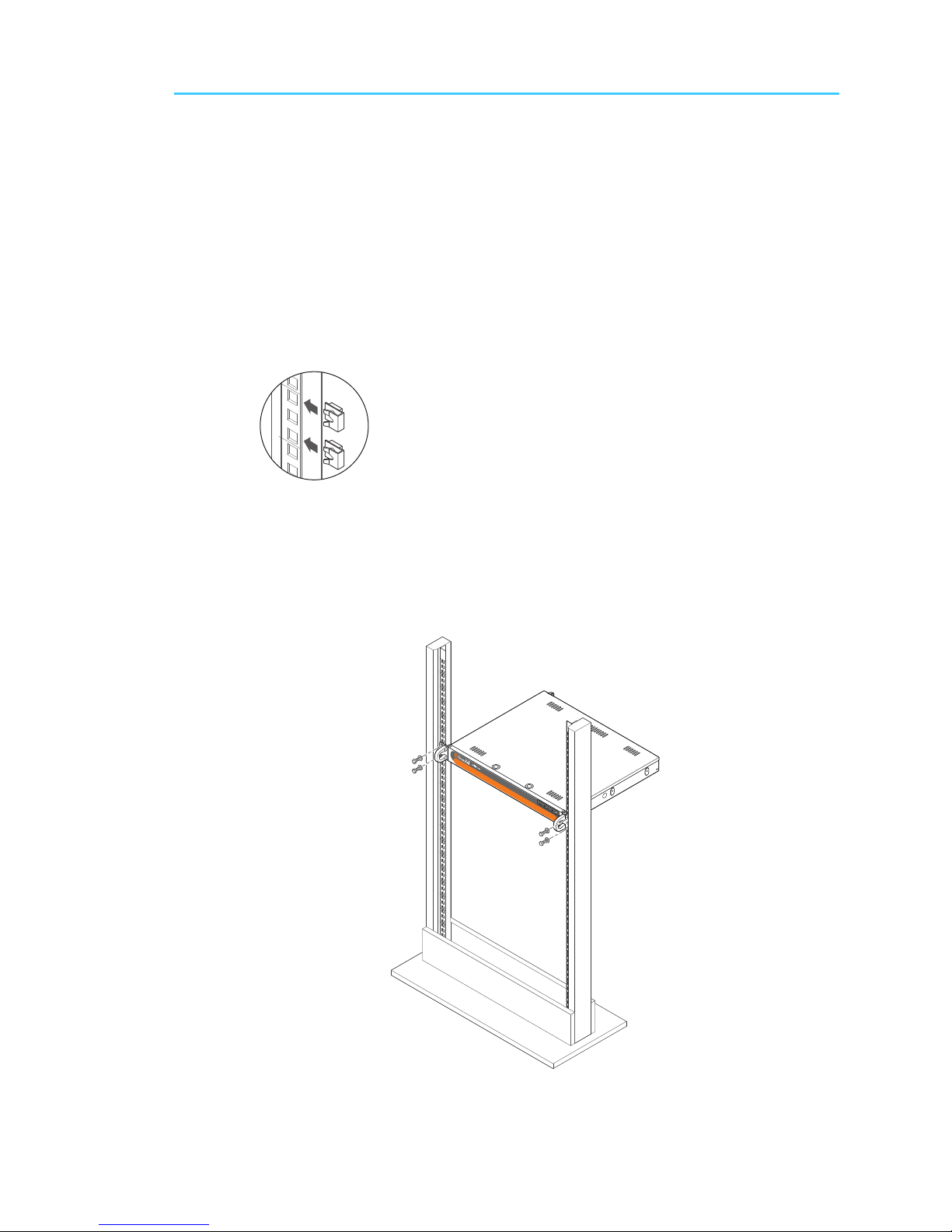

Figure 1-3. Insert Mounting Nuts into Rack

Lift the Mobility Router to the desired rack position.

2

3 Install each Pan Head screw through the Mobility Router’s mounting ears into the mounting nuts.

Figure 1-4. Fastening the Mobility Router to the Rack

Tighten to 30 inch-lbs. Do not over-tighten.

4

6 Mobility Router 2000 Series Hardware Installation Guide

Mobility Router 2000 Installation

Connecting to the Network

1.6 Connecting to the Network

Connect the Mobility Router to a network device, such as a switch, using the straight-through Ethernet cable
provided with the Mobility Router.

To connect the Mobility Router to the network:

1 Insert one end of the Ethernet cable to the network device.
2 Insert the other end of the Ethernet cable to the left Ethernet port (ETH0) on the rear of the Mobility Router.

NOTE If using the Secure Remote Voice feature, connect the second Ethernet port (ETH1) to the external

network.

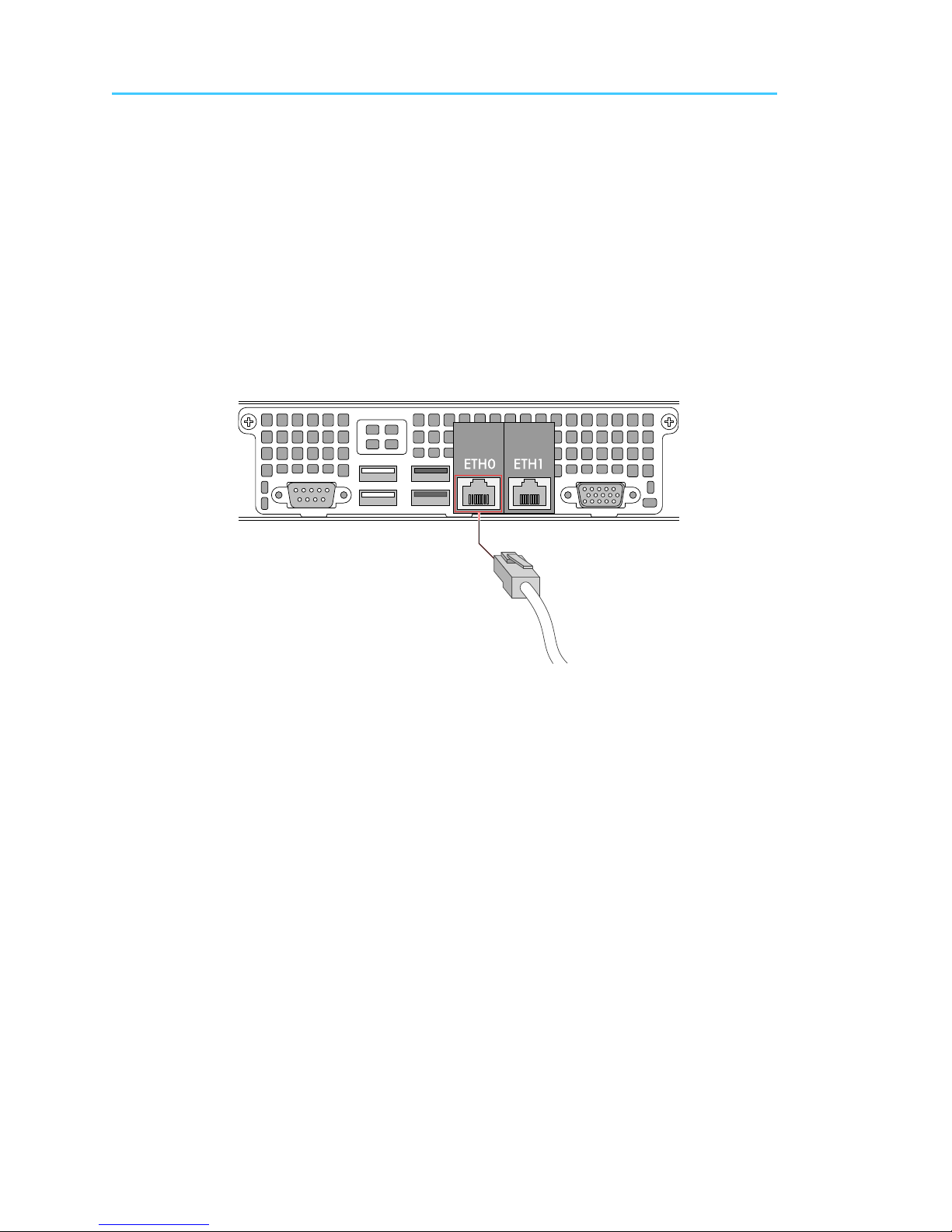

Figure 1-5. Connecting the Ethernet Cable to the Mobility Router

1

Mobility Router 2000 Series Hardware Installation Guide 7

1

Mobility Router 2000 Installation

Connecting to the Console Port

1.7 Connecting to the Console Port

The Mobility Router uses a serial console po rt to provide a direct connection to the command-line interface (CLI)
Wizard for initial configurat i on the Mobility Router. After completing the initial configuration, access to the
console port is no longer necessary.

To initially configure the Mobility Router, connect the management PC or laptop to the serial console port of the
Mobility Router. If there is no serial port, use a 9-pin serial to USB adapter to connect to the serial cable.

To connect the PC or laptop to the serial console port:

1 Insert one end of the serial cable into the PC or laptop se rial port.
2 Insert the other end of the cable into the serial console port of the Mobility Router.

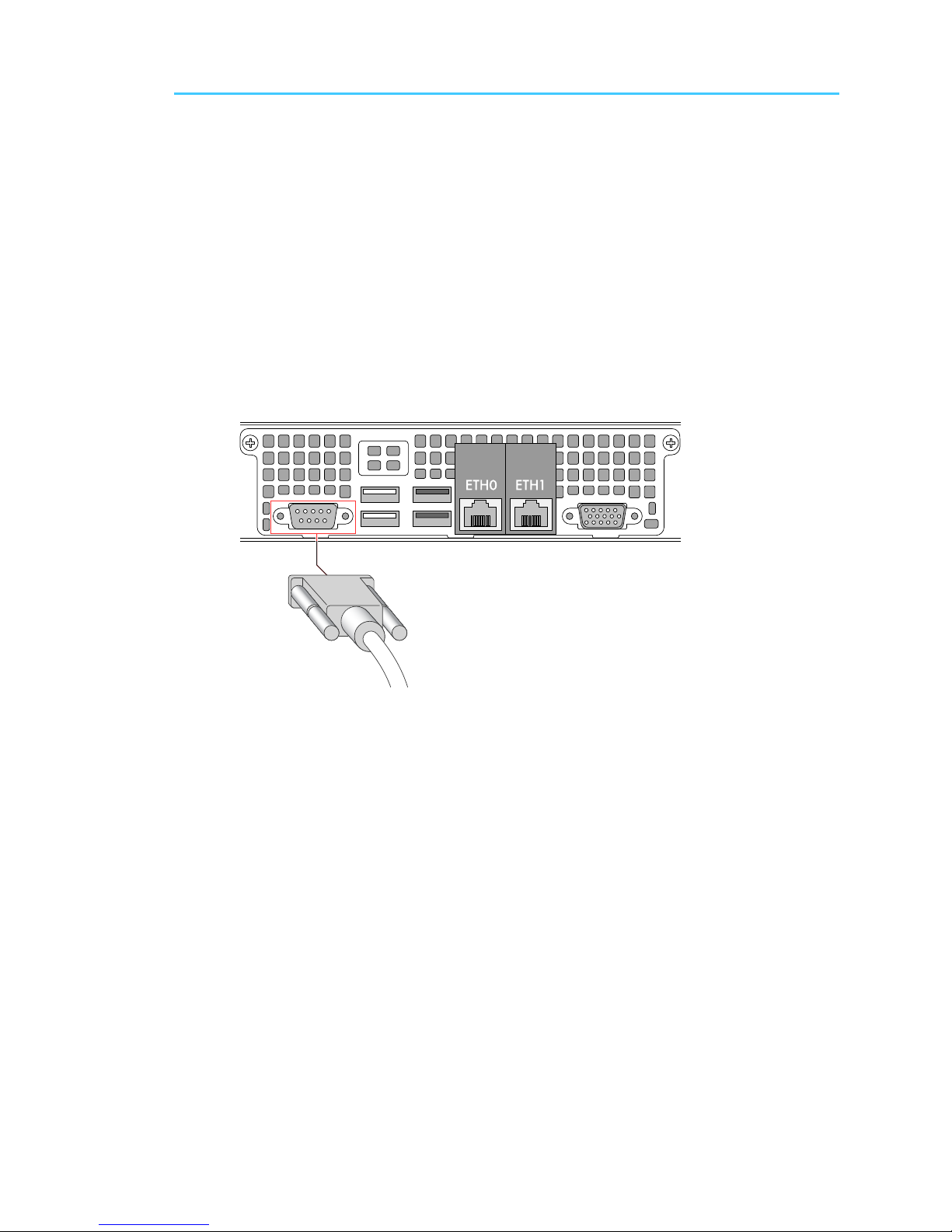

Figure 1-6. Connecting to the Serial Console Port

On the PC or laptop, start terminal emulation software (such as Microsoft HyperTerminal) and select the

3

appropriate COM port.

4 Configure the port using the following settings:

 Baud rate: 9600 bps
 Data bits: 8
 Parity: None
 Stop bits: 1
 Flow control: None

8 Mobility Router 2000 Series Hardware Installation Guide

1.8 Connecting Power

To connect AC power:

1 Insert the female end of the power cord into the back of the Mobility Router.
2 Connect the other end of the power cord into an appropriate AC power source.

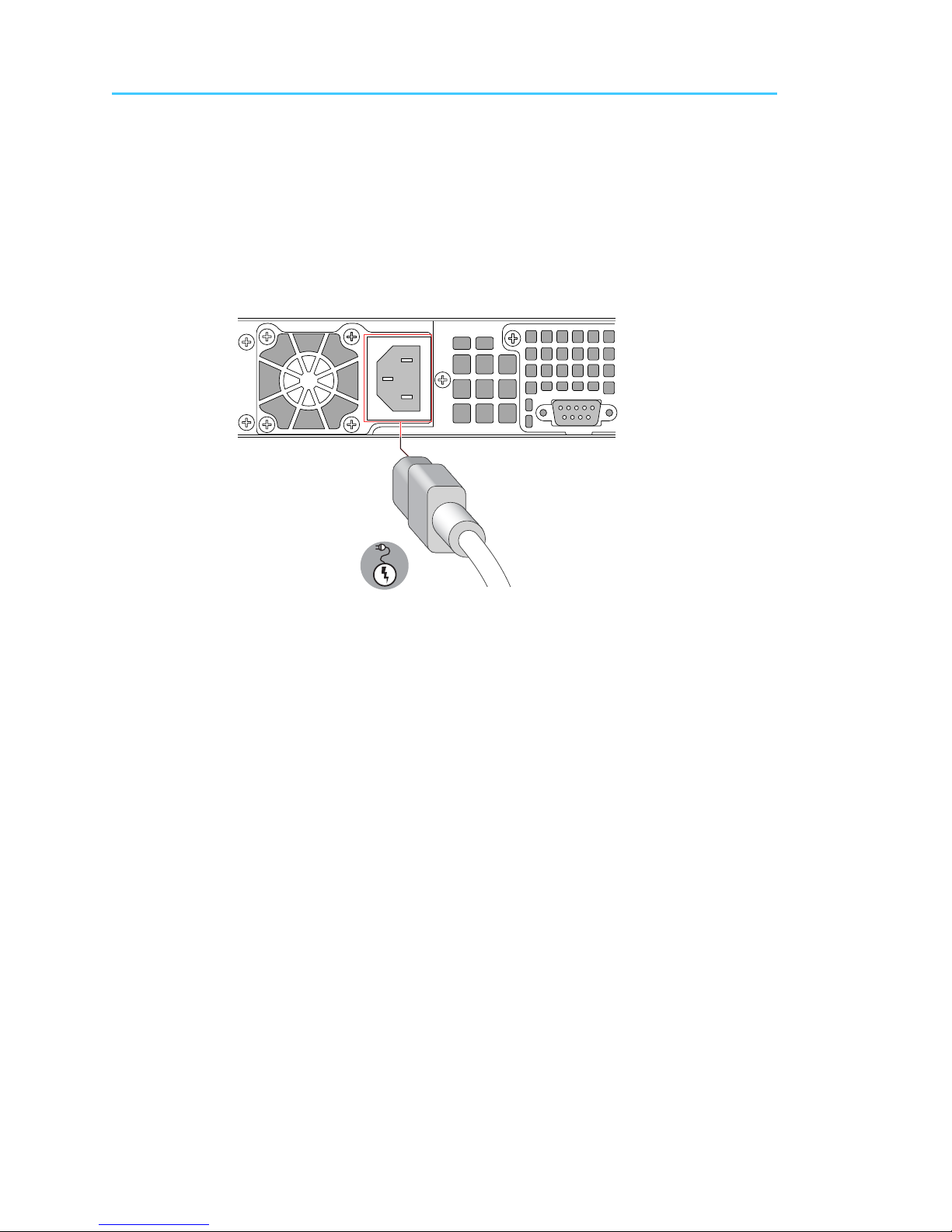

Figure 1-7. Connecting Power

Mobility Router 2000 Installation

Connecting Power

1

The Mobility Router automatically powers on. As the Mobility Router starts up, messages display in the

3

terminal emulation software window. Use the initial configuration wizard to initially configure the Mobility
Router with “Using the Initial Configuration Wizard” on page 10.

Mobility Router 2000 Series Hardware Installation Guide 9

1

Mobility Router 2000 Installation

Using the Initial Configuration Wizard

1.9 Using the Initial Configuration Wizard

In the terminal emulation software window, use the initial configuration wizard to initially configure the Mobility
Router. After initially con figuring and restarting the Mobility Router, access the RoamAnywhere Administration
Portal to configure, manage, monitor, and troubleshoot the Mobility Router.

Tip

You can use the USB ports to connect a USB mouse and/or keyboard to assist in configuration.

Before starting the wizard, have the following information available:

 Mobility Router hostname
 If not using DHCP:

 Mobility Router IP address
 Subnet mask
 Default gateway for Mobility Router
 IP address of primary DNS server
 Domain name for the Mobility Router

 Password for administrative access to Mobility Router

To use the initial configuration wizard:

1 At the login prompt, type admin and press Enter.
2 When prompted to accept the End User License Agreement, enter YES to accept. The initial configuration

wizard starts.

3 Enter Y to use the wizard.
4 Enter the DNS hos tname of the Mobility Ro uter. The hostna me can be in short-na me format or a fully qual ified

domain name.

5 At the ‘Use DHCP on ETH0’ interface prompt, do one of the following:

 To use DHCP, enter Y, and go to Step 11.
 Enter N if DHCP is not desired. Continue to step 6.

NOTE We recommend using a static IP address so that the IP address of the Mobility Router does not

change. If using DHCP, make sure to reserve an IP address for the Mobility Router.

6 Enter the Mobility Router's primary IP address.

NOTE A secondary IP address can be configured using the Administration Portal.
7 Enter the subnet mask in the format of a 32-bit mask or classless interdomain routing (CIDR) notation.
8 Enter the IP address of the default gateway for the Mobility Router.
9 Enter the IP address of the primary DNS server.

10 Mobility Router 2000 Series Hardware Installation Guide

Mobility Router 2000 Installation

Using the Initial Configuration Wizard

10 Enter the domain name in the format domain-name.com. This suffix is appended to all DNS queries.
11 Assign a password to the default Admin account for future access to the RoamAnywhere Administration Portal.

NOTE We do not recommend leaving the password field blank.
12 Confirm the password for the default Admin account.
13 After completing the initial configuration wizard, a summary list of the information appears.

1

To make any changes, enter the number associated with the line to be cha nged. Verify the information and

press Enter to save the configuration.

14 At the prompt, enter enable.
15 Enter reload to restart the Mobility Router. Wait for the login prompt in the terminal emulation software

window, which indicates that the Mobility Router has finished restarting.

16 Verify a network connection to the Mo bility R outer c an be e stablis hed by acce ssing t he Ad ministra tion Po rtal.

To access the Administration Portal, enter the Mobility Router hostname or IP address in a We b browser:

http://hostname.domain.com/adm

http://a.b.c.d/adm

17 After verifying access to the Administration Portal, disconnect the serial cable. (Console access is no longer

required.)
The Mobility Router is now ready to be configured using the Administration Portal. For more information, see the

RoamAnywhere Mobility Router Administrator’s Guide.

Mobility Router 2000 Series Hardware Installation Guide 11
