Milton CAT 962K User Manual

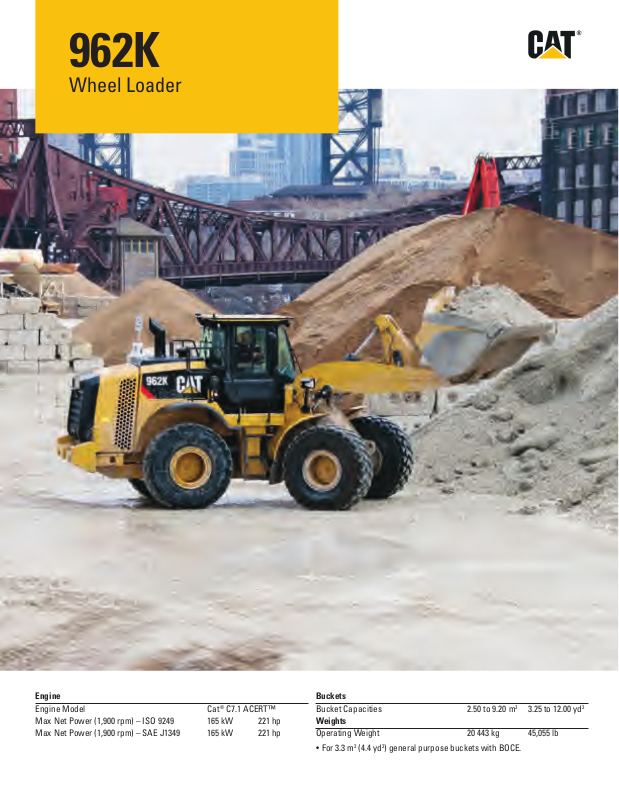

Page 1

962K

Wheel Loader

Engine Buckets

Engine Model Cat Max Net Power (1,900 rpm) – ISO 9249 165 kW 221 hp Weights Max Net Power (1,900 rpm) – SAE J1349 165 kW 221 hp Operating Weight 20 443 kg 45,055 lb

C7.1 ACERT™ Bucket Capacities 2.50 to 9.20 m33.25 to 12.00 yd

• For 3.3 m

(4.4 yd3) general purpose buckets with BOCE.

Page 2

962K Key Features and Benefits

Optimized Z-bar Linkage

Development of the new optimized Z-bar linkage was done in conjunction with the Performance Series Buckets, Fusion™ coupler and Fusion™ family of work tools to ensure that all components function together to enhance visibility, performance and fuel efficiency.

Load Sensing Hydraulics

Operator Environment

The new four post ROPS cab provides enhanced comfort, visibility, and productivity resulting in a more efficient operator. New features include automatic climate control, viscous mounts to reduce noise and vibration levels, post mounted membrane switches, and a curved convex giving the operator a panoramic view.

C7.1 ACERT™ Engine

Cat

The innovative Cat C7.1 ACERT™ engine is optimized for maximum fuel efficiency and increased power density while meeting all Tier 4 Interim/Stage IIIB emissions requirements.

Torque Converter

Transfers more power to the ground and optimizes fuel efficiency in all applications.

Powershift Transmission

The K Series transmissions incorporate a new shifting strategy that delivers smoother shifts, faster acceleration, and increased travel speed when climbing a grade.

Fuel Efficiency

The 962K wheel loader has been integrated as a system; from the linkage and work tool carrying the payload, to the engine, transmission and torque converter moving the machine, the system has been optimized to achieve the lowest cost per ton.

Contents

Reliability..............................................................3

Durability ..............................................................4

Productivity..........................................................5

Versatility..............................................................6

Operator Environment........................................8

Serviceability.....................................................10

Sustainability .....................................................11

Customer Support.............................................11

Owning Costs.....................................................12

Operating Costs.................................................13

Wheel Loader Specications .........................14

Standard and Optional Equipment .................34

The Cat® 962K was designed to improve operator comfort, performance, and productivity, all while meeting Tier4 Interim/Stage IIIB emissions requirements. ThePerformance Series Buckets provide enhanced visibility anddecreased cycle times. The unmatched, revolutionary world-class cab creates a comfortable, efficient, safe, and productive operator environment. The innovative Cat C7.1 ACERT™ engine is optimized for maximum fuel efficiency and increased power density while meeting all Tier 4 Interim/Stage IIIB emissions requirements. Thereliability, durability, and versatility ofthe 962K result in a machine that is better built to meetyour needs. All day. Every day.

Page 3

Reliability

Tested and Proven. Ready to Work.

Structures

The K Series features many components which leverage product designs that have delivered a reliable and durable machine for generations.

Strata Precleaner

The system removes 93% of the dust particles before the air has reached the primary engine air filter. As air enters the precleaner, stationary vanes cause the incoming air to spin. The resulting centrifugal force spins dust and dirt to the outer walls where they are ejected out into the exhaust stream, while the clean air flows down the center of the tube and continues into the primary air filter. The primary benefit is extended filter life.

Cold Start/High Altitude Package

A new optional cold start package includes a fan pump bypass, transmission pump bypass, ether aid, and an engine heater plug/cord. The bypass systems reduce the parasitic load on the engine. With the new optional cold start package available on K Series, starting capability has been dramatically improved in cold weather conditions. The system also improves starting capability at high altitudes.

Monitoring Programs

Monitoring product health is key to maintaining reliability of any equipment. Many programs offered by Caterpillar make the tracking of the customer’s machine health quick and easy. These programs include Product Link, VisionLink™, and S·O·S

Services.

Renowned Cat Dealer Support

From helping you choose the right machine to knowledgeable support, Cat dealers provide the best when it comes to sales and service. Manage costs with preventive maintenance programs like Scheduled Oil Sampling (S·O·S orelaborate Customer Support Agreements. Stay productive with best-in-class parts availability. Cat dealers can even helpyou with operator training to help boost your profits. And when its time for machine rebuild, your Cat dealer can help you save even more with Genuine Cat Reman parts. Receive the same warranty and reliability as new products atcost savings of 40 to 70 percent for power train and hydraulic components.

) analysis

Page 4

Durability

Better Built to Meet Your Needs

Frames

The robotically welded two-piece structural frame design provides a rugged and reliable foundation for the machine that improves stability, performance, and serviceability. Arobust articulating hitch system joins the front and rear frames improving durability. Enhanced line routings across the hitch joint streamline the manufacturing process and improve reliability and durability.

Engine

The new Cat C7.1 ACERT™ engine was designed to optimize power density. It uses a combination of technologies to reduce regulated emissions while ensuring high performance and excellent fuel efficiency. An upgraded ADEM™ 4 electronic control module manages the combustion process and a newhigh-pressure common rail fuel system allows precise injection timing for a clean, efficient fuel burn. The rugged Cat Clean Emissions Module is securely rubber mounted onits own platform above the engine and contains a DieselOxidation Catalyst, Diesel Particulate Filter and CatRegeneration System. Regeneration, the process by which soot is removed from the Diesel Particulate Filter, iscompletely automatic and does not interrupt the machine’swork cycle.

Emissions

The 962K features a Cat C7.1 ACERT™ engine and a CatClean Emissions Module to deliver the performance andefficiency that customers demand, while meeting Tier 4 Interim/Stage IIIB emissions requirements. The six-cylinder electronic engine is turbocharged and aftercooled. ACERT™Technology is a combination of building blocks that includes electronics, fuel systems, air management systems and aftertreatment components. The system is optimized based on engine size, the type of application and the geographic location in which it will work. The technologies are applied systematically and strategically to meet high customer expectations for productivity, fuel efficiency, reliability and service life.

Axles

The axles are designed to handle extreme applications resulting in reliable performance and extended life. The front axle is rigidly mounted to the frame in order to withstand internal torque loads and still maintain support for the wheel loader. The rear axle can oscillate to ±13 degrees helping to ensure all four wheels stay on the ground providing stability even in the roughest terrain.

Page 5

Productivity

Move More. All Day. Every Day.

Z-bar Linkage

Caterpillar engineers used an innovative systems integration approach to completely redesign the linkage system to meet customer needs in many applications. Development of the new optimized Z-bar linkage was done in conjunction with the Performance Series Buckets, Fusion™ coupler and Fusion™ family of work tools to ensure that all components function together to optimize visibility, performance and fuel efficiency. Visibility has been optimized by placing line routings and structural components outof the operator’s sight lines. New parallel lift capabilities and a 30 to 60 percent increase in tilt forceat maximum lift enhance performance and versatility.

Load Sensing Hydraulics

Load sensing hydraulics produce flow and pressure for the implement system upon demand and only in amounts necessary to perform the needed work functions, enhancing machine productivity and fuel efficiency. Implement controllability is improved through simultaneous implement operation and repeatable fine modulation, enabling greater operator comfort through ease ofoperation.

Ride Control

Ride control provides the operator with a smoother ride over rough terrain, enabling a more comfortable ride at higher speeds. The benefit is reduced cycle times higher productivity and better fuel efficiency while performing load and carry applications. The system works by using an accumulator to dampen the linkage motion, acting as a shock absorber.

Torque Converter

The 962K torque converter has been optimized to improve fuel efficiency and deliver more power to the ground.

Transmission

The K Series transmissions incorporate a new shifting strategy that delivers smoother shifts, faster acceleration, and better performance climbing a grade. When placing the transmission into forward gear, the machine will automatically start in second gear. With the further enhancement of a torque based 2 to 1 downshift, the downshift will only occur based on machine load. Owners and operators will fully benefit from utilizing the automatic 1-4 transmission mode, which results in lower fuel consumption and optimal machine performance.

Page 6

Versatility

Work Tool Options to Meet Your Needs

Work Tools for Many Job Site Requirements

An extensive range of work tools and bucket styles are available for the 962K to customize these machines for your operation. The list includes: Performance Series Buckets (General Purpose, Material Handling, Rock); Specialty Buckets (Multi-Purpose, Side Dump, High Dump, TopClamp, Waste Handling, Woodchip); Pallet Forks, Forestry Forks (Log and Lumber, Logging, Millyard, Unloading Grapple), Pipe and Pole Forks; Plows (angle or V-style); and Rakes (withor without top clamp).

Performance Series Buckets: Load Easy, Fuel Efficient, Carry More

Performance Series Buckets utilize a system-based approach to balance bucket shape with the machine’s linkage, weight, lift and tilt capacities. Operators benefit from reduced dig times and better material retention; ultimately translating into significant productivity and fuel efficiency improvements.

Lower Operating Costs

Performance Series Buckets feature a longer floor that easily digs through the pile and provides excellent visibility for the operators to see when the bucket is full. Less time digging in the pile results in lower fuel consumption and improved tire life. A unique spill guard protects the cab and linkage components from material overflow.

Higher Productivity

Performance Series Buckets achieve higher fill factors – ranging from 100% to 115% depending on the machine application and material type. The buckets feature optimized geometry with a bucket opening matched to the machine’s linkage and incorporate a curved side profile to maximize material retention. The optimized design results in unsurpassed production capabilities.

Unloading Grapple Fork

The new Unloading Grapple Fork is ideal for unloading andstacking timber. A rounded top clamp and frame open the interior profile of the fork, enabling larger capacity loads to be moved. Easy and gentle loading out of stacks is permitted by the short tines, while a large, broad clamp holds tight to short or long timber. Forks are available with a kick-out thatunloads the fork even at full lift, enabling higher lumberstacking.

Page 7

Fusion™ Quick Coupler

Improved Machine Performance

Fusion™ is the patented wheel loader coupler system from Caterpillar. The Fusion Coupler System provides performance virtually identical to pin on – with all the flexibility of a quick coupler system. The Fusion Coupler sits back, close-in to the loader arms – minimizing offset and increasing the machine’s performance.

No Loss of Performance

Imagine lifting a hundred pound box with your arms fully extended. Now imagine lifting that same load close to your body. That’s the genius of Fusion: designed to integrate the work tool and the machine by pulling the coupler and tool closer in to the loader. As a result, the center of gravity is moved inward, towards the machine. This translates to increased lifting ability when compared to machines equipped with other coupler systems.

Unsurpassed Durability

An advanced wedging mechanism creates a tight, rattle-free fit. Thispatented lock up system eliminates play and wear – resulting inalong service life. Wedges pull the attachment tight to the machine in two directions – in and down. Constant hydraulic pressure on the coupler wedges compensate for wear, assuring a tight fit through the life ofthe coupler. Tight fit gives better tool control and increased productivity. Coupler durability is substantially increased over traditional couplers.

Increased Visibility

An open coupler frame design clears sight lines from the operator’s seat, making it easier than ever before to engage and disengage attachments with certainty. Offset tines and other design changes to Fusion Pallet Forks, working in conjunction with the Fusion Coupler, increase visibility substantially at ground level and truck bed height when compared to traditional coupler and fork combinations.

Common Interface Compatibility

The Fusion Coupler System gives Cat customers one common interface – eliminating the need for many different couplers across the entire range of small and medium wheel loaders. This expanded machine compatibility not only allows one machine to use a range of work tools, but also allows one work tool to be picked up by machines ofmany different sizes.

The Fusion coupler interface is designed to work on 924 through 972machines. Each machine will have its own optimal bucket and fork recommendations. However, cross-machine compatibility gives you additional flexibility and fleet options not found with any other wheel loader coupler.

Fusion™ eliminates

coupler offset...

...with

substantial improvements in center of gravity.

Page 8

Operator Environment

Safe. Comfortable. Efcient.

Conventional Steering

The conventional steering configuration offers a low-effort hand metering unit hydraulic steering system. Load sensing steering directs power through the steering system only when needed. The optional Command Control Steering is still offered on the 962K and is a load sensing system that links the steering wheel and frame angle positions to provide the proper amount of steering control. Full machine articulation is accomplished with a ± 70 degrees turn of the wheel versus two or three 360 degree turns on a conventional steering wheel.

Implement Controls (EH)

Seat mounted single axis implement control levers provide the operator with precise control of the work tool, all whilemoving with the seat for maximum comfort. In cab programmable kick-outs and automatic cylinder snubbing maximize operator comfort and productivity throughout their shift. Optional implement joysticks are available for 2V,3V, and 4V hydraulics.

Seat

The Cat Optimized Seating System is 6-way adjustable to accommodate operators of all sizes. The seat has a one piece high back that supports the lumbar area of the back up through the shoulders. Both armrests are large and can be adjusted up, down, fore, and aft to enhance comfort and convenience. An optional feature for the cab seat is a heated backrest andcushion.

Automatic Climate Control and Air Quality

The new climate control system automatically adjusts the air temperature and fan speed to maintain the operator’s preferred climate setting. The cab air filtration system recirculates 90%of the cab air and is now serviced from outside the cab, enabling maximum air quality and cab cleanliness. The new air conditioning sealing system keeps refrigerant contained preventing system shutdown. Combined together, the operator remains efficient and productive all shift long due to a sustainable work environment.

Information Display

The central display panel has a large text box, five analog likegauges, and LED warning indicators. The large text box provides in-language information about machine operation, feature activation and system troubleshooting and calibration. With the 5 large analog-type gauges the operator can easily identify if key systems are within normal operating range. Aresettable trip totals function has been incorporated to display information for average fuel consumed, total fuel consumed, idle fuel, idle time, operating hours, odometer, etc.

Page 9

Entry and Exit

Well-placed grab bars and a ladder inclination angle of 10-degrees forward makes the walk into the cab feel more like a staircase than a ladder. The new wider front hinged door can be opened and closed while seated, greatly improving ingress and egress. Two new left-hand and right-hand sliding windows can also be opened and closed with one hand while seated for comfortable communication to personnel on the ground.

Visibility

Visibility has been enhanced by adding a convex windshield and eliminating two cab posts. The cab has a clean and clear panoramic view to enhance safe operation of the machine. External rearview mirrors are mounted on the cab to provide all around visibility. The external mirrors fold horizontally to provide fast, safe access to clean the window from the front platform. Optional heated and powered mirrors are available to further improve visibility in cold climates.

Rearview Camera

With the new standard rearview camera, visibility is greatly enhanced. The camera is located in a pocket on the grill to protect it from damage and the elements. The camera can beset to activate only when the transmission is in reverse to helpeliminate distractions in the cab, especially when in dark environments. Two rear work lights are located in the rear grill and can be activated to illuminate the area behind the machine in low light conditions.

Control Panels and Park Brake Switch

Two control panels located on the front right ROPS post consist of large membrane switches making them easy to activate while wearing gloves. The membrane switches contain LED’s to denote activation/mode and have a positive feel and “click” to signal activation. The ISO symbols located on each membrane switch are molded all the way through to ensure the image will not wear off over time. A new “help” feature explains the function of each membrane switch. Atwo position rocker switch activates the electro-hydraulic park brake and is automatically applied upon machine shutdown.

Sound and Vibration

New viscous cab mounts connect the cab to the frame of themachine, decreasing noise and vibration the operator issubjected to. The result is a sustainable work environment and well-rested operator, remaining efficient and productive. All Day. Every Day.

Page 10

Serviceability

Easy to Maintain. Easy to Service.

Electrical Service Center

The electrical service center provides grouped ground level access to numerous electrical features, enhancing safety andconvenience for operators and service technicians. It is conveniently located beneath the left platform for access before entering the cab and contains the maintenance free batteries, a fuse relay panel, main disconnect switch, ground level engine shutdown switch, hood tilt switch, and the jump start receptacle.

Engine Access

The K Series retains the Cat sloped “one-piece” tilting hood, which has become one of our brand’s hallmarks and provides industry-leading access to the engine, Cat Clean Emissions Module (CEM) and other components but with fresh new styling clearly distinct from the H Series. New to the loaders is a rear clamshell hood design that allows quick access to the engine oil dipstick and fill, fuel fill port, and cooler cores.

Cooling System

The cooling system is readily accessible for clean out and maintenance. With six cooling fins per inch and a perforated grill, most airborne debris entering the system passes through the cooler cores. The cooler cores swing out providing easy access for cleaning; an option variable pitch fan is available to automatically purge the cooler cores by periodically reversing the airflow.

Hydraulic Service Center

The hydraulic components are all conveniently located behind the hinged right side access ladder at a new single ground level service center improving safety and reducing service time. Accessible from the service center are the transmission and hydraulic oil filters, brake accumulators, pressure test ports, etc.

Page 11

Sustainability

Conserving Resources

The 962K is designed to compliment your business plan, reduce emissions and minimize the consumption of naturalresources.

• Improved fuel efficiency – less fuel consumed results inlower emissions.

• Engine air filter life doubled to reduce cost and waste.

• Machine is built with a 95% recyclability rate (ISO16714) to conserve valuable natural resources andfurther enhance machine end of life value.

• Improved operator efficiency through enhanced visibility and reduced noise/vibration levels.

• Product Link family of products and solutions that collect, communicate, store and deliver product and job-site information to maximize productivity and reducecosts.

Customer Support

Ready to Help. Anytime. Anywhere.

Machine Selection

Cat dealers are ready to help evaluate machine options; fromnew or used machine sales, to rental or rebuild options,Cat dealers can provide an optimal solution tomeetcustomer business needs.

Product Support

Cat dealers are with customers every step of the way tomaximize machine uptime by providing unsurpassed worldwide parts support, trained technicians and customersupport agreements.

Operation

To help maximize the return on your investment, Cat dealers offer various training resources to improve operating techniques.

• Major components are rebuildable, eliminating waste andsaving money by giving the machine and/or major components a second – and even third – life.

Financing

Cat dealers offer financing options to meet a variety ofcustomer needs.

Page 12

Owning Costs

Proven Best Investment

Customer Support Agreements

A Customer Support Agreement (CSA) is an arrangement between you and your Cat dealer that helps you lower your total cost per ton. CSAs are flexible, allowing them to betailored to your business needs. They can range from simple Preventive Maintenance Kits to elaborate Total CostPerformance Guarantees. Having a CSA with your Catdealer enables more time for you to do what you dobest– run your business.

Monitoring Systems

Monitoring product health is key to optimizing the life of an investment into a Cat Wheel Loader.

• Cat Product Link – Cat Product Link allows remote

monitoring of equipment to improve overall fleet management effectiveness. Product Link is deeply integrated into machine systems. Events and diagnostic codes, as well as hours, fuel, idle time and other detailed information are transmitted to a secure web based application, VisionLink™. VisionLink includes powerfultools to convey information to users and dealers, including mapping, working and idle time, fuellevel and more.

• S·O·SSM Services – Helps manage component life and

decrease machine downtime, increasing productivity and efficiency. Regular fluid sampling can help track what is going on inside your machine. Wear related problems are predictable and easily repairable. Maintenance can be done to accommodate your schedule, resulting in increased uptime and flexibility in maintenance repairs before failure.

Parts Availability

Caterpillar provides an unsurpassed level of personalized service to help you work more cost effective and efficient. Byutilizing a worldwide parts network Cat dealers help minimize machine downtime and save money by delivering replacement parts within 24 hours.

Resale Value

Owning quality equipment is an important factor in maintaining resale value. Caterpillar is not only known formachines that are better built, but provides product anddealer support to maintain the reliability and durability of your machine.

Page 13

Operating Costs

Save Time and Money by Working Smart

Data from customer machines show Cat wheel loaders are among the most fuel efficient machines in the industry. Severalfeatures contribute to this excellent fuel efficiency:

• Performance Series Buckets – Deliver faster fill times and better material retention, ultimately reducing cycle times while

improving productivity and fuel efficiency.

• Load-Sensing Hydraulics – Provides only the hydraulic flow required by the implement and steering systems for improved

fuel efficiency and greater rimpull.

• ACERT™ Engine – Power dense engine enables a more fuel-efficient method to meet emissions regulations.

• Fuel Management System (FMS) – Optimizes power for maximum fuel savings with minimal impact on production.

• Engine Idle Shutdown – Automatic engine and electrical system shutdown conserves fuel.

• Torque Converter – Transfers more power to the ground and optimizes fuel efficiency in all applications.

• Shift Strategy – Reduced torque interruption increases driveline efficiency, conserving fuel. Auto 1-4 transmission mode

keeps engine rpm low, reducing fuel consumption while delivering optimal machine performance.

Machine configuration, operator technique, and job site layout can impact fuel consumption by as much as 30 percent.

• Machine Configuration – Select the correct work tool and tire type based on machine application. Radial tires are preferred;

ensure proper inflation pressures. Heavier tires burn more fuel. Keep engine rpm low by using auto 1- 4 transmission mode.

• Job Site Layout – Spot loading targets in the right position. Avoid traveling more than twice the machine length during

short cycle loading. Reduce transport distance for load and carry cycles by optimizing job site layout.

• Loading Bucket – Load in first gear and keep engine rpm low. Raise and tilt bucket smoothly and do not use a “pumping”

motion. Avoid lift lever detent and use transmission neutralizer.

• Loading Truck or Hopper – Do not raise the work tool any higher than necessary. Keep engine rpm low and unload

incontrolled manner.

• Idle – Set the parking brake to engage Engine Idle Management System.

Page 14

962K Wheel Loader Specifications

Engine Buckets Hydraulic System

Engine Model Cat® C7.1 ACERT™ Bucket Capacities 2.50 to 3.25 to Steering System Piston

Max Gross Power 181 kW 243 hp (1,900 rpm) – SAEJ1995 Maximum Pump

Max Gross Power 183 kW 245 hp (1,900 rpm) – Implement System – 26 200 kPa 3,800 psi SAEJ1995 (metric) Maximum Operating

Max Net Power 165 kW 221 hp (1,900 rpm) – Implement System– 280 L/min 74 gal/min ISO9249 Optional 3rd and

Max Net Power 167 kW 224 hp (1,900 rpm) – ISO9249 (metric) Implement System– 20 700 kPa 3,000 psi

Max Net Power 165 kW 221 hp (1,900 rpm) – SAEJ1349

Max Net Power 167 kW 224 hp (1,900 rpm) – SAEJ1349 (metric)

Max Net Power 165 kW 221 hp (1,900 rpm) – EEC80/1269

Max Net Power 167 kW 224 hp (1,900 rpm) – EEC80/1269 (metric) Hydraulic Cycle 10 Seconds

Peak Gross Torque 1054 N·m 777 ft-lb (1,300 rpm) – SAEJ1995

Peak Net Torque 988 N·m 729 ft-lb (1,400 rpm) – SAEJ1349

Bore 105 mm 4.1 in

Stroke 135 mm 5.3 in

Displacement 7.01 L 427.8 in

• Cat engine with ACERT™ Technology – meets Tier 4 Interim/Stage IIIB emissions requirements.

• Refer to bucket selection chart.

Operating Specications

Static Tipping Load 11 695 kg 25,777 lb Full 40° Turn – ISO14397-1*

Static Tipping Load 12 467 kg 27,479 lb Full 40° Turn – Rigid Tires**

Breakout Force 168 kN 37,784 lb

• For 3.3 m buckets with BOCE.

* Full compliance to ISO (2007) 14397-1

Sections 1 thru 6, which requires 2% verication between calculations andtesting.

** Compliance to ISO (2007) 14397-1

Sections 1 thru 5.

(4.4 yd3) general purpose

Transmission

Forward 1 6.9 km/h 4.3 mph

Forward 2 12.9 km/h 8.0 mph

Forward 3 22.7 km/h 14.1 mph

Forward 4 37.9 km/h 23.6 mph

Reverse 1 7.5 km/h 4.7 mph

Reverse 2 14.1 km/h 8.8 mph

Reverse 3 24.8 km/h 15.4 mph

Reverse 4 39.8 km/h 24.7 mph

• Maximum travel speed in standard vehicle with empty bucket and standard L3 tires

with 787 mm (31 in) roll radius.

9.20 m

12.00 yd

Pump Type

Implement System– 340 L/min 90 gal/min

Output (2,340 rpm)

Pressure

4thFunction Maximum Flow

Optional 3rd and 4thFunction Maximum Pressure

Hydraulic Cycle 5.9 Seconds Time – Raise from Carry Position

Hydraulic Cycle 1.8 Seconds Time – Dump, at Maximum Raise

Hydraulic Cycle 2.5 Seconds Time – Lower, Empty, Float Down

Time – Total

• Cycle time with rated payload.

Brakes

Brakes Meet OSHA,

SAEJ1473 OCT90 and ISO 3450-1985 required standards.

Weights

Operating Weight 20 443 kg 45,055 lb

• For 3.3 m with BOCE.

(4.4 yd3) general purpose buckets

Page 15

Axles Cab Service Rell Capacities

Front Fixed

Rear

Maximum SingleWheel Rise and Fall

Oscillating ± 13 degrees

481 mm 18.9 in

Tires

• Choose from a variety of tires to match your application.

• Choices include:

23.5R25 VSW BS L2 Radial

23.5R25 VUT BS L2 Radial 750/65R25 VLT BS E3/L3 Radial

23.5R25 VJT BS E3/L3 Radial

23.5-25 SRG LD FS L3 Bias

23.5R25 XHA2 MX L3 Radial

23.5R25 XHA MX L3 Radial

23.5R25 VMT BS L3 Radial 725/70-25 LS 150 Titan L4 Bias

23.5R25 XLDD2 MX L5 Radial Cat Flexport™

• NOTE: In certain applications (such as load and carry), the loader's productive capabilities might exceed the tires’ tonnes-km/h (ton-mph) capabilities. Caterpillar recommends that you consult a tire supplier to evaluate all conditions before selecting a tire model. Other special tires are available on request.

ROPS/FOPS Meets SAE and

ISOstandards

• Cat cab with a four post integrated Rollover Protective Structure (ROPS) are standard inNorth America and Europe.

• ROPS meets SAE J1040 APR88 and ISO3471:1994 criteria.

• Falling Objects Protective Structure (FOPS) meets SAE J231 JAN81 and ISO:1992 Level II criteria.

Sound

• The sound values indicated below are forspecic operating conditions only. Machineand operator sound levels will vary at different engine and/or cooling fan speeds. Hearing protection may be needed when the machine is operated with a cabin that is not properly maintained, or when the doors and/or windows are open for extended periods or in a noisy environment.

• The operator sound pressure level for a standard machine conguration, measured according to the procedures specied inISO6396:2008, is 71 dB(A) with the cooling fan speed set at maximum value.

• The machine sound power level for a standard machine conguration, measured according to the procedures specied inISO6395:2008, is 110 dB(A) with the cooling fan speed set at maximum value.

• The machine sound pressure level for a standard machine conguration, measured according to the procedures specied in SAE J88:2006, is 75 dB(A). The measurement was conducted under the following conditions: distance of 15 m (49.2ft), moving forward in an intermediate gear ratio, static hydraulic cycle (with no payload) and with the cooling fan speed set at maximum value.

• The operator sound pressure level for a machine installed with a Low Sound package, measured according to the procedures specied in ISO6396:2008, is 69 dB(A) with the cooling fan speed set at maximum value.

• The machine sound power level for a machine installed with a Low Sound package, measured according to the procedures specied in ISO6396:2008, is 107 dB(A) with the cooling fan speed set at maximum value.

Fuel Tank – 314 L 83 gal Standard

Cooling System 60 L 15.9 gal

Crankcase 18 L 4.8 gal

Transmission 43 L 11.4 gal

Differentials and 43 L 11.4 gal Final Drives – Front

Differentials and 43 L 11.4 gal Final Drives – Rear

Hydraulic Tank 189 L 49.9 gal

• All non-road Tier 4/Stage IIIB and IV, andJapan (MLIT) Step 4 diesel engines arerequired to use: – Ultra Low Sulfur Diesel (ULSD) fuels

containing 15 ppm (mg/kg) sulfur or less. Biodiesel blends up to B20 are acceptable when blended with 15ppm (mg/kg) sulfur or less ULSD and when the biodiesel feedstock meets ASTMD7467 specications.

DEO-ULS™ or oils that meet the

–Cat

Cat ECF-3, API CJ-4, and ACEA E9 specications are required.

Page 16

962K Wheel Loader Specifications

Dimensions

All dimensions are approximate and based on L3 Michelin XHA2 tires.

Height to Top of ROPS 3356 mm 11'0"

Height to Top of Exhaust Pipe 3099 mm 10'2"

Height to Top of Hood 2415 mm 7'11"

Ground Clearance With 23.5R25 (See Tire Option Chart for Other Tires) 397 mm 1'3"

B-Pin Height – Standard 4237 mm 13'10"

B-Pin Height – High-Lift 4526 mm 14'10"

Center Line of Rear Axle to Edge of Counterweight 2055 mm 6'7"

Wheelbase 3350 mm 10'11"

B-Pin Height @ Carry – Standard 677 mm 27"

Center Line of Rear Axle to Hitch 1510 mm 4'11"

Rack Back @ Maximum Lift 55 degrees

Dump Angle @ Maximum Lift 49 degrees

Rack Back @ Carry 51 degrees

Rack Back @ Ground 39 degrees

Height to Center Line of Axle 688 mm 2'3"

Lift Arm Clearance 3472 mm 11'4"

Lift Arm Clearance @ High Lift 3625 mm 11'9"

Turning Radius

All dimensions are approximate and based on L3 Michelin XHA2 tires.

Clearance Circle to Outside of Tires 5952 mm 19'6"

Clearance Circle to Inside of Tires 3233 mm 10'7"

Width Over Tires 2719 mm 8'11"

Clearance Circle to Outside Edge ofCounterweight 6025 mm 19'9"

Page 17

Operating Specifications

Bucket Type

Edge Type

Capacity – Rated (§)

Capacity – Struck (§)

Width (§)

Dump Clearance at Maximum Lift and 45° Discharge (§)

Reach at Maximum Lift and 45° Discharge (§)

Reach at Level Lift Arm and Bucket Level (§)

Digging Depth (§)

Overall Length

Overall Height with Bucket at Maximum Lift

Loader Clearance Circle with Bucket at Carry Position (§)

Static Tipping Load, Straight (ISO)*

Static Tipping Load, Straight (Rigid Tire)*

Static Tipping Load, Articulated (ISO)*

Static Tipping Load, Articulated (Rigid Tire)*

Breakout Force** (§)

Operating Weight*

ft/in

General Purpose – Pin On

Bolt-On

Edges

2.70

3.53

2.30

3.01

2927

9'7"

3191 10'5"

1290

4'2"

2660

8'8"

3.5"

8307 27'4"

5609 18'5"

13 785

45'3"

14 003

30,863

14 746

32,501

12 053

26,565

12 817

28,249

195

43,943

20 252

44,634

Teeth and

Segments Teeth

2.70

3.53

2.30

3.01

2994

9'9"

3076 10'1"

1403

4'7"

2821

9'3"

3.5"

8479

27'10"

5609 18'5"

13 953 45'10"

13 866 30,561

14 608 32,196

11 916 26,262

12 679 27,944

194 43,707

20 360 44,872

2.50

3.27

2.11 2.55 2.55 2.33

2.76 3.34 3.34 3.05

2994 2927 2994 2994

9'9" 9'7" 9'9" 9'9"

3076 3136 3019 3019

10'1" 10'3" 9'10" 9'10"

1403 1328 1440 1440

4'7" 4'4" 4'8" 4'8"

2821 2729 2890 2890

9'3" 8'11" 9'5" 9'5"

58 88 88 58

2.3" 3.5" 3.5" 2.3"

8479 8376 8548 8548

27'10" 27'6" 28'1" 28'1"

5609 5681 5681 5681

18'5" 18'8" 18'8" 18'8"

13 953 13 825 13 995 13 995

45'10" 45'5" 45'11" 45'11"

14 174 13 854 13 716 14 017 31,240 30,536 30,230 30,893

14 925 14 601 14 461 14 770 32,895 32,180 31,872 32,553

12 203 11 910 11 772 12 053 26,897 26,251 25,946 26,565

12 974 12 678 12 538 12 827 28,596 27,942 27,634 28,270

214 183 182 200 48,225 41,302 41,066 45,092

20 203 20 336 20 444 20 287 44,526 44,821 45,059 44,713

Bolt-On

Edges

2.90

3.79

Teeth and Segments Teeth

2.90

3.79

2.70

3.53

* Static tipping loads and operating weights shown are based on a global machine configuration with Michelin 23.5R25 XHA2 L3 Radial

tires, full fluids, operator, standard counterweight, standard linkage, cold start, roading fenders, product link, open differential axles (front/rear), power train guard, secondary steering, and sound suppression.

** Measured 102 mm (4") behind tip of cutting edge with bucket hinge pin as pivot point in accordance with SAE J732C.

*** Rock bucket specifications are given on Michelin 23.5R25 XLDD2 L5 Radial tires.

(§) Specifications and ratings conform to all applicable standards recommended by the Society of Automotive Engineers, including

SAEStandard J732C governing loader ratings.

(ISO) Full compliance to ISO 14397-1 (2007) Sections 1 thru 6, which requires 2% verification between calculations and testing.

(Rigid Tire) Compliance to ISO 14397-1 (2007) Sections 1 thru 5.

Page 18

962K Wheel Loader Specifications

Operating Specifications

Bucket Type

Edge Type

Capacity – Rated (§)

Capacity – Struck (§)

Width (§)

Dump Clearance at Maximum Lift and 45° Discharge (§)

Reach at Maximum Lift and 45° Discharge (§)

Reach at Level Lift Arm and Bucket Level (§)

Digging Depth (§)

Overall Length

Overall Height with Bucket at Maximum Lift

Loader Clearance Circle with Bucket at Carry Position (§)

Static Tipping Load, Straight (ISO)*

Static Tipping Load, Straight (Rigid Tire)*

Static Tipping Load, Articulated (ISO)*

Static Tipping Load, Articulated (Rigid Tire)*

Breakout Force** (§)

Operating Weight*

ft/in

General Purpose – Pin On

Bolt-On Teeth and Bolt-On Teeth and

Edges Segments Teeth Edges Segments Teeth

3.10 3.10 2.90 3.30 3.30 3.10

4.05 4.05 3.79 4.32 4.32 4.05

2.76 2.76 2.54 2.94 2.94 2.72

3.61 3.61 3.32 3.85 3.85 3.56

2927 2994 2994 2927 2994 2994

9'7" 9'9" 9'9" 9'7" 9'9" 9'9"

3093 2975 2975 3054 2936 2936 10'1" 9'9" 9'9" 10'0" 9'7" 9'7"

1363 1474 1474 1392 1502 1502

4'5" 4'10" 4'10" 4'6" 4'11" 4'11"

2786 2947 2947 2835 2996 2996

9'1" 9'8" 9'8" 9'3" 9'9" 9'9"

88 88 58 88 88 58

3.5" 3.5" 2.3" 3.5" 3.5" 2.3"

8433 8605 8605 8482 8654 8654 27'8" 28'3" 28'3" 27'10" 28'5" 28'5"

5742 5742 5742 5788 5788 5788 18'11" 18'11" 18'11" 19'0" 19'0" 19'0"

13 859 14 029 14 029 13 888 14 059 14 059

45'6" 46'1" 46'1" 45'7" 46'2" 46'2"

13 753 13 613 13 906 13 626 13 486 13 777

30,312 30,005 30,651 30,033 29,724 30,365

14 502 14 362 14 662 14 377 14 236 14 534

31,964 31,654 32,316 31,688 31,376 32,034

11 816 11 677 11 950 11 695 11 555 11 827

26,043 25,736 26,339 25,777 25,468 26,068

12 587 12 446 12 726 12 467 12 326 12 605

27,742 27,431 28,050 27,479 27,167 27,781

175 174 190 168 167 182

39,361 39,125 42,810 37,784 37,548 40,971

20 373 20 481 20 324 20 443 20 551 20 394

44,902 45,140 44,794 45,055 45,293 44,947

* Static tipping loads and operating weights shown are based on a global machine configuration with Michelin 23.5R25 XHA2 L3 Radial

** Measured 102 mm (4") behind tip of cutting edge with bucket hinge pin as pivot point in accordance with SAE J732C.

*** Rock bucket specifications are given on Michelin 23.5R25 XLDD2 L5 Radial tires.

(§) Specifications and ratings conform to all applicable standards recommended by the Society of Automotive Engineers, including

SAEStandard J732C governing loader ratings.

(ISO) Full compliance to ISO 14397-1 (2007) Sections 1 thru 6, which requires 2% verification between calculations and testing.

(Rigid Tire) Compliance to ISO 14397-1 (2007) Sections 1 thru 5.

Page 19

Operating Specifications

Bucket Type

Edge Type

Capacity – Rated (§)

Capacity – Struck (§)

Width (§)

Dump Clearance at Maximum Lift and 45° Discharge (§)

Reach at Maximum Lift and 45° Discharge (§)

Reach at Level Lift Arm and Bucket Level (§)

Digging Depth (§)

Overall Length

Overall Height with Bucket at Maximum Lift

Loader Clearance Circle with Bucket at Carry Position (§)

Static Tipping Load, Straight (ISO)*

Static Tipping Load, Straight (Rigid Tire)*

Static Tipping Load, Articulated (ISO)*

Static Tipping Load, Articulated (Rigid Tire)*

Breakout Force** (§)

Operating Weight*

ft/in

General Purpose – Pin On

Bolt-On

Edges

3.40

4.45

3.04

3.98

2927

9'7"

3036

9'11"

1406

4'7"

2859

9'4"

3.5"

8506 27'11"

5813

19'1"

13 903

45'8"

13 580

29,932

14 332

31,589

11 652

25,681

12 425

27,385

164

37,060

20 466

45,108

Teeth and

Segments

3.40

4.45

3.04

3.98

2994

9'9"

2917

9'6"

1516 4'11"

3020 9'10"

3.5"

8678 28'6"

5813 19'1"

14 074

46'3"

13 439 29,621

14 190 31,276

11 511 25,370

12 283 27,071

163 36,824

20 574 45,346

Teeth Edges Segments Teeth

3.20 3.60 3.60 3.40

4.19 4.71 4.71 4.45

2.81 3.18 3.18 2.94

3.68 4.16 4.16 3.85

2994 2927 2994 2994

9'9" 9'7" 9'9" 9'9"

2917 3010 2890 2890

9'6" 9'10" 9'5" 9'5"

1516 1428 1537 1537

4'11" 4'8" 5'0" 5'0"

3020 2894 3055 3055

9'10" 9'5" 10'0" 10'0"

58 88 88 58

2.3" 3.5" 3.5" 2.3"

8678 8541 8713 8713

28'6" 28'1" 28'8" 28'8"

5813 5847 5847 5847

19'1" 19'3" 19'3" 19'3"

14 074 13 924 14 095 14 095

46'3" 45'9" 46'3" 46'3"

13 728 13 505 13 364 13 649 30,256 29,766 29,454 30,082

14 485 14 259 14 116 14 408 31,926 31,427 31,112 31,755

11 780 11 581 11 439 11 705 25,964 25,525 25,213 25,799

12 558 12 355 12 212 12 485 27,679 27,232 26,917 27,517

178 160 159 173 40,130 36,047 35,811 38,958

20 417 20 503 20 611 20 454 45,000 45,188 45,426 45,080

Bolt-On Teeth and

* Static tipping loads and operating weights shown are based on a global machine configuration with Michelin 23.5R25 XHA2 L3 Radial

** Measured 102 mm (4") behind tip of cutting edge with bucket hinge pin as pivot point in accordance with SAE J732C.

*** Rock bucket specifications are given on Michelin 23.5R25 XLDD2 L5 Radial tires.

(§) Specifications and ratings conform to all applicable standards recommended by the Society of Automotive Engineers, including

SAEStandard J732C governing loader ratings.

(ISO) Full compliance to ISO 14397-1 (2007) Sections 1 thru 6, which requires 2% verification between calculations and testing.

(Rigid Tire) Compliance to ISO 14397-1 (2007) Sections 1 thru 5.

Page 20

962K Wheel Loader Specifications

Operating Specifications

Bucket Type

Edge Type

Capacity – Rated (§)

Capacity – Struck (§)

Width (§)

Dump Clearance at Maximum Lift and 45° Discharge (§)

Reach at Maximum Lift and 45° Discharge (§)

Reach at Level Lift Arm and Bucket Level (§)

Digging Depth (§)

Overall Length

Overall Height with Bucket at Maximum Lift

Loader Clearance Circle with Bucket at Carry Position (§)

Static Tipping Load, Straight (ISO)*

Static Tipping Load, Straight (Rigid Tire)*

Static Tipping Load, Articulated (ISO)*

Static Tipping Load, Articulated (Rigid Tire)*

Breakout Force** (§)

Operating Weight*

ft/in

General Purpose – Pin On

Bolt-On Teeth and

Edges Segments Teeth

3.80 3.80 3.60

4.97 4.97 4.71

3.36 3.36 3.12

4.39 4.39 4.08

2927 2994 2994

9'7" 9'9" 9'9"

2975 2855 2855

9'9" 9'4" 9'4"

1457 1566 1566

4'9" 5'1" 5'1"

2940 3101 3101

9'7" 10'2" 10'2"

88 88 58

3.5" 3.5" 2.3"

8587 8759 8759 28'3" 28'9" 28'9"

5894 5894 5894 19'5" 19'5" 19'5"

13 952 14 124 14 124 45'10" 46'5" 46'5"

13 400 13 258 13 538

29,534 29,220 29,838

14 155 14 011 14 298

31,198 30,881 31,514

11 481 11 339 11 600

25,304 24,991 25,568

12 257 12 113 12 381

27,015 26,698 27,289

154 153 166

34,784 34,548 37,504

20 558 20 666 20 509

45,308 45,546 45,200

Material Handling – Pin On

Bolt-On Teeth and

Edges Segments Teeth

2.70 2.70 2.50

3.53 3.53 3.27

2.32 2.32 2.11

3.03 3.03 2.76

2927 2994 2994

9'7" 9'9" 9'9"

3112 2987 2987 10'2" 9'9" 9'9"

1206 1308 1308 3'11" 4'3" 4'3"

2679 2840 2840

8'9" 9'3" 9'3"

88 88 58

3.5" 3.5" 2.3"

8326 8498 8498 27'4" 27'11" 27'11"

5835 5835 5835 19'2" 19'2" 19'2"

13 796 13 965 13 965

45'4" 45'10" 45'10"

13 829 13 693 14 027 30,480 30,180 30,917

14 556 14 418 14 763 32,081 31,778 32,538

11 899 11 763 12 078 26,226 25,926 26,622

12 647 12 510 12 835 27,874 27,572 28,289

192 191 210 43,166 42,930 47,301

20 274 20 382 20 225 44,684 44,922 44,576

* Static tipping loads and operating weights shown are based on a global machine configuration with Michelin 23.5R25 XHA2 L3 Radial

** Measured 102 mm (4") behind tip of cutting edge with bucket hinge pin as pivot point in accordance with SAE J732C.

*** Rock bucket specifications are given on Michelin 23.5R25 XLDD2 L5 Radial tires.

(§) Specifications and ratings conform to all applicable standards recommended by the Society of Automotive Engineers, including

SAEStandard J732C governing loader ratings.

(ISO) Full compliance to ISO 14397-1 (2007) Sections 1 thru 6, which requires 2% verification between calculations and testing.

(Rigid Tire) Compliance to ISO 14397-1 (2007) Sections 1 thru 5.

Page 21

Operating Specifications

Bucket Type

Edge Type

Capacity – Rated (§)

Capacity – Struck (§)

Width (§)

Dump Clearance at Maximum Lift and 45° Discharge (§)

Reach at Maximum Lift and 45° Discharge (§)

Reach at Level Lift Arm and Bucket Level (§)

Digging Depth (§)

Overall Length

Overall Height with Bucket at Maximum Lift

Loader Clearance Circle with Bucket at Carry Position (§)

Static Tipping Load, Straight (ISO)*

Static Tipping Load, Straight (Rigid Tire)*

Static Tipping Load, Articulated (ISO)*

Static Tipping Load, Articulated (Rigid Tire)*

Breakout Force** (§)

Operating Weight*

ft/in

Material Handling – Pin On

Bolt-On Teeth and Bolt-On Teeth and

Edges Segments Teeth Edges Segments Teeth

2.90 2.90 2.70 3.10 3.10 2.90

3.79 3.79 3.53 4.05 4.05 3.79

2.52 2.52 2.31 2.61 2.61 2.44

3.30 3.30 3.02 3.41 3.41 3.19

2927 2994 2994 2927 2994 2994

9'7" 9'9" 9'9" 9'7" 9'9" 9'9"

3070 2944 2944 3038 2913 2913 10'0" 9'7" 9'7" 9'11" 9'6" 9'6"

1248 1350 1350 1280 1382 1382

4'1" 4'5" 4'5" 4'2" 4'6" 4'6"

2739 2900 2900 2784 2945 2945 8'11" 9'6" 9'6" 9'1" 9'7" 9'7"

88 88 58 88 88 58

3.5" 3.5" 2.3" 3.5" 3.5" 2.3"

8386 8558 8558 8431 8603 8603 27'7" 28'1" 28'1" 27'8" 28'3" 28'3"

5192 5192 5192 5700 5700 5700 17'1" 17'1" 17'1" 18'9" 18'9" 18'9"

13 831 14 001 14 001 13 858 14 028 14 028

45'5" 46'0" 46'0" 45'6" 46'1" 46'1"

13 706 13 569 13 862 13 608 13 469 13 757

30,209 29,906 30,553 29,992 29,687 30,321

14 435 14 296 14 596 14 338 14 199 14 493

31,815 31,510 32,171 31,602 31,295 31,942

11 783 11 646 11 921 11 690 11 552 11 822

25,971 25,668 26,275 25,766 25,461 26,055

12 534 12 395 12 676 12 442 12 303 12 578

27,624 27,319 27,939 27,423 27,116 27,723

182 181 198 175 174 190

40,945 40,709 44,671 39,398 39,162 42,855

20 330 20 438 20 281 20 380 20 488 20 331

44,807 45,045 44,699 44,918 45,156 44,810

* Static tipping loads and operating weights shown are based on a global machine configuration with Michelin 23.5R25 XHA2 L3 Radial

** Measured 102 mm (4") behind tip of cutting edge with bucket hinge pin as pivot point in accordance with SAE J732C.

*** Rock bucket specifications are given on Michelin 23.5R25 XLDD2 L5 Radial tires.

(§) Specifications and ratings conform to all applicable standards recommended by the Society of Automotive Engineers, including

SAEStandard J732C governing loader ratings.

(ISO) Full compliance to ISO 14397-1 (2007) Sections 1 thru 6, which requires 2% verification between calculations and testing.

(Rigid Tire) Compliance to ISO 14397-1 (2007) Sections 1 thru 5.

Page 22

962K Wheel Loader Specifications

Operating Specifications

Bucket Type

Edge Type

Capacity – Rated (§)

Capacity – Struck (§)

Width (§)

Dump Clearance at Maximum Lift and 45° Discharge (§)

Reach at Maximum Lift and 45° Discharge (§)

Reach at Level Lift Arm and Bucket Level (§)

Digging Depth (§)

Overall Length

Overall Height with Bucket at Maximum Lift

Loader Clearance Circle with Bucket at Carry Position (§)

Static Tipping Load, Straight (ISO)*

Static Tipping Load, Straight (Rigid Tire)*

Static Tipping Load, Articulated (ISO)*

Static Tipping Load, Articulated (Rigid Tire)*

Breakout Force** (§)

Operating Weight*

ft/in

Material Handling – Pin On

Bolt-On Teeth and Bolt-On Teeth and

Edges Segments Teeth Edges Segments Teeth

3.30 3.30 3.10 3.40 3.40 3.20

4.32 4.32 4.05 4.45 4.45 4.19

2.78 2.78 2.61 2.92 2.92 2.74

3.64 3.64 3.41 3.82 3.82 3.58

2927 2994 2994 2927 2994 2994

9'7" 9'9" 9'9" 9'7" 9'9" 9'9"

3006 2881 2881 2978 2852 2852 9'10" 9'5" 9'5" 9'9" 9'4" 9'4"

1312 1414 1414 1340 1442 1442

4'3" 4'7" 4'7" 4'4" 4'8" 4'8"

2829 2990 2990 2869 3030 3030

9'3" 9'9" 9'9" 9'4" 9'11" 9'11"

88 88 58 88 88 58

3.5" 3.5" 2.3" 3.5" 3.5" 2.3"

8476 8648 8648 8516 8688 8688

27'10" 28'5" 28'5" 28'0" 28'7" 28'7"

5744 5744 5744 5783 5783 5783 18'11" 18'11" 18'11" 19'0" 19'0" 19'0"

13 885 14 055 14 055 13 909 14 080 14 080

45'7" 46'2" 46'2" 45'8" 46'3" 46'3"

13 511 13 372 13 656 13 427 13 288 13 568

29,778 29,472 30,099 29,594 29,287 29,905

14 243 14 103 14 393 14 161 14 020 14 307

31,392 31,083 31,723 31,211 30,901 31,533

11 599 11 460 11 726 11 520 11 380 11 643

25,564 25,258 25,845 25,390 25,082 25,662

12 352 12 212 12 484 12 275 12 134 12 402

27,225 26,916 27,515 27,054 26,744 27,336

168 167 183 163 162 177

37,957 37,721 41,173 36,755 36,519 39,778

20 428 20 536 20 379 20 468 20 576 20 419

45,023 45,261 44,915 45,112 45,350 45,004

* Static tipping loads and operating weights shown are based on a global machine configuration with Michelin 23.5R25 XHA2 L3 Radial

** Measured 102 mm (4") behind tip of cutting edge with bucket hinge pin as pivot point in accordance with SAE J732C.

*** Rock bucket specifications are given on Michelin 23.5R25 XLDD2 L5 Radial tires.

(§) Specifications and ratings conform to all applicable standards recommended by the Society of Automotive Engineers, including

SAEStandard J732C governing loader ratings.

(ISO) Full compliance to ISO 14397-1 (2007) Sections 1 thru 6, which requires 2% verification between calculations and testing.

(Rigid Tire) Compliance to ISO 14397-1 (2007) Sections 1 thru 5.

Page 23

Operating Specifications

Bucket Type

Edge Type

Capacity – Rated (§)

Capacity – Struck (§)

Width (§)

Dump Clearance at Maximum Lift and 45° Discharge (§)

Reach at Maximum Lift and 45° Discharge (§)

Reach at Level Lift Arm and Bucket Level (§)

Digging Depth (§)

Overall Length

Overall Height with Bucket at Maximum Lift

Loader Clearance Circle with Bucket at Carry Position (§)

Static Tipping Load, Straight (ISO)*

Static Tipping Load, Straight (Rigid Tire)*

Static Tipping Load, Articulated (ISO)*

Static Tipping Load, Articulated (Rigid Tire)*

Breakout Force** (§)

Operating Weight*

ft/in

Material Handling – Pin On

Bolt-On Teeth and

Edges Segments Teeth Segments Teeth

3.60 3.60 3.40 3.80 3.60

4.71 4.71 4.45 4.97 4.71

3.15 3.15 2.95 3.28 3.11

4.12 4.12 3.86 4.29 4.07

2927 2994 2994 2994 2994

9'7" 9'9" 9'9" 9'9" 9'9"

2946 2821 2821 2785 2785

9'8" 9'3" 9'3" 9'1" 9'1"

1372 1474 1474 1510 1510

4'6" 4'10" 4'10" 4'11" 4'11"

2914 3075 3075 3126 3126

9'6" 10'1" 10'1" 10'3" 10'3"

88 88 58 88 58

3.5" 3.5" 2.3" 3.5" 2.3"

8561 8733 8733 8784 8784

28'2" 28'8" 28'8" 28'10" 28'10"

5831 5831 5831 5879 5879

19'2" 19'2" 19'2" 19'4" 19'4"

13 936 14 108 14 108 14 139 14 139

45'9" 46'4" 46'4" 46'5" 46'5"

13 334 13 194 13 470 13 084 13 357

29,389 29,079 29,689 28,838 29,440

14 069 13 927 14 210 13 820 14 098

31,009 30,697 31,320 30,459 31,074

11 432 11 291 11 551 11 188 11 443

25,196 24,887 25,458 24,659 25,222

12 188 12 047 12 311 11 945 12 206

26,864 26,552 27,135 26,327 26,902

157 156 170 150 163

35,483 35,247 38,308 33,891 36,751

20 512 20 620 20 463 20 674 20 517

45,208 45,446 45,100 45,565 45,219

Bolt-On

Edges

3.80

4.97

3.28

4.29

2927

9'7"

2910

9'6"

1408

4'7"

2965

9'8"

3.5"

8612 28'4"

5879 19'4"

13 967

45'10"

13 226 29,150

13 962 30,774

11 329 24,970

12 088 26,642

151 34,128

20 566 45,327

Teeth and

* Static tipping loads and operating weights shown are based on a global machine configuration with Michelin 23.5R25 XHA2 L3 Radial

** Measured 102 mm (4") behind tip of cutting edge with bucket hinge pin as pivot point in accordance with SAE J732C.

*** Rock bucket specifications are given on Michelin 23.5R25 XLDD2 L5 Radial tires.

(§) Specifications and ratings conform to all applicable standards recommended by the Society of Automotive Engineers, including

SAEStandard J732C governing loader ratings.

(ISO) Full compliance to ISO 14397-1 (2007) Sections 1 thru 6, which requires 2% verification between calculations and testing.

(Rigid Tire) Compliance to ISO 14397-1 (2007) Sections 1 thru 5.

Page 24

962K Wheel Loader Specifications

Operating Specifications

Bucket Type

Edge Type

Capacity – Rated (§)

Capacity – Struck (§)

Width (§)

Dump Clearance at Maximum Lift and 45° Discharge (§)

Reach at Maximum Lift and 45° Discharge (§)

Reach at Level Lift Arm and Bucket Level (§)

Digging Depth (§)

Overall Length

Overall Height with Bucket at Maximum Lift

Loader Clearance Circle with Bucket at Carry Position (§)

Static Tipping Load, Straight (ISO)*

Static Tipping Load, Straight (Rigid Tire)*

Static Tipping Load, Articulated (ISO)*

Static Tipping Load, Articulated (Rigid Tire)*

Breakout Force** (§)

Operating Weight*

Bolt-On

Edges

2.70

3.53

2.30

3.01

2927

ft/in

3153 10'4"

1336

ft/in

2720 8'11"

3.5"

ft/in

8367 27'6"

5641 18'7"

13 811

45'4"

kglb13 391

29,515

kglb14 124

31,131

kglb11 470

25,281

kglb12 225

26,944

41,637

kglb20 726

45,680

9'7"

4'4"

185

General Purpose – Fusion QC

Teeth and

Segments Teeth Segments Teeth

2.70 2.50 2.90 2.70

3.53 3.27 3.79 3.53

2.30 2.11 2.55 2.33

3.01 2.76 3.34 3.05

2994 2994 2994 2994

9'9" 9'9" 9'9" 9'9"

3037 3037 2980 2980 9'11" 9'11" 9'9" 9'9"

1449 1449 1485 1485

4'9" 4'9" 4'10" 4'10"

2881 2881 2950 2950

9'5" 9'5" 9'8" 9'8"

88 58 88 58

3.5" 2.3" 3.5" 2.3"

8539 8539 8608 8608 28'1" 28'1" 28'3" 28'3"

5641 5641 5714 5714 18'7" 18'7" 18'9" 18'9"

13 982 13 982 14 024 14 024 45'11" 45'11" 46'1" 46'1"

13 255 13 595 13 132 13 468 29,214 29,963 28,943 29,685

13 987 14 339 13 867 14 215 30,827 31,604 30,563 31,331

11 333 11 653 11 217 11 534 24,979 25,684 24,722 25,421

12 087 12 419 11 973 12 302 26,640 27,371 26,389 27,114

184 202 173 190 41,401 45,487 39,020 42,687

20 834 20 677 20 897 20 740 45,918 45,572 46,056 45,710

Bolt-On

Edges

2.90

3.79

2.55

3.34

2927

9'7"

3097 10'1"

1374

4'6"

2789

9'1"

3.5"

8436 27'9"

5714 18'9"

13 852

45'6"

13 270 29,247

14 006 30,870

11 355 25,027

12 112 26,696

174 39,256

20 789 45,818

Teeth and

* Static tipping loads and operating weights shown are based on a global machine configuration with Michelin 23.5R25 XHA2 L3 Radial

** Measured 102 mm (4") behind tip of cutting edge with bucket hinge pin as pivot point in accordance with SAE J732C.

*** Rock bucket specifications are given on Michelin 23.5R25 XLDD2 L5 Radial tires.

(§) Specifications and ratings conform to all applicable standards recommended by the Society of Automotive Engineers, including

SAEStandard J732C governing loader ratings.

(ISO) Full compliance to ISO 14397-1 (2007) Sections 1 thru 6, which requires 2% verification between calculations and testing.

(Rigid Tire) Compliance to ISO 14397-1 (2007) Sections 1 thru 5.

Page 25

Operating Specifications

Bucket Type

Edge Type

Capacity – Rated (§)

Capacity – Struck (§)

Width (§)

Dump Clearance at Maximum Lift and 45° Discharge (§)

Reach at Maximum Lift and 45° Discharge (§)

Reach at Level Lift Arm and Bucket Level (§)

Digging Depth (§)

Overall Length

Overall Height with Bucket at Maximum Lift

Loader Clearance Circle with Bucket at Carry Position (§)

Static Tipping Load, Straight (ISO)*

Static Tipping Load, Straight (Rigid Tire)*

Static Tipping Load, Articulated (ISO)*

Static Tipping Load, Articulated (Rigid Tire)*

Breakout Force** (§)

Operating Weight*

Bolt-On

Edges

3.10

4.05

2.76

3.61

2927

ft/in

3053 10'0"

1408

ft/in

2846

ft/in

3.5"

ft/in

8493

27'11"

5775 19'0"

13 887

45'7"

kglb13 152

28,988

kglb13 891

30,616

kglb11 244

24,783

kglb12 004

26,458

37,469

kglb20 843

45,937

9'7"

4'7"

9'4"

166

General Purpose – Fusion QC

Teeth and

Segments Teeth

3.10 2.90

4.05 3.79

2.76 2.54

3.61 3.32

2994 2994

9'9" 9'9"

2935 2935

9'7" 9'7"

1519 1519 4'11" 4'11"

3007 3007 9'10" 9'10"

88 58

3.5" 2.3"

8665 8665 28'6" 28'6"

5775 5775 19'0" 19'0"

14 060 14 060

46'2" 46'2"

13 013 13 348 28,682 29,421

13 751 14 098 30,307 31,072

11 105 11 421 24,477 25,173

11 864 12 192 26,149 26,872

165 180 37,233 40,603

20 951 20 794 46,175 45,829

Bolt-On

Edges

3.30

4.32

2.94

3.85

2927

9'7"

3015 9'10"

1437

4'8"

2895

9'5"

3.5"

8542 28'1"

5821 19'2"

13 917

45'8"

13 056 28,776

13 796 30,408

11 154 24,583

11 915 26,262

160 36,044

20 889 46,039

Teeth and Segments Teeth

3.30

4.32

2.94

3.85

2994

9'9"

2896

9'6"

1547

5'0"

3056 10'0"

3.5"

8714 28'8"

5821 19'2"

14 090

46'3"

12 916 28,467

13 655 30,097

11 014 24,275

11 774 25,951

159 35,808

20 997 46,277

3.10

4.05

2.72

3.56

2994

9'9"

2896

9'6"

1547

5'0"

3056 10'0"

2.3"

8714 28'8"

5821 19'2"

14 090

46'3"

13 250 29,203

14 001 30,859

11 328 24,969

12 101 26,671

173 38,953

20 840 45,931

* Static tipping loads and operating weights shown are based on a global machine configuration with Michelin 23.5R25 XHA2 L3 Radial

** Measured 102 mm (4") behind tip of cutting edge with bucket hinge pin as pivot point in accordance with SAE J732C.

*** Rock bucket specifications are given on Michelin 23.5R25 XLDD2 L5 Radial tires.

(§) Specifications and ratings conform to all applicable standards recommended by the Society of Automotive Engineers, including

SAEStandard J732C governing loader ratings.

(ISO) Full compliance to ISO 14397-1 (2007) Sections 1 thru 6, which requires 2% verification between calculations and testing.

(Rigid Tire) Compliance to ISO 14397-1 (2007) Sections 1 thru 5.

Page 26

962K Wheel Loader Specifications

Operating Specifications

Bucket Type

Edge Type

Capacity – Rated (§)

Capacity – Struck (§)

Width (§)

Dump Clearance at Maximum Lift and 45° Discharge (§)

Reach at Maximum Lift and 45° Discharge (§)

Reach at Level Lift Arm and Bucket Level (§)

Digging Depth (§)

Overall Length

Overall Height with Bucket at Maximum Lift

Loader Clearance Circle with Bucket at Carry Position (§)

Static Tipping Load, Straight (ISO)*

Static Tipping Load, Straight (Rigid Tire)*

Static Tipping Load, Articulated (ISO)*

Static Tipping Load, Articulated (Rigid Tire)*

Breakout Force** (§)

Operating Weight*

Bolt-On

Edges

3.40

4.45

3.04

3.98

2927

ft/in

2996

ft/in

1451

ft/in

2919

ft/in

3.5"

ft/in

8566 28'2"

5847 19'3"

13 932

45'9"

kglb13 011

28,677

kglb13 753

30,312

kglb11 111

24,490

kglb11 874

26,171

35,379

kglb20 913

46,091

9'7"

9'9"

4'9"

9'6"

157

General Purpose – Fusion QC

Teeth and

Segments Teeth

3.40 3.20

4.45 4.19

3.04 2.81

3.98 3.68

2994 2994

9'9" 9'9"

2877 2877

9'5" 9'5"

1561 1561

5'1" 5'1"

3080 3080 10'1" 10'1"

88 58

3.5" 2.3"

8738 8738 28'9" 28'9"

5847 5847 19'3" 19'3"

14 105 14 105

46'4" 46'4"

12 871 13 204 28,368 29,102

13 611 13 956 29,999 30,759

10 971 11 285 24,180 24,872

11 732 12 058 25,859 26,577

156 169 35,143 38,186

21 021 20 864 46,329 45,983

Bolt-On

Edges

3.60

4.71

3.18

4.16

2927

9'7"

2970

9'8"

1473 4'10"

2954

9'8"

3.5"

8601 28'3"

5881 19'4"

13 953

45'10"

12 941 28,524

13 684 30,161

11 045 24,344

11 810 26,029

153 34,449

20 947 46,166

Teeth and Segments Teeth

3.60

4.71

3.18

4.16

2994

9'9"

2850

9'4"

1582

5'2"

3115 10'2"

3.5"

8773

28'10"

5881 19'4"

14 127

46'5"

12 800 28,213

13 542 29,847

10 904 24,034

11 667 25,715

152 34,213

21 055 46,404

3.40

4.45

2.94

3.85

2994

9'9"

2850

9'4"

1582

5'2"

3115 10'2"

2.3"

8773

28'10"

5881 19'4"

14 127

46'5"

13 132 28,945

13 886 30,605

11 218 24,724

11 992 26,431

165 37,117

20 898 46,058

* Static tipping loads and operating weights shown are based on a global machine configuration with Michelin 23.5R25 XHA2 L3 Radial

** Measured 102 mm (4") behind tip of cutting edge with bucket hinge pin as pivot point in accordance with SAE J732C.

*** Rock bucket specifications are given on Michelin 23.5R25 XLDD2 L5 Radial tires.

(§) Specifications and ratings conform to all applicable standards recommended by the Society of Automotive Engineers, including

SAEStandard J732C governing loader ratings.

(ISO) Full compliance to ISO 14397-1 (2007) Sections 1 thru 6, which requires 2% verification between calculations and testing.

(Rigid Tire) Compliance to ISO 14397-1 (2007) Sections 1 thru 5.

Page 27

Operating Specifications

Bucket Type

Edge Type

Capacity – Rated (§)

Capacity – Struck (§)

Width (§)

Dump Clearance at Maximum Lift and 45° Discharge (§)

Reach at Maximum Lift and 45° Discharge (§)

Reach at Level Lift Arm and Bucket Level (§)

Digging Depth (§)

Overall Length

Overall Height with Bucket at Maximum Lift

Loader Clearance Circle with Bucket at Carry Position (§)

Static Tipping Load, Straight (ISO)*

Static Tipping Load, Straight (Rigid Tire)*

Static Tipping Load, Articulated (ISO)*

Static Tipping Load, Articulated (Rigid Tire)*

Breakout Force** (§)

Operating Weight*

General Purpose – Fusion QC

Bolt-On

Edges

3.80

4.97

3.36

4.39

2927

ft/in

2935

ft/in

1502 4'11"

3000 9'10"

3.5"

ft/in

8647 28'5"

5928 19'6"

13 982 45'11"

kglb12 849

28,321

kglb13 594

29,962

kglb10 959

24,153

kglb11 724

25,841

33,289

kglb20 992

46,265

9'7"

148

Material Handling – Fusion QC

Teeth and

Segments Teeth Segments Teeth

3.80 3.60 2.70 2.50

4.97 4.71 3.53 3.27

3.36 3.12 2.20 2.00

4.39 4.08 2.88 2.62

2994 2994 2994 2994

9'9" 9'9" 9'9" 9'9"

2815 2815 2944 2944

9'2" 9'2" 9'7" 9'7"

1611 1611 1350 1350

5'3" 5'3" 4'5" 4'5"

3161 3161 2900 2900 10'4" 10'4" 9'6" 9'6"

88 58 88 58

3.5" 2.3" 3.5" 2.3"

8819 8819 8558 8558 29'0" 29'0" 28'1" 28'1"

5928 5928 5634 5634 19'6" 19'6" 18'6" 18'6"

14 157 14 157 13 994 13 994

46'6" 46'6" 45'11" 45'11"

12 708 13 039 13 108 13 434 28,008 28,738 28,891 29,609

13 451 13 794 13 824 14 160 29,646 30,402 30,470 31,210

10 817 11 129 11 207 11 514 23,841 24,530 24,700 25,378

11 581 11 905 11 945 12 262 25,526 26,240 26,327 27,026

147 159 181 198 33,053 35,789 40,714 44,677

21 100 20 943 20 840 20 683 46,503 46,157 45,931 45,585

Bolt-On

Edges

2.70

3.53

2.20

2.88

2927

9'7"

3070 10'0"

1248

4'1"

2739 8'11"

3.5"

8386 27'7"

5634 18'6"

13 822

45'5"

13 244 29,190

13 961 30,771

11 342 24,999

12 082 26,628

182 40,950

20 732 45,693

Teeth and

* Static tipping loads and operating weights shown are based on a global machine configuration with Michelin 23.5R25 XHA2 L3 Radial

** Measured 102 mm (4") behind tip of cutting edge with bucket hinge pin as pivot point in accordance with SAE J732C.

*** Rock bucket specifications are given on Michelin 23.5R25 XLDD2 L5 Radial tires.

(§) Specifications and ratings conform to all applicable standards recommended by the Society of Automotive Engineers, including

SAEStandard J732C governing loader ratings.

(ISO) Full compliance to ISO 14397-1 (2007) Sections 1 thru 6, which requires 2% verification between calculations and testing.

(Rigid Tire) Compliance to ISO 14397-1 (2007) Sections 1 thru 5.

Page 28

962K Wheel Loader Specifications

Operating Specifications

Bucket Type

Edge Type

Capacity – Rated (§)

Capacity – Struck (§)

Width (§)

Dump Clearance at Maximum Lift and 45° Discharge (§)

Reach at Maximum Lift and 45° Discharge (§)

Reach at Level Lift Arm and Bucket Level (§)

Digging Depth (§)

Overall Length

Overall Height with Bucket at Maximum Lift

Loader Clearance Circle with Bucket at Carry Position (§)

Static Tipping Load, Straight (ISO)*

Static Tipping Load, Straight (Rigid Tire)*

Static Tipping Load, Articulated (ISO)*

Static Tipping Load, Articulated (Rigid Tire)*

Breakout Force** (§)

Operating Weight*

Bolt-On

Edges

2.90

3.79

2.40

3.14

2927

ft/in

3027 9'11"

1290

ft/in

2799

ft/in

3.5"

ft/in

8446 27'9"

5697 18'9"

13 858

45'6"

kglb13 132

28,943

kglb13 851

30,529

kglb11 237

24,767

kglb11 978

26,401

38,931

kglb20 784

45,807

9'7"

4'2"

9'2"

173

Material Handling – Fusion QC

Teeth and

Segments Teeth Segments Teeth

2.90 2.70 3.10 2.90

3.79 3.53 4.05 3.79

2.40 2.20 2.61 2.44

3.14 2.88 3.41 3.19

2994 2994 2994 2994

9'9" 9'9" 9'9" 9'9"

2902 2902 2870 2870

9'6" 9'6" 9'5" 9'5"

1393 1393 1424 1424

4'6" 4'6" 4'8" 4'8"

2960 2960 3005 3005

9'8" 9'8" 9'10" 9'10"

88 58 88 58

3.5" 2.3" 3.5" 2.3"

8618 8618 8663 8663 28'4" 28'4" 28'6" 28'6"

5697 5697 5734 5734 18'9" 18'9" 18'10" 18'10"

14 030 14 030 14 058 14 058

46'1" 46'1" 46'2" 46'2"

12 995 13 317 12 897 13 219 28,641 29,352 28,426 29,136

13 713 14 046 13 617 13 949 30,225 30,957 30,012 30,744

11 100 11 405 11 008 11 312 24,465 25,137 24,261 24,933

11 840 12 155 11 749 12 064 26,097 26,790 25,896 26,589

172 188 165 180 38,695 42,307 37,282 40,662

20 892 20 735 20 941 20 784 46,045 45,699 46,153 45,807

Bolt-On

Edges

3.10

4.05

2.61

3.41

2927

9'7"

2996

9'9"

1322

4'4"

2844

9'3"

3.5"

8491

27'11"

5734

18'10"

13 886

45'7"

13 035 28,729

13 756 30,318

11 145 24,565

11 888 26,202

166 37,518

20 833 45,915

Teeth and

* Static tipping loads and operating weights shown are based on a global machine configuration with Michelin 23.5R25 XHA2 L3 Radial

** Measured 102 mm (4") behind tip of cutting edge with bucket hinge pin as pivot point in accordance with SAE J732C.

*** Rock bucket specifications are given on Michelin 23.5R25 XLDD2 L5 Radial tires.

(§) Specifications and ratings conform to all applicable standards recommended by the Society of Automotive Engineers, including

SAEStandard J732C governing loader ratings.

(ISO) Full compliance to ISO 14397-1 (2007) Sections 1 thru 6, which requires 2% verification between calculations and testing.

(Rigid Tire) Compliance to ISO 14397-1 (2007) Sections 1 thru 5.

Page 29

Operating Specifications

Bucket Type

Edge Type

Capacity – Rated (§)

Capacity – Struck (§)

Width (§)

Dump Clearance at Maximum Lift and 45° Discharge (§)

Reach at Maximum Lift and 45° Discharge (§)

Reach at Level Lift Arm and Bucket Level (§)

Digging Depth (§)

Overall Length

Overall Height with Bucket at Maximum Lift

Loader Clearance Circle with Bucket at Carry Position (§)

Static Tipping Load, Straight (ISO)*

Static Tipping Load, Straight (Rigid Tire)*

Static Tipping Load, Articulated (ISO)*

Static Tipping Load, Articulated (Rigid Tire)*

Breakout Force** (§)

Operating Weight*

Bolt-On

Edges

3.30

4.32

2.78

3.64

2927

ft/in

2964

ft/in

1354

ft/in

2889

ft/in

3.5"

ft/in

8536 28'1"

5778 19'0"

13 913

45'8"

kglb12 943

28,526

kglb13 665

30,118

kglb11 059

24,374

kglb11 803

26,014

36,201

kglb20 877

46,012

9'7"

9'8"

4'5"

9'5"

161

Material Handling – Fusion QC

Teeth and

Segments Teeth

3.30 3.10

4.32 4.05

2.78 2.61

3.64 3.41

2994 2994

9'9" 9'9"

2838 2838

9'3" 9'3"

1456 1456

4'9" 4'9"

3050 3050 10'0" 10'0"

88 58

3.5" 2.3"

8708 8708 28'7" 28'7"

5778 5778 19'0" 19'0"

14 086 14 086

46'3" 46'3"

12 804 13 130 28,221 28,939

13 525 13 862 29,810 30,552

10 920 11 228 24,069 24,747

11 663 11 981 25,706 26,407

160 174 35,965 39,135

20 985 20 828 46,250 45,904

Bolt-On

Edges

3.40

4.45

2.92

3.82

2927

9'7"

2936

9'7"

1382

4'6"

2929

9'7"

3.5"

8576 28'2"

5817 19'1"

13 938

45'9"

12 867 28,359

13 591 29,955

10 987 24,216

11 733 25,860

156 35,098

20 915 46,096

Teeth and Segments Teeth

3.40

4.45

2.92

3.82

2994

9'9"

2810

9'2"

1485 4'10"

3090 10'1"

3.5"

8748 28'9"

5817 19'1"

14 112

46'4"

12 728 28,053

13 451 29,646

10 848 23,909

11 593 25,551

155 34,862

21 023 46,334

3.20

4.19

2.74

3.58

2994

9'9"

2810

9'2"

1485 4'10"

3090 10'1"

2.3"

8748 28'9"

5817 19'1"

14 112

46'4"

13 050 28,763

13 783 30,378

11 153 24,581

11 907 26,244

168 37,864

20 866 45,988

* Static tipping loads and operating weights shown are based on a global machine configuration with Michelin 23.5R25 XHA2 L3 Radial

** Measured 102 mm (4") behind tip of cutting edge with bucket hinge pin as pivot point in accordance with SAE J732C.

*** Rock bucket specifications are given on Michelin 23.5R25 XLDD2 L5 Radial tires.

(§) Specifications and ratings conform to all applicable standards recommended by the Society of Automotive Engineers, including

SAEStandard J732C governing loader ratings.

(ISO) Full compliance to ISO 14397-1 (2007) Sections 1 thru 6, which requires 2% verification between calculations and testing.

(Rigid Tire) Compliance to ISO 14397-1 (2007) Sections 1 thru 5.

Page 30

962K Wheel Loader Specifications

Operating Specifications

Bucket Type

Edge Type

Capacity – Rated (§)

Capacity – Struck (§)

Width (§)

Dump Clearance at Maximum Lift and 45° Discharge (§)

Reach at Maximum Lift and 45° Discharge (§)

Reach at Level Lift Arm and Bucket Level (§)

Digging Depth (§)

Overall Length

Overall Height with Bucket at Maximum Lift

Loader Clearance Circle with Bucket at Carry Position (§)

Static Tipping Load, Straight (ISO)*

Static Tipping Load, Straight (Rigid Tire)*

Static Tipping Load, Articulated (ISO)*

Static Tipping Load, Articulated (Rigid Tire)*

Breakout Force** (§)

Operating Weight*

Material Handling – Fusion QC

Bolt-On Teeth and Bolt-On Teeth and Change

Edges Segments Teeth Edges Segments Teeth inSpecs

3.60 3.60 3.40 3.80 3.80 3.60

4.71 4.71 4.45 4.97 4.97 4.71

3.10 3.10 2.90 3.28 3.28 3.11

4.05 4.05 3.79 4.29 4.29 4.07

ft/in

2927 2994 2994 2927 2994 2994

9'7" 9'9" 9'9" 9'7" 9'9" 9'9"

2904 2778 2778 2868 2742 2742 288

9'6" 9'1" 9'1" 9'4" 8'11" 8'11" 0'11"

1414 1516 1516 1450 1552 1552 101

4'7" 4'11" 4'11" 4'9" 5'1" 5'1" 0'4"

2974 3135 3135 3025 3186 3186 277

9'9" 10'3" 10'3" 9'11" 10'5" 10'5" 0'10"

88 88 58 88 88 58 5

3.5" 3.5" 2.3" 3.5" 3.5" 2.3" 0.2"

8621 8793 8793 8672 8844 8844 443 28'4" 28'11" 28'11" 28'6" 29'1" 29'1" 1'6"

5860 5860 5860 5913 5913 5913 289 19'3" 19'3" 19'3" 19'5" 19'5" 19'5" 1'0"

13 966 14 140 14 140 13 998 14 173 14 173 308

45'10" 46'5" 46'5" 46'0" 46'6" 46'6" 1'1"

12 779 12 639 12 962 12 674 12 533 12 856 –652

28,166 27,857 28,568 27,935 27,624 28,335 –1,437

13 504 13 363 13 696 13 401 13 259 13 592 –748

29,764 29,453 30,187 29,537 29,223 29,957 –1,649

10 905 10 765 11 070 10 805 10 665 10 970 –635

24,034 23,726 24,398 23,816 23,505 24,178 –1,400

11 652 11 511 11 826 11 554 11 412 11 728 –723

25,681 25,370 26,065 25,466 25,153 25,848 –1,594

151 149 162 145 144 156 –1

33,932 33,696 36,525 32,677 32,440 35,091 –286

20 955 21 063 20 906 21 009 21 117 20 960 550

46,184 46,422 46,076 46,303 46,541 46,195 1,211

High Lift

* Static tipping loads and operating weights shown are based on a global machine configuration with Michelin 23.5R25 XHA2 L3 Radial

** Measured 102 mm (4") behind tip of cutting edge with bucket hinge pin as pivot point in accordance with SAE J732C.

*** Rock bucket specifications are given on Michelin 23.5R25 XLDD2 L5 Radial tires.

(§) Specifications and ratings conform to all applicable standards recommended by the Society of Automotive Engineers, including

SAEStandard J732C governing loader ratings.

(ISO) Full compliance to ISO 14397-1 (2007) Sections 1 thru 6, which requires 2% verification between calculations and testing.

(Rigid Tire) Compliance to ISO 14397-1 (2007) Sections 1 thru 5.

Page 31

Bucket Selection Charts

Material Density

2.70 m (3.53 yd) 3.11 m (4.07 yd) 2.70 m (3.53 yd)

2.90 m (3.79 yd) 3.34 m (4.37 yd) 2.90 m (3.79 yd)

3.10 m (4.05 yd) 3.57 m (4.67 yd) 3.10 m (4.05 yd)

Pin On

General

Purpose

Material

Handling

3.30 m (4.32 yd) 3.80 m (4.97 yd) 3.30 m (4.32 yd)

3.40 m (4.45 yd) 3.91 m (5.11 yd) 3.40 m (4.45 yd)

3.60 m (4.71 yd) 4.14 m (5.41 yd) 3.60 m (4.71 yd)

3.80 m (4.97 yd) 4.37 m (5.72 yd) 3.80 m (4.97 yd)

2.70 m (3.53 yd) 3.11 m (4.07 yd) 2.70 m (3.53 yd)

2.90 m (3.79 yd) 3.34 m (4.37 yd) 2.90 m (3.79 yd)

3.10 m (4.05 yd) 3.57 m (4.67 yd) 3.10 m (4.05 yd)

3.30 m (4.32 yd) 3.80 m (4.97 yd) 3.30 m (4.32 yd)

3.40 m (4.45 yd) 3.91 m (5.11 yd) 3.40 m (4.45 yd)

800kg/m

700

900 1000 1100 1200 1300 1400 1500 1600 1700 1800 1900 2000 2100 2200 2300 2400

2500

Standard Linkage

General Purpose

Fusion QC

Material

Handling

3.60 m (4.71 yd) 4.14 m (5.41 yd) 3.60 m (4.71 yd)

3.80 m (4.97 yd) 4.37 m (5.72 yd) 3.80 m (4.97 yd)

2.70 m (3.53 yd) 3.11 m (4.07 yd) 2.70 m (3.53 yd)

2.90 m (3.79 yd) 3.34 m (4.37 yd) 2.90 m (3.79 yd)

3.10 m (4.05 yd) 3.57 m (4.67 yd) 3.10 m (4.05 yd)

3.30 m (4.32 yd) 3.80 m (4.97 yd) 3.30 m (4.32 yd)

3.40 m (4.45 yd) 3.91 m (5.11 yd) 3.40 m (4.45 yd)

3.60 m (4.71 yd) 4.14 m (5.41 yd) 3.60 m (4.71 yd)

3.80 m (4.97 yd) 4.37 m (5.72 yd) 3.80 m (4.97 yd)

2.70 m (3.53 yd) 3.11 m (4.07 yd) 2.70 m (3.53 yd)

2.90 m (3.79 yd) 3.34 m (4.37 yd) 2.90 m (3.79 yd)

3.10 m (4.05 yd) 3.57 m (4.67 yd) 3.10 m (4.05 yd)

3.30 m (4.32 yd) 3.80 m (4.97 yd) 3.30 m (4.32 yd)

3.40 m (4.45 yd) 3.91 m (5.11 yd) 3.40 m (4.45 yd)

3.60 m (4.71 yd) 4.14 m (5.41 yd) 3.60 m (4.71 yd)

3.80 m (4.97 yd) 4.37 m (5.72 yd) 3.80 m (4.97 yd)

lb/ydMaterial Density

Bucket Fill Factors

115% 110% 105% 100% 95%

Note: All buckets are showing Bolt-On Edges.

Material Handling buckets are at oor buckets.

1,180

1,348

1,517 1,685 1,854 2,022 2,191 2,359 2,528 2,696 2,865 3,033 3,202 3,370 3,539 3,707 3,876 4,044

4,213

Page 32

962K Wheel Loader Specifications

Bucket Selection Charts

800kg/m

Material Density

General Purpose

Pin On

Material

Handling

700

2.70 m (3.53 yd) 3.11 m (4.07 yd) 2.70 m (3.53 yd)

2.90 m (3.79 yd) 3.34 m (4.37 yd) 2.90 m (3.79 yd)

3.10 m (4.05 yd) 3.57 m (4.67 yd) 3.10 m (4.05 yd)

3.30 m (4.32 yd) 3.80 m (4.97 yd) 3.30 m (4.32 yd)

3.40 m (4.45 yd) 3.91 m (5.11 yd) 3.40 m (4.45 yd)

3.60 m (4.71 yd) 4.14 m (5.41 yd) 3.60 m (4.71 yd)

3.80 m (4.97 yd) 4.37 m (5.72 yd) 3.80 m (4.97 yd)

2.70 m (3.53 yd) 3.11 m (4.07 yd) 2.70 m (3.53 yd)

2.90 m (3.79 yd) 3.34 m (4.37 yd) 2.90 m (3.79 yd)

3.10 m (4.05 yd) 3.57 m (4.67 yd) 3.10 m (4.05 yd)

3.30 m (4.32 yd) 3.80 m (4.97 yd) 3.30 m (4.32 yd)

3.40 m (4.45 yd) 3.91 m (5.11 yd) 3.40 m (4.45 yd)

900 1000 1100 1200 1300 1400 1500 1600 1700 1800 1900 2000 2100 2200 2300 2400

2500

High Lift Linkage

Fusion QC

General Purpose

Material

Handling

3.60 m (4.71 yd) 4.14 m (5.41 yd) 3.60 m (4.71 yd)

3.80 m (4.97 yd) 4.37 m (5.72 yd) 3.80 m (4.97 yd)

2.70 m (3.53 yd) 3.11 m (4.07 yd) 2.70 m (3.53 yd)

2.90 m (3.79 yd) 3.34 m (4.37 yd) 2.90 m (3.79 yd)

3.10 m (4.05 yd) 3.57 m (4.67 yd) 3.10 m (4.05 yd)

3.30 m (4.32 yd) 3.80 m (4.97 yd) 3.30 m (4.32 yd)

3.40 m (4.45 yd) 3.91 m (5.11 yd) 3.40 m (4.45 yd)

3.60 m (4.71 yd) 4.14 m (5.41 yd) 3.60 m (4.71 yd)

3.80 m (4.97 yd) 4.37 m (5.72 yd) 3.80 m (4.97 yd)

2.70 m (3.53 yd) 3.11 m (4.07 yd) 2.70 m (3.53 yd)

2.90 m (3.79 yd) 3.34 m (4.37 yd) 2.90 m (3.79 yd)

3.10 m (4.05 yd) 3.57 m (4.67 yd) 3.10 m (4.05 yd)

3.30 m (4.32 yd) 3.80 m (4.97 yd) 3.30 m (4.32 yd)

3.40 m (4.45 yd) 3.91 m (5.11 yd) 3.40 m (4.45 yd)

3.60 m (4.71 yd) 4.14 m (5.41 yd) 3.60 m (4.71 yd)

3.80 m (4.97 yd) 4.37 m (5.72 yd) 3.80 m (4.97 yd)

lb/ydMaterial Density

Bucket Fill Factors

115% 110% 105% 100% 95%

Note: All buckets are showing Bolt-On Edges.

Material Handling buckets are at oor buckets.

1,180

1,348

1,517 1,685 1,854 2,022 2,191 2,359 2,528 2,696 2,865 3,033 3,202 3,370 3,539 3,707 3,876 4,044

4,213

Page 33

Bucket Fill Factors

(as a % of ISO Rated Capacity)

Loose Material Performance Series Bucket

Earth/Clay

Sand and Gravel

Aggregate: 25-76 mm (1 to 3 in)

19 mm (0.75 in) and smaller

Rock

Note: Fill Factors achieved will also depend on whether the product is washed or not washed.

115

110

105

100

Change in Specifications

Width over tires verticaldimensions operatingweight statictippingload

Tires

23.5R25 VSW BS L2 Radial 2844 112 –28 –1.1 96 212 61

23.5R25 VJT BS E3/L3 Radial 2831 111 –25 –1 184 406 116 256

23.5R25 VUT BS L2 Radial 2848 112 –29 –1.1 36 79 23 51

23.5R25 VMT BS L3 Radial 2861 113 –28 –1.1 200 441 127 180 750/65R25 VLT BS E3/L3 Radial 2974 117 –1 –0.04 744 1,640 471 1,038

23.5-25 STR LD FS L3 Bias 2788 110 –5 –0.2 –224 –538 –142 –313

23.5R25 XHA2 MX L3 Radial 2820 111 0 0 0 0 0 0

23.5R25 XLDD2 MX L5 Radial 2824 111 28 1.1 608 1,340 385 849

23.5R25 XLD MX L3 Radial 2954 116 –4 –0.2 592 1,305 375 827 725/70-25 LS 150 Titan L4 Bias 2897 114 29 1.1 708 1,561 448 988

mm in mm in kg lb kg lb

Change in Change in Change in

134

Page 34

962K Standard Equipment

Standard equipment may vary. Consult your Cat dealer for details.

POWER TRAIN

Brakes, full hydraulic enclosed wet-disc withIntegrated Braking System (IBS)

Brake wear indicators Diesel Particulate Filter (DPF) Engine, Cat C7.1 with Tier 4 Interimrating Fan, radiator, electronically controlled,

hydraulically driven, temperature sensing, on demand

Fuel Management System (FMS) Fuel priming pump, (electric) Fuel/Water separator Glow plugs Guard, vandalism Precleaner, engine air intake Radiator, unit core (6fpi) with ATAAC Switch, transmission neutralizer lockout Torque converter (free wheel stator) Transmission, automatic planetary

powershift (4F/4R) Variable Shift Control (VSC)

ELECTRICAL

Alarm, back-up Alternator, 115-amp brushed Batteries, (2) maintenance free 1,400 CCA Ignition key; start/stop switch Lighting system:

– Four halogen work lights – Two halogen roading lights

(withsignals)

– Two halogen rear vision lights

(hoodmounted) Main disconnect switch Receptacle start (cables not included) Starter, electric, heavy duty Starting and charging system (24-volt)

OPERATOR ENVIRONMENT

Air conditioner, heater, and defroster (auto temp and fan)

Beverage holders (2) with storage compartment for cell phone/MP3 player

Bucket/Work tool function lockout Cab, pressurized and sound suppressed,

(ROPS/FOPS) radio ready (entertainment) includes antenna, speakers, and converter (12-volt 10-amp)

Camera, rearview Coat hook (2) EH Controls, lift and tilt function EH Parking Brake Computerized Monitoring System

– Instrumentation, gauges:

– Digital gear range indicator – DPF soot loading percent – Engine coolant temperature – Fuel level – Hydraulic oil temperature – Speedometer/Tachometer – Transmission oil temperature

– Instrumentation, warning indicators:

– Axle oil temperature – Battery voltage hi/low – Engine air lter restriction – Engine intake manifold temperature – Engine oil pressure – Fuel level and pressure hi/low – Hydraulic oil lter restriction – Hydraulic oil low – Parking brake – Primary steering oil pressure – Service brake oil pressure

– Transmission lter bypass Horn, electric Light, two dome (cab) Mirrors, rearview external

(includes spot mirrors) Post mounted membrane switch keypads Receptacle, 12-volt Seat, Cat Comfort (cloth) air suspension Seat belt, retractable, 51 mm (2") wide Steering, HMU wheel Sun visor, front Wet-arm wipers/washers front and rear

– Intermittent front wiper Window, sliding (left and right side) Viscous mounts

TIRES

A tire must be selected from the mandatory attachments section. Base machine price includes a tire allowance.

FLUIDS

Premixed 50% concentration of Extended Life Coolant with freeze protection to –34° C (–29° F)

OTHER STANDARD EQUIPMENT

Auto idle shutdown Couplings, Cat O-ring face seal Ecology drains for engine, transmission,

andhydraulics Ether aid Fenders, steel front with mud-ap/rear

withextension Filters:

– Fuel, primary/secondary – Engine air, primary/secondary – Engine oil – Hydraulic oil

– Transmission Fuel cooler Grease zerks Grill, airborne debris Hitch, drawbar with pin Hood, non-metallic power tilting

withrearclamshell Hoses, Cat XT Hydraulic oil cooler (swing out) Hydraulic system, load sensing Kickout, lift and tilt, automatic

(adjustable in cab) Linkage, optimized Z-bar Oil sampling valves Platform, window washing Product Link Remote, diagnostic pressure taps Service center (electrical and hydraulic) Sight gauges: engine coolant, hydraulic oil

and transmission oil level Toolbox Vandalism protection caplocks

Page 35

Optional equipment may vary. Consult your Cat dealer for details.

962K Optional Equipment

Power Train

– Differentials

– Open, front or rear

– Limited slip, front or rear – Extreme temperature seals – Seal guards – Axle oil cooler 2V/3V – Axle oil cooler 4V

Hydraulics arrangement, 2V with ridecontrol

Hydraulics arrangement, 3V with ridecontrol

Hydraulics arrangement, 4V with ridecontrol

Cold start/high altitude package (120V) Comfort package Work lighting package, halogen Work lighting package, HID Forestry package Industrial package Cab protection package

High lift, 2V High lift, 3V High lift, 4V Fusion coupler Fusion coupler ready, 2V Fusion coupler ready, 3V Bucket and work tool options

(contact Cat Work Tools) Lights, signal LED Product Link, satellite Control, aggregate autodig Command control 2V/3V Command control 4V Payload control system Printer, payload CNTL system Radio, AM/FM CD/MP3 player Radio, CB (ready) Radio, Satellite-XM (Bluetooth capable) Radio, Satellite-Sirus (Bluetooth capable) Steering secondary Filter, carbon fresh air

Seat belt, 76 mm (3") wide Sun visor, rear Security system, machine Cooling, high ambient Guard, power train Guard, front window Guard, complete cab Guard, front window (Logger) Autolube Fenders, narrow front Fenders, roading with fender extensions

front/rear Precleaner, HVAC Precleaner, turbine Precleaner, turbine/trash Oil change system, high speed Sound suppression (low) NACD Fan, variable pitch Antifreeze, –50° C (–58° F)

Page 36

962K Wheel Loader

For more complete information on Cat products, dealer services, and industry solutions, visit us on the web at www.cat.com

Materials and specications are subject to change without notice. Featured machines in photos may include additional equipment. See your Cat dealer for available options.

CAT, CATERPILLAR, SAFETY.CAT.COM, their respective logos, “Caterpillar Yellow” and the “Power Edge” trade dress, as well as corporate and product identity used herein, are trademarks of Caterpillar and may not be used without permission.

AEHQ6395 (10-2011)

Milton CAT 962K User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

962K Key Features and Benefits

Reliability

Durability

Productivity

Versatility

Fusion™ Quick Coupler

Operator Environment

Serviceability

Sustainability

Owning Costs

Operating Costs

962K Wheel Loader Specifications

962K Standard Equipment

962K Optional Equipment
