Miele W 404 WPS Operating instructions
Operating instructions
for Washing machine
W 404
To avoid the risk of accidents or
damage to the machine it is
essential to read these operating instructions
before it is installed or used for the
first time.
WPS
Z
M.-Nr. 05 819 571
Caring for our environment
Disposal of the packing
material
The transport and protective packing
has been selected from materials which
are environmentally friendly for disposal
and can normally be recycled.
Ensure that any plastic wrappings,
bags etc. are disposed of safely and
kept out of the reach of babies and
young children. Danger of suffocation!
Rather than just throwing these
materials away, please ensure they are
offered for recycling.
Disposal of your old appliance
Old appliances contain materials which
can be recycled. Please contact your
dealer, your local waste collection
centre or scrap merchant about
potential recycling schemes.
Ensure that the appliance presents no
danger to children while being stored
for disposal. See the appropriate
advice in the "Warning and safety
instructions".
2
Contents
Caring for our environment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Disposal of the packing material . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Disposal of your old appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Warning and safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Description of the appliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Special programmes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Delicates and Silks / programmes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Water plus system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Future updates (PC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Important control panel features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Programme selector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
dditional option buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
"Spin" button with indicator lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Before using for the first time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Washing environmentally and economically. . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Energy and water consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Detergent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Additional options (Soak, Pre-wash, Intensive) . . . . . . . . . . . . . . . . . . . . . . . . 14
When drying with a tumble dryer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
How to wash correctly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Brief instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Programme chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Before washing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Selecting a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Additional options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
At the end of a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Adding or removing laundry after a programme has started . . . . . . . . . . . . . . . . 24
Interrupting a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Altering a programme once selected . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Skipping a programme stage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
To cancel or select a different programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Programme sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
3
Contents
Detergent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Water softeners . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Washing with several components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Fabric conditioners and liquid starch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Automatic dispensing of fabric conditioner or liquid starch to laundry
at the end of a programme. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Adding fabric conditioner separately . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Adding starch separately . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Colour run and dye removers/dyes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
E-Cloth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Extra cleaning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Cleaning the detergent dispenser drawer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Cleaning the filter in the water inlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Problem solving guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
The programme does not start. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
The wash programme stops and a fault indicator light comes on. . . . . . . . . . . . . 34
A fault indicator light comes on but the wash programme continues as normal. . 35
General problems or an unsatisfactory wash result . . . . . . . . . . . . . . . . . . . . . . . 36
The drum door cannot be opened by pressing the Door button. . . . . . . . . . . . . . 38
Opening the drum door in the event of a blocked drain outlet and/
or power failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Blocked drain outlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Opening the drum door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Customer contact . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
4
Contents
Installation and connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

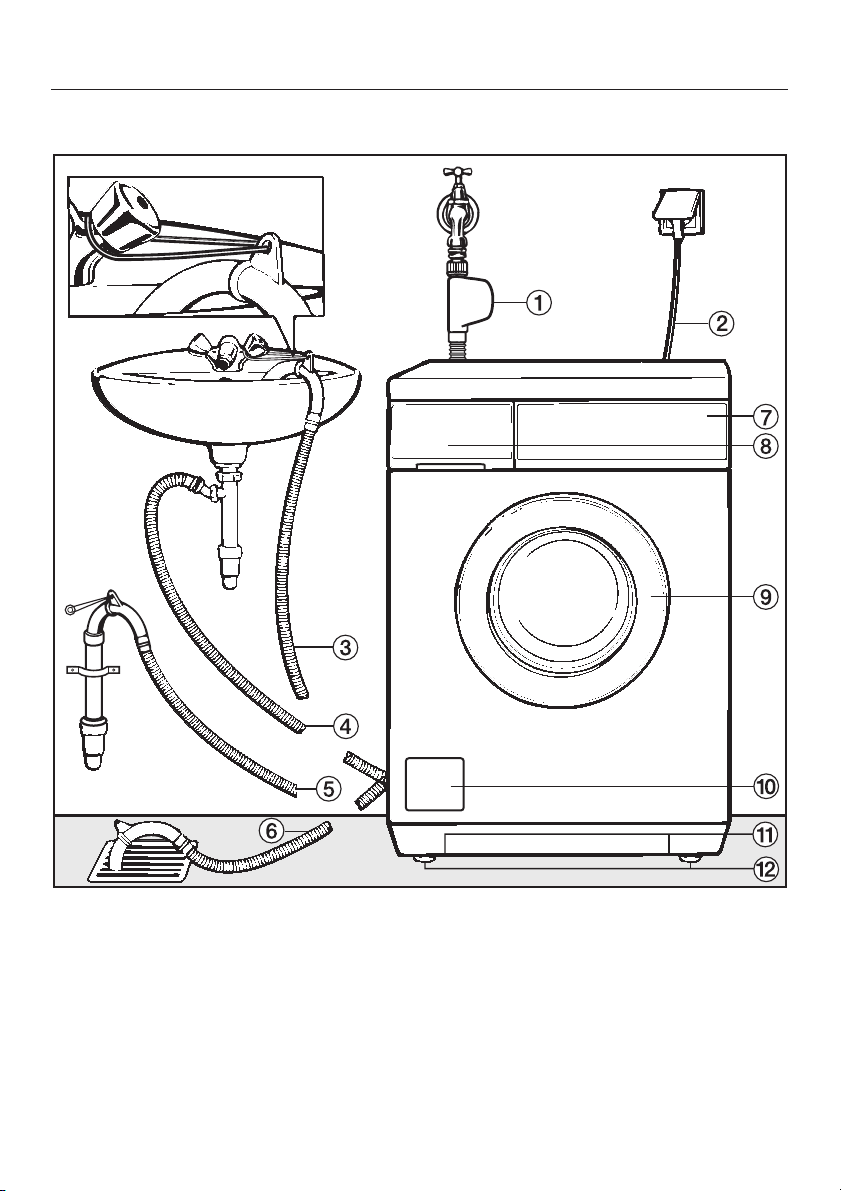

Front view. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

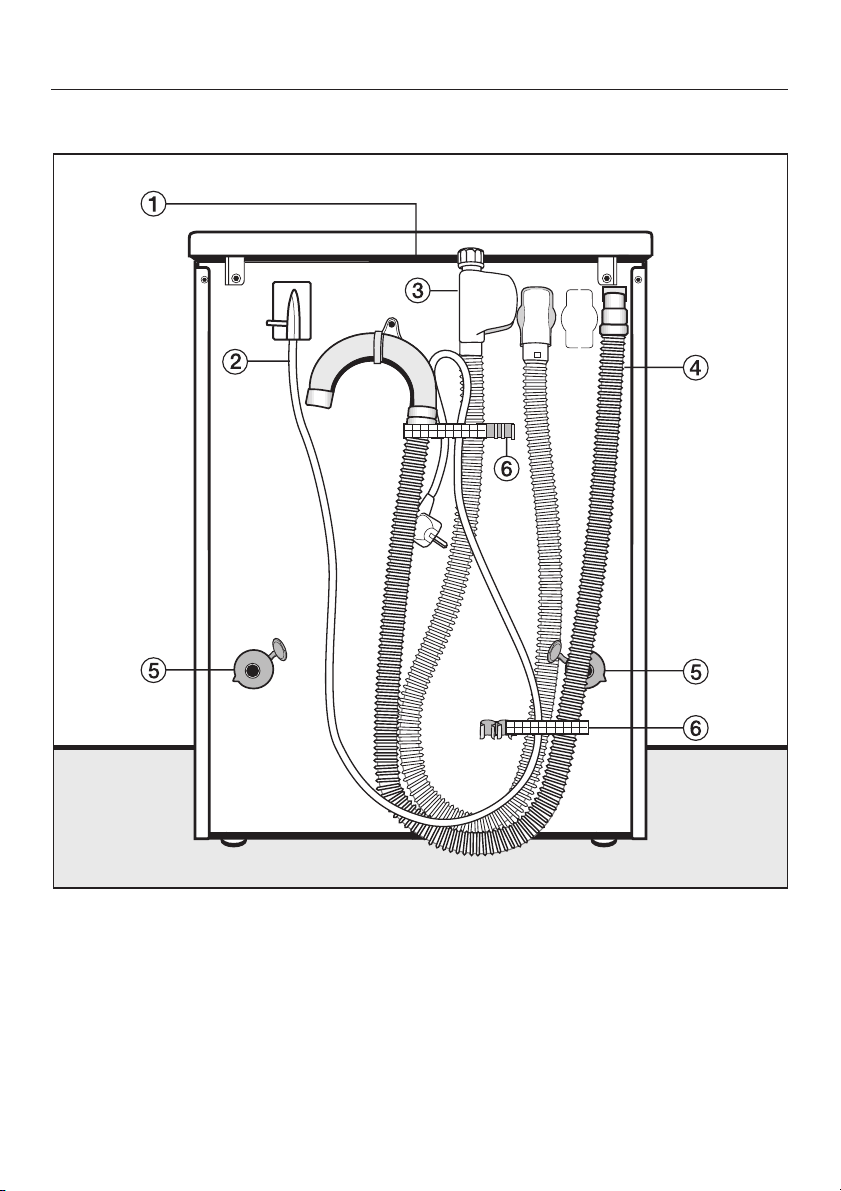

Rear view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Installation surface. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Installing the washing machine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

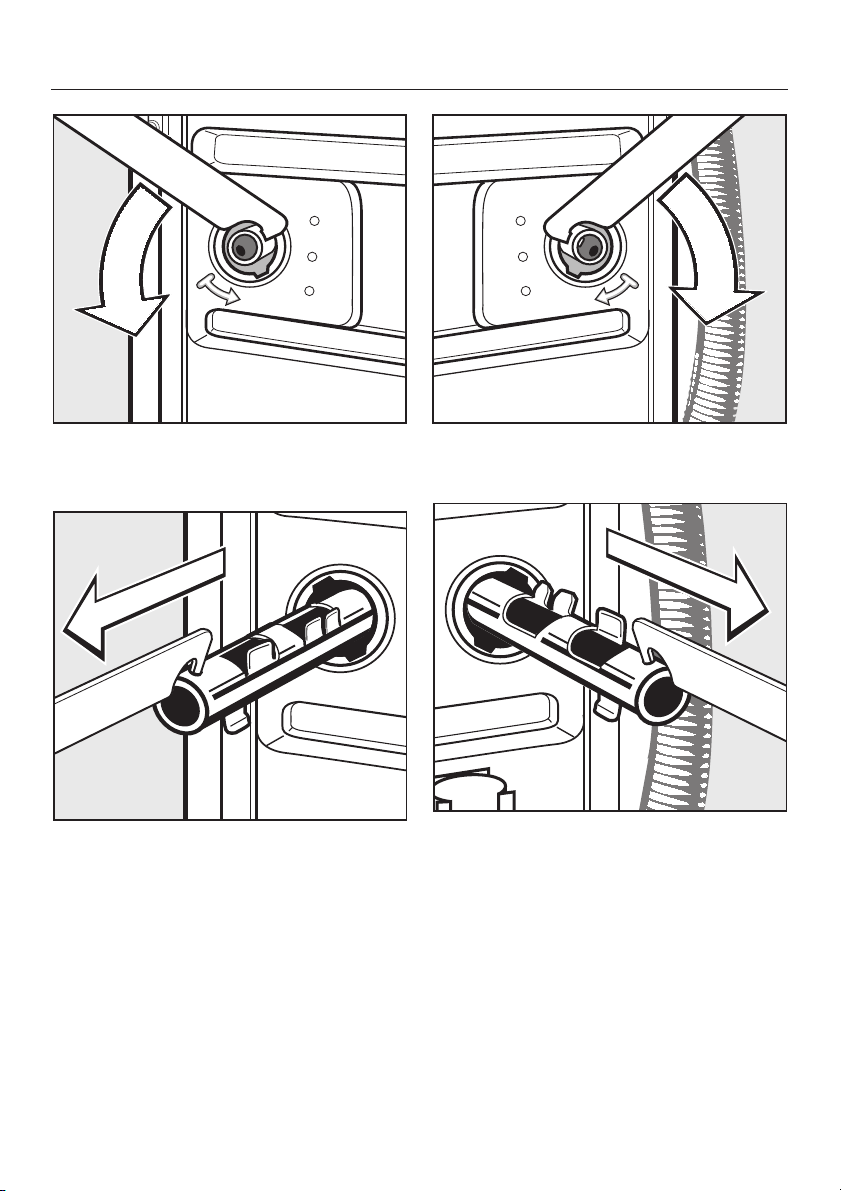

Removing the transit fittings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Re-fitting the transit bars . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Levelling the machine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Screwing out and adjusting the feet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Building under a continuous worktop/in a kitchen run . . . . . . . . . . . . . . . . . . . 48
Washer and Dryer stack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
The Miele Waterproof system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Connection to the water supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Connection to the drainage system. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Electrical connection U.K. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Consumption data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Note for test institutes: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Programmable functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Water plus system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Gentle action . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Top-up rinse for COTTONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Memory function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Soak . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
5
Warning and safety instructions
supply. If in any doubt, consult a
Read the operating instructions be
fore using this machine for the first
time. They contain important infor
mation about the safety, use and
maintenance of the machine. This
way you will avoid the risk of acci
dents and damage to the machine.
Keep these operating instructions in
a safe place and ensure that new
users are familiar with the content.
Pass them on to any future owner of
the machine.
Correct usage
Only use the washing machine to
wash items which are specified by
the manufacturer to be machine-washable on the wash-care label, and
textiles composed of hand-washable
wool or wool blend fabrics as well as
satin, lace, silk and other
hand-washable garments.
Any other applications may be
dangerous. The manufacturer is not
liable for damage resulting from
improper use or operation.
This appliance should not be
operated by children. Supervise its
use by the elderly or infirm.
Technical safety
-
qualified electrician.
when continuity is complete between
-
the machine and an effective earthing
system which complies with local and
national regulations. It is most important
that this basic safety requirement is
present and regularly tested and where
there is any doubt the household wiring
system should be inspected by a
qualified electrician.
The manufacturer cannot be held liable
for the consequences of an inadequate
earthing system (e.g. electric shock).
extension lead. Extension leads do not
guarantee the required safety of the
appliance (e.g. danger of overheating).
Unauthorised repairs could result in
unforeseen dangers for the user, for
which the manufacturer cannot accept
liability. Repairs should only be
undertaken by a Miele approved
engineer.
Ensure current is not supplied to the
appliance while maintenance or repair
work is being carried out.
The electrical safety of this
appliance can only be guaranteed
Do not connect the appliance to
the mains electricity supply by an
The machine is built in accordance
with current safety requirements.
Before setting up the machine,
check it for any externally visible
damage. Do not install and use a
damaged machine.
Before connecting the machine,
ensure that the connection data on
the data plate (fusing, voltage and
frequency) match the mains electricity
6
The machine is only completely
isolated from the electricity supply
when:
–
it is switched off at the wall socket
and the plug is withdrawn, or
–
it is switched off at the mains, or
–
the mains fuse is withdrawn.
Warning and safety instructions

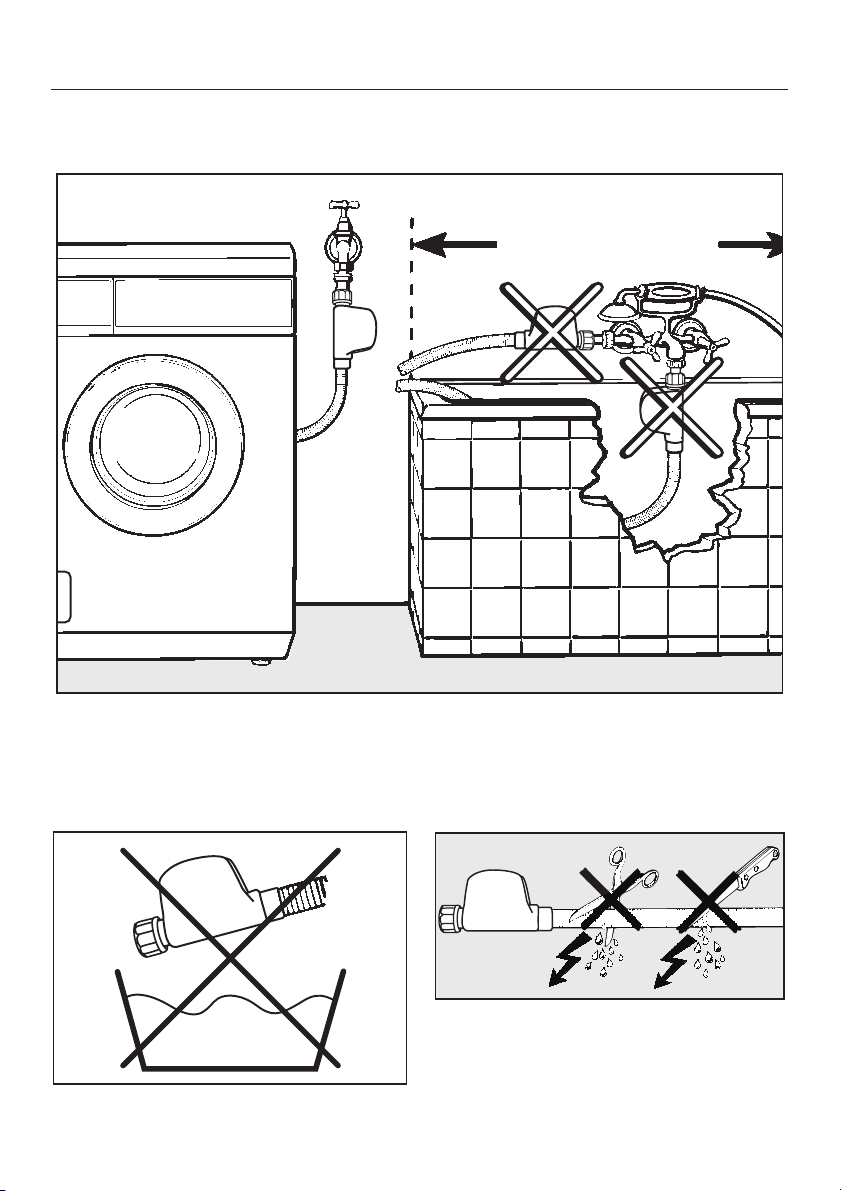

The Miele "Waterproof system"
protects from water damage
provided the following conditions have
been met:
the machine is correctly plumbed in
–
and connected to the electricity
supply.
if a fault has been identified, the
–
machine must be examined by a
competent person before further use,
and repaired if necessary.
Faulty components must only be
replaced by genuine Miele original
spare parts. Only when these parts are
fitted can the safety standards of the
machine be guaranteed.
If the connection cable is faulty it
must only be replaced by a Miele
approved service technician to protect
the user from danger.
In countries where there are areas
which may be subject to infestation
by cockroaches or other vermin, pay
particular attention to keeping the
appliance and its surroundings in a
clean condition at all times. Any
damage which may be caused by
cockroaches or other vermin will not be
covered by the appliance guarantee.
Use
This equipment is not designed for
maritime use or for use in mobile
installations such as caravans, aircraft
etc. However it may be suitable for
such usage subject to a risk
assessment of the installation being
carried out by a suitably qualified
engineer.
Do not install your washing
machine in rooms where
temperatures below freezing may
occur. Frozen hoses may burst under
pressure. The reliability of the electronic
control unit may be impaired at
temperatures below freezing point.
Before using the machine for the
first time, check that the transit
fitting at the rear of the machine has
been removed (see section on
"Installation"). During spinning, a transit
fitting which is still in place may result in
damage to both the machine and
adjacent furniture or appliances.
Turn off the stopcock if the
machine is to be left for any length
of time (e.g. holiday), especially if there
is no floor drain (gully) in the immediate
vicinity.
Flooding danger
If hooking the drain hose into a
wash basin, check that the water can
drain off quickly enough to prevent the
sink from overflowing.
Make sure the drain hose is secure, so
that the force of the water flowing out of
the hose does not dislodge it.
Otherwise this will result in flooding.
Take care to ensure that foreign
objects (e.g. nails, pins, coins,
paper clips) do not find their way into
the machine with the washing. These
may damage components of the
machine (e.g. suds container, drum),
which in turn can result in damage to
the washing.
7
Warning and safety instructions
If the correct amount of detergent
is dispensed, the machine should
not need to be descaled. If, however,
you do wish to descale the machine
only use proprietary non-corrosive
descaling agents and strictly observe
the instructions on the packaging. If in
doubt, contact the Miele Customer Ser
vice Dept. or your Miele Dealer.
Textiles which have been
pre-treated in solvent based
cleaning agents must be thoroughly
rinsed in clean water before being
washed in the machine.
Never use solvent based cleaning
agents in this machine, as this may
result in damage to component parts
and create toxic fumes. Such
detergents also pose a fire and
explosion hazard.
Only use dyes specified by the
manufacturer as being suitable for
use in a domestic washing machine.
Always observe the manufacturer's
instructions carefully.
Colour run and dye removers
contain sulphur compounds which
can cause damage such as corrosion.
Do not use these products in this
machine.
For machines with a ‘porthole’
door, remember that the porthole
glass will be hot when washing at very
high temperatures. Do not let children
touch it.
Always make sure the drum is
-
stationary before reaching in to
remove washing. Reaching into a
moving drum is extremely dangerous.
Accessories
Accessory parts may only be fitted
when expressly approved by Miele.
If other parts are used, guarantee,
performance and product liability
claims will be invalidated.
Disposal of your old machine
Before discarding an old machine,
unplug it. Render the plug useless.
Cut off the cable directly behind the
appliance to prevent misuse. This
should be done by a competent
person.
The manufacturer cannot be held
liable for damage caused by
non-compliance with these Warning
and Safety instructions.
8
Description of the appliance
Special programmes
Programme for hand-washable
–
fabrics (Silks /)
Hand-washable fabrics which crease
easily and do not contain wool can
be washed in the Silks /
programme (30°C temperature only).
Programme for hand-washable
–
fabrics (WOOLLENS /)
Hand-washable or
machine-washable wool or wool
blend fabrics can be washed in the
WOOLLENS / programme. If the
garment care label does not specify
a temperature, wash using the cold
setting.
– Programme for small loads
(Quick wash)
This is a Cottons programme for very
lightly soiled fabrics.
– Programme for mixed fabrics
(Mixed wash)
Delicates and Silks / programmes
In these programmes, the laundry is
washed and spun very gently to reduce
creasing and the amount of ironing
required, thus providing "Easy care" for
your laundry.
Water plus system
The water level for washing and/or
rinsing is increased. For COTTONS and
MINIMUM IRON programmes an
additional rinse can also be selected.
Suitable for small loads of garments
made from man-made fibres and
cotton garments which can be
washed together. Sort according to
colour.
–
Rinse programme (Separate rinse)
Articles are only rinsed and spun in
the machine.
9
Description of the appliance
Future updates (PC)
The indicator or check light marked PC
allows a service engineer to update
your machine in future years.
When, for example, new programmes
are developed or new fabrics are
introduced, a service engineer will be
able to modify existing programme
cycles accordingly.
Miele will provide information when
such possibilities become available.
10
Control panel
Description of the appliance
a START button
starts the wash programme
b Additional option buttons
Additional options can be added to
the basic programme.
Use the top button to select either
the
Intensive,Pre-wash
option or a combination of these
options.
Use the lower button to select the
Water plus
Indicator light on = option selected
Indicator light off = option not
c Indicator lights for spin speed,
Rinse hold or Without spin
d Spin button
for selecting the final spin speed,
option.
, or
Soak
selected
Rinse holdorWithout spin
e Programme selector
for selecting the wash programme
and temperature for that programme.
The programme selector can be
turned clockwise or anti-clockwise
f Programme sequence indicator
lights
show which section of the wash
programme has been reached
g Check lights
h I-On/0-Off button
for switching the machine on or off
or interrupting a programme
i Door button
opens the machine door
11
Description of the appliance
Important control panel
features
Programme selector
The programme selector is used to set
the basic wash programme and the
temperature for that programme.
dditional option buttons
Additional options can be added to the
basic programme.
Use the top button to select either the
Intensive
option or a combination of these
options.
Use the lower button to select the Water
plus option.
The indicator light will come on to show
that the additional option has been
selected. If an additional option is
chosen, which is incompatible with the
basic programme, it cannot be
selected.
"Spin" button with indicator lights
The maximum spin speed which can be
selected depends on the basic
programme chosen.
Maximum
spin
speed
, the
Pre-wash
1200 COTTONS, Quick wash, Starch,
Drain/spin, WOOLLENS, Separate
rinse
900 MINIMUM IRON, Mixed wash
600 DELICATES
400 Silks
or the
Soak
Basic programme
Select the spin speed.
Press the "Spin" button to select a
different spin speed. However, you
cannot select a spin speed higher than
the maximum allowed for the basic
wash programme chosen.
The indicator lights show the speed
selected.
You can also omit the final spin
Press the "Spin" button to reach:
^
Rinse hold
–
The laundry is not spun and remains
suspended in the final rinse water.
This reduces creasing if the laundry
is not going to be removed from the
drum immediately after the end of
the programme.
To continue the programme select a
spin speed. When the programme is
finished the
Anti-crease/Finish
light
will come on. Turn the programme
selector to the
press the
Finish
door
button to open the
position and
door and remove the laundry.
–
Without spin
The laundry is not spun after the final
rinse. After the water has been
drained away the machine goes
straight into the anti-crease stage.
Spinning between the rinses is also
omitted in this setting (rinse and
interim spin).
12
Before using the machine for the first
time ensure that it is correctly
installed and connected. See the
relevant section under "Installation".
Also check that the fluff filter is
securely tightened. Otherwise there
is a risk of water leakage during use.
For safety reasons spinning is not
possible until the machine has been
prepared for using for the first time. To
activate the spinning function you must
run a wash programme without laundry
and without detergent.
Using detergent could result in an
excessive build-up of foam.
This also activates the ball valve. The
ball valve prevents detergent escaping
from the suds container into the sump
during a wash programme, thus making
maximum use of the detergent.
Before using for the first time
^ Turn on the stopcock.
^
Press the I-ON/0-OFF button in.
^
Turn the programme selector to
COTTONS 40°C.
^
Press the "Spin" button repeatedly to
select
^
Press START.
When this programme has finished turn
the programme selector to
washing machine is ready for using for
the first time.
Without spin
.
Finish
. Your
13
Washing environmentally and economically
Energy and water consumption
Water consumption and energy
–
usage are determined by the size of
the load.
Use the
–
wash
amounts of laundry.
When smaller amounts of laundry are
–
washed in the COTTONS
programmes, the automatic load
recognition system will reduce the
amount of water, time and energy
used. This may mean that the
programme duration alters during the
course of the wash programme.
– Instead of the COTTONS 95°C
programme, use the COTTONS 60°C
programme together with the
Intensive
give an energy saving of between
35% and 45%. The programme
duration will be longer. This
combination is sufficient for most
levels of soiling. For stubborn or old
stains, use the
Mixed wash
programme for smaller
additional option. This will
Soak
or the
option.
Quick
Detergent
Do not exceed the amounts of
–
detergent which may be
recommended by the manufacturer
on the packaging.
Reduce the amount of detergent with
–
smaller loads (approx.
the amount recommended can be
used when washing a half load).
Additional options (Soak, Pre-wash,
Intensive)
Select:
a wash programme without any
additional options for light to normal
soiling where there are no obvious
marks.
a wash programme together with the
Intensive
soiled laundry with visible staining.
– Use the additional option
instead of
followed immediately by a main wash
the same suds are used.
option for normal to heavily
Pre-wash
1
/3less than
Soak
. If Soak is
14
When drying with a tumble dryer
–
Selecting the highest possible spin
speed for the wash programme will
save energy when drying in a tumble
dryer afterwards.
How to wash correctly
Brief instructions
Please note:
To help familiarise yourself with how to
use your washing machine please read
the sections "Before washing",
"Selecting a programme" and "At the
end of a programme" in detail.
A Sort the laundry into colours and
fabric types
Selecting a programme:
B Switch on the washing machine
C Open the drum door
D Load the drum
E Close the drum door
F Select a programme
G Select a spin speed
H Select any additional option required
I Add detergent
See the "Programme chart" in the next
section for information on which
programmes to use for different fabric
types.
J Press the START button
At the end of a programme:
K Open the drum door
L Remove the laundry
M Switch off the washing machine
N Turn the programme selector to the
Finish
position
O Close the drum door
15
How to wash correctly
Programme chart
COTTONS 9ö876
Fabric Cottons and linen fabrics, e.g. bed linen, table linen,
towelling, jeans, underwear, T-shirts, nappies.
Additional options Soak, Pre-wash, Intensive, Water plus
Notes
Detergent Powder detergent, detergent for coloured fabrics, liquid
Max. load 5 kg
Note for test institutes:
For testing in accordance with EN 60456 you must use the
MINIMUM IRON 4321876
Fabric White nylon (60°C), white polyester fabrics (50°C), coloured
Additional options Soak, Pre-wash, Intensive, Water plus
Notes
Only use the COTTONS 95°C programme for heavily
–
soiled and incontinent laundry.
For heavy soiling where staining is visible, use the
–
Intensive
For laundry with stubborn soiling or soiling which has
–
been left untreated for a while, select both the
and
For laundry with large amounts of dirt (e.g. dust, sand)
–
use the
– For dark coloured fabrics use a detergent for coloured
fabrics, or liquid detergent.
detergent, tablet detergent and liquid tab detergent. See
also "Detergent" section.
nylon, polyester, cotton and viscose fabrics with special
finishes, acrylic, cotton fabrics coloured polyester/cotton
fabrics, (40°/30°C) minimum iron fabrics not washable at
higher temperatures.
–
For heavy soiling where staining is visible, use the
Intensive
additional option.
Soak
options.
Pre-wash
additional option.
additional option.
Intensive
Intensive
option.
Detergent Powder detergent, detergent for coloured fabrics, liquid
detergent, detergent for delicates. See also "Detergent" section.
Max. load 2.5 kg
Note for test institutes:
For testing in accordance with EN 60456 you must use the
16
Intensive
option.
How to wash correctly
DELICATES 21 + COLD
Fabric Acrylics, acetate and triacetate, 100% cotton easy care
shirts and blouses.
Curtains, specified machine-washable by the manufacturer.
Additional options Soak, Pre-wash, Intensive
Notes
Detergent Detergent for delicates (mainly liquids). See also "Detergent"
Max. load 1 kg
Silks /c
Fabric Hand-washable fabrics with no wool content, e.g. satin, lace
Additional options Water plus
Notes – Laundry remains relatively crease-free for easier ironing.
Detergent Detergent for delicates (mainly liquids). See also "Detergent"
Max. load 1 kg
WOOLLENS /ac + COLD
Fabric Machine-washable or hand-washable wool or wool blend
Detergent Liquid detergent for machine washable woollens. See also
Max. load 2 kg
For heavy soiling where staining is visible, use the
–
Intensive
Laundry remains relatively crease-free for easier ironing.
–
Dust in curtains usually makes using a programme with
–
Pre-wash advisable
For curtains made from delicate fabrics, reduce the spin
–
speed or select Without spin.
section.
and silk.
– Place socks, tights, bras etc. in a washing bag.
section.
fabrics. If the care label does not specify a temperature
wash using the cold setting. Please note that hand
washable garments will not shrink, stretch, matt or felt
beyond the accepted tolerance of that item.
"Detergent" section.
additional option.
.
17
How to wash correctly
Quick wash 7
Fabric Very lightly soiled fabrics, which can be washed in the
Cottons programme.
Additional option Water plus
Notes
Detergent Powder detergent, detergent for coloured fabrics, liquid
Max. load 2.5 kg
Mixed wash 72
Fabric Small loads of garments made from man-made fibres and
Additional option Soak, Pre-wash, Intensive, Water plus
Notes – For heavy soiling where staining is visible, use the
Detergent Powder detergent, detergent for coloured fabrics, liquid
Max. load 3 kg
Starch
Fabric Table cloths, napkins, overalls, aprons.
Notes
Max. load 5 kg
Separate rinse
Fabric Articles which have been washed by hand and only need to
Max. load 5 kg
Drain / Spin
Notes
Max. load 5 kg
Use less detergent (as for a half load).
–
If fabrics have a high proportion of man-made fibres it is
–
advisable to programme the machine for "Gentle Action".
See "Programmable functions". Note that this programme
is not suitable for delicate items.
detergent.
cotton garments which can be washed together. Sort
according to colour.
Intensive
– If fabrics have a high proportion of man-made fibres it is
advisable to programme the machine for "Gentle Action".
See "Programmable functions".
detergent.
–
The laundry should be washed but not treated with fabric
conditioner.
be rinsed and spun in the machine.
–
Drain only: Select
additional option.
Without spin
. Do not use for Woollens.
18
Before washing
A Sort the laundry
^ Empty all pockets.
,Foreign objects (e.g. nails,
coins, paper clips, etc.) can cause
damage to garments and
components in the machine.
^ Badly soiled areas, e.g. collars and
cuffs, and water soluble stains can
be pre-treated with bar soap, liquid
detergent or detergent mixed into a
solution or paste.
With particularly stubborn stains ask
your dry cleaner for advice.
How to wash correctly
Do not use solvent-based
,
cleaning agents in this machine.
Sort the laundry by colour and by
^
care label symbol. Most garments
have a textile care label in the collar
or side seam.
Dark textiles often contain excess dye
and should be washed separately
several times before being washed
together with other garments. Always
wash whites and coloureds separately.
Delicate textiles should be washed
separately in a delicates programme
(use a washing bag where
appropriate).
– Curtains:
Remove lead weights and strips or
place in a laundry bag.
– Underwiring and collar stiffeners:
Any loose wiring in bras, shirt collar
stiffeners, etc. should be removed or
sewn in.
–
Knitted garments, trousers and
jeans, T-shirts and sweat shirts:
Turn inside out, if recommended by
the manufacturer.
–
Close any zips, fasten hooks and
eyes etc before washing.
–
Fasten duvet covers to prevent
smaller items rolling up inside them.
,
Do not wash any items in this
machine which are specified by the
manufacturer as non-machine
washable on the care label. (h
symbol)
19
How to wash correctly
Selecting a programme
B Switch on the washing machine
Press in the I-ON/0-OFF button.
^
C Open the drum door
Press the
^
drum door.
D Load the drum
Unfold the laundry and load loosely
^
in the drum. To achieve best results it
is advisable to make up mixed loads
consisting of both large and small
items. This improves the washing
effect and helps distribute the load
evenly to keep the machine stable
and reduce the noise level during
spinning.
To save energy and water try to load
the maximum amount for the
programme selected.
However, be careful not to overload the
machine. Overloading reduces the
wash result and causes more creasing.
Door
button and open the
F Select a programme
^ Turn the programme selector to the
required programme.
G Select a spin speed
E Close the drum door with a gentle
swing.
Make sure that no garments are caught
between the drum door and seal.
20
^
Press the "Spin" button repeatedly
until the indicator light for the spin
speed you want comes on.
In some programmes the maximum
spin speed is limited. The machine will
not allow a higher spin speed to be
selected.
Loading...
