Operating Instructions
Vented Dryer
T 1515
To prevent accidents and machine damage read these instructions before installation or use.
U
M.-Nr. 05 275 060
Contents
IMPORTANT SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Quick Guide
Guide to the dryer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Before loading the dryer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Using the dryer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 1. Turn on the dryer and load the laundry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 2. Select a program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 3. Select the Buzzer to signal the end of the program (if desired) . . . . . . . . . . . . . 9 4. Select the load size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Programs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Using the dryer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 4. Start the program. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 5. At the end of a program. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Dryer care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Cleaning the lint filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Changing the light bulb . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Power failure - Emergency door release . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Frequently asked questions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
After Sales service. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Installation instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
2
IMPORTANT SAFETY INSTRUCTIONS
,WARNING - To reduce the risk of fire, electric shock, or injury to persons when using your appliance, follow basic precautions, including the following:
Read all instructions before using the appliance.
Do not dry articles that have been previously cleaned, washed,
soaked in, or spotted with gasoline, dry-cleaning solvents, or other flammable or explosive substances. They give off vapors that could ignite or explode.
Do not allow children to play on or in the appliance. Close supervision
is necessary when the appliance is used near children. Always close the door after use to prevent child hazards.
Before this appliance is removed from service or discarded remove
the door to the drying compartment.
Do not reach into the dryer if the drum is moving.
Do not install or store this appliance where it will be exposed to
the weather.
Do not tamper with the controls.
Do not use fabric softeners or products to eliminate static in the
dryer. Best results occur when a liquid softener is used in the washing machine.
Do not use heat to dry articles containing foam rubber or similarly tex-
tured rubber-like materials.
–Items containing, hairspray, nail polish remover or similar substances.
Clean the lint filter before or after each load.
Keep the area around the air intake (toekick) and adjacent surrounding
areas free from lint, dust and dirt.
The interior of the machine and exhaust duct should be cleaned peri-
odically by qualified personnel.
Do not place items exposed to oils in your dryer. Items contaminated
with oils may contribute to a chemical reaction that could cause the laundry to catch fire.
This dryer is intended for residential use only!
3
IMPORTANT SAFETY INSTRUCTIONS
Do not repair or replace any part of the appliance or attempt any ser-
vicing unless specifically recommended in these Operating Instructions. Repairs to electrical appliances should only be performed by qualified personnel. Incorrectly repaired machines may pose a considerable risk to the user.
GROUNDING INSTRUCTIONS This appliance must be grounded.
In the event of malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. This appliance is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.
WARNING – Improper connection of the equipment-grounding con-
ductor can result in a risk of electric shock. Check with a qualified electrician or service representative or personnel if you are in doubt as to whether the appliance is properly grounded.
Do not modify the plug provided with the appliance: if it will not fit
the outlet, have a proper outlet installed by a qualified electrician.
SAVE THESE INSTRUCTIONS
4
Guide to the dryer
1 Supply cable with plug
2 Control panel
3 Drum door
4 Exhaust connection (right, left or rear)
5 Four height-adjustable legs
5
Guide to the dryer
Pushbuttons
–Door
Opens the door or can be used to cancel a program
(does not stay pushed in).
–ON / OFF
Turns the machine on and off or cancels a program. When the macnine is turned on, the "On" indicator will light up if the door is closed. If the door is open, the drum interior light will be on.
–Buzzer
Allows the buzzer to sound as the drum rotates during the anti-crease cycle.
–Load size - Full / Half
To dry a standard size load or more at peak efficiency, press this button before starting the drying cycle.
–Start
Starts the selected program (does not stay pushed in).
Indicator lamps
–PROGRAM SEQUENCE
The program sequence indicator lamps show the current state of the drying program.
–DRYING STAGE REACHED
These indicators show which drying stage the program has reached. For program stages "Normal" and "Extra dry" the indicator remains at the "Normal" position.
PROGRAM SETTING-SELECTOR
Set the desired program by turning the knob either clockwise or counterclockwise.
–COTTONS
–PERMANENT PRESS
–TIMED DRYING
Items can be either dried for 20 minutes (incl. a cooling-down phase) or cool air fluffed for 15 minutes.
6
Before loading the dryer
The appliance must be correctly installed and connected before the first use. Please see the "Installation instructions".
^Check the dryer drum for any residue that may have deposited during the manufacturing process. If necessary clean out with a cloth.
Before drying, check fabric care labels for special drying instructions.
q = Dry with normal temperature
r= Dry with low temperature (select "Gentle" option)
s = do not dry in tumble dryer
If no symbol is present:
Dry cottons and permanent press laundry in their corresponding programs.
Dry delicate fabrics like polyester, in one of the "PERMANENT PRESS" programs.
Wool, wool blends, linen and down filled items should not be machine dried.
Drying tips
Knitted fabrics and flannel tend to shrink when washed and dried for the first time. Do not over dry these fabrics.
Permanent press and delicate fabrics tend to crease.
For better drying results reduce the load size and select the "PERMANENT PRESS/Hand iron" program.
To prevent discoloration, do not dry new dark-colored fabrics with light-col- ored items.
Do not overload the drum! Overloading the dryer will result in poor drying and wrinkling.
Close zippers and tie up fabric belts and apron ties.
Do not dry items that may melt or ignite in the dryer such as plastics, rubber or sneakers.
7
Using the dryer
1. Turn on the dryer and load the laundry

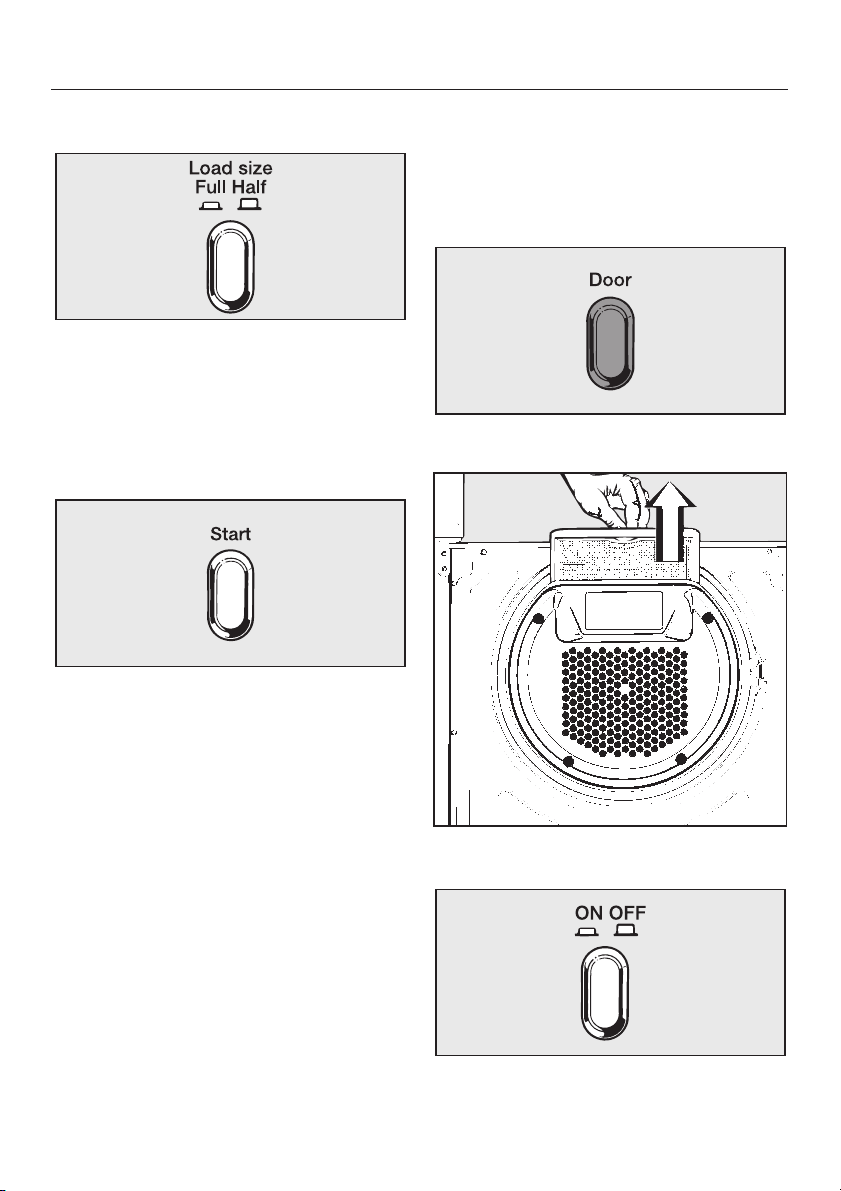

^Press the "On/Off" button to turn on the dryer.
^Press the "Door" button to open the door.
^Load the laundry loosely into the drum.
^Close the door with a firm swing - do not push it shut.
Do not use fabric softener sheets in this dryer. Silicates contained in these sheets could cause the dryer to overheat.
To prevent fabric damage, check that laundry will not be caught in the closed door.
8
|
|
|
Using the dryer |
|
|
|
|
2. Select a program |
3. Select the Buzzer to signal |
||
|
|
the end of the program |
|
|
|
||
|
|
(if desired) |
|
|
|
|
|
|
|
|
|
^Turn the program selector clockwise or counterclockwise to the desired program.
Please refer to the "Programs" chart.
The program status will be stored for 30 minutes in the event of a power failure.
^ Press the "Buzzer" button.
4. Select the load size
^Press the "Load size" button in for a full load.
Press the "Load size" button out for a small load.
9
Programs
Program |
|
Fabric |
Note |
COTTONS |
|
|
|
Extra dry |
|
For drying laundry that will be |
The "Extra dry" program should |
|
|
stored away, such as linens or |
not be selected for jersey mate- |
|
|
seasonal clothing. |
rials. Items may shrink. |
Normal |
|
Uniform loads of cotton e.g. |
– |
|
|
sheets, underwear, socks. |
|
Normal- |
|
Knitted cotton fabrics that may |
If items are still damp, redry us- |
|
|
shrink, e.g. jersey material or |
ing "Normal+". |
|
|
lightweight cottons. |
|
Hand iron r |
|
Cotton or linen fabrics to be |
– |
Hand iron rr |
|
left damp for easier ironing. |
If fabrics are too damp for iron- |
|
|
|
ing, redry using "Hand iron r". |
Machine iron |
|
Cotton or linen fabrics, which |
To prevent moisture loss, roll up |
|
|
will be ironed with a rotary iron. |
the laundry until ironing. |
PERMANENT PRESS |
|
||
Normal+ |
|
Permanent press items. |
|
Normal |
|
Permanent press and blended |
|
|
|
fabrics made of blended |
|
|
|
woven or knitted fabrics, e.g. |
|
|
|
cotton/synthetic. |
|
Hand iron |
|
Permanent press and blended |
Reduce load size for fabrics that |
|
|
fabrics, requiring an ironed |
wrinkle easily. |
|
|
finish. |
|
TIMED DRYING |
|
|
|
20 mins. |
|
Individual items or very small |
– |
warm |
|
loads. |
|
15 mins. |
|
Individual items to be fresh- |
– |
cool air |
|
ened and fluffed with cool air. |
|
10
|
|
Using the dryer |
|
|
|
5. Start the program |
6. At the end of a program |
|
|
|
The "Anti-crease/Finish" indicator will |
|
|
|
|
|
light at the end of a program. |
|
|
^ Turn the program selector to "Finish". |
|
|
|
^ Press the "START" button.
^ Press the "Door" button to open the door.
^ Remove the laundry.
^ Check that the drum is empty.
^ Clean the lint filter after each use (see "Cleaning and care".)
^ Press the "On/Off" button to turn off the dryer.
