Miele Scout RX2, SLQL0 Operating instructions
en Operating Instructions Robot Vacuum Cleaner
fr Mode d'emploi Aspirateur-robot
HS18
M.-Nr. 10 783 332
en ....................................................................................................................... 4
fr ......................................................................................................................... 37
2
en - Contents
IMPORTANT SAFETY INSTRUCTIONS ................................................................ 4
Appliance overview ............................................................................................. 10
Caring for the environment ................................................................................12
Functions and features of the robot vacuum cleaner...................................... 13
Included accessories .......................................................................................... 13
Preparing for use.................................................................................................13
Use........................................................................................................................15
Scout RX2 App..................................................................................................... 20
Maintenance ........................................................................................................22
Purchasing accessories ........................................................................................ 22
Ordering the correct accessories.......................................................................... 22
Emptying the dust box .......................................................................................... 22
Cleaning the dust box ........................................................................................... 23
Cleaning the exhaust filter..................................................................................... 23
Cleaning the side brushes..................................................................................... 23
Cleaning the roller brush ....................................................................................... 24
Cleaning the dust box seals.................................................................................. 25
Replacing the dust box seal unit........................................................................... 25
Cleaning the front wheel........................................................................................ 26
Cleaning the sensors............................................................................................. 26
Changing the batteries in the remote control........................................................ 26
Replacing the rechargeable battery ...................................................................... 26
Storage................................................................................................................. 28
Cleaning and care ...............................................................................................28
After sales service............................................................................................... 28
Contact in case of fault ......................................................................................... 28
Warranty................................................................................................................ 28
Frequently Asked Questions .............................................................................. 29
Fault messages.................................................................................................... 32
Copyright and licenses ....................................................................................... 34
Limited Warranty - Vacuum Cleaners USA .......................................................35
3
en - IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE
This robot vacuum cleaner complies with all current local and national safety requirements. Inappropriate use can, however, lead to
personal injury and damage to property.
Please read the operating instructions before using the robot vacuum cleaner for the first time. They contain important information
on the safety, use, and maintenance of the robot vacuum cleaner.
This prevents both personal injury and damage to the appliance.
Keep these operating instructions in a safe place and pass them
on to any future user.
Switch the robot vacuum cleaner off before any maintenance work
and cleaning or if it is not going to be used for a longer period of
time. It should also be switched off when dealing with problems.
To do so, slide the switch I/0 on the side of the robot vacuum
cleaner to the 0 position. The same should be done if you notice
any unusual behavior with your robot vacuum cleaner.
Correct use
This robot vacuum cleaner is intended for cleaning flooring in do-
mestic households and similar working and residential environments.
The robot vacuum cleaner is not intended for outdoor use.
The robot vacuum cleaner must only be used for domestic house-
hold purposes to vacuum dry floor surfaces. Any other usage, modification or alteration is not supported by the manufacturer and could
be dangerous.
Persons which lack physical, sensory or mental abilities or experi-
ence with the machine should not use it without supervision or instruction by a responsible person.
4
en - IMPORTANT SAFETY INSTRUCTIONS
Safety with children
Danger of suffocation! Ensure that any plastic wrappings, bags,
etc. are disposed of safely and kept out of the reach of children.
Children must be kept away from the robot vacuum cleaner unless
they are constantly supervised.
Please supervise children in the vicinity of the robot vacuum
cleaner and do not let them play with it.
Keep the rechargeable battery and the batteries for the remote
control out of the reach of children.
WARNING To reduce the risk of fire, electric shock or injury:
Check the voltage rating of the vacuum cleaner before connecting
the power cord to an electrical outlet. Your power source should correspond with the voltage rating plate located on the underside of the
vacuum. Use only household AC outlets. Never use DC power
sources. If you are not sure of your home’s voltage supply, consult a
qualified electrician. Connecting the vacuum cleaner to a higher voltage than indicated in these instructions may result in damage to the
vacuum cleaner or injury.
To reduce the risk of electric shock, this appliance has a polarized
plug (one blade is wider than the other.) This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to
install the proper outlet. Do not alter the plug in any way.
5
en - IMPORTANT SAFETY INSTRUCTIONS
Technical safety
The robot vacuum cleaner operates at 14.4V.
It is classified as a class III appliance.
This appliance is supplied by a safety extra-low voltage (SELV)
power source where the voltage is low enough to protect users from
the risk of electrical shock. A Class II plug-in power supply is used
for supplying power to charge the robot vacuum cleaner.
Before each use of the robot vacuum cleaner, check both the vac-
uum cleaner and all of the accessories supplied with it for any visible
signs of damage. Do not use a damaged appliance or component.
The electrical outlet must be fitted with a 15A fuse.
Compare the connection data on the data plate of the robot vac-
uum cleaner and the power supply (voltage and frequency) with that
of the mains electricity supply. This data must match exactly.
Reliable and safe operation of this robot vacuum cleaner can only
be assured if the base station has been connected to the mains
electricity supply.
While the vacuum cleaner is under warranty, repairs should only
be performed by a Miele-authorized service technician. Otherwise
the warranty will be void.
Repairs should only be carried out by a Miele-authorized service
technician. Repairs and other work by unqualified persons can cause
considerable danger to users.
Make sure that the power cord is not damaged, bent or twisted.
Do not place any heavy items on top of it.
Do not let the robot vacuum cleaner travel over the power cord or
other cords.
Only use the parts supplied for charging the rechargeable battery
(adapter, power unit and base station).
6
en - IMPORTANT SAFETY INSTRUCTIONS
Batteries and rechargeable batteries will deplete over time. They
can then leak corrosive fluids. Avoid contact with the eyes and skin.
In the event of contact, rinse thoroughly with water and seek medical
advice.
The robot vacuum cleaner is fitted with sensors to detect steps
and drops in height. Do not cover these sensors or the camera, and
ensure that the function of the sensors is not hindered by obstacles
while the cleaner is moving.
Do not attach any adhesive labels to the front of the base station
as this conceals an infrared transmitter. Do not place any items in
front of it.
Do not immerse the robot vacuum cleaner or the parts supplied in
water. Clean all parts with a dry or slightly damp cloth only.
Do not drop the robot vacuum cleaner or any of the accessories
supplied with it. Items that have been dropped or damaged should
not be used for safety reasons.
Miele can only guarantee the safety of the appliance when gen-
uine Miele replacement parts are used. Faulty components must only
be replaced with genuine Miele parts.
Proper use
Do not use the robot vacuum cleaner without the dust box, pre-fil-
ter, and exhaust filter fitted.
Remove all breakable or lightweight items from the floor and make
sure that the robot vacuum cleaner cannot become entangled in
cords, curtains, fringes, cables, or similar.
Animals must be kept away from the robot vacuum cleaner. Do
not allow animals to stand or sit on the robot vacuum cleaner.
Take the necessary precautions to ensure that the robot vacuum
cleaner cannot fall from high places such as balconies. Block access
to these places, e.g., by installing physical barriers.
7
en - IMPORTANT SAFETY INSTRUCTIONS
Do not use the robot vacuum cleaner to vacuum up anything
which has been burning or is still glowing e.g. cigarettes, ashes or
coal, whether glowing or apparently extinguished. Do not use it in
the vicinity of a fireplace.
Do not use the robot vacuum cleaner to vacuum up any water, liq-
uid or damp dirt. Wait until any freshly cleaned or shampooed carpets or floor coverings are completely dry before attempting to vacuum.
Do not use the robot vacuum cleaner to vacuum toner dust. Toner,
such as that used in printers and photocopiers, can conduct electricity.
Do not use the robot vacuum cleaner to vacuum up any in-
flammable or combustible liquids or gases and do not use it in areas
where such substances are stored.
Do not sit or lie on the surface being cleaned while the robot vac-
uum cleaner is running. This is to prevent the risk of loosely fitting
clothes or long hair coming into contact with the roller brush or other
moving parts of the robot vacuum cleaner.
Caution: Be aware that the robot vacuum cleaner moves autonomously. Exercise caution when walking in the area that the robot
vacuum cleaner is operating in, to avoid stepping on or tripping over
it.
Handling the rechargeable battery and remote control batteries:
Please contact Miele Service before shipping the rechargeable
battery.
Do not drop or throw the rechargeable battery. For safety reasons
do not continue to use a rechargeable battery which has been
dropped or damaged.
Keep the rechargeable battery or the batteries away from flames
or other heat sources. Do not heat the rechargeable battery or batteries or place them in direct sunlight.
8
en - IMPORTANT SAFETY INSTRUCTIONS
Do not dismantle the rechargeable battery.
Do not cause a short circuit by bridging the contacts of the
rechargeable battery or the batteries, either unintentionally or deliberately.
Do not allow the rechargeable battery or the batteries to come
into contact with liquids.
Do not attempt to recharge the remote control batteries.
Discontinue use of the rechargeable battery if you notice an un-
usual smell from it, if liquid is leaking from it, it is significantly overheating or if it is discolored or deformed. Dispose of the rechargeable battery immediately.
Disposing of the batteries and the rechargeable battery: Remove
the rechargeable battery from the robot vacuum cleaner and the batteries from the remote control. Insulate the metal contacts with adhesive tape to prevent short circuits. Dispose of the batteries and the
rechargeable battery in a municipal recycling facility. Do not dispose
of batteries or the rechargeable battery with normal household
waste.
Accessories
Only use genuine accessories with the “ORIGINAL Miele” logo on
them. The manufacturer cannot otherwise guarantee the safety of
the product.
California Proposition 65
THE FOLLOWING WARNING IS REQUIRED BY THE STATE OF CALIFORNIA FOR CALIFORNIA RESIDENTS ONLY:
WARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
SAVE THESE INSTRUCTIONS
9
en - Appliance overview

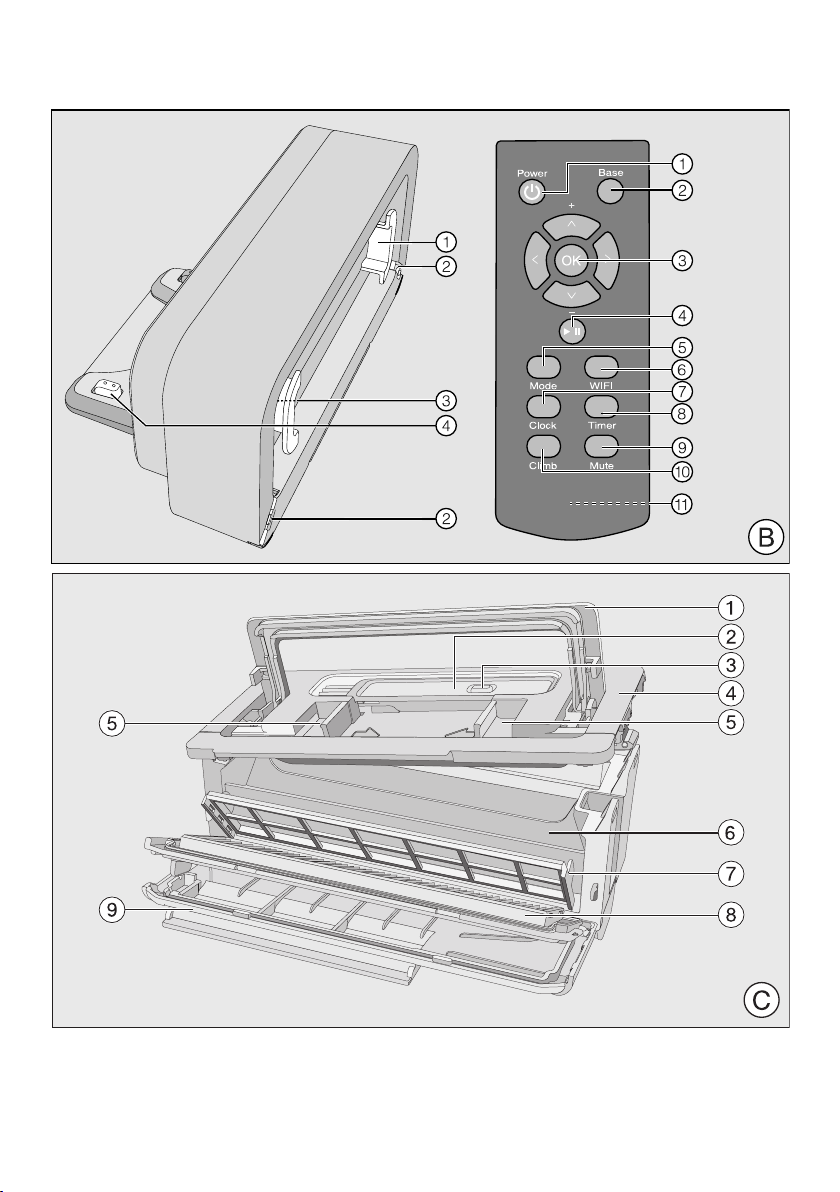

Illustrations A, B and C for this section are on the pull-out pages in the back of
these operating instructions.
A – Robot vacuum cleaner top and bottom
a
Display
b
Wi-Fi display
c
Video function display (for Scout RX2 Home Vision)
d
Time mode display (am/pm)
e
Start/Pause sensor field ()
f
Cameras
g
Impact protection
h
On/Off switch (I/0)
i
Depression to open the storage compartment
j
Silent vacuuming mode sensor field
k
Turbo vacuuming mode sensor field
l
Base sensor field
m
Spot vacuuming mode sensor field
n
Auto standard vacuuming mode sensor field
o
Timer indicator
p
Rechargeable battery status indicator
q
Side brushes for hard flooring / universal side brushes / side brushes for carpeted flooring and rugs
r
Roller brush
s
Front wheel
t
Sensors (toppling protection)
u
Charging contacts
v
Roller brush cover
w
Drive wheels
x
Suction nozzle with sealed unit
y
Back wheel
10
en - Appliance overview
B – Base station and remote control
Base station
a
Cord rewind
b
Cord guides
c
Socket for the power supply plug (not visible in the figure)
d
Charging contacts
Remote control
a
Power button (switch on and off)
b
Base button (direct vacuum cleaner to base station)
c
OK confirmation button with direction buttons around it
d
Start/Pause button () (start/stop vacuuming)
e
Mode button (select the vacuuming mode)
f
WIFI button (activate/deactivate Wi-Fi)
g
Clock button (set time of day)
h
Timer button (set the timer)
i
Mute button (activate/deactivate acoustic signals)
j
Climb button (reduce crossing over height)
k
Battery compartment (at the back)
C – Dust box
a
Handle
b
Cleaning tool with wiper
c
Wiper button
d
Lid
e
Release buttons for the lid
f
Dust compartment
g
Pre-filter
h
Exhaust filter
i
Exhaust filter compartment lid
11
en - Caring for the environment
3E&G+J
Disposal of the packing material
The cardboard box and packing materials protect the appliance during shipping. They have been designed to be
biodegradable and recyclable.
Ensure that any plastic wrappings,
bags, etc. are disposed of safely and
kept out of the reach of children. Danger of suffocation!
Disposal of your old appliance
Electrical and electronic appliances
contain valuable materials. They also
contain certain substances, compounds
and components which were essential
for the proper functioning and safe use
of the equipment. Handling these materials improperly by disposing of them in
your household waste can be harmful to
your health and the environment. Therefore, please do not dispose of your old
appliance with regular household waste
and follow local regulations on proper
disposal.
Consult with local authorities, dealers or
Miele in order to dispose of and recycle
electrical and electronic appliances.
Miele assumes no responsibility for
deleting any personal data left on the
appliance being disposed. Please ensure that your old appliance is kept
away from children until removal. Observe safety requirements for appliances that may tip over or pose an entrapment hazard.
Disposal of old batteries and power packs
Electrical and electronic appliances often contain batteries and power packs
which must not go into household
waste after use. Please remove all accessible batteries and take them to a
suitable collection site where they can
be collected free of charge. Batteries
and power packs may contain substances which are harmful to your
health and the environment.
The labeling on the battery or power
pack gives further information. The
crossed-out waste bin means that you
must never put batteries and power
packs into household waste. If the
crossed-out waste bin has one or more
of the listed chemical symbols, it contains lead (Pb), cadmium (Cd) and/or
mercury (Hg).
Old batteries and power packs contain
important raw materials and can be recycled. Separately collecting old batteries and power packs facilitates handling
and recycling.
12
en-US
Functions and features of the robot vacuum cleaner
The robot vacuum cleaner is suitable for
the daily cleaning of short pile carpets
and fitted carpets, as well as hard flooring.
Please observe the flooring manufacturer's cleaning and care instructions.
The robot vacuum cleaner is fitted with
cameras and sensors. It continually
saves room plans as well as information
regarding areas it can access freely.
The robot vacuum cleaner uses this
data to create an efficient vacuuming
plan of the surfaces to be vacuumed,
which it can then vacuum autonomously.
Included accessories
– Remote control / two batteries
– Two side brushes
– Power supply unit with plug
– Power adapter
– Base station
– Magnetic strip
Preparing for use
Diagrams 1 - 10 for this section are at
the end of these operating instructions.
Press the two side brushes carefully
onto their pins until they audibly engage. Take care to comply with the
markings L and R.
Removing the protective foil(Fig. 02)
Remove the protective foil from the
base station and from the top of the
robot vacuum cleaner.
Placing the batteries in the remote
control(Fig. 03)
Remove the battery compartment
cover.
Insert the two batteries supplied.
Make sure the polarity is correct.
Close the battery compartment cover.
Switching on the robot vacuum
cleaner(Fig. 04)
Slide the I/0 switch on the side of the
robot vacuum cleaner to the I position.
The rechargeable battery status indicator lights up in the display.
After approx. 60 seconds, the robot
vacuum cleaner will switch into
standby. The battery status indicator
will continue to light up.
The robot vacuum cleaner is reactivated
by pressing any button on the remote
control or one of the sensor fields in the
display.
Insert the side brushes(Fig. 01)
Place the robot vacuum cleaner up-
side down on a level, clean surface.
13
en-US
Connecting the base station (Figs. 05 - 07)
Place the base station on a level sur-
face against a free wall within easy
access of a power socket. Ensure
that there is an obstacle-free distance
of at least 5ft in front and 1.5ft to the
right and left of the base station (Fig.
05).
Insert the supplied power supply plug
into the socket at the back of the
base station. You can wind excess
cord around the cord rewind. Guide
the cord through one of the two cord
guides(Fig. 06).
Insert the power adapter into the
power supply until it audibly engages
and then plug it into the selected
power outlet (Fig. 07).
Charging the rechargeable
battery(Fig. 08)
The rechargeable battery is supplied
not fully charged. Before using for the
first time, it must be fully charged while
the robot vacuum cleaner is switched
on (switch I/0 to I).
The battery can also be charged when
the robot vacuum cleaner is switched
off (switch I/0 to 0). In this case, the
vacuum cleaner indicators will not react.
Connect the robot vacuum cleaner
correctly to the charging contacts on
the connected base station.
As the rechargeable battery charges,
the status indicator flashes in the display.
The charging process takes up to
150minutes for the Scout RX2 and up
to 180minutes for the Scout RX2 Home
Vision. The process is finished when the
rechargeable battery status indicator
lights up green permanently in the display.
You can then vacuum for up to one
hour with the Scout RX2 and up to two
hours with the Scout RX2 Home Vision.
Rechargeable battery status indicator in the display
Red Charged capacity approx.
0% - 20%
Orange Charged capacity approx.
20% - 50%
Green Charged capacity approx.
50% - 100%
Setting the time of day(Fig. 09)
Use the remote control to set the time
of day.
The default factory setting for the robot
vacuum cleaner is the 24-hour time display.
Press the Clock button for at least
three seconds.
The indicator field flashes in the display.
Press the OK button.
The hour display flashes in the indicator
field.
Press the + or - direction button to
set the current hour.
Press the OK button to confirm your
selection.
The minute display flashes in the indica-
tor field.
14
en-US
Press the + or - direction button to
set the current minutes.
Press the OK button to confirm your
selection.
If you want to alter the time of day, proceed as described above.
Defining the area to be vacuumed (Fig. 10)
The robot vacuum cleaner is 3
3/8“ high. Any items that will be vacuumed under should have a minimum clearance of 3 7/16”.
You can define any areas which the robot vacuum cleaner should not have
access to.
Place the magnetic strip supplied
with the groove facing downwards on
the floor.
The robot vacuum cleaner will not cross
over the magnetic strip.
Adhesive strips are supplied for permanent fixing. Additional magnetic strips
are available to order from the Miele
webstore.
Your robot vacuum cleaner is equipped
with an integrated Wi-Fi module. You
can view status information or execute
control commands using a mobile device (tablet PC or smartphone).
If you would like to control the robot
vacuum cleaner using a mobile device,
please read the section “Scout RX2
App”.
The operation of the robot vacuum
cleaner via remote control and the display will be described later in this “Use”
section.
Switching on and off
Press the Power button on the re-
mote control or any sensor field on
the display.
Starting vacuuming
There are two ways to start vacuuming.
Option 1 (remote control)
Use
Always observe the robot vac-
uum cleaner during the first cleaning
session in a new environment and after making changes in your home.
This way you will be able to detect
and remove any problematic obstacles or section off the relevant areas
with the magnetic strip. You must
also check whether steps and drops
in height are recognized properly.
Press the button.
Option 2 (display)
Press the sensor field.
The area to be vacuumed will be
cleaned.
15
en-US
The robot vacuum cleaner always
cleans for at least five minutes, regardless of the size of the surface to be vacuumed.
Finishing vacuuming if vacuuming started from the base station
The robot vacuum cleaner will return to
the base station and recharge.
If the battery is low, the robot vacuum
cleaner will return to the base station
and recharge. IIwill appear in the indicator field. The robot vacuum cleaner
will then continue vacuuming in the location where it had stopped.
Finish vacuuming if vacuuming started from somewhere in the room
The robot vacuum cleaner will return to
its starting point and switch into
standby after approx. 60seconds.
The robot vacuum cleaner will stand
still when there is low battery capacity.
You should then recharge it.
Press and hold the + direction button.
The robot vacuum cleaner will travel in
the desired direction and continue to
vacuum.
Press the button on the remote
control or the sensor field on the
display.
The original vacuuming process will
continue running.
Interrupting vacuuming
Manually controlled vacuuming
You can use the direction buttons on
the remote control to vacuum a particular area of the room.
While the robot vacuum cleaner is
vacuuming, press and hold one of the
direction buttons.
The robot vacuum cleaner will turn in
the desired direction until you let go of
the direction button.
16
Press the button on the remote
control or the sensor field on the
display.
The robot vacuum cleaner stops.
Press the button or the sensor field
again to continue vacuuming.
Manual navigation (without vacuuming)
You can use the direction buttons on
the remote control to direct the robot
vacuum cleaner to a specific area of the
room.
en-US
Press and hold one of the direction
buttons.
The robot vacuum cleaner will travel in
the desired direction without vacuuming.
You cannot direct the robot vacuum
cleaner manually to the base station in
order to recharge it.
Directing the robot vacuum cleaner to the base station
(only possible when vacuuming was
started from the base station)
Press the Base button on the remote
control or the Base sensor field on
the display.
The robot vacuum cleaner will travel to
the base station and recharge.
You can switch the robot vacuum
cleaner into standby before 60seconds is up by pressing the Power button again.
The robot vacuum cleaner is reactivated
by pressing any button on the remote
control or one of the sensor fields in the
display.
Operating modes
There are five different operating options.
Auto
Standard vacuuming for
normally soiled flooring.
Spot Targeted vacuuming of an
area approx. 59' x 59'
(1.8x1.8m) around the selected starting point of the
robot vacuum cleaner.
Base
Directing the robot vacuum
cleaner to the base station.
Finishing vacuuming manually
Press the Power button on the re-
mote control.
The robot vacuum cleaner will switch
into standby after approx. 60seconds.
The display is deactivated, the
rechargeable battery status indicator
continues to light up.
Turbo
Silent
For vacuuming lightly soiled
flooring with a short vacuuming duration.
Vacuuming with low noise
development.
17
en-US
Selecting the vacuuming mode
Press the Power button on the re-
mote control.
There are two ways of selecting the
vacuuming mode.
Option 1 (remote control)
Press the Mode button repeatedly
until the symbol for the vacuuming
mode you want lights up on the display.
If you would like the robot vacuum
cleaner to start at the same time every
day, you can save the desired start time
and vacuuming mode to memory.
The robot vacuum cleaner can also
vacuum in the dark. However, please be
aware that vacuuming may be less thorough. The cameras require light in order
to navigate unobstructed.
Use the remote control to set the timer.
Press the Timer button for at least
three seconds.
The timer indicator flashes in the dis-
play and the hour display flashes in the
indicator field.
Press the button to start vacuum-
ing.
Option 2 (display)
Press the sensor field of the desired
vacuuming mode.
Press the sensor field in order to
start vacuuming.
Setting the timer
(only possible if the clock has been set)
18
Press the + or - direction button to
set the hour you want.
Press the OK button to confirm your
selection.
The timer indicator flashes in the display and the minute display flashes in
the indicator field.
Press the + or - direction button to
set the minutes you want.
Press the OK button to confirm your
selection.
Press the Mode button repeatedly
until the symbol for the vacuuming
mode you want flashes on the dis-
play.
en-US
Tip: You can save up to seven individual combinations for the “start time –
vacuuming mode” if you set the timer
using a mobile device, see section
“Scout RX2 App”.
Please note that the robot vacuum
cleaner always follows the save commands which were set most recently,
regardless of whether the settings
were configured using the remote control or with a mobile device.
Deactivating the timer
Press the Timer button on the remote
control briefly.
The timer indicator goes out on the
display.
Activating the timer / displaying a set start time
Press the OK button to confirm your
selection.
The settings are shown for approx.
three seconds on the display. The robot
vacuum cleaner will now start to vacuum at the same time each day.
If the timer indicator is lit up in the
display, then the timer is activated.
To alter the entries, proceed as described above.
Press the Timer button on the remote
control briefly.
The timer indicator lights up in the
display and the set start time is shown
briefly in the indicator field. The robot
vacuum cleaner will start to vacuum at
the set time.
Deactivating the acoustic signals
Acoustic signals are set as standard.
You can deactivate and then reactivate
them.
19
en-US
Press the Mute button on the remote
control briefly.
OFF will appear in the indicator field
briefly.
Acoustic signals for fault messages
cannot be deactivated.
Reducing the maximum crossing over height
The robot vacuum cleaner is set to
overcome height differences of up to
3/4" as standard. It is therefore able to
vacuum carpets, move over door
thresholds, etc.
Scout RX2 App
Wi-Fi
You can view status information or execute control commands using a mobile
device (tablet PC or smartphone).
The robot vacuum cleaner is equipped
with an integrated Wi-Fi module for this
purpose.
Please note that, despite the manufacturer's extremely high security standards, there may be data security
risks for the user whenever networked
devices are used. For this reason, we
offer you the option of removing the
Wi-Fi module from the robot vacuum
cleaner. You can find instructions for
this at the end of this section.
If you would like to reduce this height
(down to approx. 1/4" (6mm)) in order
to protect the legs of chairs, tables, or
lamps, for example, you can deactivate
the factory default setting.
Press the Climb button on the remote
control briefly.
LOwill appear in the indicator field.
Press the Climb button again briefly if
you want to reactivate the maximum
crossing over height of 3/4". HIwill appear in the indicator field.
20
Make sure that you have sufficient signal strength for your W-Fi network in
the rooms where the robot vacuum
cleaner will be vacuuming.
You can download the Scout RX2 app
for free via the Apple App Store or
Google Play.
Download the app from one of the
app stores.
en-US
Activating the network function of the robot vacuum cleaner
In order to connect your robot vacuum
cleaner to your Wi-Fi network, you must
first activate the network function. The
network function is deactivated at the
factory.
There are two ways to activate the network function.
Option 1 (remote control)
Press the WIFI button.
The Wi-Fi indicator lights up in the
display.
Option 2 (display)
Removing the Wi-Fi module
Press the depression at the top of the
robot vacuum cleaner.
The lid of the storage compartment will
open.
Unlatch the dust box by lifting the
handle upwards.
Remove the dust box.
Press the Base sensor field for at
least two seconds.
The Base sensor field flashes during
activation. The Wi-Fi indicator lights
up in the display as soon as the network function is activated.
Start the app and set up a Miele user
account.
You can connect your mobile device di-
rectly to the robot vacuum cleaner or
connect via your Wi-Fi network.
Follow the instructions in the app.
Pull the cover out from the front.
Remove the Wi-Fi module.
Put the cover back on.
Video function
(for Scout RX2 Home Vision models,
use the “Scout RX2” app)
The camera on the right at the front of
the robot vacuum cleaner sends encrypted images in real time to the selected mobile device. Transmission
quality is dependent upon the speed of
the Internet connection in your home
and the speed of your mobile device.
The video function indicator in the dis-
21
en-US
play flashes red when images are being
sent. The live video is only played back
in the Miele app; it is not saved.
The privacy and personal living space
of third parties must be respected
when using the video function. The
Miele Scout RX2 Home Vision with
video function should, therefore, only
be used in your own home. Anyone
else present should be informed before you start to use the video function.
We recommend cleaning both cameras
regularly with a soft, dry cloth.
Maintenance
Purchasing accessories
Original Miele accessories are available
from the Miele Web store, Miele and
your Miele dealer.
Emptying the dust box
Empty the dust box of the robot vacuum cleaner after each use in order to
achieve the best possible cleaning results.
At the very latest, you must empty the
dust box when “l_ _l” appears in the indicator field running from bottom to top.
Press the depression at the top of the
robot vacuum cleaner.
Switch the robot vacuum cleaner
off before doing any maintenance
work. To switch it off, slide the I/0
switch on the side of the robot vacuum cleaner to the 0 position.
We recommend using only genuine
Miele accessories bearing the
“ORIGINAL Miele” logo on the packaging. Only these will guarantee the
optimum performance of your robot
vacuum cleaner and the best possible cleaning results.
Ordering the correct accessories
Original Miele accessories are identified
by the “ORIGINAL Miele” logo on the
packaging.
22
The lid of the storage compartment will
open.
Unlatch the dust box by lifting the
handle upwards.
Remove the dust box.
Press one or both release buttons in
the direction of the arrow and remove
the dust box lid.
Empty the dust box.
The contents of the box can be dis-
posed of with the normal household
waste, providing it contains general
household dust only.
Refit the lid and close the dust box
making sure it clicks into place.
Place the dust box into the robot vac-
uum cleaner with the handle lifted up
and latch it into place by pushing the
handle back down.
Close the storage compartment lid
and press down on the depression in
order to lock it.
Cleaning the dust box
Clean the dust box as required.
A cleaning tool is located at the top of
the dust box lid.
en-US
Fold out the filter unit from the dust
box.
Remove the pre-filter and clean it as
required using the cleaning tool.
Unlatch the exhaust filter, remove it,
and clean it using the cleaning tool.
Remove the cleaning tool.
Clean the dust box and the underside
of the lid using the cleaning tool.
Cleaning the exhaust filter
Clean the exhaust filter as required.
The exhaust filter compartment is lo-
cated in the dust box.
Remove the lid from the dust box.
Refit the exhaust filter into the cover.
Place the pre-filter onto the exhaust
filter.
The filter unit is complete.
Carefully refit the filter unit and clip it
into position.
The exhaust filter must be replaced
with a new one after approx. six
months in order to achieve the best
possible cleaning results.
Cleaning the side brushes
Clean the side brushes as required. For
this you will require the cleaning tool
which is located at the top of the dust
box lid.
23
en-US
Place the robot vacuum cleaner up-
side down on a level, clean surface.
Use both hands to grip two opposite
bunches of the side brushes and pull
them out.
Remove threads and hair using the
wiper which is located on the bottom
of the cleaning tool.
Hold the wiper over a garbage can.
Press the button at the top of the
wiper several times until all threads
and hair have fallen out.
Cleaning the roller brush
Clean the roller brush as required. For
this you will require the cleaning tool
which is located at the top of the dust
box lid.
Place the robot vacuum cleaner up-
side down on a level, clean surface.
Remove both side brushes, see pre-
vious description “Cleaning the side
brushes”.
Unlatch the roller brush cover and re-
move the cover.
Press the two identical cleaned side
brushes carefully onto their pins until
they audibly engage. Take care to
comply with the markings L and R.
In order to continue to achieve the
best possible cleaning results, replace the side brushes with new
ones after approx. one year.
24
Remove the roller brush.
Use a pair of scissors to cut any
threads or hairs that have wound
themselves around the roller brush.
Loading...
