Miele PFD 101, PFD 101 U, PFD 101i, PFD 101 U-i, PFD 102i Operating instructions
...
Operating instructions
Commercial dishwasher
PFD101 / PFD101U / PFD101i /
PFD101U/i / PFD102i /
PFD103 SCi
en-GB
To avoid the risk of accidents or damage to
the appliance, it is essential to read these
instructions before it is installed and used for
the first time.
M.-Nr. 11 672 080
Contents
Notes about these instructions........................................................................ 5
Operating steps................................................................................................... 5
Guide to the appliance...................................................................................... 6
Appliance overview ............................................................................................. 6
Control panel....................................................................................................... 7
Display functions................................................................................................. 8
Correct use ........................................................................................................ 9
Warning and Safety instructions...................................................................... 11
Caring for the environment .............................................................................. 19
Before using for the first time .......................................................................... 20
Basic settings...................................................................................................... 20
Setting the language ...................................................................................... 20
Setting up Miele@home ................................................................................. 20
Setting the time of day ................................................................................... 21
Setting the water hardness level .................................................................... 21
Miele@home ........................................................................................................ 22
Opening the door ................................................................................................ 24
Closing the door.................................................................................................. 25
Activating the safety lock .................................................................................... 25
Dishwasher salt ................................................................................................... 26
Filling the salt reservoir................................................................................... 27
Refilling the salt .............................................................................................. 27
Rinse aid.............................................................................................................. 28
Adding rinse aid ............................................................................................. 29
Filling the rinse aid reservoir........................................................................... 29
Caring for the environment .............................................................................. 30
Economical dishwashing..................................................................................... 30
EcoFeedback consumption indicator.................................................................. 31
Loading the dishwasher.................................................................................... 32
General information............................................................................................. 32
Upper basket....................................................................................................... 34
Adjust the upper basket ...................................................................................... 37
Lower basket....................................................................................................... 38
Cutlery tray .......................................................................................................... 41
Loading the 3D MultiFlex tray......................................................................... 41
Loading examples ............................................................................................... 42
Dishwashers with cutlery tray......................................................................... 42
2
Contents
Detergent ........................................................................................................... 44
Application .......................................................................................................... 44
Dispensing detergent .......................................................................................... 45
Adding detergent................................................................................................. 46
Changing detergent............................................................................................. 47
Operation............................................................................................................ 49
Switching on the dishwasher .............................................................................. 49
Selecting a programme ....................................................................................... 49
Display of programme running time .................................................................... 50
Starting the programme ...................................................................................... 50
End of programme............................................................................................... 51
Energy management ........................................................................................... 51
Switching off the dishwasher .............................................................................. 52
Unloading the dishwasher................................................................................... 52
Interrupting a programme.................................................................................... 53
Cancelling or changing a programme ................................................................. 53
Programme options........................................................................................... 54
Options................................................................................................................ 54
Timer .............................................................................................................. 55
Activating Remote start.................................................................................. 59
Programme chart .............................................................................................. 60
Cleaning and care ............................................................................................. 64
Periodic checks................................................................................................... 64
Cleaning the wash cabinet .................................................................................. 64
Cleaning the door and the door seal................................................................... 65
Cleaning the control panel .................................................................................. 65
Cleaning the appliance front ............................................................................... 65
Cleaning the spray arms...................................................................................... 66
Checking the filters in the wash cabinet ............................................................. 68
Cleaning the filters............................................................................................... 68
Cleaning the water inlet filter............................................................................... 70
Cleaning the drain pump..................................................................................... 71
Problem solving guide ...................................................................................... 73
Technical problems ............................................................................................. 73
Fault messages ................................................................................................... 74
Door release ........................................................................................................ 75
Water inlet fault ................................................................................................... 76
Water drainage fault ............................................................................................ 77
General problems with the dishwasher............................................................... 78
3
Contents
Noises.................................................................................................................. 79
Unsatisfactory washing result ............................................................................. 80
Customer service .............................................................................................. 83
Contact in the event of a fault ............................................................................. 83
Programme updates ............................................................................................ 83
EPREL database ................................................................................................. 83
Note for test institutes ......................................................................................... 84
Warranty .............................................................................................................. 84
Installation.......................................................................................................... 85
Electrical connection ........................................................................................... 85
The Miele Waterproof system.............................................................................. 86
Regulations in the UK..................................................................................... 87
Water inlet ........................................................................................................... 86
Regulations in the UK..................................................................................... 87
Connecting the drainage system......................................................................... 88
Technical data.................................................................................................... 89
Settings........................................................................................................... 90
Opening the Settings menu................................................................................. 90
Changing settings ............................................................................................... 90
Language ......................................................................................................... 91
Time of day.......................................................................................................... 91
Water hardness ................................................................................................... 92
Rinse aid.............................................................................................................. 93
External dispensing ............................................................................................. 93
Temperature unit.................................................................................................. 94
Final rinse temperature........................................................................................ 94
Miele@home ........................................................................................................ 95
Remote control.................................................................................................... 97
RemoteUpdate .................................................................................................... 98
SmartStart ........................................................................................................... 99
EcoStart............................................................................................................... 99
Consumption (EcoFeedback).............................................................................. 101
Display brightness............................................................................................... 102
Volume................................................................................................................. 102
Refill reminders.................................................................................................... 103
AutoOpen ............................................................................................................ 103
BrilliantLight......................................................................................................... 104
Software version.................................................................................................. 104
Showroom ........................................................................................................... 104
Factory default..................................................................................................... 104
4
Notes about these instructions
Warnings
Information which is important for safety is highlighted in a thick framed box
with a warning symbol. This alerts you to the potential danger of injury to people
or damage to property.
Read these warning notes carefully and observe the procedural instructions and
codes of practice they describe.
Notes
Notes provide information of particular importance that must be observed.
They are highlighted in a thick framed box.
Additional information and comments
Additional information and comments are highlighted in a box framed with a
single black line.
Operating steps
Instructions on how to operate the commercial dishwasher are identified by
marked operating steps. They explain the procedure step by step.
Operating steps are indicated by a black square bullet point.
Example:
Select the desired setting and press OK to confirm.
Display
Information given via the commercial dishwasher display appears in a special
display font to match the font on the appliance.
Example:
When the messageFinished or AutoOpenappears in the display...
5
Guide to the appliance
Appliance overview
a
Top spray arm
b
3DMultiFlex tray (depending on
model)
c
Upper basket (depending on model)
d
Middle spray arm
e
Ventilation
f
Bottom spray arm
6
g
Filter combination
h
Salt reservoir
i
Data plate
j
Rinse aid reservoir
k
Detergent compartment
Control panel
Guide to the appliance
a
Programme selection
= Short
= Universal
= Intensive
= Plastics
= Glasses
= Hygiene
= Cold pre-wash
= ECO
b
Display
For further information, see “Guide
to the appliance” in the “Display
functions” section.
c
Options
= Time left
= Temperature
= Extra dry
e
Timersensor control
For selecting a later programme
start.
f
OKsensor control
To select menu options and values
displayed.
To confirm messages.
g
Sensor controls
For programme selection.
For changing the values displayed.
For scrolling to other menu pages.
h
Backsensor control
For navigating back to the previous
menu or deleting values that have
been set previously.
i
Remote startsensor control
For activating/deactivating the
Remote start option.
j
Optical interface
For service technicians.
k
On/Offsensor control
For switching the dishwasher on and
off.
= Settings
d
Startsensor control
For starting the selected programme.
7
Guide to the appliance
Display functions
The display is used to select or set the
following:
- The programme
- The timer
- The Settings
The display can show the following:
- The programme stage
- The estimated time left for the
programme to run
- The current temperature of the
programme step
- The water consumption
- Any relevant fault messages and
information
To save energy, the dishwasher
switches off after a few minutes if you
do not press any sensor controls
during this time.
Touch the sensor control to switch
the dishwasher back on.
The OKsensor control is used to
confirm a message or setting and also
to move to the next menu or another
level.
Under Settings, a scroll bar will
appear on the right-hand side of the
display. This offers further options.
These options can be shown using the
sensor controls.
You can alter the dishwasher’s controls
to suit changing requirements in the
Settings menu (see “Settings” chapter).
The option that is selected will have a
tick next to it.
To exit a sub-menu again, use the
Backsensor control.
If you do not press any sensor controls
for several seconds, the display will
revert to the previous menu. You may
then have to enter your settings again.
8
Correct use
This commercial dishwasher complies with all current local and
national safety requirements. Inappropriate use can, however, lead
to personal injury and material damage.
Read the operating instructions carefully before using the
commercial dishwasher for the first time. They contain important
information on the safety, use and maintenance of the appliance.
This way you will prevent the risk of accidents and damage to the
commercial dishwasher. Keep these operating instructions in a
safe place and pass them on to any future owner.
This dishwasher with its short programme running times and
powerful cleaning performance is intended for commercial use in
offices, lunch rooms, clubhouses, workshops, large kitchens and
similar professional environments.
It is also suitable for use in domestic households and in similar
residential environments; for example, by customers in hotels,
motels, bed and breakfasts and other related establishments.
This commercial dishwasher is subsequently referred to as a
dishwasher in these operating instructions.
Glasses, cutlery and crockery are referred to generally as crockery
when not more specifically defined.
This dishwasher is not intended for continuous use.
This dishwasher may not be used to clean medical products or
devices.
This appliance is designed exclusively for use as a “dishwasher”
for cleaning loads as described in these instructions. Conversions,
modifications and any other use are not permitted.
This dishwasher is intended for stationary, indoor use only.
This dishwasher is intended for use at altitudes of up to 4000m
above sea level.
9
Correct use
The special inserts in the baskets should only be used for their
specific application.
This dishwasher can only be used by people with reduced
physical, sensory or mental capabilities, or lack of experience or
knowledge, if they are supervised whilst using it or have been shown
how to use it in a safe way and understand and recognise the
consequences of incorrect operation.
This dishwasher is supplied with a special lamp (depending on the
model) to cope with particular conditions (e.g. in terms of
temperature, moisture, chemical resistance, abrasion resistance and
vibration). This lamp must only be used for the purpose for which it
is intended. The lamp is not suitable for room lighting. Replacement
lamps may only be fitted by a Miele authorised technician or by the
Miele Customer Service Department.
This dishwasher contains several light sources in energy efficiency
class D.
The lighting control element is integrated into the appliance control
and cannot be removed separately. As a result, electricity
consumption cannot be measured separately.
10
Warning and Safety instructions
Correct installation
Do not install this dishwasher in an area where there is a risk of
explosion or freezing conditions.
Take care, both before and during installation of the
dishwasher, not to cut yourself on the metal parts. Danger of
injury. Wear protective gloves.
To ensure stability a built-under dishwasher must only be installed
beneath a continuous worktop that is bolted to the adjacent
cabinetry.
In order to reduce the risk of damage from condensation, the
furniture in the area around the dishwasher should ideally be
designed for commercial use.
Furniture can be protected using the vapour protection set, which is
available as an optional accessory.
The vapour barrier film should be stuck under the worktop in the
area around the dishwasher door.
The door springs must be evenly adjusted on both sides. They are
correctly adjusted when the door remains stationary when left half
open (approx. 45° opening angle). It is also important that the door
cannot fall open.
The appliance must only be operated with properly adjusted door
springs.
If the door cannot be adjusted properly, contact the Miele Customer
Service Department.
The maximum weight of the front panel that can be aligned with the
factory fitted door springs is 10–12kg (depending on model).
11
Warning and Safety instructions
Technical safety
This dishwasher must only be commissioned, repaired and
maintained by the Miele Customer Service Department, a dealer or a
suitably qualified service technician. Unauthorised installation,
maintenance and repairs can cause considerable danger for the
user.
This dishwasher must only be operated by appropriately trained
personnel. They must be instructed and trained regularly.
Before using the dishwasher, check it for any externally visible
damage. Do not use a damaged dishwasher. This could be
dangerous.
In the event of a damaged or leaking dishwasher, switch off at the
power supply immediately and call the Miele Customer Service
Department, a Miele dealer or a suitably qualified service technician.
Faulty components must only be replaced by genuine Miele
original spare parts. Only when these parts are fitted can Miele
guarantee the correct functioning and safety of the appliance.
The electrical safety of this dishwasher can only be guaranteed
when correctly earthed. If in any doubt, please have the electrical
installation tested by a qualified electrician.
Please follow the advice on installation in these instructions and
the separate Installation diagram.
Before connecting the appliance, ensure that the connection data
on the data plate (voltage, frequency and fuse rating) match the
mains electrical supply.
12
Warning and Safety instructions
The dishwasher may only be operated if the door opening
mechanism is working correctly. Otherwise there could be a risk of
danger whilst the automatic door opening mechanism (depending on
the model) is active.
The maximum weight of the front panel that can be aligned with the
factory fitted door springs is 10–12kg (depending on the model).
Signs that the door opening mechanism is working correctly:
- The door springs must be evenly adjusted on both sides. They are
correctly adjusted when the door remains stationary when left half
open (approx. 45° opening angle). It is also important that the
door cannot fall open.
- The door locking pins automatically retract when the door opens
at the end of the drying phase.
There must be no electrical sockets behind the dishwasher.
Danger of overheating and fire risk if the dishwasher were to be
pushed up against a plug. See “Electrical connection”.
Do not connect the dishwasher to the mains electricity supply via
a multi-socket unit or an extension lead. These do not guarantee the
required safety of the appliance (e.g. danger of overheating).
Never open the casing of the dishwasher. Any contact with live
connections or tampering with the electrical or mechanical
components of the dishwasher will endanger your safety and may
lead to appliance malfunctions.
The dishwasher must not be used if the electrical connection
cable is damaged. A damaged connection cable may only be
replaced by a suitable connection cable of the same type. For safety
reasons, such replacement may only be carried out by the Miele
Customer Service Department or a qualified service technician.
The dishwasher must be disconnected from the mains electricity
supply before any maintenance or repair work is carried out.
The plastic housing of the water connection contains electrical
components. It must not be dipped in water.
13
Warning and Safety instructions
There are electrical wires in the water inlet hose. Do not shorten
the water inlet hose, even if it is too long.
The integrated Waterproof system offers protection from water
damage, provided that the following conditions are met:
- Installation has been carried out correctly.
- The dishwasher is properly maintained and parts are replaced
where it can be seen that this is necessary.
- The stopcocks have been turned off during longer periods of
inactivity (e.g. whilst on holiday).
The Waterproof system will work even when the dishwasher is
switched off. However, the dishwasher must remain connected to
the electricity supply.
While the dishwasher is under warranty, repairs should only be
undertaken by a Miele authorised service technician. Otherwise the
warranty is invalidated.
14
Warning and Safety instructions
Correct use
This dishwasher is designed for operation with water and
detergents suitable for use in commercial dishwashers only. Organic
solvents and flammable liquid agents must not be used in it.
This could cause an explosion, damage rubber or plastic
components in the dishwasher and cause liquids to leak out of it.
You could injure yourself on the open dishwasher door or trip over
it. Avoid leaving the door open unnecessarily.
Do not sit, stand or lean on the opened door. This would tip or
damage the dishwasher.
After any plumbing work the water pipework to the dishwasher will
need to be vented. If this is not done, components can be damaged.
Please be aware that the dishwasher may be operating at high
temperatures. When the door is opened there is a danger of burning
or scalding. Items, baskets and inserts must be allowed to cool
down before they are unloaded. Any water remaining in containers
could still be very hot. Empty them into the wash chamber before
taking them out.
The water in the cabinet must not be used as drinking water.
Pre-treating items (for example with washing-up liquid and other
cleaning agents) as well as some types of soiling and some cleaning
agents can cause a build-up of foam in the wash cabinet. Foam can
have an adverse effect on the cleaning result.
Foam escaping from the wash cabinet can cause damage to the
dishwasher. If foam escapes the programme must be cancelled
immediately and the appliance must be disconnected from the
mains electrical supply.
15
Warning and Safety instructions
There may be a risk of slipping if liquid is spilt on the floor
depending on the type of flooring and footwear being worn. Keep
the floor dry where possible and take care to clean up any liquid
spills straight away. Take the necessary precautions when cleaning
up hazardous substances and hot liquids.
When using cleaning agents and specialised products, it is
essential that the manufacturer's instructions are followed. Cleaning
agents must only be used for the purpose they are designed for by
the manufacturer to avoid any material damage or the occurrence of
strong chemical reactions (e.g. oxyhydrogen explosion).
Miele cannot be held liable for any effect chemical cleaning
agents may have on the material of the items being cleaned.
Observe the cleaning agent manufacturer's instructions with regard
to storage conditions, use and dosage.
Do not inhale or ingest powder detergent. Dishwasher detergent
contains irritant or corrosive ingredients which can cause burning in
the nose, mouth and throat if swallowed, or inhibit breathing. Seek
medical attention immediately if detergent has been swallowed or
inhaled.
People aged 16 and above may refill the dishwasher detergent or
change the media canister provided that they have been trained to
do so.
Powder and liquid detergents containing active chlorine must not
be used. They can damage plastics and seals in the dishwasher.
To avoid material damage and corrosion, do not allow any acids
or solutions containing chloride to get into the wash cabinet or onto
the casing. Similarly avoid any ferrous materials with a corrosive
effect.
Do not wash items soiled with ash, sand, wax, lubricating grease
or paint in the dishwasher. These materials will cause damage to the
dishwasher.
16
Warning and Safety instructions
Do not clean the dishwasher or near vicinity with a hose or a
pressure washer.
Be careful when sorting items with sharp pointed ends and
positioning them in the dishwasher that you do not hurt yourself or
create a danger for others. Sharp knives, forks, etc. should be
placed in baskets with the pointed ends facing downwards.
Remove any coarse food deposits and empty out any containers
or utensils before loading them in the dishwasher.
Safety with children
Children should be supervised in the vicinity of the dishwasher.
Never allow children to play with the appliance. There is a danger
that children might shut themselves in the dishwasher.
Children under eight years of age must be kept away from the
dishwasher unless they are constantly supervised.
Children aged eight and older may only use the dishwasher
without supervision if they have been shown how to use it in a safe
manner. Children must be able to recognise and understand the
potential risks of improper use.
If the automatic door opening mechanism is active, keep young
children away from the area in which the door opens. There is a
danger of injury in the unlikely event of a fault with the opening
mechanism.
Keep children away from chemical agents. These contain irritant
and corrosive ingredients which can cause burning in the mouth, or
inhibit breathing. Keep children away from the dishwasher when the
door is open. There could still be residual chemical agent in the
wash cabinet. Seek medical advice immediately if a child has
swallowed or inhaled chemical agent.
17
Warning and Safety instructions
Accessories
Only use original Miele accessories. If other parts are used,
warranty, performance and product liability claims will be invalidated.
Miele will guarantee the supply of functional spare parts for a
minimum of 10years and up to 15years following the
discontinuation of your dishwasher.
Transport
Only transport the dishwasher in an upright position so that no
water flows into the electrical controls, as this would cause faults.
If you wish to transport the dishwasher, empty it and securely
fasten all loose parts such as baskets, hoses and cables.
Miele cannot be held liable for damage caused by non-compliance
with these Warning and Safety instructions.
18
Caring for the environment
Disposal of the packing material
The packaging is designed to protect
the appliance from damage during
transportation. The packaging materials
used are selected from materials which
are environmentally friendly for disposal
and should be recycled.
Recycling the packaging reduces the
use of raw materials in the
manufacturing process and also
reduces the amount of waste in landfill
sites.
Disposing of your old appliance
Electrical and electronic appliances
often contain valuable materials. They
also contain specific materials,
compounds and components, which
were essential for their correct function
and safety. These could be hazardous
to human health and to the environment
if disposed of with your domestic waste
or if handled incorrectly. Please do not,
therefore, dispose of your old appliance
with your household waste.
Please dispose of it at your local
community waste collection / recycling
centre for electrical and electronic
appliances, or contact your dealer or
Miele for advice. You are also
responsible for deleting any personal
data that may be stored on the
appliance being disposed of. Please
ensure that your old appliance poses no
risk to children while being stored prior
to disposal.
19
Before using for the first time
Basic settings
Switching on the dishwasher
Switch the dishwasher on using the
sensor control.
The welcome screen will appear when
the dishwasher is switched on for the
first time and the welcome melody will
sound.
For further information about the
display functionality, see “Guide to the
appliance” chapter, “Display
functions” section.
Setting the language
The display will then change
automatically to the screen for setting
the language.
Select the language you want as well
as the country, if appropriate, using
the sensor controls and confirm
with OK.
For further information on setting the
language, see the “Settings” chapter
under the “Language” section.
Setting up Miele@home
The message Miele@home will appear
on the display.
To set up Miele@home now, confirm
by touching OK.
Tip: To postpone setup until later, select
the optionSkip and confirm by touching
OK.
There are two ways of connecting your
dishwasher to your WiFi network:
Select the connection method you
want and confirm your choice with
OK.
1. Connect using App
2. Connect using WPS
(WPS = WiFi Protected Setup)
You will then be guided by the display
and the relevant Miele networking
solution.
For further information on
Miele@home, see the “Miele@home”
section in the “Settings” chapter.
A tick will appear next to the
language that has been set.
20
Before using for the first time
Setting the time of day
The time of day is set automatically if
a connection is established with the
WiFi network.
The display will then change to the
screen for setting the time of day.
The current time of day must be set
before you can use the timer option.
Use the sensor controls to enter
the hour and confirm your entry by
touching OK.
Then set the minutes and confirm
with OK.
Holding down the relevant or
sensor control will increase or
decrease the time automatically.
Setting the water hardness level
The display will change to the screen
for setting the water hardness.
- You should programme the
dishwasher to the correct water
hardness for your area.
- Your local water authority will be able
to advise you of the water hardness
level in your area.
- Where the water hardness fluctuates
e.g. between 1.8 and 2.7mmol/l (10 15 °dH - German scale) always
programme the dishwasher to the
higher value (2.7mmol/l or 15 °dH in
this example).
In the event of a fault, it will help the
service technician if you know the
hardness of your local water supply.
Therefore, please enter the water
hardness:
____________°dH or mmol/l
The dishwasher is programmed at the
factory for a water hardness level of
2.5mmol/l (14°dH – German scale).
Set the water hardness level in your
area and confirm using OK.
See the “Settings” chapter, “Water
hardness” section for more
information.
21
Before using for the first time
Prompts will then appear in the display.
After confirming these prompts with
OK, the messages Refill salt and
Refill rinse aid may appear.
Add salt and rinse aid if necessary
(see the “Dishwasher salt” and “Rinse
aid” sections in the “Before using for
the first time” chapter).
Select OK to confirm the messages.
The programme selected will appear
briefly in the display and the
appropriate sensor control will be
illuminated.
Next, the estimated water consumption
may be shown for the chosen
programme for several seconds.
Then the display will show the
estimated running time for the
programme selected.
Miele@home
Your dishwasher is equipped with an
integrated WiFi module.
To use this feature, you will need:
- A WiFi network
- A Miele networking solution, e.g. the
Miele@mobile app
- a Miele user account. The user
account can be created via the Miele
networking solutions, e.g. via the
Miele@mobile app.
The networking solution you are using
will guide you as you connect your
dishwasher to your home WiFi network.
Once your dishwasher is connected to
your WiFi network, you can use the
networking solution, for example, to
carry out the following activities:
- Call up information on the operating
status of your dishwasher
22
- Call up information on the
programme sequence of your
dishwasher
Connecting your dishwasher to your
WiFi network will increase energy
consumption, even when the
dishwasher is switched off.
Make sure that your WiFi network
signal strength is strong enough at
the installation site of your
dishwasher.
Before using for the first time
Availability of the WiFi connection
The WiFi connection shares a frequency
range with other appliances (including
microwave ovens and remote control
toys). This can give rise to sporadic or
even complete connection failures.
Therefore, the availability of featured
functions cannot be guaranteed.
Miele@home availability
If you wish to use the Miele@mobile
app or other Miele networking
solutions, the Miele@home services
must be available in your country.
The Miele@home service is not
available in every country.
For information about availability,
please visit www.miele.com.
Miele app
You can connect the dishwasher to the
Miele@mobile app.
The app is available to download free of
charge from the Apple App Store® or
from the Google Play Store™.
Miele@mobile app
23
Before using for the first time
Every dishwasher is tested at the
factory. There will be residual water in
the appliance from this test. It is not
an indication that the dishwasher has
been used previously.
Opening the door
In some programmes the door
automatically opens slightly to assist
the drying process.
This function can be deactivated, if
preferred (see “Settings” chapter,
“AutoOpen”).
At the end of the programme, if the
AutoOpen function is on, the door
locking pins automatically retract.
To prevent a technical fault, do not
hold the door locking pins firmly
when they are retracting.
If the door is opened during operation
all wash functions are automatically
interrupted.
Risk of scalding due to hot
water.
During operation, water in the
dishwasher may be very hot.
During operation, only open the door
with extreme caution.
Risk of injury due to door
opening automatically.
The door may open automatically at
the end of a programme.
Keep the area around the door free
of obstructions.
To open the door, reach under the
door grip and pull.
Open the door fully to disengage the
locking mechanism.
24
Before using for the first time
Closing the door
Push the baskets right in.
Raise the door upwards until the
catch engages.
Risk of crushing due to the door
closing.
When closing the door, you are at
risk of shutting your fingers in it.
Do not put your hand inside the door
as it is closing.
Activating the safety lock
Use the safety lock to prevent children
opening the dishwasher door. The door
can then only be opened by using a lot
of force.
To lock the door, push the slide
underneath the door grip to the right.
To unlock the door, push the slide to
the left.
25
Before using for the first time
Dishwasher salt
In order to achieve good cleaning
results, the dishwasher needs to
operate with soft water. Hard water
results in the build-up of calcium
deposits on crockery and on the wash
cabinet walls.
Mains water with a water hardness level
higher than 0.9mmol/l (5°dH – German
scale) must be softened. This occurs
automatically in the integrated water
softener. The water softener is suitable
for a water hardness level of up to
6.5mmol/l (36°dH – German scale).
In order to maintain the functions of the
water softener, it must be reactivated
regularly. Reactivation occurs
automatically every ninth programme
sequence. At the start of the next
programme, an additional 4.4l of water
is required for this process. Energy
consumption increases by 0.015kWh
and the programme is extended by
3minutes.
The above only applies to the ECO
programme at a water hardness of
2.5mmol/l (14°dH – German scale). For
other programmes and water hardness
levels, the frequency of reactivation will
differ.
In order to be reactivated, the water
softener requires dishwasher salt.
Depending on the water hardness level
(<3.8mmol/l, or <21°dH – German
scale), dishwasher salt is not required if
combination detergents are being used
(see the “Powder detergent and
detergent tabs” section in the
“Detergent” chapter).
Damage caused by using
unsuitable salts.
Some types of salt may contain
insoluble components which can
cause the water softener to
malfunction.
Only use special coarse-grained
dishwasher salt or other pure kitchen
salt for reactivation.
Damage to the water softener
from detergent.
Detergent will damage the water
softener.
Do not fill the salt reservoir with
powder or liquid detergent.
If the water in your area is very soft
and constantly lower than 0.9mmol/l
(5°dH – German scale), you do not
need to add dishwasher salt. The salt
refill indicator will automatically switch
off after the water hardness has been
set accordingly (see the “Water
hardness” section in the “Settings”
chapter).
If you only ever use combination
detergent products in your
dishwasher, you can turn off both refill
reminders if you wish (see “Refill
reminders” under “Settings”).
Please make sure that if you stop
using combination detergents, you
refill the dishwasher salt and rinse aid.
Switch the refill reminders back on if
required.
26
Before using for the first time
Filling the salt reservoir
Before filling the salt reservoir for the
first time, you must fill it with approx.
2l of water to enable the salt to
dissolve.
Once the dishwasher has been used
once, there is always sufficient water
in the salt reservoir.
Remove the lower basket from the
wash cabinet and unscrew the salt
reservoir cap.
Fill the salt reservoir with approx. 2l
of water (first use only).
Refilling the salt
When the refill reminder Refill salt
appears in the display, wait until the
end of the programme and then refill
the salt reservoir.
Confirm with OK.
The salt refill indicator will go out.
Risk of corrosion due to saline
solution.
Saline solution that runs out can
cause corrosion in the wash cabinet
and to the load items.
Each time you remove the salt
reservoir cap, you must run the
Cold pre-wash programme
without any load items in the
dishwasher. This will dissolve and
remove any traces of salt from the
wash cabinet.
After the salt reservoir has been filled,
the salt refill indicator may still appear in
the display if the salt concentration has
not yet reached the correct level. In this
case, confirm the message again with
OK.
Place the funnel provided over the
salt reservoir and carefully fill with
dishwasher salt until the reservoir is
full. The salt reservoir holds up to
2kg of salt, depending on the type of
salt used.
Clean off salt residues from around
the salt reservoir opening. Next,
screw the salt reservoir cap on again
firmly.
27
Before using for the first time
Rinse aid
Rinse aid is necessary to ensure water
does not cling to and leave marks on
crockery during the drying phase, and it
helps crockery dry faster after it has
been washed.
Rinse aid is poured into the storage
reservoir and the amount set is
dispensed automatically.
Washing-up liquid or detergent
can cause damage.
Washing-up liquid and dishwasher
detergent will damage the rinse aid
reservoir.
Only fill it with rinse aid formulated
for domestic dishwashers.
Alternatively, you could use liquid citric
acid at a concentration of up to 10%.
The resulting rinsing and drying quality
will not, however, be as good as when
rinse aid is used.
Risk of acid damage.
The dishwasher can be damaged by
high concentrations of acid.
Under no circumstances should you
use citric acid with a higher acid
content.
If you only ever wish to use
combination detergent products in
your dishwasher, you do not need to
add rinse aid.
However, for optimum rinsing and
drying results, use dishwasher
detergent and add dishwasher salt
and rinse aid separately.
If you only ever use combination
detergent products in your
dishwasher, you can turn off both refill
reminders if you wish (see “Refill
reminders” under “Settings”).
Please make sure that if you stop
using combination detergents, you
refill the dishwasher salt and rinse aid.
Switch the refill reminders back on if
required.
28
Before using for the first time
Adding rinse aid

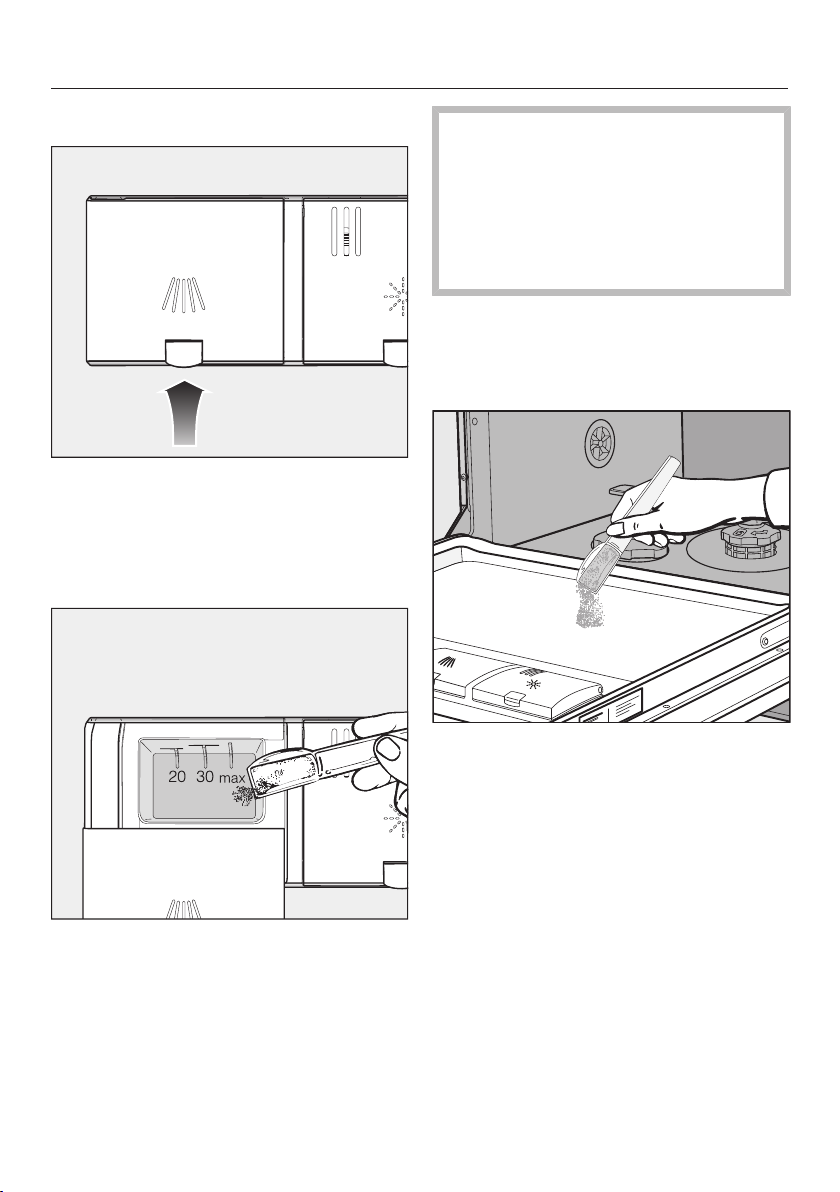

Press the yellow button on the lid
of the rinse aid reservoir.
The lid will spring open.
Close the lid firmly until you hear it
click into place. Otherwise, water can
enter the rinse aid reservoir during a
programme.
Wipe up any spilled rinse aid. This
prevents excess foam developing
during the next programme.
You can adjust the rinse aid dosage
for the best wash result (see
“Settings” chapter, “Rinse aid”
section).
Filling the rinse aid reservoir
When the refill reminder Refill rinse aid
appears in the display, the reservoir
contains sufficient rinse aid for 2 to 3
programmes only.
Refill with rinse aid in plenty of time.
Confirm with OK.
The rinse aid refill reminder will
disappear.
Fill with rinse aid until the filling level
indicator (arrow) changes to a dark
colour while the door is horizontally
open.
The rinse aid reservoir holds
approximately 110ml.
29
Caring for the environment
Economical dishwashing
This dishwasher is exceptionally
economical in its use of water and
electricity.
You can make the most of your
appliance by following these tips:
- Washing in a dishwasher generally
uses less water and energy than
washing by hand.
- There is no need to pre-wash items
under running water, and this
unnecessarily increases water and
energy consumption.

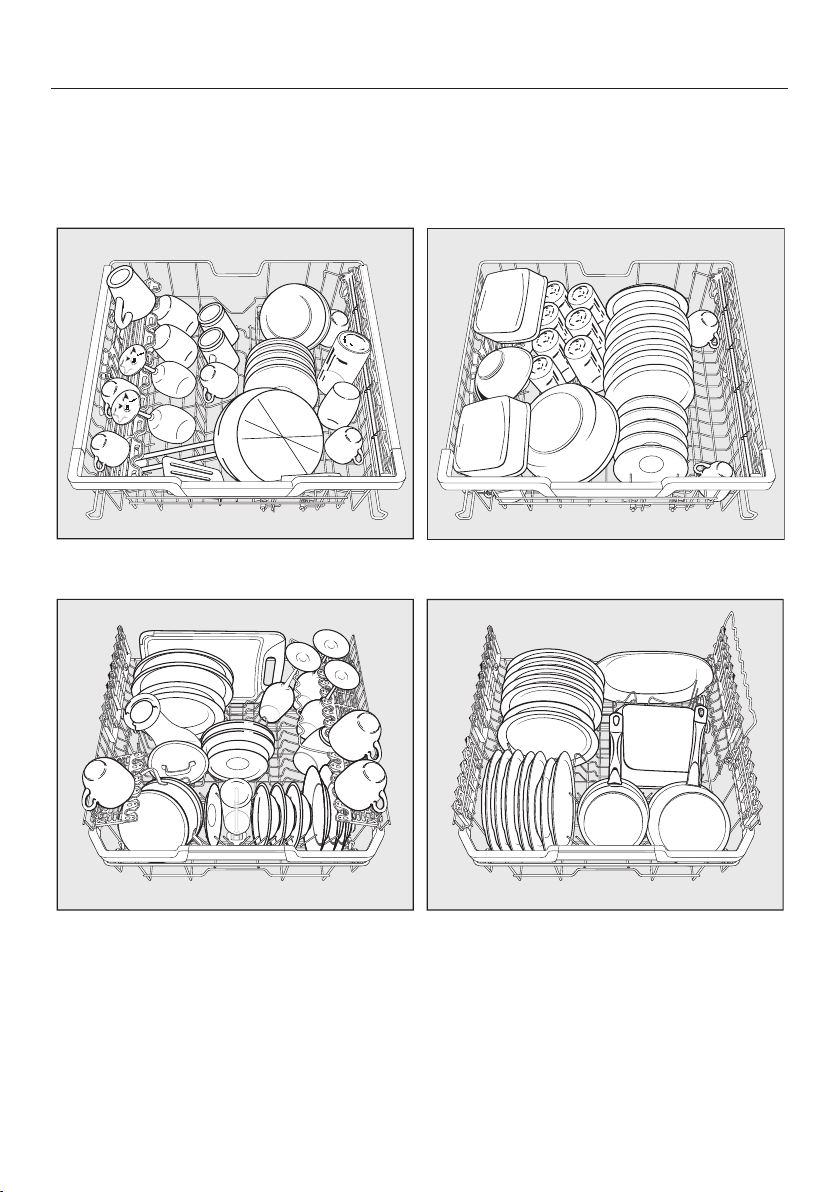

- Make full use of the basket capacity
without overloading the dishwasher.
This results in the most economical
dishwashing in terms of energy and
water consumption.
- Choose the programme to suit the
type of crockery being washed and
the degree of soiling (see
“Programme chart”).
- Select the ECO programme for
energy-saving dishwashing. This
programme is the most efficient in
terms of its combined energy and
water consumption for cleaning
crockery with a normal level of
soiling.
- Follow the detergent manufacturer’s
recommendations on detergent
dosage.
- If you are manually dosing the
detergent, reduce the amount by 1/
when using powder detergent if the
baskets are only half full.
3
30
Loading...
