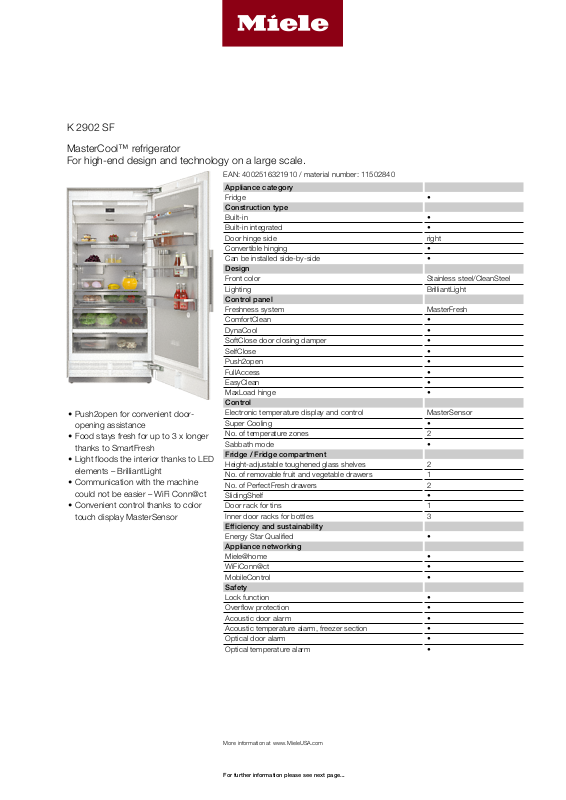

Miele K 2902 SF Specification Sheet

K 2902 SF

MasterCool™ refrigerator
For high-end design andtechnology on a large scale.

EAN: 4002516321910 / material number: 11502840

Appliance category

Fridge •

Construction type

Built-in •
Built-in integrated •
Door hinge side right
Convertible hinging •
Can be installed side-by-side •

Design

Front color Stainless steel/CleanSteel
Lighting BrilliantLight

Control panel

Freshness system MasterFresh
ComfortClean •
DynaCool •
SoftClose door closing damper •
SelfClose •
Push2open •
FullAccess •
EasyClean •
MaxLoad hinge •

Control

• Push2open for convenient door­opening assistance

• Food stays fresh for up to 3xlonger
thanks to SmartFresh

• Light floods the interior thanks to LED
elements – BrilliantLight

• Communication with the machine
could not be easier – WiFiConn@ct

• Convenient controlthanks to color
touch display MasterSensor

Electronic temperature display and control MasterSensor
Super Cooling •
No. of temperature zones 2
Sabbath mode •

Fridge / Fridge compartment

Height-adjustable toughened glass shelves 2
No. of removable fruit and vegetable drawers 1
No. of PerfectFresh drawers 2
SlidingShelf •
Door rack for tins 1
Inner door racks for bottles 3

Efficiency and sustainability

Energy Star Qualified •

Appliance networking

Miele@home •
WiFiConn@ct •
MobileControl •

Safety

Lock function •
Overflow protection •
Acoustic door alarm •
Acoustic temperature alarm, freezer section •
Optical door alarm •
Optical temperature alarm •

More information at www.MieleUSA.com

For further information please see next page...

K 2902 SF

MasterCool™ refrigerator
For high-end design andtechnology on a large scale.

Technical data

Appliance width in in.(mm) 35 3/4 (908)
Appliance height in in.(mm) 83 3/4 (2,127)
Appliance depth in in.(mm) 24 1/8 (610)
Weight in lbs.(kg) 457 (207.00)
Fridge compartment volume in l 582
Current consumption in milliampere (mA) 4,000
Voltage in V 120
Fuse rating in A 10
Wire length in ft (m) 9 (3.0)

Standard accessories

Active AirClean filter •

For further information please see next page...

K 2902 SF

MasterCool™ refrigerator
For high-end design andtechnology on a large scale.

Opening angel 90°/115°, right side stop, MasterCool
(Sketch) *footnote

A) Appliance door width
F 2461 Vi: 525 mm (20 2/3 inch);
F 2462 Vi: 525 mm (20 2/3 inch);
K 2601 Vi, K 2601 SF, F 2661 Vi, KWT 2601 Vi, KWT 2601
SF, KWT 2661 ViS, KWT 2661 SFS: 677 mm (26 2/3
inch);
K 2602 Vi, K 2602 SF, F 2662 Vi, KWT 2602 Vi, KWT 2602
SF, KWT 2662 ViS, KWT 2662 SFS: 677 mm (26 2/3
inch);
K 2801 Vi, K 2801 SF, F 2801 Vi, KF 2801 Vi, KF 2801 SF:
829 mm (32 2/3 inch);
K 2802 Vi, K 2802 SF, F 2802 Vi, KF 2802 Vi, KF 2802 SF:
829 mm (32 2/3 inch);
K 2901 Vi, K 2901 SF, F 2901 Vi, KF 2901 Vi, KF 2901 SF:
982 mm (38 2/3 inch);
K 2902 Vi, K 2902 SF, F 2902 Vi, KF 2902 Vi, KF 2902 SF:
982 mm (38 2/3 inch);
B) Furniture front (max. 38 mm) (1 1/2 inch)
C) Door handle
D) Distance door to wall (without furniture front and door
handle):
F 2461 Vi: 237 mm (9 1/3 inch);
F 2462 Vi: 237 mm (9 1/3 inch);
K 2601 Vi, K 2601 SF, F 2661 Vi, KWT 2601 Vi, KWT 2601
SF, KWT 2661 ViS, KWT 2661 SFS: 296 mm (11 2/3
inch);
K 2602 Vi, K 2602 SF, F 2662 Vi, KWT 2602 Vi, KWT 2602
SF, KWT 2662 ViS, KWT 2662 SFS: 296 mm (11 2/3
inch);
K 2801 Vi, K 2801 SF, F 2801 Vi, KF 2801 Vi, KF 2801 SF:
363 mm (14 1/3 inch);
K 2802 Vi, K 2802 SF, F 2802 Vi, KF 2802 Vi, KF 2802 SF:
363 mm (14 1/3 inch)
K 2901 Vi, K 2901 SF, F 2901 Vi, KF 2901 Vi, KF 2901 SF:
428 mm (16 7/8 inch)
K 2902 Vi, K 2902 SF, F 2902 Vi, KF 2902 Vi, KF 2902 SF:
428 mm (16 7/8 inch)
E) ONLY valid for SF versions: A + 25 mm (1 inch)

Side-by-side, MasterCool, without partition wall, with
heating mat (Sketch) (with footnote)

1) Heating mat KSK 2001 (EU, AUS, CN) or KSK 2002 (US,
CA, MX, BR)

For further information please see next page...

K 2902 SF

MasterCool™ refrigerator
For high-end design andtechnology on a large scale.

K2902SF, K2912SF, F2912SF, K2901SF, K2911SF,
F2911SF, K2901 SF, K2911 SF, F2911 SF, inner space,
MasterCool (US, CA)

Sideview, MasterCool, Sketch

MasterCool, top view, doorway, installation drawings

Side-by-Side, MasterCool, footnote, installation drawings

1. KSK 2001/2002

2. Device A

3. Device B
A = niche device A
B = niche device B

For further information please see next page...

K 2902 SF

MasterCool™ refrigerator
For high-end design andtechnology on a large scale.

K2902Vi, K2902SF, K2912Vi, K2912SF, installation,
MasterCool, *footnote, installation drawings

1. Vew from the front

2. Mains connection cable, L = 3000 mm (118 inch)

3. No water/ELT connections permitted in this area
