Miele H 4710 B, H 4810 B User Manual

Operating and installation instructions
Oven H 4710 B, H 4810 B
To avoid the risk of accidents or damage to the appliance it is essential to read these instructions before it is installed and used for the first time.
en-GB
Contents
Warning and Safety instructions .....................................5
Caring for the environment.........................................10
Guide to the appliance ............................................11
H 4710 B, H 4810 B ................................................11
Features ........................................................12
Oven controls.....................................................12
Safety features ....................................................12
Cooling fan ....................................................12
Vented oven door ...............................................12
PerfectClean treated surfaces ........................................12
Catalytic enamelled surfaces ........................................12
Energy efficiency rating according to EN 50304..........................12
Accessories ......................................................13
Baking tray, universal tray and rack with non-tip notches ................13
Anti-splash insert ...............................................13
Handle .......................................................14
Controls ........................................................15
Function selector ..................................................15
Temperature selector ..............................................15
Temperature indicator light ....................................15
Oven functions...................................................16
Before using for the first time.......................................18
To set the time of day for the first time..................................18
Cleaning and heating up for the first time ...............................18
Clock/Timer .....................................................20
Sensor controls ...................................................20
Operation ........................................................20
The time shown in the display .....................................21
Changing the time of day ...........................................21
Changing the audible tone ..........................................22
Using the minute minder l function ...................................22
Setting the minute minder.........................................23
Altering the time set for the minute minder............................23
Cancelling the time set for the minute minder .........................23
Operation .......................................................24
Using the oven....................................................24
Pre-heating ......................................................24
2
Contents
Switching on and off automatically ....................................25
Entering a duration ..............................................25
Entering a duration and a finish time ................................26
At the end of the duration .........................................27
Checking and changing an entered duration..........................27
Deleting a duration ..............................................27
Baking tips ......................................................28
Bakeware ........................................................28
Baking parchment ..............................................28
Universal tray ..................................................28
Rectangular tins ................................................28
Notes about the charts .............................................29
Temperature, baking duration .....................................29
Shelf level .....................................................29
Frozen food ......................................................29
Baking chart .....................................................30
Roasting tips ....................................................34
Useful tips .......................................................35
Browning......................................................35
Standing time ..................................................35
Roasting poultry ................................................35
Frozen meat ...................................................35
Roasting chart ...................................................36
Notes on Slow cooking ............................................37
Proceed as follows: ................................................37
Cooking duration/Core temperatures ..................................38
Grilling tips ......................................................39
Preparing food for grilling ...........................................41
Grilling ..........................................................41
Useful tips .......................................................41
Grilling chart.....................................................42
Defrost .........................................................43
Cooking ready meals..............................................44
Cleaning and care ................................................45
Appliance front ...................................................45
Accessories ......................................................46
Universal tray, baking tray , anti-splash insert .........................46
3
Contents
Rack, runners ..................................................46
Oven interior .....................................................46
Seal and inside of the oven door ...................................46
PerfectClean .....................................................47
Catalytic enamel surfaces ...........................................49
To remove the oven door............................................50
To dismantle the oven door .......................................51
To refit the door ...................................................53
To remove the runners..............................................54
To remove the catalytic enamelled back panel, side panels and roof liner .....54
Back panel ....................................................54
Roof liner (if fitted)...............................................55
Side panels (if fitted) .............................................55
Problem solving guide ............................................56
After Sales / Guarantee ............................................58
Optional accessories..............................................59
Electrical connection..............................................61
Building-in diagrams ..............................................62
Appliance and niche dimensions .....................................62

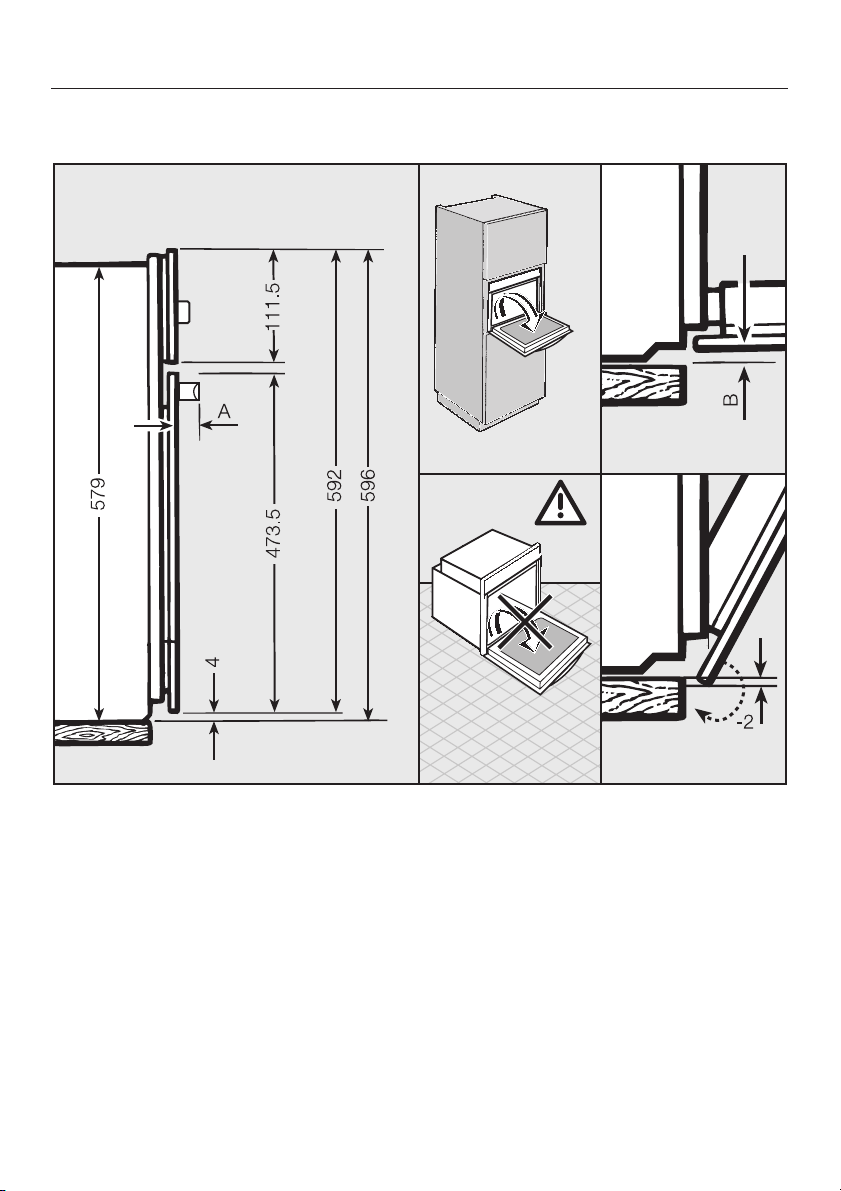

Front dimensions ..................................................63
Installing the oven ................................................64
4
Warning and Safety instructions
This appliance conforms to current safety requirements. Inappropriate use can, however, lead to personal injury and damage to property.
To avoid the risk of accidents and damage to the appliance, please read these instructions carefully before using it for the first time. They contain important notes on installation, safety, use and maintenance.
Keep these instructions in a safe place and ensure that new users are familiar with the content. Pass them on to any future owner.
Correct application
This oven is not designed for
~
commercial use. It is intended for use in domestic households and for use in similar working and residential environments such as:
Shops
Offices and showrooms
and by residents in establishments such as:
Hostels and guest houses
It is intended for domestic use only
~
to cook food, and in particular to bake, roast, grill, defrost and dry food. Any other use is not supported by the manufacturer and could be dangerous. Miele cannot be held liable for damage resulting from incorrect or improper use or operation of the appliance.
This appliance is not intended for
~
use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they are supervised whilst using it, or have been shown how to use it correctly by a person responsible for their safety.
5
Warning and Safety instructions
Safety with children
This appliance is not a toy! To
~
prevent the risk of injury or damage, do not let children play with the appliance or its controls.
Older children may only use the
~
oven when its operation has been clearly explained to them and they are able to use it safely, recognising the dangers of misuse.
Great care should be taken to
~
ensure that children do not touch the appliance when it is being used. Children's skin is far more sensitive to high temperatures than that of adults. External parts of the oven such as the door glass, control panel and the vent become quite hot.
Technical safety
Installation, maintenance and
~
repairs may only be carried out by a suitably qualified and competent person in strict accordance with current national and local safety regulations. Repairs and other work by unqualified persons could be dangerous. The manufacturer cannot be held liable for unauthorised work.
Before installation, check the
~
appliance for visible signs of damage. Do not install and use a damaged appliance. A damaged appliance could be dangerous.
The electrical safety of this
~
appliance can only be guaranteed when continuity is complete between it and an effective earthing system. It is most important that this basic safety requirement is present and tested regularly, and where there is any doubt the household wiring system should be inspected by a qualified electrician. The manufacturer cannot be held liable for the consequences of an inadequate earthing system (e.g. electric shock).
6
Warning and Safety instructions
Before connecting the appliance,
~
make sure that the connection data on the data plate (voltage and connected load) match the mains electricity supply. This data must correspond in order to avoid the risk of damage to the appliance. Consult a competent person if in doubt.
Do not connect the appliance to the
~
mains electricity supply by a multi-socket unit or an extension lead. These do not guarantee the required safety of the appliance (e.g. danger of overheating).
For safety reasons, this appliance
~
may only be used when it has been built in.
Never open the housing of the
~
appliance. Tampering with electrical connections or components and mechanical parts is highly dangerous to the user and can cause operational faults.
While the appliance is under
~
guarantee, repairs should only be undertaken by a service technician authorised by the manufacturer. Otherwise the guarantee will be invalidated.
During installation, maintenance and
~
repair work, the appliance must be disconnected from the mains electricity supply. It is only completely isolated from the electricity supply when:
the mains fuse is disconnected,
the screw-out fuse is removed (in
countries where this is applicable),
it is switched off at the isolator.
Ensure that current is not supplied to the appliance until after maintenance or repair work has been carried out.
Faulty components must only be
~
replaced by genuine Miele original spare parts. The manufacturer can only guarantee the safety of the appliance when Miele replacement parts are used.
If the supply cord is damaged, it
~
must be replaced by a Miele approved service technician to avoid a hazard.
This appliance may only be used in
~
mobile installations such as ships if a risk assessment of the installation has been carried out by a suitably qualified engineer.
In countries where there are areas
~
which may be subject to infestation by cockroaches or other vermin, pay particular attention to keeping the appliance and its surroundings in a clean condition at all times. Any damage which may be caused by cockroaches or other vermin will not be covered by the guarantee.
7
Warning and Safety instructions
Correct use
Caution. Danger of burning. High temperatures are produced by the oven.
Use oven gloves when placing food
~
in the oven, turning or removing it and when adjusting oven shelves etc. in a hot oven. Be very careful that you do not burn yourself on the top heating / grill element.
Never leave the appliance
~
unattended when cooking with oil or fats, as these are a fire hazard if allowed to overheat.
Do not exceed the recommended
~
grilling times when using the "Full grill Y", "Economy grill Z" and "Fan grill \" functions. Excessively long grilling times can lead to food drying out and burning, or could even cause it to catch fire.
Do not use the "Full grill Y",
~
"Economy grill Z" or "Fan grill \"to finish baking part-cooked rolls or bread or to dry flowers or herbs. Fire hazard. Use "Fan plus U" or "Conventional heat V" instead.
If using alcohol in your recipes, high
~
temperatures can cause the alcohol to vaporise and even to ignite on the hot heating elements. Alcohol should be burnt off before the dish is placed in the oven to avoid this danger.
Cover any food which is left in the
~
oven to be kept hot. Any moisture in the food could lead to corrosion damage in the oven. This also prevents the food from drying out.
If you wish to complete a cooking
~
process using the residual heat in the oven, leave the function selector at the position set and turn the temperature selector to the lowest setting. Do not switch the appliance off until the food has been removed. Increased moisture in the oven could cause condensation to form which could lead to
– corrosion in the oven compartment. – damage to the control panel, worktop
and surrounding kitchen furniture.
Do not line the floor of the oven with
~
aluminium foil when using "Conventional heat V"/"Bottom heat X"/ "Intensive bake O"/"Rapid heat-up S". This would cause a build-up of heat which could cause damage to the floor of the oven. For this reason do not place a dish, tin or baking tray directly on the oven floor.
8
Warning and Safety instructions
If using a tray made by a different manufacturer, make sure that there is a gap of at least 6 cm between the bottom of the tray and the floor of the oven.
Never add cold water to food on a
~
hot universal tray or baking tray or directly onto food in a hot oven. The steam created could cause serious burns or scalding and the sudden change in temperature can damage the enamel.
Always ensure that food is suitably
~
cooked or reheated. Some foods may contain micro-organisms which are only destroyed by thorough cooking at temperatures over 70 °C for a minimum of 10 minutes. Therefore when cooking or reheating foods, e.g. poultry, it is particularly important that food is fully cooked through. If in doubt select a longer cooking or reheating time. It is important that the heat is allowed to spread evenly throughout the food being cooked. This can be achieved by stirring and/or turning the food during cooking.
Do not heat up unopened tins or jars
~
of food in the oven. Pressure can build up and they may explode, resulting in injury or damage.
Do not push pots and pans around
~
on the oven floor, as this could damage the surface.
Do not lean or sit on an open oven
~
door, or place heavy items on it. Make sure that nothing gets trapped between the door and the oven compartment. This could damage the oven. The oven door can support a maximum load of 15 kg.
Do not use the appliance to heat up
~
the room. Due to the high temperatures radiated, objects near the appliance could catch fire.
Accessories
Only use genuine Miele original
~
spare parts and accessories with this appliance. Using spare parts or accessories from other manufacturers will invalidate the guarantee, and Miele cannot accept liability.
If using plastic containers for
~
cooking, they must be declared by the manufacturer as being suitable for use in an oven. Other types of plastic containers melt at high temperatures, and could damage the oven.
The manufacturer cannot be held liable for damage caused by non-compliance with these Warning and Safety instructions.
9
Caring for the environment
Disposal of the packing material
The transport and protective packing has been selected from materials which are environmentally friendly for disposal, and should be recycled.
Ensure that any plastic wrappings, bags, etc. are disposed of safely and kept out of the reach of babies and young children. Danger of suffocation.
Disposing of your old appliance
Electrical and electronic appliances often contain materials which, if handled or disposed of incorrectly, could be potentially hazardous to human health and to the environment. They are, however, essential for the correct functioning of your appliance. Please do not dispose of it with your household waste.
Please dispose of it at your local community waste collection / recycling centre or contact your dealer for advice. Ensure that it presents no danger to children while being stored for disposal.
10
H 4710 B, H 4810 B
Guide to the appliance
a Function selector, retractable when it is at "0" b Clock/timer with sensors ?, OK, ; d Temperature selector, retractable when it is at "0" d Temperature indicator light e Heating element for top heat and grilling f Catalytic enamelled back panel with air inlet for the fan g Side runners with five shelf levels h Door
11
Features
Oven controls
In addition to operating the various cooking programmes to bake, roast and grill, the controls on ovens with a clock/timer also offer the following:
a time of day display,
a minute minder,
a timer to automatically switch
cooking programmes on and off, settings that can be customised.
Safety features
Cooling fan
A cooling fan will come on automatically when a cooking programme is started. The cooling fan mixes hot air from the oven cavity with cool room air before venting it out into the kitchen through vents located between the appliance door and the control panel.
The cooling fan will continue to run after the oven has been switched off to prevent any humidity building up in the oven, on the control panel or on the oven housing unit. When the temperature in the oven has fallen sufficiently, the cooling fan will switch off automatically.
Vented oven door
The oven door is an open system and one of the door panes has a heat-reflecting coating. During operation, cool air is passed through the oven door to keep the outer pane cool.
See "Cleaning and care" for more information.
PerfectClean treated surfaces
The following surfaces are all treated with a special PerfectClean finish:
Oven interior
Universal tray
Baking tray (if applicable)
The anti-splash insert (if applicable).
PerfectClean surfaces have very good anti-stick properties and are much easier to keep clean than conventional enamel, if cleaned regularly.
See "Cleaning and care" for more information.
Catalytic enamelled surfaces
The back panel is coated with dark grey catalytic enamel. Soiling from oil and fat is burnt off this enamel when very high temperatures are used in the oven.
See "Cleaning and care" for more information.
Energy efficiency rating according to EN 50304
This appliance is rated energy efficiency class A in accordance with EN 50304. Tests were carried out using Fan plus U with any FlexiClip telescopic runners removed.
If necessary, the oven door can be dismantled for cleaning.
12
Features
Accessories
Depending on model, your appliance will be supplied with some of the following accessories.
These and other accessories are also available to order from the Miele Spare Parts Department, your Dealer or via the internet at www.miele-shop.com.
Baking tray, universal tray and rack with non-tip notches
(depending on model)
Baking tray:
Universal tray:
The short sides of the trays and rack have a safety notch in the middle. This notch prevents the tray or rack from sliding completely out of the oven when it is partially pulled out. To remove the trays or rack, they need to be lifted out.
Always place the rack in the oven with the slats facing downwards, as illustrated.
If you are using a tray with the rack on top, insert the tray between the rails of a shelf runner and the rack will sit on top of it.
Anti-splash insert
(depending on model)
Rack:
The baking tray, universal tray and rack are inserted into the oven between the two rails of a shelf runner.
The anti-splash insert should be placed in the universal tray when grilling or roasting. The juices from the food being cooked collect under the anti-splash insert. This prevents them from spitting and making the oven dirty. The juices can then be used for making gravy and sauces.
13
Features
Handle
(depending on model)
The handle makes it easier to take the universal tray, baking tray and rack out of the oven, or to put them into it. The two prongs at the top go inside the tray or above the rack, and the U-shaped supports underneath.
14
Controls
Function selector
The left-hand control is used to select the function. The function selector can be turned clockwise or anti-clockwise. It can only be retracted when it is at "0".
S Rapid heat-up U Fan plus \ Fan grill O Intensive bake P Defrost V Conventional heat X Bottom heat Y Full grill Z Economy grill T Lighting:
For switching on the oven light independently. This can be useful when cleaning the oven.
Temperature selector
The right-hand control is used to select the temperature. The temperature selector must only be turned in a clockwise direction as far as it will go, and then back again. It can only be retracted when it is at "0".
Temperature indicator light
The temperature indicator light is next to the temperature selector. The indicator light is always on when the oven heating is on.
When the set temperature is reached, – the oven heating switches off. –
the temperature indicator light goes out.
As soon as the temperature falls below the set temperature, the oven heating and the temperature indicator light will switch on again.
15
Oven functions
Your oven has a range of oven functions for preparing a wide variety of recipes.
Heat is created in the oven by means of different elements and components:
a Top heat/grill element (under the roof of the oven) b Bottom heating element (under the floor of the oven) c Ring heating element (behind the intake vent for the fan) d Fan (behind the intake vent for the fan)
These elements and components are combined in various ways, depending on the oven function selected. See the letters given in brackets for each function.
Oven function Notes
V Conventional
heat
[a + b]
X Bottom heat
[b]
Y Full grill
[a]
Z Economy
grill
[a]
For baking traditional recipes, e.g. fruit cake, casseroles.
Also ideal for soufflés.
– – If using an older recipe or cookbook, set the oven
temperature for Conventional heat 10°C lower than that recommended. The cooking duration does not need to be changed.
– Use this setting towards the end of baking to brown the
base of a cake, quiche or pizza.
– The whole grill element is switched on and glows red in
order to create the heat required. – For grilling larger quantities of thin cuts (e.g. steaks). –
For browning food in larger dishes.
The inner part of the grill element is switched on and glows
red in order to create the heat required. –
For grilling smaller quantities of thin cuts (e.g. steaks). –
For browning food in smaller dishes.
16
Oven function Notes
S Rapid
heat-up
[a + c + d]
U Fan plus
[c + d]
\ Fan grill
[a + d]
O Intensive
bake
[b + c + d]
P Defrost
[d]
For pre-heating the oven compartment.
The oven function required must then be selected.
For baking and roasting.
You can bake and roast on different levels at the same
time.
Lower temperatures can be used than with Conventional
heat V as the Fan plus system distributes the heated air
around the food.
For grilling larger items, e.g. rolled meat, poultry.
– – The hot air from the grill is distributed over the food by the
fan. This enables a lower temperature to be selected than
when using Full grill Y/Economy grill Z.
– For cooking dishes which require a moist topping and a
crisp base such as pizza and quiche lorraine. – Intensive bake is not suitable for baking thin biscuits etc.
or for roasting as the juices will become too dark.
– For the gentle defrosting of frozen food.
Oven functions
17
Before using for the first time
Before the oven can be used, you will need to – release the controls by pressing
them in, if they are pushed in when the oven is delivered.
– set the time of day
(on ovens with a clock/timer).
To set the time of day for the first time
The clock/timer has a 24 hour display.
ß
000
After connecting the appliance and switching it on, a dot ß will light up and 000will flash in the display.
^ Press the OK sensor.
000will light up in the display and the dot ß will flash.
^
Enter the time of day using the ? or ; sensors whilst the dot ß is flashing
in the display.
^
Press the OK sensor.
The time of day is saved and the dot ß now lights up continuously.
The time then counts in minutes.
Cleaning and heating up for the first time
Before use, please remove – any stickers from the oven and
from any accessories.
– any protective foil from the
oven front.
See "Cleaning and care" for more information.
Before using the oven for the first time
take all accessories out of the oven
and wash them.
– then heat the oven up once with
nothing in it. New ovens have a slight smell on first use and this will dissipate the smells before you use it to cook food.
^ Wipe the oven interior out with a
damp cloth to remove any dust or bits of packaging that may have accumulated in the oven cavity during storage and unpacking.
^
Press and release the function selector and the temperature selector.
^
Select Fan plus U with the function selector.
^
Set the highest temperature (250 °C) with the temperature selector.
18
The oven will start heating up as soon as this entry has been accepted.
Heat the empty oven for at least an
^
hour.
Please ensure the kitchen is well ventilated during this operation. Close doors to other rooms to prevent the smell spreading throughout the house.
The oven can be set to switch off automatically at the end of the heating up process. See "Operation – Entering a duration.
^ Leave the appliance to cool down to
room temperature.
^ Then wipe the oven interior out with a
solution of hot water and a mild detergent, and dry it thoroughly with a soft clean cloth.
Before using for the first time
Leave the oven door open until the oven interior is completely dry.
19
Clock/Timer
The clock/timer (depending on model) can:
display the time of day.
be used as a minute minder.
switch the oven off, or on and off,
automatically.
Sensor controls
The oven has sensors which react to touch. A keypad tone sounds each time a sensor is touched.
Operation
S
T
ß
I3
The clock/timer is operated using the OK, ; and ? sensors together with the display.
Sensor Use
OK
? and ; at
the same
time
; – To increase a time
?
00
l
To select the minute
minder l function To select the duration
T function
– To select the finish
time S function
– To save an entry
– To select the time of
day ß function
– To delete a time
– To change the
audible tone
To reduce a time
To call up the Audible tone option function
To change the audible tone
20
Clock/Timer
When you select a function, its symbol will flash in the display, e.g. l, T, S or ß.
You can only enter a time/duration while the symbol is flashing (15 seconds approx.). If you fail to make an entry during these 15 seconds, you will have to call up the symbol in the display again using the OK sensor.
Each press of the ? or ; sensor alters the time in one minute increments. Holding one of these sensors in will speed up the process.
To save your entry, touch the OK sensor or wait for approx. 15 seconds.
After this time, your entry will be saved automatically and the symbol will light up.
The time shown in the display
Changing the time of day
The clock/timer has a 24 hour display.
The time of day can only be altered if no cooking time (duration T and/or finish time S) has been entered.
Touch the ? and ; sensors at the
^
same time.
Enter the time of day using the ? or
^
; sensors whilst the dot ß is flashing in the display.
^ Touch the OK sensor.
The entry is saved and the dot ß now lights up continuously.
If there is a power cut, the time of day will need to be re-entered.
If a minute minder time has been entered, this will generally take precedence in the display.
If a duration T and/or finish time S have been entered, the time of day will take precedence in the display. The T and S symbols indicate which of these has been entered. The duration and/or finish time can be called up by touching the OK sensor.
21
Clock/Timer
Changing the audible tone
There is a choice of several different tones.
Touch the ? sensor until S appears
^
in the display together with a number, e.g.:
Si0
The audible tone assigned to this permutation will sound at the same time.
Each time the ? or ; sensor is touched, a different tone sounds.
S0to S30represent the choice available.
^ Touch the ? or ; sensor until you
reach the audible tone of your choice.
^ Touch the OK sensor to save your
choice.
Using the minute minder l function
The minute minder can be used to time any activity in the kitchen, e.g. boiling eggs.
You can set the minute minder at the same time as another programmed cooking time, e.g. as a reminder to baste your roast or add seasoning etc.
A minute minder time can be entered between 1 minute and 23 hours 59 minutes.
Alternatively, wait for approx. 15 seconds: the audible tone that sounded the last time a sensor was touched will be automatically saved after this time lapse.
If there is a power cut, the audible tone will automatically revert to the factory default setting and will need to be reset.
22
Clock/Timer
Setting the minute minder
Touch the OK sensor repeatedly until
^
the l symbol starts to flash in the display.
ß
000
l
0k00 will appear in the display.
Enter the time required for the minute
^
minder using the ? or ; sensor whilst the bell symbol l is flashing.
Touch the OK sensor.
^
This saves your entry.
The l symbol continues to be visible as a reminder that a minute minder time has been entered, and the minute minder time then counts down in the display.
The time counts down in seconds for the last minute.
Altering the time set for the minute minder
Touch the OK sensor repeatedly until
^
the l symbol starts to flash in the display.
Whilst the l symbol is flashing, enter
^
the time required for the minute minder using the ? or ; sensors.
Cancelling the time set for the minute minder
Touch the OK sensor repeatedly until
^
the l symbol starts to flash in the display.
^ Whilst the l symbol is flashing,
touch the ? and ; sensors at the same time.
The minute minder time is now deleted and the time of day reappears in the display.
At the end of the time set for the minute minder
the bell symbol l will start flashing,
an audible tone will sound for approx. 7 minutes.
^
Touch the OK sensor.
The tone will stop and the symbol in the display will go out.
23
Operation
Using the oven
Place the food in the oven.
^
Use the function selector to set the
^
function.
The oven interior light comes on.
Set the temperature with the
^
temperature selector.
The oven heating and the cooling fan will switch on.
Take the food out of the oven when it
^
is ready. Turn the function selector and the temperature selector back to the "0" position.
The cooling fan will continue to run to prevent any humidity building up in the oven, on the control panel or on the oven housing unit. When the temperature in the oven has fallen sufficiently, the cooling fan will switch off automatically.
Pre-heating
Most dishes can be placed in a cold oven. They will then make use of the heat produced during the heating-up phase.
It is only necessary to pre-heat the oven in a few instances:
U
V – It is usually necessary to
Do not use Rapid heat-up S to pre-heat the oven when baking pizzas or biscuits and small cakes. They will brown too quickly.
Pre-heating may be
necessary for foods which cook in less than 20 minutes and for foods such as puff pastries and yeast mixtures where instant heat is required to make them rise quickly.
– for roasting beef/fillet.
pre-heat the oven with Conventional heat.
24
To pre-heat the oven:
^
Select Rapid heat-up S.
^
Set a temperature.
The oven will start to heat up.
^
When the temperature indicator light goes out for the first time, set the oven function you require for continued cooking or baking, and place the food in the oven.
Operation
Switching on and off automatically
You can programme the oven to switch off automatically or on and off automatically.
For Automatic switch-off, you need to enter a duration T or a duration T and finish time S.
The maximum duration which can be set is 10 hours.
We recommend using automatic switching on and off when roasting. However, do not delay the start for too long when baking as the cake mixture or dough will dry out, and the raising agents will lose their effectiveness.
Entering a duration
You can programme the oven to switch off automatically by entering a cooking duration.
Place the food in the oven.
^
Select the required function and set
^
the temperature.
Touch the OK sensor repeatedly until
^
the T symbol starts to flash in the display.
T
ß
0
0k00 will appear in the display.
^ Enter the duration using the ; sensor
whilst the T is flashing.
Once the duration entered has been accepted the display will revert to showing the time of day. The T symbol continues to be visible as a reminder that a duration has been entered.
00
25
Operation
Entering a duration and a finish time
You can programme the oven to switch on and off automatically by entering a duration and a finish time.
For example: The time now is 10:45; you want a dish with a cooking duration of 90 minutes to be ready at 13:30.
Place the food in the oven.
^
Select the required function and set
^
the temperature.
The oven heating, lighting and cooling fan will switch on.
First enter the cooking duration:
^ Touch the OK sensor repeatedly until
the T symbol starts to flash in the display.
0k00 will appear in the display.
T
ß
i
^
Whilst the T is flashing, enter the duration in hours:minutes (1:30) using the ; sensor.
30
Now enter the finish time:
Touch the OK sensor.
^
S
i2
The following appears in the display:
i2ki5"
(time of day plus duration: 10:45 + 1:30 = 12:15).
The S symbol will flash.
S
I3
^ Whilst the S is flashing, set the time
you want the programme to finish at (13:30) with the ; sensor.
The oven heating, lighting and cooling fan will switch off.
^ Touch the OK sensor.
Once the duration entered has been accepted, the display will revert to showing the time of day. The T and S symbols indicate which of these has been entered.
T
ß
i5
T
ß
30
26
If a minute minder time has also been entered, this will take precedence in the display.
As soon as the start time (13:30 - 1:30 = 12:00) is reached, the oven heating, lighting and cooling fan will switch on.
Operation
At the end of the duration
the oven heating switches off
automatically.
the cooling fan will continue to run for
a while.
an audible tone will sound for
approx. 7 minutes.
the T symbol will flash.
Touch the OK sensor.
^
The tone will stop and the symbol in the display will go out.
Important: please note that touching the OK sensor will cause the oven heating to come on again. Switch the oven off if you no longer need it.
Checking and changing an entered duration
Touch the OK sensor repeatedly until
^
the T symbol starts to flash in the display.
The remaining duration shows in the display.
The duration can be changed whilst
^
the T symbol is flashing.
Deleting a duration
Touch the OK sensor repeatedly until
^
the T symbol starts to flash in the display.
^ Whilst the T symbol is flashing,
touch the ? and ; sensors at the same time.
The duration is now deleted and the time of day reappears in the display.
The oven will start to heat up as soon as the programmed cooking duration has been deleted. Switch the oven off if you no longer need it.
27
Baking tips
Refer to the baking charts for suggestions of temperatures, shelf levels and cooking durations. These take into account a range of different baking tins, quantities and cooking traditions.
Handling and preparing food correctly is essential for maintaining good health.
Only bake cakes, pizza, chips etc until they are golden. Do not overcook them.
Bakeware
Please take into account the material of your bakeware in your choice of oven function:
Fan plus U, Intensive bake O
Any heat-resistant material can be used.
Baking parchment
Because of their PerfectClean anti-stick surface the baking tray and the universal tray do not need to be greased or lined with baking parchment for baking. Baked goods are easily removed when done.
Baking parchment is only necessary when baking:
Anything with a high salt content
(e. g. pretzels, bread sticks), because sodium can damage the PerfectClean surface.
– Meringues or biscuits with a high
egg-white content, because they are more likely to stick.
Universal tray
When baking cakes with fresh fruit toppings and deep sponge cakes
place the tin in the universal tray to catch any spillages and keep the oven cleaner.
Conventional heat V
Dark metal, enamel or aluminium baking tins with a matt finish, as well as heat-resistant glass and ceramic dishes can be used.
Bright, shiny metal tins result in uneven or poor browning and in some cases cakes might not cook properly.
28
Rectangular tins
Place cakes in loaf tins and rectangular tins with the longer side across the width of the oven for optimum heat distribution and even results.
Baking tips
Notes about the charts
Temperature, baking duration
To achieve even results without over-browning the food,
always select the lowest
temperature given in the chart. Do not set a temperature higher than that recommended. Increasing the temperature may reduce the cooking time, but will lead to uneven browning, and unsatisfactory cooking results.
– Check if the food is cooked at the
end of the shortest time quoted. To check if a cake is ready, insert a wooden skewer into the centre. It is ready if the skewer comes out clean, without dough or crumbs sticking to it.
Shelf level
The shelf levels are counted from the bottom of the oven upwards (1 = lowest, 5 = highest).
The universal tray should be used beneath the baking tray when using two or more levels at the same time.
Frozen food
When baking frozen products such as cakes, pizza and baguettes, use the lowest temperature quoted on the manufacturer's packaging. Bake on a layer of baking parchment placed on the rack. Cooking large frozen items on the baking tray or the universal tray can cause the metal to distort. This distortion would increase with subsequent use.
Small items of frozen food such as oven chips or potato croquettes can be cooked on the universal tray. Place them on baking parchment and select the lowest temperature quoted on the manufacturer's packaging. Turn several times during cooking.
Number of trays
U 12
2 1 and 3
3 1,3and5*
O 1 1 or 2
V 1 1 or 2
* When baking moist cakes, bread etc
do not use more than two baking tins at the same time.
Shelf level
29
Baking chart
Cakes / biscuits Fan plus U
Temperature
in °C
Creamed mixture
Sponge cake 150–170 2 60–70 Ring cake 150–170 2 65–80 Muffins (1 [2] tray(s)) 150–170 2 [1+3] Foam cake (tray) 150–170 2 25–40 Marble cake (tin) 150–170 2 60–80 Fresh fruit cake, with filling (tray) 150–170 2 45–50 Fresh fruit cake (tray) 150–170 2 35–55 Fresh fruit cake (tin) 150–170 2 55–65 Flan base Small cakes/biscuits Small cakes/biscuits
2)
2)
(1 tray) 150–170 2 20–25
2)
(2 [3] trays) 140–160 1+3 [+5]
150–170 2 25–35
Rubbed in mixture
Tart / flan base 150–170 2 20–25 Streusel cake 150–170 2 45–55 Small cakes/biscuits Small cakes/biscuits
2)
(1 tray) 150–170 2 15–25
2)
(2 [3] trays) 140–160 1+3 [+5]
Cheese cake 150–170 2 70–95 Apple pie 160–180 2 50–70 Apricot tart with topping 150–170 2 55–75 Swiss apple pie
3)
190–210 2 30–45
Shelf
level
Duration
in min.
4)
4)
4)
30–50
20–25
15–25
1)
The data for the recommended function is printed in bold.
In general, if a range of temperatures/times is given, it is best to select a lower temperature and to check the food after the shortest time.
30
Baking chart
Conventional heat V Intensive bake O
Temperature
in °C
Shelf
level
Duration
in min.
150–170 2 60–70 – 150–170 2 65–80 – 160–180 2 25–45 – 170–190 2 25–40 – 150–170 2 60–80 – 170–190 2 45–50 – 170–190 1 35–55 – 160–180 2 55–65 – 170–190 2 20–25 – 160–180 3 15–25
––––––
170–190 2 15–20 – 170–190 2 45–55 – 160–180 3 15–25
––––––
160–180 2 85–95 150–170 2 75–90 170–190 1 45–65 160–180 1 50–70 170–190 2 55–75 150–170 2 50–60 220–240 1 35–50 190–210 1 25–40
1)
Temperature
3)
in °C
Shelf
level
Duration
in min.
–––
1)
1) Unless otherwise stated, the times given are for an oven which has not been pre-heated. With a pre-heated oven shorten times by up to 10 minutes.
2) Do not use Rapid heat-up S during the heating-up phase.
3) Pre-heat the oven.
4) Take baking trays out of the oven early if the food is sufficiently browned before the specified time has elapsed.
31
Baking chart
Cakes / biscuits Fan plus U
Temperature
in °C
Sponge mix
Sponge cake (2 eggs) Sponge cake (3 to 6 eggs) Swiss roll
2)
2)
2)
2)
170–190 2 15–20 175–195 2 22–30 160–180 2 15–25
Yeast mixtures and quark dough
To prove dough 50 Gugelhupf 150–170 2 50–60 Stollen 150–170 2 55–65 Streusel cake 150–170 2 35–45 Fresh fruit cake (tray) 160–180 2 40–55 White bread 160–180 2 50–60 Whole grain bread Pizza (tray)
2)
3)
170–190 2 50–60
170–190 2 35–45
Onion tart 170–190 2 35–45 Apple turnovers (1 [2] tray(s)) 150–170 2 [1+ 3]
Choux pasty2), Eclairs (1 [2] tray(s)) 160–180 2 [1+ 3] Puff pastry (1 [2] tray(s)) 170–190 2 [1+ 3] Meringues, Macaroons 120–140 2 [1+ 3]
Shelf
level
5)
Duration
in min.
4)
4)
4)
4)
15–30
25–30 30–45 20–25 25–50
1)
The data for the recommended function is printed in bold.
In general, if a range of temperatures/times is given, it is best to select a lower temperature and to check the food after the shortest time.
32
Conventional heat V Intensive bake O
Temperature
in °C
Shelf
level
Duration
in min.
1)
Temperature
in °C
Baking chart
Shelf
level
Duration
in min.
1)
50
3)
3)
3)
3 10–20 ––– 3 20–40 ––– 2 12–16 –––
5)
15–30
170–190 170–190 180–200
160–180 1 50–60 – 150–170 2 55–65 – 170–190 2 35–45 – 170–190 3 40–55 170–190 2 40–55 160–180 2 50–60 – 190–210 2 50–60
190–210 2 30–45 170–190 2 40–50 180–200 2 25–35 170–190 2 25–35
160–180 2 25–30 – 180–200 190–210 120–140
3)
3)
3)
3 30–40 – 2 20–25 – 2 25–50
1) Unless otherwise stated, the times given are for an oven which has not been pre-heated. With a pre-heated oven shorten times by up to 10 minutes.
2) Do not use Rapid heat-up S during the heating-up phase.
3) Pre-heat the oven.
4) Take baking trays out of the oven early if the food is sufficiently browned before the specified time has elapsed.
5) Place the rack on the floor of the oven, and stand the bowl containing the dough on the rack.
33
Roasting tips
Recommendations Notes
Function
Fan plus U You can also use Conventional heat V.
Containers
Any heat-resistant containers
Shelf level
2nd shelf level from the bottom
Pre-heating
Generally not required
Temperature
Please refer to the roasting chart.
Roasting times
Please refer to the roasting chart.
The Miele Gourmet oven dish, roasting pans with a lid, ovenproof china or glass, roasting bags, the universal tray, the rack on top of the universal tray, the anti-splash insert (if you have one) in the universal tray.
We recommend roasting in a covered pot, as
this ensures that sufficient stock remains for making
gravy. and the oven stays cleaner, too.
Place the covered pot on the rack into a cold oven. Pre-heating is only required when roasting beef/fillet.
– Do not select a higher temperature than that suggested.
The meat will brown on the outside, but will not be properly cooked through.
– With Fan plus U, a temperature of 20 °C less than for
Conventional heat V is sufficient.
For cuts which weigh 3 kg or more, select a temperature approx. 10 °C lower than that given in the roasting chart. Roasting will take longer at the lower temperature, but will be more even.
For roasting directly on the rack, select a temperature that is about 20 °C lower than for roasting in a covered pot.
To calculate the roasting time: The traditional British method is to allow 15 to 20 minutes per lb/450 grammes, according to type of meat, plus approx. 20 minutes, adjusting the length of time as roasting proceeds to obtain the required result.
34
Useful tips
Browning
Browning only occurs towards the end of the roasting time. Remove the lid about halfway through the roasting time if a more intensive browning result is desired.
Standing time
At the end of the programme, take the roast out of the oven, wrap in aluminium foil and leave to stand for about 10 minutes. This helps retain juices when the meat is carved.
Roasting poultry
For a crisp finish, baste the poultry ten minutes before the end of cooking time with slightly salted water.
Roasting tips
Frozen meat
Do not roast deep frozen meat. Meat should be thoroughly defrosted before roasting.
35
Roasting chart
Time
in min.
1)
3)
Recom-
mended
Food
Topside of beef, approx. 1kg
Beef fillet or roast beef, approx. 1 kg
Venison, approx. 1 kg 2 180 – 200 90 – 120 190 – 210 90 – 120
Pork joint, approx. 1 kg 2 170 – 190 100 – 120 200 – 220 100 – 120
Pork joint with crackling, approx. 2 kg
Gammon joint, approx. 1 kg 2 170 – 190 60 – 70 200 – 220 60 – 70
Meat loaf, approx. 1 kg 2 160 – 180 70 – 80 190 – 210 70 – 80
Veal, approx. 1.5 kg 2 170 – 190 100 – 120 190 – 210 100 – 120
Leg of lamb, approx. 1.5 kg 2 170 – 190 90 – 120 200 – 220 90 – 120
Rack of lamb, approx.
1.5 kg
Poultry, 0.8–1kg 2 170–190 60–70 190–210 60–70
Poultry, approx. 2 kg 2 170 – 190 90 – 110 190 – 210 90 – 110
Poultry, stuffed, approx. 2kg
Poultry, approx. 4 kg 2 160 – 180 150 – 180 180 – 200 150 – 180
Fish, whole, approx. 1.5 kg 2 160 – 180 35 – 55 190 – 210 35 – 55
1) We recommend Fan plus U for roasting, however, Conventional heat V can also be used.
2) Temperature in a covered pot. If open roasting, set the temperatures 20 °C lower.
3) Unless otherwise stated, the times given are calculated on the basis of an oven which has not been pre-heated.
4) Pre-heat the oven.
4)
4)
shelf
level
2 170 – 190 100 – 120 190 – 210 100 – 120
2 190 – 210 45 – 55 200 – 220 45 – 55
2 150 – 170 160 – 180 180 – 200 120 – 150
2 170 – 190 50 – 60 190 – 210 50 – 60
2 170 – 190 110 – 130 190 – 210 110 – 130
Fan plus U Conventional heat V
Temperature
in °C
2)
Time
in min.
Temperature
3)
in °C
2)
In general, if a range of temperatures and times is given, it is best to select a temperature in the middle and to check the food after the shortest time.
36
Notes on Slow cooking
This type of cooking is ideal for cooking beef, pork, veal or lamb when a tender result is required.
First sear the meat all over at a high temperature on the hob in order to seal it.
Then cook the meat in the oven at a low temperature over a long period.
The meat juices inside the joint will start to circulate evenly throughout the meat to reach the outer layers.
This gives very tender and succulent results.
For good results when slow cooking at low temperatures over a long period, please note:
– Use lean meat which has been
correctly hung and trimmed. The meat should be taken off the bone before cooking.
– For searing use a suitable cooking oil
that can withstand high temperatures.
Proceed as follows:
We recommend using the universal tray with the rack on top.
Place the universal tray with the rack
^
on top in the oven on shelf level 2.
Select the Conventional heat V
^
function.
Pre-heat the oven, rack and universal
^
tray at 130 °C for approx. 15 minutes.
Do not use Rapid heat-up S to pre-heat the oven.
^ Whilst the oven is pre-heating, sear
the meat thoroughly on the hob.
Danger of burning.
,
Please be aware that the oven compartment will be very hot when you put the meat in the oven.
^ Place the seared meat on the rack.
^
Reduce the temperature to 100 °C.
Do not cover meat during cooking.
Cooking takes between 2-4 hours depending on the size and amount of meat and on the degree of doneness and browning required.
37
Notes on Slow cooking
It is a good idea to programme the duration.
Enter the duration, see "Operation –
^
Entering a cooking duration".
You could use a food probe if you
^
have one. Core temperatures are listed in the chart.
Continue cooking until the end of the
^
cooking duration.
Useful tips
Because it has been cooked using low temperatures,
– meat can be carved straight from the
oven. It does not need to rest.
– meat can be kept warm quite safely
in the oven until it is served. This will not affect the result in any way.
– the meat is an ideal temperature to
eat straight away. Serve on pre-heated plates with very hot sauce or gravy to prevent it cooling down too quickly.
Cooking duration/Core temperatures
Food Duration
in Min.
Sirloin joint
rare
medium
well done
– Pork fillet 120–150 63 Boned gammon 150–210 68 Boned saddle of
veal Boned saddle of
lamb
60–90 120–150 180–240
180–210 63
90–120 60
Core temp. in °C
48 57 69
38
Grilling tips
Grill with the oven door closed.
,
If you grill with the door open, hot air will escape from the oven instead of being cooled by the cooling fan. The controls will get hot. Danger of burning.
Function Notes
Full grill Y For grilling thin cuts in large quantities and for browning
large baked dishes. The whole grill element will get hot and glow red.
Economy grill Z: For grilling thin cuts in small quantities and for browning
small baked dishes. The inner part of the grill heating element will get hot and
glow red.
Fan grill \: For grilling thicker items, e.g. rolled meat, poultry pieces.
39
Grilling tips
Recommendations Notes
Containers
Rack on the universal tray Anti-splash insert in the universal tray (if you have one)
Shelf level from the bottom
Please refer to the grilling chart.
Pre-heating
is necessary
Temperature
Please refer to the grilling chart.
Grilling time
Please refer to the grilling chart.
Do not use the baking tray.
For thin cuts use shelf level 4 or 5 For thicker cuts use shelf level 3 or 4
Pre-heat the grill for approx. 5 minutes with the door shut.
– For thin cuts of meat
(e. g. chops or steak): Y
– For grilling thicker items,
(e. g. rolled meat, poultry) 240 °C
– Do not select a higher temperature than that
suggested. The meat will brown on the outside, but will not be properly cooked through.
– Flat pieces of fish and meat usually take6–8
minutes per side. Thicker pieces take a little longer.
– With rolled meat, allow approx. 10 minutes per cm
diameter.
Turn food half way through cooking.
40
Grilling tips
Preparing food for grilling
Rinse briefly under running cold water, pat dry and season with pepper and herbs. Do not season meat with salt before grilling as this draws the juices out.
Add a little oil to lean meat if necessary. Do not use other types of fat as they can burn and cause smoke.
Clean fish in the normal way. To enhance the flavour, add a little salt or squeeze a little lemon juice over the fish.
Grilling
Useful tips
It is best to grill food of a similar thickness at the same time so that the grilling time for each item does not vary too greatly.
To grill thicker pieces of food more gradually after an initial high temperature, continue grilling at a lower temperature setting or use a lower shelf runner to allow the food to cook through to the centre.
One way of finding out how far through a piece of meat has been cooked is to press down on it with a spoon.
– If there is very little resistance to the
pressure of the spoon, it will still be red on the inside ("rare").
– If there is some resistance the inside
will be pink ("medium").
– If there is great resistance, it is
throughly cooked through ("well done").
^
Assemble the rack or anti-splash insert (if you have one) on the universal tray as illustrated.
^
Place the food on the rack.
^
Select the required function and set the temperature.
^
Pre-heat the grill for approx. 5 minutes with the door shut.
^
Place the food under the grill and shut the door.
^
Turn food half way through cooking.
41
Grilling chart
Pre-heat the grill for approx. 5 minutes with the door shut.
Food to be grilled Recom-
mended
shelf
level
Full grill Y /
Economy grill Z
Temperature
in °C
Total
grilling time
in min.
1)
Temperature
Fan grill \
in °C
Total
grilling time
in min.
Thin cuts
Steak 4 Y 10–16 220 20–25
Kebabs 4 240 25 – 30 220 16 – 20
Chicken kebabs 4 240 20 – 25 200 23 – 27
Escalope 4 or 5
Liver 4 or 5
Burgers 4 or 5
Sausages 4 or 5
Fish fillet 4 or 5
Trout 4 or 5
Toast 4 or 5
Cheese toast 4 or 5
2)
2)
2)
2)
2)
2)
2)
2)
Y 12–18 220 23–27 Y 8–12 220 12–15 Y 14–20 220 18–22 Y 10–15 220 9–13 Y 12–16 220 13–18 Y 16–20 220 20–25 Y 2–4 220 3–6 Y 7–9 220 5–8
Tomatoes 4 Y 6–8 220 8–10 Peaches 4 Y 6–8 220 15–20
Thicker cuts
Chicken
3 240 50 – 60 190 60 – 65
(approx. 1 kg)
Rolled meat,
2 240 75 – 85 200 100 – 110
C 7 cm, (approx. 1 kg)
Pork shank
2 240 100 – 120 200 95 – 100
(approx. 1 kg)
Sirloin, approx.
2 250 25 – 35
1kg
1) Turn half way through the grilling time.
2) Select the appropriate shelf level for the thickness of the food.
1)
42
Defrost
The Defrost P function uses the fan to circulate air at room temperature.
Please note:
Where possible remove the
packaging and put the food to be defrosted on the universal tray or into a suitable dish.
When defrosting poultry, put it on the
rack over the universal tray to catch the defrosted liquid so that the meat is not lying in this liquid.
It is particularly important to
,
observe food hygiene rules when defrosting poultry. Do not use the liquid from the defrosted poultry. Pour it away, and wash the tray, the sink and your hands. Danger of salmonella poisoning.
– Fish does not need to be fully
defrosted before cooking. Defrost so that the surface is sufficiently soft to take herbs and seasoning.
Defrosting times
The time needed for defrosting depends on the type and weight of the food, and at what temperature it was deep frozen. The following chart is for guidance only. It is important to check that food is thoroughly defrosted.
Chicken, 800 g.........90–120min.
Meat, 500 g ............60–90min.
Meat, 1000 g ..........90–120min.
Sausages, 500 g ........30–50min.
Fish, 1000 g ............60–90min.
Strawberries, 300 g ......30–40min.
Sponge cake, 500 g......20–30min.
Bread, 500 g ...........30–50min.
,
Do not refreeze food once it has
thawed.
43
Cooking ready meals
We recommend using Fan plus U.
Select the required function and set the temperature.
^
When the temperature indicator light goes out, place the dish in the
^
pre-heated oven.
Cook frozen cakes and pizza on baking paper on the rack rather than on the baking tray or the universal tray. Cooking large frozen items on the baking tray or the universal tray can cause the metal to distort. This distortion will increase with each subsequent use. Frozen food such as oven chips or croquette potatoes can, however, be cooked on the baking tray or the universal tray.
Examples of ready meals
Food Temperature
Potato, pasta or vegetable bake
Lasagne, cannelloni 190 2 35 – 40 Remove the lid
Filled baguette, panini 200 2 12 – 15 Place on baking paper,
Pre-cooked pizza 200 2 12 – 20 Place on baking paper,
Pre-cooked mini pizza 220 2 8 – 10 Place on baking paper,
Potato pancakes, Rösti, croquettes
* Observe recommended temperatures, cooking times and position in the oven given on the
manufacturer's packaging.
in °C *
250 2 20 – 25 Place in a suitable dish
220 2 12 – 20 Place on baking paper,
Shelf level from
the bottom*
Time
in min.*
Notes
directly on the rack
directly on the rack
directly on the rack
directly on the rack
44
Cleaning and care
Miele branded cleaning and conditioning products are available from the Miele Spare Parts Department or via the internet on www.miele-shop.com.
Do not use a steam cleaner to
,
clean the appliance. The steam could reach electrical components and cause a short circuit.
Appliance front
Remove any soiling immediately. If this is not done, it might become impossible to remove and could cause the surface to alter or discolour.
Clean the front using a damp Miele microfibre E-cloth or with a clean sponge and a solution of hot water and washing-up liquid. Wipe dry using a soft cloth.
To prevent damage to your appliance when cleaning, do not use:
cleaning agents containing soda,
ammonia, acids or chlorides,
cleaning agents containing
descaling agents,
abrasive cleaning agents, e.g.
powder cleaners and cream cleaners,
solvent-based cleaning agents,
stainless steel cleaning agents,
dishwasher cleaner,
– oven sprays,
– glass cleaning agents,
– hard, abrasive sponges and
brushes, e.g. pot scourers,
– melamine eraser blocks,
– sharp metal scrapers.
The external surfaces of this appliance are all susceptible to scratching. Scratches on glass surfaces could even cause a breakage in certain circumstances. Contact with unsuitable cleaning agents can alter or discolour the external surfaces.
45
Cleaning and care
Accessories
Universal tray, baking tray , anti-splash insert
(depending on model)
The surface has been treated with PerfectClean enamel.
Please refer to the section on "PerfectClean" for information on cleaning and care.
Rack, runners
Use hot water and a little washing-up liquid, or a non-abrasive stainless steel cleaning agent, to clean the chrome surfaces.
Oven interior
Allow the oven to cool down before cleaning. Danger of burning
cause lasting discolouration to PerfectClean surfaces.
Please refer to the section on "PerfectClean" for information on cleaning and care.
The removable back panel, side panels and roof liner are coated with a dark grey catalytic enamel. See the cleaning instructions for "Catalytic enamelled surfaces".
To make cleaning easier
remove the oven door,
dismantle the door,
– – take out any FlexiClip runners, – take out the runners, – remove the catalytic enamelled back
panel, side panels and roof liner.
– lower the top heating/grill element.
Instructions for doing so are given further on in this section.
Seal and inside of the oven door
The oven interior should be cleaned after each use. If this is not done subsequent soiling from baking and roasting will become worse and make cleaning harder. In extreme cases soiling will be impossible to remove or even cause damage to the surface material.
The surface of the oven interior has been treated with PerfectClean enamel.
When baking items with a high salt content (e.g. continental pretzels) place them on baking parchment in the universal tray. Sodium deposits can
46
Grease desposits on the seal between the inside of the oven door and the oven interior can cause it to become brittle and cracked.
It is best to clean the seal and the inside of the door after each with a Miele E-cloth or a clean sponge and a solution of hot water with a little washing-up liquid. Wipe dry using a soft cloth.
Cleaning and care
PerfectClean
Before using for the first time remove any stickers from PerfectClean surfaces.
The enamelled surfaces of the oven interior, the baking tray (if applicable, universal tray and anti-splash insert (if applicable) have been treated with a special type of enamelling called "PerfectClean". This surface has very good anti-stick properties and is much easier to keep clean than conventional oven enamel, if cleaned regularly.
Food can be taken off it more easily, and soiling from baking and roasting is easier to remove.
The following notes on cleaning and care should ensure that the anti-stick and easy clean properties of PerfectClean last for many years.
PerfectClean surfaces can be treated as you would treat glass. Food can be sliced or cut up on the PerfectClean surface in the same way as on a baking tray with conventional enamel.
Allow the oven and any accessories to cool down before cleaning. Danger of burning.
Normal soiling
Clean as soon as possible after each use with a dishcloth, soft sponge or a soft nylon brush, and a solution of hot water and a little washing-up liquid. The longer soiling is left, the harder it may become to remove.
Stubborn soiling
Stubborn soiling, e.g. from roasting, may need to be soaked first with a damp sponge to loosen it and if necessary a non-abrasive stainless steel spiral pad or a scraper suitable for glass can be used to remove it.
After cleaning, rinse thoroughly with clean water. The water must run off the surface easily. Any residual cleaning agents will hinder this effect.
Using oven sprays on very stubborn soiling
Some oven cleaners contain strong alkalines and / or abrasive materials. Because PerfectClean enamel is designed to be easily cleaned, the use of these cleaners is not recommended. However, if you still cannot get the surface clean, an oven cleaner can be used, but for a few minutes only.
47
Cleaning and care
Do not attempt to use on a hot oven or accessories. Allow the PerfectClean surfaces to cool down to room temperature before applying an oven spray.
Remove the catalytic back panel, side liners (if fitted) and roof liner before using oven spray. The chemicals used in oven sprays will damage catalytic enamel, rendering it ineffective.
Apply spray oven cleaner to the soiled areas, then leave to take effect for a few minutes only (no more than 10 minutes).
If necessary use a soft sponge, soft nylon brush or a scraper suitable for glass surfaces to loosen the soiling.
Repeat the process if necessary.
After cleaning, rinse thoroughly with clean water and then dry thoroughly.
For optimum performance of PerfectClean enamel it is important to clean the oven and accessories after each use.
The following cause lasting damage to the surface structure and reduce the anti-stick effect and must not be used on PerfectClean surfaces:
abrasive cleaning agents, e.g.
powder cleaners and cream cleaners,
cleaning agents for ceramic hobs,
wire wool or metal scourers,
abrasive sponges, e.g. pot scourers
or sponges which have been previously used with abrasive cleaning agents,
– oven spray must not be used in a hot
oven or left on for too long,
– PerfectClean enamelled items must
not be washed in a dishwasher.
– do not spot-clean by rubbing the
surface.
Note:
Soiling such as spilt juices and cake mixtures are best removed whilst the oven or tray is still warm. Exercise caution, make sure the oven is not too hot - danger of burning.
The surfaces will become harder to clean and the anti-stick properties will deteriorate if soiling is not removed after each use and allowed to build up. In extreme cases cleaning may become impossible.
48
Spilt fruit juices may cause lasting discolouration to the surfaces and roasting can cause matt areas to appear. Clean these following the instructions given above and do not use force to remove them. This discolouration is permanent but will not affect the efficiency of the enamel.
Cleaning and care
Catalytic enamel surfaces
The back panel, roof liner and side panels (if fitted) are coated with dark grey catalytic enamel. Soiling from oil and fat is burnt off these surfaces when very high temperatures are used in the oven. The higher the temperature, the more effective the process.
The catalytic coating becomes ineffective through using – abrasive cleaning agents, – hard brushes or abrasive
sponges, – oven sprays. Remove the catalytic back panel, side panels and roof liner from the oven before cleaning the PerfectClean oven surfaces with oven spray.
Note that deposits of spices, syrups and similar substances are not removed from the catalytic coating by this process. These should be removed by hand whilst still fresh, using a mild solution of hot water and washing-up liquid applied with a soft sponge or brush. Remove the panels from the oven to do this.
Soiling caused by oil and grease splashes are removed from catalytic coated surfaces when the oven is heated to a high temperature. To do this:
PerfectClean surfaces and becoming impossible to remove.
Select Fan plus U.
^
Set the highest temperature setting.
^
Run the oven for approx. 1 hour. The length of time will depend on the level of soiling.
The timer can also be used to set the finish time. See "Entering a cooking duration".
If the catalytic coated panels are very heavily soiled with oil and grease, a film will develop on the oven surface during the cleaning process which can be wiped off with warm water and a little washing-up liquid once cool.
^ Finally, clean the PerfectClean
surfaces and the inside of the door.
Any remaining soiling will gradually disappear with each subsequent use of the oven at high temperatures.
Should the catalytic coating on the back panel, roof liner or side panels become ineffective through improper use or heavy soiling, a replacement can be obtained from your Miele dealer or the Miele Spare Parts Department.
^
Take all accessories out of the oven.
^
Wipe large deposits of soiling from the oven interior and the inside of the door before starting the cleaning process to avoid them baking onto
49
Cleaning and care
To remove the oven door
The oven door is connected to the oven by hinges.
Before removing the door, the locking clamps on both hinges have to be released.
^ Open the door fully.
Then lift the door upwards as far as it
^
will go.
Do not attempt to take the door off the hinge guides when it is in a horizontal position. The guides will close, and damage the appliance. Danger of inury.
^
To release the locking clamps on the hinges turn them upwards as far as they will go until they are at an angle. See illustration.
50
^
Hold the door securely at both sides and lift upwards off the hinge guides.
Do not lift the door off by the handle. The handle could break and damage the door.
Make sure that you lift the door off equally on both sides.
To dismantle the oven door
The oven door is made up of two panes of glass and has vents at the top and bottom.
When the oven is operating, air is circulated through the door to keep the outer pane cool.
If condensate has worked its way in between the glass panes, the door can be dismantled in order to clean in between the panes.
When cleaning the glass panes please follow the same instructions given for cleaning the appliance front.
Do not use abrasive cleaning agents, sponges or brushes, as these can scratch the surface. These could damage the surface. Scratches can also cause the glass to break.
Cleaning and care
Always remove the oven door before dismantling it.
Place the door on a protective
^
surface (e.g. on a table cloth) to prevent it getting scratched. The door handle should just overhang the edge of the table so that the glass lies flat to prevent it from getting broken during cleaning.
^ Flip the glass pane retainers
outwards to open them.
Do not use an oven spray. This will damage the surface of the aluminium surrounds.
To avoid the risk of breakage, it is advisable to place the panes on a table protected by a soft cloth (e.g. a towel).
You can now remove the inner pane.
51
Cleaning and care
Gently lift the inner pane up and out
^
of the plastic strip.
Clean the glass panes and other
^
parts with a Miele E-cloth or a clean sponge and a solution of hot water with a little washing-up liquid. Wipe dry using a soft cloth.
^ To refit the door:
Push the inner pane into the plastic
^
strip and place it between the retainers. "Miele" must be visible at the top.
52
^
Flip the glass pane retainers inwards to close them.
Cleaning and care
To refit the door
^ Hold the door securely at both sides
and carefully fit it back onto the hinge guides.
Open the door fully.
^
Flip both locking clamps back up as
^
far as they will go into a horizontal position.
It is essential that the locking clamps are flipped down when the door is refitted after cleaning. Otherwise the hinges could work loose, resulting in damage to the door.
Make sure that the door goes back on straight.
53
Cleaning and care
To remove the runners
Make sure the oven heating
,
elements are switched off and cool. Danger of burning.
^ Pull the runners forwards out of the
holder and remove, together with the catalytic side panels (if fitted).
Reassemble in the reverse order, carefully ensuring all parts are correctly in place.
To remove the catalytic enamelled back panel, side panels and roof liner
Make sure the oven heating
,
elements are switched off and cool. Danger of burning.
See "Cleaning and care" for information on cleaning.
Back panel
Remove the runners, together with
^
the catalytic side panels (if fitted).
^ Loosen the screws in the back panel
and take it out.
The oven must not be used without the back panel fitted. This could cause considerable injury.
Reassemble in the reverse order, carefully ensuring all parts are correctly in place.
54
Cleaning and care
Roof liner (if fitted)
Remove the runners, together with
^
the catalytic side panels (if fitted).
Unscrew the wing nut.
^
^ Gently lower the element.
Do not use force to pull it down as this can cause the element to break.
^ Take out the roof liner.
Reassemble in the reverse order, carefully ensuring all parts are correctly in place.
Side panels (if fitted)
Remove the runners, together with
^
the catalytic side panels.
Remove the side panels from the
^
runners.
Reassemble in the reverse order, carefully ensuring all parts are correctly in place.
Make sure that the wing nut is screwed back on properly.
55
Problem solving guide
With the aid of the following guide, minor problems can be easily corrected without contacting Miele.
Do not attempt to open the appliance casing yourself!
,
Installation, maintenance and repairs may only be carried out by a suitably qualified and competent person in strict accordance with current national and local safety regulations. Repairs and other work by unqualified persons could be dangerous. The manufacturer cannot be held liable for unauthorised work.
Problem Possible cause and remedy
Check whether the mains fuse has tripped. If it has not
The display is dark.
^
tripped, contact a qualified electrician or Miele.
The oven does not heat up.
On ovens with a clock/timer, 0k00" starts flashing in the display.
A noise can be heard after a cooking programme.
^ Check that the function selector and the temperature
selector have been set at the function and temperature required.
^ Check whether the mains fuse has tripped. If it has not
tripped, contact a qualified electrician or Miele.
There has been a power cut.
^ Enter the time of day again.
^ Enter the cooking programme again.
This is not a fault.The cooling fan continues to operate after a programme has finished. It switches itself off once the oven has dropped to a certain temperature.
56
Problem solving guide
Problem Possible cause and remedy
Disconnect the appliance from the electricity supply:
The interior lamp is not working.
Cakes and biscuits are not cooked properly after following the times given in the chart.
Cakes/biscuits are browning unevenly.
There are spots like rust on the catalytic surfaces.
^
Switch off and unplug at the socket, or disconnect the fuse, or switch off at the isolator as appropriate.
Turn the lamp cover a quarter turn anti-clockwise to
^
release it and then pull it downwards to take it out.
Replace it with a new halogen lamp (Osram 66725 AM/A,
^
230 V, 25 W, G9).
Refit the lamp cover and turn it clockwise to secure it.
^
Reconnect the appliance to the mains electricity supply.
^
Check that the correct temperature has been set.
^
^ Check whether there has been a change to the recipe.
The addition of more liquid or more eggs makes a moister mix which would need longer to cook.
There will always be a slight unevenness.
^ If the unevenness is pronounced, check that the right
temperature and shelf level have been selected.
With Conventional heat V, the material and colour of the bakeware is also important: light coloured, shiny tins are less suitable.
When roasting on the rack, the circulating air sometimes picks up spices, which are then deposited on the oven interior walls. These residues are not removed by catalytic cleaning, and should be removed while fresh with a mild solution of hot water and washing-up liquid applied with a soft brush.
57
After Sales / Guarantee
After sales service
In the event of a fault which you cannot correct yourself, or if the appliance is under guarantee, please contact
your Miele Dealer
or
Miele (see back cover for contact
details).
A call-out charge will be applied for service visits where the problem could have been resolved as described in these instructions.
When contacting your Dealer or Miele, please quote the model and serial number of your appliance.
This information is given on the data plate, visible on the front frame of the oven, with the door fully open.
Please note that telephone calls may be monitored and recorded for training purposes.
Guarantee
For information on the appliance guarantee specific to your country please contact Miele. See back cover for contact details.
In the UK, your appliance is guaranteed for 2 years from the date of purchase. However, you must activate your cover by calling 0845 365 6640 or registering online at www.miele.co.uk.
58
Optional accessories
A range of additional accessories as well as cleaning and care products are available for your Miele oven. Depending on product they are available to order from your Miele Dealer, the Miele Spare Parts Department or via the internet on www.miele-shop.com.
FlexiClip telescopic runners
Up to 5 pairs of FlexiClip telescopic runners can be fitted in the oven.
FlexiClip telescopic runners enable a shelf to be drawn out to give a good view of cooking in progress.
Baking tray, universal tray and rack
These items, supplied with your oven, are also available to order.
When ordering, please quote the model number of your appliance.
Pizza stone
The pizza stone is ideal for items which need a well baked base such as pizza, quiche, bread, bread rolls and savoury snacks. The pizza stone is made from heat retaining fire brick and is glazed. Place it directly on the rack. A paddle made of untreated wood is supplied with it for placing food on the pizza stone and taking it off.
Flan/Pizza dish
This circular pan is suitable for cooking pizzas, flat cakes made with yeast or whisked mixtures, sweet and savoury tarts, baked desserts, and can also be used for frozen cakes and pizzas. The surface has been treated with PerfectClean enamel.
59
Optional accessories
Gourmet oven dish
The gourmet oven dish can be placed in the oven directly on the runners. It has non-tip safety notches like the universal tray to prevent it being pulled out too far. It has an anti-stick coating.
It is available in two sizes:
HUB 5000-M (internal dimensions:
approx. 38 x 22x8cm)
– HUB 5000-XL (internal dimensions:
approx. 38 x 35x8cm)
Catalytic liners
Replacement side and roof liners are available to order if required. Please quote the model number of your oven when placing your order.
Miele E-cloth
Removes grease and stains and leaves no smearing. Suitable for cleaning surfaces such as stainless steel, glass, plastic and chrome without the use of chemicals.
Miele oven cleaner
Suitable for removing stubborn soiling. It is not necessary to pre-heat the oven beforehand.
Gourmet oven dish lid
When ordering a lid, please specify the gourmet oven dish it is to be used with (HUB 5000 M or XL).
60
All electrical work should be undertaken by a suitably qualified and competent person in strict accordance with current national and local safety regulations (BS 7671 in the UK). Installation, repairs and other work by unqualified persons could be dangerous. The manufacturer cannot be held liable for unauthorised work. Ensure power is not supplied to the appliance until after installation or repair work has been carried out.
The voltage and connected load are given on the data plate, visible below the oven interior, with the door open. Ensure that these match the household mains supply. Please quote these data, and the model and serial number when contacting Miele.
Electrical connection
isolator switch (including switch, fuses and relays acc. to EN 60 335).
Important U.K.
The appliance is supplied for connection to a 230-240 V, 50 Hz supply with a 3-core cable.
The wires in the mains lead are coloured in accordance with the following code:
Green/yellow = earth
Blue = neutral
Brown = live
WARNING THIS APPLIANCE MUST BE EARTHED
Connection of this appliance should be made via a fused connection unit or a suitable isolator, which complies with national and local safety regulations, and the on/off switch should be easily accessible after the appliance has been built in.
If the switch is not accessible after installation (depending on country) an additional means of disconnection must be provided for all poles.
For extra safety it is advisable to protect the appliance with a residual current device (RCD). Please contact a qualified electrician for advice.
When switched off there must be an all-pole contact gap of 3 mm in the
When replacing the cable supplied with another cable or changing the connection, only cable type H 05 VV-F or H 05 RR-F with a suitable cross-sectional area (CSA) may be used (available from the Miele Customer Contact Centre).
61
Building-in diagrams
Dimensions are given in "mm".
Appliance and niche dimensions
Installation in a base unit
Installation in a tall unit
* Appliances with glass front ** Appliances with metal front
62
Front dimensions
Building-in diagrams
A H 4710: 53.2
H 4810: 47.5
B Appliances with glass front: 2.2
Appliances with metal front: 1.2
63
Installing the oven
The appliance must not be
,
operated until it has been correctly installed in its housing unit. Otherwise it poses an electric shock hazard.
Important. Do not fit insulation material inside the housing unit. This would hinder the intake of air to the appliance.
When installing the appliance do not lift it up by the door handle as this can damage the door.
Turn off the mains electricity supply to the isolator.
Connect the mains cable from the
^
oven to the isolator.
Push the appliance into the oven
^
housing unit and align it.
^ Open the oven door and using two
screws secure it to the side walls of the housing unit through the holes in the oven trim.
646566
67
Alteration rights reserved / 22 / 3812
(H 4710 B; H 4810 B)
M.-Nr. 09 000 750 / 02
Loading...
