Introduction

Welcome to the Meridian DSP8000 Digital Loudspeaker System.

This user guide provides full information about using the DSP8000
loudspeakers in conjunction with your other equipment, to achieve the
superb results you can expect from them.

1

Introduction

2

Introduction

Meridian DSP8000 loudspeaker system

The Meridian DSP8000 loudspeaker system represents
the fruits of more than 30 years of continuous
development of loudspeakers as musical instruments.
The finest materials and state-of-the-art design are
combined to create what we believe is the ultimate
home loudspeaker.

Digital Signal Processing

Digital Signal Processing, or DSP, is a technique
pioneered by Meridian in hi-fi products for achieving
extremely accurate reproduction of audio signals using
high-precision mathematical processing.

DSP allows sophisticated processing to be performed
without any of the cumulative noise or degradation
that inevitably occurs, even with high-quality analogue
circuitry. In addition, the signal improvement techniques
incorporated in the Meridian DSP loudspeakers would
be virtually impossible to implement in analogue
circuitry.

The Meridian DSP loudspeakers take advantage of
DSP for several different functions:

To remove timing variations from the incoming digital

•

signals (de-jittering).
To upsample 44.1kHz and 48kHz signals to 88.2kHz

•

and 96kHz.
To split the frequency band between bass, mid-

•

range, and treble drivers (crossover).
To perform filtering or adjustment of the frequency

•

response; eg treble or bass.
To provide volume control to 48-bit precision.

•

To perform electronic equalisation.

•

If you are using the Meridian DSP loudspeakers with a
digital source, such as CD or DVD, the signals remain
in digital form until the last possible stage.

DSP loudspeaker drivers

Each DSP8000 loudspeaker uses six multiple high­efficiency long-throw custom bass drive units. The
bass units are mounted symmetrically in pairs on the
sides of the bass cabinet, cancelling vibration in order
to minimise interference with the mid-range and treble
units.

The treble and mid-range drivers are mounted in a
separate sealed head assembly. The treble unit is a
semi-horn-loaded composite dome design with a silver
voice coil. The mid-range unit incorporates a cone
made from a uniquely light and stiff combination of
polymers to give unparalleled transparency.

Power amplifiers

The speakers are driven by five independent high­power low-feedback power amplifiers mounted on a
multi-finned extruded heatsink. The combination of
idealised magnetic design, careful star earthing, and
very fast output devices gives the amplifiers extremely
low noise, high detail, and fast bass.

The whole electronic assembly is supplied from two
substantial toroidal transformers feeding high-quality
audiophile-grade capacitors.

Cabinet

Each DSP8000 loudspeaker is built around a precision
manufactured cabinet, which uses innovative design
techniques to give exceptionally low coloration and
amazing mid-range transparency.

The head assembly is a sealed enclosure fabricated
from curved pressure-laminated panels, each using
multiple layers of selected woods and metal to provide
high stiffness and damping. Its narrow tapered shape
offers optimum dispersion across a wide listening
area. It is supported on the bass enclosure by three
machined feet.

3

Introduction

Like the head unit, the bass cabinet is constructed
from interlaminated panels with extensive bracing. The
front panel is 6mm glass and incorporates a window for
the matrix display and infrared remote control sensor.
The cabinet stands on triangulated adjustable machined
foot assemblies with provision for floor spikes or skids.

Meridian High Resolution (MHR)

The DSP8000 loudspeakers support Meridian High
Resolution (MHR), to allow you to connect to other
MHR-compliant Meridian products to take advantage
of high-rate audio sources, and provide the additional
benefits of lower jitter and improved sound quality on all
sources.

MHR is a proprietary secure encoding format that uses
encryption and anti-copy methods to provide a secure
copyright protection environment, and allow the secure
transfer of audio streams within a Meridian-only system
for playback only.

Meridian Comms

The Meridian DSP loudspeakers are part of the
Meridian family of advanced digital, analogue, and video
components, and these incorporate a sophisticated
communications link, to allow you to control any
combination of units using a single remote, and ensure
that they will work together as a fully integrated system.

The communications system also allows you to extend
your hi-fi system into two or three rooms, with the
ability to control the sources in one room from the
controller in another room.

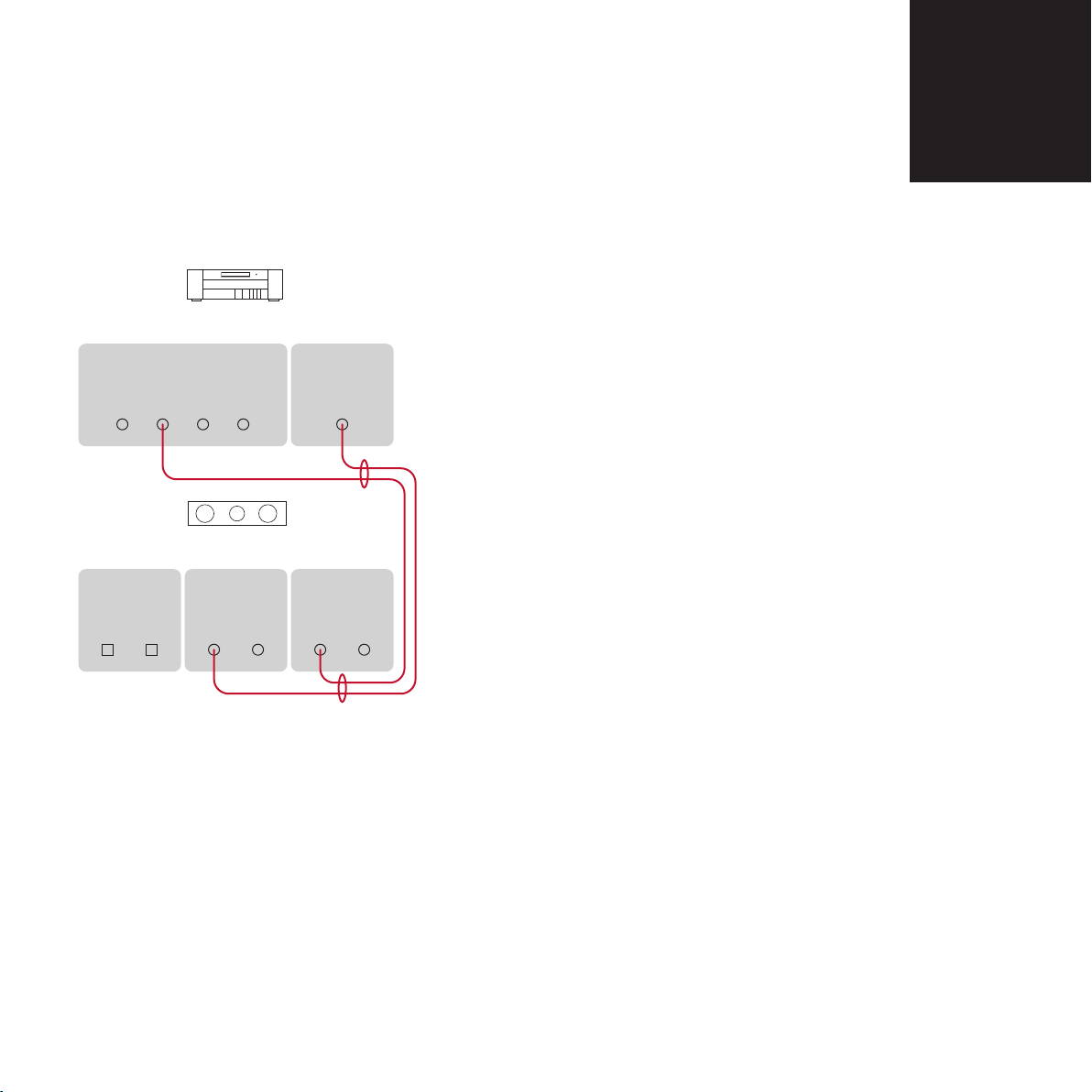

The following pages show two recommended
configurations based on the Meridian DSP8000
loudspeakers to illustrate the flexibility of Meridian
components.

4

DSP5500HC

DSP8000 DSP8000 DSP8000DSP8000

Meridian 861 Reference

Surround Controller

Meridian 800 Reference

DVD/CD Player

Introduction

Sample configurations

Meridian Digital Theatre™

Up to seven Meridian DSP8000 loudspeakers can be
used in conjunction with a Meridian Surround Processor
to create a digital surround system with superb music
and cinema sound.

The Meridian DVD Player is an ideal source for use
with DSP loudspeakers. It allows you to play both audio
CDs and DVD movies, with the audio kept in digital
form until the last possible stage.

5

Introduction

Meridian Digital Music System

Meridian 808.2 CD Transport

DSP8000DSP8000

Meridian DSP loudspeakers include DSP volume and
tone controls, and can be connected directly to up to
two digital sources to create an extremely compact
high-quality music system.

6

Introduction

Specification

Connections

Digital co-axial input and output.

•

Meridian BNC Comms input and output.

•

Meridian SpeakerLink (RJ45) input and output,

•

providing balanced digital, Meridian Comms, and
power.

Digital formats

44.1–96kHz. FIFO locks at 44.1, 48, 88.2, or

•

96kHz ±150ppm.
PCM using SPDIF/IEC60958, or MHR connection

•

support with auto-detection.

Output stages

Power amplifiers: Complementary bipolar design, with

•

output-stage error correction and twin loop design.
Bass: 3 x 150W.

•

Mid: 100W.

•

Treble: 100W.

•

The DSP8000 includes drive unit thermal protection.

Acoustic

3  way.

•

Closed bass enclosure.

•

Separate mid/top plywood cabinet.

•

Bass drive unit: 6 x 200mm (8") high-efficiency long-

•

throw custom drivers.
Mid drive unit: 1 x 160mm (6") custom driver.

•

Treble drive unit: 1 x 25mm (1") Boothroyd Stuart

•

piston in short horn, composite dome with silver
voice-coil.

Characteristics

Distortion typically <0.01%, or <0.02% up to full

•

power at all frequencies.
Noise and hum <-94dBr at all volume settings.

•

Acoustic output typically >115dB spl @ 1m.

•

Acoustic noise <15dB spl @ 1m.

•

Frequency response in room response within 3dB,

•

25Hz-35kHz.

Cabinet

Entire speaker manufactured from interlaminated

•

panels.
Glass front.

•

Finished in high-gloss piano lacquer.

•

400mm x 1300mm x 528mm (15.7" x 51.2" x

•

20.8") W x H x D excluding feet.
105kg (231lb) each.

•

Power

100-125; 200-250V AC 50-60Hz.

•

20VA idle; 900VA max.

•

Meridian Audio reserves the right to amend product
specifications at any time.

Available accessories

Each pair of DSP8000 loudspeakers is shipped
complete with an MSR+ remote.

Other applications, and some advanced features, may
require one or more of the following accessories, which
can be purchased from your Meridian dealer:

Interconnecting leads.

•

AC11 SpeakerLink Hub, to allow interconnection

•

between newer products with SpeakerLink
connectors, and products with Meridian BNC Comms
or Meridian DIN Comms connectors.

Setting up the DSP8000
loudspeakers

This chapter explains how to install your DSP8000 loudspeakers. It
describes what you should find when you unpack the speakers, how
you should connect them to your other audio equipment, and the siting
constraints.

7

Setting up

the DSP8000

loudspeakers

8

Setting up

the DSP8000

loudspeakers

Unpacking

Before you begin installation you should ensure that
your DSP8000 loudspeakers are the correct voltage for
your local AC supply. If they are not, do not try to install
them, and contact your dealer.

You should not make any connections to the DSP8000
loudspeakers, or to any other component in your
system, while the AC power supply is connected and
switched on.

Care when unpacking

Take great care when unpacking or re-packing the
DSP8000 loudspeakers that you do not put undue
pressure on the side containing the drive units, as they
may be damaged if pressed.

Components

Each pair of DSP8000 loudspeakers is supplied with
the following components:

Caution

Meridian Audio has taken every care in the design,
assembly, finishing and packing of this product. The
high gloss finish on parts of the cabinet is achieved by
painting up to five coats of polyester lacquer onto the
plywood, each one hand polished.

Due to the product size and cabinet construction, small
marks on the lacquer surface may be visible when
unpacked. These small marks can usually be removed
as described in

It is the nature of all lacquer finishes to shrink over
time. This is unavoidable and may result in cabinet joint
lines becoming visible.

Meridian Audio has supplied products using lacquer
finishes for many years and we are confident that
when carefully used your product will return a lifetime’s
enjoyment.

Maintenance and cleaning

, page 33.

The DSP8000 loudspeakers.

•

Grilles packed separately.

•

A hex wrench (3mm) for the drive units.

•

A 10mm spanner for removing the headboard and

•

footboard.
Six shouldered spikes for the head unit.

•

MSR+ remote, battery, and user guide.

•

One power cord per speaker suitable for your

•

territory.
This user guide.

•

If any of these items is missing, please contact your
dealer. We suggest that you retain the packaging
carefully, as it provides maximum protection in transit.

Unpacking

To unpack the DSP8000 loudspeakers please follow
the instructions on the accompanying leaflet.

Tightening the drive units

The DSP8000 loudspeakers typically take about two
weeks of normal use for the drive units to settle. It
is therefore recommended that you leave the grilles
unfitted during this period, and tighten the mounting
bolts on each drive unit every few days. Tighten the
bolts in symmetrically opposite pairs using the 3mm hex
wrench provided.

You should then check and if necessary retighten the
drive units every few years.

9

Setting up

the DSP8000

loudspeakers

To dismantle the loudspeakers

It is advisable to remove the head units when moving
the speakers. This is achieved by disconnecting the
head lead from the head unit and lifting off the head.
Take care while the head is not in position as this
exposes its mounting spikes. While not in place the
head should be stored safely but care should also be
taken of the surface they are placed upon as it may be
damaged by the cups.

When dismantling the speakers always disconnect and
switch off the power first.

Note: Do not disconnect the head lead while
the unit is connected to the AC supply and
switched on.

10

Setting up

the DSP8000

loudspeakers

Positioning the DSP8000 loudspeakers

To obtain the best sound

For best results adjust the position of the loudspeakers
while listening to music.

If possible, have the most acoustically absorbent wall
in the room behind the front speakers. Ideally have
each DSP8000 loudspeaker at least 0.5m (20") from
a corner, and position them approximately 0.25m (10")
from the wall.

If you are using a DSP8000 loudspeaker as a centre
channel, place the speaker centrally between the main
left-right pair and, if possible, arrange for the treble
units of the three speakers to be approximately the
same height.

11

Setting up

the DSP8000

loudspeakers

MERIDIAN SPEAKERLINK MERIDIAN COMMS DIGITAL

INPUT OUTPUT INPUT OUTPUT INPUT OUTPUT

Meridian
SpeakerLink
connections

Meridian BNC

Comms

connections

Digital

co-axial

connections

Connecting the loudspeakers

Back panel

The following diagram gives details of the back panel
connections:

You can connect to the DSP loudspeakers using either
the RJ45 SpeakerLink connectors, or the Meridian
BNC Comms and digital co-axial connectors.

Connecting using Meridian SpeakerLink

The Meridian SpeakerLink connectors provide both
balanced digital and Meridian Comms control in a single
RJ45 cable. The following table gives details of these
connections:

We do not recommend the use of cables longer than
50 metres. Only connect the cables to the output of a
Meridian product.

Connecting using the Meridian BNC
Comms and digital co-axial connectors

The following table gives details of these connections:

Use this
connection

MERIDIAN COMMS
INPUT

MERIDIAN COMMS
OUTPUT

DIGITAL INPUT A digital source such as a

DIGITAL OUTPUT A second (slave) DSP

To connect to this

The BNC COMMS connection
on a Meridian control unit or
preamplifier.

The BNC COMMS INPUT on
a second DSP loudspeaker.

Meridian G Series digital sound
processor, digital preamplifier,
CD player, or DVD player.

loudspeaker.

Use this connection To connect to this

MERIDIAN SPEAKER­LINK INPUT

MERIDIAN SPEAKER­LINK OUTPUT

The digital connections should be made with RJ45
SpeakerLink cables. Suitable cables are available from
your Meridian dealer. Standard RJ45 computer cables
may also be used.

A digital source with a Meridian
RJ45 SpeakerLink connector,
such as a Meridian G Series
digital sound processor, digital
preamplifier, CD player, or
DVD player.

A second (slave) DSP
loudspeaker.

The Comms connections should be made with BNC
to BNC cables. Suitable cables are available from your
Meridian dealer. Standard computer BNC to BNC
cables may also be used.

The digital connections should be made with high­quality 75Ω screened cable. Suitable cables are
available from Meridian. We do not recommend using
audio cables, which do not have adequate shielding
or the correct impedance, or cables intended for UHF
applications, as these do not provide adequate shielding
in the 1–30MHz region.

12

MERIDIAN

SPEAKERLINK

DSP8000 loudspeaker – Slave

Meridian 808.2 CD Player

DSP8000 loudspeaker – Master

RJ45 lead

RJ45 lead

MERIDIAN
SPEAKERLINK

MERIDIAN

COMMS

DIGITAL

INPUT OUTPUT INPUT OUTPUT INPUT OUTPUT

MERIDIAN

SPEAKERLINK

MERIDIAN

COMMS

DIGITAL

INPUT OUTPUT INPUT OUTPUT INPUT OUTPUT

Setting up

the DSP8000

loudspeakers

Connecting to other equipment

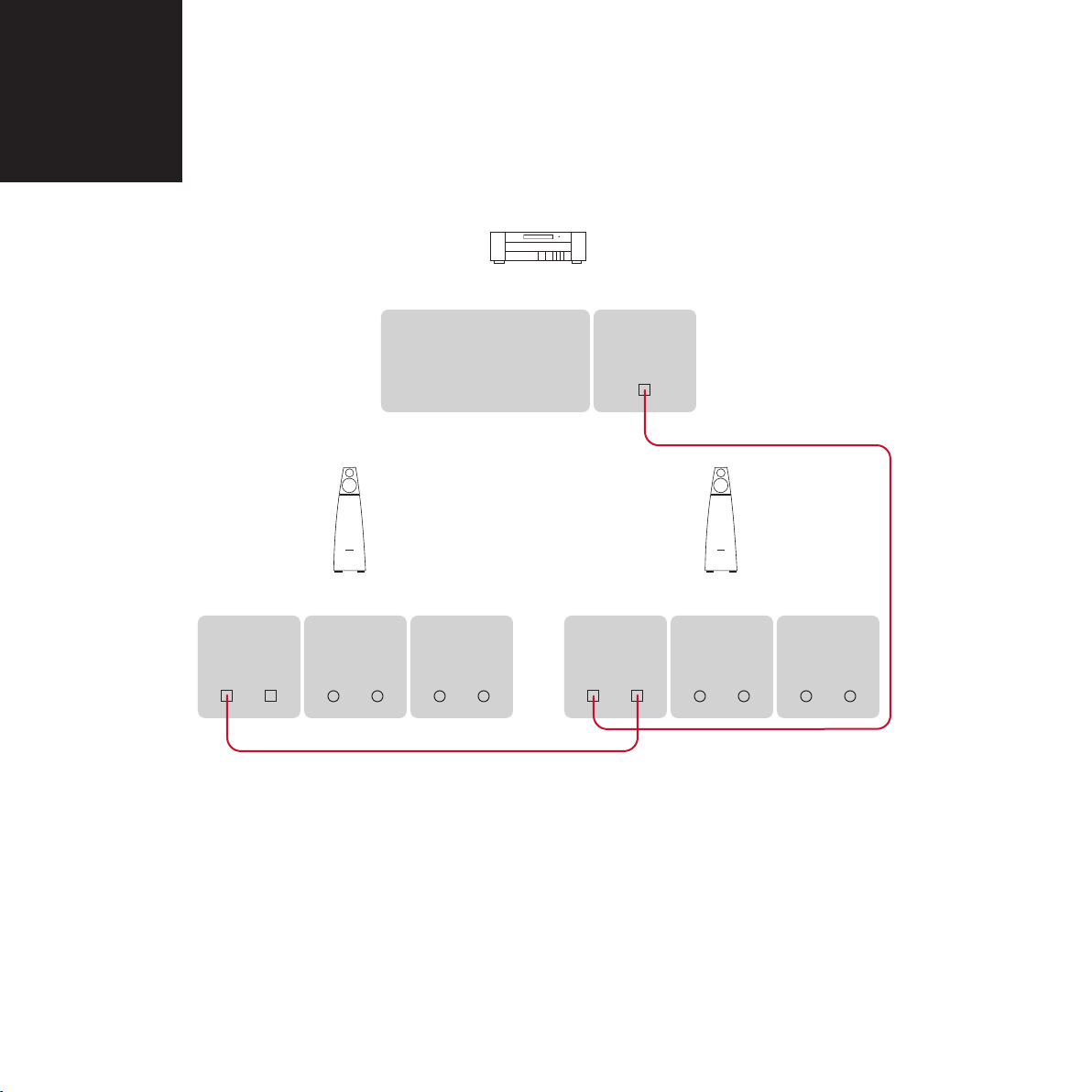

To connect two DSP8000 loudspeakers to a Meridian product with SpeakerLink

You can create a complete system by connecting a pair
of DSP loudspeakers directly to a digital source. The
speakers include volume, balance, and tone controls
allowing you to control the system using the MSR+.

If the Meridian source or control unit includes a
Meridian SpeakerLink output, such as the Meridian

808.2 CD Player, you can make all the connections
using SpeakerLink (RJ45) cables.

Connect the MERIDIAN SPEAKERLINK OUTPUT

•

from the Meridian source or control unit to the
MERIDIAN SPEAKERLINK INPUT on the DSP
loudspeaker chosen as master, using an RJ45 lead.

Connect the MERIDIAN SPEAKERLINK OUTPUT

•

from the master DSP loudspeaker to the MERIDIAN
SPEAKERLINK INPUT on the other (slave) DSP
loudspeaker, using an RJ45 lead.

Configure the slave DSP8000 as S.RJ45; see

•

choose master or slave and the primary connector

page 24.

To

,

13

Setting up

the DSP8000

loudspeakers

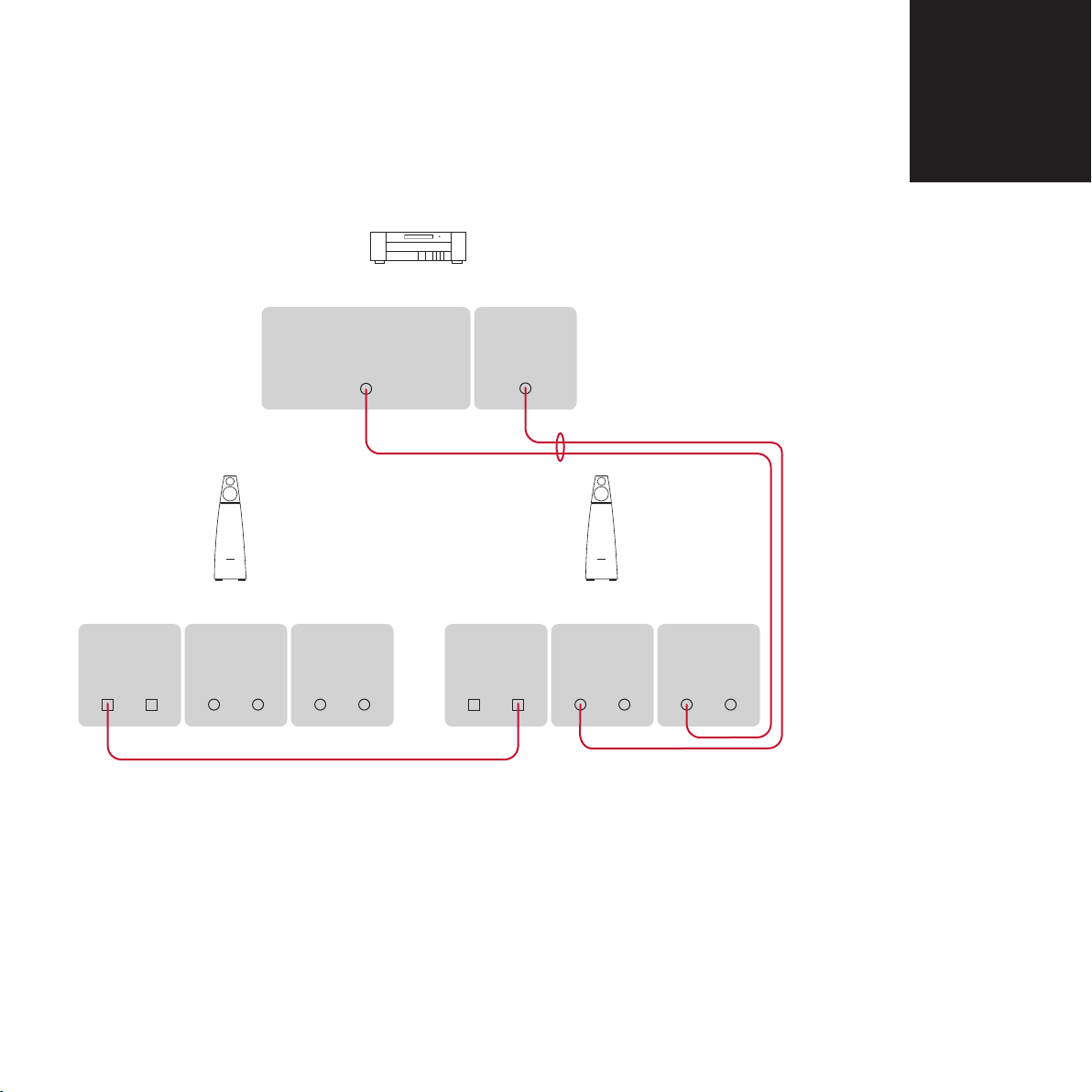

To connect two DSP8000 loudspeakers to a Meridian product with BNC Comms

BNC COMMS

DSP8000 loudspeaker – Slave

Meridian CD Player or Control Unit

DSP8000 loudspeaker – Master

RJ45 lead

Digital/BNC lead

MERIDIAN

SPEAKERLINK

MERIDIAN

COMMS

DIGITAL

INPUT OUTPUT INPUT OUTPUT INPUT OUTPUT

MERIDIAN

SPEAKERLINK

MERIDIAN

COMMS

DIGITAL

INPUT OUTPUT INPUT OUTPUT INPUT OUTPUT

DIGITAL OUTPUT

If the Meridian source or control unit provides a
Meridian BNC Comms output, you will need to connect
it to the DSP Loudspeakers using a Digital/BNC lead.

Connect the DIGITAL OUTPUT and the BNC

•

COMMS socket from the Meridian source or control
unit to the DIGITAL INPUT and COMMS INPUT on
the DSP loudspeaker chosen as the master, using a
Digital/BNC lead.

Connect the MERIDIAN SPEAKERLINK OUTPUT

•

from the master DSP loudspeaker to the MERIDIAN
SPEAKERLINK INPUT on the other (slave) DSP
loudspeaker, using an RJ45 lead.

Configure the master DSP8000 as M.Coax and the

•

slave DSP8000 as S.RJ45; see

slave and the primary connector

To choose master or

, page 24.

14

BNC

COMMS

DSP8000 loudspeaker – Main R

Meridian Surround Processor

MERIDIAN

SPEAKERLINK

MERIDIAN

COMMS

DIGITAL

INPUT OUTPUT

DSP8000 loudspeaker – Main L

DSP loudspeaker – Centre (master)

RJ45 lead

Digital/BNC lead

BNC T-piece

Other DSP

loudspeakers

Digital/BNC lead

DIGITAL OUTPUTS

INPUT OUTPUT INPUT OUTPUT

MERIDIAN

SPEAKERLINK

MERIDIAN

COMMS

DIGITAL

INPUT OUTPUT INPUT OUTPUT INPUT OUTPUT

MERIDIAN

SPEAKERLINK

MERIDIAN

COMMS

DIGITAL

INPUT OUTPUT INPUT OUTPUT INPUT OUTPUT

Setting up

the DSP8000

loudspeakers

To connect three or more DSP loudspeakers in a Meridian surround system

Use the Comms part of a Digital/BNC lead to

•

connect the BNC COMMS socket on the Meridian
Surround Processor to the DSP loudspeaker you
have chosen as the master (typically the centre).

Use the audio part of the Digital/BNC lead to

•

connect the appropriate digital output on the Meridian
Surround Processor to the master DSP loudspeaker.

Connect each pair of DSP loudspeakers to the

•

appropriate digital output on the Meridian Surround
Processor, and to the BNC COMMS output from the
master DSP loudspeaker, using a Digital/BNC lead.

•

If your system includes more than three DSP
loudspeakers use BNC T-pieces to distribute the
Comms to successive pairs of loudspeakers.

•

Link each pair of DSP loudspeakers together using
RJ45 leads, as shown in the illustration.

Configure the centre DSP Loudspeaker as M.Coax,
the Main L DSP8000 as S.Coax, and the Main R
DSP8000 as S.RJ45; see

and the primary connector

To choose master or slave

, page 24.

15

Setting up

the DSP8000

loudspeakers

To use a DSP loudspeaker as a centre

BNC

COMMS

Meridian Surround Processor

MERIDIAN

SPEAKERLINK

MERIDIAN

COMMS

DIGITAL

INPUT OUTPUT

DSP loudspeaker – Centre (master)

Digital/BNC lead

DIGITAL OUTPUTS

INPUT OUTPUT INPUT OUTPUT

speaker

You can use a single DSP loudspeaker as a centre
speaker in a Meridian surround system.

Connect the speaker to the CENTRE digital output

•

using a Digital/BNC lead, as shown in the illustration.

Configure the centre DSP Loudspeaker as M.Coax;

•

see

To choose master or slave and the primary

connector

, page 24.

16

Setting up

the DSP8000

loudspeakers

Using the DSP8000 loudspeakers

In systems with a Meridian preamplifier or control unit all the functions
of the DSP8000 loudspeakers, including volume, tilt, and bass, are
operated via the controller. For more information refer to the user guide
for the preamplifier or control unit, and you can ignore this chapter.

The DSP8000 loudspeakers can also be connected directly to up to
two digital sources to create a complete, minimum system. This chapter
provides step-by-step instructions for operating the DSP loudspeakers in
a system with no Meridian preamplifier or control unit.

17

Using the DSP8000

loudspeakers

18

Using the DSP8000

loudspeakers

Selecting a source

When not playing, the DSP8000 loudspeakers should
be left in the standby state. This uses a negligible
amount of electricity, but ensures that the components
of the loudspeakers operate at maximum efficiency
from the moment you start.

If you are not going to use the DSP8000 loudspeakers
for several days you should switch each unit completely
off at the back panel, and disconnect it from the AC
power supply.

To select a source

Press the appropriate source key on the remote; eg

•

Radio.

This will bring the DSP8000 loudspeakers out of
standby, and the displays will show the currently
selected source and volume setting.

For example:

 Radio65

To switch to standby

Press Off on the remote.

•

The loudspeakers will switch to standby.

The displays will show:

    .

Initially all the sources are set to use the RJ45 digital
input. To configure all sources to use the co-axial input,
configure the speaker as M.Coax or S.Coax; see

To choose master or slave and the primary connector

page 24. To configure an individual source to use a
different input see

To configure a source

, page 27.

,

19

Using the DSP8000

loudspeakers

Changing the display

The DSP8000 loudspeakers display information about
the current settings on the 8-character front-panel
display.

In addition, three coloured indicators show status
information.

To change the displayed information

Press Display.

•

Pressing Display steps between the following options:

Display option Example

Source and volume

Meridian source display
(dashes if not present)

Audio format

Blank

Radio65

----

PCM96k



The audio format display shows PCM, Data, or MHR,
followed by the frequency or NL (not locked).

Status indicators

The display includes the following status indicators:

Indicator Description

Red Master loudspeaker.

Yellow 88kHz or 96kHz input.

Green Thermal protection; see

Troubleshooting

, page 31.

20

Using the DSP8000

loudspeakers

Adjusting the volume

The DSP8000 loudspeakers adjust the volume in
precise steps of 1dB, where 9dB is equivalent to
doubling the loudness, and can be varied in the range
1 to 99dB.

When you first connect power to the DSP8000
loudspeakers the volume is set to 65, which is similar
to the midway position of the rotary volume control on a
conventional preamplifier.

To change the volume

Press the A or V volume keys on the remote.

•

As you adjust the volume setting the display
will show the current volume level.

For example:

To mute the sound

Press Mute on the remote.

•

Radio55

The display will show:

 Muted

To restore the sound

Press Mute again on the remote.

•

Alternatively, the sound will be restored if you adjust the
volume.

21

Using the DSP8000

loudspeakers

Changing the treble, bass, or phase

The DSP loudspeakers provide sophisticated treble and
bass controls, to allow you to adjust the broad balance
of the system to correct for the acoustics of your
listening room, or for a misbalanced recording.

The controls are more subtle than conventional
tone controls, and take advantage of digital signal
processing techniques to provide a more natural
adjustment of the frequency response.

You can also change the absolute phase of the signal,
to compensate for signals which are out of phase,
giving an unnatural-sounding bass.

If you have a Meridian Surround Controller these
functions are performed via the surround controller.

To change the treble

Press Function < or Function > until the display

•

shows the current treble.

The bass control allows you to adjust the bass
response in the room by ±5dB in 0.5dB steps.
Normally settings between +3.0 and -2.0 will give the
most natural results.

To change the absolute phase

Press Function < or Function > until the display

•

shows the current phase.

For example:

Press Function A or Function V to change the

•

phase.

 Phase+

For example:

Press Function A or Function V to change the

•

treble.

The treble control tilts the frequency of the response
over the entire frequency range to make the sound
brighter or dimmer. It can be adjusted between ±10db
in 0.5dB steps. Normally settings between +1.0 and

-2.0 will give the most natural results.

 Tre.+0.0

To change the bass

Press Function < or Function > until the display

•

shows the current bass setting.

For example:

Press Function A or Function V to change the

•

bass.

 Bass+0.0

22

Using the DSP8000

loudspeakers

Changing the listening position

The balance control of the DSP8000 loudspeakers
uses digital signal processing to compensate for an
off-centre listening position by delaying and diminishing
the sound in one speaker, thus effectively shifting the
speaker’s image back.

The axis control allows you to adjust the optimum
listening height of the DSP8000 loudspeakers, like a
balance control operating in the vertical plane.

If you have a Meridian Surround Controller these
functions are performed via the surround controller.

To change the balance

Press Function < or Function > on the remote

•

until the display shows the current balance.

For example:

Press Function A or Function V to change the

•

balance.

 Bal.<0>

The axis can be adjusted between 3 and -2, where
0 corresponds to the axis of the treble unit. Usually a
listener will be below that position, so we recommend
settings of -1 or -2.

The display shows the direction and position of the
listening position.

For example:

There are 32 steps in each direction.

 Bal.12>

To change the axis

Press Function < or Function > on the remote

•

until the display shows the current axis setting.

For example:

Press Function A or Function V to change the

•

axis.

Axis-1

Configuring the DSP8000
loudspeakers

This chapter explains how to configure the DSP8000 loudspeakers to
suit the other equipment in your system.

The first stage in configuring the DSP8000 loudspeakers is to choose
one of the standard settings, and these are designed to set all of the
parameters to their most common values. You can also configure each
setting individually for applications not catered for by one of the standard
settings.

23

Configuring

the DSP8000

loudspeakers

Once you have configured the DSP8000 loudspeakers you will probably
never need to change the configuration, unless you alter the equipment
connected to your system at a later stage.

24

Configuring

the DSP8000

loudspeakers

Choosing standard settings

The DSP8000 loudspeakers provide the following
five alternative standard settings, called Types, which
configure all aspects of the loudspeaker into the most
commonly needed configurations:

Type Description

1 Standard setting for 2-channel system.

5 For use with a Meridian CD player (eg 808.2)

connected to the RJ45 SpeakerLink input; all
other sources use the co-axial input.

6 For use with a Meridian Surround Controller.

7 For use in a second room.

8 For use in the second or third room of a three-

Types 2, 3, and 4 are for compatibility with 200/600
series units.

In all cases except Type 5, the co-axial input is used for
all sources.

Choosing one of the standard settings overrides any
other configuration you may have performed, and so
can be used to reset the configuration of the speakers.

room system.

To select a standard setting

Switch off the DSP loudspeaker.

•

Turn on the power again while holding down the

•

number key on the remote which corresponds to the
Type you want to use.

The display will show the Type number.

For example:

Type1

•

The display will show:

You should now specify the speaker’s position as
follows.

To specify the speaker position

•

The options are shown in the following table:

To choose master or slave and the
primary connector

You should select one loudspeaker to be the master;
this will normally be the centre channel. For more
information see

12. Each other DSP loudspeaker should be configured
as a slave.

•

•

Release the remote key.

L.M.RJ45

Press A or V to specify the speaker position.

Display Position

L. Left.

R. Right.

C. Centre (Type 6 only).

Connecting to other equipment

Press the > (Play) key on the remote.

For each speaker this steps between the following
four options:

Option Master/slave Primary input

M.RJ45 Master Meridian RJ45

SpeakerLink

M.Coax Master Digital co-axial

S.RJ45 Slave Meridian RJ45

SpeakerLink

S.Coax Slave Digital co-axial

, page

25

Configuring

the DSP8000

loudspeakers

Initially all sources will be configured to use the primary
input you have specified, but you can configure
individual sources to use the other input; see

configure a source

For example, to define the left speaker as
a slave using the digital co-axial connectors:

, page 27.

To

The display shows:

When you have configured the loudspeaker:

Switch off the DSP loudspeaker, using the power

•

switch on the back, and then switch on again to
restore normal operation.

L.S.Coax

26

Configuring

the DSP8000

loudspeakers

Specifying information about your system

You can configure the operation of the DSP
loudspeakers to suit the way your system is set up, and
the way in which you want to use it.

These settings are configured automatically to
appropriate values when you choose one of the
standard Type settings, and you should not normally
need to alter them; see
page 24.

Choosing standard settings

,

To configure the DSP loudspeaker

Turn off the DSP loudspeaker, using the power

•

switch on the back panel.

Turn on the power again while holding down the 0

•

key on the remote.

The display will show the current setting of the first
configuration option.

For example:

L.M.RJ45

Option Initial value in Type 1

Position and master/
slave

Compatibility (G, 500,
200 Pre, or 200 CD)*

Controller mode (Auto,
Con, or NCon)

System address (1–8)

Product address (1–8)

Volume mode
(1=normal, 2/3=second
or additional room)

Balance control
(N or Y)

Centre menus? (N or Y)

L.

G

Auto

S.A.1

P.A.1

L.E.1

Bal.Y

CentreN

Press > or < to step between the options.

•

Press A or V to change the value of the current

•

option.

The following table shows the options you can
configure:

Diagnostic displays?
(N or Y)

* G gives 500 Comms and MSR+ sources, 500 gives
500 Comms and MSR sources, and 200 Pre or 200
CD are legacy modes.

Diag.N

27

Configuring

the DSP8000

loudspeakers

Configuring the sources

The DSP loudspeakers provide 12 sources
corresponding to the 12 source selection keys on the
remote:

CD, RADIO, DVD, AUX, DISC, TAPE, TV,
CABLE, SAT, VCR1, VCR2, and GAME.

When the master DSP loudspeaker is set to one of
the standard Types, the source selection keys select
the co-axial input (apart from Type 5 which assigns
the CD source to the RJ45 SpeakerLink input). See

Choosing standard settings

If the configuration you want is not catered for by
one of the standard settings, you can configure each
source individually.

For each source you can configure:

The label used for it on the front panel display, from a

•

range of alternative labels.
The digital input it selects.

•

The comms type and address, to control other

•

Meridian 500 Series equipment.
Other advanced options.

•

You only need to configure the sources on the DSP
loudspeaker you have specified as the master.

, page 24.

To configure a source

While in configuration mode:

Press the source key on the remote corresponding to

•

the source you want to configure.

For example, to configure the Radio source press
RADIO.

The display shows:

Press > or < to step between options.

•

The right-hand set of characters shows the current
value of the option.

Press A or V to change the value of the option.

•

When you have finished programming sources:

Switch off at the back panel, and then switch on

•

again to restore normal operation.

The options are summarised in the table below:

 RDRadio

Option Initial value Alternatives Explanation

Label

Audio input

Comms
type

Address

FIFO

Radio

D1

2C

1A

FF.Y

CD, Radio,
LP, etc.

D1 or D2. Choose D1 for the input configured as the primary

1C – 9C, or
NC.

1A – 8A. Choose 1A unless you have several Meridian products of

Y or N. Choose N to disable the FIFO buffer if you have difficulty

The label used to identify the source on the front panel
display.

connector, or D2 for the other input.

Choose 1C for a Meridian CD player, 2C for a Meridian
FM Tuner, 3C for a Meridian DVD player, or NC
otherwise.

the same Comms type.

locking to a poor source.

28

Configuring

the DSP8000

loudspeakers

Configuring the setup options

The setup options allow you to adjust the frequency
response of the loudspeakers to compensate for
their position. You only need to configure the master
loudspeaker.

When configuring the DSP8000 loudspeakers,
point the remote at the speakers, even if you have a
Meridian Surround Controller.

To select Setup mode

Turn off the DSP loudspeaker using the power switch

•

on the back panel.

Turn on the power again while holding down the

•

Store key on the remote.

The display will show:

It will then revert to standby:

The display shows:

You can now operate the speaker in the usual way,
using the additional setup menus to adjust the
response while listening to sources.

When you have finished adjusting the setup options:

 .

Setup

To adjust the frequency response

Press Function > or Function < until the display

•

shows the current response setting.

For example:

Press Function A or Function V to select the

•

appropriate option as follows:

Option What it means

Free

Boundary

Sub.1

Sub.2

Corner

Free

Flat frequency
response.

Speaker closer than

0.5m (20") to a wall.

Applies a second-order
high-pass filter at
80Hz for use with an
analogue subwoofer.

Applies a second-order
high-pass filter at
120Hz for use with an
analogue subwoofer

Speaker closer than

0.5m (20") to a corner.

Switch off at the back panel, and then switch on

•

again to restore normal operation with the setup you
have programmed.

29

Configuring

the DSP8000

loudspeakers

To adjust the centre frequency
response and tilt offset

Press Function > or Function < until the display

•

shows the current ambient temperature setting.

If your system includes a DSP centre speaker you
should set Centre Y on the master speaker. An
additional frequency response option is then provided to
allow you to adjust the centre speaker, with the options:

C.Free, C.Boun., C.Sub 1, C.Sub 2, and
C.Corner.

Press Function > or Function < until the display

•

shows the current centre frequency response.

For example:

Press Function A or Function V to select the

•

appropriate option for the centre speaker.

An additional centre tilt offset option is also provided.
The centre tilt offset is added to the treble value for
the selected source. The recommended setting is -1dB
when the speaker is positioned above a television.

Press Function > or Function < until the display

•

shows the current centre tilt offset.

For example:

Press Function A or Function V to adjust the

•

centre tilt offset.

C.Free

C.Tilt+1

For example:

Press Function A or Function V to specify the

•

ambient temperature.

When thermal protection is active the lower left green
indicator will be illuminated.

24

To store the settings

Once you have adjusted the frequency response for the
speakers in your system you should store the settings
using the following procedure:

Press Function Store.

•

The display shows:

Turn off the DSP8000 loudspeaker using the power

•

switch on the back panel.

When you turn on the power again the speaker will
operate normally with the setting you have stored.

Store

To specify the ambient temperature for
thermal protection

The DSP8000 drive units are protected from
overheating by thermal protection software. This is
already configured correctly for most domestic listening
environments, but if the ambient temperature is greater
than 24°C (75°F) you should adjust the ambient
temperature setting.

30

Configuring

the DSP8000

loudspeakers

Troubleshooting

This chapter provides suggested solutions to typical problems that may
occur when setting up the DSP8000 loudspeakers.

If you are still not able to resolve a difficulty with the help of this guide
and the suggestions on the following pages, please contact your
Meridian dealer or Meridian Audio Ltd.

31

Troubleshooting

32

Troubleshooting

Troubleshooting

Display on front panel not lit

Check the following:

There is AC power connected to the socket on the

•

back of the DSP8000 loudspeaker.
The power switch on the back panel of the

•

DSP8000 loudspeaker is turned on.

If the display will still not illuminate, check any fuses
in your power supply and the fuse in the inlet of the
DSP8000 loudspeaker. If these are all intact, contact
your dealer.

Unit stays in standby

Check that it is connected correctly.

•

Turn the system on from another Meridian product in

•

the system.

Remote not working

Check the following:

The battery in the MSR+ remote.

•

See if the DSP8000 loudspeaker has been set up as

•

not controller in the Meridian Configuration program;
see

Configuring the setup options

that this may be deliberate by your dealer.

Configuring the DSP8000 loudspeaker
does not have any effect

Make sure that you are configuring the DSP8000
loudspeaker used as the master digital loudspeaker
in the system. This determines the configuration
of sources and setup options for all slave digital
loudspeakers in the system.

Drive units move when the speaker is
switched on or off

This is normal as the speaker active electronics

•

settle.

, page 28. Note

There is radio interference

The DSP8000 loudspeaker is a digital audio and
computing device which has been designed to very
high standards of electromagnetic compatibility.

If this equipment does cause or suffer from interference
to/from radio or television reception then the following
measures should be tried:

Reorient the receiving aerial (or antenna) or route the

•

antenna cable of the receiver as far as possible from
the DSP8000 loudspeaker and its cabling.
Ensure that the receiver uses well-screened antenna

•

cable.
Relocate the receiver with respect to the DSP8000

•

loudspeaker.
Connect the receiver and this product to different AC

•

outlets.
If the problem persists contact your dealer.

•

Only the master loudspeaker plays

Check the cables are connected correctly.

•

Sound is odd or mono

Check that the DSP8000 loudspeakers are correctly

•

configured as Left and Right respectively.

Unit goes silent when played hard and
displays ‘Hot’

The DSP8000 loudspeakers have a temperature

•

sensing system on board, which prevents overheating
of the electronics. The sound will continue when the
speaker has cooled.

The green indicator flashes or stays on

This indicates that the DSP is protecting the
loudspeaker drive units from overheating. It is normal
for this light to stay on after a long period of listening at
high sound levels.

33

Troubleshooting

Maintenance and cleaning

Fitting and removing the grilles

When fitting the grilles ensure that the two cutouts are
at the 3 o‘clock and 9 o‘clock positions, as this will
align the pattern on the grille fabric correctly.

To remove the grilles grasp the grille by the two cutouts
and pull gently away from the loudspeaker.

Cleaning

Small marks on the lacquer surface can usually be
removed with a damp cloth.

Deeper scratches can be removed by treating with
additional polyester lacquer filler and then polishing
carefully. Consult your authorised Meridian dealer for
advice before attempting any repair.

34

Troubleshooting

Service and guarantee

Service

The Meridian components have been carefully designed
to give years of untroubled service. There are no user­serviceable parts inside the case, nor do the units
require any form of maintenance.

In the unlikely event that your DSP loudspeaker fails to
function correctly, it should be returned, in its original
packaging, to your Meridian dealer.

In case of difficulty within the UK or USA please
contact the appropriate sales and service address
shown on page iv.

In case of difficulty outside the UK or USA, contact
the importing agent for the territory. A list of Meridian
agents abroad is available from Meridian Audio.

No responsibility can be accepted for the DSP8000
loudspeakers whilst in transit to the factory or an agent,
and customers are therefore advised to insure the unit.
When seeking service under guarantee, proof of the
date of purchase will be required.

Outside the UK, local warranty liability is restricted to
equipment purchased within the territory. Our agents
abroad are only under contractual obligation to service
under guarantee equipment sold through them. They
are entitled to make a non-refundable charge for any
service carried out on other equipment.

This guarantee does not limit your statutory rights
within the United Kingdom.

Guarantee

The DSP8000 Loudspeakers are guaranteed against
defects in material and workmanship for 3 years from
the date of purchase, or 6 years if you register your
product with Meridian.

The guarantee is void if the DSP8000 Loudspeakers
have been subject to misuse, accident, or negligence,
or has been tampered with or modified in any way
without the written authorisation of Meridian Audio
Limited. Note that connecting anything other than
the correct network lead to the COMMS sockets may
cause damage to the DSP8000 Loudspeakers which
will not be covered by this guarantee. Attempted
servicing by unauthorised people may also invalidate
this guarantee. Labour and carriage charges are not
covered unless by local agreement.

Index

35

Index

A

absolute phase, changing 21

accessories 6

axis, changing 22

B

balance, changing 22

bass, changing 21

BNC Comms connectors 11

C

centre frequency response,

configuring 28

centre speaker, connecting 15

centre tilt offset, configuring 29

cleaning 33

COMMS INPUT 11

COMMS OUTPUT 11

communications connections 11

components 8

configuration options 26

configuring setup options 28

configuring sources 27

connecting the loudspeakers 11

connecting to other equipment 12

connections

Comms 11

digital co-axial 11

SpeakerLink 11

D

digital connections, configuring 24

digital connectors 11

digital signal processing 2

dismantling the loudspeakers 9

display, changing 19

drive units 2

tightening 8

F

frequency response, configuring 28

G

grilles, fitting and removing 33

guarantee 34

L

lacquer finish 8

polishing 33

listening position, changing 22

M

maintenance 33

master

configuring 26

configuring setup options 28

configuring sources 27

selecting 24

Meridian comms 3

Meridian Digital Music System 5

Meridian Digital Theatre™ 4

Meridian High Resolution (MHR) 3

muting the sound 20

R

radio interference 10, 32

RJ45 SpeakerLink connections,

configuring 24

S

safety warnings ii

sample configurations

Meridian Digital Music System 5

Meridian Digital Theatre™ 4

selecting a source 18

service 34

settings, storing 29

setup options, configuring 28

slave

configuring 26

specifying 24

sources

configuring 27

selecting 18

SpeakerLink connectors 11

speaker position, configuring 24

specification 6

standard settings, selecting 24

standby, switching to 18

status indicators 19

storing settings 29

switching to standby 18

36

Index

T

Tightening the drive units 9

tilt offset, configuring 28

treble, changing 21

troubleshooting 31

U

unpacking 8

V

volume 20

adjusting 20

muting 20
