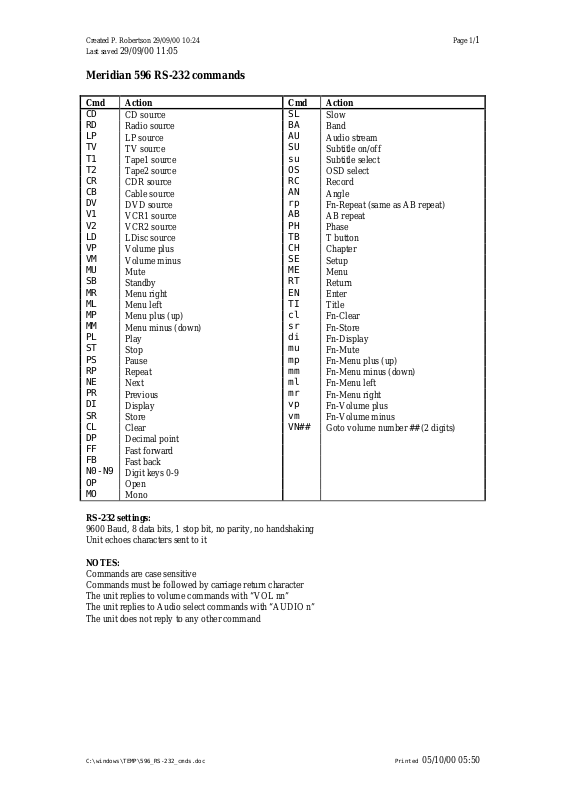

Meridian 596 RS-232 commands
Cmd Action Cmd Action
CD
RD
LP
TV
T1
T2
CR
CB
DV
V1
V2
LD
VP
VM
MU
SB
MR
ML
MP
MM
PL
ST
PS
RP
NE
PR
DI
SR
CL
DP
FF
FB
N0-N9
OP
MO
CD source
Radio source
LP source
TV source
Tape1 source
Tape2 source
CDR source
Cable source
DVD source
VCR1 source
VCR2 source
LDisc source
Volume plus
Volume minus
Mute
Standby
Menu right
Menu left
Menu plus (up)
Menu minus (down)
Play
Stop
Pause
Repeat
Next
Previous
Display
Store
Clear
Decimal point
Fast forward
Fast back
Digit keys 0-9
Open
Mono
RS-232 settings:
9600 Baud, 8 data bits, 1 stop bit, no parity, no handshaking
Unit echoes characters sent to it
NOTES:
Commands are case sensitive
Commands must be followed by carriage return character
The unit replies to volume commands with “VOL nn”
The unit replies to Audio select commands with “AUDIO n”
The unit does not reply to any other command
SL
BA
AU
SU
su
OS
RC
AN
rp
AB
PH
TB
CH
SE
ME
RT
EN
TI
cl
sr
di
mu
mp
mm
ml
mr
vp
vm
VN##
Slow
Band
Audio stream
Subtitle on/off
Subtitle select
OSD select
Record
Angle
Fn-Repeat (same as AB repeat)
AB repeat
Phase
T button
Chapter
Setup
Menu
Return
Enter
Title
Fn-Clear
Fn-Store
Fn-Display
Fn-Mute
Fn-Menu plus (up)
Fn-Menu minus (down)
Fn-Menu left
Fn-Menu right
Fn-Volume plus
Fn-Volume minus
Goto volume number ## (2 digits)
