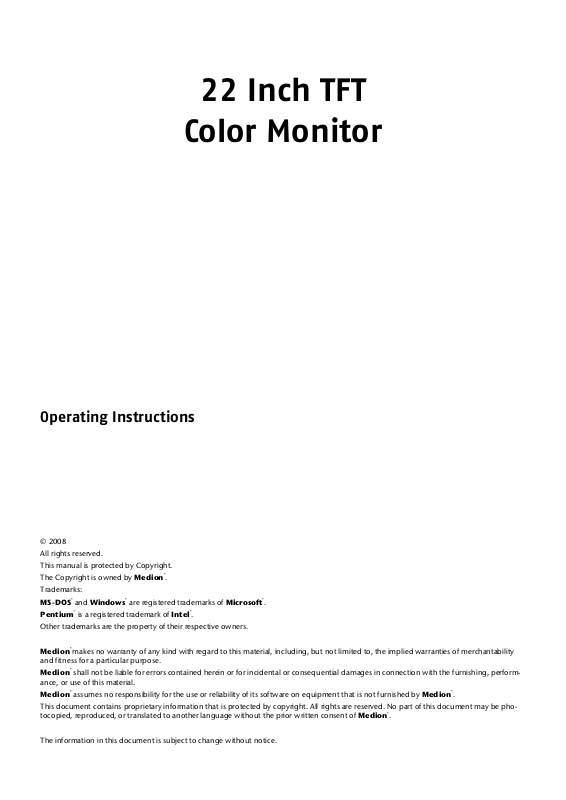

22 Inch TFT
Color Monitor
Operating Instructions
© 2008
All rights reserved.
This manual is protected by Copyright.
The Copyright is owned by Medion
Trademarks:
MS-DOS
Pentium
Other trademarks are the property of their respective owners.
Medion
and fitness for a particular purpose.
Medion
ance, or use of this material.
Medion
This document contains proprietary information that is protected by copyright. All rights are reserved. No part of this document may be photocopied, reproduced, or translated to another language without the prior written consent of Medion
The information in this document is subject to change without notice.
®
and Windows® are registered trademarks of Microsoft®.
®
is a registered trademark of Intel®.
®
makes no warranty of any kind with regard to this material, including, but not limited to, the implied warranties of merchantability
®
shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, perform-
®
assumes no responsibility for the use or reliability of its software on equipment that is not furnished by Medion®.
®
.
®
.
Contents
Notes on these instructions ............................................................................................................... 1
Our Target Group............................................................................................................................................... 1
Quality................................................................................................................................................................ 1
Service................................................................................................................................................................ 1
Purpose of use ................................................................................................................................... 1
Included Equipment .......................................................................................................................... 1
Safety and Precautions...................................................................................................................... 2
Operating Safety................................................................................................................................................. 2
Point of use......................................................................................................................................................... 2
Repair ................................................................................................................................................................. 2
Intended Environment........................................................................................................................................ 3
Power Supply ..................................................................................................................................................... 3
Standards/Electro-Magnetic Compatibility.......................................................................................................... 3
Ergonomics...................................................................................................................................................... 3
Electrical Safety................................................................................................................................................ 4
Important Additional Safety Instructions............................................................................................................. 4
FCC Compliance Statement................................................................................................................................ 4
Declaration of Conformity................................................................................................................................ 5
Start-Up ............................................................................................................................................. 6
Mounting the Monitor Stand .............................................................................................................................. 6
Preparations on Your Computer ......................................................................................................................... 6
Supported Monitor Settings............................................................................................................................. 6
Windows XP: Display Properties....................................................................................................................... 7
Windows Vista®: Display Personalization........................................................................................................... 8
Connecting the Monitor ..................................................................................................................................... 8
n Connecting Signal Cable ............................................................................................................................. 8
o Connecting Audio Cable.............................................................................................................................. 8
p Connecting the Power Supply ..................................................................................................................... 8
Positioning of the Monitor .................................................................................................................................. 9
Your posture.................................................................................................................................................... 9
Working Ergonomics...................................................................................................................................... 10
Controls........................................................................................................................................... 11
Setting the TFT Monitor................................................................................................................... 12
How to operate the OSD menu......................................................................................................................... 12
Leaving the OSD menu..................................................................................................................................... 12
OSD Menu........................................................................................................................................................ 12
Saving Energy.................................................................................................................................. 13
Service ............................................................................................................................................. 14
Troubleshooting ............................................................................................................................................... 14
Finding the problem ...................................................................................................................................... 14
Check Connections and Cables...................................................................................................................... 14
Troubleshooting ............................................................................................................................................ 14
Do you require additional Support?.................................................................................................................. 15
Precautions ..................................................................................................................................... 15
Recycling .........................................................................................................................................15
Specifications .................................................................................................................................. 16
Pixel Defects on TFTs (LCD-Displays)................................................................................................................. 17
Copying this manual ........................................................................................................................................ 18
Restricted Warranty ........................................................................................................................ 19
ii
Notes on these instructions
Please read through these operating instructions carefully and follow the instructions given. In this way you will
guarantee reliable operation and a long life for your TFT monitor. Always keep these instructions handy and close
by your TFT monitor. Keep the instructions and the packaging so that if you sell or give away your TFT monitor
you can give them to the new owner.
We have arranged these instructions so that you can quickly find the subject related information in the table of
contents. The purpose of these instructions is helping you operate your TFT display safely, quickly and easily.
Our Target Group
These instructions are intended for initial users as well as advanced users.
Quality
We focused on great features, ease of use and reliability in manufacturing your TFT monitor. The balanced hardware and software concept offers you an advanced display design which will provide you a great deal of pleasure
for your work and entertainment.
Thank you for your confidence in our products. We are pleased to welcome you as a new customer.
Service
Service and support will be available every time you use your new TFT Display. Contact us, we will be glad to
help. This manual contains a separate chapter on the subject of service beginning on page 14.
Purpose of use
• This device is only suitable for use in dry, interior rooms.
• This device is only intended for private use. The device is not intended for operation in a heavily indus-
trial company. Use of the device under extreme environmental condition can result in damage to it.
Included Equipment
Please check your new TFT Display for completeness. Notify us within 14 days after purchase if it is not complete. With your TFT monitor you receive:
• 1 - TFT screen
• 1 - Connection cable
• 1 - 15-wired Sub-D cable
• 1 - Audio cable
• 1 - Stand
• 1 - Guarantee card
• 1 - Operating instructions
Notes on these instructions
1
Safety and Precautions
Operating Safety
• Do not allow children to play unattended on electrical equipment. Children may not always correctly rec-
ognize danger.
• Keep the packing materials, such as foil away from children. The danger of suffocation could arise in
the case of misuse.
• Never open the housing of the TFT monitor (electric shock, short-circuit and the danger of fire)!
• Do not insert any objects through the slots and openings into the inside of the TFT (electrical shock,
short-circuit and the danger of fire)!
• Slots and openings in the TFT monitor are for ventilation purpose. Do not cover these openings, as oth-
erwise this may lead to overheating (overheating, danger of fire)!
• Never exert pressure on the display. This could break the monitor.
• An injury hazard exists when the display breaks. Wear protective gloves to pack the broken parts and send
them into your service center for proper disposal. Then wash your hands with soap, because it is possible
for chemicals to escape.
• Do not touch the display with your fingers or with sharp objects to avoid damage.
Please proceed as outlined in the Customer Service section:
• if the power cable overheats or is damaged
• if liquid has gotten into the monitor
• if the TFT monitor is dropped or the housing damaged
Point of use
• In the first hours of operation, new devices may emit a typical, unavoidable but completely harmless smell,
which will decline increasingly in the course of time.
We recommend you to ventilate the room regularly, in order to counteract the formation of the smell. During the development of this product, we have made sure that the applicable limits are clearly fallen below.
• Keep your TFT monitor and all units connected to it away from moisture and avoid dust, heat and direct
sunlight. Failure to observe these instructions can lead to malfunctions or damage to the TFT monitor.
• Do not operate your device in the open air, because external influences, such as rain, snow, etc. could
damage the device.
• Do not place any containers filled with liquid (vases or similar containers) on the device. The con-
tainer could tip over and liquid can impair electrical safety.
• Do not place any open sources of fire (candles or similar objects) on the device.
• Pay attention to sufficiently large clearances in the wall cupboard. Maintain a minimum clearance
of 10 cm around the device for sufficient ventilation.
• Place and operate all units on a stable, level and vibration-free surface in order to avoid the TFT moni-
tor from falling.
• Avoid dazzle, reflections, extreme light/dark contrast in order to save your eyes and
ensure a pleasant, ergonometric work station.
• Take regulator breaks when working with your TFT monitor in order to avoid tension and
fatigue.
Repair
• Leave all repairs of your TFT monitor to authorized and qualified personnel only.
• Should a repair be necessary, please contact one of our authorized service partners only.
2
English
Intended Environment
• The TFT monitor can be operated at an ambient temperatures of between +41°F and +95°F
(5° C to 35° C) and at a relative humidity of between 20% and 85% (without condensation).
• When switched off, the monitor can be stored at between -4°F and +140°F (-20° C - +60° C), up to the
maximum height of 39,000 ft (12,000 m) above sea level at a relative humidity of between 20% and 80%
(without condensation).
• After transporting your TFT monitor please wait until it has assumed the ambient temperature before con-
necting and switching it on. Extremely high variations in the temperature or humidity may result in
condensation forming on the inside of the TFT monitor which could cause an electrical short-circuit.
Power Supply
Please pay attention: Pats of the device are still live, even if the mains switch is switched off. Pull
the mains plug out of the socket, to interrupt the power supply to your TFT monitor or to release
the device from voltage completely.
• Operate your TFT monitor mains (power supply) only on grounded sockets with 100-240V~/ 50-60 Hz.
If you are not sure about the power supply at your location, check with your power company.
• For additional safety we recommend use of an excessive voltage protection device to protect your TFT
monitor from damage resulting from voltage surges or lightning.
• To interrupt the TFT monitor from mains (power supply) disconnect the plug from the socket.
• To avoid power consumption when the device is switched off either pull out the power plug when the de-
vice is not used or connect the device to a master-/slave power bar.
• The power socket must be in the vicinity of your TFT monitor and within reach of the power cables. DO
NOT stretch the power cables tightly to reach a power socket.
• If you use an extension cable, ensure that it fulfills the VDE requirements. Please ask your
electrician.
• You should lay the TFT Monitor cables in a manner that no one can trip or step on it.
• To avoid damage of cable do not place any objects or furniture on the cable.
• Use a master/slave power strip to avoid consuming electricity when the equipment has been switched off.
Standards/Electro-Magnetic Compatibility
Your monitor fulfils the requirements for electro-magnetic compatibility and electrical safety specified in the following standards:
EN 55022, EN 55024, EN 60950, EN 61000-3-2, EN 61000-3-3
UL60950 / CAN CSA 22.2 No 60950, FCC
• When connecting ensure that Guidelines for Electro-Magnetic Compatibility (EMC) are observed.
• Provide an interval of at least one meter from high-frequency and magnetic sources of interference
(television sets, loudspeakers, mobile telephones, etc.) in order to avoid malfunctions and data loss.
Ergonomics
• This monitor complies with all relevant regulations such as DIN EN ISO 9241-3, DIN EN ISO 9241-7 and DIN
EN ISO 9241-8.
• For ergonomic reasons we suggest not to use the base-color blue on dark subfonds. This would cause bad
readability and would increase eye strain.
• While working with screens you should take breaks periodically to avoid tension and fatigue.
• In order to save your eyes and to assure a convenient working area you should avoid glare, reflections
and strong contrasts on the screen. For more detailed information on workplace ergonomics, see page 10.
Safety and Precautions
3
Electrical Safety
EN 60950
• The connection of devices is limited to equipment that complies with EN60950 “Safety of information
technology equipment” or EN60065 “Audio, video and similar electronic apparatus. Safety requirements”
• For U.S. / Canadian purposes: The PC should only be connected to equipment which complies with UL
60950 / CAN CSA 22.2 No 60950
Safety of information technology equipment.
Important Additional Safety Instructions
When using any electronic equipment, basic safety precautions should always be taken. Following the guidelines
below can reduce the risk of fire, electric shock and injury to person:
• Do not use this product near water (e.g., near a bathtub, wash bowl, kitchen sink or laundry tub, in a wet
basement or near a swimming pool).
• Avoid using a telephone/modem (other than a cordless type) during an electrical storm. There may be a
remote risk of electric shock from lightning.
• Do not use the telephone/modem to report a gas leak in the vicinity of the leak.
• Use only the power cord indicated in this manual. Do not dispose of batteries in a fire. They may explode.
Check with local codes for possible special disposal instructions.
• Keep batteries away from children at all times.
FCC Compliance Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced technician for help.
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment. Shielded interface cables, if any, must be used in order to comply with the
emission limits.
4
English
Declaration of Conformity
According to 47CFR, Parts 2 and 15 for
Class B Personal Computers:
We: Medion Aktiengesellschaft____________
(Name of the Responsible Party)
Located at: Gänsemarkt 16 – 18_________________
D-45127 Essen_____________________
Germany__________________________
(Address, City, State, Zip Code)
Fax : 0 201 / 81 081 – 227____
(Facsimile Number for conformity issues only)
Declare under sole responsibility that the product identified herein, complies with 47CFR Parts 2 and 15 of the
FCC rules as a Class B digital device. Each product marketed, is identical to the representative unit tested and
found to be compliant with the standards. Records maintained continue to reflect the equipment being produced
can be expected to be within the variation accepted, due to quantity production and testing on a statistical basis
as required by 47CFR §2.909. Operation is subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) This device must accept any interference received, including interference that may
cause undesired operation. The above named party is responsible for ensuring that the equipment complies with
the standards of 47CFR §§15.101 to 15.109.
Trade Name: Medion
Type or Model Number: MD 31122
Party Responsible: MEDION AG
th
Executed on (Date), at (Place): 4
of May, 2008, Essen
Safety and Precautions
5
Start-Up
Note
Before start-up always read the Chapter "Safety and Precautions" on page 1ff.
Mounting the Monitor Stand
Mount the monitor stand as shown in the diagram. Perform this step before connecting the monitor.
(Ill.: Mounting the monitor stand)
Preparations on Your Computer
If you have operated your computer previously with a CRT monitor, it will be necessary for you to make a few
preparations. This is required when your previous monitor was operated with settings which are not supported by
your new TFT monitor.
Supported Monitor Settings
This TFT monitor supports the following modes:
Resolution Horizontal Frequency Vertical Frequency
720 x 400 31.47 KHz 70 Hz
640 x 480 31.47 KHz 60 Hz
640 x 480 37.86 KHz 72.8 Hz
640 x 480 37.5 KHz 75 Hz
800 x 600 37.88 KHz 60.3 Hz
800 x 600 48.08 KHz 72.2 Hz
800 x 600 46.87 KHz 75 Hz
1024 x 768 48.36 KHz 60 Hz
1024 x 768 56.48 KHz 70.1 Hz
1024 x 768 60.02 KHz 75 Hz
1280 x 1024 63.98 KHz 60.02 Hz
1280 x 1024 80.00 KHz 75 Hz
1440 x 900 55.47 KHz 59.90 Hz
1280 x 720 60.00 KHz 75 Hz
1680 x 1050* 64.67 KHz 60Hz
*recommended physical resolution
6
English
Loading...
