MAXDATA Notebook PRO 6000 I
User's Manual
UK
48
Contents
Note 51
Important Safety Information 55
Wireless LAN .................................................................................................................. 57
CE-labelling for units with wireless LAN ..................................................................... 59
France .........................................................................................................................
Italy .............................................................................................................................
Netherlands ................................................................................................................ 60
Shipping Contents 63
Preparation 65
Inserting the Battery ........................................................................................................ 66
Power Supply ...................................................................................................................
Power Management ........................................................................................................
System Overview 71
Left Side .......................................................................................................................... 71
Right Side ........................................................................................................................ 71
Rear View ........................................................................................................................
Underside ........................................................................................................................ 72
Explanation of LED Displays ............................................................................................
Hot Keys ...........................................................................................................................74
The TouchPad ....................................................................................................................
The CD-ROM/DVD Drive .................................................................................................
The Data/Fax Modem ......................................................................................................
60 60
UK
67
69
72
73
76
77
79
49MAXDATA Notebook PRO 6000 I
Installation Instructions 81
Restoring the Drivers ....................................................................................................... 81
Specifications 83
Fault Diagnosis and Troubleshooting 8
Index 8
7
9
50
Contents
Note
The company reserves the right to make unadvertised modifications to this document. Information contained in this document is intended solely for reference purposes and in no way constitutes a basis for asserting obligations on the part of the manufacturer or vendor. Neither the manufacturer nor the vendor accept liability for any errors or inaccuracies that this document may contain. Nor is liability accepted for damages or losses that arise from the incorrect application of this guide. No part of this document and the accompanying software may be copied, translated, or distributed without the prior permission of the dealer, manufacturer, or authors. Archive copies for private use are excepted from this rule. Brand or product names mentioned in this document may be names protected by copyright law or registered trademarks of other companies. These are mentioned only for identification pur poses and have no recommendatory character in regard to the product or manufacturer. © MAXDATA 2005
Legal Information
Acrobat and the Acrobat Logo are trademarks of Adobe Systems Incorporated or its sub­sidiaries. In certain jurisdictions these trademarks may be registered. Intel® and Pentium® are registered trademarks of Intel Corporation. MS-DOS®, Microsoft® Windows Microsoft® Windows® 2000, Microsoft® Windows® XP, and Microsoft® Windows® NT are registered trademarks of Microsoft.
Application and References
This user guide offers an introduction and is intended to provide instructions for your first steps with your new computer. All references refer to the accompanying device drivers and utilities CD-ROM, which contains the drivers and special utilities for your notebook. If you wish to use an operating system that is not mentioned in these documents, consult the ReadMe files on the CD-ROM for the relevant information. Please also consult your dealer to make sure that it is possible to run your chosen operating system on your notebook. The operating system is not contained on the device drivers and utilities CD-ROM. Note: Some or all system configurations may have been made already.
®
, Microsoft® Windows® 95, Microsoft® Windows® 98, Microsoft® Windows® Me,
-
UK
51MAXDATA Notebook PRO 6000 I
Declaration:
This device meets the EN 55022 product standard for interference emissions, the EN 50082-1 basic standard for interference, and the EN 60950 low voltage directive standard. If any modification that has not been agreed upon with the manufacturer is made to the device, adherence to these standards can no longer be guaranteed. To ensure electromagnetic compatibility (EMC), please observe the information given in the handbook.
Sound Power Level
The workplace-based sound power level is less than 55 dB A.
Federal Communications Commission (FCC) Note
This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
Warranty
The warranty period for the device is 36 months. In the case of damage occurring outside the scope of the warranty, it is the intention to offer repair of the devices through original replacement parts or exchange of modules or devices with cost for at least 5 years (from end of production).
Operator Note:
This device has been carefully RF suppressed and tested to avoid radio interference. How­ever, please pay attention to the following concerning external data cables: If it becomes necessary to replace a data cable specified by the manufacturer, the operator must ensure that replacement cables also match the original cable in terms of screening quality for correct radio interference suppression. Use only screened cables and external devices that are identical with this product in terms of safety level and EMC behavior. In the event of non-observance, compliance with the standards mentioned above is no longer guaranteed!
Optical Disk Drive (ODD):
Built-in ODDs are Class 1 laser products. Do not open the device and do not look into the beam, even using optical instruments. Unless the drive is expressly designated for the simultaneous use of more than one CD, never insert more than one CD into the drive.
52
Note
Returning the Device/Battery
We accept the return of all our products after they have been used if the condition corresponds to standard proper usage. Returned devices are ei­ther slated for further use or dismantled and recycled in an environmentally sound manner. The return is handled through your dealer.
Rechargeable and disposable batteries containing heavy metals should not be thrown in with household waste. They are accepted free of charge by manufacturers, dealers or their representatives for recycling or disposal. The outside packaging and all inner parts of the box can be disposed of as waste paper.
UK
53MAXDATA Notebook PRO 6000 I
54
Important Safety Information
Although the notebook is highly robust, it is not indestructible. To prevent damage from occurring, please pay attention to the following:
• Avoid exposing the notebook to strong shocks or vibrations.
• Keep it away from intense heat (radiators, direct
• Protect the notebook from electromagnetic interference. This will also prevent data loss.
• Don’t expose it to moisture. This is an electrical device!
• Be sure to use the correct power supply.
• Always use an approved power adapter.
The power adapter requires a fluctuation-free and uninterrupted power supply. If you have any questions, consult your local electricity supply company. The power adapter must be fitted with a grounded (earthed) plug. Never pull on the cable to unplug the power supply – always pull the plug itself. Disconnect the external power supply (power adapter or car adapter) before cleaning the computer.
• Notes on Using Batteries
sunlight).
UK
Only use batteries designed exclusively for use with this computer. Recharge batteries via the notebook. Do not attempt to repair faulty batteries yourself. En trust repairs to your dealer or qualified service person nel. Keep damaged batteries away from children and dis pose of them properly as soon as possible. Exercise caution in handling damaged batteries. Batteries may explode if exposed to fire or improperly handled or disposed of. The notebook is provided with a battery. The battery is recyclable. It is prohibited by law to dispose of the battery in ordinary household waste. If you have ques tions concerning proper disposal, consult your garbage collection service.
-
-
-
-
55MAXDATA Notebook PRO 6000 I
• Note on the System Clock Battery
Caution: There is a risk of explosion if batteries are replaced incorrectly. Replace the battery only with a battery recommended by the manufacturer or with a battery of the same type. Dispose of the battery accord ing to the manufacturer’s instructions.
• Servicing Do not service your computer yourself! You could invalidate your warranty rights and expose yourself and the device to the risk of electrical shock. If servicing is required, consult qualified service personnel. Disconnect the computer from the power supply.
If the following problems occur, consult qualified service personnel:
- Power adapter or power cable is damaged or frayed.
- Liquid has entered the computer.
- Despite operating it correctly, the computer is not func tioning properly.
- The computer has been dropped or damaged.
• Cleaning Never apply cleaning agents directly to the computer. Use only a soft, lint­free cloth. Never use volatile (petroleum distillates) or scouring cleaning agents.
-
-
56
Important Safety Information
Wireless LAN (wireless network - abbreviation = WLAN)
Your notebook may contain a Wireless LAN module (optional). This module allows you to set up a wireless-based network, and to connect with an existing wireless network. It works according to the IEEE802.11a+b+g standard.
WLAN technology allows users to set up wireless connections inside a local area (e.g. in a company or campus building, or in a public building such as an airport). WLANs can be used in temporary offices, in locations where it is not possible to set up extensive cable installations, or to extend an existing LAN so that users in different parts of a building can work at different times.
There are two different ways to operate a WLAN. In fixed WLANs, wireless stations (devices with radio network cards or external modems) set up connections with wireless access points, which act as bridges between the stations and the existing network backbone. In Peer-to-Peer (ad hoc) WLANs several users can set up a temporary network within a limited area such as a conference room, without using access points, and providing there is no need to use network resources.
In 1997 the IEEE confirmed the standard 802.11 for WLANs; this set a data transfer rate of 1 to 2 Mbit/s (Megabits per second). Under 802.11a+b+g, the new governing standard, the maximum data transfer rate is 54 Mbit/s over a frequency band of 2.4 or 5 GHz (Giga hertz).
UK
-
57MAXDATA Notebook PRO 6000 I
Additional safety notes for units with wireless LAN
A wireless LAN component is integrated into your Notebook. For this reason you must make sure that you comply with the following notes on safety:
• Switch off the Notebook when you are in an aircraft or while driving a car.
• If you are in a hospital, an operating room or close to an electronic medical system, switch off the wireless compo nents in the Notebook! The radio waves which are transmit­ted could disrupt the working of the medical equipment.
• Keep the Notebook at least 20 cm away from a heart pace maker, otherwise there is a risk that the radio waves could disrupt the normal working of the pacemaker.
• The radio waves which are transmitted could give rise to interference noise in hearing aids.
• When its radio components are switched on, do not place the Notebook close to inflammable gases or in an environ ment which could be at risk of explosion (e.g. paint shop), since the radio waves which are transmitted could set of a fire or an explosion.
• The range of the wireless connection depends on the envi ronmental and other ambient conditions.
• When transferring data over a wireless connection, unau thorized Third Parties can also receive the data.
-
-
-
-
-
MAXDATA Computer GmbH is not responsible for disruptions to radio or television reception which are caused by unauthorized alterations to this unit. MAXDATA also accepts no respon­sibility for the replacement or the exchange of connecting cables and units which were not specified by MAXDATA Computer GmbH. The user alone is responsible for the elimination of disruptions caused by this type of unauthorized alteration; he is also responsible for the replacement or the exchange of the units.
58
Important Safety Information
CE-labelling for units with wireless LAN
As delivered, this device complies with the requirements of the Guideline 1999/5/EG of the European Parliament and of the Council dated the 9. March 1999 concerning radio equipment and telecommunications facilities, and the mutual recognition of conformity. This notebook may be used in Belgium, Germany, France, Great Britain, Italy, Luxembourg, the Netherlands, Austria, Switzerland, Spain and Poland. Current information on any possible restrictions in its operation can be obtained from the appropriate authorities in each country. If your country is not included in the above list, then please contact the appropriate supervising authority, in order to check whether the use of this product is permitted in your country.
Belgium - www.bipt.be Denmark - www.tst.dk Germany - www.regtp.de Finland - www.ficora.fi France - www.art-telecom.fr Greece - www.eett.gr England - www.oftel.gov.uk Ireland - www.comreg.ie Italy - www.agcom.it Luxembourg - www.etat.lu/ILT
Netherlands - www.opta.nl Austria - www.rtr.at Portugal - www.urt.gov.pt Sweden - www.pts.se Switzerland - www.bakom.ch Spain - www.cmt.es Iceland - www.pta.is Liechtenstein - www.ak.li Norway - www.npt.no
UK
59MAXDATA Notebook PRO 6000 I
Restrictions
France
Restricted frequency range: In France, you may only use channels 10 to 11 (2457 MHz or 2462 MHz). It is forbidden to use the unit outside of enclosed areas.
Info: www.art-telecom.fr
Italy
An official authorization is also required to use the unit in internal areas. For more detailed information about the necessary procedure to do this, please contact your provider. It is forbidden to use the unit outside of enclosed areas.
Info: www.agcom.it
Netherlands
A licence is required to use the unit in the open. For more detailed information about the procedure to be followed for this, please contact your provider.
Info: www.opta.nl
60
Important Safety Information
Radio frequencies for units with wireless LAN
The following information was correct at January 2002. You can obtain current information from the appropriate authorities in your country (e.g. www.regtp.de).
FREQUENCIES
Radio network cards and adapters are designed in accordance with IEEE-Standard
802.11b+g for use in the ISM frequency band (Industrial, Scientific, Medical) between 2.4 and 2.4835 GHz. Because of the DSSS-procedure (Direct Sequence Spread Spectrum), each of the 11 usable radio channels takes up a width of 22 MHz; this means that up to three, independent channels are available (e.g. 3, 8 and 11). The following table lists the authorised channels in your country:
Channel MHz Europe, R&TTE France, R&TTE
1 2412 X
2 2417 X
3 2422 X
4 2427 X
5 2432 X
6 2437 X
7 2442 X
8 2447 X
9 2452 X
10 2457 X X
11 2462 X X
UK
In addition, the integrated radio network card supports the standard 802.11a. For more information regarding 5 GHz band frequencies authorized in your country, please contact your respective appropriate authority.
61MAXDATA Notebook PRO 6000 I
Legal requirements - exception clauses EXCEPTION CLAUSES FOR UNITS WITH WIRELESS LAN
The installation and use of an unit with Wireless LAN may only take place when in accordance with the instructions contained in the user documents. The user documents are included in the material supplied with the product. All alterations or modifications made to this unit which are not expressly authorised by the manufacturer may lead to cancellation of the right of the user to operate the unit. The manufacturer is not liable for radio disruptions during the reception of radio and television signals which are due to non-authorised alterations to the unit or to the exchange or connection of cables and accessories, where these are not in accordance with the recommendations of the manufacturer. It is the responsibility of the user to remove any interference which may arise as a result of any non-authorised alterations, or the addition or replacement of components. Neither the manufacturer nor his authorised dealer and wholesaler are liable for damages or breaches of legal regulations which result from an infringement of these guidelines.
62
Important Safety Information
Shipping Contents
Before you begin installing your notebook, make sure that all components are present. If any item listed in the shipping contents is missing from your computer package, please contact your dealer immediately.
• Notebook
• Battery
• Utility CD
• Power adapter
• Power cable
• User guide
• DVD-ROM drive or DVD/CD-RW combo or DVD Dual+/-RW drive
• Modem cable
Please retain the original packaging in case you need to send the device for repairs or up grades. Please store the packaging safely.
-
UK
63MAXDATA Notebook PRO 6000 I
64
Preparation
Before first using the computer, make sure you are familiar with the individual components of your system. Slide the release catch (1) to the right and open the display (2).

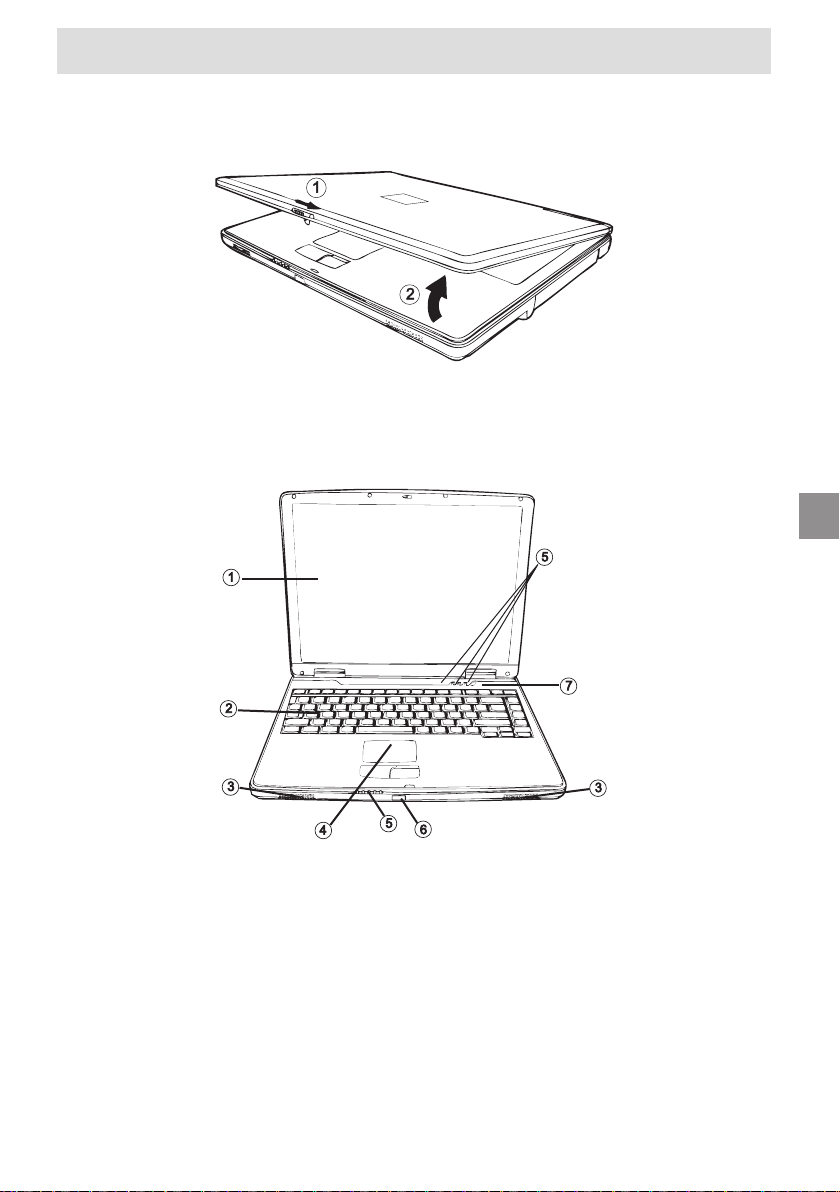

Fig. 1
(1) Release catch
(2) Open the display
UK
Fig. 2
(1) LCD display
(2) Keyboard
(3) Loudspeakers
(4) TouchPad
(5) Status LEDs
(6) Fast IrDA
(7) Power button
65MAXDATA Notebook PRO 6000 I
Inserting the Battery
The battery is included in the notebook’s shipping contents. This battery is only partially charged. Note that the charging time for the battery is three hours if the computer is switched off, or four to six hours if the computer is switched on.
It is absolutely essen­tial to fully charge the battery for initial op
­eration! Do not unplug the power adapter until the battery is fully charged.

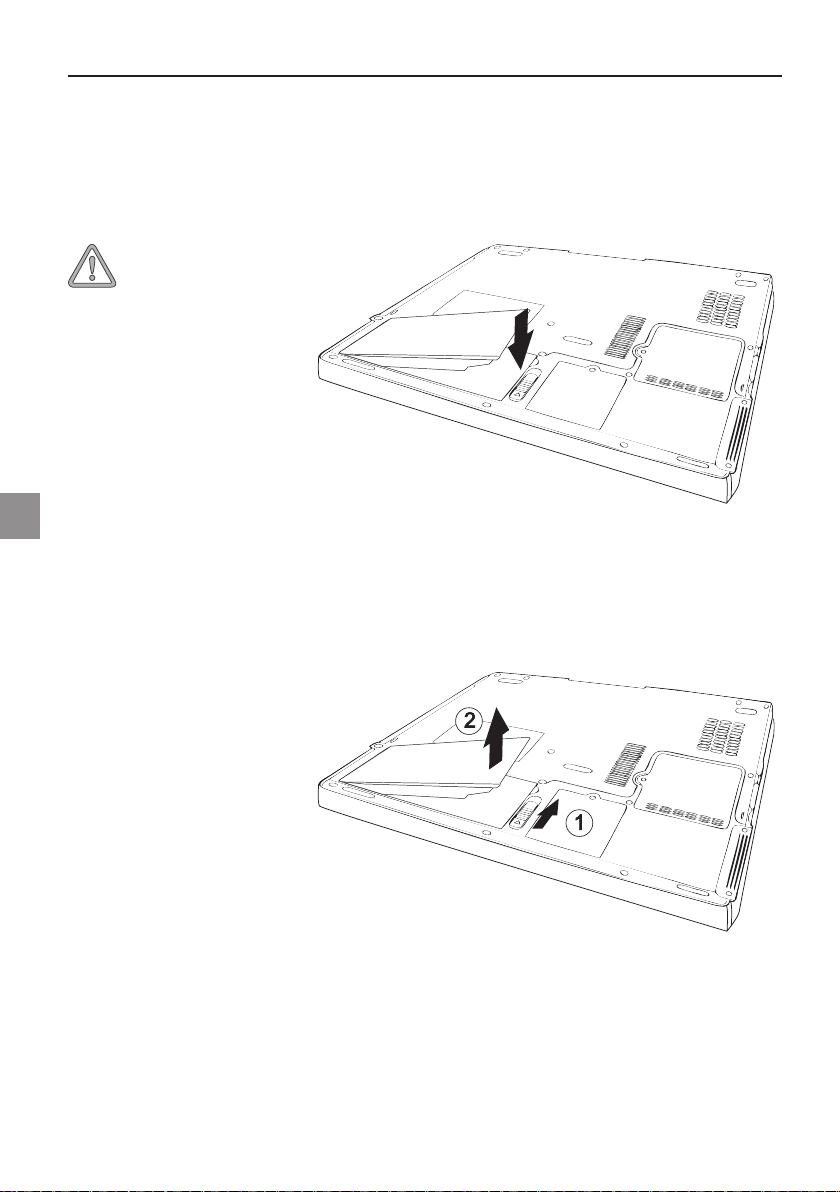

Fig. 3
Insert the battery into the battery slot in the direction of the arrow. Gently push the battery until it locks into place.
Removing the Battery
Fig. 4
Slide the release catch (1) backwards. The battery is released. Lift the battery out of the battery slot (2). You can now run the notebook with the power adapter alone!
66
Preparation
Power Supply

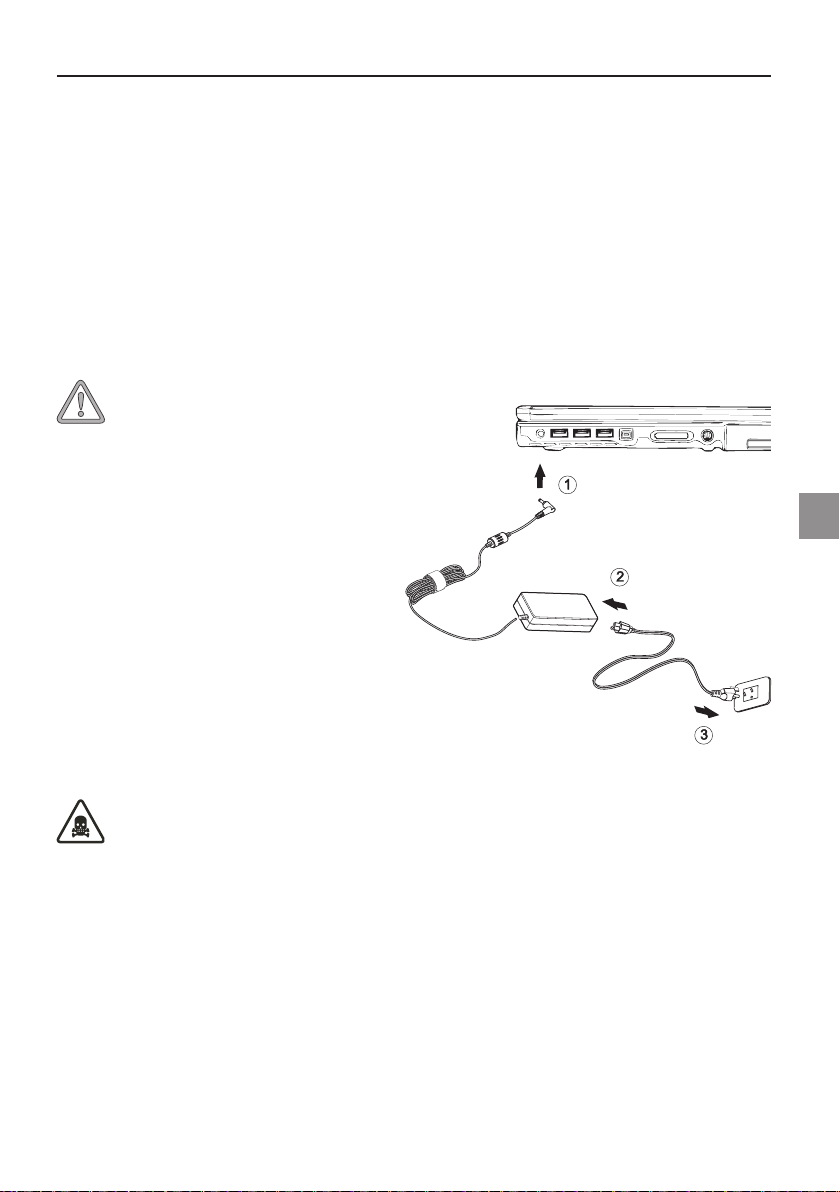

The notebook is supplied with a power cable and a universal, self-adjusting power adapter. The power adapter can operate with any constant voltage between 100 and 240 volts.
To use the power adapter:
1. Connect the power adapter to the DC IN socket on the computer.
2. Connect the power cable to the power adapter.
3. Connect the power cable to a power outlet.
You can choose to run the notebook via batte­ry or power supply. The first time you use the computer, you need to use the power adapter. Use only the supplied power adap­ter. Using the wrong power adapter can cause damage to the computer. The power adapter contains no serviceab­le parts.
UK
NEVER OPEN THE POWER ADAPTER!
DANGER OF DEATH!
67MAXDATA Notebook PRO 6000 I
Switching the notebook on
You’ve now completed the preparations. Now press the on/off button to switch on the notebook.
Tip: If you experience a program or system crash, press the keys: Ctrl + Alt + Del at the same time. If you’re fortunate this will enable you to end only the task that has crashed and/or restart the computer (warm start). If this does not work, hold down the on/off button for more than four seconds – this will switch off the computer. You can now start up the computer as normal (cold start).
Please note that with Microsoft
®
Windows
®
operating systems you should always switch off the computer as follows:
Click the Start button.
Select Shut Down.
Click OK.
This avoids any prob
­lems with the hard disk and operating system.
Once the computer is switched on, the on/off button can per­form several functions depending on the energy settings. In the standard setting, pressing the on/off button again will switch off the computer.

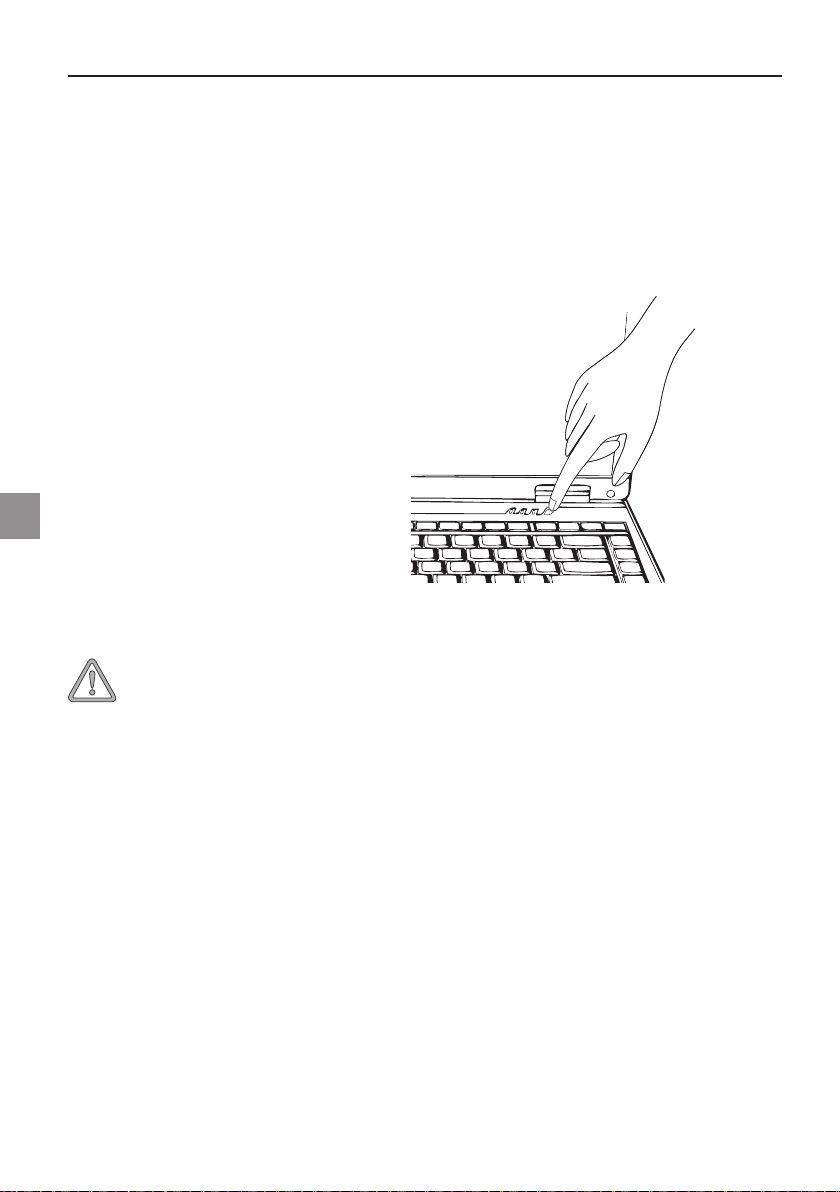

Fig. 5
The operating system is installed the first time you switch on the computer. Please follow the operating system’s installa­tion instructions here. After installation and restarting, the computer is ready to use. The basic graphics functions allow you to modify the resolu­tion, the color depth and the desktop appearance.
You can find more detailed information on this point in the installation instructions.
68
Preparation
Power Management
Your system is compatible with the ACPI power saving system. The basic power management settings can be found under the following in Windows ope rating systems: <Settings> <Power Options>. If you have questions, use the Windows Help function.
Here you can set the behavior separately for various battery charge levels.
Standby: – low
The display is dimmed and the hard disk remains unchanged. The power LED flashes. By pressing the on/off button, the computer returns to the normal operating state. The user must log on again.
Sleep: – without power adapter no energy consumption –
The current operating state is saved to the hard disk; the computer is switched off. All open documents or applications become available again when the computer is switched on.
Switching off the notebook and disconnecting it from the power supply (pulling the plug of the power adapter) can prevent any energy consumption.
• Note on PC cards:
energy consumption –
Never remove a PC card while the system is in save-to­disk mode. This would deactivate the slot and problems could arise from a modified system configuration the next time you start up the computer.
-
UK
69MAXDATA Notebook PRO 6000 I
70
System Overview
Left Side
Right Side

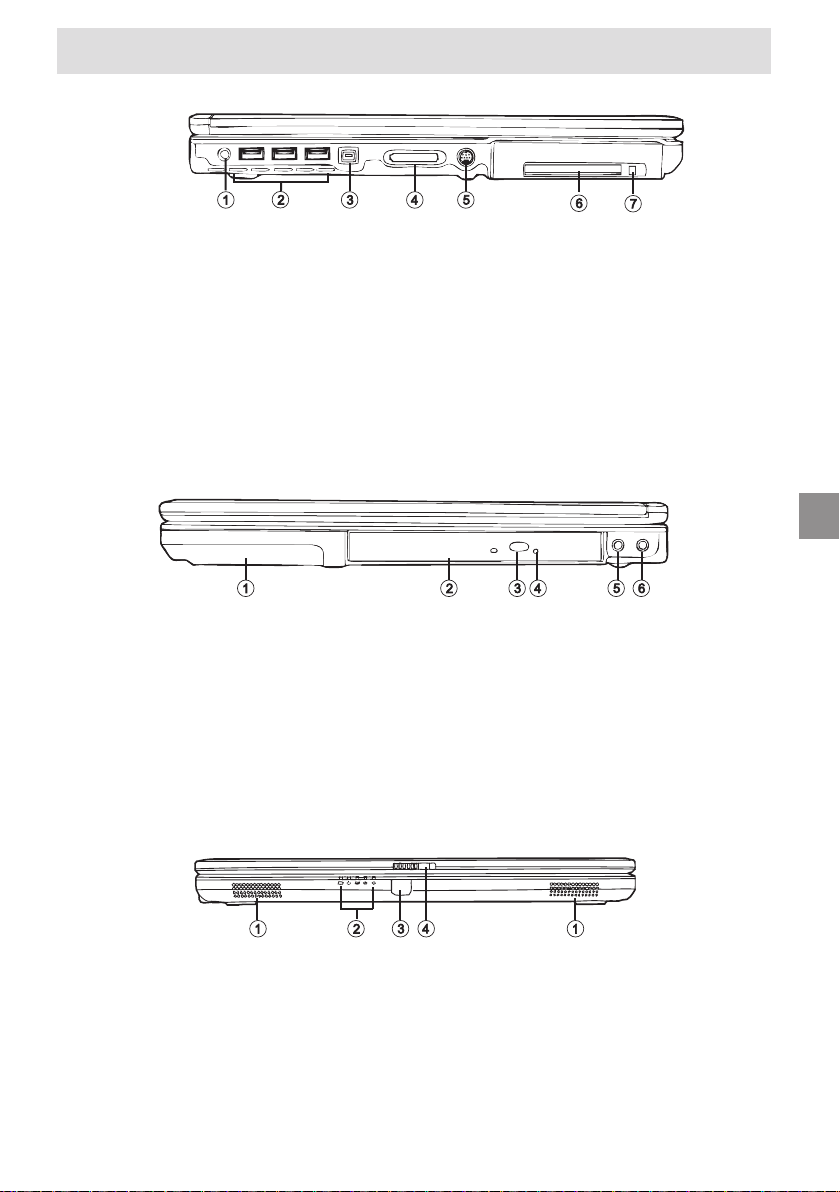

Fig. 6
(1) Power adapter socket
(2) USB ports
(3) IEEE 1394 port
(4) Memory card slot
(5) S-Video TV output
(6) PC card slot
(7) PC card release catch
UK
Fig. 7
Front View
(1) Lithium ion battery
(2) Optical drive
(3) Eject button for optical drive
(4) Emergency release for optical drive (only if
notebook is switched off)
(5) Microphone socket (mono)
(6) Loudspeaker/headphones socket
Fig. 8
(1) Loudspeakers
(2) Status LEDs
(3) Infrared sender/receiver (Fast IrDA)
(4) Display release
71MAXDATA Notebook PRO 6000 I
Rear View
All air intake and ventilation openings must be kept free from obstructions at all times. If not, the device is liable to overheat.
Underside
All air intake and ventilation openings must be kept free from obstructions at all times. If not, the device is liable to overheat.
Fig. 9
(1) USB port
(2) Network port
(3) Modem port
(4) Connector for external monitor
(5) Kensington Lock – anti-theft device
Fig. 10
(1) Type plate
(2) Memory cover
(3) Battery slot
(4) Wireless LAN cover
72
System Overview
Explanation of LED Displays

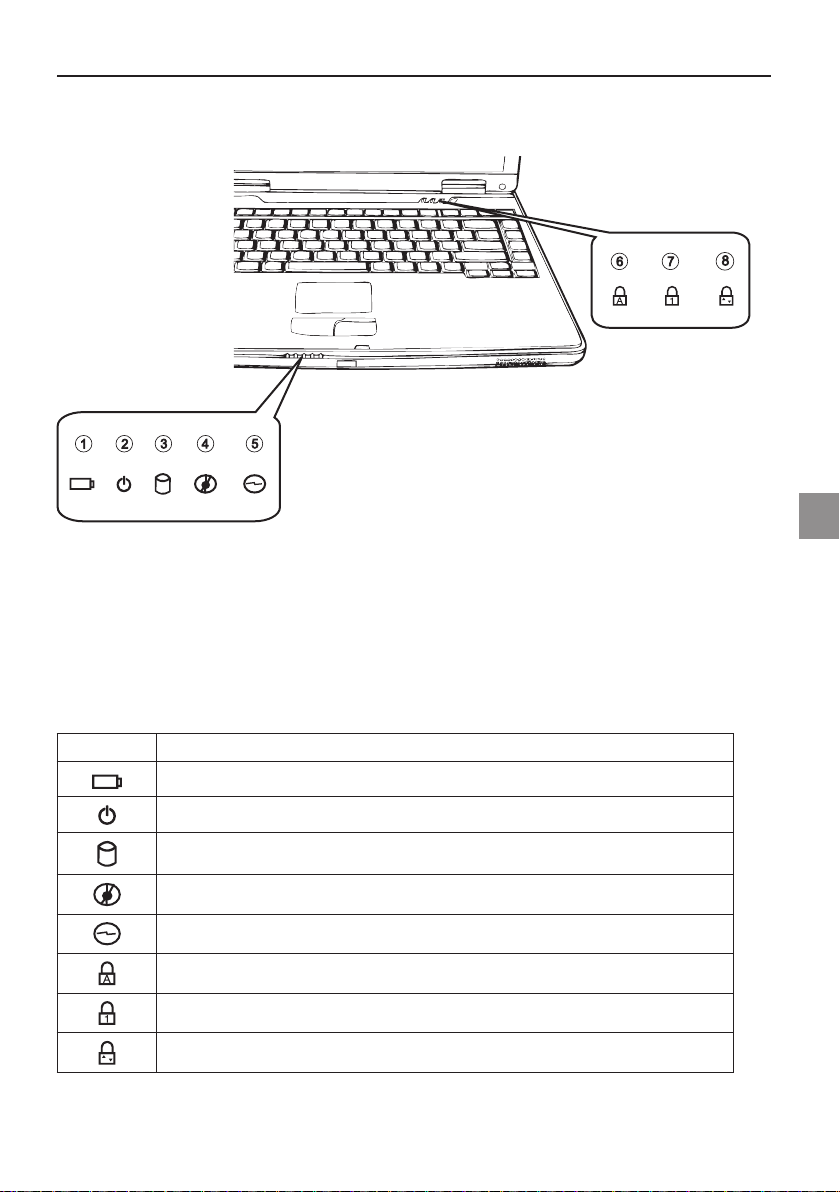

Fig. 11
I
+
Table 1
Symbol Meaning
I
Lights when the battery is charging or ready for use.
+
Lights when the computer is switched on. Flashes in power saving mode.
Lights when the hard disk is being accessed.
Lights when optical disk is accessed.
Lights when the wireless LAN is activated.
Lights when Caps Lock is on.
Lights when Num Lock is on.
Lights when Scroll Lock is on.
(1) Battery
(2) Power
(3) Hard disk access
(4) ODD access
(5) Wireless LAN
(6) Caps Lock
(7) Num Lock
(8) Scroll Lock
UK
73MAXDATA Notebook PRO 6000 I
Hot Keys
(Shortcut key combinations with special functions)
To activate the hot keys, press and hold down the Fn key and then press the desired ad ditional key.
Table 2
Keys Meaning
Fn + F1 Switches to power saving mode
Fn + F2 Switches the wireless network (WLAN) on/off
Fn + F3 Switches between LCD display/monitor/both
Fn + F4 Reduces LCD brightness
Fn + F5 Increases LCD brightness
Fn + F6 Switches the loudspeaker on/off
Fn + F7 Reduces the volume
Fn + F8 Increases the volume
Fn + F9 Switches between Playback and Pause with the Microsoft® Windows®
Media Player
Fn + F10 Stops the Microsoft® Windows® Media Player playback
Fn + F11 Switches to the previous track (Media Player)
Fn + F12 Switches to the next track (Media Player)
Fn + Esc Activates/deactivates the optional Bluetooth module.
-
74
System Overview
The Keyboard
Z
Z
Your notebook’s keyboard has all the functions of a normal AT-compatible keyboard plus some extras:
Typewriter
These keys correspond to a typewriter’s keys.
Function keys
In many operating systems (and applications), special functions are available via these keys. You can find more detailed information on this in the relevant handbooks.
Special keys
These keys (and key combinations) are used for controlling various hardware functions.
UK
Fig. 12
(1) Function keys – For the functions, see Table 2 – Hot Keys
(2) Fn key
(3)
Microsoft
®
Windows® key (position may vary for different layouts)
(4) Numerical keypad (press Num Lock key to activate this keypad – see Fig. 11)
(5)
Microsoft
®
Windows® key (position may vary for different layouts)
(6) Arrow keys
75MAXDATA Notebook PRO 6000 I
The TouchPad
The system automatically sets up the integrated TouchPad. If you are using Microsoft Windows®, no driver needs to be installed for the basic functions. If you wish to use the advanced functions, you can find the driver to activate the function on the Utility CD. To do this, please follow the instructions in the “Installation Instructions” section.
(1) Sensor field
(2) Left “mouse” button
(3) Right “mouse” button
Note for left-handed users: most operating systems enable reversal of the mouse buttons.
Fig. 13
The TouchPad - Operation
®
(1) Select
(2) Select, move and release (Drag & Drop)
(3) Double-click to run/open files
When using the TouchPad, make sure it as well as your finger are clean and dry. The TouchPad reacts to finger movements. The lighter it is touched, the better it reacts. Pressing hard will not increase its accuracy.
76
System Overview
The CD-ROM/DVD Drive
To insert a CD, press the eject button on the front side of the drive.
Fig. 1
4
Fig. 15
Place a CD onto the spindle with the label side facing up and push it gently down onto the spindle. Push the CD tray back in until it locks into place. The CD is now ready to read. Some CDs have an autostart function. This means that installation programs or music CDs automatically run after you place them in the drive.
UK
77MAXDATA Notebook PRO 6000 I

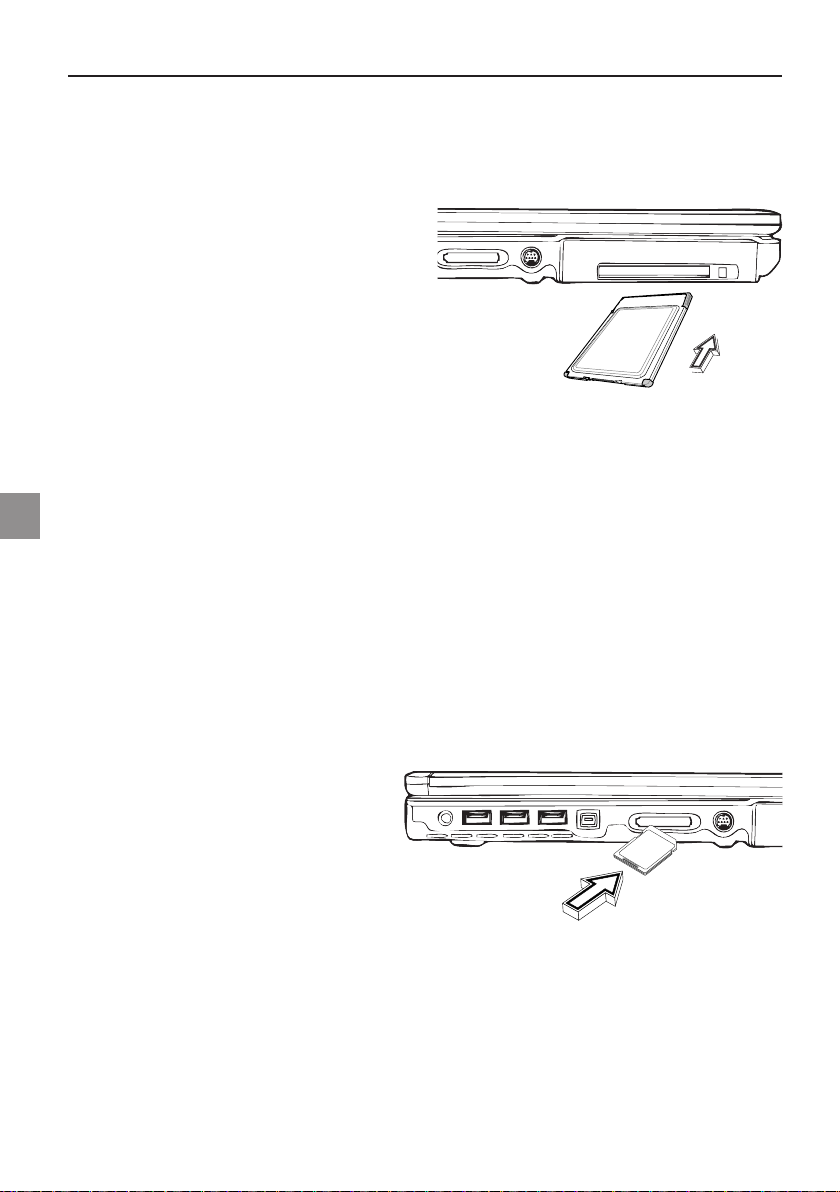

The PC Card Slot
The computer is provided with a PC card slot. This is a PCMCIA 3.3 V/5 V slot, Type II. To insert a PC card, push it into the slot until it locks into place.
Set the connection you require (e.g. network connection). You can also consult the documents for the relevant card. To remove the card, push the eject button next to the slot. The button will pop outwards. Pressing the slot again releases the PC card.
Fig. 16
The Memory Card Slot
The computer is provided with a combination slot. This slot accepts Memory Sticks, MS Pro, SD (Secure Digital), and MMC (Multimedia card) cards. Insert these cards into the slot holding the printed side upwards. After the card is inserted correctly into place, it is recognized as an additional drive. The data on the card can then be accessed. To remove it, simply pull the card out. Never remove the card while data is being read from or written to the card! DO NOT use the “Safely Remove Hardware” function to remove the memory card! In this case always restart the system to reactivate the combo slot.
Fig. 17
78
System Overview

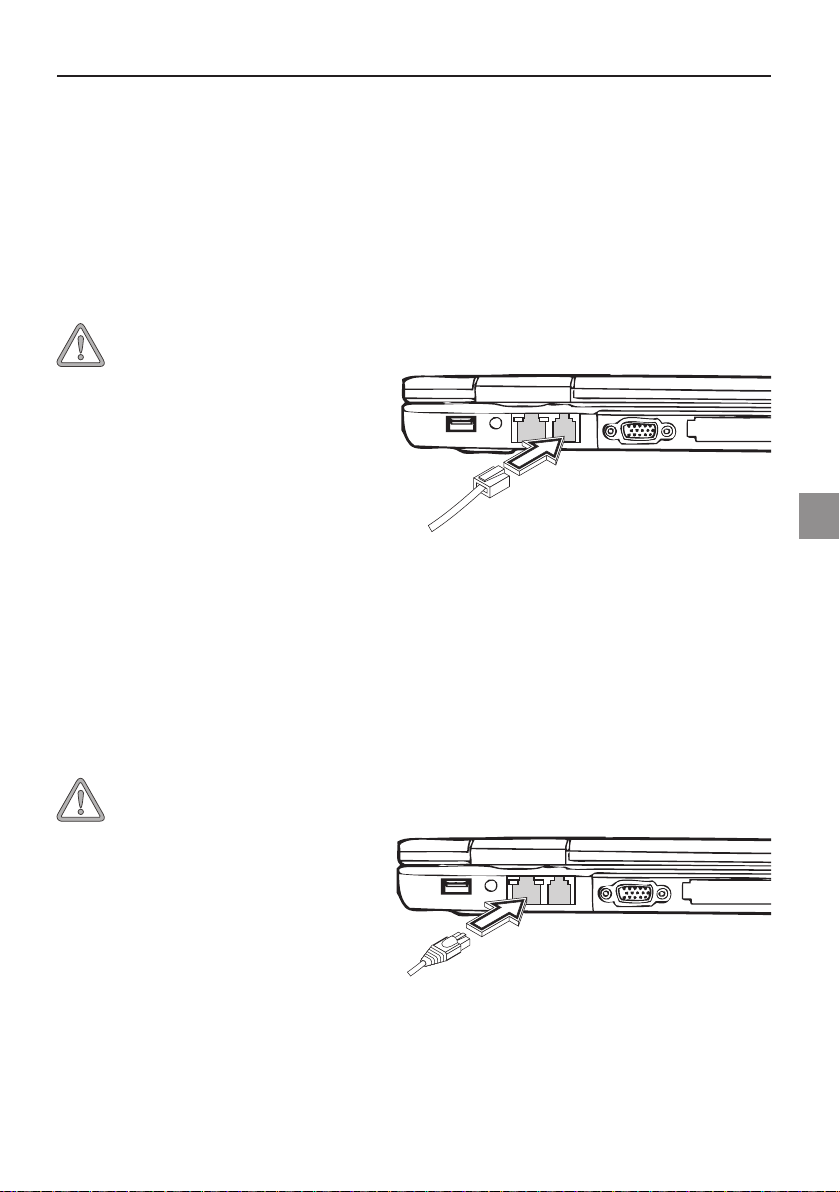

The Data/Fax Modem
The system automatically sets up the integrated analog modem. To use the modem func­tions, connect the modem socket to an analog telephone socket (not ISDN) using the telephone cable. Proper use: The modem can be connected to all analog sockets in Europe. It is to be used solely for data communication purposes.
Do not attempt to connect the modem to an ISDN telephone socket! This would re
­sult in serious damage to the device.
Fig. 18
The LAN Port
The built-in network adapter enables your computer to connect to the Internet via a 10/100/1000 Mbps network or DSL. The connection is made via an Ethernet network cable and RJ-45 connectors. These are inserted on the back of the computer and into an available network hub or DSL socket.
UK
Under no circumstanc­es should you con­fuse a network cable RJ-45 connector with an ISDN connector! NEVER attempt to con nect the LAN adapter to an ISDN telephone socket! This would result in serious damage to the device.
-
Fig. 19
79MAXDATA Notebook PRO 6000 I
80
Installation Instructions
Restoring the Drivers
Your system is supplied in a preloaded condition. This means that all the data and drivers that the system requires are already on the hard disk. In case you erase and/or format your hard disk drive, the system drivers are stored on the Utility CD supplied with the computer. After reinstalling the operating system (for example, with the Recovery CD), this allows you to restore your notebook to a usable condition.
The Utility CD
The Utility CD will run automatically after you place it in the drive. If this is not the case, you can run the CD as follows: select <My Computer”> <CD Drive> and then the “utility. exe” file. You can select the driver that you want to install in the “Drivers” section. Recommended: Install all listed drivers from top to bottom. In addition, you can later install the advanced functions you require in the “Utility” sec­tion. When using the Utility CD, please follow the menu instructions.
Setting the Resolution
After installation of the graphics driver, you can set the resolution to the desired size (e.g. 1024 × 768). You do this in the following way: Right-click on any free area of the desktop. Select <Properties>. In the Display Properties window, click the Settings tab. Here you can set the slider to a resolution you find comfortable. Click <Apply> to set the resolution.
UK
81MAXDATA Notebook PRO 6000 I
82
Specifications
Processor and Platform
• Intel® Centrino™ Mobile Technology: Intel® Pentium® M Processor 730 to 770
(1.60 to 2.13 GHz)
• Intel® Celeron® M Processor 320 to 370 (1.30 to 1.50 GHz)
• µFC-PGA package
• Intel® 915GM & ICH6-M
RAM
• Main memory expandable to 2 GB DDR SDRAM
(Only allow qualified service personnel to expand the main memory)
• Two DDR-450/533 SODIMM sockets
Display and Video
• 15” inch XGA TFT display.
Supported resolution: 1024 × 768 with up to 16.7 million colors
• Intel® 915GM with integrated graphics controller
• Shared memory technology
• Simultaneous LCD/external monitor
• External monitor:
Supports up to 1600 × 1200, 16.7 million colours
UK
Storage Capacity
• One E-IDE hard disk drive (2.5”, 9.5 mm)
• One internal optical drive
• One memory card slot
Audio
• AC ’97 compatible stereo sound with 3D sound effects
• Built-in stereo loudspeakers
Modem
• High-speed 56 Kbps V.90/92 fax/data software modem
83MAXDATA Notebook PRO 6000 I
LAN
• Gigabit Ethernet function for 10/100/1000 Mbit/s, built in
®
• Intel
Centrino™ 802.11a+b+g wireless network mini PCI module (optional)
Input Devices
• 86/87/88-key Microsoft® Windows® keyboard
• Ergonomically positioned TouchPad
Ports
• One 15-pin VGA port
• One TV-out port
• One headphone output socket
• One microphone input socket (mono)
• One infrared port (FIR)
• Four USB ports (v2.0)
• One standard telephone socket (RJ-11)
• One standard network port (RJ-45)
• One DC IN socket
• One IEEE1394 i.Link port
• One Type II PC card slot
• One port replicator connection
• Bluetooth (optional)
Power Supply
• Main battery Li-Ion 4800 mAh
• AC power adapter 100-240 V, AC 50-60 Hz, 90 W.
• Recharging System OFF: 3 hours (95 %)
System ON: 4–6 hours (95 %)
• Fully-supported ACPI Power Management, suspend to Disk, suspend to RAM
84
Specifications
Operating System
• O/S Microsoft® Windows® XP
Other Data
• Dimensions 270 (D) × 339 (W) × 34 (H) mm
• Weight 2.7 kg (depending on model)
• Operating temperature: 5 to 35 °C
• Operating humidity: 20 to 80 % RH
• Storage temperature: -10 to 65 °C
UK
85MAXDATA Notebook PRO 6000 I
86
Fault Diagnosis and Troubleshooting
If a problem occurs while working with your computer, first of all try using the following information to solve the problem. If the problem persists, switch off the system for several minutes and then restart it. You will lose all unsaved data, but the system may work properly again. Subsequently contact your dealer or customer support agent.
Despite pressing the power switch the computer remains switched off.
Possible cause of the problem:
• The battery is missing or is incorrectly installed.
Note:
• The power on LED is not lit.
Troubleshooting:
• Make sure that the battery is in the battery compartment and is inserted properly.
• Check that the battery terminals are making direct contact.
• Connect your notebook to the power adapter so that the battery (if present) can
recharge.
Possible cause of the problem:
• Battery level low.
Note:
• The battery display LED flashes.
Troubleshooting:
• Operate the computer using the power adapter. If the system does not immediately
start up, switch off the computer and then restart it.
The screen is not working.
Possible cause of the problem:
• The energy saving mode is activated.
Note:
• The suspend LED flashes.
Troubleshooting:
• Press the on/off button.
Possible cause of the problem:
• The screen settings are incorrect.
Troubleshooting:
• Press the spacebar, several times if necessary.
• If an external monitor is connected, switch it on.
UK
87MAXDATA Notebook PRO 6000 I
Possible cause of the problem:
• In the System Settings, a screen type other than the existing one has been set.
Troubleshooting:
• Press the Fn + F3 key combination.
• If an external monitor is connected, connect this to a power source and switch it on. Also check the brightness and contrast settings.
The system stops working.
Possible cause of the problem:
• An energy saving function has been activated.
Note:
• The screen switches itself off.
Troubleshooting:
• Press any key, or press the on/off button if none of the status LEDs are lit.
Possible cause of the problem:
• A software error has caused a system crash.
Troubleshooting:
• Additional information is available in the operating system handbook.
• If you cannot remedy the problem, restart the system. You will lose any unsaved data! If this doesn’t work either, briefly switch off the computer and then switch it back on again.
Each time the system starts, it carries out a self-test (POST). If an error occurs, an error message appears, briefly describing the problem.
88
Fault Diagnosis and Troubleshooting
Index
A
Accuracy ................................................. 76
ACPI power saving system .................... 69
Arrow keys ............................................. 75
B
Battery ............... 53, 56, 63, 66, 72, 73, 87
Battery or power supply ........................ 67
Battery slot ............................................
66
C
charging time ......................................... 66
Cleaning ........................................... 55, 56
Cold start ............................................... 68
Color depth ............................................ 68
Ctrl + Alt + Del ...................................... 68
D
Data/Fax Modem ................................... 79
Desktop appearance .............................. 68
Display .................................. 65, 74, 69, 87
E
Emergency release ................................ 71
Energy consumption .............................. 69
Energy settings ......................................
External monitor ............................... 87, 88
68
F
Finger movements .................................76
Fn key ............................................... 74, 75
Function keys ......................................... 75
K
Keyboard .......................................... 65, 75
Keys ........................................................ 74
L
LAN Port ................................................ 79
LCD display ....................................... 65, 74
Liquid ..................................................... 56
Loudspeakers ........................................
65
M
Modem socket ....................................... 79
Moisture ................................................
55
N
Network ................................ 57, 78, 79, 84
Network adapter ....................................
79
O
Operating state ...................................... 69
Operating system .............................
Original packaging .................................
68, 76
63
P
PC card .................................................. 78
Power adapter .......... 55, 66, 67, 69, 84, 87
Power button ......................................... 65
Power cable .....................................
Power supply ................................... 55, 56
56, 67
Q
Qualified service personnel ....... 55, 56, 83
UK
G
Garbage collection service .................... 55
Graphics gunctions, basic ...................... 68
H
Household waste ............................. 53, 55
I
Instructions ............................................ 68
ISDN connector ..................................... 79
R
Release catch ........................................ 65
Resolution ........................................ 68, 81
Restarting ..............................................
68
S
Shipping contents .................................. 63
Shocks/Vibrations ..................................
Standby ..................................................
Status LEDs ........................................... 65
55 69
89MAXDATA Notebook PRO 6000 I
Sunlight .................................................. 55
Switch on ............................................... 68
System crash .........................................
88
T
TouchPad ....................................65, 76, 84
Typewriter .............................................. 75
V
Voltage ............................................. 52, 67
W
Warm start ............................................. 68
Warranty ................................................ 52
90
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
